USER MANUAL KM6100 AEG

*Included in specic models.

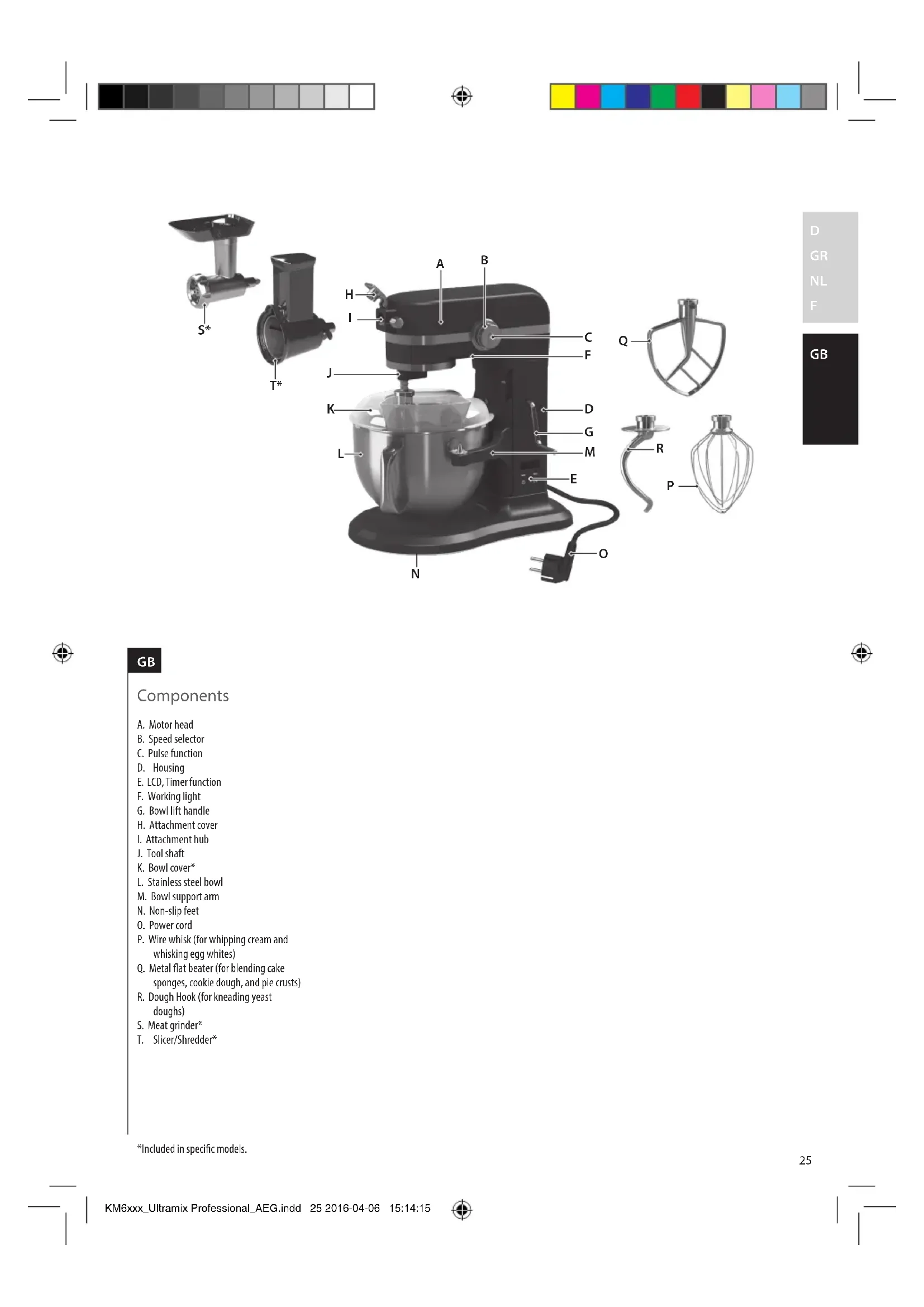

A. Motor head B. Speed selector C. Pulse function D. Housing E. LCD, Timer function F. Working light G. Bowl lift handle H. Attachment cover

J. Tool shaft K. Bowl cover* L. Stainless steel bowl M. Bowl support arm N. Non-slip feet O. Power cord P. Wire whisk (for whipping cream and whisking egg whites) Q. Metal at beater (for blending cake sponges, cookie dough, and pie crusts) R. Dough Hook (for kneading yeast doughs) S. Meat grinder* T. Slicer/Shredder*

Read the following instruction carefully before using the appliance for the rst time.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• Care shall be taken when handling the tools, emptying the bowl and during cleaning.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• The appliance may only be connected to a power supply whose voltage and frequency comply with the specications on the rating plate!

• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied person, in order to avoid hazard.

• Always place the appliance on a at, level surface.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not immerse the appliance, cord or plug in water or any other liquid.

• Do not let cord hang over edge of table or counter, do not let cord contact hot surface, including the stove.

• Do not use parts or accessories made by other manufacturers, that are not recommended by Electrolux. There could be a risk of injury to users, and may result in the void of warranty.

• Make sure the motor has completely stopped before disassembling and cleaning.

• Avoid contact with moving parts. Keep long hair, scarfs or similar away from the appliance. Contact could result in injury. Do not use other tools or utensils during the appliance usage.

• Do not leave this product out of your sight when it is running.

• Ensure all loose matters and your clothes/accessories are kept away while using this product.

• Never process boiling liquids (max 90°C).

• Do not use this appliance to stir paint. Danger, could result in an explosion!

• Never operate appliance with the attachments wire whip, at beater or dough hook unless the bowl is in place.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility.

• Switch o the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Before rst use Getting started

3. The housing should only be cleaned

with a soft damp cloth, then dried with a cloth. Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance.

1. Before using your appliance,

remove all packing material, plastic, labels, stickers or tags that may be attached to the motor base, bowls or attachments. Warning! Never immerse the housing, plug, or cord in water or any other uid. Caution! Switch o the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

2. The Wire whip, Meat grinder* and

Slicer/Shredder* should only be washed by hand in warm soapy water. The bowl, Flat beater and Dough hook are dishwasher-proof. *depending on model

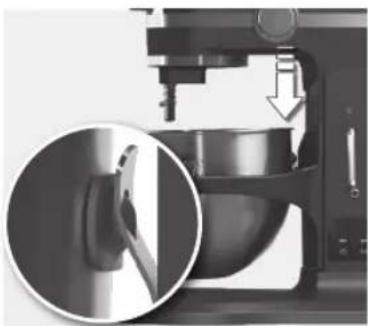

3. Position the bowl, using a slight

angle, onto the pins placed on the bowl support arms.

2. Move the bowl support arm down.

Turn the bowl lift handle clockwise until the bowl support arms are in position. Warning! Keep ngers and hands away from areas with movable parts.

1. Place the motor base on a dry, level,

stable, surface such as a countertop or table. Keep it away from the countertop edge. Be sure to leave plenty of room around air vents at the back of the appliance. Caution! Ensure that the power cord is unplugged. KM6xxx_Ultramix Professional_AEG.indd 27 2016-04-06 15:14:1728

6. Move the bowl support arms

upwards. Turn the bowl lift handle counter-clockwise until the bowl support arm locks into position.

5. Place an attachment on the

Attachment shaft: Align the slot at the top of the attachment with the pin on the Attachment shaft. Push attachment up and turn it counterclockwise until the pin is locked into position. To remove attachment, move it clockwise and pull o.

4. Firmly press down the back of bowl

until it locks into position. Warning! Never operate appliance with the attachments wire whip, at beater or dough hook unless the bowl is in place.

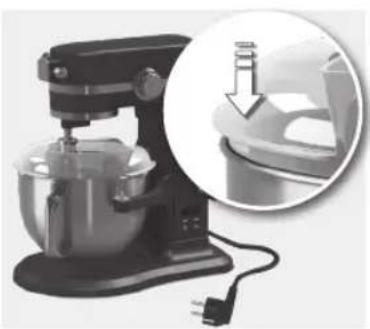

7. Place the bowl cover* on the bowl.

Gently push the cover down until it locks into place. Only add ingredients using the pouring hole on the bowl cover. *Included in specic models.

8. Move the Speed selector from “OFF”

to desired speed (1/P-10). Once mixing is complete, turn the Speed selector to “OFF” and unplug the appliance. The elapsed time of operation is shown on the LCD while the machine is working. When you turn the machine o the timer resets automatically. Note: Always start on the slowest possible speed to avoid splashing ingredients out of the bowl. KM6xxx_Ultramix Professional_AEG.indd 28 2016-04-06 15:14:1829

3. Setting the timer: Press the , and

the LCD starts ashing to indicate you have entered into set timer mode. Set the time you need by pressing the “MIN” (minute) and the “SEC” (second) buttons. Turn the speed selector to the desired speed and press the button.

1. Pulse function: If the machine is set

to speed 1/P, you can temporarily stop the machine by pressing the “PULSE” button on the speed selector. Pressing it again will start the machine for 1,5 seconds. If you press continuously the machine will work as long as you keep the button pressed.

2. You can also activate the pulse

function by pressing the or the on the LCD. The machine displays the time of operation on the LCD. 03:00

6. Note: If the Speed selector is already

turned on before the appliance is plugged in, both the blue Speed selector LED light and the Work light will ash OFF and ON to let you know the Speed selector has been left on. Turn the Speed selector to “OFF” and the lights will stop ashing. Then resume operating normally.

5. Work light and Power indicator

light: If the appliance is plugged in and a speed is selected, a blue LED lights up around the Speed selector. A work light will also light up over the working area. If the Speed selector is moved to “OFF”, the working light will automatically shut o after 3 min.

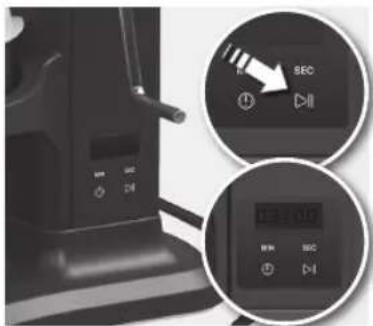

4. The machine starts and counts down

the elapsed time. You can pause the work by pressing button, continue by pressing it again. If no time is selected, the display will function as counter when the machine is switched on KM6xxx_Ultramix Professional_AEG.indd 29 2016-04-06 15:14:1930

Other functions Cleaning and care

7. Attachment hub: The appliance

comes with a built in multipurpose Attachment hub. Read and carefully follow the instructions that comes with each attachment for correct and safe use. Kindly see www.electrolux.com for more information.

8. Adjusting the tool shaft:

The appliance is adjusted at the factory so that the attachment clears the bottom of the bowl. If the attachment hits the bottom of the bowl or is too far away from the sides, you can adjust it correctly. See 9 for further instructions. Note: Make sure the attachment is as close to the bottom of the bowl as possible for best results.

9. Turn the Speed selector to “OFF”

and unplug the appliance. Move the bowl support arms down. Use a slotted point Head screwdriver to adjust the screw. Turn counter clockwise to raise the Attachment shaft, turn clockwise to lower it. If wrongly adjusted you may not be able to lock the bowl when lifted.

1. Switch the appliance o, remove

the plug from the wall socket and wait until the tools have stopped completely. Warning! Never immerse the housing, plug, or cord in water or any other uid.

3. The housing should only be cleaned

with a soft damp cloth, then dried with a cloth. Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance.

2. The Wire whip, Meat grinder* and

Slicer/Shredder* should only be washed by hand in warm soapy water. The bowl, Flat beater and Dough hook are dishwasher-proof. *depending on model KM6xxx_Ultramix Professional_AEG.indd 30 2016-04-06 15:14:2031

Recipes Whisking function quanitities and Processing Times Ingredients Quantity Unit Time Speed Cream 100-900 g 60-120 8-10 Egg-white 50-730 (1-14) g/pcs 60-120 8-10 Beating function quantities and Processing Times (mixing light dough (e.g: cake dough)) Recipe Ingredients Quantity Unit Time Speed Cake sponge Flour 360 g 200-230 s Medium setting (4-6 setting) Margarine 135 g Sugar 150 g Baking powder 1 tsp Chocolate cake Flour 480 g 300-360 s Medium setting (4-6 setting) Egg 200/4 g/pcs Butter 180 g Sugar 150 g Vanilla Sugar 2 tsp Sour cream 100 g Nougat raw mixture 100 g Baking soda 3 tsp Method The butter should be soft not hard. Stir the soft butter with sugar until creamy. Add the eggs one after another. While stirring, add the sour cream and vanilla sugar. Finally stir in the our together with baking soda. Butter Cake Flour 120 g 60-90 s Medium setting (4-6setting) Butter 36 g Sugar 36

Baking powder 1 tsp Method Place all ingredients in the bowl, and mix them, till it is ready. Hooks function quantities and Processing Times Recipe Ingredients Quantity Unit Time Speed Yeast dough (bread)min. Quantities our 252 g At least 120 s Low setting (1-3 setting) water 240 g Sugar 2 tsp Margarine 1 tbs Salt 1 tsp Dry Yeast 2 tsp Method Place all the ingredients into the bowl and knead until satisfactory. Yeast dough (Pizza dough) max quantities Wheat our 960 g At least 120 s Low setting (1-3 setting) Water 400 g Oil 93 g Salt 3 tsp Sugar 2 tsp Dry Yeast 1 tbs Method

1. Place yeast, sugar and warm water in the bowl of the machine, and let it stand until creamy.

2. Add our, salt and oil to the mixture.

3. Mix at speed 1/P.

4. When the dough is formed homogeneously, increase speed to speed 3.

5. The dough is ready when it does not stick to the side of the bowl, neither to the tool.

6. Spread the dough with a rolling pin to the desired thickness on a lightly oured surface.

7. Place the dough in a lightly greased pan and spread with toppings.

Disposal Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent pos- sible harm to the environment or hu- man health from uncontrolled waste disposal, recycle it responsibly to pro- mote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Troubleshooting Troubleshooting Problem Possible cause Solution The motor slows down during operation. Amount of dough may exceed maximum capacity. Remove half and process in two batches. Dough may be too wet, it sticks onto the side of the bowl. Add more our, 1 tablespoon at a time until the motor speeds up. Process until dough cleans the side of the bowl. The motor does not work. The appliance is not connected to the mains. Make sure to plug in the appliance before operation. The appliance vibrates/ moves during operation. The rubber feet are wet. Make sure the rubber feet at the bottom of the unit are clean and dry. Too high setting on the speed selector. Lower the speed setting. It is normal for heavy loads (e.g heavy dough, cheese). Remove half and process in two batches. The attachment scrapes the Stainless steel bowl during operation. The height of the attachment shaft is incor- rect. Adjust the height of the attachment shaft. The Work light and Power indicator light ashes on and o. The Speed selector has been left turned on. Turn the Speed selector to “Arrest”. Recipes Hooks function quantities and Processing Times Recipe Ingredients Quantity Unit Time Speed Soft dough Flour 2,0 kg 180-240 s Low setting (speed 1 for 30 sec, speed 3 until ready) Water 1430 g Salt 3 tsp Flex edge beater function quantities and processing times Recipe Ingredients Quantity Unit Time Speed Chocolate butter cream frosting Semi-sweet chocolate chips 250 g 200-300 s Medium setting (4 - 6 setting) Butter 117 g Confectioners’ sugar 432 g Milk 5 tbs Vanilla extract 1/2 tsp Method

1. Melt the chocolate and keep warm.

2. Add softened butter into the bowl and beat until the butter become creamy.

3. Add milk and sugar into the bowl and beat together with butter until the mixture become creamy and uy.

4. After that, put the melted chocolate into the bowl and mix with plastic beater to get a good mixture.
