| Product type | Professional crêpe maker |
| Brand | CombiSteel |
| Model | 7491.0040 (CR-E 40) |
| Dimensions (W x D x H) | 45 x 50 x 22 cm |
| Weight | 24 kg |
| Power supply | 230 V / 3 kW |
| Plate diameter | 40 cm |
| Temperature range | 50 °C to 300 °C |
| Plate material | Non-stick coating (Teflon) |
| Control type | On/off switch and thermostat |
| Indicator lights | Red light (power on) and green light (temperature reached) |
| Usage | Commercial use in professional kitchens |
| Preheat required | Yes, 15 min at 300 °C before first use |
| Cleaning | Wipe with a damp cloth after cooling; do not immerse or use water jet |
| Maintenance | Regularly check the power cord; have repairs done by a professional |
| Safety | Mandatory grounding; protection against hot surfaces; do not use if damaged |
| Included accessories | Crêpe spatula and spreader (not specified but typical) |
| Warranty | According to manufacturer's conditions; see CE declaration of conformity |
Frequently Asked Questions - 7491.0040 CombiSteel
User questions about 7491.0040 CombiSteel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Griddle in PDF format for free! Find your manual 7491.0040 - CombiSteel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 7491.0040 by CombiSteel.
USER MANUAL 7491.0040 CombiSteel

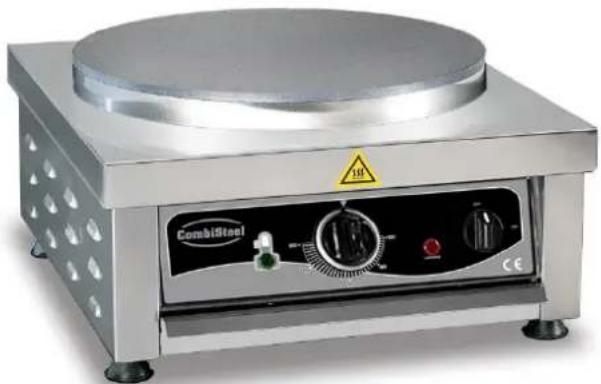

CombiSteel catering equipment
Crepe Maker 7491.0040 - 7491.0045
User Manual
Gebruikershandleiding
Gebrauchsanweisung
Le mode d'emploi
CONTENT
ENGLISH
General 4
Liability and Warranty. 4
Copyright 4
Declaration of conformity 4
Transport, Packaging and Storage 4
Safety and Usage Instrucons 5
Instrucons for use 5
Crepe Control. 6
Installaon and Connecon of the crepe maker 6
7
Cleaning and Maintenance 8
Disposal. 8
NEDERLANDS

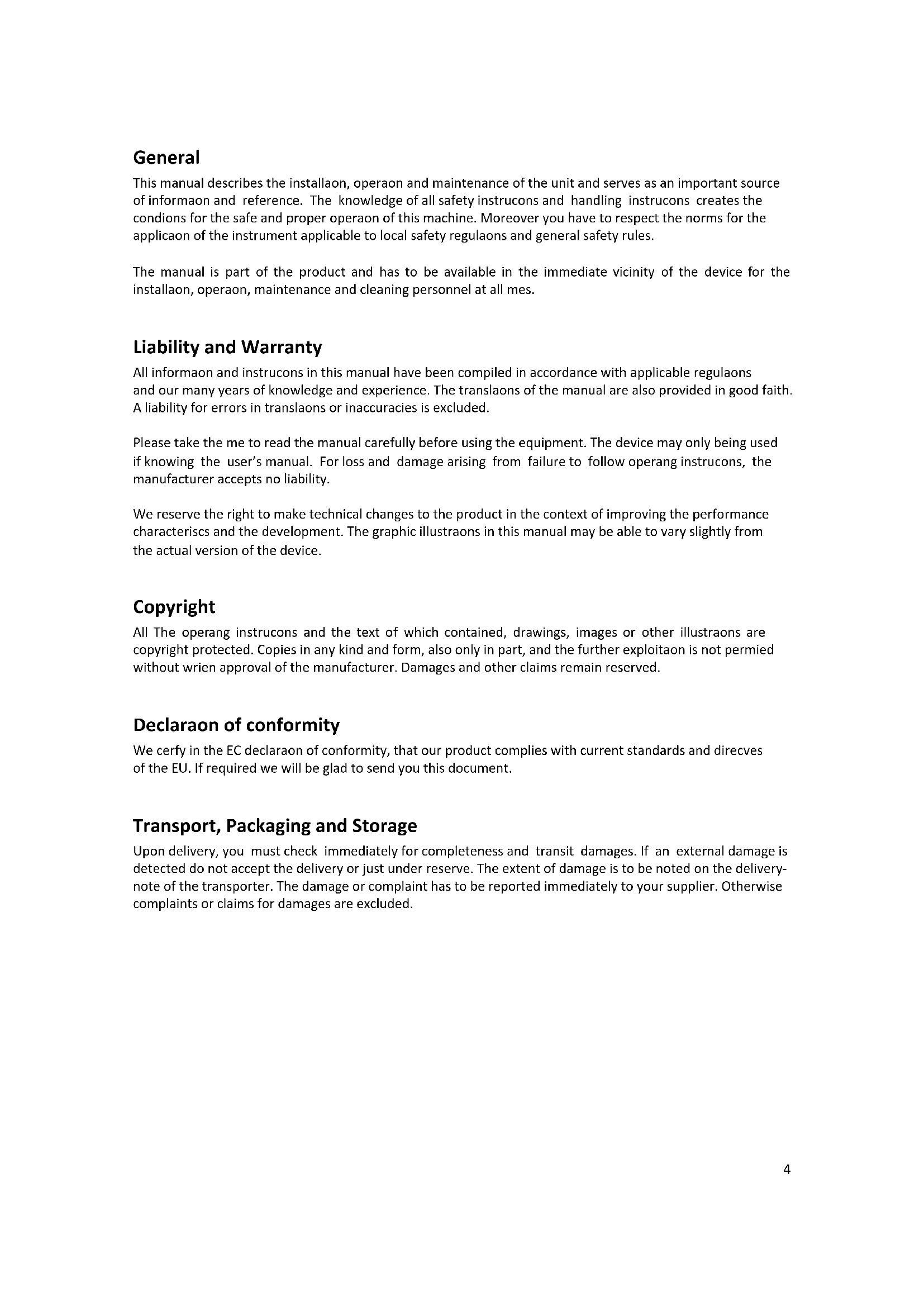

This manual describes the installaon, operon and maintenance of the unit and serves as an important source of informaon and reference. The knowledge of all safety instrucons and handling instrucons creates the conditions for the safe and proper operon of this machine. Moreover you have to respect the norms for the applicaon of the instrument applicable to local safety regulaons and general safety rules.
The manual is part of the product and has to be available in the immediate vicinity of the device for the installaon, operaoon, maintenance and cleaning personnel at all mes.
Liability and Warranty
All informaon and instrucons in this manual have been compiled in accordance with applicable regulaons and our many years of knowledge and experience. The translaons of the manual are also provided in good faith. A liability for errors in translaons or inaccuracies is excluded.
Please take the me to read the manual carefully before using the equipment. The device may only being used if knowing the user's manual. For loss and damage arising from failure to follow operang instrucons, the manufacturer accepts no liability.
We reserve the right to make technical changes to the product in the context of improving the performance characteristics and the development. The graphic illustrations in this manual may be able to vary slightly from the actual version of the device.
Copyright
All The operang instrucons and the text of which contained, drawings, images or other illustraons are copyright protected. Copies in any kind and form, also only in part, and the further exploitaon is not permied without wien approval of the manufacturer. Damages and other claims remain reserved.
Declarao n of conformity
We cerfy in the EC declaraon of conformity, that our product complies with current standards and direcves of the EU. If required we will be glad to send you this document.
Transport, Packaging and Storage
Upon delivery, you must check immediately for completeness and transit damages. If an external damage is detected do not accept the delivery or just under reserve. The extent of damage is to be noted on the delivery note of the transporter. The damage or complaint has to be reported immediately to your supplier. Otherwise complaints or claims for damages are excluded.
Safety and Usage Instrucons
The unit is built to the current rules of the art. Danger could be generated with this appliance, if used improperly or not according to specicaons. The knowledge of the contents of the manual is one of the requirements to protect you from danger, and to avoid mistakes and to operate the device safely and smoothly.
To avoid danger and to ensure the optimal performance, no modicaons or alteraons may be made which have not been specifically authorized by the manufacturer. The device may be operated in a technically awless and reliable condition.
The informaon on occupational safety is related to the current regulaons of the European Union valid at the me of manufacture of the device. The operator is required to determine the conformity of the designated safety measures with the current state of regulaons and comply with new regulaons during the enre life of the equipment. Outside the European Union the site of operaon applicable safety laws and local regulaons have to be respected.
In addition to the safety instrucons in this manual you must follow and comply on generally applicable safety and accident prevenon regulaons for the range of the instrument and the applicable environmental regulaons.
Instrucons for use
This unit is designed for commercial use. Designed, constructed and operated only by qualified personnel in professional kitchens. The reliability of the device is only guaranteed if used as specied in the manual. All technical procedures, including the erecon and maintenance shall be performed exclusively by a qualified service technician.
The crepe makers are intended only for crepe products.
This device is not determined to be used by individuals (including children) with reduced physical, sensory or mental abilities or lack of experience and / or knowledge, unless they are supervised by a person responsible for the safety or have received instrucons on how to use the device.
PLEASE NOTE:
Children should be supervised to ensure that they do not play with the device.
- Keep this instrucons carefully. If the device is passed to a third person, the manual must be handed over.
- All persons using the equipment must comply with the specicaons in the manual and follow the safety instrucons.
Only operate the machine in enclosed spaces.
Any use of the device beyond its intended use and / or otherwise is prohibited and is considered to be improper. Any claims against the manufacturer and / or its agents for damages resulting from improper use of the equipment are excluded. If not used properly the operator is liable for all damages alone.

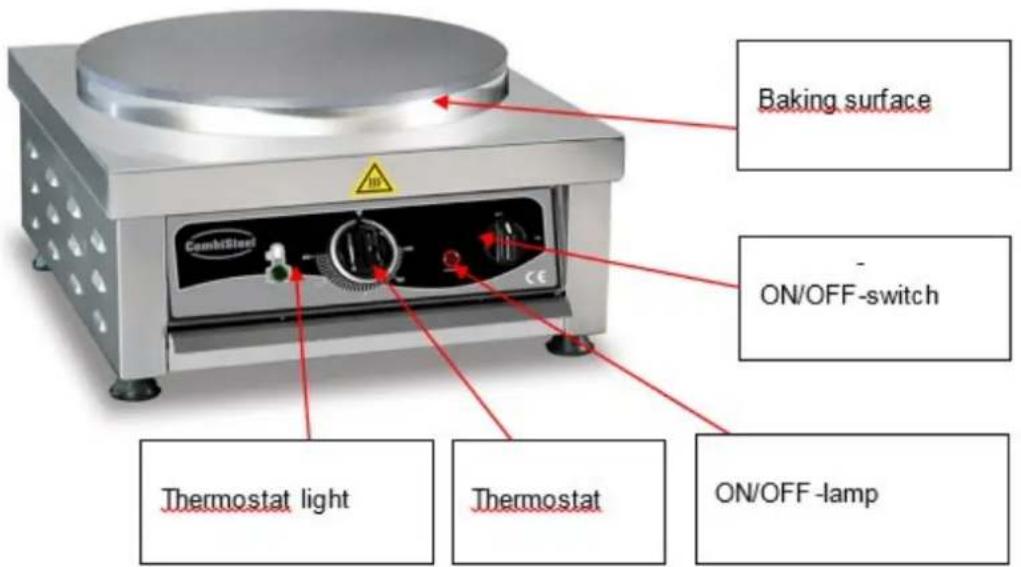

Crepe Control
The controls are described based on the crepe maker shown below. Please note that this model is selected only as an example to describe. For the specic model features of all crepe maker please refer to the model overview.
Back plate teon coated - do not scratch or scrape with metal objects!
Installaon and Connecon of the crêpe maker
Safety instrucons
WARNING! Electric Shock Hazard!
- The unit may be operated only from properly installed electrical outlets with a single touch!
- Device can cause injury if not correctly installed!
- Prior to installing the data of the local power grid must be compared with the technical specicaons of the device (the type plate)!
- Connect the device only in accordance!
- Do not unplug the device from the socket with the cord!
- The power cable must not come into contact with hot parts!
- Make sure that the cable is exposed to heat sources and not in contact with sharp edges! Do not let the cord hang down from the table or the bar!
WARNING! Hot Surface!
During the operaoon, some parts of the appliance become very hot. To avoid burns, do not touch the hot parts of the device!
- Do not use this appliance if it is not working properly, damaged or dropped to the ground.
- Do not use any accessories or spare parts that were not recommended by the manufacturer. This could pose a danger to the user or cause damage to the equipment and cause personal injury. In addition the warranty expires.
- Do not route cables over carpeng or other heat insulaon. Do not cover the cables. Keep the cables away from work areas and do not submerge in water.
- Do not pull the cord for moving the device. Before moving the unit always disconnect the power cord.
- Do not wrap the cord around the device and do not bend it.
- Protect the device from rain water, humidity and moisture.
- During operacon do not move and do not p over the device.
ATTENTION!
The installaon and maintenance of the equipment must be carried out only by qualified personal!
- Unpack the unit and remove all packing material. Peel o the protecve cover from the device. If adhesive residue remains, remove them with a suitable solvent.
- To handle the weight of the device place the unit on a at and safe place which is not heat sensitive.
- Do never place the device on a ammable surface (such as: table cloth, carpet, etc.) or in the vicinity of combustible and ammable materials.
- Do not place the unit near open res, heaters or other heat sources.
- Maintain a minimum distance of 20cm from all sides.
- Set the device so that the plug is accessible to disconnect the device quickly from the network if necessary.
Technical descripon:
| Mod. CR-E 40 7491.0040 | Mod. CR-D 240 7491.0045 | |
| Temperature | 50°C bis 300°C | |
| Power | 3 kW / 230V | 3 + kW / 230V |
| Plate diameter | 40cm | 40cm |
| Dim. outside | 45 x 50 x 22cm | 90 x 50 x 22cm |
| Weight | 24 kg | 44 kg |
Operon
Please follow the steps below before rst usage of your crépe maker:
- Before the rst use clean the baking plate with an into food fat soaked cloth to remove the industrial protecve-grease. Connect the equipment into a grounded single outlet. The unit must be grounded in a suciert manner.
- Turn on the unit by pressing the POWER-switch. The power indicator light (red) lights up.
- Pre-heat the device at 200^ and leave it on for about 1/2 hour. Then cool down the unit. Then heat up the device at 300^ and leave it on for about 1/2 hour to eliminate the producon residues. Then cool down the unit. Take the unit into operon.
WARNING! Risk of burns!
The unit will become very hot during operaon! Do not touch the hot surfaces of the device. Use the handle of the device.
Operaon aer pre-heang:
Preheat the device at the highest stage (300^) for about 15 minutes.
- Set the desired temperature. The temperature range of the crêpe-iron is at 50^ - 300^ .
The temperature indicator light (green) goes on.
- When the set temperature is reached, the temperature indicator light goes o. If the temperature on the baking plate is lit, the temperature indicator light goes on and the heang element heats up on the set temperature.
- Give the dough onto the baking plate and spread it with a baer spreader. Pay aenon to the dosage of the dough, otherwise the excess dough ows down at the sides.
- In order to spread the dough smoothly on the baking sheet, place the batter spreader always in slightly tempered water.
In order to turn the crêpes on the plate, use a suitable turner.
If you no longer use the device, disconnect the unit from the wall outlet.
For a new usage, please follow all the steps that are described under "operaon aer pre-heang"
Do not clean the device directly with a water jet! So not use a pressure water jet. Allow to cool, before cleaning the device!
Cleaning and Maintenance
Cleaning instrucons:
- Clean the machine every day.
- Disconnect the unit from the power supply (pull the plug!) and allow it to cool down before being cleaned.
- Remove the baking residue aer baking while sll hot with a paper towel or a damp, so cloth.
Clean it only dry or with a damp cloth. Make sure that no moisture, oil or grease will enter the unit.
To clean the body, do not use metallic or sharp objects.
Clean the exterior body with a so cloth and mild detergent every day.
Maintenance instrucons:
- From me to me check the power cable for damage. Never use a machine when the cable is damaged. If the cable is damaged, it must be replaced by customer service or a qualified electrician to avoid danger.
In case of damage or malfuncons, contact your dealer. - Maintenance and repairs must be performed only by qualified personnel using original spare parts and accessories. Never aempt to carry out repairs to the equipment itself.
Disposal
At the end of its life your old unit is to be disposed of according to naonal regulaons. It is advisable to contact a specialist disposal company. To exclude an abuse and the associated risks, please make sure that your old machine is unusable prior to disposal and poses no danger to others.
In case of malfuncon, please contact your dealer.
