USER MANUAL Archer T5E TP-LINK

Quick Installation Guide

WLAN Bluetooth PCI Express Adapter

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/

© 2023 TP-Link 7106510499 REV1.2.0

Images may differ from actual products.

CONTENTS

01 / Deutsch
04 / English
07 / Español
10 / Ελληνικά
13 / Français
16 / Italiano
19 / Português
22 / Suomi
25 / Nederlands
28 / Svenska
31 / Norsk
34 / Dansk

Bevor Sie anfangen:

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Deutsch

Diagram showing a computer tower connected to a wall-mounted device, with an inset magnified view highlighting the internal structure.

Diagram of a computer setup with an USB connector and connected components (no text or symbols)

Line drawing of a server rack with an attached cable (no text or symbols)

3 Treiber installieren

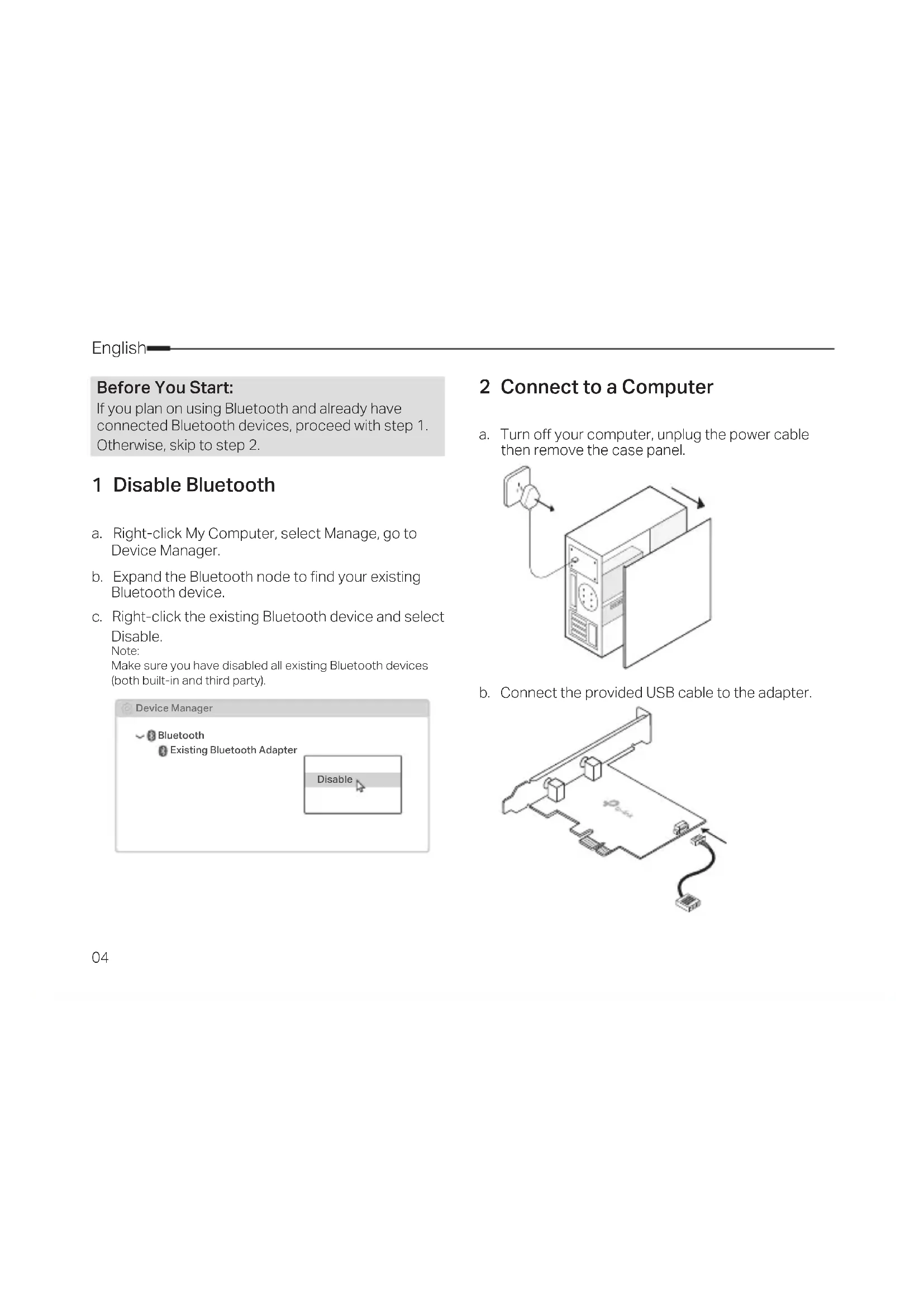

If you plan on using Bluetooth and already have connected Bluetooth devices, proceed with step 1. Otherwise, skip to step 2.

1 Disable Bluetooth

a. Right-click My Computer, select Manage, go to Device Manager.
b. Expand the Bluetooth node to find your existing Bluetooth device.
c. Right-click the existing Bluetooth device and select Disable.
Note:
Make sure you have disabled all existing Bluetooth devices (both built-in and third party).

Device Manager Bluetooth Existing Bluetooth Adapter Disable

2 Connect to a Computer

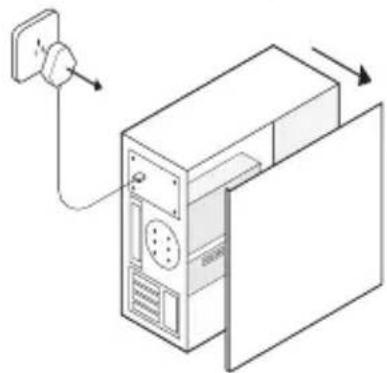

a. Turn off your computer, unplug the power cable then remove the case panel.

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

b. Connect the provided USB cable to the adapter.

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

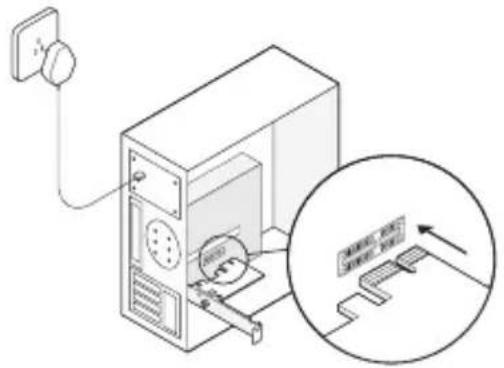

c. Locate an available PCIE X1 slot and carefully insert the adapter.

Note:

If the bracket is not suitable for your computer, detach it from the adapter's board and replace it with the low-profile bracket.

Diagram showing a computer tower connected to a wall-mounted device, with an inset magnified view highlighting the device's internal structure.

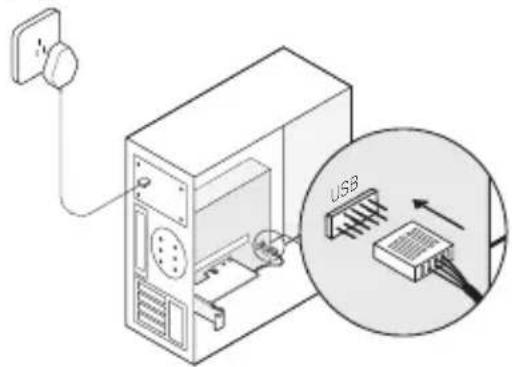

d. Locate an available F_USB connector and carefully plug the USB cable into it.

Diagram showing USB connection to a server rack with an attached cable, including a magnified inset highlighting the USB cable.

e. Connect the antenna(s) to the adapter. Note:

To maximize performance, make sure the path between the antenna(s) and your router is clear.

f. Replace the case panel, plug in the power cable and turn on your computer.

Line drawing of a desktop computer case with an attached power outlet (no text or symbols)

3 Install Drivers

a. Insert the CD and run the Autorun.exe. Note:

You can also check the new release and download the driver at https://www.tp-link.com/support/download/

b. Install the Wi-Fi and Bluetooth drivers.

- Wi-Fi: Click and follow the onscreen instructions to complete the Wi-Fi installation.

- Bluetooth: Click and follow the onscreen instructions to complete the Bluetooth installation.

English

4 Join a Wireless Network

a. Click the network icon (or) on the taskbar.
b. Select your Wi-Fi network, click Connect, and enter the password when prompted.

5 Pair With Bluetooth Devices

a. Right click the Bluetooth) icon on the taskbar. If it's not displayed, turn on Bluetooth in your PC settings first.

b. Select Add a Bluetooth Device or Add a Device to scan for available devices.
c. Select your Bluetooth device from the list and follow the onscreen instructions to complete pairing.

Note:

Make sure your device's Bluetooth is enabled and discoverable.

Antes de empezar:

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a cable, no text or symbols present

Español

Diagram of a desktop computer setup with an attached power outlet and a magnified inset showing a device with a scroll (no text or symbols present)

Diagram showing a computer setup with an attached power outlet and an inset view of an USB connector, likely illustrating a wireless or network connection.

e. Conecte la antena o antenas al adaptador.

Nota:

Line drawing of a desktop computer tower with an attached cable (no text or symbols)

3 Instalar los drivers

Isometric line drawing of a desktop computer tower with an outlet cable and power outlet (no text or symbols)

Pure technical diagram of a computer hardware component with no text or symbols

Diagram of a computer setup with an attached power outlet and a magnified inset showing internal components (no text or symbols)

Diagram showing a server rack connected to an AC input via a cable, with an inset close-up of USB connector and cable routing.

Line drawing of a server unit with an attached power outlet (no text or symbols)

Isometric line drawing of a desktop computer tower with an attached power outlet (no text or symbols)

Diagram of a computer motherboard with connectors and an AC input cable (no text or symbols)

Français

Diagram showing a desktop computer setup with an attached monitor and a magnified view of the device's screen interface.

Diagram showing USB connection to a computer tower with labeled USB port and cable routing

Line drawing of a server rack with an attached cable (no text or symbols)

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a cable, no text or symbols present

Diagram of a desktop computer setup with an attached power outlet and a magnified inset showing a device mounted on a table (no text or symbols present)

Diagram showing USB connection to a server rack with an attached cable, including a magnified inset highlighting the USB connector.

Line drawing of a desktop computer tower with an attached cable (no text or symbols)

https://www.tp-link.com/it/support/download/

Isometric line drawing of a desktop computer tower with an attached power outlet (no text or symbols)

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Português

Diagram showing a desktop computer setup with an attached power outlet and a magnified view of the device's internal components.

Diagram of a computer setup with an USB connector and connected components (no text or symbols)

e. Conecte a(s) antena(s) ao adaptador.

Nota:

Line drawing of a server cabinet with an attached power outlet (no text or symbols)

3 Instalar os Drivers

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Technical line drawing of a computer motherboard with connectors and a cable (no text or symbols)

Diagram showing a computer tower connected to a wall-mounted device, with an inset magnified view highlighting the device's internal structure.

Diagram of a server rack connected to an external power outlet, with an inset showing USB cable connection (no text or symbols present)

Line drawing of a desktop computer tower with an attached cable (no text or symbols)

3 Asenna ajurit

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a cable, no text or symbols present

Nederlands

Diagram showing a computer tower connected to a wall-mounted device, with an inset magnified view highlighting the device's internal structure.

Diagram of a computer setup with an attached power outlet and an inset showing USB cable connection (no text or symbols present)

Line drawing of a desktop computer case with an attached power outlet (no text or symbols)

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Isometric line drawing of a computer motherboard with connectors and a cable (no text or symbols)

Illustration of a desktop computer with an attached cable and a magnified inset showing a close-up of the device (no text or symbols present)

Diagram showing a device setup with an attached power outlet and an USB cable connector, illustrating the connection mechanism.

e. Anslut antennen/antennerna till adaptern.

OBS:

Line drawing of a desktop computer case with an attached power outlet (no text or symbols)

3 Installera drivrutinerna

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Norsk

Diagram of a computer setup with an attached power outlet and a magnified inset showing a device with a scroll (no text or symbols present)

Diagram showing a computer setup with an attached power outlet and an inset image of USB cable connection.

Line drawing of a server cabinet with an attached cable (no text or symbols)

3 Installer drivere

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

b. Forbind USB-kablet til adapteren.

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Diagram showing a desktop computer setup with an attached power outlet and a magnified view of the device's internal structure.

Diagram of an electronic device with a USB connector and wiring, showing internal components and connections (no text or symbols)

e. Forbind antennen til adapteren.

Bemaerk!

Line drawing of a desktop computer tower with an attached cable (no text or symbols)

3 Installer drivere
