SR3380 - Hand blender Concept - Free user manual and instructions

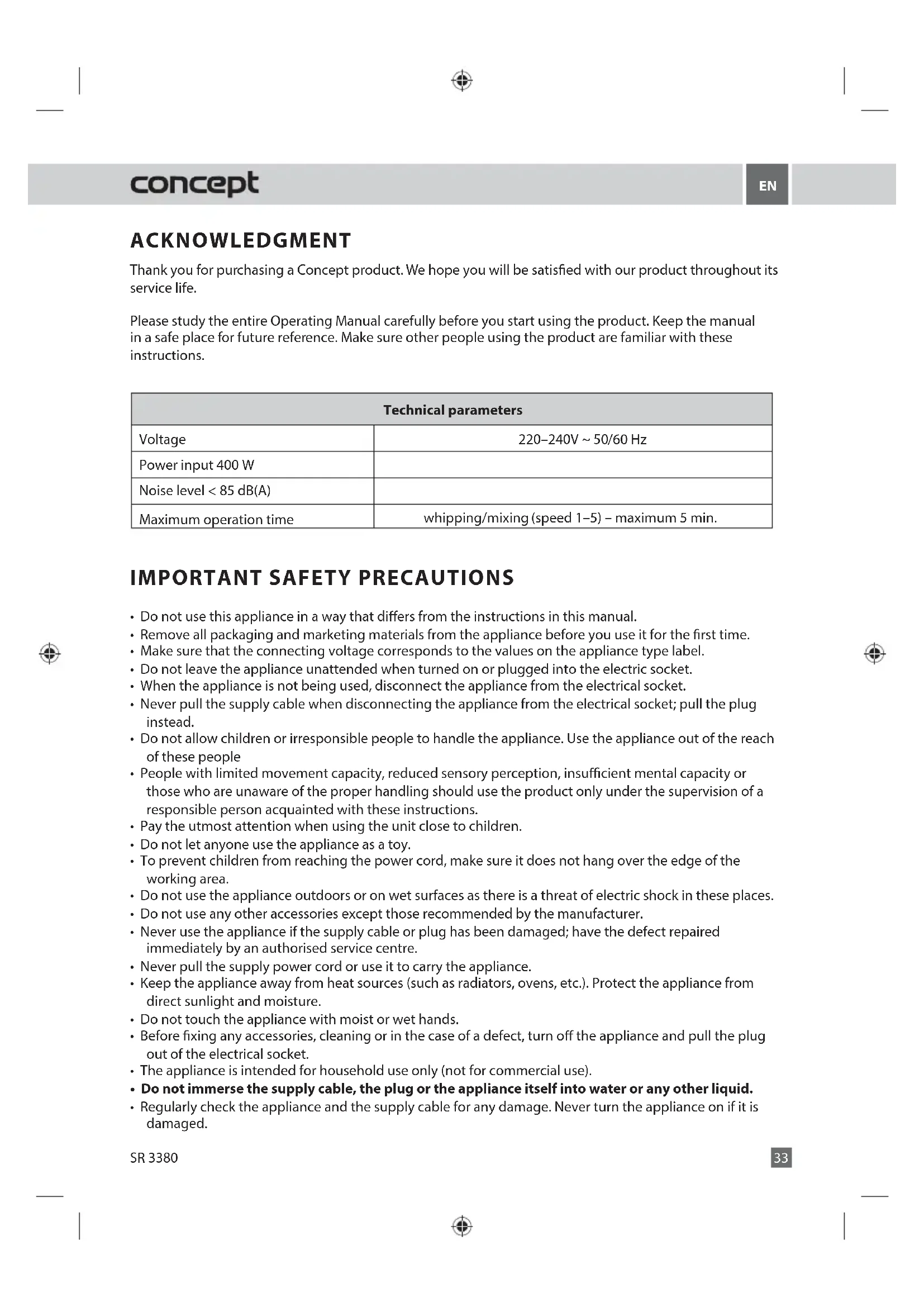

USER MANUAL SR3380 Concept

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage	220–240V ~ 50/60 Hz
Power input 400 W
Noise level < 85 dB(A)
Maximum operation time	whipping/mixing (speed 1–5) – maximum 5 min.

IMPORTANT SAFETY PRECAUTIONS

• Do not use this appliance in a way that differs from the instructions in this manual.
• Remove all packaging and marketing materials from the appliance before you use it for the first time.
• Make sure that the connecting voltage corresponds to the values on the appliance type label.
• Do not leave the appliance unattended when turned on or plugged into the electric socket.
• When the appliance is not being used, disconnect the appliance from the electrical socket.
• Never pull the supply cable when disconnecting the appliance from the electrical socket; pull the plug instead.
• Do not allow children or irresponsible people to handle the appliance. Use the appliance out of the reach of these people
• People with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible person acquainted with these instructions.
• Pay the utmost attention when using the unit close to children.
• Do not let anyone use the appliance as a toy.
• To prevent children from reaching the power cord, make sure it does not hang over the edge of the working area.
• Do not use the appliance outdoors or on wet surfaces as there is a threat of electric shock in these places.
• Do not use any other accessories except those recommended by the manufacturer.
• Never use the appliance if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.
• Never pull the supply power cord or use it to carry the appliance.
• Keep the appliance away from heat sources (such as radiators, ovens, etc.). Protect the appliance from direct sunlight and moisture.
• Do not touch the appliance with moist or wet hands.
• Before fixing any accessories, cleaning or in the case of a defect, turn off the appliance and pull the plug out of the electrical socket.
• The appliance is intended for household use only (not for commercial use).
• Do not immerse the supply cable, the plug or the appliance itself into water or any other liquid.
• Regularly check the appliance and the supply cable for any damage. Never turn the appliance on if it is damaged.

EN

concept

• Do not touch the moving parts of the appliance during operation.
• Keep your hair, fingers and clothing out of reach of the moving parts during operation.
• Be careful when handling the extensions, as the blades are very sharp and may cause injury.
• The accessories shall not be used in a microwave oven.
• Some parts may keep moving for a while immediately after the motor has been switched off and the power cord has
• been disconnected from the socket. Wait until the movement stops completely.
• Use the unit solely for food processing.
• The maximum allowed temperature of the processed food is 80^ . Do not use the beater for very hot food!
• Never repair the appliance by yourself. Contact an authorised service centre.
• This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person
   responsible for their safety .
2. Children should be supervised to ensure that they do not play with the appliance.

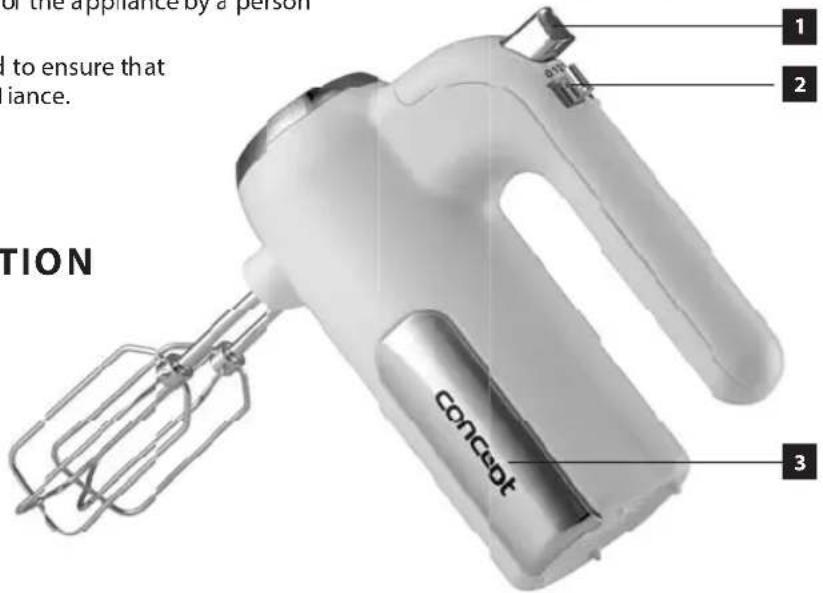

PRODUCT DESCRIPTION

1 Extension release button
2 Speed selector
3 Unit body

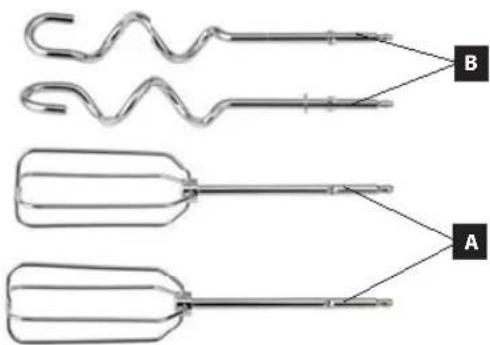

Accessories

A Whipping whisks
B Mixing hooks

OPERATING INSTRUCTIONS

CAUTION

Before fixing or removing accessories, always pull the plug out of the electrical socket! Prior to using a new unit, wipe the surface with a wet cloth and wash the removable accessories in warm water for hygienic reasons.

Never use different extensions simultaneously!

Whipping whisks and mixing hooks

The whipping whisks are designed to whip mousse, cream, and egg yolks, and prepare toppings or thin batter for omelettes and pancakes. The mixing hooks are designed for thicker batter, gingerbread or yeast dough, etc.

The maximum time of continuous operation (KB) is 5 minutes for speeds 1-5. Let the unit cool down for at least 15 minutes afterwards.

Fig. 1

1. Insert the whipping whisks or mixing hooks into the holes in the lower part of the unit and turn them slightly to fix them properly.

Warning! Insert the whisk or mixing hook with the ring (Fig. 1) into the larger hole!

1. Unwind the entire supply cable. Make sure it does not touch any nearby sources of heat. Insert the plug into the electric voltage outlet.
2. Hold the appliance body with one hand and the whipping/mixing container with the other.
3. Insert the whisks/mixing hooks into the container with the food and select the required speed.
4. Switch off the unit after whipping/mixing. Disconnect the cable from the socket.
5. Release the whipping whisks or mixing hooks using the extension release button and rinse them immediately with warm running water.

CLEANING AND MAINTENANCE

Turn off the unit and disconnect the power cord from the wall outlet before cleaning and after use.

Clean the appliance body with a wet cloth.

Do not use steel wool, abrasive agents or solvents to clean the unit.

Wash the whisks and hooks in tepid water with detergent and rinse in clean water; you may use a dishwasher.

TROUBLESHOOTING

Problem Cause	Solution
The motor is not running.	The plug is inserted into the socket incorrectly or insufficiently.	Check the plug connection.
	The socket is not receiving electricity.	Check for voltage, e.g. by connecting a different appliance.
The motor has stopped working.	The motor is overloaded, the heat fuse has been activated.	Disconnect the power supply cable from the socket. Check and clear the air passage at the inlet/outlet grills. Let the unit cool.

SERVICING

Any extensive maintenance or repair requiring access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

concept

concept

DE

DANKE FÜR IHR VERTRAUEN

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:
- if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
to malfunctions caused by an inexpert third-party intervention,
to malfunctions caused by natural disaster,
to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
- if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with re-gard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

concept

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta - Concept
Vysokomytska 1800, 565 01 Chocen
Czech Republic
tel.: [phone]
fax [phone]
Company ID No. 13216660
email: [e-mail]
www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase:	Seal and signature of vendor:

GARANTIEBEDINGUNGEN

Garantie

CONDITIONS DE GARANTIE

Garantie

Jindrich Valenta - CONCEPT Czech Republic

C2 Vysokomytska 1800, 565 01 Chocen

Tel. [phone], Fax: [phone]

www.my-concept.cz

ELKO Valenta - Slovakia, s.r.o.

SK Hurbanova 1563/23,91101Trencin

Tel.: [phone], Fax: [phone]

www.my-concept.sk

Elko Valenta Polska Sp. Z. o. o.

PL Ostrowskiego 30, 53-238 Wroclaw

Tel.: [phone], Fax: [phone]

www.my-concept.pl

Metaker Kft

2851 Kornye, Alkotmány ut 6-10.

Telefon/fax: [phone], 473-550, 473-695

Verners VT Ltd.

LV Piedrujas iela 5a, Riga, Latvia

Tel. [phone], fakss [phone]

e-pasts: [e-mail], www.ervers.lv
