Product type	Hand blender
Brand	Concept
Model	SR3210
Power	700 W
Speeds	2 speeds + turbo
Bowl capacity	1 L
Blade material	Stainless steel
Dimensions (L x W x H)	6 x 6 x 38 cm
Weight	0.8 kg
Power supply	220-240 V, 50-60 Hz
Cable length	1.2 m
Main functions	Blend, emulsify, chop
Included accessories	Measuring beaker, whisk, chopper
Maintenance and cleaning	Removable blade, dishwasher safe (removable parts)
Safety	Automatic shut-off in case of overheating
Spare parts and repairability	Repairability index of 8.5/10
Warranty	2 years

Frequently Asked Questions - SR3210 Concept

How to use the SR3210 hand blender?

Immerse the blender foot into the food, select the desired speed and press the start button. Use the turbo function for maximum power.

Can I blend hot liquids?

Yes, but let them cool slightly to avoid splashes. Do not exceed 80 °C and use a tall container.

How to clean the hand blender?

Detach the foot and accessories. Wash them with soapy water or in the dishwasher (top rack). Wipe the motor unit with a damp cloth.

The blender will not start, what should I do?

Check the electrical outlet and condition of the cable. Make sure the bowl is properly engaged. If the problem persists, contact customer service.

What accessories are provided with the SR3210?

The blender comes with a 1 L measuring beaker, a whisk for emulsifying and a chopper for solid foods.

Can I chop nuts or meat with this appliance?

Yes, use the included chopper. Cut the food into pieces and pulse for an even result.

How to avoid splashing during blending?

Fully immerse the blender head into the food before starting. Use a tall container and start at low speed.

What to do if the appliance heats up abnormally?

The automatic shut-off activates in case of overheating. Let the appliance cool for 15 minutes before using it again.

Is the measuring beaker made of glass or plastic?

The beaker is made of sturdy, graduated plastic, shock-resistant and dishwasher safe.

Where to find spare parts for the SR3210?

Spare parts are available on the official Concept website or from authorized dealers. Refer to the manual for references.

USER MANUAL SR3210 Concept

Black and white photo of a modern kitchen blender with a whisk, no visible text or symbols on the device itself.

CZ

The image contains no text or characters. It is a blank gray square with a thin border. Therefore, there is no OCR result to output.

The image contains no text or characters. It is a blank gray square with a thin border. Therefore, there is no OCR result to output.

HU LV DE

RENSK PL

The image contains no text or characters. Therefore, the correct OCR output is an empty string.

IT ES

RO

Poděkování

Labeled diagram of a black electric mixer with numbered parts for identification

Příslušenství

A Hnětaci háky

B Šlehaci metla

C Šlehací metly

Three laboratory glassware setups labeled A, B, and C, showing different types of stirrer or whiskers (no text or symbols on the devices themselves)

CZ

concept

concept

CZ

NÁVOD K OBSLUZE

UPOZORNĚNÍ

Labeled diagram of a black electric mixer with numbered parts for identification

Príslušenstvo

A Hnetacie háky

B Ślahacia metla

C Šlahacie metly

Three laboratory glassware setups labeled A, B, and C, showing different types of stir-flops or whiskers (no text or symbols on the diagrams themselves)

SK

concept

concept

SK

NÁVOD NA OBSLUHU

UPOZORNENIE

Labeled diagram of a black electric hand mixer with numbered parts for identification

Akcesoria

A Haki do zagniatania
B Trzepaczka
C Trzepaczki

A B C

PL

concept

concept

PL

INSTRUKCJA OBSŁUGI

OSTRZEŻENIE

Labeled diagram of a black electric mixer with numbered parts for identification

Tartozékok

Three laboratory glassware setups labeled A, B, and C, showing different types of stir-flops or whiskers (no text or symbols on the diagrams themselves)

HU

concept

concept

HU

HASZNÁLATI ÚTMUTATÓ

FIGYELMEZTETÉS

Labeled diagram of a black hand mixer with numbered parts for identification

Piederumi

Three laboratory glassware diagrams labeled A, B, and C showing different types of stirrer or whiskers (no text or symbols on the diagrams themselves)

28

LV

concept

concept

LV

LIETOŠANAS INSTRUKCIJA

BRÍDINAJUMS

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it.

Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V, 50/60 Hz
Input 300 W
Sound performance level ≤75 db(A)
Continuous operating time (KB) whipping/kneading (speed 1–5) – max. 5 min.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the appliance.
• Do not leave the appliance unattended when it is switched on or connected to the mains.
• Disconnect the appliance from the electrical outlet if it is not being used.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not allow the power cord to hang freely over the edge of the worktop where children might reach it.
• Do not use the appliance outdoors or on a wet surface, there is a risk of electric shock.

EN

concept

concept

EN

• Do not use any accessories other than those recommended by the manufacturer.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not use the power cord to move or handle the appliance.
• Keep the appliance away from heat sources such as radiators, ovens, etc. Protect it from direct sunlight and humidity.
• Do not touch the appliance with wet hands.
• When installing accessories, cleaning and maintenance or in the event of a malfunction, switch off the appliance and disconnect the plug from the electrical outlet.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Check the appliance and the power cord for damage regularly. Never switch on a damaged appliance.
• Do not touch moving parts when using the appliance.
• Keep your hair, fingers and cloth away from the moving parts of the appliance.
• Pay extra attention when handling the adapters, the blades are very sharp and can cause injury.
• The appliance accessories must not be used in a microwave oven.
• Immediately after switching off the motor and unplugging the power cord, some parts may be still moving for a while. Wait until they stop completely.
• Use the appliance for food processing only.
• The maximum allowable temperature of processed food is 80 °C. Do not use the appliance for boiling food!
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years

old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

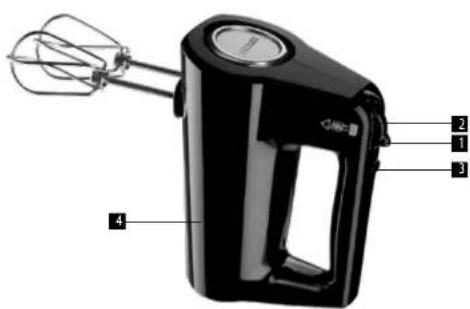

PRODUCT DESCRIPTION

1 Speed switch
2 Adapter release button
3 Turbo
4 Appliance body

Labeled diagram of a black electric mixer with four numbered parts for identification.

Accessories

A Dough hooks

B Whisk

C Whisks

Three wire-woven laboratory instruments labeled A, B, and C, showing different shapes and components (no text or symbols on the instruments themselves)

EN

concept

concept

EN

OPERATING INSTRUCTIONS

NOTICE

Always disconnect the plug out of the electrical outlet before assembling or removing accessories! Before putting a new appliance into operation, you should wipe it thoroughly with a damp cloth and wash all removable parts in warm water for hygienic reasons.

Never use different adapters at the same time!

Whisks and dough hooks

Whisks are designed for whipping foam, cream, egg yolks, preparing creams or thin dough for omelettes and pancakes.

Dough hooks are used for the preparation of rubbed, yeast, gingerbread dough, etc.

The maximum continuous operating time of the appliance (KB) is 5 minutes at speeds 1-5. Then allow the appliance to cool down for at least 15 minutes.

1. Insert the whisks/whisk or dough hooks into the openings at the bottom of the appliance and turn them slightly until they are firmly in place.
   Caution! Insert the whisk or dough hook with the ring (Fig. 1) into the larger opening.
2. Unwind the entire power cord. Make sure it does not touch any nearby heat source. Insert the plug into the wall outlet.
3. Hold the appliance body with one hand, holding the whisk/kneading container with the other hand.
4. Place the whisks/whisk (or dough hooks) of the appliance into the container with food and set the desired speed. Use the turbo button (3) to briefly increase the speed to maximum.
5. Turn off the appliance after finishing whipping/kneading. Unplug the power cord.
6. Press the adapter release button to release the whisks or dough hooks and rinse them immediately under warm running water.

CLEANING AND MAINTENANCE

Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains.
Clean the body of the appliance with a damp cloth.
Do not use pot scourer, abrasives solutions or solvents for cleaning.
Wash the whisks and dough hooks in warm soapy water and rinse in clean water or you can wash them in a dishwasher.

TROUBLESHOOTING

Problem Cause Remedy
The motor is not working. The plug inserted incorrectly or insufficiently in the wall outlet.		Check connection of the plug.
		Check the presence of voltage, e.g. with another appliance.
The motor stopped working	Appliance motor overload, the motor overheat fuse has tripped.	Unplug the power cord. Check and clear the air passage of the inlet and outlet grilles. Let the appliance cool down.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
- Packaging materials may be disposed of as sorted waste.
- Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.

36

concept concept

DE

Danksagung

Labeled diagram of a black hand mixer with numbered parts for identification

Zubehör

Labeled diagram of a black electric mixer with numbered parts for identification

Accessoires!

Three wire-woven laboratory instruments labeled A, B, and C, showing different shapes and components (no text or symbols beyond labels)

FR

concept

concept

FR

MODE D'EMPLOI

MISE EN GARDE

Labeled diagram of a black hand mixer with numbered parts for identification

Accessori

Three types of laboratory glassware: coiled spring, whisk, and whisker (no text or symbols)

SR3210SR3210

IT

concept

concept

IT

MANUALE D'USO

AVVERTIMENTO

Labeled diagram of a black CAF electric hand mixer with numbered parts for identification.

Accesorios

A Gancho para amasar
B Batidor
C Batidoras

Three laboratory glassware setups labeled A, B, and C, showing different types of stirrer or whiskers (no text or symbols on the devices themselves)

ES

concept

concept

ES

MANUAL DE USO

ADVERTENCIA

Labeled diagram of a black electric hand mixer with numbered parts for identification

Accesorii

Three types of laboratory glassware: coiled spring, beaker with whisk, and whisker (no text or symbols)

RO

concept

concept

RO

MANUAL DE UTILIZARE

ATENTIONARE

The manufacturer (or importer) is responsible for ensuring the product compiles with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments.
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta - Concept

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DEGARANTIEBEDINGUNGEN

Garantie

FR CONDITIONS DE GARANTIE

Garantie

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw Tel.: [phone], Fax: [phone] www.my-concept.pl

ASPICO KFT
