USER MANUAL TM4721 Concept

White conceptual electric toothbrush with two black buttons, no visible text or symbols on the device itself.

TM 4711 | TM 4721

CZ SK PL HU LVEN DE FR IT ES

concept

PODĚKOVÁNÍ

A B C D concept E

Close-up of a metallic kitchen sink with a circular dial and handle (no text or symbols visible)

Obr. 1

concept

CZ

concept enjoy cooling

Obr. 2

Close-up of a small kitchen mixer with a white plastic top and blue handle (no text or symbols visible)

White whisk with metal wire above a white container (no text or symbols visible)

ČIŠTĚNÍ A ÚDRŽBA

F G H I J E K

NÁVOD NA OBSLUHU

UPOZORNENIE

Close-up of a metallic kitchen sink with a circular dial and handle (no text or symbols visible)

Obr. 1

concept

SK

a concept anying cooling

Obr. 2

SEKANIE (len typ TM 4721)

Close-up of a small kitchen mixer with a white plastic top and blue handle (no text or symbols visible)

White whisk with a small container, no visible text or symbols on the object itself.

F C I J E

INSTRUKCJA OBSŁUGI

UWAGA

Close-up of a metallic kitchen sink with a rotary knob (no text or symbols visible)

Rys. 1

concept my shang

Rys. 2

PRZYKŁADOWY PRZEPIS PRZYGOTOWANIA MAJONEZU

200 - 250 ml oleju

Close-up of a small kitchen mixer with a white plastic casing and blue handle (no text or symbols visible)

White whisk with a small container, no visible text or symbols

F G H I J E K

A B C D concept E

HASZNÁLATI UTASÍTÁS

FIGYELMEZTETÉS

Close-up of a metallic kitchen sink with a circular dial and handle (no text or symbols visible)

1. ábra

TURMIXOLÁS

concept enjoy wid-ing

Close-up of a small kitchen blender with a white plastic top and blue liquid inside (no text or symbols visible)

TM 4711 | TM 4721

HU

concept

White whisk with a small container, no visible text or symbols

Close-up of a metallic kitchen brush head with a circular dial and handle (no text or symbols visible)

1. att.

concept

LV

concept -enjoy cooling

1. att.

Close-up of a white kitchen mixer with a blue handle and plastic casing (no text or symbols visible)

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life. Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure that all other people using the machine are familiar with the contents of the instruction manual.

Technical parameters
Voltage 220-240 V ~ 50/60 Hz		Maximum time of uninterrupted operation with the stick attached	max. 1 min
Power demand	600 W
Noise level with the stick attached 75 dB(A)		Maximum time of uninterrupted operation with the chopper extension (only TM 4721 series)	max. 15 s
Noise level with the chopper extension (only TM 4721 series)	85 dB(A)
		Maximum time of uninterrupted operation with the whisker extension (only TM 4721 series)	max. 2 min
Noise level with the whisker extension (only TM 4721 series)	80 dB(A)

The noise levels indicated above represent the level of acoustic performance A relative to the reference acoustic performance 1 pW.

IMPORTANT SAFETY INSTRUCTIONS:

- Do not use this equipment in a manner different from the instructions in this manual.

- Remove all packing and marketing materials from the appliance before you use it for the first time.

- Make sure the connecting voltage corresponds to values on the unit type label.

- Close supervision is necessary when the unit is on or plugged into the socket.

- Place the machine on a stable, heat-resistant surface, away from sources of heat.

- Disconnect the machine from the electrical socket when you are not using it.

- Never hold the power cord when disconnecting the machine from the socket; grasp and pull the plug, not the cord.

- Do not allow children or people with reduced capabilities to handle the unit. Use the machine out of the reach of these people.

- People with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible person who is aware of these instructions.

• Exercise utmost caution when using the unit while children are nearby.

- Do not allow the appliance to be used as a toy.

- To prevent children from reaching the power cord, make sure it does not hang over the edge of the working area.

- Do not use the unit out of doors or on wet surfaces, as such locations give rise to the risk of electric shock.

- Do not use any other accessories except those recommended by the manufacturer.

- Never use the machine if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.

- Never pull the supply power cord or use it to carry the machine.

- Keep the machine away from any sources of heat such as radiators, ovens, etc. Do not expose the machine to direct sunlight or moisture.

- Do not touch the unit if your hands are damp or wet.

- Before mounting any accessories, cleaning, or in the case of a defect, turn the unit off and remove the plug from the electrical socket.

- The unit is intended for household use only; it is not designed for commercial application.

- Never immerse the power cord, the plug, or the machine in water or any other liquid.

- Check the unit and its power cord regularly for damage. Never turn the unit on if it is damaged.

- Keep your hair, fingers and clothing out of reach of the moving parts during operation.

- Be careful when handling the extensions, as the blades are very sharp and may cause injury.

- Do not use machine accessories in a microwave oven.

- Some parts may keep moving for a while after the motor has been switched off and the power cord has been disconnected from the socket. Wait until the movement stops completely.

EN

concept

• Use the unit solely for food processing.
• The maximum allowed temperature of the processed ingredients is 80 °C. Do not use the beater for very hot food!
- Do not attempt to repair the unit by yourself. Contact an authorised service centre for repair.
- This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions may invalidate the warranty.

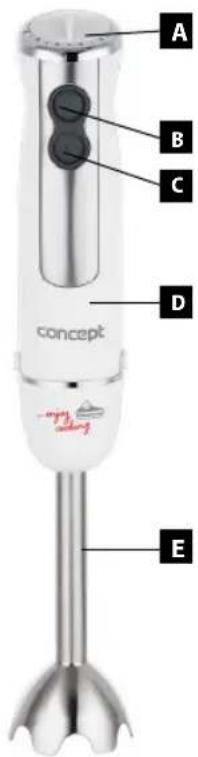

PRODUCT DESCRIPTION

Unit body

A = Speedcontrol

B - Switch

C - Turbo

D - Unit body

E - Stick extension

A B C D concept E

Accessories (only TM 4721 series)

F - Cover with transmission

G – Chopping knife

H - Chopping bowl

I - Transmission

J - Whisker

K-Mixing bowl

F G H I J E K

OPERATING INSTRUCTIONS

NOTICE

Before mounting or removing accessories onto or from the machine, always pull the plug out of the electrical socket! Prior to using a new unit, wipe the surface with a wet cloth and wash the removable accessories in warm water for hygienic reasons.

The unit is designed for short operation periods. Do not use it for periods of longer than 1 minute at a time. Allow the unit to cool down for at least 10 minutes after use.

Never let the appliance run idle for more than 10 seconds.

MIXING

The stick extension is designed for making sauces, toppings, soups, mayonnaise, baby food, mixed drinks and milkshakes.

1. Put the food in the mixing bowl or another tall kitchen vessel.
2. Mount the unit body onto the shaft of the extension stick.
3. Uncoil the whole length of the power cord. Make sure the cord does not touch any nearby sources of heat. Insert the plug into the electric voltage socket.
4. Hold the body with one hand and the mixing bowl with the other.
5. Select the desired speed (the 20th seriesit, inorthemixing tove andipg shot the power switch to initiate operation. While mixing, use circular movements

Close-up of a metallic kitchen sink with a circular dial and handle (no text or symbols visible)

Fig. 1

concept

EN

on the bottom of the bowl. You may increase the motor rotation speed to the maximum for a short time using the Turbo button.

1. Switch the unit off after mixing. Disconnect the cable from the socket.

2. Puebhthe exttssion rake the butea rof (Fig. 1) to piahas othe bieke when side fisiont (Fig. 2) and wash it under running lukewarm water immediately. Make sure the water does not get inside the extension to the driving shaft area. If this happens, leave the stick extension to dry, and apply a few drops of vegetable oil to ease the operation of the stick bearings.

EXAMPLE - MAYONNAISE RECIPE

200 - 250 ml oil

1 whole egg

1 teaspoon lemon juice or vinegar

salt and pepper

concept - mgg - mgg

Fig. 2

Put all the ingredients in the mixing bowl in the above-mentioned order. Insert the stick extension to the bottom of the mixing bowl. Switch ON, and hold the unit in this position until the oil creates an emulsion. Move the operating unit up and down slowly, until the mayonnaise has the required density.

CHOPPING (only TM 4721 series)

The chopping bowl is suitable for chopping meat, cheese, onions, herbs, garlic, carrots, walnuts, almonds, dried plums, etc.

Do not attempt to chop extremely hard foodstuffs such as nutmeg, coffee beans, or cereals. Items like meat, cheese, onions, garlic, carrots, or frozen food must be cut before chopping. Remove the stems from herbs and all nutshells.

Remove bones, cartilage and tendons from the meat.

1. Fill the chopping bowl with the ingredients and close it with the cover that holds the transmission.

2. Mount the unit body on the lid with the transmission.

3. Uncoil the whole length of the power cord. Make sure it does not touch any nearby sources of heat. Insert the plug into the electric voltage socket.

4. Hold the body with one hand and the chopping container with the other.

5. Select the required speed and push the button to start the machine. You may increase the motor rotation speed to the maximum for a short time using the Turbo button.

6. Switch the unit off after chopping. Use the release buttons to disconnect the unit body from the lid with the transmission. Disconnect the cable from the socket.

7. Wipe the lid with the transmission using a wet cloth. Do not immerse in water or wash in running water!

Close-up of a small kitchen mixer with a white plastic head and blue handle (no text or symbols visible)

Recommended amount of food and preparation times

Food Maximum quantity Approximate cutting time
Meat (1 cm pieces) 200 g 15 s
Cheese (1 cm pieces)	200 g 15 s
Nuts	200 g 15 s
Herbs	40 g	10 s
Onions	200 g 15 s
Garlic	40 g	10 s
Carrots (1 cm pieces)	200 g 15 s
Hard-boiled eggs	2 eggs	15 s
Bread (1 cm pieces)	1 slice	15 s

TM 4711 | TM 4721

35

EN

concept

WHISKING (only TM 4721 series)

The whisk extension may only be used for whisking cream, egg whites, for preparation of thin sponge cake dough, and cold desserts.

Use a wide container.

The maximum amount of cold cream (minimum fat content 30 %, 4-8 °C) for whisking is 400 ml.

The maximum amount of egg whites to be whisked is four.

1. Put the food in a wide container.

2. Mount the unit body onto the shaft of the whisking extension stick.

3. Uncoil the whole length of the power cord. Make sure the cord does not touch any nearby sources of heat. Insert the plug into the electric voltage socket.

4. Hold the body with one hand and the whisking container with the other.

5. Select the desired speed, insert the unit into the whisking bowl and push the power switch to initiate operation. To whisk the contents, apply circular, clockwise movement at the bottom. You may increase the motor rotation speed to the maximum for a short time using the Turbo button.

6. Switch the unit off after whisking. Disconnect the cable from the socket.

7. Rotate extension to release the whisking extension (Fig. 2). Remove the whisk from the transmission. Wipe the transmission with a damp cloth. Do not immerse the transmission in water or wash in running water! You can wash the whisk under running warm water or immerse in water and soak.

White whisk with metal wire above a white container (no text or symbols visible)

CLEANING AND MAINTENANCE

Switch the unit off and pull the plug from the socket prior to cleaning and after use of the unit.

Clean the unit body with a wet cloth.

Do not use steel wool, abrasive agents or solvents to clean the unit.

The transmissions must not be exposed to water! Wipe them with a damp cloth only.

Do not immerse the stick extension in water! Just rinse it. Make sure the water does not enter the extension where the driving spindle is. If this happens, leave the stick extension to dry and apply a few drops of vegetable oil to ease the operation of the extension bearings.

Wash the vessels and blades in tepid water with detergent and rinse in clean water; you can use a dishwasher.

Some of the plastic parts may change colour when you process ingredients with a higher pigmentation level (e.g. carrots). To remove the colour, apply vegetable oil to these parts and let it work for a couple of minutes before washing.

The warranty conditions do not apply to defects caused by improper or inadequate maintenance of the equipment.

concept

EN

REPAIR & MAINTENANCE

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
  • Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

concept

A B C D concept E

F G I J E

BEDIENUNGSANLEITUNG

HINWEIS

Close-up of a metallic kitchen sink with a circular dial and handle (no text or symbols visible)

Abb. 1

concept - enjoy cooling

Abb. 2

Close-up of a small kitchen mixer with a white handle and blue interior (no text or symbols visible)

White whisk with a black handle, no visible text or symbols

concept

DE

A B C D concept E

Close-up of a stainless steel kitchen sink with a circular dial and handle (no visible text or symbols)

Fig. 1

concept

FR

concept angry cooling

Fig. 2

Close-up of a small kitchen mixer with a white plastic top and blue handle (no text or symbols visible)

White whisk with metal handle and base, no visible text or symbols

NETTOYAGE ET ENTRETIEN

A B C D concept E

K - Bicchiere F G J E

MANUALE D'USO

AVVERTIMENTI

Close-up of a metallic kitchen sink with a circular dial and handle (no text or symbols visible)

Fig. 1

concept

IT

concept mpg milling

Fig. 2

Close-up of a small kitchen blender with a white handle and blue interior (no text or symbols visible)

White whisk with a small container, no visible text or symbols on the object itself.

A B C D concept E

Close-up of a metallic kitchen sink with dial and handle (no text or symbols visible)

Fig. 1

concept

ES

concept myg any

Fig. 2

Close-up of a small white plastic kitchen blender with a conical top and side blades (no text or symbols visible)

White whisk holding a small container with pink handwritten '###' on the side (no other text or symbols visible)

LIMPIEZA Y MANTENIMIENTO

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments.
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

concept

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta - Concept

Vysokomýtská 1800, 565 01 Choceň

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase:	Seal and signature of vendor:

DE

GARANTIEBEDINGUNGEN

Garantie

CONDITIONS DE GARANTIE

Garantie

Jindřich Valenta – Concept Czech Republic

Vysokomýtská 1800, 565 01 Choceň Tel. [phone], Fax: [phone] www.my-concept.cz

ELKO Valenta – Slovakia, s.r.o. Hurbanova 1563/23, 911 01 Trenčín Tel.: [phone], Fax: [phone] www.my-concept.sk

Elko Valenta Polska Sp. Z. o. o. Ostrowskiego 30, 53-238 Wrocław Tel.: [phone], Fax: [phone] www.my-concept.pl

Metaker Kft 2851 Környe, Alkotmány út 6-10. Telefon/fax: [phone], 473-550, 473-695

Verners VT Ltd. Piedrujas iela 5a, Riga, Latvia Tel. + 371 67021021, fakss + 371 67021000 e-pasts: [e-mail], www.verners.lv
