USER MANUAL HG01696A SILVERCREST

Operation and Safety Notes

NL BE

KEUKENWEEGSCHAAL

GB/IEOperation and Safety NotesPage 14

Proper Use. Page 15
Description of Parts.. 15
Technical Data Page 16
Supply Scope Page 16

Safety Instructions

General Safety Instructions Page 16
Battery Safety Instructions.. Page 17

Getting started.

Replacing battery.
Weighing.. Page 18
Weigh and add . Page 19
Remove part of the weighed food. Page 19
Set the countdown timer/alarm . Page 19
Display ambient temperature.. Page 20
Switch off the kitchen scale. Page 20

Troubleshooting

Cleaning, care and storage

Disposal

Warranty

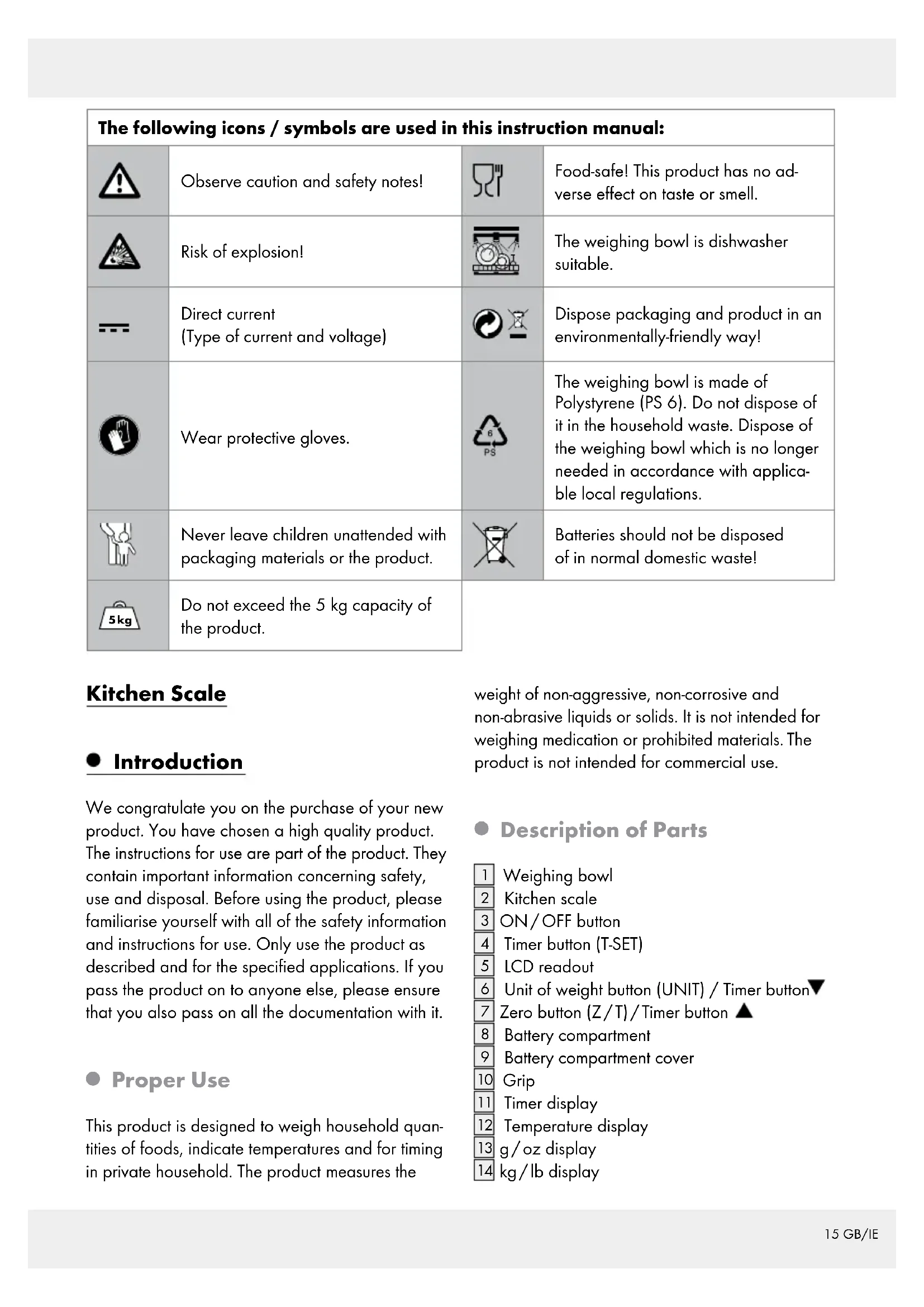

The following icons / symbols are used in this instruction manual:
	Observe caution and safety notes!		Food-safe! This product has no adverse effect on taste or smell.
	Risk of explosion!		The weighing bowl is dishwasher suitable.
=	Direct current (Type of current and voltage)		Dispose packaging and product in an environmentally-friendly way!
	Wear protective gloves.		The weighing bowl is made of Polystyrene (PS 6). Do not dispose of it in the household waste. Dispense of the weighing bowl which is no longer needed in accordance with applicable local regulations.
	Never leave children unattended with packaging materials or the product.		Batteries should not be disposed of in normal domestic waste!
5kg	Do not exceed the 5 kg capacity of the product.

Kitchen Scale

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Proper Use

This product is designed to weigh household quantities of foods, indicate temperatures and for timing in private household. The product measures the

weight of non-aggressive, non-corrosive and non-abrasive liquids or solids. It is not intended for weighing medication or prohibited materials. The product is not intended for commercial use.

Description of Parts

1 Weighing bowl
2 Kitchen scale
3ON/OFF button
4 Timer button (T-SET)
5 LCD readout
Unit of weight button (UNIT) / Timer button
Zero button (Z/T)/Timer button
8 Battery compartment
9 Battery compartment cover
10 Grip
[1] Timer display
12 Temperature display
13 g/oz display
14 kg/lb display

15 Alarm display
16 Hanger

Technical Data

Weighing range: 0.1 oz - 11 lb (pounds) / 1 g - 5 kg (kilograms)

Graduation: 0.1 oz/1g

Temperature: 0^ - 40^

Graduation: 0.5^ C

Tolerance: ± 2^

Battery: 1 × 3 ~V - lithium battery (CR2032 Lithium round cell)

Rated current: 10mA

Supply Scope

After unpacking the delivery, please check immediately that it contains all parts and that the product is in perfect condition.

1 kitchen scale
1 weighing bowl
1 lithium battery
1 operating manual

- Safety Instructions

GeneralSafety Instructions

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unattended with packaging materials or the product. There is otherwise a risk of fatal injury by suffocation.

Always keep children away from the product.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

5kg CAUTION!RISK OF INJURY! Do not exceed the 5 kg capacity of the product. This could damage the product.

• Do not expose the product to - extreme temperatures,

-strong vibrations,
- heavy mechanical loads,
- direct sunlight
-magnetic fields,
- moisture.

These can damage the product.

• Protect the product from electrostatic charge/discharge. This could hinder the internal data exchange, which causes errors in the LCD readout.

Check the product for damage before use. Never use a damaged product.
WARNING! Never open the housing of the product. This can result in injury and damage to the product. Repairs must be carried out by an electrician only.
- Do not allow anyone inexperienced to use the product. Make sure that anyone intending to use the product has read the operating manual and is capable of operating the product safely.
Place the product on a solid, horizontal and flat surface.
Normal functioning of the product may be disturbed by electromagnetic interference. In this case, briefly remove the battery from the product and insert it again. Do this as described in the "Replacing battery" chapter.
FOOD-SAFE! This product has no adverse effect on taste or smell.
The weighing bowl is dishwasher suitable.

BatterySafety Instructions

WARNING! DANGER TO

LIFE!Keep batteries out of the

reach of children. Do not leave batteries lying around. There is a risk of children or animals swallowing them. Consult a doctor immediately if a battery is swallowed.

EXPLOSION HAZ-ARD! Never recharg

short-circuit and/or open batteries. This can cause them to overheat, burn or burst. Never throw batteries into fire or water. The batteries may explode.

Avoid extreme conditions and temperatures which can affect batteries, e. g. heaters. Otherwise there is an increased risk of leakage.
Remove a spent battery from the product immediately. Otherwise there is an increased risk of leakage.
Check regularly that the battery is not leaking.
Leaked or damaged batteries can cause chemical burns if they come into contact with the skin; in such cases you must wear suitable protective gloves.
Avoid contact with the skin, eyes and mucous membranes if fluid has leaked from the battery. In the event of contact with battery

acid, rinse the affected area with plenty of clean water and consult a doctor immediately.

• Remove light dirt from the battery and product contacts with a dry, non-flushing cloth before inserting the battery.
  Remove the battery from the product if it is not in use for any length of time.
  Make sure that the polarity is correct when you insert the battery. This is indicated in the battery compartment. The battery can otherwise explode.
  Insert the battery with care. The product can otherwise be damaged.
  Please do not dispose of used batteries in your household waste but take them to a designated collection depot for special waste.

Getting started

1. Loosen the screw located at the back of the kitchen scale 2 by using a screw driver.
2. Open the battery compartment 8 on the back of the kitchen scale 2 by pushing the clip of the battery compartment cover 9 towards the battery compartment 8 and lift the cover off.
3. Remove the isolating strip. This is located between the battery and the battery compartment [8].
4. Replace the battery compartment cover 9 on the battery compartment 8. Make sure that the two extensions on the battery compartment

cover 9 engage in the two openings in the battery compartment 8. Press the battery compartment cover 9 onto the battery compartment 8 until it noticeably and audibly clicks into place.
5. Close the battery compartment 8 and tighten the screw by using a screw driver.

- Replacing battery

1. Loosen the screw located at the back of the kitchen scale 2 by using a screw driver.
2. Open the battery compartment 8.
3. Remove the used battery from the battery compartment 8 by gently pulling the grip 10 outwards. Make sure that you do not exert too much pressure on the grip 10 or it may otherwise be damaged.

Remove the battery from the battery compartment 8.

1. Insert the new battery. Make sure that the polarity is correct. The "+" must be pointing upwards. The battery must be pressed inside the battery holder.
2. Close the battery compartment 8 and tighten the screw by using a screw driver.

Weighing

Note: Starting with or without the weighing bowl 1, the kitchen scale 2 always starts at 0g / 0.0 oz (the temperature will also be shown) when you switch it on.

However, if you place the weighing bowl 1 on the kitchen scale 2 after you have switched it on, the kitchen scale will indicate the weight of the weighing bowl 1. Press the Zero button 7 to reset the display to 0g / 0.0 oz. The kitchen scale 2 now reads "TARE".

Place the weighing bowl 1 on the kitchen scale 2.
Press the ON/OFF button 3 to switch the kitchen scale 2 on.

Select the unit of weight by pressing the unit of weight button.6. You can choose between "g/kg" and "oz/lb".
Place the food you wish to weigh in the weighing bowl.
The LCD readout 5 indicates the weight of the food in the selected unit of weight.

Note: If the kitchen scale 2 is overloaded, the LCD readout 5 indicates "Err" and it will switch off within 3 seconds. Remove food from the kitchen scale then press the ON/OFF button 3 to switch on the kitchen scale again.

Weigh and add

The kitchen scale 2 allows you to weigh foods consecutively without removing food already in the weighing bowl 1.

Place the weighing bowl 1 on the kitchen scale 2.
Press the ON/OFF button 3 to switch the kitchen scale 2 on.
Select the unit of weight by pressing the unit of weight button.6. You can choose between "g/kg" and "oz/lb".
Place the food you wish to weigh in the weighing bowl.
The LCD readout 5 indicates the weight of the food in the selected unit of weight.
Now press the Zero button 7. The kitchen scale 2 now reads "TARE".
Now place more food in the weighing bowl 1.
The LCD readout 5 indicates the weight of the food you have added in the selected unit of weight.
Continue in this way only until the maximum capacity of the kitchen scale 2 is reached or the weighing bowl 1 is full.

- Remove part of the weighed food

Place the weighing bowl 1 on the kitchen scale 2.

Press the ON/OFF button 3 to switch the kitchen scale 2 on.
Select the unit of weight by pressing the unit of weight button. 6. You can choose between "g/kg" and "oz/lb".
Place the food you wish to weigh in the weighing bowl.
The LCD readout 5 indicates the weight of the food in the selected unit of weight.
Now press the Zero button 7.
Now remove the required amount of food from the weighing bowl.
The LCD readout 5 indicates the weight of the food you have removed as a negative number.
Now press the Zero button 7. The kitchen scale 2 now reads 0g / 0.0 oz and "TARE" for further removal / adding food.

- Set the countdown timer / alarm

The timer on the kitchen scale has a time span of 00:10 to 99:50 minutes. The set time is counted down in reverse to "00:00". An alarm signal then sounds and the alarm display "A" 15 flashes.

Press the ON/OFF button 3 to switch the kitchen scale 2 on.
Press the Timer button 4.
Set the required time by pressing the Timer button "▼" 6, or the Timer button "▲ 7.
Press the Timer button 4 again to confirm the set time and to start the countdown timer.
Press the Timer button 4 again to stop the countdown timer.
Press the Timer button 4 again to reset the set time to "00:00".

NOTE: When the set time has elapsed, an alarm signal sounds.

Press the ON/OFF button 3 to stop the alarm and at the same time switch off the kitchen scale 2.

- Display ambient temperature

When the kitchen scale 2 is switched on, the LCD readout 5 shows the current ambient temperature. This is indicated by the temperature display 12 in ^ C

- Switch off the kitchen scale

The kitchen scale 2 switches itself off automatically after 90 seconds of inactivity to save energy.

Press the ON/OFF button 3 to switch the kitchen scale 2 off manually.

Troubleshooting

Error Cause Solution
The LCD readout 5 indicates "Err".	The maximum capacity of the kitchen scale 2 of 5 kg / 11 lb has been exceeded.	Remove the food from the kitchen scale 2. Reduce the amount of food and weigh it in several steps.
The LCD readout 5 indicates "Err" and does not change.	The maximum capacity of the kitchen scale 2 of 5 kg / 11 lb has been exceeded.	Remove the food from the kitchen scale 2. Switch the kitchen scale 2 off and then back on again. Reduce the amount of food and weigh it in several steps.
The LCD readout 5 indicates "Lo".	The battery is empty.	Replace the battery as described in the "Replacing battery" chapter.
It is not possible to switch the kitchen scale 2 on.	The battery may be empty.	Replace the battery as described in the "Replacing battery" chapter. If it is still not possible to switch the kitchen scale 2 on, please contact a specialist.

- Cleaning, care and storage

Note: For storage you can hang the product using the hanger 16 (see Fig. A).

Clean the product with a slightly dampened, non-fluffing cloth. To remove more stubborn dirt, you can also dampen the cloth with a weak soap solution.
Do not use chemical cleaners, scouring agents or sharp objects for cleaning. These can damage the product.
- Never immerse the product in water or other liquids. This can damage the product.
The weighing bowl 1 is dishwasher safe.

The weighing bowl 1 can also be used as a cover.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning:

1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC and its amendments. Please return the batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
