KWM 71416 A3 - Washing machine Koenic - Free user manual and instructions

Product type	Washing machine
Brand	Koenic
Model	KWM 71416 A3
Nominal capacity	7 kg
Energy efficiency class	A+++
Dimensions (H × W × D)	850 × 595 × 495 mm
Rated voltage	220-240 V~, 50 Hz
Rated power	2000 W
Water pressure	0.05 - 1 MPa
Maximum spin speed	1400 rpm
Wash programs	Cotton, synthetics, delicates, etc. (see program chart)
Additional functions	Pre-wash, extra rinse, delayed start (1-24 h)
Child lock	Yes, activation by Temp. and Spin buttons
Noise level (wash/spin)	59 dB / 78 dB
Annual water consumption	10 000 litres (over 220 cycles)
Annual energy consumption	175 kWh (over 220 cycles)
Protection rating	IPX4
Cleaning the pump filter	Recommended once a month
Cleaning the detergent drawer	Remove and wash with water regularly
Transport lock devices	4 bolts to remove before first use

Frequently Asked Questions - KWM 71416 A3 Koenic

How to install the KWM 71416 A3 washing machine?

Remove the 4 transport lock devices at the back using a 13 mm wrench. Place the machine on a stable and level surface. Connect the water inlet hose to the tap (3/4") and the drain hose to a pipe. Plug the power cord into a 220-240 V outlet. Adjust the feet for leveling.

What to do before first use?

Make sure the transport bolts are removed. Remove any accessories from the drum. Run an empty cycle at 60°C with a little detergent to clean the inside.

How to use the delayed start?

Select the desired program and options, then press the Delayed Start button repeatedly to choose a delay from 1 to 24 hours. The machine will start automatically at the set time.

What to do in case of error code E30?

Error code E30 indicates a door lock problem. Check that the door is properly closed and restart the cycle. If the problem persists, contact technical support.

How to clean the pump filter?

Place a container under the maintenance flap, open it, unscrew the filter by turning left, clean it under running water, then replace it by turning right. Do this about once a month.

Why is my machine vibrating heavily?

Check that all transport bolts have been removed. Make sure the machine is level by adjusting the feet. Avoid overloading the drum. If the noise persists, contact customer service.

What is the maximum dry laundry capacity?

The maximum capacity is 7 kg for the model KWM 71416 A3. Do not exceed this load to avoid spin and cleaning problems.

How to activate child lock?

Press the Temp. and Spin buttons simultaneously for at least 3 seconds. A symbol appears to confirm. To deactivate, repeat the same operation.

Can I use bleach?

No, the use of bleach is not recommended as it may damage the machine and textiles. Use only detergents suitable for washing machines.

What does error code E10 mean?

Error code E10 indicates a water supply problem. Check that the tap is open, the inlet hose is not twisted, and the inlet filter is not clogged. Clean the filter if necessary.

USER MANUAL KWM 71416 A3 Koenic

Voltage:220-240V\~,50Hz

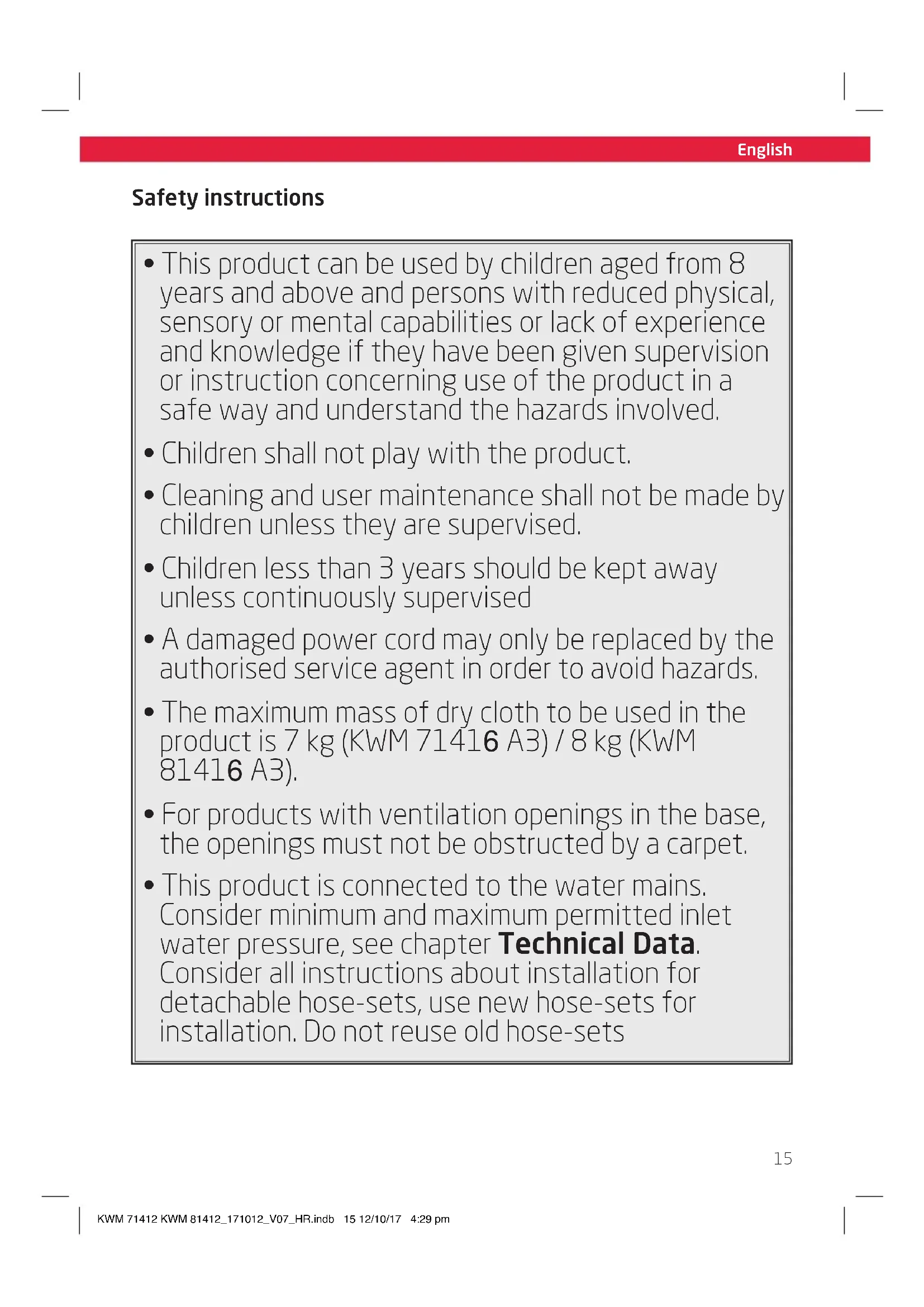

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• Children less than 3 years should be kept away unless continuously supervised
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The maximum mass of dry cloth to be used in the product is 7kg (KWM 71416 A3) / 8kg (KWM 81416 A3).
• For products with ventilation openings in the base, the openings must not be obstructed by a carpet.
• This product is connected to the water mains. Consider minimum and maximum permitted inlet water pressure, see chapter Technical Data.

Consider all instructions about installation for detachable hose-sets, use new hose-sets for installation. Do not reuse old hose-sets

English

Safety instructions

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent (e.g. damaged power cord, product has been dropped, etc.).
  The mains voltage must match the information on the rating label of the product.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.
• Never use, expose or put the product near to: direct sunlight and dust; fire (fireplace, grill, candles), water (water splashes, vases, bath tub) or heavy moisture.
  This product is not intended for commercial use. It is designed for household use only.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed for washing clothes and textiles. Any other use may result in damage to the product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Washing machine
1 x User manual
1 x warranty card

Part list

A Control panel

A1 Program selector
A2 Display
AaN/Uit switch
A4 Start/Pauze button
A5 Functie button
A6 Spin speed button Centrifugeren
A7 Temperature button Temp.
A8 Timer button Uitgestelde Start

B Detergent drawer
Door with window
Door handle
Water connection
F Sewage hose
Transport restraint
H Adjustable feet
Lint filter
Power cord with plug
K Washing drum

Transport restraints must be removed before the first use as described in chapter Installation.

English

Installation

Note:

The washing machine is equipped with power cord and plug and needs sewage and tap water connection. Make sure before installation that the wall outlet is at the desired place of installation. Consider the dimension (chapter Technical data) of the product for placing and installation.

Caution

Before initial operation the transport restraints must be removed from the backside of the unit. Operating the washing machine with mounted transport restraints leads to serious damages.
- Keep the transport restraints for later use. Never transport the device without correctly mounted transport restraints!

Fig. 1 Loosen the four transport restraints with a wrench (13 mm) and unscrew them completely. Insert the 4 supplied blind plugs in the holes.

Fig. 2 Place the washing machine on an even, horizontal and steady surface. For levelling the feet are adjustable and can be screwed in or out.

• Unscrew the lock nuts with a open-end wrench (17 mm).
• Turn the feet to the right to screw them in and to the left to unscrew them.
  Use a spirit level to check whether the appliance is leveled. If the appliance is not standing horizontally or is tilting the feet must be adjusted again.
  If the unit is leveled and does not tilt, tighten the nuts with the open-end wrench.

Fig.3 The washing machine must be connected to a drain.

• The drain hose is already fixed to the sewage connection. Pull the hose out of the clamps and unwind it.
• Connect the other end to the drain pipe (option A or B). Observe the max. height of the hose end.

Note:

Suitable hose holders are available as optional accessories.

Fig.4 Connect the water inlet to the water system (3 / 4^ ) using the supplied hose and make sure that everything is connected correctly and firmly. The water pressure must be between 0.05MPa and 1MPa . A pressure reducing valve must be used if the water pressure is exceeds 1MPa .

Note:

If the water pipes are new or have not been used for an extended period of time, allow a certain amount of water to drain until you are sure that the water is clear and free of foreign objects.
If this point is not observed, there is a risk that the water inlet will become clogged and the unit will be damaged.

Fig.5 Plug the mains plug into a suitable socket.

Preparation

Before first use

Make sure the transport restraints on the back of the unit have been removed.
- Remove all accessories and other materials from the washing drum.
Before washing cloth for the first time, run the appliance without any cloth but some detergent in the "Cotton 60^ program, see Start washing.

Operation

Fig. 6 Preparation of the garments

Caution

• Do not wash fabrics that are not suitable for machine wash. Observe the instructions on the care label of the laundry.
• Hard or pointed foreign objects (eg. nails, coins) can damage laundry and components.

• Never wash laundry soaked with gasoline, thinner, alcohol or solvents.

• Check the pockets of all laundry and empty them.
  Before washing, remove dirt, stains and hair from the laundry, eg. by pre-soaking and pre-washing by hand.

• Sort the laundry according to colors and the washing procedures and washing temperatures indicated on the care labels. Do not wash white laundry together with coloured laundry but separate. Newly bought coloured laundry must be washed separately.
• Turn applications such as buttons and embroideries inwards. If necessary, close zippers, buttons or hooks before washing, and tie loose straps or loops together.
• Wash brassiere in a laundry bag to prevent the steel hangers from loosening. In particular, fine textiles such as curtains, crochet work or small articles (socks, handkerchiefs, neckties, etc.) should be washed in a closed laundry bag.
  Always remove removable parts such as hooks, eyelets, e.g. from curtains.

English

During the washing of large and heavy single items such as bedclothes, covers, bath towels, jeans, lined winter jackets, etc., the drum can become unbalanced especially during spinning. To minimize imbalances always wash several clothes together as one load.
- Linting clothes should be washed separately, otherwise you will have visible lint on all clothes, especially on black clothes.

Fig.7 Fill the laundry

• Untangle the garments and place them neatly into the washing drum.
  If possible use the max. loading capacity. Do not overload the washing machine. Do not cram the laundry in the washing drum but load it in a way that the laundry is still being circulated during the washing process. Different sizes and thicknesses of the laundry influence the loading capacity.
• Close the door, making sure that no laundry is trapped between the door and the seal.

Select and filling in detergent

Caution

• Keep detergents out of the reach of children!

• Observe the instructions of the detergent regarding dosage and storage.

• Only use detergents suitable for washing machines and make the right selection, taking into account the kinds of laundry to be washed (cotton, colored, white etc.).

• Do not use bleach, as it can damage the washing machine and laundry.

Fig. 8 1. Open the detergent drawer.

Note the different compartments:
A: Detergent for main wash, option 1 for washing powder, option 2 for liquid detergent
B: Fabric softener for rinsing
C: Detergent for pre-wash
2. Fill in laundry detergent and fabric softener according to manufacturer's instructions.
Note on foam detection: If too much detergent is used, excessive foam is formed. The foam formation is checked and excessive foam is removed.
3. Close the detergent drawer by pushing it in completely.

English

Start washing

1. Turn on the washing machine with the Aan/ Uit switch.
2. Use the program selector to select a suitable program and, if necessary, a suitable additional function. Please refer to the following Program table.
3. Use the Temp. button to change the temperature if the preset temperature does not meet your requirements. The higher the temperature the more energy is consumed.
4. If necessary use the Centrifugeren button to select a different spin speed if the preset speed does not meet your requirements. The higher the spin speed, the drier but also more creased the laundry is. High speeds also reduce the life of the washing machine.

Note:

Only use low spin speeds for delicate garments.

1. By pressing the Functie button, select one of the additional functions, Voorwas (pre-wash) or Extra Spoelen(Extra rinse), if necessary.
2. Start the washing process by pressing the Start/Pauze button.

3. Press the timer button Uit gestelde Start to set a later time for the machine to start. By pressing the button several times a start time of 1 to 24 hours can be set in 1-hour increments. To do so, follow the steps 1 to 5, then use the Uit gestelde Start button to set the start time, wait until the display shows the wash time and then press the Start/Pauze button. If the preset time has elapsed, the washing machine will automatically turn on and the washing time will be shown on the display.

4. You can also create your own program and save it under program point Mijn Programma (My cycle). Turn the program selector to your desired program. Set the required temperature, spin speed and special functions. Then press the Centrifugeren button for 3 seconds to save the settings. The program remains stored and can be changed at any time as described above.

Caution

The door may only be opened if the appliance is not running, e.g. after washing program is finished. Do not try to open the door while the appliance is running.

English

9 Program table

With full and partial load, these are the standard wash programs to identify the information on the energy label. These programs are suitable to clean normally soiled laundry and of combined energy and water consumption most efficiently.

1)KWM71416A3
2)KWM81416A3

Child protection

Fig.10 Once the child protection is activated, the setting cannot be changed. The washing machine can only be switched off with the Aan/Uit switch, whereby settings and wash progress are saved and the washing process can be continued after switching the machine back on. The child protection can only be activated if the washing machine operation was started or is running either directly or by time delay.

1. Activation: Press Temp. and Centrifugeren buttons at once for at least 3 seconds. The corresponding symbol of the control panel indicates the child protection
2. De-activation: Press again Temp. and Centrifugeren buttons at once for at least 3 seconds. The corresponding symbol of the control panel turns off.

Disabling the alarm sound

To permanently deactivate the signal tone, press the Temp. button for at least 3 seconds while the washing machine is switched on. To turn on the beep, press the Temp. button again for at least 3 seconds while the washing machine is on.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Switch off the washing machine and let it cool down completely before cleaning.
  Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).

Fig. 11 Cleaning the detergent drawer

Pull out the drawer. Press the tab marked with an arrow above the fabric softener compartment and pull out the drawer completely.
- Wash the chambers with water.
If necessary, use a soft brush to clean the housing.
- Insert the detergent drawer.

English

Fig.12 Clean the filter of the lye pump

Caution

• Never operate the washing machine without a filter.
  The filter of the lye pump prevents foreign objects from affecting the pumping system.
  Clean or check the filter regularly depending on the frequency of use, approximately once a month.
• Check the filter if the water is not pumped out or if the noise is increased during pumping.
  Before opening the service flap, place a big cloth in front and below the flap. Large amounts of water may leak when removing the filter.

Make sure that all water has been pumped out during the previous wash cycle and then turn off the power and unplug the power cord.
- Open the maintenance flap.
- Place a collecting tray in front of it to catch any leaking water.
- Turn the filter cover to the left. Catch leaking water!
Clean the filter under running water.
- Insert the filter and turn it to the right. Make sure that the filter is properly fixed so that no water can leak.
- Close the maintenance flap.

Fig. 15 Inlet filter

Caution

• Close the water supply!
  After cleaning, always make sure that the water hose is properly installed and no water leaks.

Filter at the tap

Clean the filter if there is an insufficient flow of water when the water tap is open.

• Unscrew the supply hose from the water tap.
• Wash the inlet filter under running water.
• Reconnect the supply hose.

Supply filter at the washing machine

Clean the filter regularly, approximately every three months.

• Unscrew the supply hose on the back of the unit.
  Clean the filter with a small brush.
• Reconnect the supply hose.

Error codes

Code	Meaning Possible causes Solution
E30 Door lock problem Door	is not closed properly Restart after	the door is closed again.
E10 Water injection problem while washing	• Tap is closed or water flows too slow. • Inlet valve filter is blocked. • Inlet pipe is twisted	• Open the tap or wait till the water supply becomes normal • Check the inlet valve • Straighten the pipe
E21 Drain problem during washing	• Outlet hose is blocked or twisted • Drain pump is blocked	• Clean and straighten the outlet hose. • Clean drain pump filter

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work and/or indicator/display does not light	Interrupted power supply	Check the power supply
Door cannot be opened • Machine's protection mechanism is active	Disconnect from the power
Heating fault • NTC is damaged and heating pipe is aging	Contact the service center
Water leakage • Connection between inlet pipe or outlet hose and tap or washing machine is not tight. Drain pipe is blocked	Check and fasten the water pipes Clean up outlet hose
Water is overflow from the bottom of the machine	The inlet pipe is not connected firmly. Outlet hose has water leakage	Fix the inlet pipe Replace the drain hose
Washing result is not satisfied The clothes are to dirty Insufficient detergent quantity	Select a proper program Add proper detergent quantity
Abnormal noise Great vibration Check if fixing (bolts) has been removed Machine is installed on solid floor Check if any metal articles inside Adjust the feet of the machine

English

Technical data

Rated Voltage : 220 - 240 V~, 50 Hz

Rated power : 2000 w

Protection class : I

Max. capacity : 7 kg (KWM 71416 A3)

8 kg (KWM 81416 A3)

Dimensions : 595 x 495 x 850 mm (KWM 71416 A3)

595 x 565 x 850 mm (KWM 81416 A3)

Protection degree : IPX4

Inlet water pressure : 0.05 - 1 MPa

Product fiche
a	Supplier's nameTrade mark	ImtronKOENIC
b Model identifier KWM 71416 A3 KwM 8	L416 A3
c	Rated capacity in kg of cotton for the standard 60 °C cotton programme at full load or the 40 °C cotton programme at full load (whichever is the lower)	7 KG 8KG
d Energy efficiency class A+++
e EU Ecolabel No
f	Annual energy consumption (AEc) in kWh per year	Energy consumption 175 kWh per year (KWM 71416 A3) / 196 kWh per year (KWM 81416 A3) based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
g	Energy consumption (E150 , E160%, E140%) of the standard 60 °C cotton programme at full load and partial load and of the standard 40 °C cotton programme at partial load	E-50: 0.9E150% : 0.67E140% : 0.67	E150% : 0.9E160% : 0.88E140% : 0.79
h	Weighted power consumption of the off-mode and of the left-on mode;	0.5 W/1.0 W
i	Annual water consumption (Aw), in litres per year	Water consumption 10000 litres per year (KWM 71416 A3) / 11000 litres per year (KWM 81416 A3), based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used
j Spin-drying efficiency class B
k	Maximum spin speed attained for the standard 60 °C cotton programme at full load or the standard 40 °C cotton programme at partial load, whichever is the lower, and remaining moisture content attained for the standard 60 °C cotton programme at full load or the standard 40 °C cotton programme at partial load, whichever is the greater	1400 rpm

English

	Model KWM 71416 A3 KWM 81416 A3
I	Standard 60℃ cotton programme Standard 40℃ cotton programme	They are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. Note: The actual water temperature may differ from the declared cycle temperature
m	Programme time of the • standard 60℃ cotton programme at full • partial load (60℃) 207 min 222 min • standard 40℃ cotton programme at partial load in minutes and rounded to the nearest minute	220 min 228 min 205 min 222 min
n	Duration of the left-on mode (T1) if the household washing machine is equipped with a power management system	NA
o	Airborne acoustical noise emissions expressed in dB(A) re 1 pw and rounded to the nearest integer during the washing and spinning phases for the standard 60℃ cotton programme at full load	Washing: 59 dB Spinning: 78 dB
p	Household washing machine is intended to be built-in	No

Information
Model KwM 71416 A3 KwM	81416 A3
Indicative information on the programme time, remaining moisture content, energy and water consumption for the main washing programmes at full or partial load, or both	Standard 60 °C full load:220 min, 50%, 0.90 kwh/cycle, 50 L/cycle.Standard 60 °C partial load:207 min, 55%, 0.67 kwh/cycle, 42 L/cycle.Standard 40°C partial load:205 min, 55%, 0.67 kwh/cycle, 42 L/cycle.	Standard 60 °C full load:228 min, 50%, 0.90 kwh/cycle, 54 L/cycle.Standard 60 °C partial load:222 min, 55%, 0.88 kwh/cycle, 45 L/cycle.Standard 40°C partial load:222 min, 55%, 0.79 kwh/cycle, 45 L/cycle.
Recommendation on the type of detergents suitable for the various washing temperatures.	Powder or Liquid
