Brand	Koenic
Model	KWM 62222 A3
Product type	Top-loading washing machine
Washing capacity	6.5 kg
Dimensions (W × D × H)	400 × 610 × 875 mm
Weight (estimated)	65 kg
Rated voltage	220-240 V ~, 50 Hz
Rated power	2100 W
Energy class	A+++
Maximum spin speed	1200 rpm
Water pressure	0.05 - 1 MPa
Wash programs	Cotton, Cotton 40°C, Cotton 60°C, Quick 15, Daily wash 45, Jeans, Rinse and spin, Spin only, Color care, Wool, Delicate, Mixed, Synthetic, Sports, Baby care, Drum cleaning
Noise level (wash / spin)	62 dB / 78 dB
Annual water consumption	9900 L/year
Annual energy consumption	164 kWh/year
Child safety	Yes
Delayed start	3, 6 or 9 hours
Anti-leak system	Aqua stop on inlet hose
Cleanable pump filter	Yes
Adjustable feet	Yes (4 feet)

Frequently Asked Questions - KWM 62222 A3 Koenic

How to install the washing machine and remove the transport devices?

Before first use, you must remove the four transport locking devices located at the rear of the appliance. Unscrew them using a 13 mm wrench and insert the supplied caps into the holes. Then place the machine on a stable and level surface, and adjust the feet to level it.

How to use the different wash programs?

Turn the program selector to choose the program suitable for your laundry (Cotton, Synthetic, Wool, etc.). You can adjust the temperature and spin speed using the corresponding buttons. Press Start/Pause to start the cycle. Refer to the program chart in the manual for more details.

How to clean the pump filter?

Unplug the appliance and place a cloth in front of the flap. Open the flap, unscrew the filter by turning left and drain any water. Clean the filter under running water with a brush, then screw it back to the right. Perform this operation about once a month.

How to activate the child safety lock?

To activate the child safety lock, press the STARTZEIT VERZÖERN and SCHLEUDERN buttons simultaneously for at least 3 seconds. The corresponding symbol lights up. To deactivate, repeat the operation.

What to do in case of error code E30 (door not closed)?

Code E30 indicates that the door is not properly closed. Check that the lid is fully lowered and that the lock engages. Ensure no clothing is blocking the closure. If the problem persists, contact customer service.

How to adjust the feet to stabilize the machine?

The feet are adjustable: turn them clockwise to screw in (lower) or counterclockwise to unscrew (raise). Use a spirit level to check the horizontality. Once the machine is stable, tighten the lock nuts with a flat wrench.

What type of detergent to use for each program?

Use a multi-purpose detergent for white cotton, a special color detergent for colored textiles, and a mild detergent for wool and silk. Always follow the care label instructions on garments and the dosages indicated on the detergent packaging.

How to set a delayed start?

After selecting the program and options, press the STARTZEIT VERZÖERN button several times to choose a delay of 3, 6 or 9 hours. Then press Start/Pause. The cycle will start automatically after the set delay.

How to clean the detergent drawer?

Remove the detergent drawer by pulling it towards you. Clean it under running water with a soft brush to remove detergent and fabric softener residues. Replace it by pushing it in until it clicks. Perform this cleaning regularly.

What to do if the machine does not turn on?

Check that the power outlet is working and that the power cord is properly plugged in. Ensure the water tap is open. If the problem persists, unplug the appliance for a few minutes then plug it back in. Contact customer service if necessary.

USER MANUAL KWM 62222 A3 Koenic

Front view of a white disposable water refrigerator with control panel and front-mounted screen (no visible text or symbols)

C###-5-12 Engs-18 20 qude-11-01 F###-47 33

-26-62

-67-77

KOENIC A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60

Achtung: vor dem Waschen / Caution: before washing / Precaución: antes de lavar / Attention : avant le lavage / Attenzione: prima del lavaggio / Opgelet: voor het wassen

EN Before using the product for the first time, make sure, that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

Illustration of a faucet with arrows indicating flow direction (no text or symbols)

Diagram showing a device with labeled parts and a checkmark indicating selection or confirmation.

DE Wäsche einlegen

EN Load

ES Cargue

FR Charger le linge

IT Caricare

NL Inladen

4 I Pencil Software Masterbox II

EN Add detergent (I: Detergent for pre-wash / II: Detergent for main wash / ⚙️ : Fabric softener for rinsing)

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

DE Wäschetrommel schließen EN Close drum door ES Cierre la puerta del tambor FR Fermer la porte du tambour IT Chiudere lo sportello del cestello NL Sluit de deur van de trommel

Line drawing of a kitchen appliance with a red arrow indicating rotation (no text or symbols)

DE Deckel schließen EN Close machine door ES Cierre la puerta de la máquina FR Fermer le couvercle IT Chiudere il coperchio della macchina NL Sluit de deur van het toestel

Achtung: vor dem Waschen / Caution: before washing / Precaución: antes de lavar / Attention : avant le lavage / Attenzione: prima del lavaggio / Opgelet: voor het wassen

Diagram of a vehicle front view with arrows indicating movement or force (no text or symbols present)

Pure diagram of a mechanical component with no text, numbers, or symbols

DE

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instructions concerning the use of the product in a safe way and understand the hazards involved.

out by children unless they are supervised.

unless continuously supervised

authorised service agent in order to avoid hazards.

product is 6.5 kg.

be obstructed, e.g. by carpet.

Consider the minimum and maximum permitted inlet water pressure, see chapter Technical Data.

Consider all instructions about installation for detachable hose-sets and use new hose-sets for installation. Do not reuse old hose-sets

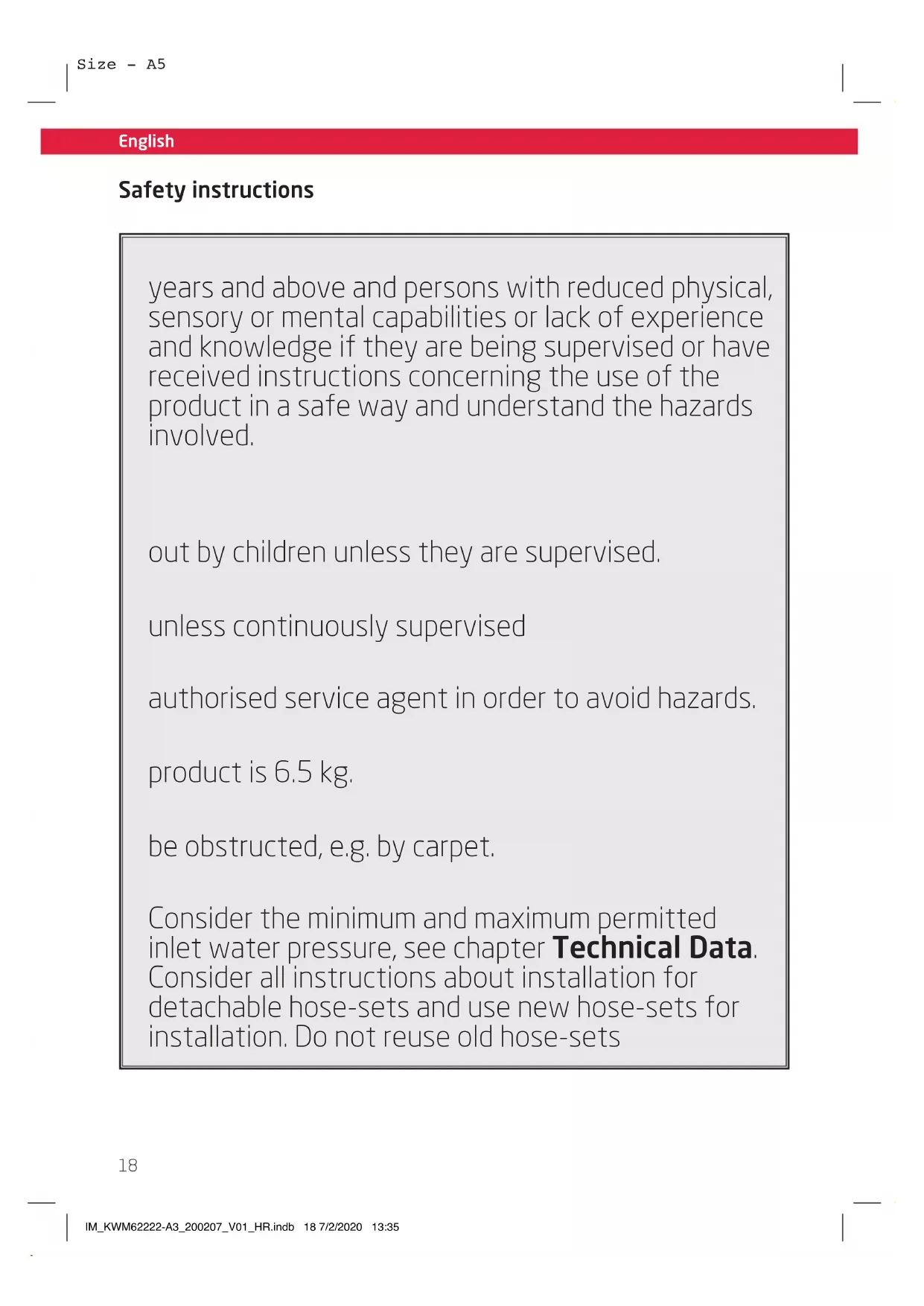

Safety instructions

household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

it is switched on.

in water or any other fluids during cleaning or operation. Never hold the product under running water.

repair the product yourself. For servicing and repairs, please consult an authorised service agent (e.g. damaged power cord, product has been dropped during installation, etc.).

information on the rating label of the product.

be caused by kinks or contact with sharp corners.

and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

plug itself. Do not pull on the cord.

• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

never outdoors.

• direct sunlight and dust;
• fire (fireplace, grill, candles), water (water splashes, vases, bath tub) or heavy moisture.

use. It is designed for household use only.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed for washing clothes and textiles. Any other use may result in damage to the product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions.

Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Washing machine
1 x Aqua stop water inlet hose
1 x User manual
1 x Warranty card

Controls and components

A Control panel

A1 Program selector
A2 Indicator lights
A3 On/off switch Ein/Aus
A4 Start/Pause button
A5 Function button FUNKTION
A6 Timer button STARTZEIT VERZÖGERUNG
A7 Spin speed button SCHLEUDERN
A8 Temperature button TEMPERATUR

B Water connection incl. hose
C Transport protections (4x!)
D Sewage hose
Power cord with plug
F Adjustable feet
G Lint filter
H Washing drum
Washing drum hatches with interlock
J Detergent box
K Lid
L Handle with lid release

Transport restraints must be removed before the first use as described in chapter Installation.

Technical data

Rated Voltage : 220 - 240 V\~, 50 Hz

Rated power : 2100 W

Protection class : I

Max. capacity : 6.5 kg

Dimensions : 400 x 610 x 875 mm

Protection degree : IPX4

Inlet water pressure : 0.05 - 1 MPa

Installation

Note:

The washing machine is equipped with power cord and plug and needs sewage and tap water connection. Before installation, make sure that the wall outlet is at the desired place of installation. Consider the dimension (chapter Technical data) of the product for placing and installation.

Caution

restraints must be removed from the backside of the unit. Operating the washing machine with mounted transport restraints leads to serious damages.

use. Never transport the device without correctly mounted transport restraints!

Fig. 1 Loosen the four transport restraints with a wrench (13 mm) and unscrew them completely. Insert the 4 supplied blind plugs in the holes.

Fig. 2 Place the washing machine on an even, horizontal and steady surface. For levelling, the feet are adjustable and can be screwed in or out.

hand, use pliers.

them in and to the left to unscrew them.

the appliance is levelled. If the appliance is not standing horizontally or is tilting, the feet must be adjusted again.

tilt, tighten the nuts with an open-end wrench.

Note:

Note the following, when placing the appliance on a platform: The appliance might move during spinning and could fall of a platform. To prevent this, the feet must be secured with retaining tabs (available in specialized stores).

Fig. 3 The washing machine must be connected to a drain.

sewage connection. Pull the hose out of the clamps and unwind it.

pipe (option A or B). Observe the max. height of the hose end.

Note:

used to correctly install the outlet hose. optional accessories.

Fig. 4 Connect the water inlet to the water system (3/4") using the supplied hose and make sure that everything is connected correctly and firmly. The water pressure must be between 0.05 MPa and 1 MPa. A pressure reducing valve must be used if the water pressure exceeds 1 MPa. The correct installation of the water connection should be checked on a regular basis.

Note:

been used for an extended period of time, allow a certain amount of water to drain until you are sure that the water is clear and free of foreign objects.

that the water inlet will become clogged and the unit will be damaged.

Fig. 5 Plug the mains plug into a suitable socket.

English

Preparation

Before first use

back of the unit have been removed.

from the washing drum.

the appliance without any cloth but some detergent in the "Cotton 60°C" program, see

Start washing.

Note:

Before using the product for the first time, make sure, that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

Operation

Preparation of the garments

Caution

suitable for machine wash. Observe the instructions on the care label of the laundry.

(eg. nails, coins) can damage laundry and components.

thinner, alcohol or solvents.

empty them.

and hair from the laundry, eg. by pre-soaking and pre-washing by hand.

and the washing procedures and washing temperatures indicated on the care labels. Do not wash white laundry together with coloured laundry but separate. Newly bought coloured laundry must be washed separately.

and embroideries inwards. If necessary, close zippers, buttons or hooks before washing, and tie loose straps or loops together.

to prevent the steel hangers from loosening. In particular, fine textiles such as curtains, crochet work or small articles (socks, handkerchiefs, neckties, etc.) should be washed in a closed laundry bag.

as hooks, eyelets, e.g. from curtains.

and heavy single items such as bedclothes, covers, bath towels, jeans, lined winter jackets, etc., the drum can become unbalanced especially during spinning. To minimize imbalances always wash several clothes together as one load.

separately, otherwise you will have visible lint on all clothes, especially on black clothes.

Fig. 7 Filling the laundry drum

Pull on the handle of the lid and open it. Press the front laundry drum hatch latch until the latch releases and both doors open.

them neatly into the washing drum.

capacity. Do not overload the washing machine. Do not cram the laundry in the washing drum but load it in a way that the laundry is still being circulated during the washing process. Different sizes and thicknesses of the laundry influence the loading capacity.

do this, fold down both hatches, with the rear hatch over the front hatch. Push the rear hatch down until the lock engages.

Caution

correctly. The metal hook must fit correctly in the recess.

between the hatches and the drum or between the two hatches.

must roll smoothly.

Selecting and filling in detergent

Caution

children!

regarding dosage and storage.

machines and make the right selection, taking into account the kinds of laundry to be washed (cotton, colored, white etc.).

washing machine and laundry.

Fig. 8 1. Note the different compartments:

I: Detergent for pre-wash

II: Detergent for main wash

: Fabric softener for rinsing

1. Fill in laundry detergent and fabric softener according to manufacturer's instructions.

Note on foam detection: If too much detergent is used, excessive foam is formed. The foam formation is checked and excessive foam is removed.

Start washing

1. Close the lid. Make sure it is correctly engaged.

2. Turn on the washing machine with the Ein-/Aus switch.

3. Use the program selector to select a suitable program and, if necessary, a suitable additional function. Please refer to the following Program table.

4. Use the TEMPERATUR button to change the temperature if the preset temperature does not meet your requirements. The higher the temperature the more energy is consumed.

5. If necessary use the SCHLEUDERN button to select a different spin speed if the preset speed does not meet your requirements. The higher the spin speed, the drier but also more creased the laundry is. High spin speeds also reduce the life of the washing machine.

Note:

Only use low spin speeds for delicate garments.

1. By pressing the Funktion button, select one of the additional functions, pre-wash ⊥ or extra rinse

2. Press the timer button STARTZEIT VERZÖGERUNG to set a later time for the machine to start. By pressing the button several times a delayed start time of 3, 6 or 9 hours can be selected. To do so, follow the steps 1 to 6, then use the STARTZEIT VERZÖGERUNG button to set the start time and then press the Start/Pause button. If the preset time has elapsed, the washing machine will automatically turn on and the washing time will be shown on the display.

3. Start the washing process by pressing the Start/Pause button.

Caution

The door may only be opened if the appliance is not running and the indicator light is off, e.g. after a washing program is finished. Do not try to open the door while the appliance is running.

English

Fig. 9 Washing program table

Program
Program nameShort explanation of the program and for which fabrics it's suitable. The values printed in fat, are the pre-set ones.	selected in °Cselected in 1/min
CottonHard-wearing fabrics, heat resistant fabrics made of cotton or linen
Cotton 40 °CHard-wearing fabrics, heat resistant fabrics made of cotton or linenNote: washing temperature is pre-set to 40 °C
Cotton 60 °CHard-wearing fabrics, heat resistant fabrics made of cotton or linenNote: washing temperature is pre-set to 60 °C
Quick 15Extra short program of approx. 15 minutes, suitable for small items of lightly soiled laundry
Daily wash 45Washing few and not very dirty clothes quickly
JeansFor Jeans and Denim textiles
Rinse & SpinExtra rinse or spin with selectable speed
Spin onlyExtra spin with selectable spin speed.
Color careSuitable for colored-wash
WoolHand or machine washable fabrics that are made of wool or contain woolNote:
DelicateFor delicate, washable fabrics, e.g. made of silk, satin, synthetic fibers or blends (e.g. silk blouses, silk scarves)Note: Use a detergent suitable for machine-washing delicate or silk
MixMixed load of cottons and synthetic fabrics
SyntheticWash synthetic articles, for example: shirts, coats, blending. While washing knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles
SportswearSports and leisure wear made from microfiber fabricsNote:order to remove fabric softener residue
Baby CareFor washing baby's clothes. Keeps the cloth soft and smooth in order to protect the baby's skin

English

Program
Drum cleanFor sterilization of the drum

The EU energy efficiency class is A+++

Energy test programme: Cotton 60/40 °C

Speed: the highest speed: Other as default.

Half load for 6.5 kg machine: 3.25 kg

* Standard program: Cotton 60°C / 40°C.

With full and partial load, these are the standard wash programs to identify the information on the energy label. These programs are suitable to clean normally soiled laundry and of combined energy and water consumption most efficiently.

Child protection

Fig. 10 Once the child protection is activated, the settings cannot be changed. The washing machine can only be switched off with the Ein/Aus switch, whereby settings and wash progress are saved and the washing process can be continued after switching the machine back on. The child protection can only be activated if the washing machine operation was started or is running either directly or by time delay.

1. Activation: Press the STARTZEIT VERZÖGERN and SCHLEUDERN buttons at once for at least 3 seconds. The corresponding symbol of the control panel indicates the child protection.

2. De-activation: Press the STARTZEIT VERZÖGERN and SCHLEUDERN buttons again at once for at least 3 seconds. The corresponding symbol of the control panel turns off.

Disabling the alarm sound

To permanently deactivate the signal tone, press the SCHLEUDERN button for at least 3 seconds while the washing machine is switched on. To turn on the beep, press the

SCHLEUDERN button again for at least 3 seconds while the washing machine is on.

26

Cleaning and care

Warning

abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

cool down completely before cleaning.

with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).

Fig. 11 Cleaning the detergent box

detergent box.

clean the housing.

Fig. 12 Clean the filter of the lye pump

Caution

without a filter.

objects from affecting the pumping system.

depending on the frequency of use, approximately once a month.

out or if the noise is increased during pumping.

a big cloth in front and below the flap. Large amounts of water may leak when removing the filter.

pumped out during the previous wash cycle and then turn off the power and unplug the power cord.

catch any leaking water.

leaking water!

right. Make sure that the filter is properly fastened so that no water can leak.

Fig. 13 Inlet filter

Caution

water hose is properly installed and no water leaks.

Filter at the tap

Clean the filter if there is an insufficient flow of water when the water tap is open.

water tap.

water.

Supply filter of the washing machine

Clean the filter regularly, approximately every three months.

of the unit.

English

Error codes

Code	Meaning Possible causes Solution
E30 Door is not closed properly		cannot be closed	again
E10 Water injecting problem while washing		too slow.	water supply becomes normal
E21 Overtime water draining			remove the blockage
			error code still occurs, contact the service

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work and/or indicator/display does not turn on
	mechanism is active	power
	pipe is aging	center
	pipe or outlet hose and tap or washing machine is not tight.	water pipes
Water is overflowing from the bottom of the machine	connected firmly.
Washing result is not satisfying	quantity	quantity
Abnormal noise, great vibrations

Recommendations on the type of detergent according to Directive (EU) No. 1015/2010

Type of clothing	Temperature of the washing program	Recommended detergent
White textiles, made from cotton or other organic fibers	20°C – 90°C General purpose laundry detergent
Colored textiles, made from cotton or other organic fibers	20°C – 90°C Color-care laundry detergent
Delicate textiles, e.g. silk 20°C Mild detergent
Textiles made from synthetic fibers and mixed textiles	20°C – 60°C Specialty laundry detergent
Sports textiles made from micro fibers	20°C – 60°C Specialty laundry detergent
Woolen textiles 20°C – 40°C Specialty laundry detergent / mild laundry detergent
Baby clothing 20°C – 60°C Specialty laundry detergent
Jeans / Denim 20°C – 90°C General purpose laundry detergent / Specialty laundry detergent

Note: The table serves only as a reference and a general recommendation. For the correct dosage as well as temperature, always observe the information in your clothing as well as on the packaging of the detergent.

Español

Product fiche
a	Importer's nameTrade mark	ImtronKOENIC
b	Model identifier KMW 62222 A3
c	Rated capacity in kg of cotton for the standard 60 °C cotton programme at full load or the 40 °C cotton programme at full load (whichever is the lower)	6.5 KG
d	Energy efficiency class A+++
e	EU Ecolabel No
f	Annual energy consumption (AE) in kWh per year	Energy consumption164 kWh per yearbased on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
g	Energy consumption ( E_50 , E_50% , E_40% ) of the standard 60 °C cotton programme at full load and partial load and of the standard 40 °C cotton programme at partial load	E_60 : 0.78 E_160% : 0.7 E_140% : 0.62
h	Weighted power consumption of the off-mode and of the left-on mode;	0.5 W / 1.0 W
i	Annual water consumption (AW), in litres per year	Water consumption9900 litres per year, based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used
j	Spin-drying efficiency class B
k	Maximum spin speed attained for the standard 60 °C cotton programme at full load or the standard 40 °C cotton programme at partial load, whichever is the lower, and remaining moisture content attained for the standard 60 °C cotton programme at full load or the standard 40 °C cotton programme at partial load, whichever is the greater	1200 rpm
l	Standard 60 °C cotton programmeStandard 40 °C cotton programme	They are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry.Note:The actual water temperature may differ from the declared cycle temperature
m	Programme time of thein minutes and rounded to the nearest minute
n	Duration of the left-on mode ( T_1 ) if the household washing machine is equipped with a power management system	NA
o	Airborne acoustical noise emissions expressed in dB(A) re 1 pW and rounded to the nearest integer during the washing and spinning phases for the standard 60 °C cotton programme at full load	Washing: 62 dBSpinning: 78 dB
p	Household washing machine is intended to be built-in	No

Information
Model KMW 62222 A3
Indicative information on the programme time, remaining moisture content, energy and water consumption for the main washing programmes at full or partial load, or both	Standard 60 °C full load:300 min, 50%, 0.78 kW h/cycle, 50 L/cycle.Standard 60 °C partial load:275 min, 55%, 0.7 kW h/cycle, 41 L/cycle.Standard 40°C partial load:270 min, 55%, 0.62 kW h/cycle, 41, L/cycle.
Recommendation on the type of detergents suitable for the various washing temperatures.	Powder or Liquid

Español
