USER MANUAL IAN 277484 AURIOL

Introduction Congratulations on the purchase of your new weather station. You have chosen a high quality product. The instruction manual is part of the product- it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the weather station. Only use the weather station in the intended way and for the intended applications. Please keep the packaging and the instruction manual for future reference. Intended use This electronic appliance is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use. Scope of delivery Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

• 3 x battery 1.5 V AA R6/LR6

• 2 x battery 1.5 V AA R6/LR6

• Instruction manual Specifications Weather station

• Protection offered by the case (outdoor sensor): IPX4 (Water resistant accodring to IEC norm 60529) Set up the device safely The weather station with outdoor sensor is not designed for operation in rooms with high humidity (i.e. bathroom). Make sure that:

• the sensor hangs or stands upright;

• sufficient ventilation is always guaranteed (don’t place the device on shelves or where curtains or furniture block the ventilation holes, and ensure that there are at least 10 cm of space on all sides);

• the device isn’t placed on a thick carpet or bed during operation ;

• no direct heat sources (i.e. radiators) influence the device;

• no direct sunlight reaches the device;

• contact with splashing or dripping water must be avoided (don’t place any items filled with liquids, i.e. vases, onto or next to the device);

• the device doesn’t stand near magnetic fields (i.e. speakers);

• candles and other open flames must be kept away from this product at all times to prevent the spread of fire User This device may be used by persons (including children over 8 years of age) with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or instructed regarding the safe use of the device and understand the dangers that may arise. Children may not play with the device. Cleaning and user maintenance of the device may not be performed by children without supervision. Keep packaging films out of the hands of children. There is a danger of suffocation. Batteries Keep batteries out of reach of small children. If a battery is swallowed, you must seek medical attention immediately. Batteries/rechargeable batteries must always be inserted in the correct polarity. If necessary, clean the battery and device contacts. Never attempt to recharge non-rechargeable batteries. Never short-circuit or attempt to open batteries. Never throw batteries into fire as they may explode. If the device will not be used for an extended time period, remove the battery and store the device in a dry and dust- free area. Improper use of the battery can lead to explosion or leakage. If the battery leaks, avoid contact with skin, eyes and mucous membranes. Use gloves. If you are exposed to battery acid, rinse the affected areas with plenty of clean water and immediately seek medical attention. Remove discharged batteries from the device as they present an increased risk of leakage.

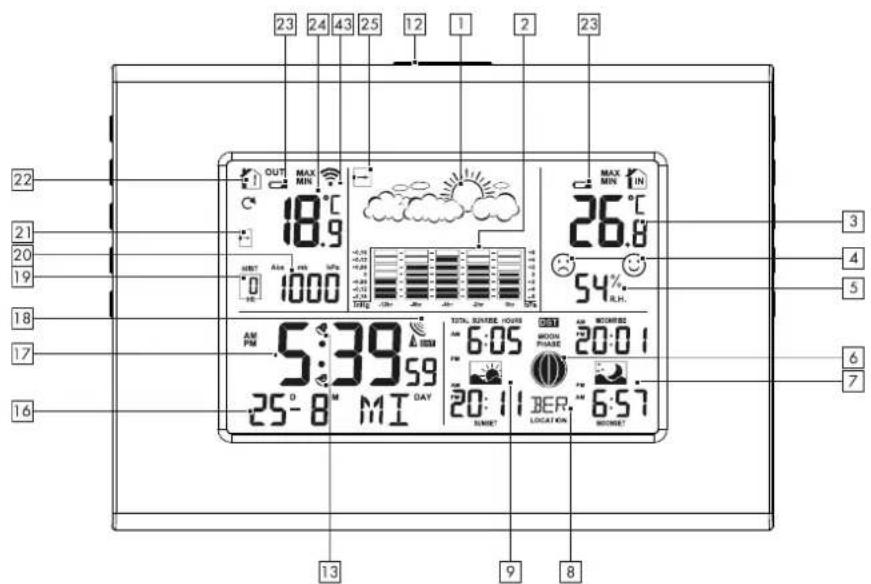

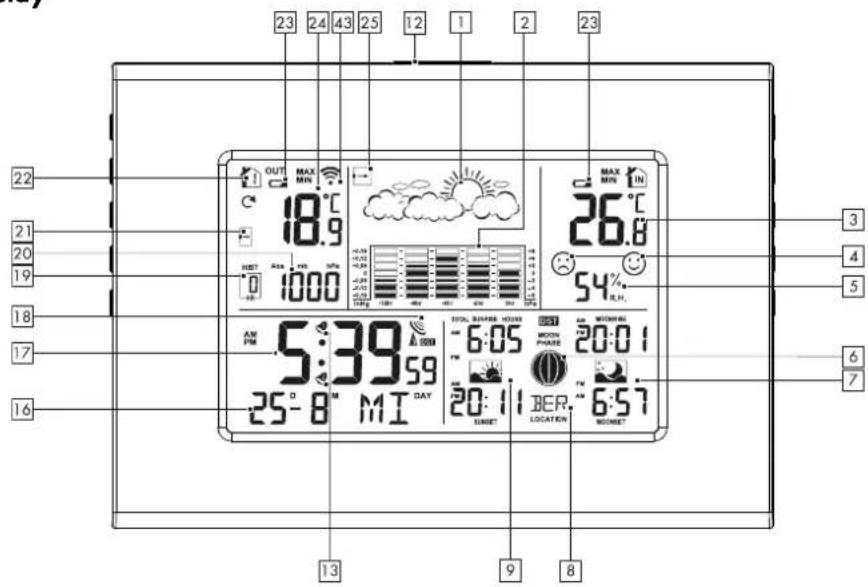

1 Weather icon 22 Selected channel

Indoor temperature 24 Outdoor temperature

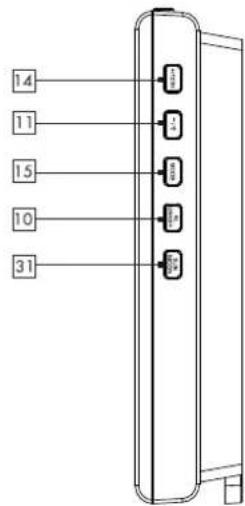

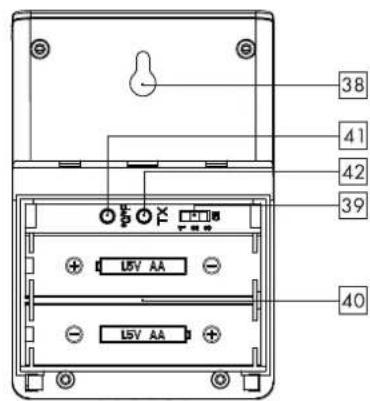

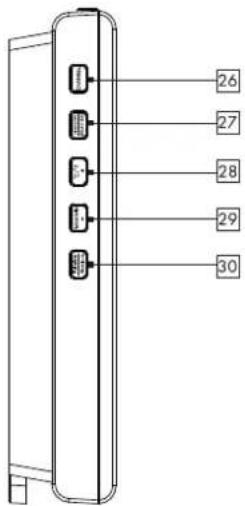

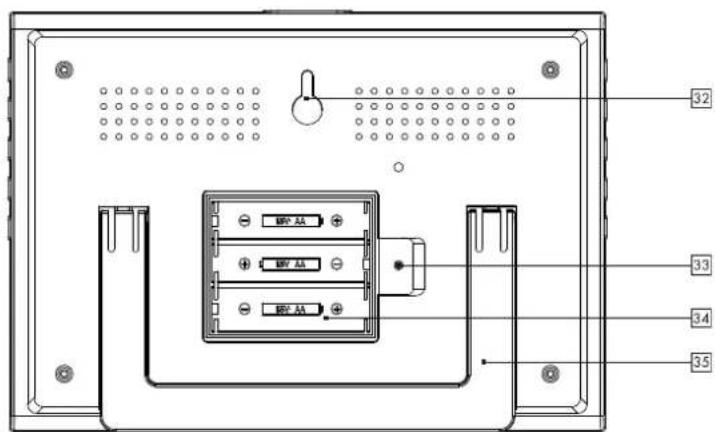

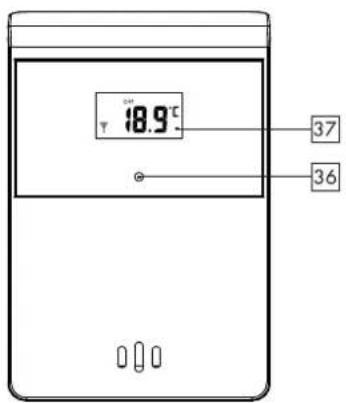

-/ -button 32 Hole for wall mounting (Weather station) 12 SNOOZE/LIGHT-button 33 RESET-button 13 Alarm symbol 34 Battery compartment 14 +/12/24-button 35 Stand 15 MODE-button 36 LED indicator 16 Date (month, day, day of the week) 37 Outdoor temperature / channel 17 Time display 38 Hole for wall mounting (Outdoor sensor) 18 Radio control indicator 39 Channel selection switch 19 Air pressure for previous hours 40 Battery compartment 20 Relative / absolute air pressure 41 °C/°F-button 21 Outdoor temperature tendency 42 TX-button 43 Signal from the outdoor sensor-

Setup Remove the protective film from the weather station and the outdoor sensor. Open the battery compartment of the outdoor sensor and insert the included batteries in the correct polarity. The LED indicator will briefly light up and the display will show the temperature. Close the battery compartment. Open the battery compartment of the weather station and insert the included batteries in the correct polarity. Close the battery compartment. The weather station will now receive the signal from the outdoor sensor. This process may take several minutes to complete. If reception is successful, the selected channel 22 and the current outdoor temperature 24 will appear. After successful reception of the signal for the outdoor sensor, the reception of the DCF77 time signal will begin and the radio control indicator 18 will blink on the display next to the time. All buttons except the SNOOZE / LIGHT button 12 are disabled during the reception process. If reception fails after 10 minutes, please set the time manually. The weather station will reattempt reception at 04:00 and 05:00 and, if reception is successful, will correct the set time. Note: Please do not move the weather station or the sensor during the reception process. If the reception attempt is successful, the radio control indicator 18 will appear permanently on the display and the correct time, date, day of the week and the times of sunrise, sunset, moonrise and moonset will be set automatically. DST will appear on the display next to the radio control indicator 18 during daylight saving time. Note: If you are in a country, in which the clock displays the wrong time even though it can receive the time signal, please use the time zone adjustment to use your alarm clock in a time zone other than the standard time zone (UTC+1 = Central European Time). Set the difference in hours (- 01 for example) to the desired time zone. Restart radio reception after changing this setting. Your clock receives the DCF77 time signal but will show the adjusted time (1 hour less for example). Note: Always hang or place the sensor in an upright orientation. Reception problems The DCF77 radio signal is transmitted from a location near Frankfurt am Main and can be received within a radius of approximately 1500 km around Frankfurt am Main. However, there are some obstacles and sources of interference, which may substantially hinder reception. If your weather station does not correctly receive the DCF77 radio signal, please hang or place the weather station in a different location at your site. Please note that devices such as computers, telephones, radios and televisions may cause electromagnetic radiation which can interfere with the DCF77 signal reception. Other possible detriments to reception are: strong building insulation (metal building materials), nearby mountains or atmospheric interference. It may also be necessary to replace the batteries. Restarting radio signal reception Manually restart the radio signal reception by pressing and holding the -/ -button 11 for 3 seconds. Light Briefly activate the backlight by pressing the SNOOZE/LIGHT-button 12. 12/24-hour time format Select the 12- or 24 hour time format by pressing the +/12/24 -button 14. AM will appear on the display in the morning, PM in the afternoon if the 12-hour time format is selected. Temperature unit Select the temperature unit Celsius (°C) or Fahrenheit (°F) by pressing the °C/°F+ -button 28. Speed setting Press and hold buttons to use the speed setting feature when setting numerical values. Basic settings The following values can be set: Time zone, time, date, language of the day of the week display and location. Press and hold the MODE-button 15 for 3 seconds while in normal time display mode. The time zone will blink and can be set by pressing the -/ -button 11 or the +/12/24 -button 14. Press the MODE-button 15, to confirm your setting. Set the hours, minutes, seconds, year, month, day, language of the day of the week display (GE=German, FR=French, ES=Spanish, IT=Italian, NE=Dutch, DA=Danish, RU=Russian, EN=English), your country and your city (see location table) in the same way. After changing the location, it will take some time for the weather station to update the times for sunrise, sunset, moonrise and moonset.

Insert batteries into the outdoor sensor first and then insert batteries into the weather station.-

Location table Germany

Czech Republic CZR Kassel

Sunrise, sunset, moonrise and moonset times After setting your country and city, the weather station will calculate the approximate times for sunrise, sunset, moonrise and moonset. Note: The calculated times are approximate. Differences can also result from your local terrain and weather. Briefly display the approximate number of hours of sunlight for the current day by pressing SUN/MOON-button 31. To view the information for a different location or date, press and hold the SUN/MOON-button 31 for 3 seconds. The country will blink and can be selected by pressing the -/ -button 11 or the +/12/24 -button 14. Confirm your setting by pressing the SUN/MOON-button 31. Set the city, year, month and day in the same way and confirm your setting by pressing the SUN/MOON-button 31. Moon phase Your weather station is equipped with a moon phase display. The 8 phases of the moon are:

New Moon Full Moon Waxing Crescent Waning Gibbous First Quarter Third Quarter Waxing Gibbous Waning Crescent Alarm The weather station has 2 alarms, which can be set separately. Press the MODE-button 15 to select alarm 1 or alarm

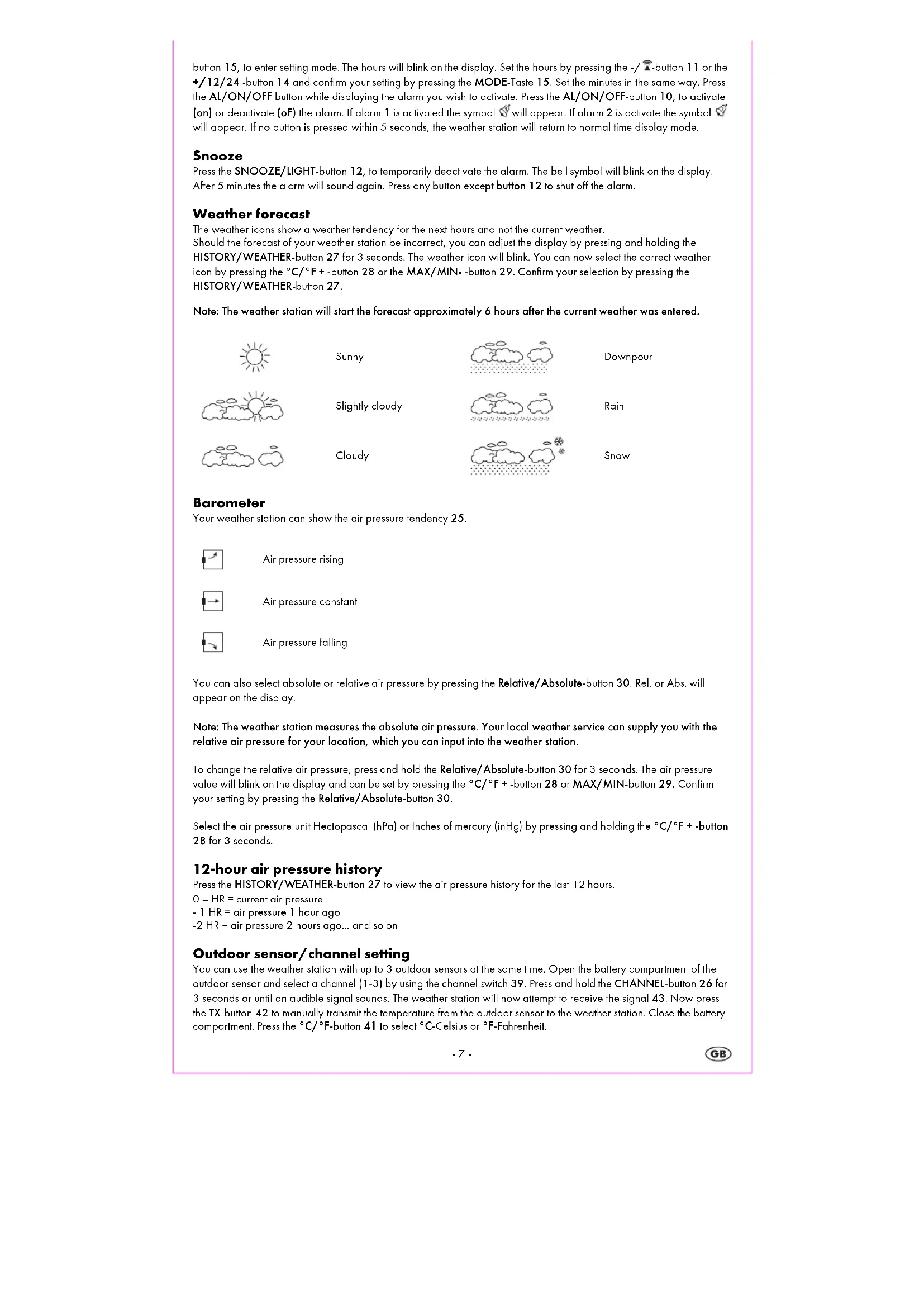

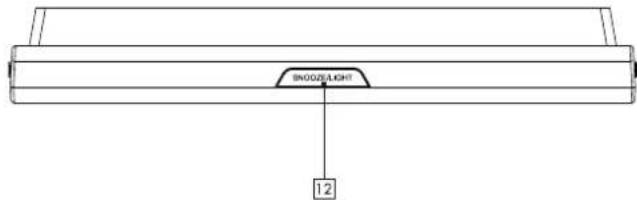

button 15, to enter setting mode. The hours will blink on the display. Set the hours by pressing the -/ -button 11 or the +/12/24 -button 14 and confirm your setting by pressing the MODE-Taste 15. Set the minutes in the same way. Press the AL/ON/OFF button while displaying the alarm you wish to activate. Press the AL/ON/OFF-button 10, to activate (on) or deactivate (oF) the alarm. If alarm 1 is activated the symbol will appear. If alarm 2 is activate the symbol will appear. If no button is pressed within 5 seconds, the weather station will return to normal time display mode. Snooze Press the SNOOZE/LIGHT-button 12, to temporarily deactivate the alarm. The bell symbol will blink on the display. After 5 minutes the alarm will sound again. Press any button except button 12 to shut off the alarm. Weather forecast The weather icons show a weather tendency for the next hours and not the current weather. Should the forecast of your weather station be incorrect, you can adjust the display by pressing and holding the HISTORY/WEATHER-button 27 for 3 seconds. The weather icon will blink. You can now select the correct weather icon by pressing the °C/°F + -button 28 or the MAX/MIN- -button 29. Confirm your selection by pressing the HISTORY/WEATHER-button 27. Note: The weather station will start the forecast approximately 6 hours after the current weather was entered.

Sunny Downpour Slightly cloudy Rain Cloudy Snow Barometer Your weather station can show the air pressure tendency 25.

Air pressure rising Air pressure constant Air pressure falling You can also select absolute or relative air pressure by pressing the Relative/Absolute-button 30. Rel. or Abs. will appear on the display. Note: The weather station measures the absolute air pressure. Your local weather service can supply you with the relative air pressure for your location, which you can input into the weather station. To change the relative air pressure, press and hold the Relative/Absolute-button 30 for 3 seconds. The air pressure value will blink on the display and can be set by pressing the °C/°F + -button 28 or MAX/MIN-button 29. Confirm your setting by pressing the Relative/Absolute-button 30. Select the air pressure unit Hectopascal (hPa) or Inches of mercury (inHg) by pressing and holding the °C/°F + -button 28 for 3 seconds. 12-hour air pressure history Press the HISTORY/WEATHER-button 27 to view the air pressure history for the last 12 hours. 0 – HR = current air pressure - 1 HR = air pressure 1 hour ago -2 HR = air pressure 2 hours ago... and so on Outdoor sensor/channel setting You can use the weather station with up to 3 outdoor sensors at the same time. Open the battery compartment of the outdoor sensor and select a channel (1-3) by using the channel switch 39. Press and hold the CHANNEL-button 26 for 3 seconds or until an audible signal sounds. The weather station will now attempt to receive the signal 43. Now press the TX-button 42 to manually transmit the temperature from the outdoor sensor to the weather station. Close the battery compartment. Press the °C/°F-button 41 to select °C-Celsius or °F-Fahrenheit.-

Note: The outdoor sensor must be within a maximum distance of 100 m of the weather station with no obstructions. If you are using mutliple outdoor sensors: Press the CHANNEL-button 26 to select the reception channel. The rotation symbol on the display at 22 indicates that the weather station is rotating through channels 1-3. Only active outdoor sensors are displayed. Press and hold the CHANNEL-button 26 to remove unused channels. When adding an additional outdoor sensor, the weather station will detect it automatically. You can also manually transmit the signal by pressing the TX-button 42. Outdoor temperature tendency The temperature trend 21 is displayed upon successful reception from the outdoor sensor.

Outdoor temperature rising Outdoor temperature constant Outdoor temperature falling Indoor humidity The current indoor humidity is shown on the display at 5. The comfort icon 4 can show 3 levels of comfort:

Maximum and minimum values The maximum and minimum temperature and humidity are stored as soon as the batteries are inserted. Briefly press the Max/Min- -button 29 to display the maximum MAX, minimum MIN and current indoor temperature 3, outdoor temperature 24 and humidity 5 on the display. To delete the maximum and minimum values, press and hold the Max/Min- -button 29 for 3 seconds. An audible signal will sound and the stored values will be deleted. The weather station will immediately restart recording of the values. Battery level indicator If the batteries run too low to power the weather station, the outdoor sensor and signal transmission, the battery level indicator 23 will appear on the display. Replace the batteries in all devices as soon as possible. Restart the weather station. Restart (RESET) Press the RESET-button 33 within the battery compartment to reset the weather station. Cleaning instructions Clean the product with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal. Simplified EU declaration of conformity Hereby, digi-tech gmbh declares that the radio equipment type radio-controlled weather station 4-LD4437 is in compliance with Directives 1999/5/EU et 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.digi-tech-gmbh.com/ce/277484_WS.pdf Disposal of the electronic appliance This weather station may not be disposed of with normal household waste. Dispose of the unit at an approved disposal facility or at your local recycling centre. Please observe the current rules and regulations when disposing of the appliance. Contact the disposal system if in doubt. Disposal of the batteries Please dispose of your batteries properly in containers especially set up at retailers. Batteries do not belong in household waste. Dispose of the batteries at an approved disposal facility or at your local recycling centre. Contact the disposal system if in doubt-

digi-tech gmbh warranty This weather station includes a 3 year warranty starting on the day of purchase. In case of defects of this weather station you have, by law, certain rights regarding the vendor of the weather station. These rights are not changed by the warranty which is described in the following paragraphs. Warranty conditions The warranty duration starts on the date of purchase. Please keep the receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the weather station within 3 years, the weather station will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the weather station and the receipt can be made available to us along with a short written description of the defect and when it occured. If the defect is covered by the warranty, you will receive the repaired weather station or a new weather station. Repair or replacement does not cause the warranty period to restart. Warranty period and defects liability The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period. Scope of the warranty The weather station was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass. This warranty becomes void if the weather station is damaged, is not used in the recommended way or is improperly repaired. For proper use of the weather station all instructions in this manual must be adhered to exactly. Use of the weather station in a way that is discouraged in the manual must be avoided. The weather station not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty. Warranty claim procedure To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (277484) handy.

• The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.

• In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.-

Order service Additional outside sensors can be ordered by fax +49(0)6198-5770-99 or online at www.inter-quartz.de. The price for one sensor is 5.00 € excluding VAT and despatch. Service Name: Inter-Quartz GmbH Street: Valterweg 27A Town: DE-65817 Eppstein Country: GERMANY Email: support@inter-quartz.de Telephone: +49 (0)6198 571825

Please note that the following address is not a service address. Please first contact the service address (see above). Name: digi-tech gmbh Street: Valterweg 27A Town: DE-65817 Eppstein Country: GERMANY-
