VP 2122 S - Vacuum Cleaner ECG - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	ECG
Model	VP 2122 S
Rated Power	1000 W
Suction Power	170 W
Dust Bag Volume	1.6 L
Operating Radius	7 m
Weight	2.5 kg
Rated Voltage	230 V ~ 50/60 Hz
Noise Level	< 80 dB
Bag Full Indicator	Yes, red light
Cable Rewind	Yes, rewind button
Filter Type	Washable motor filter and exhaust filter
Compatible Replacement Bag	KOMA ECG VP 2141 S, SWIRL® Y 98® MicroPor® Plus, BASE BA-1750
Included Accessories	Plastic floor nozzle (hard floor/carpet), telescopic tube, combination crevice tool, dusting brush
Usage	Household
Maintenance	Clean filters with warm water, replace bag if red indicator
Safety	Do not vacuum liquids, burning objects, sharp objects; do not immerse in water
Housing Material	Plastic

Frequently Asked Questions - VP 2122 S ECG

How to replace the dust bag of the VP 2122 S vacuum cleaner?

Open the front cover by pressing the lock. Remove the holder with the full bag, insert a new bag into the holder, and place everything back into the vacuum cleaner. Refer to compatible bags: KOMA ECG VP 2141 S, SWIRL® Y 98® MicroPor® Plus or BASE BA-1750.

How to clean the motor filter?

Unplug the vacuum cleaner. Open the front cover, remove the motor filter, wash it with warm water, dry it thoroughly before reinstalling. Replace it if damaged. Perform this operation at least once a year.

How to clean the exhaust filter?

Flip down the rear filter cover, remove the filter, wash it with warm water, dry it thoroughly before reinstalling. Replace it if damaged.

What to do if the bag full indicator stays red after changing the bag?

Check that the flexible hose and tube are not blocked. If the problem persists, contact an authorized service center to avoid overheating of the vacuum cleaner.

What accessories are included with the vacuum cleaner?

The vacuum cleaner comes with a plastic floor nozzle (adjustable for hard floors and carpets), a telescopic tube, a combination crevice tool, and a dusting brush.

Can I use the vacuum cleaner without a bag?

No, never use the vacuum cleaner without a dust bag, motor filter, and exhaust filter in place. This would damage the appliance and reduce performance.

What type of electrical plug is needed?

The vacuum cleaner operates on a voltage of 230 V ~ 50/60 Hz. Ensure the outlet is properly grounded.

How to rewind the power cord?

Pull the plug to disconnect the cord from the outlet, then press the rewind button on the vacuum cleaner to automatically rewind the cord.

What to do if suction power decreases?

Check if the dust bag is full, if the hose or tube is blocked, or if the filters are dirty. Replace the bag, remove blockages, and clean or replace the filters.

Is it safe to vacuum liquids?

No, never vacuum liquids, wet surfaces, or burning objects (cigarettes, coals). This poses a risk of electrocution and would damage the appliance.

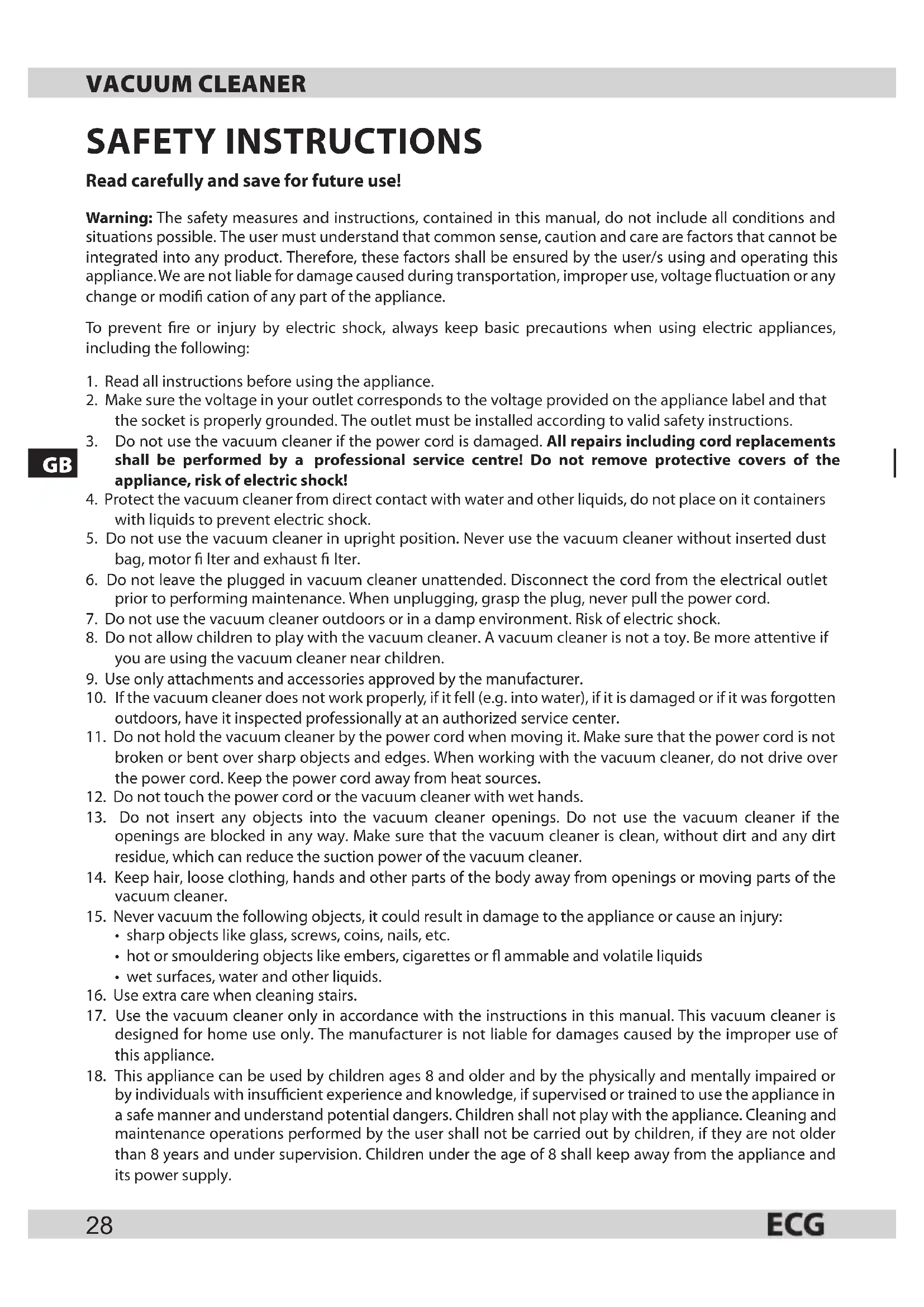

USER MANUAL VP 2122 S ECG

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damage caused during transportation, improper use, voltage fluctuation or any change or modification of any part of the appliance.

To prevent fire or injury by electric shock, always keep basic precautions when using electric appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without inserted dust bag, motor fi lter and exhaust fi lter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to performing maintenance. When unplugging, grasp the plug, never pull the power cord.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.
9. Use only attachments and accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service center.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not touch the power cord or the vacuum cleaner with wet hands.
13. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any dirt residue, which can reduce the suction power of the vacuum cleaner.
14. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.

15. Never vacuum the following objects, it could result in damage to the appliance or cause an injury:

16. sharp objects like glass, screws, coins, nails, etc.

17. hot or smouldering objects like embers, cigarettes or flammable and volatile liquids

18. wet surfaces, water and other liquids.

19. Use extra care when cleaning stairs.

20. Use the vacuum cleaner only in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
21. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

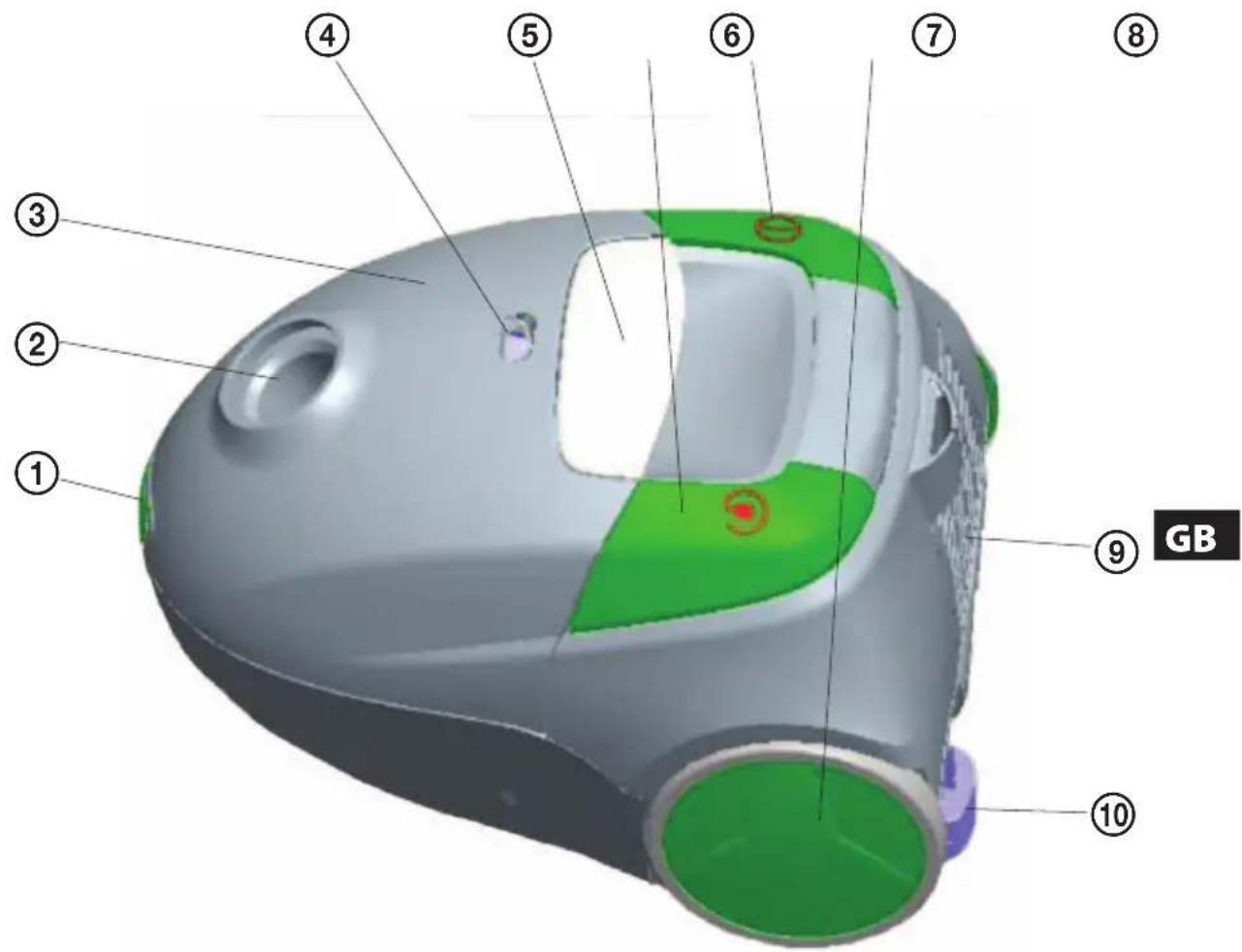

DESCRIPTION OF THE VACUUM CLEANER

List of parts

1. Front cover lock

2. Cable rewind button

3. Opening for inserting the hose

4. ON/OFF button

5. Front cover

6. Large wheels

7. The full dust bag indicator

8. Rear filter cover

9. Handle for moving

10. Power cable

USING THE VACUUM CLEANER

The vacuum cleaner must be switched off and unplugged prior to assembly!

1. Insert the end of the hose in the opening in front of the vacuum cleaner and secure it (Fig. 1).

2. Connect the other end of the hose with curved ending to the tube (Fig. 2).

3. Connect to the tube accessories suitable for a given type of flooring: brush nozzle for carpets or hard floors (switch according to floor type) (Fig. 3), combined tapered nozzle and dust brush for sofas, curtains and hard to reach places in the corners or between the furniture (Fig. 4).

4. Starting the vacuum cleaner: plug the power cord in the electrical outlet whose parameters correspond to those in the type label of the appliance and press the power button to start the vacuum cleaner (Fig. 5).

5. Retracting the power cord: Grasp the plug and pull out the power cord. Press the retractor button, the power cord rewinds back into the vacuum cleaner (Fig. 6).

GB

123

456

After use

Turn off the vacuum cleaner and unplug the power cord from the outlet. Before you add any accessories or before cleaning the appliance, always turn the vacuum cleaner off and unplug it from the outlet.

Issues

Do not use an appliance showing any signs of damage. Damaged power cords must be replaced by a qualified authorized service centre. Only this way can you prevent safety risks.

See the troubleshooting guide if your vacuum cleaner does not operate correctly. Refer to an authorized service centre if you are not able to resolve an issue yourself.

Full dust bag indicator

The vacuum cleaner is equipped with an indicator ④ , which changes to red colour, if the dust bag is full or if the suction hoses are clogged. If the full dust bag indicator is red even after inserting a new bag, switch off the vacuum cleaner, unplug the power cord and check the hose or tube for jammed objects. If the indicator remains red, refer to an authorized service centre or your dealer. To prevent overheating and possible damage to the vacuum cleaner, check the following:

• All connections between the hose, plastic tube and floor brush
• Opening for connecting the hose
  Brush throughput
• Exhaust filter
  Motor filter
  Dust bag

MAINTENANCE AND CLEANING

Attention:

Always unplug the power cord from the outlet before any maintenance and cleaning.

1. Changing the dust bag: When the colour of the dust bag indicator changes to red, it is time to change the dust bag.

2. Press the lock in front to open the front cover (Fig. 1).

3. Remove the holder with the bag and remove the full bag from the holder (Fig. 2).

4. Installation of a new bag: Insert the bag in the holder and then insert the holder with the bag in the grooves under the front cover (Fig. 3).

5. Clean the motor filter once a year: Open the front cover, remove the filter, wash it with warm water and dry thoroughly before using it again. If the fiiter is damaged, replace it (Fig. 4).

6. Cleaning of the exhaust filter: Open and remove the exhaust filter cover. Wash the filter with warm water and dry thoroughly before using it again. If the fi iter is damaged, replace it (Fig. 5, 6).
7. Cleaning of the appliance surface: Use soft and slightly moistened cloth with a few drops of the cleaning solution to clean. Never use solvents or other abrasive cleaners. Never immerse the vacuum cleaner into water or any other liquid and do not leave it under running water.

1

2

3

456

Attention:

You can find the replacement bags for the VP 2122 S vacuum cleaner under the name KOMA ECG VP 2141 or SWIRL® Y 98® MicroPor® Plus or BASE BA-1750.

SWIRL, MicroPor and Y 98 are registered trademarks of Melitta Group.

TROUBLESHOOTING

Before referring to a service centre, check the following list of common problems and how to remove them.

Problem Possible cause	Solution
The motor will not start.	The vacuum cleaner is not powered.	Check the power cord and plug. Refer to an authorized service centre if the problems persist.
The suction power is reduced.	Full dust bag, clogged hose or tube or dirty fi Iters.	Replace the dust bag, remove foreign objects from the hose or tube, replace fi Iters.

TECHNICAL SPECIFICATIONS

Suction power 170 W

Dustbag capacity - 1.6 l

Full dustbag indicator

7 m operating radius

Accessories:

Plastic floor brush

Crevicetool

Weight: 2.5kg

Nominal voltage: 230V 50 / 60Hz

Nominal input power: 1000 W

Noise level: < 80 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg.cz.

Changes in text and technical parameters reserved.
