Product type	Vacuum cleaner
Brand	ECG
Model	VP 3144 S
Dimensions (L x W x H)	Approximately 40 x 25 x 30 cm
Weight	Approximately 5.5 kg
Power supply	Mains (220-240 V, 50/60 Hz)
Rated power	700 W
Vacuum type	Canister with bag
Bag capacity	3 L
Filter	Active carbon filter and motor protection filter
Main functions	Vacuuming floors and carpets, crevice and upholstery tool
Included accessories	Combination nozzle, furniture brush, flat crevice tool
Cable length	5 m
Operating radius	8 m
Noise level	75 dB(A)
Maintenance	Change the bag regularly, clean the filters every 3 months
Safety	Unplug before any maintenance, do not vacuum liquids
Spare parts	Bags and filters available online or in stores
Repairability	Repairability index not provided

Frequently Asked Questions - VP 3144 S ECG

How to change the bag of the ECG VP 3144 S vacuum cleaner?

Open the bag compartment, remove the full bag, discard it and insert a new compatible bag. Close the lid.

How to clean the vacuum cleaner filter?

Remove the filter, tap it to remove dust or wash it with lukewarm water. Dry it completely before putting it back.

What is the power of the ECG VP 3144 S vacuum cleaner?

The rated power is approximately 700 watts.

Can the vacuum cleaner vacuum liquids?

No, this vacuum cleaner is intended only for dry use. Never vacuum liquids to avoid damaging the appliance.

Where to buy bags for the ECG VP 3144 S?

Bags are available online or in appliance stores. Use compatible replacement bags for the model.

Why is the vacuum cleaner lacking suction?

Check if the bag is full or if the filter is clogged. Clean or replace the components and make sure no hose is blocked.

How to use the vacuum cleaner for carpets?

Use the main brush (floor nozzle) for carpets. Adjust the height if necessary.

The vacuum cleaner is very noisy, is that normal?

The noise level is approximately 75 dB, which is normal for a vacuum cleaner of this category.

What is the length of the power cord?

The cable is 5 meters long, offering an operating radius of about 8 meters.

How to store the vacuum cleaner after use?

Wrap the cable, store the accessories in their holder, and place the vacuum cleaner in a dry place.

USER MANUAL VP 3144 S ECG

Red and black vacuum cleaner with attached brush (no visible text or symbols)

VP 3144 S

PODLAHOVÝ VYSAVAČ

NÁVOD K OBSLUZE

PODLAHOVÝ VYSÁVAČ

NÁVOD NA OBSLUHU

ODKURZACZ PODŁOGOWY

INSTRUKCJA OBSŁUGI

PADLÓPORSZÍVÓ

HASZNÁLATI ÚTMUTATÓ

BODENSTAUBSAUGER

BEDIENUNGSANLEITUNG

VACUUM CLEANER

INSTRUCTION MANUAL

USISAVAČ

UPUTE ZA UPORABU

TALNI SESALNIK

NAVODILA

ASPIRATEUR DE SOL

MODE D'EMPLOI

ASPIRAPOLVERE

Seznam součástí

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

SK

Zoznam súčastí

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Lista elementów

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

A készülék részei

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Stückliste

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior with arrows indicating movement or force (no text or symbols)

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damage caused during transportation, improper use, voltage fluctuation or any change or modification of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without inserted dust bag, motor fi liter and exhaust fi liter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to performing maintenance. When unplugging, grasp the plug, never pull the power cord.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.
9. Use only attachments and accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service center.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not touch the power cord or the vacuum cleaner with wet hands.
13. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any dirt residue, which can reduce the suction power of the vacuum cleaner.
14. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.
15. Never vacuum the following objects, it could result in damage to the appliance or cause an injury:
16. sharp objects like glass, screws, coins, nails, etc.
17. hot or smouldering objects like embers, cigarettes or fl ammable and volatile liquids
18. wet surfaces, water and other liquids.
19. Use extra care when cleaning stairs.
20. Use the vacuum cleaner only in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
21. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

DESCRIPTION OF THE VACUUM CLEANER

List of parts

1. Carrying handle
2. Opening for inserting the hose
3. The full dust bag indicator
4. Front cover
5. Power control
6. Cable rewind button
7. Rear fi Iter cover

8. Power cable

9. Holder to park the nozzle

10. ON/OFF button
11. Wheels
12. Combined nozzle
13. Tube
14. Hose
15. Brush nozzle

USING THE VACUUM CLEANER

The vacuum cleaner must be switched off and unplugged prior to assembly!

1. Insert the end of the hose in the opening in front of the vacuum cleaner and secure.
2. Connect the other end of the hose with curved ending to the tube.
3. Attach to the tube accessories suitable for the flooring type. Switch the brush nozzle for carpets or for hard floors according to the type of floor. The combined nozzle is designed for cleaning narrow spces and difficult to reach areas in the corners or between the furniture.
4. Starting the vacuum cleaner: plug the power cable in the electrical outlet whose parameters correspond to the data in the type tag of the vacuum cleaner and press the power button to start the vacuum cleaner. Adjust the required power using power regulator.
5. Pulling and rewinding the cord: Grasp the plug and pull out the power cord. Press the retractor button, the power cord rewinds back in the vacuum cleaner.

Note: Never pull out the power cord beyond the red mark located on the cord. The yellow mark shows the optimum length of the power cord.

GB

Note: When carrying the appliance from one room to another unplug the power cord and carry it by the handle. Never move the vacuum cleaner by pulling the power cord.

After use

Turn off the vacuum cleaner and unplug the power cord from the outlet. Press the retractor button, the power cord rewinds back in the vacuum cleaner. Before you add any accessories or before cleaning the appliance, always turn the vacuum cleaner off and unplug it from the outlet.

Issues

Do not use an appliance showing any signs of damage. Damaged power cords must be replaced by a qualified authorized service centre. Only this way can you prevent safety risks.

See the troubleshooting guide if your vacuum cleaner does not operate correctly. Refer to an authorized service centre if you are not able to resolve an issue yourself.

Full dust bag indicator

The vacuum cleaner is equipped with an indicator, which changes colour to red if the dust bag is full or if the suction paths are otherwise blocked. If the full dust bag indicator is red even after inserting a new bag, switch off the vacuum cleaner, unplug the power cord and check the hose or tube for jammed objects. If the indicator remains red, refer to an authorized service centre or your dealer. To prevent overheating and possible damage to the vacuum cleaner, check the following:

• All the connections between hose, telescopic tube and the floor brush
• Opening for connecting the hose
• Brush throughput
• Exhaust fi Iter
• Motor filter
• Dust bag

MAINTENANCE AND CLEANING

Attention:

Always unplug the power cord from the outlet before any maintenance and cleaning.

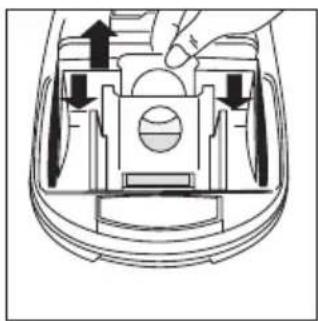

1. Changing the dust bag: When the colour of the dust bag indicator changes to red, it is time to change or empty the dust bag.

2. Press the lock in front to open the front cover.

3. Remove the full dust bag from the holder.
4. Insert new dust bag in the holder under the front cover.

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

1. Clean the motor filter twice a year: Open the front cover, remove the filter, wash it with warm water and dry thoroughly before using it again. If the filter is damaged replace it with a new one.
2. Clean the output filter regularly: Open and remove the cover grill of the output filter. Shake to remove the accumulated dust. If the filter is damaged replace it with a new one.
3. Cleaning of the appliance surface: To clean use a soft cloth slightly moistened with a few drops of mild detergent. Never use a solvent or any abrasive scouring cleaners. Never immerse vacuum cleaner in water or any other liquid and do not clean it under running water.

Attention:

You can find replacement filter bags for VP 3163 S vacuum cleaner under the name KOMA ECG VP 3163 S. You can also use universal bags Swirl® Y12® MicroPor® Plus a BASE BA 4090.

^® Swirl, MicroPor ^® Plus a Y 12 are registered trademarks of Melitta Group.

TROUBLESHOOTING

Before referring to a service centre, check the following list of common problems and how to remove them.

Problem Possible cause	Solution
The motor will not start.	The vacuum cleaner is not powered.	Check the power cord and plug.Refer to an authorized service centre if the problems persist.
The suction power is reduced.	Full dust bag, clogged hose or tube or dirty fi Iters.	Replace the dust bag, remove foreign objects from the hose or tube, replace fi Iters.

TECHNICAL INFORMATION

Suction power 200 W

Telescopic metal tube

Rubber coated wheels for easy transport

Automatic rewind

Suction power regulation

Thermostat fuse against motor overheating

Full dust bag indicator

Volume of the dust bag - 3.5 l

Hose 1.5 m

Operating radius 7.5 m

Filters: motor, output

Accessories:

Floor brush for carpets and hard floors (plastic bottom part)

Combined crevice tool and dust brush

GB

Weight: 4.5 kg

Nominal voltage: 230 V\~ 50/60 Hz

Nominal input power: 1200 W

Max. input power: 1400 W

Noise level: < 82 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg.cz.

Changes in text and technical parameters reserved.
