Product Type	Digital Watch
Brand	Calypso
Model	K5590
Display	Hours, minutes, month, date, day of the week, AM/PM
Backlight	Electroluminescent (EL)
Time Format	12h / 24h selectable
Accuracy	±30 seconds per month at 25°C
Operating Temperature	10°C to 40°C
Main Functions	Alarm, stopwatch with lap, hourly chime, world time, dual time zone, timer
Power Supply	Button cell battery (CR1620 or equivalent)
Estimated Battery Life	2 to 3 years
Water Resistance	Not specified (avoid contact with water)
Case Material	Resin
Strap Type	Resin
Estimated Dimensions	Diameter 45 mm, thickness 12 mm
Estimated Weight	50 g
Care	Clean with a soft cloth and clean water only
Precautions	Avoid strong shocks, extreme temperatures, do not open the case
Included Accessories	User manual
Warranty	Not specified

Frequently Asked Questions - K5590 Calypso

How to set the time and date on the Calypso K5590 watch?

In standard display mode, press the appropriate button (see manual) to make the seconds flash, then use the other buttons to adjust the values. The setting is sequential: seconds, hours, minutes, year, month, date, day, 12/24h format. Press the mode button to confirm and move to the next field.

How to use the stopwatch?

Press the mode button to access the stopwatch. Use the Start/Stop button to start and stop the stopwatch. The lap function allows you to record intermediate times.

How to set the alarm?

Access the alarm mode via the mode button. In alarm mode, hold the setting button to make the alarm time flash. Use the + and - buttons to adjust the hours and minutes. Turn the alarm on or off with the dedicated button (bell icon). An audible signal will sound at the set time.

How to change the watch battery?

The case should not be opened by the user. Have the battery changed by a watchmaker or authorized service center. Use a CR1620 or equivalent button cell battery (see manual).
Caution: do not open the case yourself to avoid damaging electronic components.

The watch does not light up, what should I do?

First check if the backlight is activated (light button). If the screen remains black, the battery is probably dead. Have it replaced at an authorized service center. Avoid exposing the watch to extreme temperatures that could affect the display.

How to activate the backlight?

Press the backlight button (often marked 'LIGHT' or with a sun symbol). The electroluminescent light turns on for a few seconds. Note that the brightness decreases over time and may be hard to see in direct sunlight.

How to switch from 12h to 24h format?

In time setting mode, when the hours are flashing, press the setting button (often the top button) to toggle between 12h and 24h. Confirm by pressing the mode button.

What to do if condensation appears inside the watch?

If water or condensation appears inside, have the watch checked immediately by a professional. Moisture can corrode electronic components. Do not attempt to dry the watch yourself by heating it.

Can I swim with the Calypso K5590 watch?

The manual advises against pressing buttons underwater or while swimming. Water resistance is not specified, so it is best to avoid prolonged contact with water. The watch can withstand light splashes but not immersion.

How to clean the watch properly?

Use a soft cloth and clean water only. Never use chemicals, soap, or solvents. Gently wipe the case and strap. Avoid rubbing too hard to prevent scratching the screen.

USER MANUAL K5590 Calypso

3. HOW TO DISPLAY CALENDAR

NORMAL TIME CHRONOGRAPH ALARM
SECOND TIME ZONE TIMER

18

NORMAL TIMECALENDAR

19

4. HOW TO SET NORMAL TIME

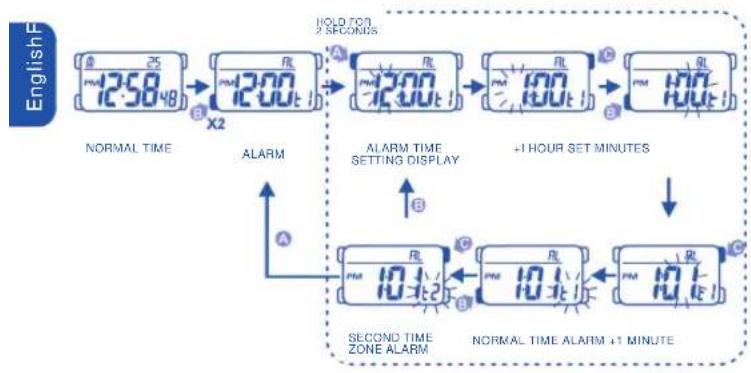

5. HOW TO SET ALARM TIME

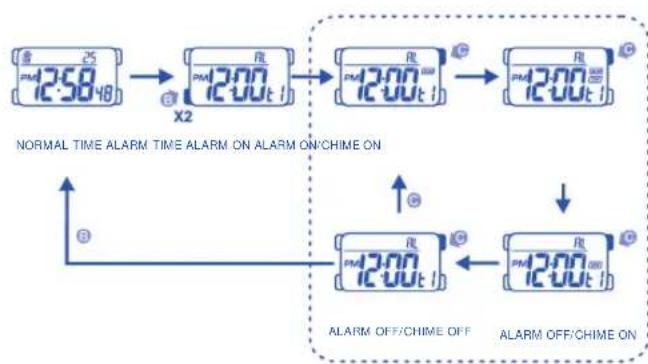

6. HOW TO USE ALARM AND CHIME DISPLAY

22

23

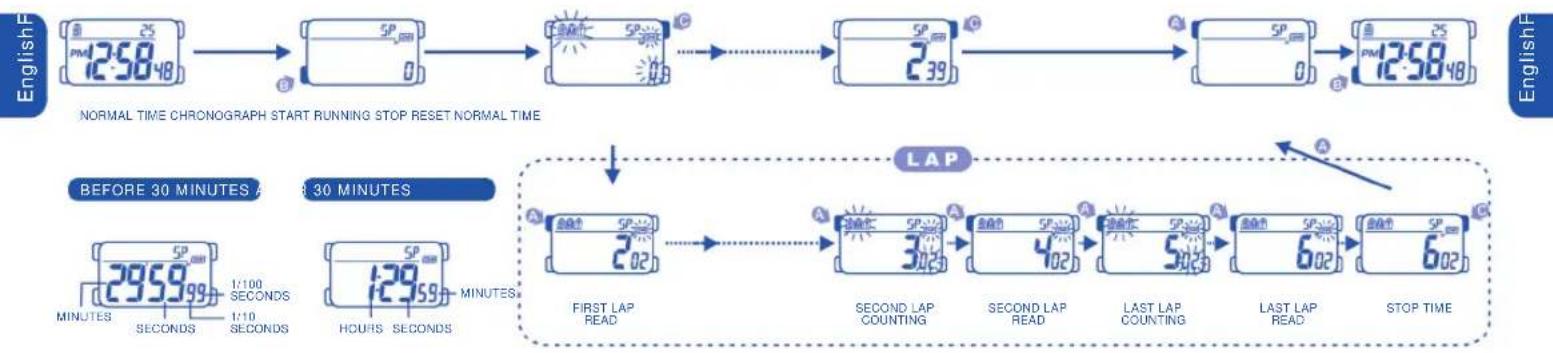

7. HOW TO USE THE CHRONOGRAPH

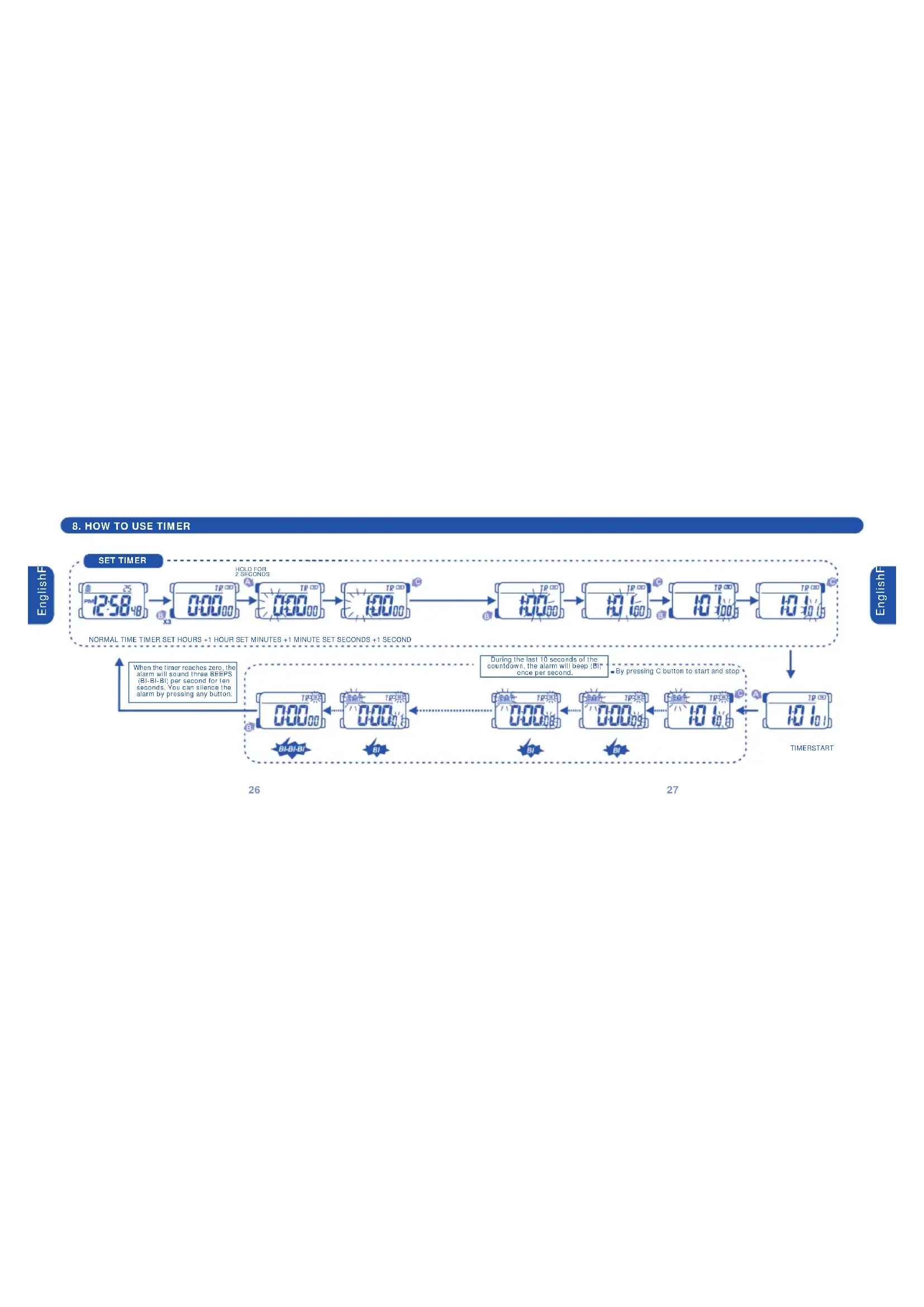

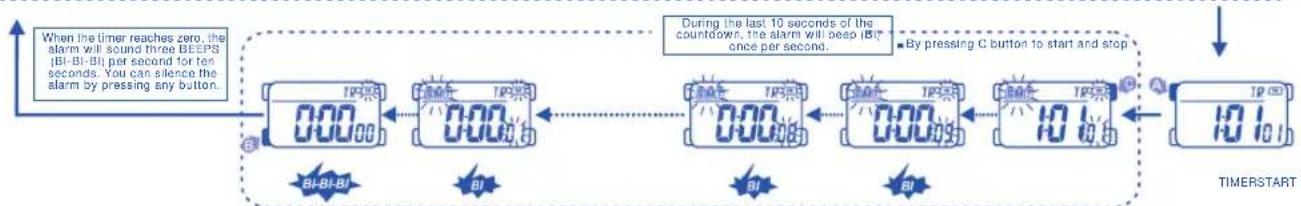

8. HOW TO USE TIMER

eennnnne

SET TIMER

NORMAL TIME TIMER SET HOURS +1 HOUR SET MINUTES +1 MINUTE SET SECONDS +1 SECOND

26

27

eannnnnne

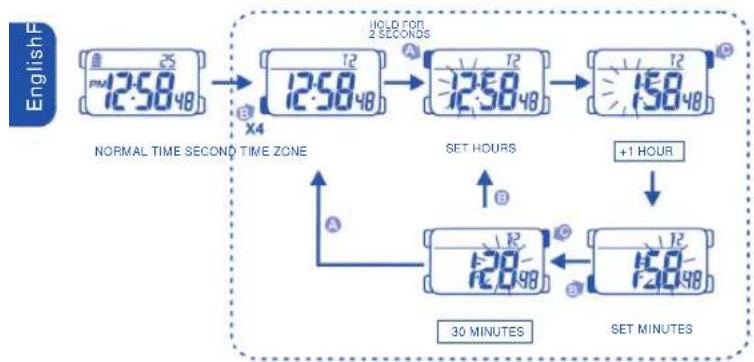

9. HOW TO SET SECOND TIME ZONE

10. HOW TO USE EL LIGHT

28

NOTE:

1) This watch features an electro-luminescent (EL) backlight, which tends to lose illuminating power after very long use.
2) The illumination provided by backlight may be hard to see under direct sunlight.

29

11. CARE OF YOUR WATCH

1) This watch contains precise electronic components. Never attempt to open the case or remove the back cover.
2) Do not operate push buttons below the surface of the water when swimming or diving.
3) Should water or condensation appear in the watch, immediately have the watch checked. Water can corrode electronic parts inside the case.
4) Avoid severing impact: The watch is designed to with stand impact under normal use. It is inadvisable to subject it to severe impact of rough usage or drops onto hard surfaces.
5) Avoid exposing the watch to temperature extremes.
6) Clean the watch with a soft cloth and clean water only. Avoid using chemicals, especially soap.
7) Keep your watch away from the conditions of strong electric field and static electricity.

12. FEATURES AND SPECIFICATIONS

1) Standard display mode: Hour, minutes, seconds, month, day of week.

2) Function:

Year, month, date AM/PM and Electro-Luminiscent light.
- Alarm function with buzzer signal output
Chronograph function with lap operation.
Hourly chime.
12/24 hour format switch option.
World time.
- Timer.
Second time zone.

3) Accuracy at normal temperature (25^) : ± 30 seconds a month.
4) Normal operating temperature range: 10^ - 40^

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may

therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

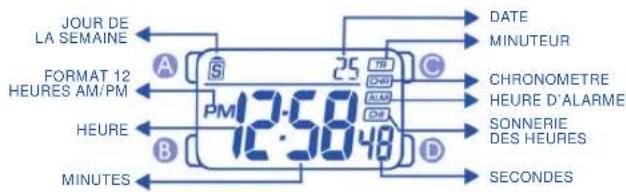

1. AFFICHAGE NORMALE ET BOUTON D'UTILISATION

BOUTONS D'UTILISATION

A RÉGLAGE

MODE

ADJUSTMENT, MARCHE/ARRETER

LUMIÈRE

2.COMMENT CHANGER LE MODE D'AFFICHAGE

3.COMMENT AFFICHER LE MOIS, LA DATE

HEURE NORMALE CHRONOMETRE ALARME
DEUXIEME ZONE D'HEURE MINUTEUR

34

HEURENORMALEMOISDATE

35

4.COMMENT REGLER L'HEURE NORMALE

5.COMMENT REGLER L'ALARME

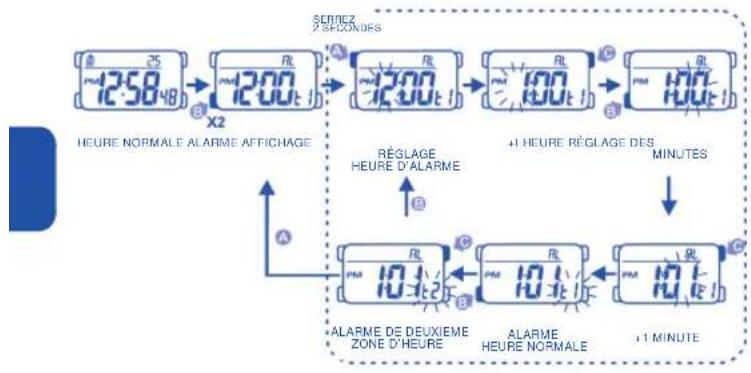

6.COMMENT UTILISER L'AFFICHAGE ALARME ET CARILLON

38

39

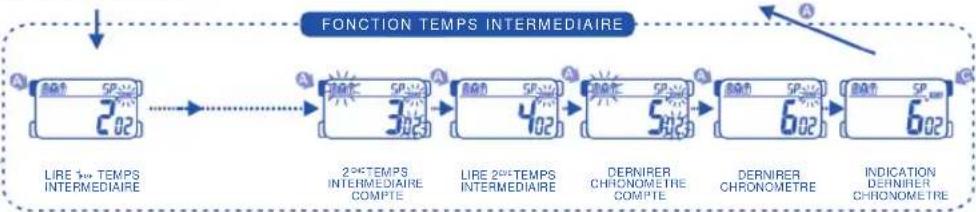

7.COMMENT UTILISER LE CHRONOMETRE

HEURE NORMALE CHRONOMÉTURE DEMARRAGE EN RONCTION ARRET REMISE À ZERO HEURE NORMALE

AVANT 30 MINUTES A

30 MINUTES

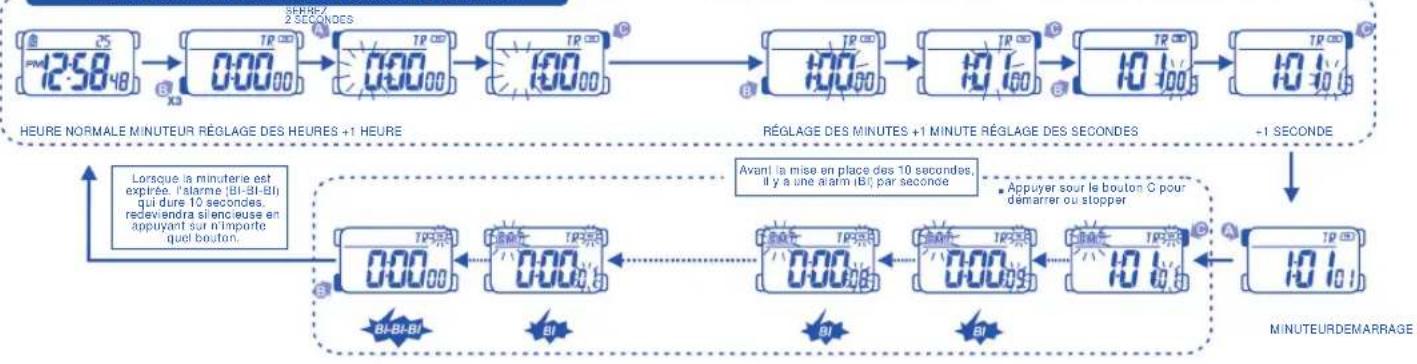

8. POUR UTILISER LE MINUTEUR DU COMPTE A REBOURS

POUR REGLER LE MINUTEUR DE COMPTE A REBOURS

9.COMMENT REGLER L'HEURE D'UNE DEUXIEME ZONE

10.COMMENT ALLUMER LA LUMIERE ELECTRO-LUMINISCENTE

44

NOTE:
