Brand	Calypso
Model	K5612
Product Type	Digital quartz watch
Display	Hours, minutes, month, date, day of week, PM
Illumination	Electroluminescent (EL)
Functions	Alarm, stopwatch with lap measurement, hourly chime, 12/24h selector, second time zone, timer
Accuracy	±30 seconds per month at 25°C
Operating temperature	10°C to 40°C
Battery type	CR2016, CR1620, CR2025 or CR2032
Battery life	Not specified, typically 2-3 years depending on use
Case material	Not specified, likely resin or plastic
Water resistance	Not specified, avoid water and diving
Dimensions	Approximately 45 mm diameter, 12 mm thickness
Weight	Approximately 50 g with battery
Maintenance	Clean with a soft cloth and clean water, avoid chemicals and soap
Precautions	Do not open the case, avoid strong shocks, extreme temperatures, electrical fields
WEEE	Selective collection, dispose of at an approved retailer or recycling center

Frequently Asked Questions - K5612 Calypso

How to set the time and date on the Calypso K5612 watch?

Use the SET button to enter setting mode. Press MODUS to cycle through hour, minute, month, date, and day. Use START/STOP to adjust the value. Refer to the manual for details.

How to use the stopwatch?

In stopwatch mode, press START/STOP to start/stop. Use the SET button to take a lap (lap measurement). The stopwatch can measure intermediate times.

How to set the alarm?

In alarm mode, use SET to enter settings. MODUS allows switching between hours and minutes. START/STOP adjusts the value. Enable or disable the alarm with the corresponding button.

Is the watch waterproof?

The manual advises not to press the buttons underwater or while swimming. Avoid any contact with water. If water or condensation appears, have the watch checked immediately.

How to change the battery of the Calypso K5612 watch?

The battery must be replaced by a professional. Do not attempt to open the case yourself. Compatible batteries are CR2016, CR1620, CR2025 or CR2032.

Why is the illumination weak?

Electroluminescent (EL) lighting loses brightness after prolonged use. It can also be difficult to see in direct sunlight. This is normal for this type of lighting.

How to clean my watch?

Use a soft cloth and clean water only. Avoid chemicals, especially soap, which could damage the case or strap.

Can I use the watch in the shower?

No, it is not recommended to expose the watch to water. It is not designed for diving or swimming. Remove it before any water activities.

How to switch from 12h to 24h display?

Use the 12/24 hour format selector. In setting mode, look for the corresponding option and toggle with START/STOP. Refer to the manual for specific steps.

What to do if the watch stops working?

First check the battery. If it is discharged, have it replaced. Avoid strong shocks and extreme temperatures. If the problem persists, contact an authorized after-sales service.

USER MANUAL K5612 Calypso

3. HOW TO DISPLAY CALENDAR

eannnnnne

NORMAL TIME CHRONOGRAPH ALARM

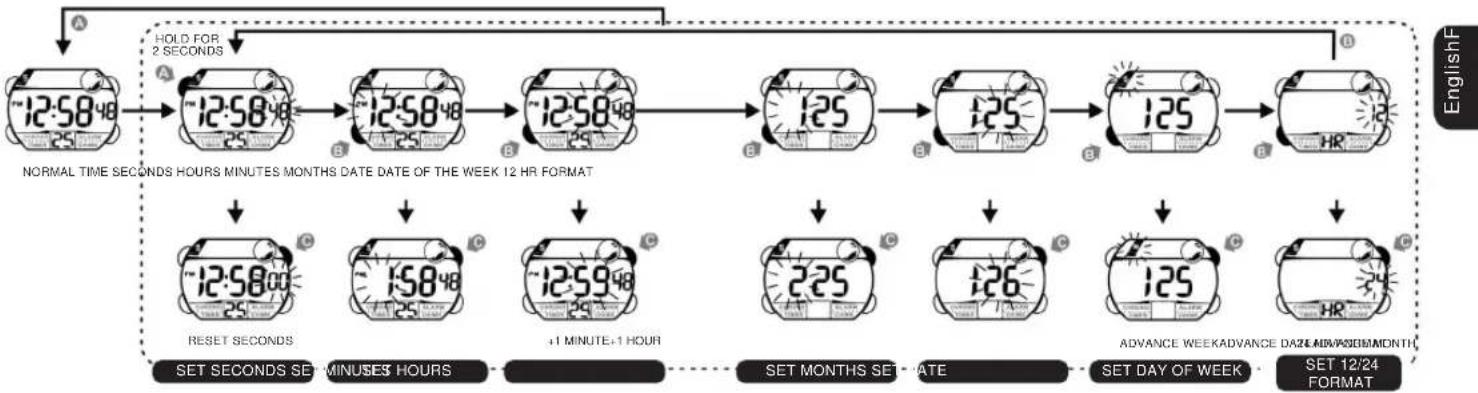

4. HOW TO SET NORMAL TIME

eannnnnne

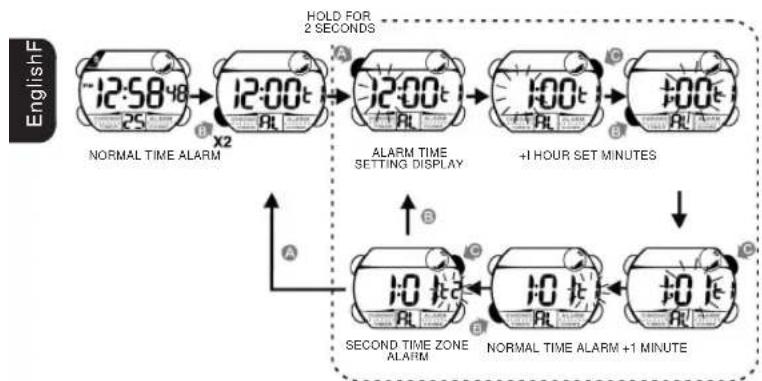

5. HOW TO SET ALARM TIME

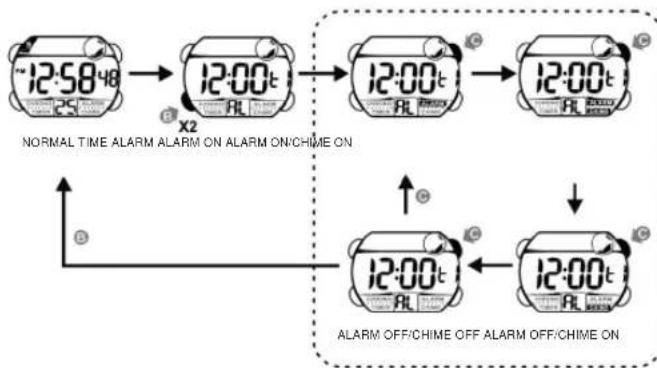

6. HOW TO USE ALARM AND CHIME DISPLAY

7. HOW TO USE THE CHRONOGRAPH

eannnnnne

NORMAL TIME CHRONOGRAPH START RUNNING STOP RESET NORMAL TIME

eannnnnne

BEFORE 30 MINUTES

SECONDS
1:100 SECONDS
1:10 SECONDS

R 30 MINUTES

MINUTES

HOURS MINUTES

FIRST LAP READ

LAP

SECOND LAP COUNTING

SECOND LAP READ

LAST LAP COUNTING

LAST LAP READ

STOPTIME

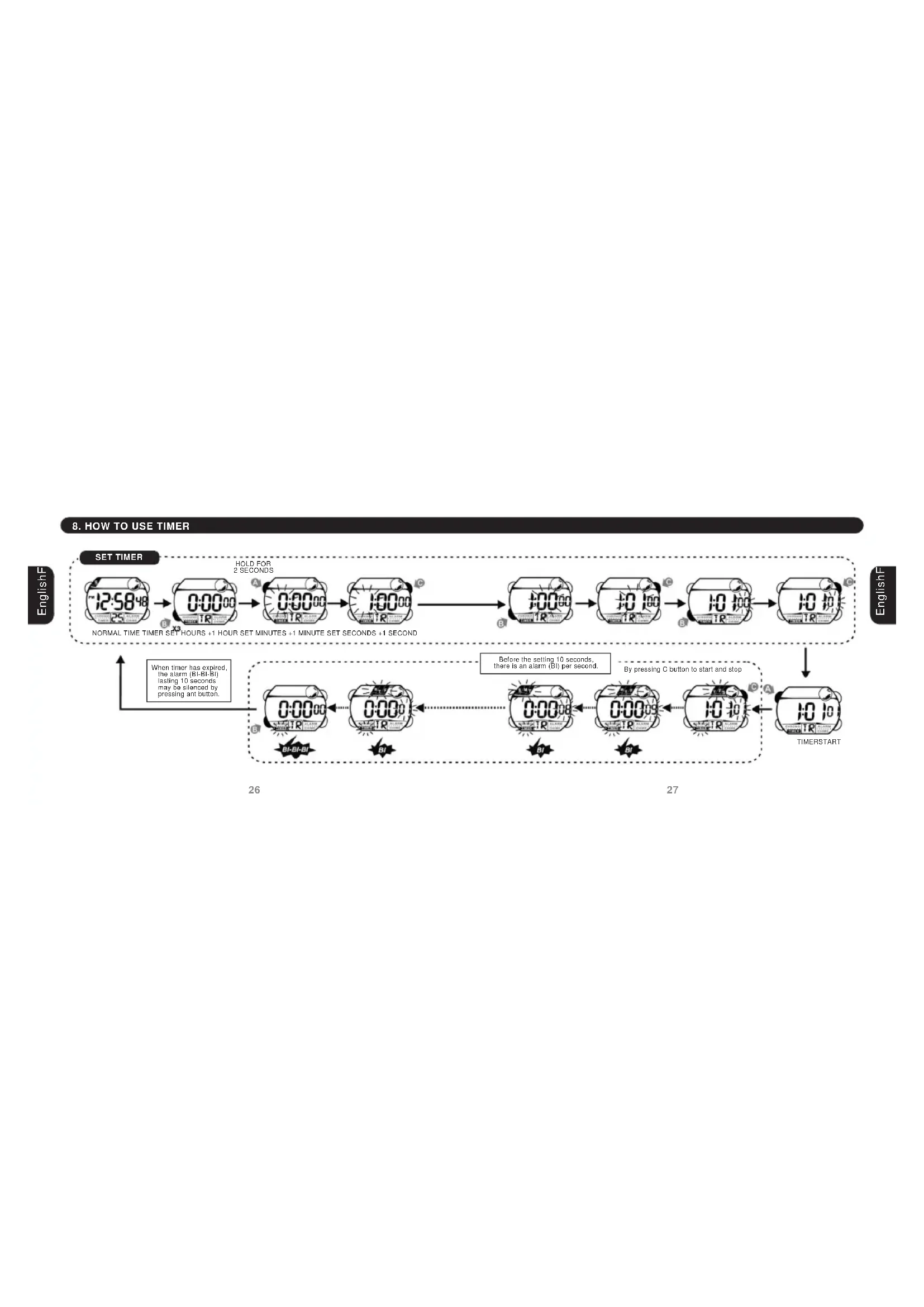

8. HOW TO USE TIMER

eennnnnne

SET TIMER

HOLD FOR 2 SECONDS

eannnnnne

9. HOW TO SET SECOND TIME ZONE

10. HOW TO USE EL LIGHT

28

NOTE:

1) The backlight of the watch employs an electro-luminescent (EL) light, watch tends to lose illuminating power after very long use.
2) The illumination provided by backlight may be hard to see when viewed under direct sunlight.

29

11. CARE OF YOUR WATCH

1) This watch contains precise electronic components. Never attempt to open the case or remove the back cover.
2) Do not operate push buttons below the surface of the water when swimming or diving.
3) Should water or condensation appear in the watch, immediately have the watch checked. Water can corrode electronic parts inside the case.
4) Avoid severing impact: The watch is designed to with stand impact under normal use. It is inadvisable to subject it to severe impact of rough usage or drops onto hard surfaces.
5) Avoid exposing the watch to temperature extremes.
6) Clean the watch with a soft cloth and clean water only. Avoid using chemicals, especially soap.
7) Keep your watch away from the conditions of strong electric field and static electricity.

12. FEATURES AND SPECIFICATIONS

1) Standard display mode: Hour, minutes, seconds, month, day of week.
2)Function:

• Month, date AM/PM and Electro-Luminiscent light.ll
• Alarm function with buzzer signal output.
  Chronograph function with lap operation.
• Hourly chime.II
  12/24 hour format switch option.1
  Timer.1
  Second time zone.

3) Accuracy at normal temperature (25^)± 30 seconds a month.
4) Normal operating temperature range: 10^ - 40^
5) Battery: CR2016, CR1620, CR2025, CR 2032

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore

dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

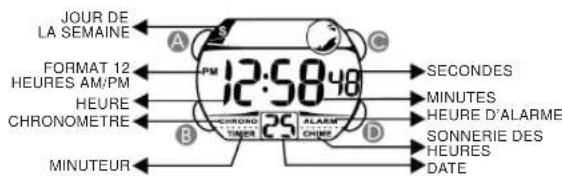

1. AFFICHAGE NORMALE ET BOUTON D'UTILISATION

2.COMMENT CHANGER LE MODE D'AFFICHAGE

3.COMMENT AFFICHER LE MOIS, LA DATE

HEURE NORMALE CHRONOMETRE ALARME

DEUXIEME ZONE D'HEURE MINUTEUR

34

35

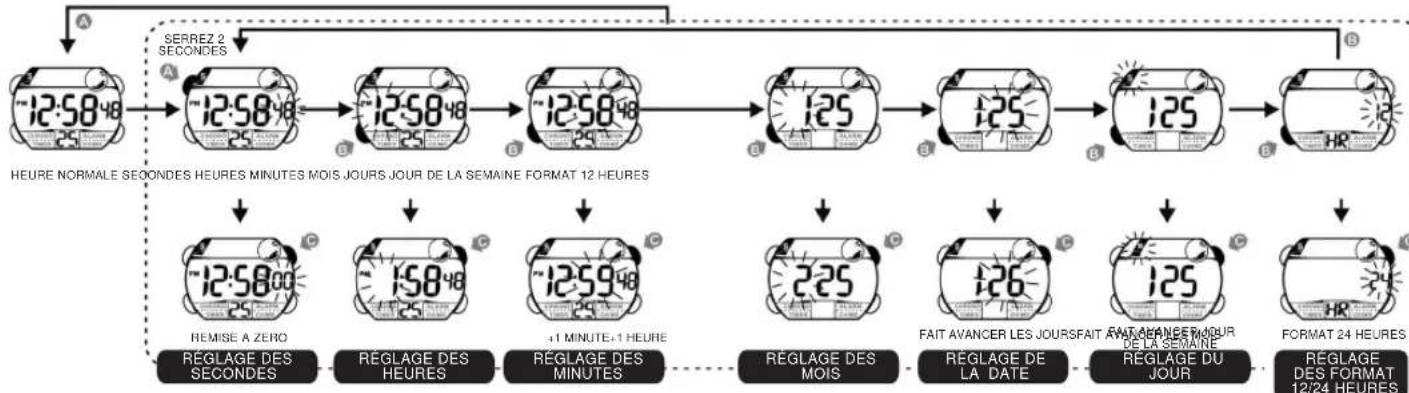

4.COMMENT REGLER L'HEURE NORMALE

5.COMMENT RÉGLER L'ALARME

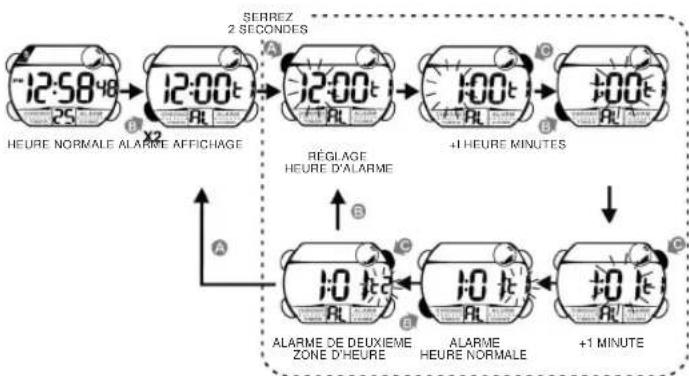

6. COMMENT UTILISER L'AFFICHAGE ALARMÉ ET CARILLON

38

39

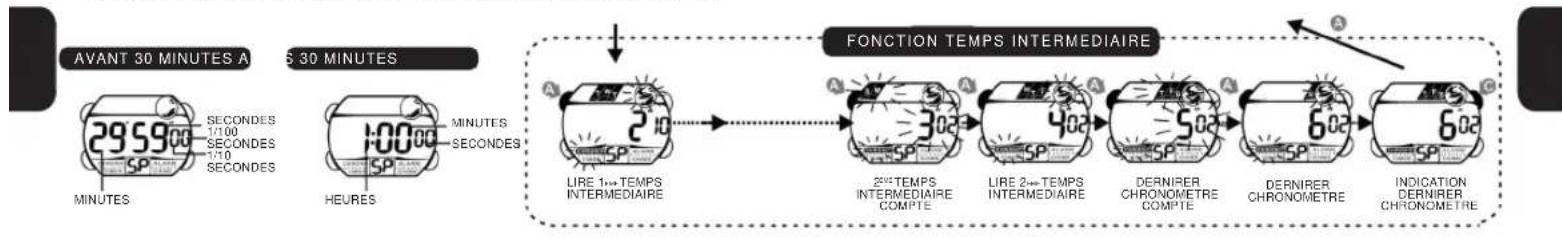

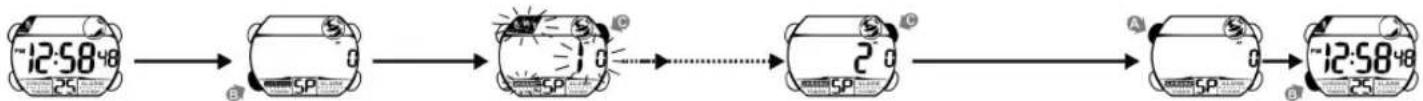

7.COMMENT UTILISER LE CHRONOMETRE

HEURE NORMALE CHRONOMÉTURE DEMARRAGE EN RONCTION ARRÊT REMISE À ZERO HEURE NORMALE

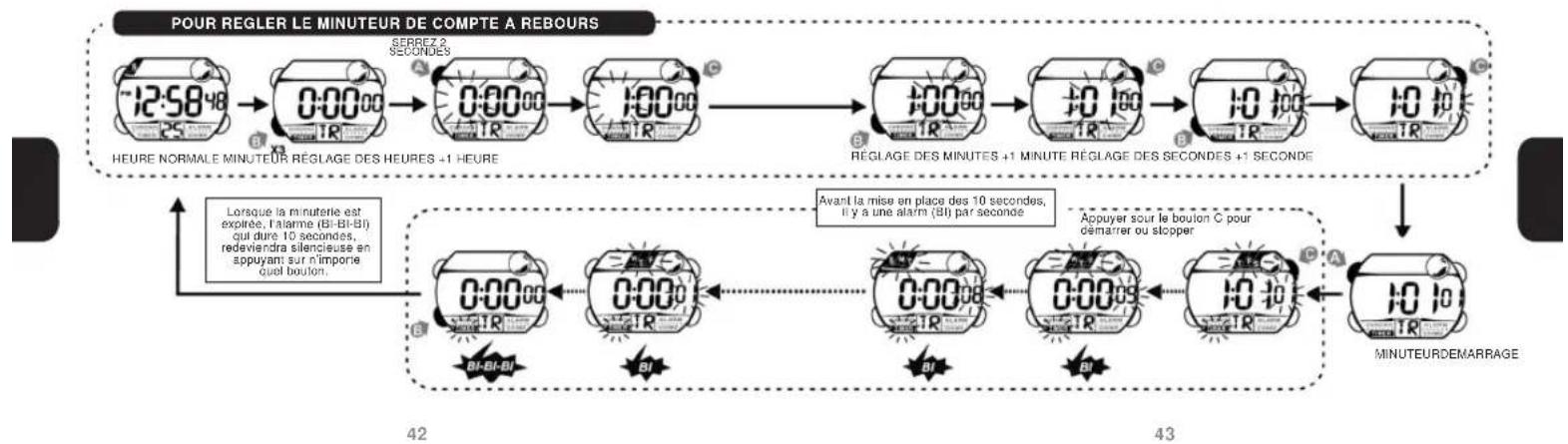

8. POUR UTILISER LE MINUTEUR DU COMPTE A REBOURS

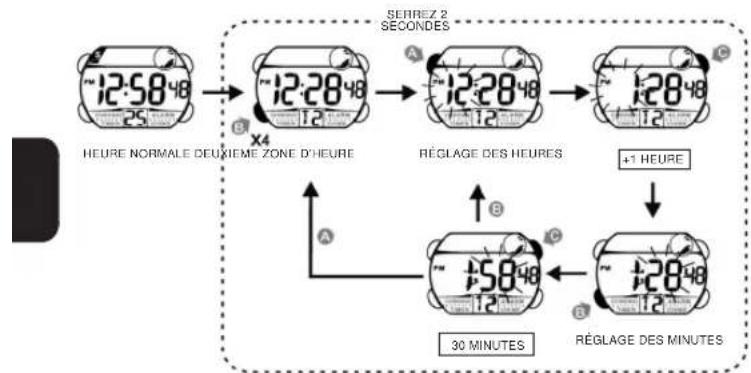

9.COMMENT REGLER L'HEURE D'UNE DEUXEIEME ZONE

10. COMMENT ALLUMER LA LUMIERÉ ELECTRO-LUMINISCENTE

44

NOTE:
