USER MANUAL K5549 Calypso

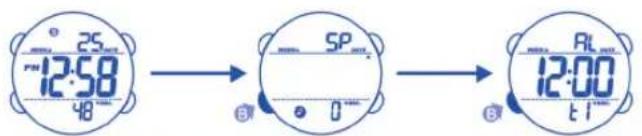

3. HOW TO DISPLAY CALENDAR

eannnnnne

NORMAL TIME CHRONOGRAPH ALARM

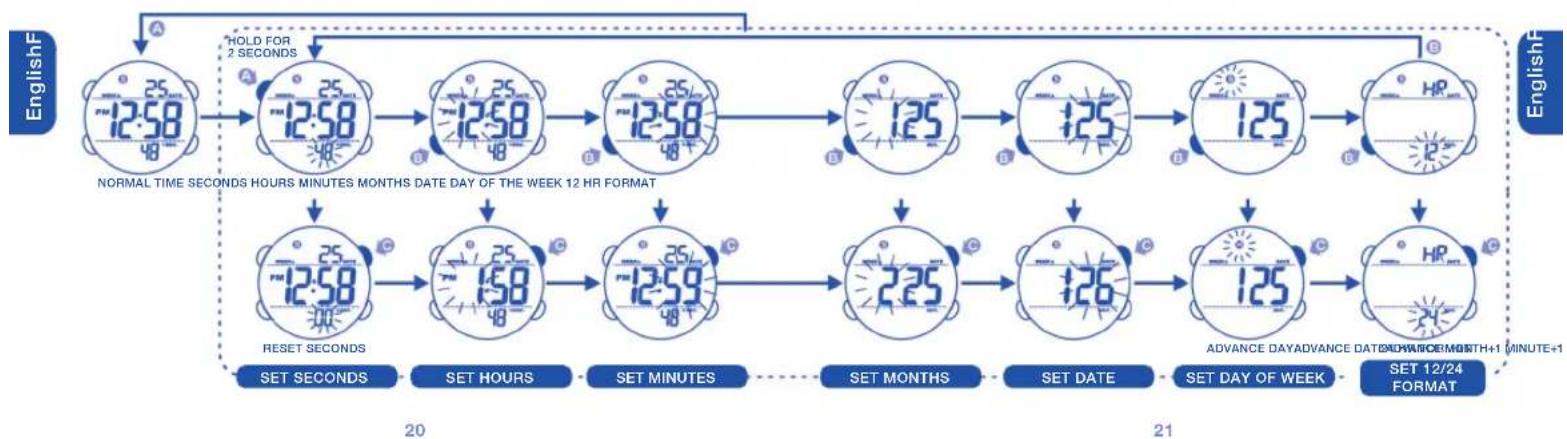

4. HOW TO SET NORMAL TIME

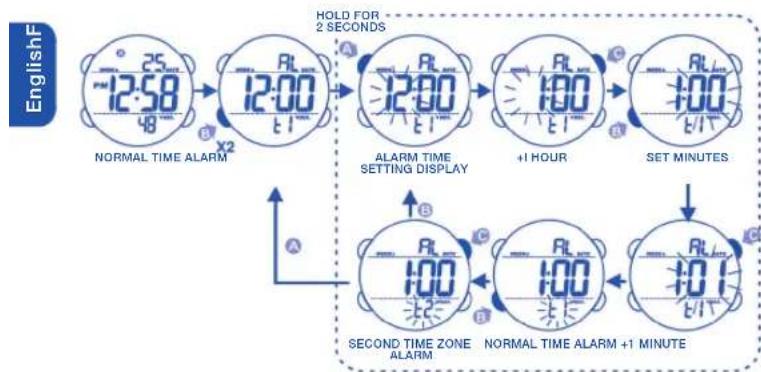

5. HOW TO SET ALARM TIME

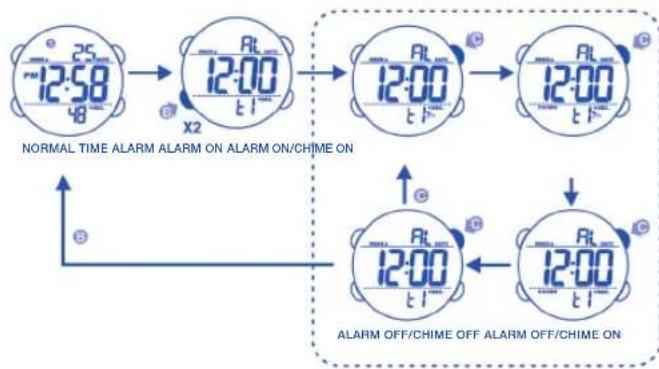

6. HOW TO USE ALARM AND CHIME DISPLAY

22

23

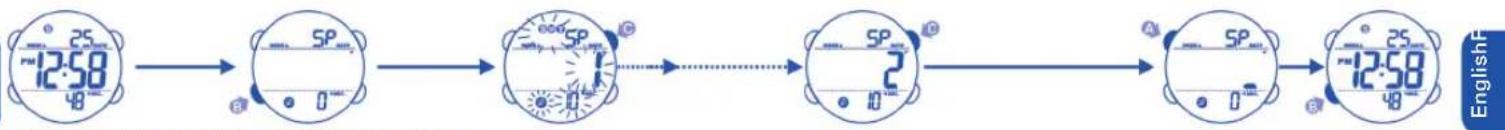

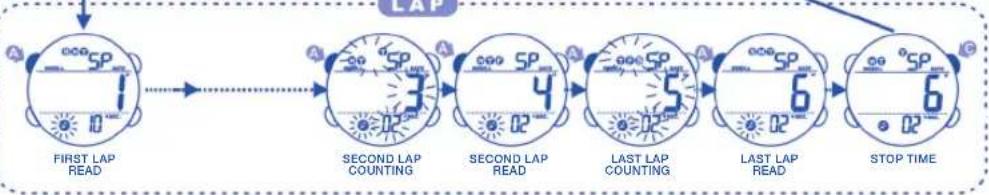

7. HOW TO USE THE CHRONOGRAPH

eannnnnne

NORMAL TIME CHRONOGRAPH START RUNNING STOP RESET NORMAL TIME

BEFORE 30 MINUTES

R 30 MINUTES

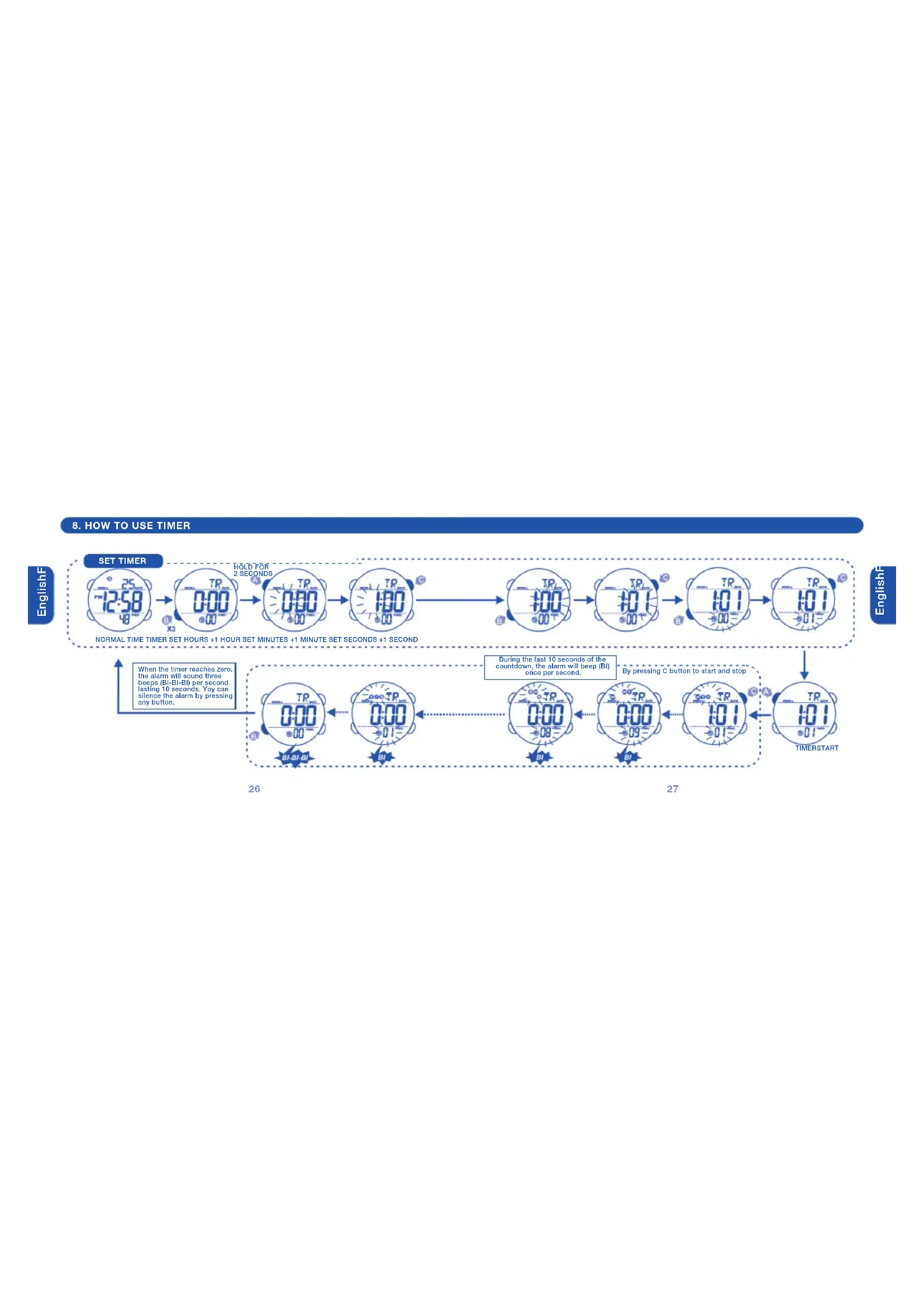

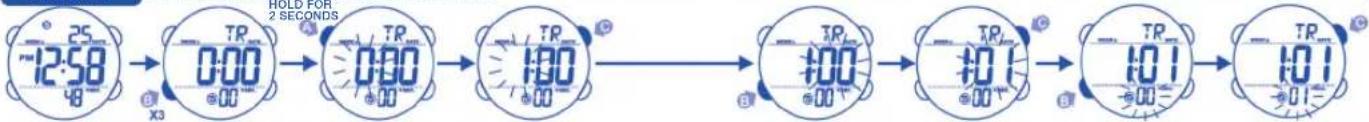

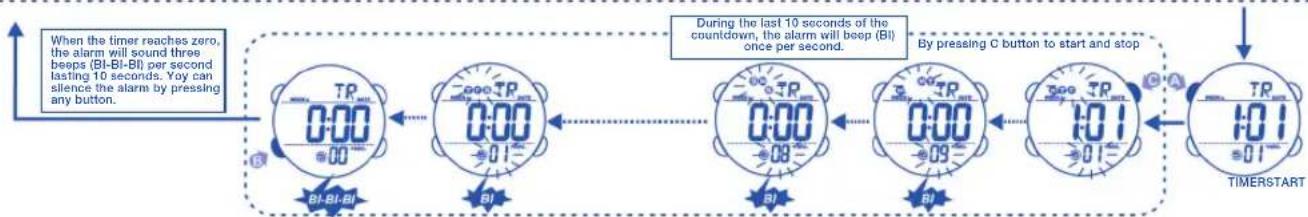

8. HOW TO USE TIMER

eannnnnne

SET TIMER

NORMAL TIME TIMER SET HOURS +1 HOUR SET MINUTES +1 MINUTE SET SECONDS +1 SECOND

ennnnne

26

27

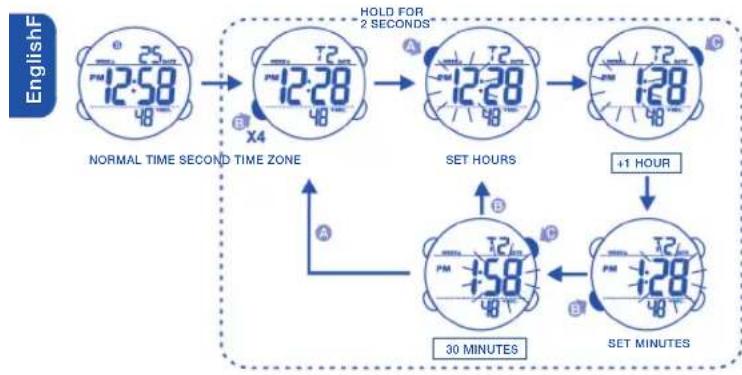

9. HOW TO SET SECOND TIME ZONE

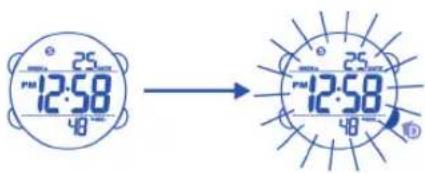

10. HOW TO USE EL LIGHT

28

NOTE:

1) This watch features an electro-luminescent (EL) backlight, which tends to lose illuminating power after very long use.
2) The illumination provided by backlight may be hard to see under direct sunlight.

29

11. CARE OF YOUR WATCH

1) This watch contains precise electronic components. Never attempt to open the case or remove the back cover.
2) Do not operate push buttons below the surface of the water when swimming or diving.
3) Should water or condensation appear in the watch, immediately have the watch checked. Water can corrode electronic parts inside the case.
4) Avoid severing impact: The watch is designed to with stand impact under normal use. It is inadvisable to subject it to severe impact of rough usage or drops onto hard surfaces.
5) Avoid exposing the watch to temperature extremes.
6) Clean the watch with a soft cloth and clean water only. Avoid using chemicals, especially soap.
7) Keep your watch away from the conditions of strong electric field and static electricity.

12. FEATURES AND SPECIFICATIONS

1) Standard display mode: Hour, minutes, seconds, month, day of week.
2) Function:

• Month, date AM/PM and Electro-Luminiscent light.
• Alarm function with buzzer signal output.
  Chronograph function with lap operation.
• Hourly chime.
  12/24 hour format switch option.
• Timer.
  Second time zone.

3) Accuracy at normal temperature (25^) : ± 30 seconds a month.
4) Normal operating temperature range: 10^ - 40^
5) Battery: CR2016, CR1620, CR2025, CR2032

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may

therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

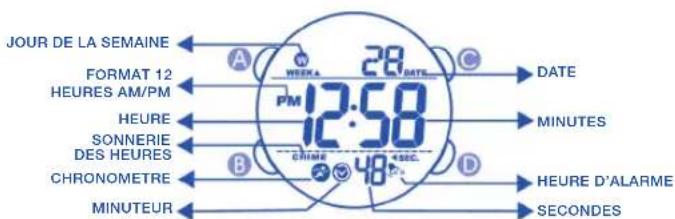

1. AFFICHAGE NORMALE ET BOUTON D'UTILISATION

BOUTONS D'UTILISATION

RÉGLAGE

MODE

ADJUSTMENT, MARCHE/ARRETER

LUMIÈRE

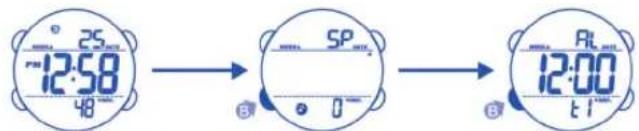

2.COMMENT CHANGER LE MODE D'AFFICHAGE

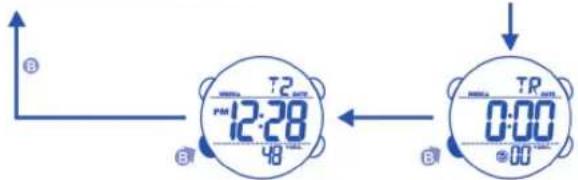

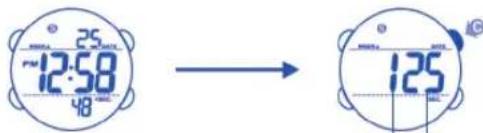

3.COMMENT AFFICHER LE MOIS, LA DATE

HEURE NORMALE CHRONOMETRE ALARME

DEUXIEME ZONE D'HEURE MINUTEUR

34

HEURENORMALEMOISDATE

35

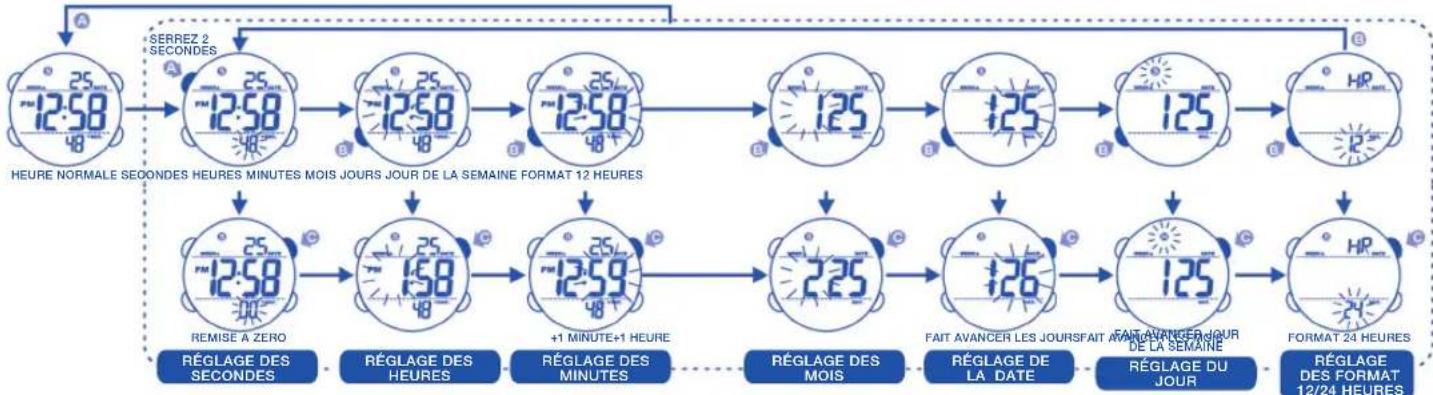

4.COMMENT RÉGLER L'HEURE NORMALE

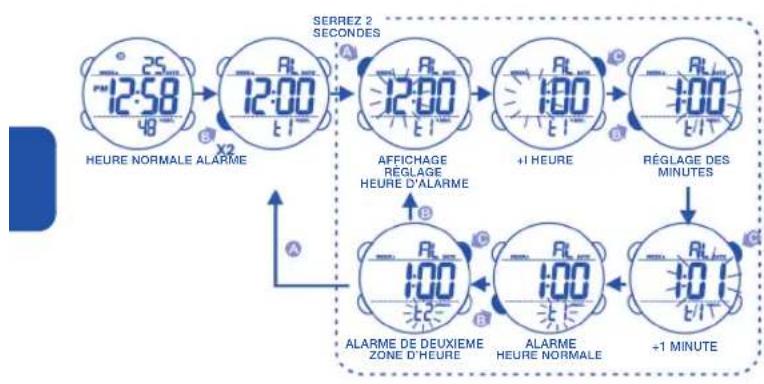

5.COMMENT REGLER L'ALARME

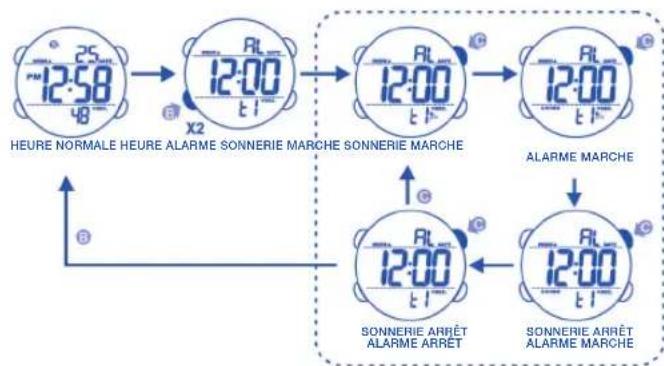

6. COMMENT UTILISER L'AFFICHAGE ALARME ET CARILLON

38

39

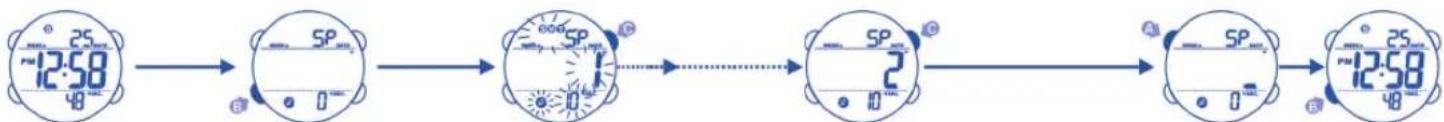

7. COMMENT UTILISER LE CHRONOMÉTURE

HEURE NORMALE CHRONOMÉTURE DÉMARRAGE EN RONCTION ARRÉT REMISE À ZERO HEURE NORMALE

AVANT 30 MINUTES A

30 MINUTES

LINE 1.4 TEMPS INTERMEDIAIRE

FONCTION TEMPS INTERMEDIAIRE

LINE 2-TEMPS INTERMEDIARIES

INDICATION OF CHRONOMYBE

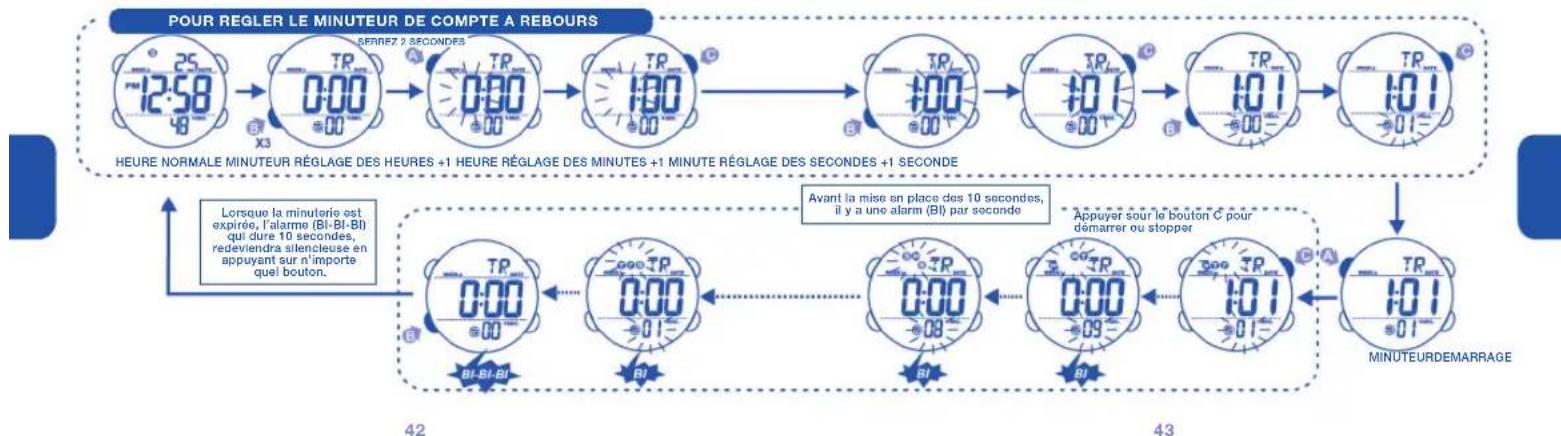

8. POUR UTILISER LE MINUTEUR DU COMPTE A REBOURS

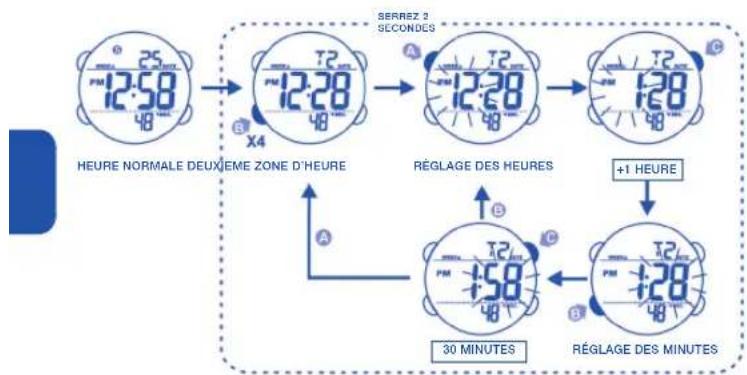

9.COMMENT REGLER L'HEURE D'UNE DEUXIEME ZONE

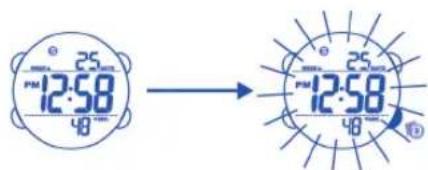

10. COMMENT ALLUMER LA LUMIÈRE ÉLECTRO-LUMINISCENTE

44

NOTE:
