Product Type	Digital Watch
Brand	Calypso
Model	K5697 Digital
Power Supply	1 lithium battery (type CR2032)
Display	Digital with electroluminescent (EL) backlight
Main Functions	Hours, minutes, month, date, day; stopwatch (100h, 50 laps); timer; 8 alarms (4 daily, 4 date-specific); second time zone; hourly chime; 12/24h format; button sound ON/OFF
Accuracy	±30 seconds per month at 25°C
Operating Temperature	10°C to 40°C
Dimensions (approx.)	Case 40 mm, thickness 12 mm
Weight (approx.)	50 g
Water Resistance	Not specifically indicated; avoid pressing buttons underwater
Maintenance and Cleaning	Soft cloth and clean water; avoid chemicals and soap
Safety	Avoid strong shocks, extreme temperatures, strong electric fields; do not open the case
Spare Parts and Repairability	Not provided; have it checked by a professional if condensation or water appears inside
Warranty and Recycling	Comply with WEEE regulations; dispose of at an approved collection point at end of life

Frequently Asked Questions - K5697 Digital Calypso

How to set the time on the Calypso K5697 Digital watch?

In normal mode, press and hold the MODE button for 2 seconds to enter setting mode. Use the START and RESET buttons to change values. Press MODE to move to the next field.

How to use the stopwatch?

Press MODE until CHRONO is displayed. Press START to start, START to stop, RESET to reset. You can record laps by pressing START during timing.

How to set an alarm?

Press MODE until ALARM is displayed. Use START to select the alarm (A1 to A8). Press and hold MODE to enter alarm time setting. Adjust with START/RESET. Confirm with MODE.

How to enable or disable button sound?

In normal mode, quickly press MODE 3 times to access sound setting. Use START to toggle between ON and OFF. Press MODE to confirm.

How to turn on the backlight?

Press the LIGHT button to turn on the electroluminescent backlight. It turns off automatically after a few seconds.

How to set the timer?

Press MODE until TIMER is displayed. Press and hold MODE to enter timer setting (up to 100 hours). Adjust with START/RESET. Press START to start countdown.

What to do if condensation appears inside the watch?

Immediately stop using the watch and have it checked by a professional. Water can corrode electronic components.

How to clean the watch?

Use a soft cloth and clean water. Do not use chemicals or soap. Wipe carefully after cleaning.

How to change the battery?

The battery must be replaced by a professional watchmaker. Do not attempt to open the case yourself.

How to switch between 12h and 24h format?

In time setting mode, keep pressing RESET until the format flashes (12H or 24H). Use START to toggle. Confirm with MODE.

USER MANUAL K5697 Digital Calypso

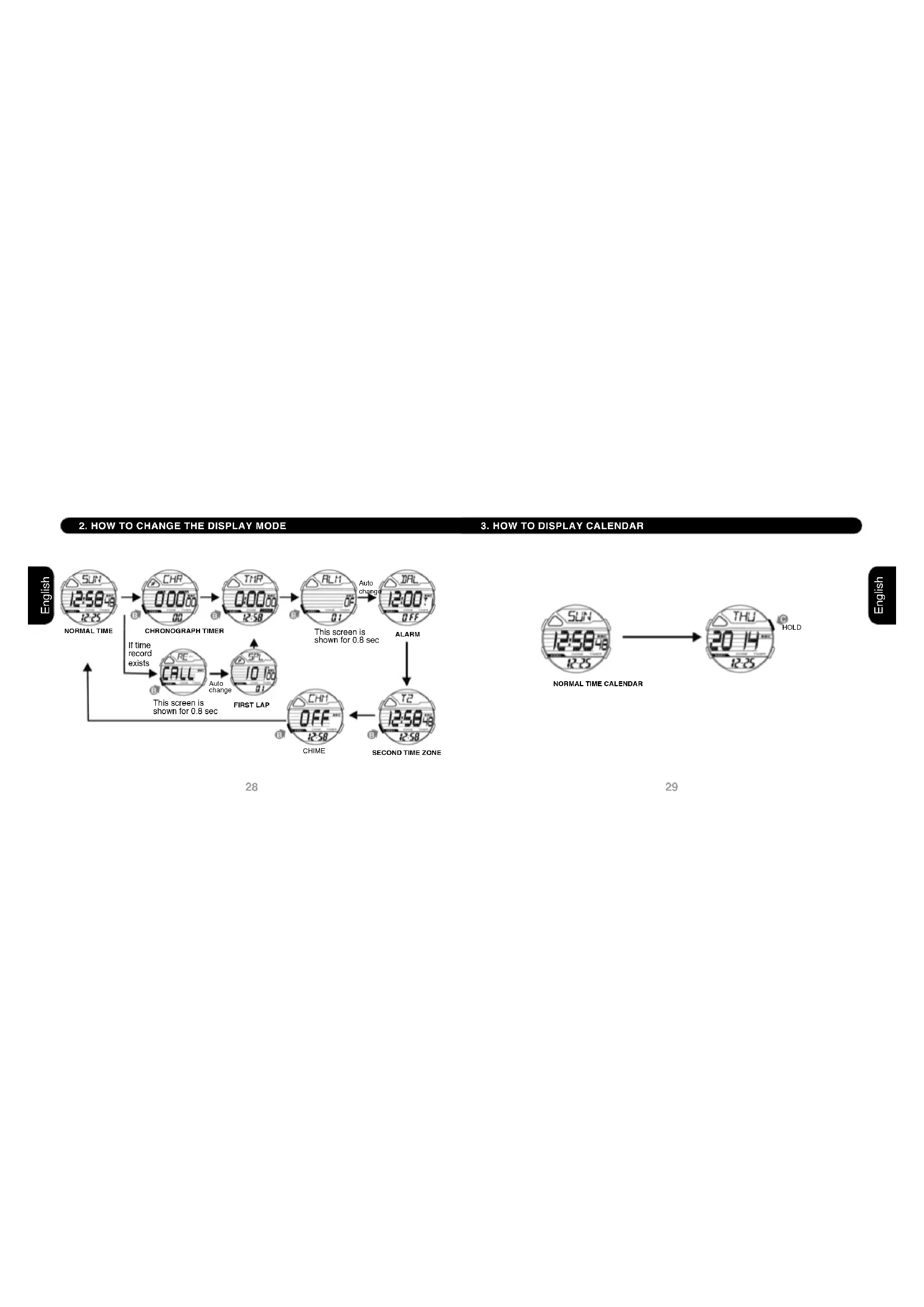

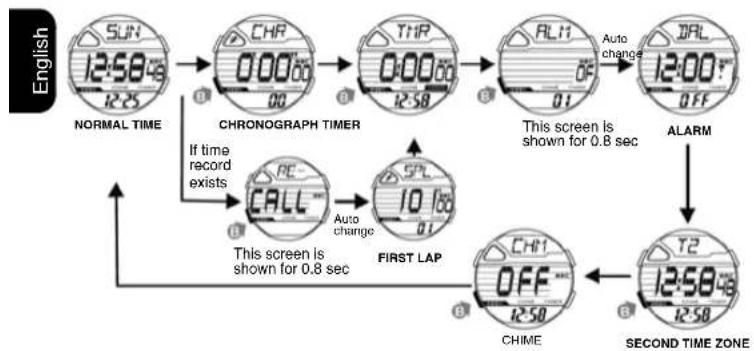

3. HOW TO DISPLAY CALENDAR

28

29

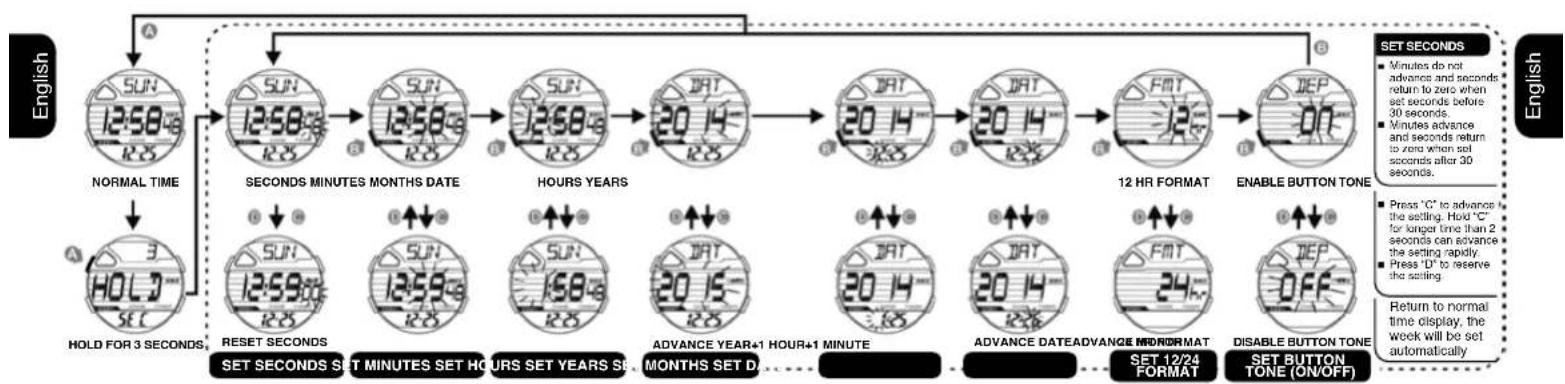

4. HOW TO SET NORMAL TIME

5. HOW TO USE THE CHRONOGRAPH

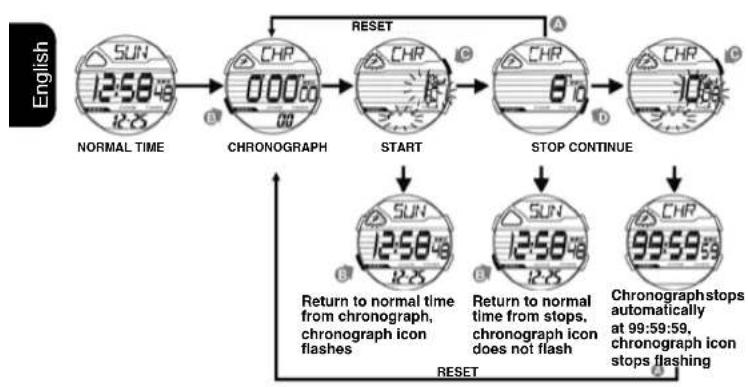

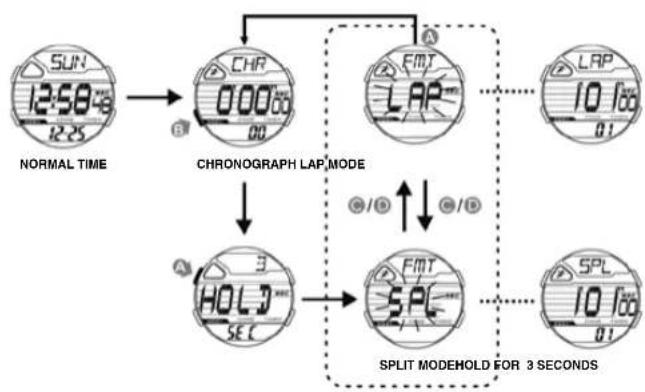

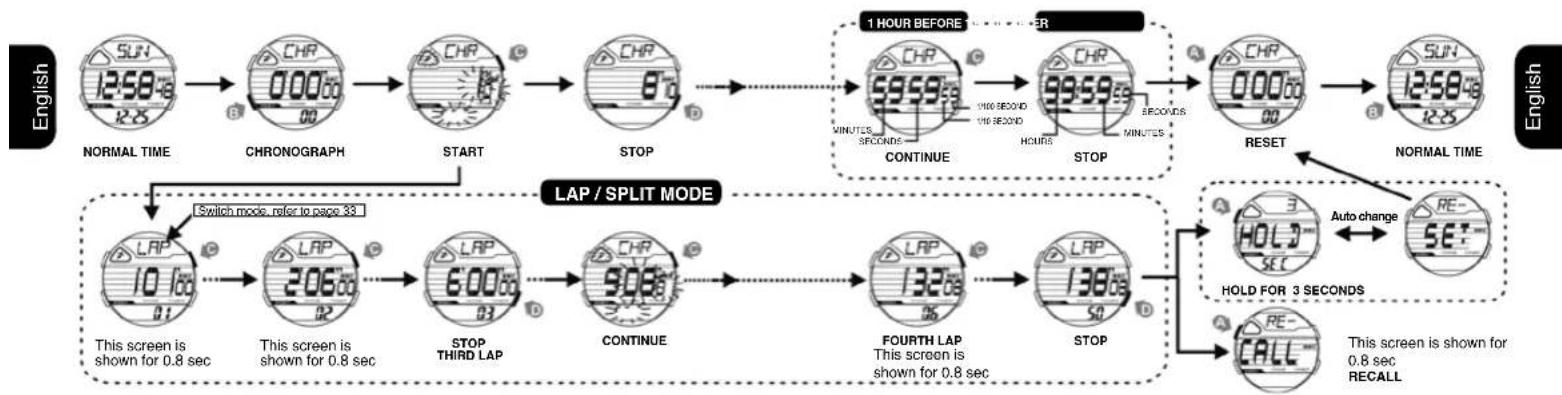

6. HOW TO CHANGE THE LAP/SPLIT MODE

32

33

7. HOW TO SET THE SPLIT OR LAP OPERATION

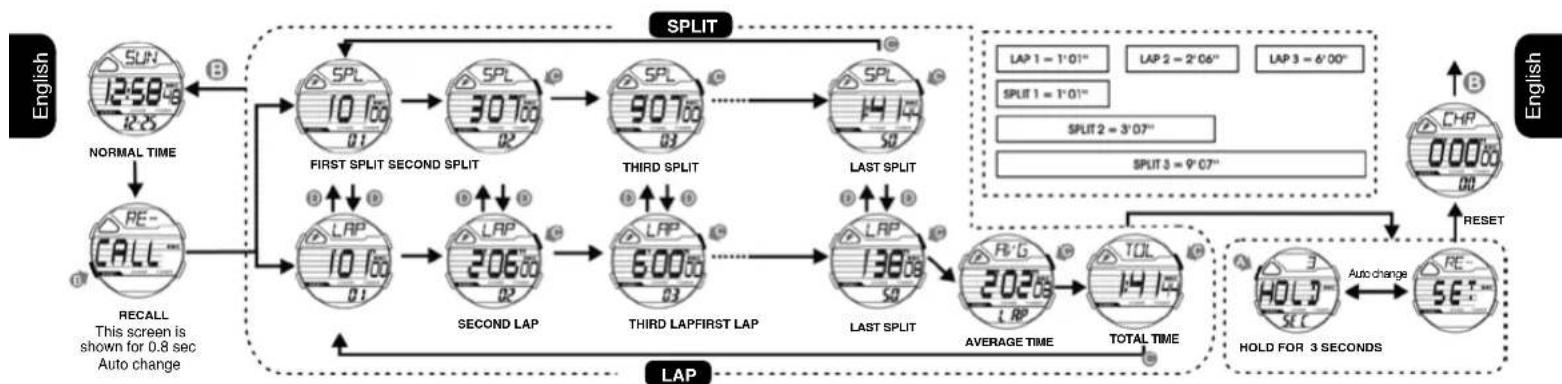

8. HOW TO USE THE RECALL

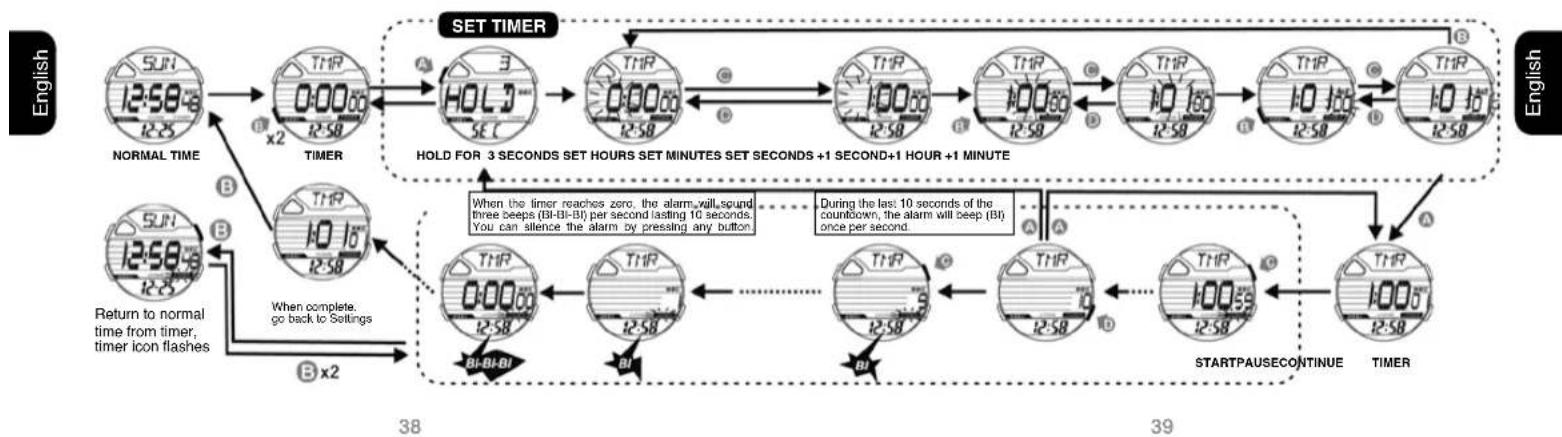

9. HOW TO USE TIMER

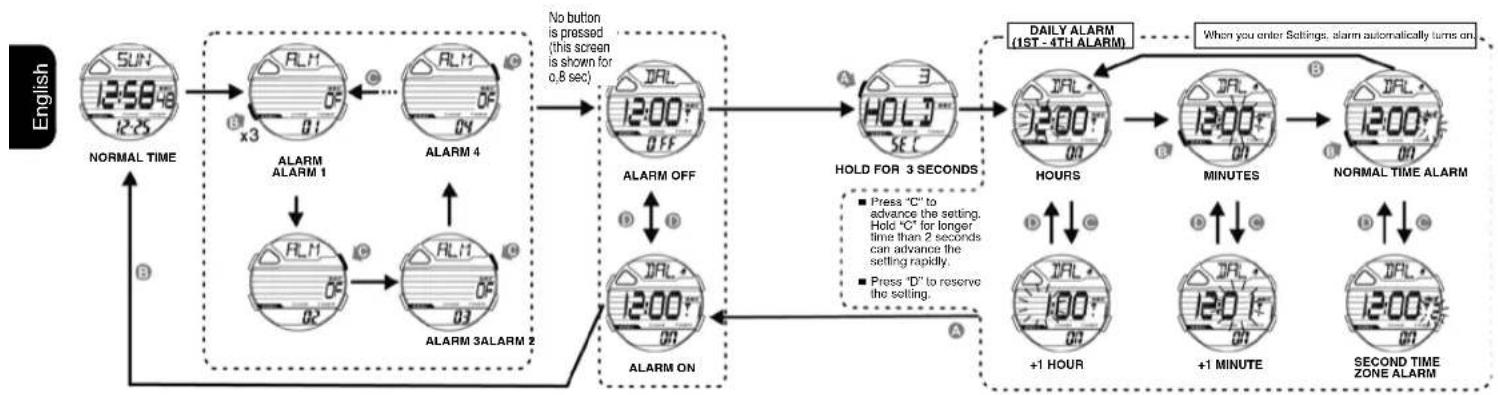

10. HOW TO SET DAILY ALARM TIME

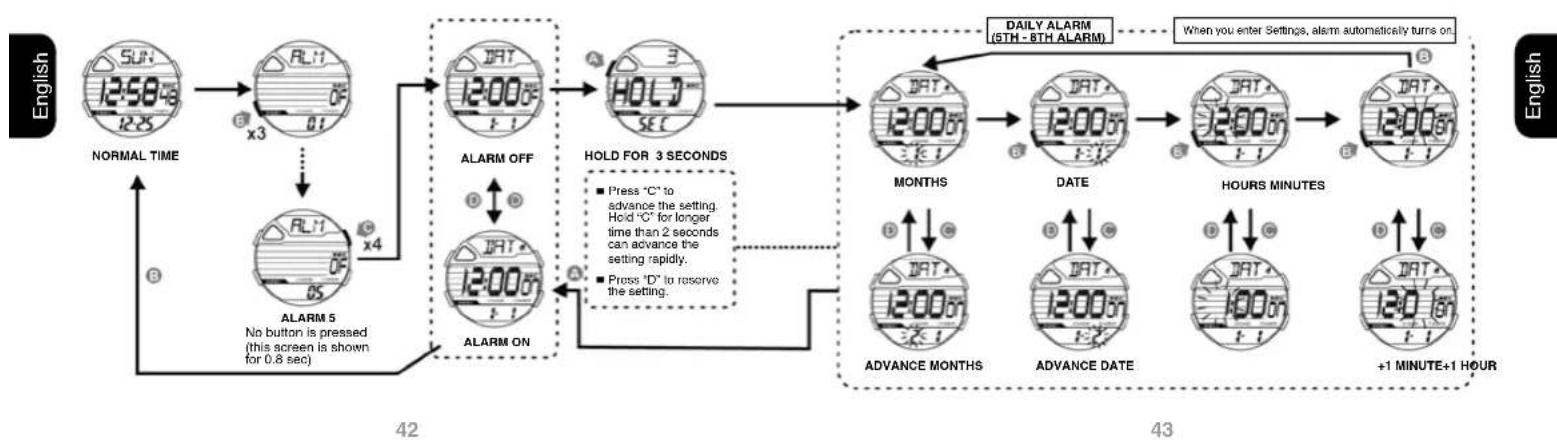

11. HOW TO SET DATE ALARM TIME

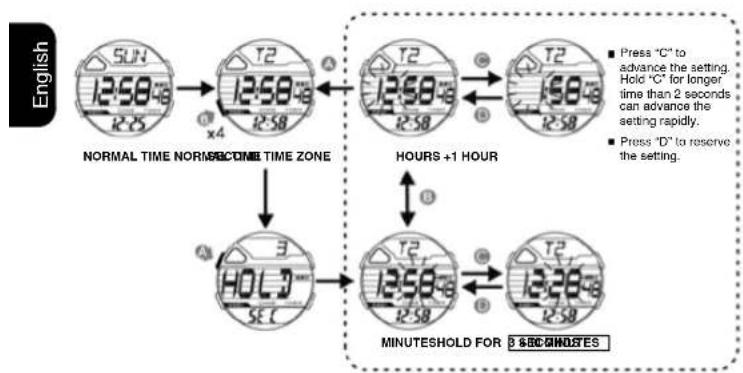

12. HOW TO SET SECOND TIME ZONE 13. HOW TO SETUP HOURLY CHIME ON/OFF

44

45

14. HOW TO USE EL LIGHT 15. SOUND

ennnn

1. Button tone: Turn ON or OFF, see "How to set function display."
2. Beeps with each press of a button except for the LIGHT button.
3. The button will only beep once when pressed and held.
4. Alarmduration: 20 sec, two short beeps per second, beep once every hour.
5. The TIMER sound will take priority over the ALARM sound.

NOTE

1. This watch features an electro-luminescent (EL) backlight, which tends to lose illuminating power after very long use.
2. The illumination provided by backlight may be hard to see under direct sunlight.

16. CARE OF YOUR WATCH

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.
7. Keep your watch away from the conditions of strong electric field and static electricity.

17. FEATURES AND SPECIFICATIONS

1. Standard display mode: Hour, minutes, seconds, day of week, month, date.

2. Function:

100-hour chronograph with memory for 50 laps/splits, and average lap.
- 24-hour countdown timer.
- 8 alarm (4 daily / 4 date) function with buzzer signal output.
Second time zone.
- Hourly chime.
Perpetual calendar
12/24 hour format switch option
AM/PM & Electro-Luminiscent light.

• Button tone ON/OFF Function.

• Accuracy at normal temperature (25^) : 30 seconds a month.

• Normal operating temperature range: 10^ - 40^

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your

quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

1.AFFICHAGE NORMALE ET BOUTON D'UTILISATION

2.COMMENT CHANGER LE MODE D'AFFICHAGE

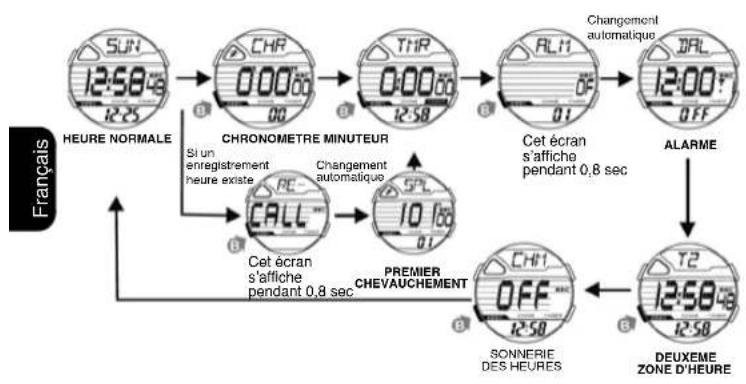

3.COMMENT AFFICHER LE MOIS, LA DATE

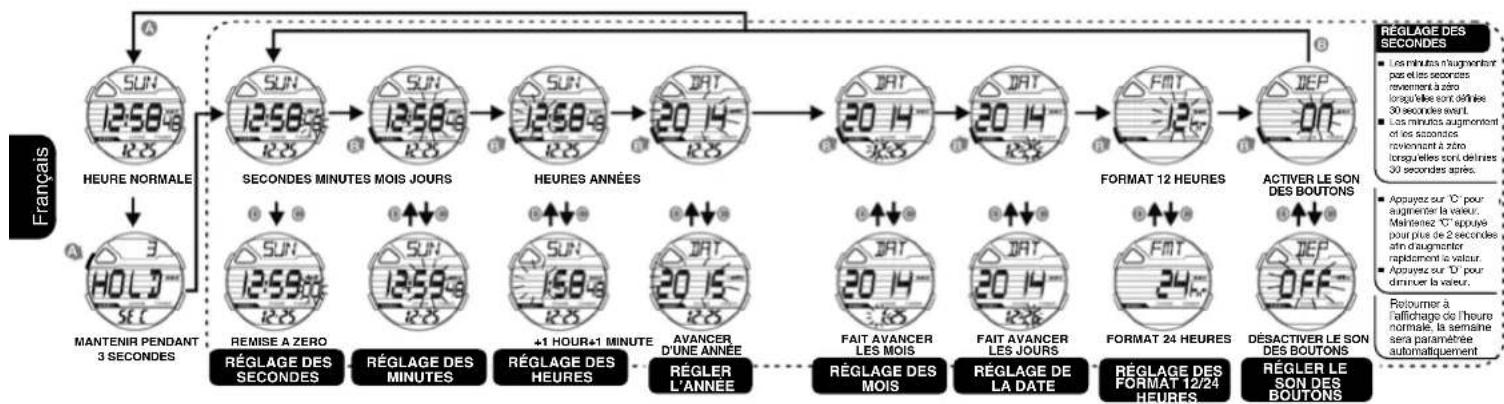

4.COMMENT REGLER L'HEURE NORMALE

5.COMMENT UTILISER LE CHRONOMETRE

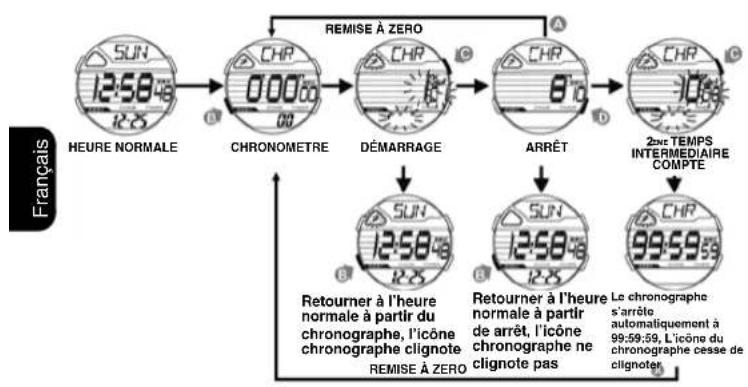

6. COMMENT CHANGER LE MODE CHEVAUCHEMENT / PARTAGE
