USER MANUAL 59501 Vollrath

Mirage® CountertopandDrop-inInductionRanges

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthequipmentinfrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcauseseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamageototheequipment:

• Plugonlyintogroundedelectricaloutletsthatmatchthevoltageon theratinglabel.
• Thisequipmentrequiresadedicatedcircuit.
• Donotusextensioncords, powerstripsorsurgeprotectorswith thisequipment.
• Unplugthisequipmentfromthewalloutletwhennotinuse.
  -Usethisequipmentnonlyinaflat,levelposition.
  -Toprotectagainstelectraceuticalshockdonotimmersethecordorplug inwater.Keepthecordawayfromheatedsurface.Donotletthe cordhangovertheedgeoftableorcounter.
• Asaprecaution, persons using pacemakers should standback! (30cm) from an operating unit. Studies have shown that the induction element will not disrupt pacemaker.
• Keepallcreditcards, driver licenses and other items with magnetic stripaway from operating unit. Theunit's magnetic field will damagetheinformation onthesestrips.
• Theheatingsurfaceismadeofastrong,non-porousmaterial. However,shoulditcrackorbreak,stopusingandimmediately unplugtheunit.Cleaning solutionsandspillscouldpenetratethe brokencook-topandcreateariskofelectricalshock.
• Donotoperatethisequipmentwithdamagedcordorplugifitis notfunctioningproperly.
• Donotoperatunattended.Closelysuperviseunitsoperatingin publicareasand/oraroundchildren.
• Donotplaceanyobjectsinsidetheairintakeorexiaustpanels.
• Donotattachanyaccessoryobjectstothisequipment.

ItemNo.Description		Plug
59500	Mirage® CountertopInductionRange,US	NEMA5-15P
59510	Mirage® CountertopInductionRange,US,Canada
59650	Mirage® CountertopInductionRange	Schuko
59651UK
59652China
59655AU
59501	Mira \( \text{age}^{\circledR } \) Drop-inInductionRange	NEMA5-15P
59601Schuk
59602UK
59603China
59605AU

FUNCTIONANDPURPOSE

Thisequipmentisintendedforuseincommercialfoodservice operationsonly.Itsnotintendedforhousehold,industrialor laboratoryuse.Itsisntendedtobeusedwithinduction-readycookware.

COOKWARE REQUIREMENTS

Compatible

-Drop-inRanges: Flatbase 43/4'to12"(12.1to30.5cm) in diameter
- CountertopRanges: Flatbase 43% to 101% (12.1to26.0cm) indiameter
-Ferrousstainlesssteel,iron, castiron

Incompatible
lessthan4

-Baseisnotflat
-Baseislessthan4% (12.1cm) indiameter
Pottery, glass, aluminum, bronzeorcoppercookware
-Metaldiskonbottomofpan

Note: Cookware within inferior constructionormaterial maynotperform well. Cookware withalargerbasediametercanbeused, however only theareaofthecookwareabovetheinductioncoilwillheat. Themore cookware extends pasttthecoil, themoretheoverallperformancewill bereducted.

NOTICE:EquipmentDamageHazard

Notintendedforusewithaluminumpanswithametaldisk onthebottom. Underhighheat,themetaldiskwillseparate fromthepan.Thesepansmaydamageyourunitandvoid yourwarranty.

FCCSTATEMENT

ThisequipmenthasbeentestedandfoundtocomplywithPart18of FCCRules.Theselimitsaredesigntodoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipment generates,usesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycause harmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.If thisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningthequipmentoffand on,theuserisencouragedtotrycorrecttheinterferencebyoneor moreofthefollowingmeasures:

-Reorientorrelocatethereceivingantenna
- Increase the separation between the equipment and receiver
Connectthequipmentintoanoutletonacircuitdifferentfromthat towichthereceiverisconnected
- Consultthedealeroranexperiencedradio/TVtechnicianforhelp Toassurecontinuedcompliance,anychangesormodificationsnot expresslyapprovedbythepartyResponsibleforcompliancecouldvoid theuser'sauthoritytooperatethisequipment.

COUNTERTOPRANGEINSTALLATION

ClearanceandEnvironmentRequirements

NOTICE: This unit is not designed to be enclosed or built into any area. Sufficient airflow must be allowed around the unit. Blocking the air flow could cause the unit to overheat.

Rearotherangetoanysurroundingsurface: 4^ (10cm)
-Bottomoftherangeanysurroundingsurface: 1 / 2^ (2cm）
-Indooruseonly.
- Donotplatzehequipmentnornearheat-producingequipment.

Installation

1. Placetheinductionrange/warmeronaflatstablesurface.
2. Plugthepowercordintoagroundedelectricaloutletsthatmatchthe voltageontheratinglabel.

NOTICE: This equipment requires dedicated circuit.

NOTICE:Usingavoltageotherthannameplateratedvoltage willcausedamagetothunit.Incorrectvoltage, modificationtothepowercordorelectricalcomponents candamageunitandwillvoidthewararranty.

DROP-INSRANGEINSTALLATION

Beforeyoubegin

1. Downloadthespecificationsheetforyourdrop-infrom Vollrath.com.Youwillneedtofertothisdocumentfor dimensions,clearance,ventingandpowerrequirements.
   2.Verifytheproperelectricaloutletisavailableattheinstallationsite.

NOTICE: This equipment requires dedicated circuit.

NOTICE:DoNOTmodifythecordorplugonthedrop-in.Modifying anycomponentmaydamagethedrop-inorcauseinjury, andwillvoidthewarranty.Seethespecificationsheeton Vollrath.comforelectricalspecifications.

3.Knowthecountertopmanufacturer'srequirementsforpreparing and installingequipmentinto thecountertoppriortostartinginstallation.

PreparetheCountertopandCabinet

NOTICE:Refertothedrop-inspecificationsheetforcutout dimensions,airflowandventingrequirements,minimum clearedistancesandenvironmentrequirements.

NOTICE: Countertopmaterials requires specific preparation. Refer to the countertopmanufacturer for instructions regarding proper installation of equipment into the material.

NOTICE: Exposed woodor particleboardedgesmustbesealed with an appropriate waterproofingmaterial. Sealtheedge between the glass and the countertop with silicone or similar material. Failure to dosomy result in damage to the countertop.

1.Cutrequiredopeningsinthecountertopandcabinet.
2.Cleandebrisfromthecutoutarea(s).
3. Reinforcethecountertopsupportasneededperthecountertop manufacturer guidelinesandtheweightoftheequipment.

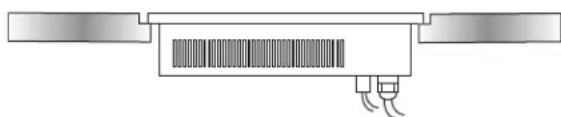

MounttheDrop-in

1.Chooseaflat,levelcountertopforthemountingsurface.
2.Measuretheareaforthecutout,includingthecountersinkarea.The unitisdesignedtobecountersunk.Thedepthofthesurfacearound thecutoutmustbereducedtoallowforthecountersink.Seethe specificationsheet.

MounttheControlBox

1.Measuretheareaforthecontrolboxcutout.
2. Apply sealant to the space between the control box and the mountingsurface to prevent moisture penetration.
3.Securethecontrolboxtothemountingsurface.
4.PlugtheUSBcablefromthecontrolboxtothebottomofth range.

FEATURESANDCONTROLS

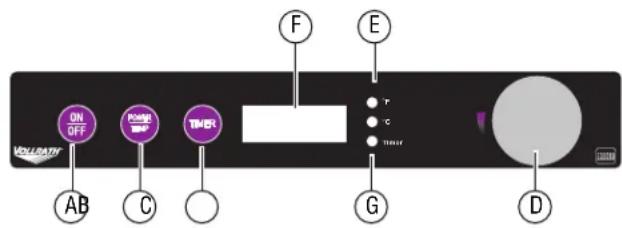

Drop-inRangeControlPanel

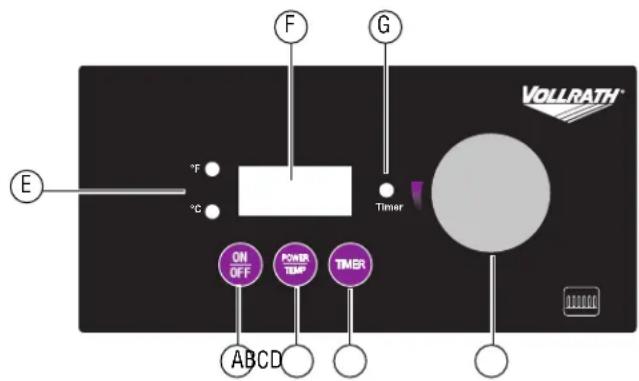

CountertopRangeControlPanel

AOn/Offbutton.

BPower/Tempbutton.Presstotoglebetweenpowerlevel(1-100) andtemperaturecontrol,andFahrenheitandCelsius.

CTimerbutton.Startsthetimer.

DControlknob.Selectsthemperature, powerlevelortime, dependingonthemode.

E°Fand°CLEDs. Illuminatetoindicatewhichtemperatureis displaying.

FDisplaypanel.Displaysthepowerlevel,temperature,timertime oranerrorcode.

GTimerLED. Illuminateswhentimerfunctionisoperating.

OPERATION

WARNING

Electrical ShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment.Liquidinsidethequipmentcouldcauseanelectricalshock.

CAUTION

Burt

Don'touch hotfood, liquidor heating surfaces while equipment is heating or operating.

NOTICE: Donotpreheatemptycookware. Because of the speed and efficiency of the induction range, cookware can very quickly overheat and bedamaged.

NOTICE: Donotdropcookingutensilsorotherobjectsothe cookingsurface. Thestrong, non-poroussurface will break. Thewarrantydoesn'tcoverthistypeofabuse.

NOTICE: Don'tleaveanemptytanoperatingunit.

NOTICE:Donotheatsealedcansorcontainersastheymay explode.

TurnontheInductionRange

Pressandrelease.

AdjustthePowerLevelorTemperature Increaseordecrease

Rotatethecontrolknob.

• Clockwise increasesthenumbers.
• Counterclockwise decreases the numbers.

Switchbetweenpowerandtemperaturemodes

Pressandrelease.

SwitchbetweenFahrenheitandCelsius

Pressandrelease.

CookFood

TheDISPLAYSHouldremainconstantduringoperation.Ifthedisplayis flashing,seetheTroubleshootingsectioninthismanual.

Removingcookwarefromthecookingsurfaceformorethanten minuteswillcausetheunittoautomaticallyturnoff.Removing cookwareforlessthantenminuteswillnotinterruptoperation.

UsetheTimer

1.Pressandrelease.TheIeLEDwillflash.
2.Rotatethecontrolknobtosethetimeinfullminutes(1-180).
3. Whenthetimecycleiscomplete,therangeturnoff.

4.Tocancelthetimer,press.Theatigewillreturntopowerortemperaturemode.

CLEANING

Tomaintaintheappearanceandincreaseservice life,clean your inductionrangedaily.

WARNING

ElectricalShockHazard

Donotspraywatercleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Allowequipmenttoocoolbeforemovingorcleaning.

NOTICE: The cookingsurfacer remainshot even when the equipment is turned off.

NOTICE: Donotuseabrasivematerials, scratchingcleansorsor scouringpadstocleantheequipment. Thesecandamage thefinish.

1. Pressandrelease.
   2.Unplugthecordfromthewalloutlet.
   3.Allowthequipmenttocool.
   4.Wipethexteriorwithacleandampcloth.
2. Thoroughly wipeoffanymildsoaporchemicalcleaners.

NOTICE:Residuecouldcorrodethesurfaceoftheunit.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction

Theunitturnedoffafter10minute(s).	Thereisnotapot/panontheinductionrange orthepot/panisnotinduction-readycook- ware. The inductionrangeturnedoff. This is normal.	Makesurethrop/panisinductionready. SeetheFunctionand Purposesectionofthismanual.
Theunitison,butnothesing.	Thecookwaremaybetoosmallormaynot beinduction-ready.	Makesurethrop/panisinductionready. SeetheFunctionand Purposesectionofthismanual.
ThedigitaldisplayisflashingF2.	Theoverheat-protectionfeaturemayhave activated.	Removecookware.Letcookingsurfacecool.
Theunitsuddenlystoppedworking.	Theunitmaybetoooclosetoanexternalheat sourceortheairintakemayberestricted.	Relocatetheunitawayfromanyexternalheatsource.Clearany obstructionstotheairintake.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warrantytopurchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.
