6950503 - Cooker Vollrath - Free user manual and instructions

Product type	Built-in induction cooktop
Brand	Vollrath
Model	6950503
Number of burners	1
Power supply	208-240 V~, 20 A (NEMA 6-20P)
Maximum power	2100 W
Usage	Commercial (food service)
Surface material	Ceramic glass
Cooking zone diameter	4½ to 10¼ in (11.4 to 26 cm)
Functions	On/Off, touch power adjustment, automatic shut-off after 10 min without pan, pan detection
Safety	Overheat protection, automatic shut-off, dedicated circuit required, grounded plug
Maintenance	Daily cleaning with a damp cloth; do not use abrasive products
Spare parts	Available at Vollrath.com
Warranty	2 years for Ultra Series cooktops
Certification	FCC Part 18
Installation environment	Indoor only, stable and flat surface
Clearances (built-in model)	See technical sheet on Vollrath.com

Frequently Asked Questions - 6950503 Vollrath

What is the power supply voltage for model 6950503?

Model 6950503 requires a power supply of 208-240 V~, 20 A with a NEMA 6-20P plug. Use a dedicated circuit.

What types of pots can I use on this induction cooktop?

Use flat-bottomed pots made of ferrous stainless steel, iron or cast iron. The bottom diameter must be between 4½ in (11.4 cm) and 10¼ in (26 cm). Avoid pots made of aluminum, glass, earthenware, copper or bronze.

How do I adjust the power level?

Press the up arrow key to increase power, and the down arrow key to decrease it. The display shows the power level (1 to 10).

What to do if the display flashes?

The display flashes if no compatible pot is placed on the cooking zone. Place an induction-compatible pot. If the flashing continues after 10 minutes, the cooktop turns off automatically (normal).

What do error codes F2 and F9 mean?

F2 indicates activation of overheat protection; remove the pan and let it cool down. F9 signals that the pan is not induction-compatible; replace it with a compatible model.

Can I use an extension cord?

No. Never use an extension cord, power strip or surge protector. Plug the cooktop directly into its dedicated outlet.

How to clean the induction cooktop?

Turn off and unplug the appliance. Let it cool. Clean with a clean damp cloth. Do not use abrasive products or scouring pads. Wipe off any soap or chemical residue.

Can I built-in the model 6950503 cooktop?

Yes, the 6950503 is a built-in model. Consult the technical sheet on Vollrath.com for cutout dimensions, clearances and ventilation requirements. Seal the edges with appropriate silicone.

Where to find spare parts for repair?

Spare parts are available on Vollrath.com. Do not attempt to repair yourself; contact Vollrath technical service for instructions.

What is the warranty period?

The warranty for Ultra Series induction cooktops is 2 years from the original purchase date. It covers defects in materials and workmanship, but not damage due to misuse.

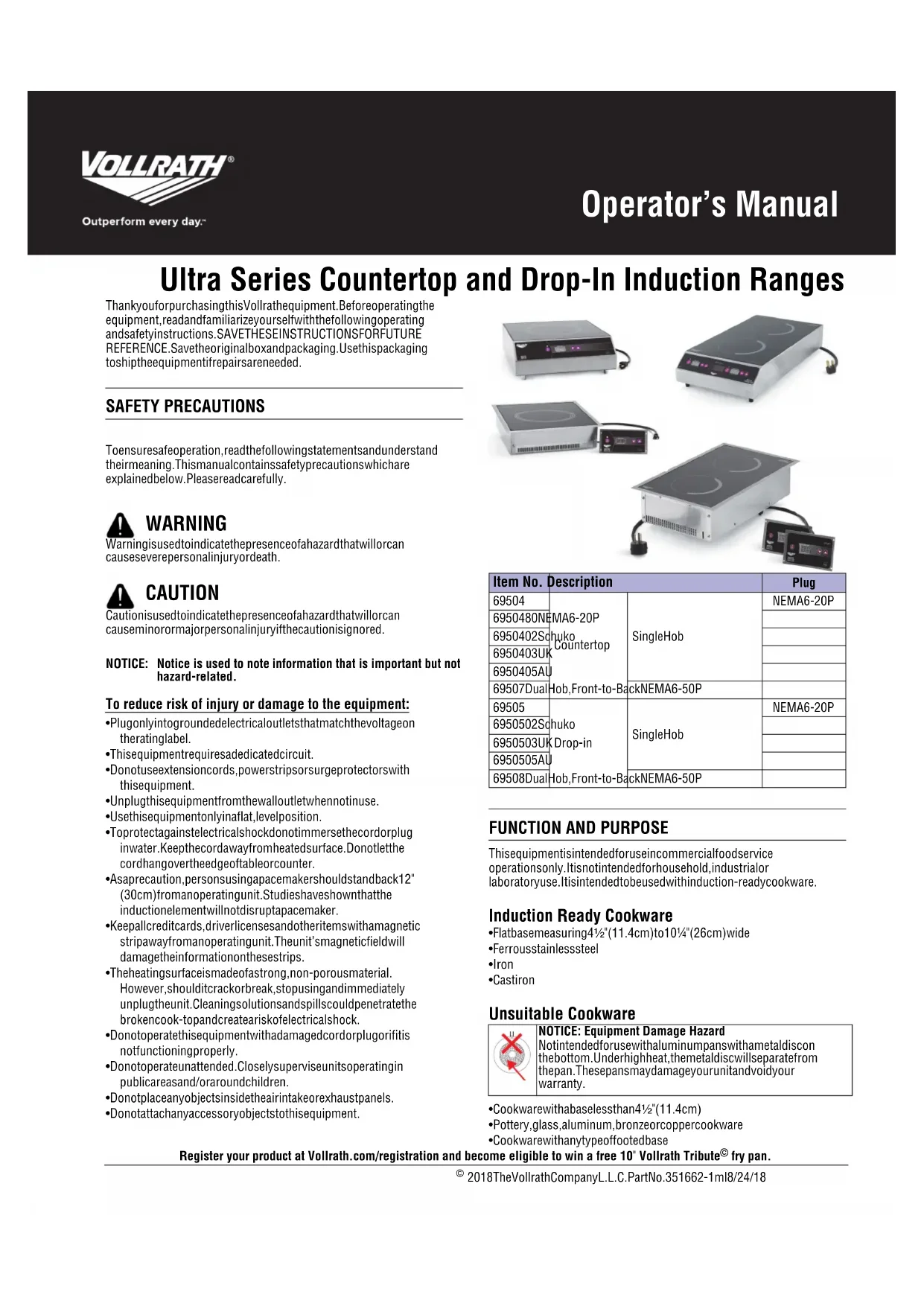

USER MANUAL 6950503 Vollrath

Ultra Series Countertop and Drop-In Induction Ranges

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshiptheequipmentifrepairsareneeded.

SAFETY PRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Pleaseread carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

To reduce risk of injury or damage to the equipment:

- Plugonlyintogroundedelectricaloutletsthatmatchthevoltageon theratinglabel.

•This equipment requiresadedicated circuit.

- Donotuseextensioncords, powerstripsorsurgeprotectors with this equipment.

- Unplugthisequipmentfromthewalloutletwhennotinuse.

• Use this equipment only in a flat, level position.

- Toprotectagainstelectricalshockdonotimmersethecordorplug inwater.Keepthecordawayfromheatedsurface.Donotletthe cordhangovertheedgeoftableorcounter.

- Asaprecaution, persons using apacemakers should standback 12 ^® (30cm) from an operating unit. Studies haveshown that the induction element will not disrupt apacemaker.

- Keepallcreditcards, driverlicenses and other items with amagnetic strip away from an operating unit. The unit's magnetic field will damage the information on these strips.

•Theheatingsurfaceismadeofastrong,non-porousmaterial. However,shoulditcrackorbreak,stopusingandimmediately unplugtheunit.Cleaningsolutionsandspillscouldpenetratethe brokencook-topandcreateariskofelectricalshock.

- Donotoperatethisequipmentwithadamagedcordorplugorifitis notfunctioningproperly.

- Donotoperateunattended. Closelysuperviseunitsoperatingin publicareasand/oraroundchildren.

- Donotplaceanyobjectsinsidetheairintakeorexhaustpanels.

- Donotattachanyaccessoryobjectstothisequipment.

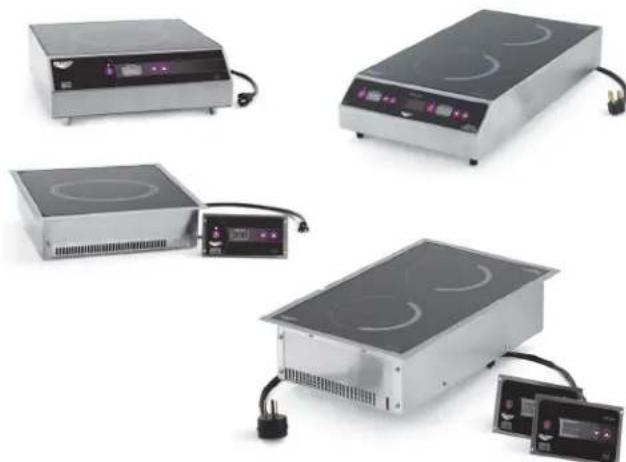

Four different kitchen appliances with visible control panels and power outlets, arranged on a white background (no text or symbols)

Item No.	Description		Plug
69504	NEMA6-20P	SingleHob	NEMA6-20P
6950480NE
6950402SchukoCountertop
6950403UK
6950405AU
69507Dual	Hob,Front-to-Back	NEMA6-50P
69505	Chuko	SingleHob	NEMA6-20P
6950502Schuko
6950503UK	Drop-in
6950505AU
69508Dual	Hob,Front-to-Back	NEMA6-50P

FUNCTION AND PURPOSE

This equipment is intended for use in commercial food service operations only. It is not intended for household, industrial or laboratory use. It is intended to be used within induction-ready cookware.

Induction Ready Cookware

• Flatbasemeasuring 4 12 (11.4cm) to 10 14 (26cm) wide
  •Ferrousstainlesssteel
  •Iron
  •Castiron

Unsuitable Cookware

NOTICE: Equipment Damage Hazard

Notintendedforusewithaluminumpanswithametaldiscon thebottom. Underhighheat, themetaldiscwillseparatefrom thepan. Thesepansmaydamageyourunitandvoidyour warranty.

•Cookwarewithabaselessthan4½"(11.4cm)
•Pottery,glass,aluminum,bronzeorcoppercookware
•Cookwarewithanytypeoffootedbase

Register your product at Vollrath.com/registration and become eligible to win a free 10" Vollrath Tribute® fry pan.

FCC STATEMENT

This equipment has been tested and found to comply with Part 18 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference or radiocommunication. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference or radioortelevision reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna
- Increase these separation between the equipment and receiver
- Connecttheequipmentintoanoutletonacircuitdifferentfromthat towhichthereceiverisconnected
- Consultthedealeroranexperiencedradio/TVtechnicianforhelp Toassurecontinuedcompliance,anychangesormodificationsnot expresslyapprovedbythepartyResponsibleforcompliancecouldvoid theuser'sauthoritytooperatethisequipment.

COUNTERTOP RANGE INSTALLATION

POWER LEVEL 10%, 100% of a Power POWER LEVEL 10%, 100% of a Power Power Level Power Level Power Level

Clearance and Environment Requirements

NOTICE: This unit is not designed to be enclosed or built into any area. Sufficient airflow must be allowed around the unit. Blocking the airflow could cause the unit to overheat.

•Rearoftherangetoanysurroundingsurface:4"(10cm)
- Bottomoftherangetoanysurroundingsurface:1"(2.5cm)
- Indooruseonly.
- Donotplacetheequipmentonornearheat-producingequipment.

Installation

1. Placetheinductionrange/warmeronaflatstablesurface.
2. Plug the power cord into a grounded electrical outlet that match the voltage on the rating label.
   NOTICE: This equipment requires a dedicated circuit.
   NOTICE: Using a voltage other than the nameplate rated voltage will cause damage to the unit. Incorrect voltage, modification to the power cord or electrical components can damage unit and will void the warranty.

DROP-IN RANGE INSTALLATION

Pure diagram of a rectangular electronic component with three leads and a central bar (no text or symbols)

NOTICE: Refer to the drop-in specification sheet for cutout dimensions, air flow and venting requirements, minimum clearance distances and environment requirements.

NOTICE: Countertop materials require specific preparation. Refer to the countertop manufacturer for instructions regarding proper installation of equipment into the material.

NOTICE: Exposed wood or particle board edges must be sealed with an appropriate waterproofing material. Seal the edge between the glass and the countertop with silicone or similar material. Failure to do so may result in damage to the countertop.

Clearance and Environment Requirements

1. Downloadthespecificationsheetforyourdrop-infrom Vollrath.com.Youwillneedtorefertothisdocumentfor dimensions,clearance,ventingandpowerrequirements.
2. Verify the properelectrical outlet is available at the installations site.
   NOTICE: This equipment requires a dedicated circuit.
   NOTICE: Do NOT modify the cord or plug on the drop-in. Modifying any component may damage the drop-in or cause injury, and will void the warranty. See the specification sheet on Vollrath.com for electrical specifications.
3. Know the countertop manufacturer's requirements for preparing and installing equipment into the countertopprior to starting installation.

Prepare the Countertop and Cabinet

1. Cutrequiredopeningsinthecountertopandcabinet.
2. Cleandebrisfromthecutoutarea(s).
3. Reinforcethecountertopsupportasneededperthecountertop manufacturerguidelinesandtheweightoftheequipment.

Mount the Drop-in

1. Choose a flat, level countertop for themountings surface.
2. Measure the area for the cutout. Seethespecificationsheet.

Mount the Control Box

1. Measure the area for the control box cut out.
2. Apply sealant to the space between the control box and the mountingsurface to prevent moisture penetration.
3. Secure the control box to them mountings surface.

FEATURES AND CONTROLS OPERATION

BOD ON OFF POWER LEVELS TO BE BACK OF VOLT CAPS VOLCANTH INDUCTION INTRigue A E

69504Countertopand69505Drop-inRangeControlPanels

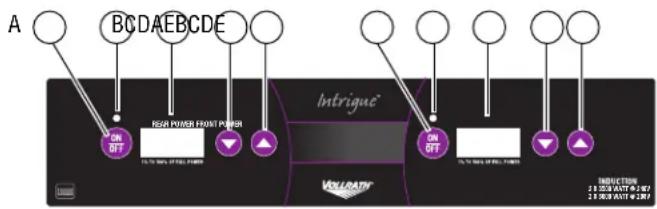

A BCDAEBCDE Intrigue ON OFF High Power Front Power ON OFF VOLUATE INVECTURE 2 100kV ANT 9-247 2 100kV ANT 2-247

69507Countertopand69508Drop-inRangeControlPanels

AC F ON OFF RISK LIME 1 2 3 Intrigue VOLUARY

6950480CountertopRangeControlPanel

A On/Off button. Presstoturnontherange.
B Power Mode LED Light. Illuminates when the range is on.
C Display Panel. Displaysthepowerlevel.
D Down button. Decreasesthepowerlevel.
E Up button. Increasesthepowerlevel
F Power Level buttons. Sets the power level.

WARNING

Electrical Shock Hazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidinsidetheequipmentcouldcausean electricalshock.

CAUTION

Burn Hazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Do not preheat empty cookware. Because of the speed and efficiency of the induction range, cookware can very quickly overheat and be damaged.

NOTICE: Do not drop cooking utensils or other objects onto the cooking surface. The strong, non-porous surface will break. The warranty does not cover this type of abuse.

NOTICE: Do not leave an empty pan on an operating unit.

NOTICE: Do not heat sealed cans or containers as they may explode.

Turn on the Induction Range

Pressandrelease.

Adjust the Power Level

(all ranges except 6950480)

Increase or decrease

Presstoincreasethepowerlevel.

Presstodecreasethepowerlevel.

Adjust the Power Level (6950480 range only)

When an induction-ready panis placed on the other range, the display will show "1." This represents 25% power.

For50% power, press and release.

For80%power,pressandrelease.

Cook Food

Thedisplayshouldremainconstantduringoperation. If the display is flashing, seethe Troubleshooting section in this manual.

Removingcookwarefromthecookingsurfaceformorethan10 minuteswillcausetheunittoautomaticallyturnoff.Removing cookwareforlessthan10minuteswillnotinterruptoperation.

CLEANING

Tomaintaintheappearanceandincreasetheservicelife,cleanyour inductionrangedaily.

WARNING

Electrical Shock Hazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

Burn Hazard

Heatingsurfaceremainshotafterequipmentisturnedoff. Hot surfacesandfoodcanburnskin. Allowthehotsurfacestocool beforehandling.

NOTICE: Do not use abrasive materials, scratching cleansers or scouring pads to clean the equipment. These can damage the finish.

1. Pressandreleasetoturnofftherange.

2. Unplugthecordfromthewalloutlet.

3. Allow the equipment to cool.

4. Wipethe exterior with a cleandamp cloth.

5. Thoroughlywipeoffanymildsoaporchemicalcleaners.

NOTICE: Residue could corrode the surface of the unit.

TROUBLESHOOTING

Problem	Might be Caused By	Course of Action
Thedisplayisflashing.	Thereisnotapot/panontheinduction range.	Placeaninduction-readypanontheinductionrange.
Therangeturnedoffafter10 minute(s).	Thereisnotapot/panontheinductionrange Theinductionrangeturnedoff.This is normal.	Placeaninduction-readypanontheinductionrange.
Therangeison,butnotheating.	Thecookwaremaybetoosmallormaynot beinduction-ready.	Makesurethepot/panisinductionready.SeetheFunctionand Purposesectionofthismanual.
ThedisplayisflashingF2.	Theoverheat-protectionfeaturemayhave activated.	Removecookware.Letcookingsurfacecool.
ThedisplayisflashingF9.Thepot/panisnotinductionready		Makesurethepot/panisinductionready.SeetheFunctionand Purposesectionofthismanual.
Therangesuddenlystoppedworking.	Therangemaybetooclosetoanexternal heatsourceortheairintakemaybe restricted.	Relocatetherangeawayfromanyexternalheatsource.Clear anyobstructionstotheairintake.

SERVICE AND REPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.

ThewarrantyperiodforUltraSeriesinductionrangesis2years.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty topurchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcomplete warranty information, product registration and new product announcement, visit www.vollrath.com.

TheVollrathCompany,L.L.C.Headquarters1236North18thStreet

Sheboygan,Wisconsin53081-3201USA

MainTel:800-624-2051or920-457-4851

MainFax:800-752-5620or920-459-6573

CanadaCustomerService:800-695-8560

TechServices:[e-mail]

Pujadas

Ctra.deCastanyet,

132P.O.Box121

17430SantaColomadeFarners(Girona)-Spain

Tel.[phone]

[e-mail]

VollrathofChina

VollrathShanghaiTradingLimited

Room201,BuildingA

XinYiPlaza

1618YiShanRoad

Shanghai,201103

China,P.R.C.

Tel:[phone]

VollrathdeMexicoS.deR.L.deC.V.PerifericoSurNo.7980Edificio4-ECol.SantaMariaTequepexpan45600Tlaquepaque,Jalisco|MexicoTel:(52)333-133-6767Tel:[phone]Fax:[phone]
