Duali 2900SS - Cooker Vollrath - Free user manual and instructions

USER MANUAL Duali 2900SS Vollrath

INDUCTION RANGES WITH INDUCTIQ™ TECHNOLOGY

Thank you for purchasing this Vollrath® product! Save this manual for reference and the packaging in case shipping is necessary.

SAFETY PRECAUTIONS

To help ensure safe use, please read and fully understand this manual and all safety messages before operation!

WARNING

Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Caution indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE: addresses practices not related to physical injury.

To reduce risk of injury or damage to the unit

• Equipment must be installed by a qualified person in accordance with codes, regulations, and ordinances.
- Use only grounded electrical circuits and outlets that match the nameplate-rated voltage. Do not use extension cords or power strips.
- Never modify the wiring, cord, or plug. This could damage the unit and cause injury and will void the warranty.

• Use unit in a flat, level position.

- Keep unit and power cord away from open flames, electric burners, and excessive heat.

- Only operate properly functioning, undamaged units.

• Always attend the unit when operating.

- If supply cord is damaged, it must be replaced by the manufacturer, service agent, or qualified person.

- As a precaution, persons using a pacemaker should stand back 12" (30 cm) from an operating unit. Studies have shown that the induction element will not disrupt a pacemaker.

- Keep all credit cards, driver licenses and other items with a magnetic strip away from an operating unit. The unit's magnetic field will damage the information on these strips.

• Turn equipment off and unplug before cleaning or moving.

- The heating surface is made of a strong, non-porous material. However, should it crack or break, stop using and immediately unplug the unit. Cleaning solutions and spills could penetrate the broken cooktop and create a risk of electrical shock.

- Do not spray controls or outside of equipment with liquids or cleaning agents and do not immerse the cord.

- Do not operate equipment in public areas or around children.

UNPACKING THE UNIT

1. Remove all packing material, tape, and protective plastic.
2. Clean any glue residue left over from the plastic or tape.

Exterior view of a portable electrical appliance with two heat sinks and control knobs (no visible text or symbols)

Exterior view of a stainless steel electrical appliance with dual switches and control knobs (no visible text or symbols)

DUALI-2900SS

Exterior view of a stainless steel heating appliance with a control panel (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a stainless steel kitchen appliance with control knobs (no visible text or symbols)

912HDI-2900

Exterior view of a stainless steel portable appliance with four heat sinks (no visible text or symbols)

924HDI-2900

Item Description
FC-IDI-D3500 Dual- Hob Drop-In, 3.5 KW/hob
FC-IDI-D2900 Dual- Hob Drop-In, 2.9 KW/hob
FC-IDI-S3500 Single Drop-In, 3.5 KW with Programs,
FC-IDI-S2900 Single Drop-In, 2.9 KW with Programs,
DUALI-3500FB Dual- Hob Front to Back Countertop, 3.5 KW/hob
DUALI-2900FB Dual- Hob Front to Back Countertop, 2.9 KW/hob
DUALI-2900SS Dual- Hob Side to Side Countertop, 2.9 KW/hob
912HDI-2900 2-Hob BOH HD Induction Range, 2.9 KW/hob
924HDI-2900 4-Hob BOH HD Induction Range, 2.9 KW/hob

FUNCTION AND PURPOSE

This unit is intended for indoor use at commercial food service establishments, with Vollrath® induction-ready cookware to optimize performance; other cookware may have different properties. Units are not intended for household, industrial, or laboratory use.

The Temperature Control Probe is intended to provide advanced-temperature control. It is not intended as a thermometer for measuring food temperature. The temperature-control-probe port is intended for use only with a Vollrath supplied probe; it is not a headphone jack. The USB port is intended for use only with the supplied USB flash drive.

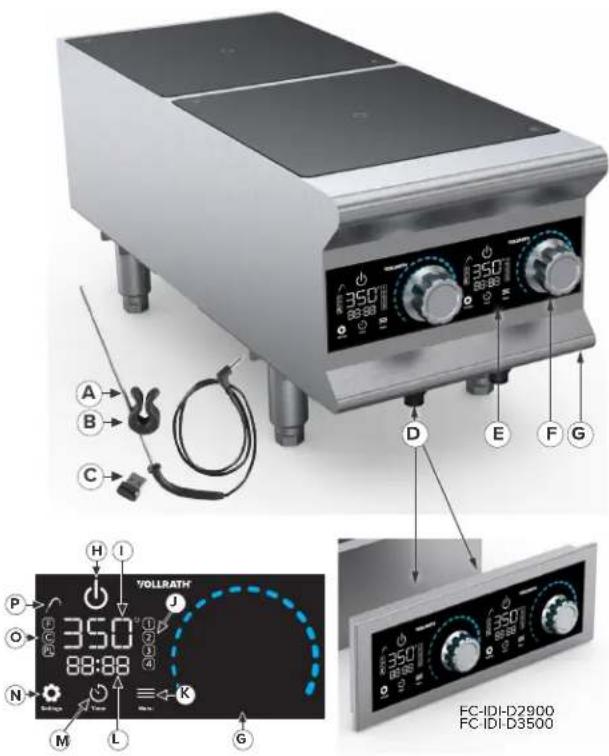

FEATURES AND CONTROLS

A B C D E F G H I P O C N M L K G 350 88:88 VOLLRATH 1 2 3 4 350 88:88 350 88:88 350 88:88 FC-IDI-D2900 FC-IDI-D3500

A. Temperature-Control Probe—Measures food so range adjusts to cook to set temperature.
B. Temperature-Probe Clip—Secures the probe to the pan.
C. USB Flash Drive—Used to load pre-established programs.
D. USB Port (2, 912HDI or 4, 924HDI)—Where USB Flash Drive connects to the unit or control panel; behind control panel on Drop-In models.
E. Control Panel—Where operator controls the unit.
F. Control Knob (2, 912HDI or 4, 924HDI)—Sets power level.
G. Temperature-Control-Probe Port (not visible: 1, 912HDI or 2, 924HDI)—Where probe connects to the unit.
H. Power Button—Turns unit on or off.
I. Power and Temperature Display—Displays the temperature setting or the power level. Does not display food temperature when the probe is in use with the front hob.
J. Program Indicators—Identify which program is in use.
K. Menu—Allows access to choose a program.
L. Timer Display—Indicates time remaining for the timer.
M. Timer Button—Allows operator to set desired time.
N. Settings Button—Allows change of temperature units between F and C an power level.
O. Unit and Power Indicator—Indicates temperature unit setting, C for Celcius and F for Farenheit; when PL is illuminated, Power Level from 1–100% will display.
P. Probe Indicator—Illuminates when the probe is in use.

LOCATION, CLEARANCE, & COOKWARE

Location

- Unit requires a dedicated indoor electrical circuit that matches the nameplate rating.

- Locate the range away from other heat-producing equipment; where maximum ambient temperature at intake is < 104^ (40 °C).

Cookware

- Flat, 4 ^3/4 " to 14" (12.1–35.6) diameter base. Only the area above the induction coil will heat when cookware with a larger diameter is used.

- Induction-ready (ferrous stainless steel, iron, cast iron), Vollrath® brand recommended. Low-quality cookware may not perform well.

Clearance

• 912/924 countertop units require a minimum of 12 " (1.3 cm) clearance on the sides and 1" (2.5 cm) at the back.

- Drop-in models require a minimum clearance of 2" (5.08 cm) at the rear and 2" (5.08 cm) at the bottom and a minimum 2.25" x 8" (5.72 x 20.32 cm) vent is required directly behind the exhaust.

- Countertop units require a minimum of 2" (5.08 cm) clearance on the sides and 3" (7.62 cm) at the back.

OPERATION

WARNING

Electrical Shock and Fire Hazard.

Using voltage other than the nameplate-rated voltage, modifying the cord or electrical components, and/or using extension cords, surge protectors, or power strips could damage the unit and create a potential fire hazard, and will void the warranty.

Liquid inside the unit could cause an electrical shock.

WARNING

Burn Hazard.

Do not touch cookware, heating surface, food, or liquid while heating.

WARNING

Explosion Hazard.

Airtight or heat-sealed cans and containers can explode if placed on a range in operation.

NOTICE:

• Do not preheat empty cookware nor leave empty cookware on an operating range; this can cause damage.
• Surfaces and control panel could break if objects fall onto them; this type of damage is not covered in the warranty.
• When Temperature-Control Probe or USB Flash Drive are not in use, install covers over ports to protect against food debris and moisture; this type of damage is not covered by the warranty.

OPERATION CONTINUED

1. Plug the cord into an outlet that matches the nameplate rating; ensure range is on a flat, stable surface.

2. Place an induction-ready, flat base 4^3/4 to 14" (12.1 to 35.6 cm) diameter pan containing food or liquid onto the cooking surface.

3. Press to turn the unit on.

4. A. Set Power Level

• Responsive, gas-flame-like control
- Good for fast, powerful heating such as boiling, sauteing, and searing.
A. Press 📍 until PL is selected: PLCF
B. Rotate the Control Knob to select power level.

4. B. OR Set Temperature

• Single-degree increments in °F or °C
- Steady, controlled heat, good for more-precise temperatures for sauces, stocks, and poaching.

A. Tap until C or F is selected:

B. Rotate Control Knob to select a temperature; starting lower and gradually increasing temperatures is recommended for delicate foods.

4. C.OR Choose a Program

• Four default programs:
  ① Chocolate—Use probe Heat to 110 °F; hold at 90 °F, no timer.

② Fajita Heater—Power level 100 for 1 minute.

③ Simmer—Use probe. Heat to 190 °F, No timer.

④ Rethermalize Chilled Food—Use probe, Heat to 165 °F. Hold 2 minutes, then hold at 155 °F, no timer.

• See the Edit Default Programs section to create custom programs.

A. Tap until program numbers flash.
B. Tap ≡ until desired program is steady-lit. After three seconds, program will start and number will flash to indicate program is running.
C. To Cancel the Program, press ≡ until all program numbers are not illuminated.

1. Set the Timer (optional) by tapping ⏻ until the time on the display flashes.

1. Rotate the Control Knob 🔒 to adjust the time in 30-second increments. After three seconds, time begins to count down and ⏻ will flash to indicate timer is in use. When the timer reaches 0, a buzzer will sound and END will display. To change the time if needed, repeat steps 5 & 6. To cancel the timer, press ⏻ twice.

2. Use the Temperature-Control Probe (optional for front hob only) by first wiping the tip of the probe, with a soft clean cloth—probe must be clean to work properly).

3. Next, remove the probe port cover and plug the probe in.

4. Place the probe so it is suspended in the center of the food by attaching it to the pan with the included clip; the probe must not rest on the bottom of the cookware. The probe monitors the temperature of the food and automatically adjusts the heat to maintain food at the selected temperature; it is not a thermometer. For best performance and food quality, stir food often.

1. Set the temperature according to Step 4, B above; the Probe Icon will flash as the food heats to the set temperature.

When the probe detects the food has reached a set temperature, the icon will stop flashing and stay lit steadily.

EDIT DEFAULT PROGRAMS/CREATE CUSTOM PROGRAMS

• One USB Flash Drive can be used to program multiple ranges; drive can be stored in the unit.

1. Load the Program Editor by removing USB flash drive from range and plugging it into a computer USB port.

1. Create up to four programs, up to three stages each.

Material Solid color Continuous (not allowed) F1 = 100% size = 5x 100% F2 = Processed Parameters | Project | Project | Process | M1 / M2 | F1 | Continuous/Continuous Structuralized | F2 | Static | End:day | M3 | F2 | Continuous/Continuous Structuralized | F3 | Static | End:day | M4 | F3 | Continuous/Continuous Structuralized | F4 | Static | End:day

1. Transfer Programs to Range by inserting USB Flash Drive into a range that is plugged in, but off—then close USB port cover—only Vollrath® logo should display.

1. Open the Programs folder.

1. Choose an option for each stage. Enter half minutes as .5.

1. When programs are loaded and P-0 displays, turn unit on by pressing ⏻ New programs are now ready for use.

2. Double-click Programs Editor.

1. To edit another program, click Program Tab and repeat

1. Save Programs by clicking Generate File.

If file does not open or you are asked to choose a program, try installing/update Java; it can be downloaded for free from java.com.

1. When Insert or re-insert your USB flash drive. displays, remove—then reinsert USB Flash drive.

Programs are saved when you see: Generate program file as written Insert into insertion unit USB port to complete configuration file transfer. P-D will be displayed Generate file to USB flash drive Configuration file for programs has been written to the USB flash drive. USB DISK (E:) Name Program Editor programs.bt

CLEANING

WARNING

Electrical Shock Hazard.

Liquid or foam inside unit could cause electrical shock.

WARNING

Burn Hazard.

Do not touch cookware, heating surface, food, or liquid while heating.

1. Each day, turn off and unplug the unit; allow unit to cool completely until HOT is no longer displayed on the control panel.
2. Use a damp cloth or sponge dipped in soapy water to wipe the unit; rinse thoroughly with a clean, damp cloth or sponge.

Clean USB and Temperature Control Probe Ports (As needed)

USB and Temperature Control Probe Port covers should be in place; if food/debris enters the ports, clean by:

1. Ensuring the range is unplugged and cool, then use a cotton swab dipped in isopropyl alcohol to gently remove debris.
2. Allow ports to dry, then plug the USB Drive back into the port and put the USB port cover back on.

TROUBLESHOOTING

Problem	Potential Cause	Course of Action
Unit does not have power.	Unit is not plugged in or switched on.	Plug unit in and turn power on.
Range is plugged into outlet with correct voltage, but logo is not illuminated.	Internal electrical connection is disconnected.	Contact Vollrath Technical Service.
Display is flashing.	A pan is not on the range or not induction ready.	This is normal; turn unit on & place a proper pan.
Range turned off after 10 minutes.
Pan suddenly stopped heating; power level or temperature is not displayed.	Timer was in use and is now expired.	This is normal; program with timer might have been in use or timer was accidentally activated.
Logo is not illuminated, but unit is plugged in.	Proper voltage is not in use.	Ensure voltage is correct; move unit to another outlet as needed.
	Electrical supply has an issue.	Test outlet by plugging something else in.
	Internal electrical connection is disconnected.	Contact Vollrath Technical Service.
Temperature probe icon is blinking.	There is no issue; this is normal.	Food is heating to the set temperature.
Program editor does not open.	Java might need to be installed or updated.	Go to java.com and download or update.
Problem Potential Cause Course of Action
Drop-in unit UI not lighting up. UI cable came unplugged.		Ensure cable is fully plugged into bottom of unit and back of UI module.
Displayed temperature does not match food temperature when food is checked with a thermometer.	Temperature Control Probe is not correctly positioned.	Ensure probe is centered in food and not touching bottom of the pan; adjust as needed.
	Food thermometer and probe measured temperatures in different areas of the food.	Stir food often to help ensure even heating.
F-01	Range overheated possibly due to being too close to other heat-producing equipment.	Relocate the unit; Contact Vollrath Technical Service if the problem persists.
F-02 Cookware was too hot when placed on unit.		Remove cookware; allow it to cool. Contact Vollrath Technical Service if problem persists.
F-05, F-06, F-07, F-10, F-11, F-24, F-25 There is an internal fault.		Turn unit off, then on to try and clear code. Contact Vollrath Technical Service if problem persists.
F-08	Range might have overheated due to insufficient air flow.	Ensure unit has proper clearance according to corresponding section of this manual. Contact Vollrath Technical Services if problem persists.1
F-16	Sensor may have detected an empty pan or pan was on the range for too long.	Remove the pan, then clear the error by turning the range off then on.
F-17, F-18, F-19, F-20	There might be an issue with incoming power supply or there may have been a power surge (F-19 or F20)	Plug range into outlet on a different circuit; Contact Vollrath Technical Services if problem persists.
F-22	There was a prolonged power surge.	Turn unit on, then off to clear the code. Contact Vollrath Technical Service if problem persists.
	Range is plugged into an outlet with incorrect voltage.
F-23		Ensure electrical outlet matches unit's rating; plug into equally-rated outlet.
HOT	User turned off the range; cooking surface is still hot.	Surface is still hot. This is normal operation.
Food not heating evenly or taking too long.	Cookware is too large or there is another issue with it.	Verify cookware is compatible; adjust if needed.
	Food needs more time to heat or there is too much.	Try Power Level mode or reducing food amount & stir food often.
There is a noise coming from vent(s). This is a problem with the fan(s). Contact Vollrath Technical Service.		Service.
Fan is running slow or not at all. There is no issue. No action is necessary; fan runs as needed.

SERVICE AND REPAIR

Serviceable parts are available on vollrathfoodservice.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to The Vollrath Company LLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchase showing the date the unit was purchased.

WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.

The Vollrath Company LLC warrants to the original commercial end user that each of Vollrath's foodservice products will be free from defects in materials and workmanship.

For warranty period, exclusions, and details, visit vollrathfoodservice.com/vollrath-resources/warranty-info/warranty-policy.

The Vollrath Company, L.L.C. Headquarters

1236 North 18th Street

Sheboygan, Wisconsin 53081-3201 USA

Main Tel: [phone] or 920-457-4851

Main Fax: [phone] or 920-459-6573

Canada Customer Service: 800-695-8560

Tech Services: [e-mail]

vollrathfoodservice.com

Pujadas Vollrath of China

Ctra. de Castanyet, Vollrath Shanghai Trading 132

P.O. Box 121 Limited

17430 Santa Coloma de Farners 23A

Time Square Plaza | 500

(Girona) – Spain Zhang Yang Road

Tel. [phone] Pudong, Shanghai 200122

[e-mail] Tel: [phone]

Vollrath de Mexico S. de R.L.

de C.V. Periferico Sur No.

7980 Edificio 4-E Col. Santa

Maria Tequepexpan 45600

Tlaquepaque, Jalisco | Mexico

Tel: [phone]

Tel: [phone]

Fax: [phone]

VOLLRATH®

MANUEL D'UTILISATION

Exterior view of a stainless steel electrical appliance with dual monitors and control knobs (no visible text or symbols)

Exterior view of a stainless steel electric stove with dual monitors and control knobs (no visible text or symbols)

DUALI-2900SS

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

Exterior view of a stainless steel kitchen appliance with control knobs (no visible text or symbols)

912HDI-2900

Exterior view of a stainless steel electric stove with four heat sinks (no visible text or symbols)

924HDI-2900

Program Files VACI BSS Loading to a list environment PL - Time Label: C:\Users\F - Subsystem Programs Programs Programs Programs PL - C:\PL - F Continuous Plan for Time Structure 8.0 100% User data PL - C:\PL - F Continuous Plan for Time Structure 8 100% User data PL - C:\PL - F Continuous Plan for Time Structure 8 100% User data

Validate program to file is written. Insert into induction unit USB port to complete configuration file transfer. P-0 will be displayed Generate file to USB flash drive. Configuration file for programs has been written to the USB flash drive.

The Vollrath Company, L.L.C. Headquarters

1236 North 18th Street

Sheboygan, Wisconsin 53081-3201 USA

Main Tel: [phone] or 920-457-4851

Main Fax: [phone] or 920-459-6573

Canada Customer Service: 800-695-8560

Tech Services: [e-mail]

vollrathfoodservice.com

Pujadas Vollrath of China

Ctra. de Castanyet, Vollrath Shanghai Trading 132

P.O. Box 121 Limited

17430 Santa Coloma de Farners 23A

Time Square Plaza | 500

(Girona) – Spain Zhang Yang Road

Tel. [phone] Pudong, Shanghai 200122

[e-mail] Tel: [phone]

Vollrath de Mexico S. de R.L.

de C.V. Periferico Sur No.

7980 Edificio 4-E Col. Santa

Maria Tequepexpan 45600

Tlaquepaque, Jalisco | Mexico

Tel: [phone]

Tel: [phone]

Fax: [phone]

VOLLRATH®

MANUAL DEL OPERADOR

Exterior view of a laboratory heating device with dual monitors and control knobs (no visible text or symbols)

Exterior view of a modern kitchen appliance with dual monitors and control knobs (no visible text or symbols)

DUALI-2900SS

Exterior view of a stainless steel heating appliance with a digital display (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a stainless steel industrial appliance with control knobs (no visible text or symbols)

912HDI-2900

Exterior view of a stainless steel electric stove with four heat sinks (no visible text or symbols)

924HDI-2900

Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Name Status Timing Event Date: May 15, 2023 Status Date: May 15, 2023 Timing Date: May 15, 2023

1. Abra la carpeta Programs. 5.

Generate file to USB flash drive

8. Cuando aparezca luego vuelva a Insert or re-insert your USB flash drive... Retire y insertar la unidad de memoria USB. Los programas se guardarán cuando vea: Validate program bit file is written Insert into induction unit USB port to complete configuration file transfer. P.O will be displayed Generate file to USB flash drive Configuration file for programs has been written to the USB flash drive. USB DISK (E) Name Program Editor programs.bt

The Vollrath Company, L.L.C. Headquarters

1236 North 18th Street

Sheboygan, Wisconsin 53081-3201 USA

Main Tel: [phone] or 920-457-4851

Main Fax: [phone] or 920-459-6573

Canada Customer Service: 800-695-8560

Tech Services: [e-mail]

vollrathfoodservice.com

Pujadas Vollrath of China

Ctra. de Castanyet, Vollrath Shanghai Trading 132

P.O. Box 121 Limited

17430 Santa Coloma de Farners 23A

Time Square Plaza | 500

(Girona) – Spain Zhang Yang Road

Tel. [phone] Pudong, Shanghai 200122

[e-mail] Tel: [phone]

Vollrath de Mexico S. de R.L.

de C.V. Periferico Sur No.

7980 Edificio 4-E Col. Santa

Maria Tequepexpan 45600

Tlaquepaque, Jalisco | Mexico

Tel: [phone]

Tel: [phone]

Fax: [phone]
