USER MANUAL 6950405 Vollrath

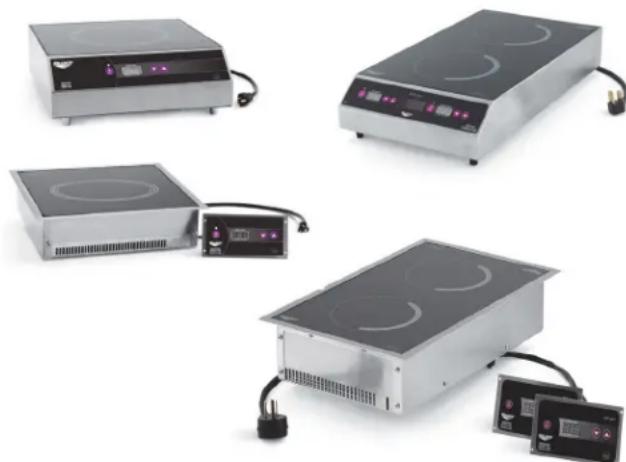

Ultra Series Countertop and Drop-In Induction Ranges

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthequipmenttifrepairsareneeded.

SAFETY PRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcauseseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presence ofahazardthatwillcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

To reduce risk of injury or damage to the equipment:

• Plugonlyintogroundedelectricaloutletsthatmatchthevoltageon theratinglabel.
• Thisequipmentrequiresdedicatedcircuit.
• Donotusextensioncords, powerstripsorsurgeprotectorswith thisequipment.
• Unplugthisequipmentfromthewalloutletwhennotinuse.
  -Usethisequipmentonlyinaflat,levelposition.
• Toprotectagainstelectricalshockdonotimmersethecordorplug inwater.Keepthecordawayfromheatedsurface.Donotletthe cordhangovertheedgeoftableorcounter.
• Asaprecaution, persons using pacemakers should standback! (30cm) from an operating unit. Studies have shown that the induction element will not disrupt pacemaker.
• Keepallcreditcards, driver licenses and other items with magnetic stripaway from operating unit. Theunit's magnetic field will damagetheinformation onthesestrips.
• Theheatingsurfaceismadeofastrong,non-porousmaterial. However,shoulditcrackorbreak,stopusingandimmediately unplugtheunit.Cleaning solutionsandspillscouldpenetratethe brokencook-topandcreateariskofelectricalshock.
• Donotoperatethisequipmentwithadamagedcordorplugifitis notfunctioningproperly.
• Donotoperatunattended.Closelysuperviseunitsoperating in publicareasand/oraroundchildren.
• Donotplaceanyobjectsinsidetheairintakeorexiaustpanels.
• Donotattachanyaccessoryobjectstothisequipment.

Item No. Description			Plug
69504	MA6-20P	SingleHob	NEMA6-20P
6950480Nehucho Countertop
6950402Sdchuko
6950403UK
6950405AU
69507Dual	Hob,Front-to-Back	NEMA6-50P
69505	Sdchuko	SingleHob	NEMA6-20P
6950502Sdchuko
6950503UK
6950505AU
69508Dual	Hob,Front-to-Back	NEMA6-50P

FUNCTION AND PURPOSE

Thisequipmentisintendedforuseincommercialfoodservice operationsonly.Itsisnotintendedforhousehold,industrialor laboratoryuse.Itsisintendedtobeusedwithinduction-readycookware.

Induction Ready Cookware

• Flatbasemeasuring 41 / 2 (11.4cm) to 101 / 4 (26cm) wide
  -Ferrousstainlesssteel
  -Iron
  Castiron

Unsuitable Cookware

NOTICE: Equipment Damage Hazard Not intended for use with aluminumpanswithametaldiscon thebottom. Underhighheat,themetaldiscswillseparatefrom thepan.Thesepansmaydamageyourunitandvoidyour warranty.

Cookwarewithabaselessthan 41 / 2 (11.4cm)
Pottery, glass, aluminum, bronze or copper cookware
Cookwarewithanytypeoffootedbase

Register your product at Vollrath.com/registration and become eligible to win a free 10" Vollrath Tribute® fry pan.

FCC STATEMENT

ThisequipmenthasbeentestedandfoundtocomplywithPart18of FCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinesidentialinstallation. Thisequipment generates,usesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions, maycause harmfulinterferencetoradiocommunications.However,thereisno guaranteeethatinterferencewillnotoccurringinaparticarinstallation.If thisequipmentdoescauseharmfulinterferencetoradiootelevision reception,whichcanbedeterminedbyturningtheequipmentoffand

on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorientorrelocatethereceivingantenna
- Increase the separation between the equipment and receiver
Connectthequipmentintoanoutletonacircuitdifferentfromthat towhichthereceiverisconnected
Consultthedealeroranexperiencedradio/TVtechnicianforhelp
Toassurecontinuedcompliance, any changesormodificationsnot expresslyapprovedbythepartyResponsibleforcompliancecouldvoid theuser'sauthoritytooperatethisequipment.

COUNTERTOP RANGE INSTALLATION

Clearance and Environment Requirements

NOTICE: This unit is not designed to be enclosed or built into any area. Sufficient airflow must be allowed around the unit. Blocking the airflow could cause the unit to overheat.

Rearotherangeotoanysurroundingsurface: 4^ (10cm)
- Bottomoftherangeoanysurroundingsurface:1"(2.5cm)
-Indooruseonly.
- Donotplatzhequipmentnornearheat-producingequipment.

Installation

1. Platheinductionrange/warmeronaflatstablesurface.
   2.Plugthepowercordintoagroundedelectricaloutletsthatmatchthevoltageontheratinglabel.

NOTICE: This equipment requires a dedicated circuit.

NOTICE: Using a voltage other than the nameplate rated voltage will cause damage to the unit. Incorrect voltage, modification to the power cord or electrical components can damage unit and will void the warranty.

DROP-IN RANGE INSTALLATION

NOTICE: Refer to the drop-in specification sheet for cutout dimensions, air flow and venting requirements, minimum clearance distances and environment requirements.
NOTICE: Countertop materials require specific preparation. Refer to the countertop manufacturer for instructions regarding proper installation of equipment into the material.
NOTICE: Exposed wood or particle board edges must be sealed with an appropriate waterproofing material. Seal the edge between the glass and the countertop with silicone or similar material. Failure to do so may result in damage to the countertop.

Clearance and Environment Requirements

1. Downloadthespecificationsheetforyourdrop-infrom Vollrath.com.Youwillneedtofertothisdocumentfor dimensions,clearance,ventingandpowerrequirements.
   2.Verifytheproperelectricaloutletisavailableattheinstallationsite.

NOTICE: This equipment requires a dedicated circuit.

NOTICE: Do NOT modify the cord or plug on the drop-in. Modifying any component may damage the drop-in or cause injury, and will void the warranty. See the specification sheet on Vollrath.com for electrical specifications.

3.Knowthecountertopmanufacturer'srequirementsforpreparing and installingequipmentintothecountertoppriortostartinginstallation.

Prepare the Countertop and Cabinet

1.Cutrequiredopeningsinthecountertopandcabinet.
2.Cleandebrisfromthecutoutarea(s).
3. Reinforcethecountertopsupportasneededperthecountertop manufacturer guidelinesandtheweightoftheequipment.

Mount the Drop-in

1.Chooseaflat,levelcountertopforthemountingsurface.
2.Measuretheareaforthecutout.Seethespecificationsheet.

Mount the Control Box

1.Measuretheareaforthecontrolboxcutout.
2. Applysealanttothespacebetweenthecontrolboxand the mountingsurfacetopreventmoisturepenetration.
3. Securethecontrolboxtothemountingsurface.

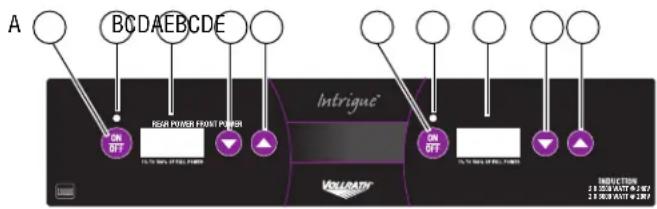

FEATURES AND CONTROLS OPERATION

69504Countertopand69505Drop-inRangeControlPanels

69507Countertopand69508Drop-inRangeControlPanels

6950480CountertopRangeControlPanel

A On/Off button. Presstoturnnontherange.
B Power Mode LED Light. Illuminates when the range is on.
C Display Panel. Displaysthepowerlevel.
D Down button. Decreases the power level.
E Up button. Increasessthepowerlevel
F Power Level buttons. Sets the power level.

WARNING

Electrical Shock Hazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment.Liquidinsidethequipmentcouldcauseanelectricalshock.

CAUTION

Burn Hazard

Don't touch hot food, liquidor heating surfaces while equipment isheating or operating.

NOTICE: Do not preheat empty cookware. Because of the speed and efficiency of the induction range, cookware can very quickly overheat and be damaged.

NOTICE: Do not drop cooking utensils or other objects onto the cooking surface. The strong, non-porous surface will break. The warranty does not cover this type of abuse.

NOTICE: Do not leave an empty pan on an operating unit.

NOTICE: Do not heat sealed cans or containers as they may explode.

Turn on the Induction Range

Pressandrelease.

Adjust the Power Level

(all ranges except 6950480)

Increase or decrease

Presstodecreasethepowerlevel.

Adjust the Power Level (6950480 range only)

Whenaninduction-readypanisplacedontherange,thedisplaywill show"1."Thisrepresents25%power.

For 50% power, pressandrelease.

For 80% power, pressand release.

Cook Food

TheDISPLAYSHouldremainconstantduringoperation.Ifthedisplays flashing,seetheTroubleshootingsectioninthismanual.

Removingcookwarefromthecookiningsurfaceformorethan10 minuteswillcausetheunittoautomaticallyturnoff.Removing cookwareforlessthan10minuteswillnotinterruptoperation.

CLEANING

Tomaintaintheappearanceand increasethesservicelife,cleanour inductionrangedaily.

WARNING

Electrical Shock Hazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

Burn Hazard

Heatingsurfaceremainshotaferequipmentisturnedoff.Hotsurfacesandfoodcanburnskin.Allowthehotsurfacestocoolbeforehandling.

NOTICE: Do not use abrasive materials, scratching cleansers or scouring pads to clean the equipment. These can damage the finish.

1. Pressandreasetoturhefferange.

2.Unplugrecordfromthewalloutlet.

1. Allow the equipment to cool.

4.Wipethexteriorwithacleandampcloth.

1. Thoroughly wipeoffanymildsoaporchemicalcleaners.

NOTICE: Residue could corrode the surface of the unit.

TROUBLESHOOTING

Problem	Might be Caused By	Course of Action
Thedisplayisflashing.	Thereisnotapot/panontheinduction range.	Placeaninduction-readypanontheinductionrange.
Therangenturnedoffafter10 minute(s).	Thereisnotapot/panontheinductionrange Theinductionrangeturnedoff.This is normal.	Placeaninduction-readypanontheinductionrange.
Therangeison,butnothesing.	Thecookwaremaybetoosmallormaynot beinduction-ready.	Makesurethrop/panisinductionready.SeetheFunctionand Purposesectionofthismanual.
ThedisplayisflashingF2.	Theoverheat-protectionfeaturemayhave activated.	Removecookware.Letcookingsurfacecool.
ThedisplayisflashingF9.Thepot/panisnotinductionready		Makesurethrop/panisinductionready.SeetheFunctionand Purposesectionofthismanual.
Therangesuddenlystoppedworking.	Therangemaybetooclosetoanexternal heatsourceorthearintakemaybe restricted.	Relocatetherangeawayfromanyexternalheatsource.Clear anyobstructionstotheairintake.

SERVICE AND REPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.

ThewarrantypiodforUltraSeriesinductionrangesis2years.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasersforsuchuses.

The Volrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

TheVollrathCompany,L.L.C. Headquarters 1236North18thStreet Sheboygan, Wisconsin 53081-3201USA MainTel:800-624-2051or920-457-4851 MainFax:800-752-5620or920-459-6573 CanadaCustomerService:800-695-8560 TechServices:[e-mail] www.vollrath.com

Pujadas Ctra.deCastanyet, 132P.O.Box121 17430SantaColomadeFarmers (Girona)-Spain Tel.[phone] [e-mail]

VollrathofChina VollrathShanghaiTradingLimited Room201,BuildingA XinYiPlaza 1618YiShanRoad Shanghai,201103 China,P.R.C. Tel:[phone]

VollrathdeMexicoS.deR.L.deC.V. PerifericoSurNo.7980Edificio4-E Col.SantaMariaTequepexpan 45600Tlaquepaque,Jalisco|Mexico Tel:[phone] Tel:[phone] Fax:[phone]
