6950020 - Cooker Vollrath - Free user manual and instructions

Product Type	Commercial Induction Cooktop
Brand	Vollrath
Model	6950020
Application	Commercial (foodservice)
Power Supply	208-240 V ~, 50/60 Hz, dedicated circuit required
Surface Material	Non-porous ceramic glass
Compatible Cookware	Ferrous flat bottom, diameter 12.1 to 26 cm; ferrous stainless steel, iron, cast iron
Cooking Modes	Heat mode (9 levels) and temperature mode (7 settings)
Controls	ON/OFF buttons, up/down arrows, Heat/Temp button
Display	Digital indicators: HEATING, heat range, temperature, heat
Automatic Detection	Detects presence of compatible cookware
Automatic Shut-off	After 10 minutes without cookware
Overheat Protection	Yes (indicator blinks 2 times)
Required Clearance	Rear: 10 cm; bottom: 1.9 cm
Cleaning	Damp cloth; no abrasive cleaners
Replacement Parts	Available at Vollrath.com
Warranty	Vollrath commercial warranty (see website)
Compliance	FCC Part 18

Frequently Asked Questions - 6950020 Vollrath

What cookware to use with the induction cooktop?

Use pots and pans with ferrous flat bottom diameter between 12.1 and 26 cm. Suitable: ferrous stainless steel, iron, cast iron. Avoid aluminum, glass, earthenware, bronze, copper, and aluminum pans with metal disc.

Why does the appliance automatically turn off after 10 minutes?

This is normal if no compatible cookware is detected on the cooktop. The appliance automatically shuts off for safety reasons. Place a compatible pan on the induction element to prevent shutdown.

What does the blinking HEATING indicator mean?

If the indicator blinks 2 times then pauses, the appliance is in overheat protection mode. Remove the pan and let the surface cool. If it blinks 9 times, the pan is not suitable for induction. If it blinks 6 times, there is a coil problem.

How to clean the induction cooktop?

Turn off the appliance, unplug it, and let it cool. Clean the surface with a damp cloth and mild detergent. Do not use abrasive cleaners, scouring pads, or water spray cleaners.

Can I use aluminum pans?

No. Aluminum pans are not compatible with induction. Moreover, aluminum pans with a metal disc on the bottom can separate under heat and damage the appliance, voiding the warranty.

What is the required power supply voltage?

Connect the appliance to a grounded outlet matching the voltage on the rating label. The appliance requires a dedicated circuit. Do not use an extension cord.

Can the appliance be built in or enclosed?

No. The appliance is not designed to be enclosed or built in. Adequate air circulation is required: leave at least 10 cm clearance at the rear and 1.9 cm under the appliance.

What to do if the appliance does not heat?

Check that the pan is suitable for induction and placed in the center of the induction element. Ensure the appliance is on and the HEATING indicator is lit. Refer to the troubleshooting section of the manual.

How to switch between heat mode and temperature mode?

Press the HEAT/TEMP button to toggle between modes. In heat mode, the heat indicator is on; in temperature mode, the temperature indicator is on. Use the up/down arrows to adjust.

Is there a risk for pacemaker wearers?

As a precaution, individuals with a pacemaker should stay at least 30 cm (12 inches) away from the operating appliance. Studies show that induction does not interfere with pacemakers.

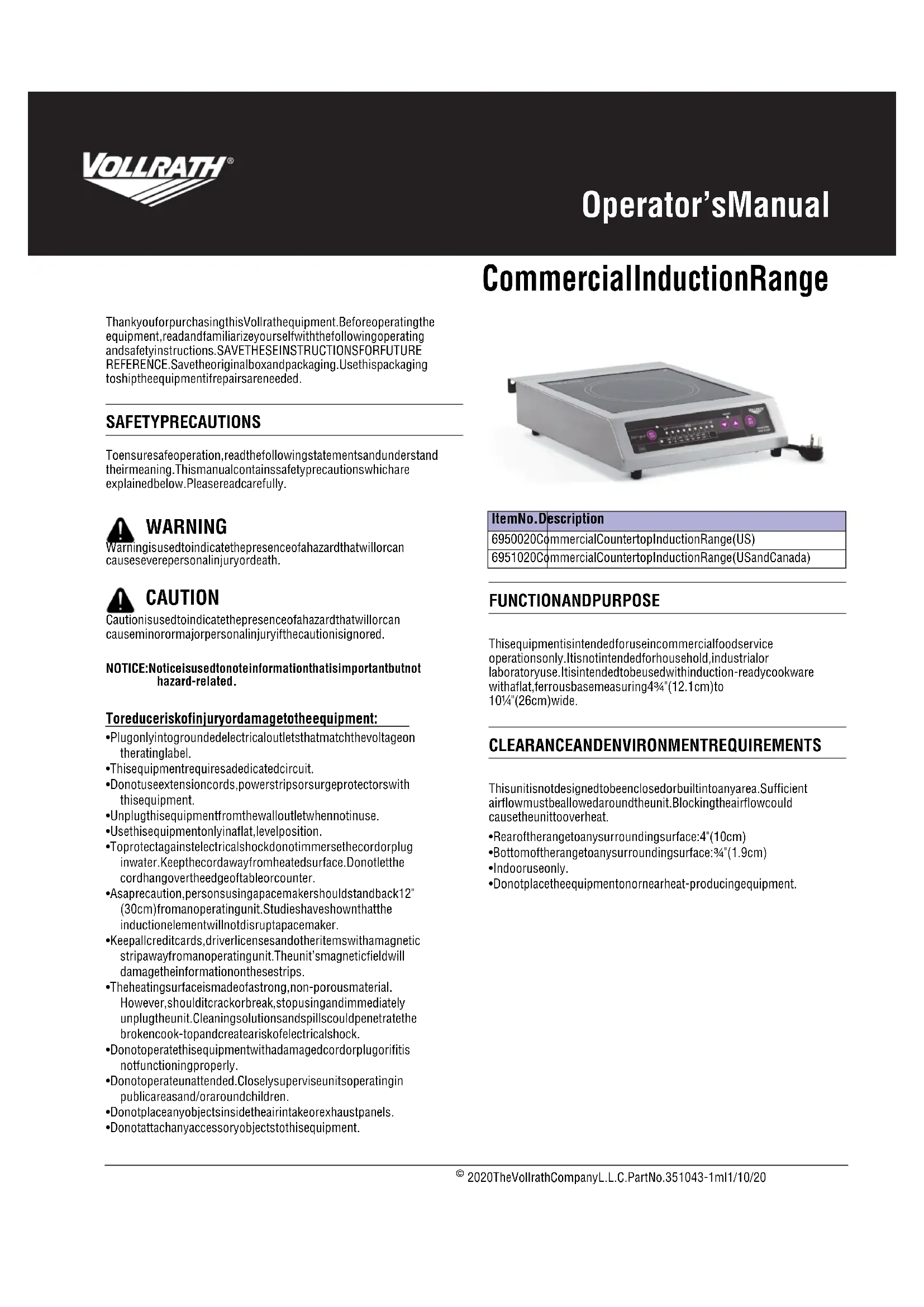

USER MANUAL 6950020 Vollrath

CommercialInductionRange

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshiptheequipmentifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment:

• Plugonlyintogroundedelectricaloutletsthatmatchthevoltageon theratinglabel.
  • This equipment requiresadedicated circuit.
• Donotuseextensioncords, powerstripsorsurgeprotectors with this equipment.
• Unplugthisequipmentfromthewalloutletwhennotinuse.
• Usethisequipmentonlyinaflat,levelposition.
• Toprotectagainstelectricalshockdonotimmersethecordorplug inwater.Keepthecordawayfromheatedsurface.Donotletthe cordhangovertheedgeoftableorcounter.
• Asaprecaution, persons using pacemakers should stand back 12 ^® (30cm) from an operating unit. Studies have shown that the induction element will not disrupt pacemaker.
• Keepallcreditcards, driverlicenses and other items with electromagnetic strip away from an operating unit. The unit's magnetic field will damage the information on these strips.
  •Theheatingsurfaceismadeofastrong,non-porousmaterial. However,shoulditcrackorbreak,stopusingandimmediately unplugtheunit.Cleaningsolutionsandspillscouldpenetratethe brokencook-topandcreateariskofelectricalshock.
• Donotoperatethisequipmentwithadamagedcordorplugorifitis notfunctioningproperly.
• Donotoperateunattended.Closelysuperviseunitsoperatingin publicareasand/oraroundchildren.
• Donotplaceanyobjectsinsidetheairintakeorexhaustpanels.
• Donotattachanyaccessoryobjectstothisequipment.

Exterior view of a modern electric heating appliance with dual rotary top and control panel (no visible text or symbols)

ItemNo.Description

6950020CommercialCountertopInductionRange(US)

6951020 CommercialCountertop Induction Range (USandCanada)

FUNCTIONANDPURPOSE

This equipment is intended for use in commercial food service operations only. It is not intended for household, industrial or laboratory use. It is intended to be used with induction-ready cookware with a flat, ferrous basemeasuring 4 14 (12.1 cm) to 10 14 (26 cm) wide.

CLEARANCEANDENVIRONMENTREQUIREMENTS

Thisunitisnotdesignedtobeenclosedorbuiltintoanyarea.Sufficient airflowmustbeallowedaroundtheunit.Blockingtheairflowcould causetheunittooverheat.

•Rearoftherangetoanysurroundingsurface:4"(10cm)
•Bottomoftherangetoanysurroundingsurface:3/4"(1.9cm)
- Indooruseonly.
- Donotplacetheequipmentonornearheat-producingequipment.

COOKWAREREQUIREMENTS

Compatible

4¾" to 10¼"

• Flatbase4 ^3/4 "to10 ^1/4 " (12.1to26cm)indiameter
  •Ferrousstainlesssteel, iron, castiron

Incompatible

lessthan4 ^3/4 "

• Baseisnotflat
• Baseislessthan4 ^3/4 " (12.1cm) indiameter
  •Pottery, glass, aluminum, bronzeorcoppercookware
  •Metaldiskonbottomofpan

Note: Cookwarewithininferiorconstructionormaterialmaynotperform well. Cookwarewithalargerbasediametercanbeused, howeveronly theareaofthecookwareabovetheinductioncoilwillheat. Themore cookwareextendspastthecoil, themoretheoverallperformancewill bereduced.

NOTICE: Equipment Damage Hazard

Notintendedforusewithaluminumpanswithametaldisk onthebottom.Underhighheat,themetaldiskwillseparate fromthepan.Thesepansmaydamageyourunitandvoid yourwarranty.

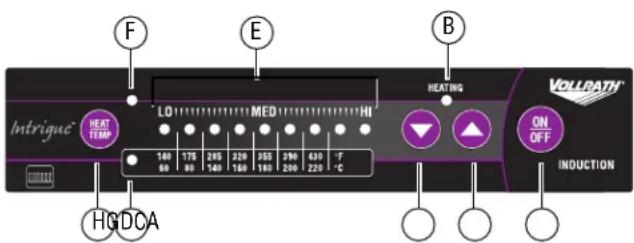

FEATURESANDCONTROLS

F E B LO MED HI INtrigue HEAT TEMP 140 175 265 320 365 390 430 -F 60 80 140 160 180 200 220 -C HG DCA HEATING VOLLRATH ON OFF INDUCTION

AOn/Offbutton.Presstoturnequipmenton.

BHeatingLED. Illuminateswheninductionread-cookwareis detectedandtheequipmentisheating.

CUpbutton.Increasesthepowerlevelortemperature.

DDownbutton.Decreases the power level or temperature.

EHeat/TemperatureRangeLEDs. Shows a heat range between low and high (ninesettings). Or, shows atemperature value using temperature (sevensettings).

FHeatLED. Illuminateswhentheheatrangedisplaymodehas beenselected.

G TemperatureLED. Illuminateswhentheunitisintemperature mode. This light is constant or links depending on the model.

HHeat/Tempbutton.Switchesbetweentemperatureandheatlevel modes.

OPERATION

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidinsidetheequipmentcouldcausean electricalshock.

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: This equipment requiresadedicated circuit.

NOTICE: Usingavoltageotherthanthenameplateratedvoltagewill causedamagetotheequipment. Incorrect voltage, modificationtothepowercordorelectricalcomponents candamageequipmentandwillvoidthewarranty.

NOTICE: Donot preheat empty cookware. Because of the speed and efficiency of the induction range, cookware can very quickly overheat and bedamaged.

NOTICE: Donotdropcookingutensilsorotherobjectsontothe cookingsurface. Thestrong, non-porous surface will break. Thewarranty does not cover this type of abuse.

NOTICE: Donotleaveanemptypanonanoperatingunit.

NOTICE: Donotheatsealedcansorcontainersastheymay explode.

TurnontheInductionRange

1. Placetheequipmentonahardflatstablesurface.
2. Plug the power cord into a grounded electrical outlet with the matching name platerated voltage.
3. Pressandrelease.
4. Placetheinduction-readycookwarecontainingfoodinthecenter positionofaheatingsurface, TheheatingLEDwillilluminateto indicatetherangeisheating.

AdjustthePowerLevelorTemperature

1. Pressandreleasetoswitch between heatlevel and temperature modes.

2. Pressandreleaseortochangetheheatlevelor temperature.

CookFood

Removingcookwarefromthecookingsurfaceformorethanten minuteswillcausetheunittoautomaticallyturnoff.Removing cookwareforlessthantenminuteswillnotinterruptoperation.

CLEANING

Tomaintaintheappearanceandincreasetheservicelife,cleanyour inductionrangedaily.

	WARNING
	ElectricalShockHazardDonotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoranelectricalshock.

	CAUTION
	BurnHazardAllowequipmenttocoolbeforemovingorcleaning.

NOTICE: The cookingsurfaceremainshotevenwhenthisequipment isturnedoff.

NOTICE: Donotuse abrasivematerials, scratching cleanser scouring padstoclean the equipment. These can damage the finish.

1. Pressandrelease.

1. Unplugthecordfromthewalloutlet.

2. Allow the equipment to cool.

3. Wipethe exterior with a cleandamp cloth.

5.Thoroughlywipeoffanymildsoaporchemicalcleaners.

NOTICE: Residue could corrode the surface of the unit.

TROUBLESHOOTING

ProblemMightbeCausedByCourse	ofAction
Theunitturnedoffaftertenminute(s).Thereisnotapotorpanontheinduction rangeorthecookwareisnotinduction-ready.Theinductionrangeturnedoff.This is normal.		Makesurethecookwareisinductionready.SeetheFunction andPurposesectionofthismanual.
The digital display lights are flashing.	The unit is not detecting a pan.	Make sure there is a pot or pan on the range, Make sure the cookwareisinductionready.SeetheFunctionandPurpose sectionofthismanual.
TheheatingLEDisflashing.IftheLEDflashestwice,pausesandthen repeatsthepattern,theunitisinoverheat protectionmode.		Removecookware.Letthecookingsurfacecool.
		IftheLEDflashes9times,pausesandthen repeatsthepattern,thecookwareisnot inductionready.
		IftheLEDflashes6times,pausesandthen repeatsthepattern,thereisproblemwiththe coilcore.
Theunitsuddenlystoppedworking.Theunitmaybetooclosetoanexternalheat sourceorthairintakemayberestricted.		Relocatetheunitawayfromanyexternalheatsource.Clear anyobstructionstotheairintake.

FCCSTATEMENT

This equipment has been tested and found to comply with Part 18 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna

- Increase these separation between the equipment and receiver

- Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected

- Consultthedealeroranexperiencedradio/TVtechnicianforhelp

To assure continued compliance, any changes or modifications not expressly approved by the party Responsible for compliance could void the user's authority to operate this equipment.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warrantytopurchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet

Sheboygan, WI53081-3201U.S.A.

MainTel:800.624.2051or920.457.4851

MainFax:800.752.5620or920.459.6573

CustomerService:800.628.0830

CanadaCustomerService:800.695.8560

TechnicalServices

[e-mail]

InductionProducts:800.825.6036

CountertopWarmingProducts:800.354.1970

Toasters:800-309-2250

AllOtherProducts:800.628.0832

Exterior view of a modern electric heating appliance with control panel and power button (no visible text or symbols)

ModèleDescription

6950020 Plaqueàinductionsurcomptoircommerciale(US)
6951020 Plaqueainductionsurcomptoircommerciale(USetCanada)

FONCTIONETOBJET

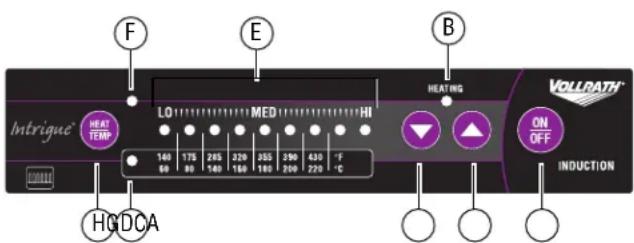

FONCTIONSETCOMMANDES
