Product Type	Countertop Induction Cooktop
Brand	Vollrath
Model	Mirage Cadet 59300
Power	1800 W
Supply Voltage	120 V / 60 Hz (dedicated circuit)
Dimensions (W x D x H)	Approximately 33 x 28 x 8 cm
Weight	Approximately 2.7 kg
Cooking Surface	Robust non-porous ceramic glass
Number of Zones	1
Usable Zone Diameter	12 to 26 cm
Compatible Cookware Types	Flat bottom, ferrous stainless steel, iron, cast iron
Incompatible Cookware Types	Aluminum, copper, glass, ceramic, earthenware
Main Functions	Power/temperature adjustment, timer, overheat protection
Display	3-digit digital
Controls	On/Off, power/temperature, up/down arrows, timer
Temperature Units	°C and °F
Safety	Automatic shut-off after 10 min without cookware, pan detection, overheat protection
Usage	Commercial (food service) only
Cleaning	Damp cloth, do not use abrasive products
Spare Parts	Available at Vollrath.com
Warranty	See terms at Vollrath.com
Certifications	FCC Part 18
Operating Ambient Temperature	Indoor only, away from heat sources
Minimum Rear Distance	10 cm
Minimum Underneath Distance	2 cm

Frequently Asked Questions - Mirage Cadet 59300 Vollrath

What types of pots can I use with the Mirage Cadet 59300 cooktop?

Use pots with a flat bottom with a diameter between 12 and 26 cm, made of ferrous stainless steel, iron, or cast iron. Pots made of aluminum, copper, glass, or ceramic are not compatible.

What should I do if the cooktop does not heat up when turned on?

Check that the pot is induction compatible and that its diameter is sufficient. If the display flashes, the pot is probably too small or unsuitable.

How to clean the cooking surface?

Let the cooktop cool down, then wipe it with a damp cloth. Do not use abrasive products or scouring pads to avoid damaging the ceramic glass.

What do error codes F5 or F6 mean?

These codes indicate that the overheat protection is activated. Let the appliance cool down, then press the On/Off button to restart.

Can I use an extension cord?

No, the appliance requires a dedicated circuit and must be plugged directly into a grounded outlet. Extension cords, power strips, and surge protectors are prohibited.

How to set the timer?

Press the Timer button, use the up/down arrows to set the time in one-minute intervals. At the end, three beeps sound and the cooktop turns off.

The cooktop automatically shuts off after 10 minutes, is this normal?

Yes, it is a safety feature. If no pot is detected or if the pot is not suitable, the cooktop shuts off after 10 minutes.

Can I use the induction cooktop with aluminum pots?

No, aluminum pots, even with a metal disc at the bottom, are incompatible and can damage the appliance. Use only ferrous materials.

What is the safety distance around the appliance?

The rear of the cooktop must be at least 10 cm from any adjacent surface, and the underneath at least 2 cm to ensure proper air circulation.

Where can I find spare parts?

Spare parts are available on the Vollrath.com website. For any repairs, contact Vollrath technical support.

USER MANUAL Mirage Cadet 59300 Vollrath

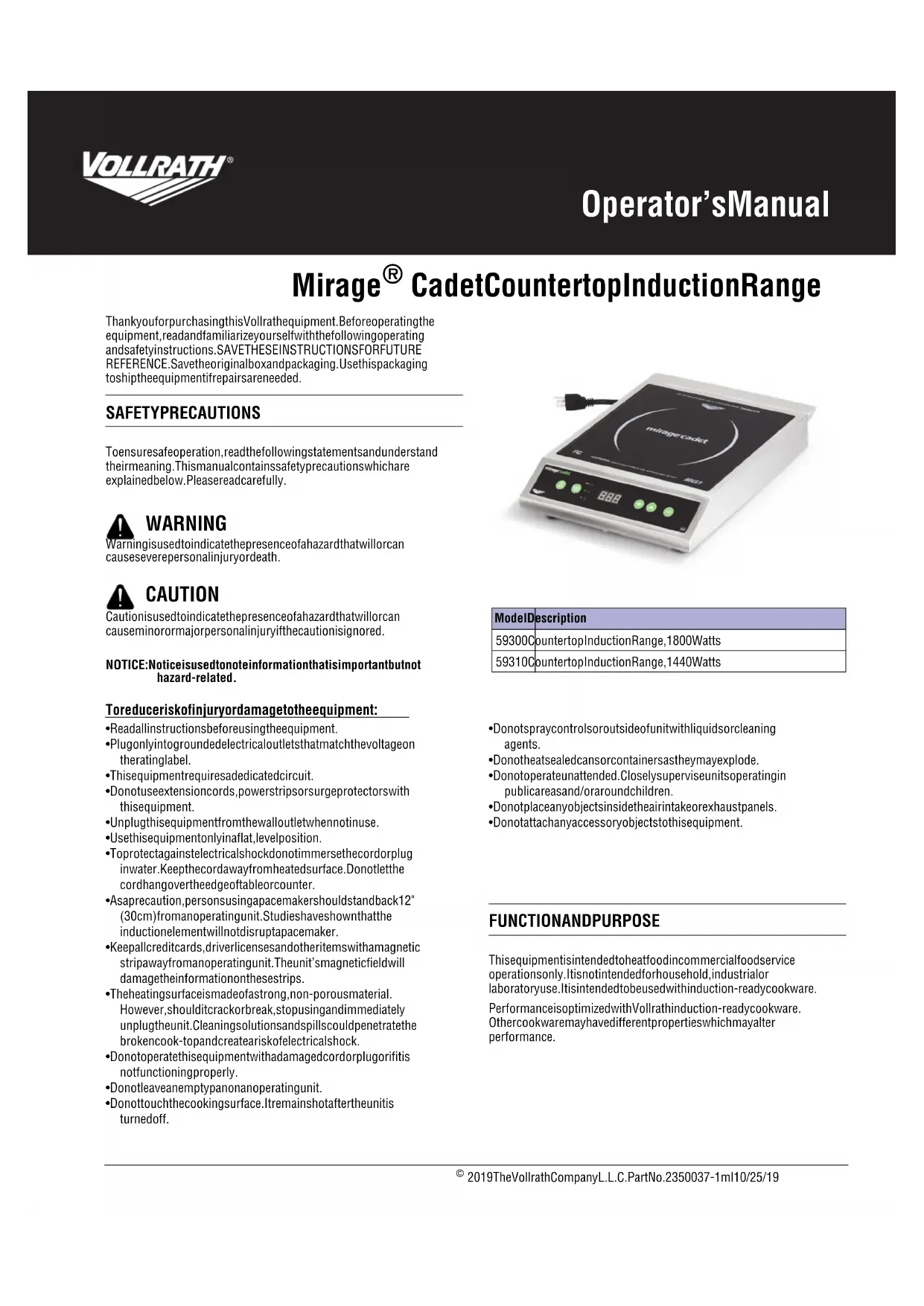

Mirage® CadetCountertopInductionRange

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthecquipmenttifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicate the presenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presenceofahazardthatwillcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

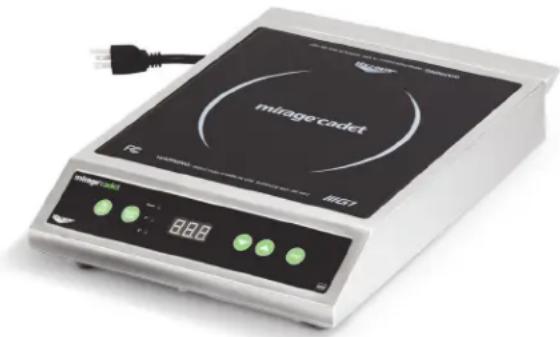

Toreduceriskofinjuryordamageototheequipment:

• Readallinstructionsbeforeusingtheequipment.
• Plugonlyintogroundedelectricaloutletsthatmatchthevoltageon theratinglabel.
• Thisequipmentrequiresadedicatedcircuit.
• Donotusextensioncords, powerstripsorsurgeprotectorswith thisequipment.
• Unplugthisequipmentfromthewalloutletwhennotinuse.
• Usethisequipmentonlyinaflat,levelposition.
• Toprotectagainstelectricalshockdonotimmersethecordorplug inwater.Keepthecordawayfromheatedsurface.Donotletthe cordhangovertheedgeoftableorcounter.
• Asaprecaution,personsusingpacemakersshouldstandback12* (30cm)fromanoperatingunit.Studieshaveshownthatthe inductionelementwillnotdisruptapacemaker.
• Keepallcreditcards, driver licenses and other items with magnetic stripaway from operating unit. Theunit's magnetic field will damagetheinformation onthesestrips.
• Theheatingsurfaceismadeofastrong,non-porousmaterial. However,shoulditcrackorbreak,stopusingandimmediately unplugtheunit.Cleaning solutionsandspillscouldpenetratethe brokencook-topandcreateariskofelectricalshock.
• Donotoperatethisequipmentwithadamagedcordorplugorifitis notfunctioningproperly.
• Donotleaveanemptytanoperatingunit.
• Donottouchthecookingsurface.Itremainshotaftertheunitist turnedoff.

ModelDescription

59300CountertopInductionRange,1800Watts

59310CountertopInductionRange,1440Watts

• Donotspraycontrolsoroutsideofunitwithliquidsorcleaning agents.
• Dontheatsealedcansorcontainersastheymayexplode.
• Donotoperatunattended.Closelysuperviseunitsoperating in publicareasand/oraroundchildren.
• Donotplaceanyobjectsinsidetheairintakeorexiaustpanels.
• Donotattachanyaccessoryobjectstothisequipment.

FUNCTIONANDPURPOSE

Thisequipmentisintendedtoheatfoodincommercialfoodservice operationsonly.Itsnotintendedforhousehold,industrialr laboratoryuse.Itsis intended tobeusedwithinduction-readycookware.

PerformanceisoptimizedwithVollrathinduction-readycookware. Othercookwaremayhavedifferentpropertieswhichmayalter performance.

COOKWARE REQUIREMENTS

Compatible

-Flatbase4%to101%

(12.1to26cm)indiameter

-Ferrousstainlesssteel,iron, castiron

Incompatible
lessthan4%

-Baseisnotflat
-Baseislessthan4%*(12.1cm) indiameter
Pottery, glass, aluminum, bronzeor copper cookware
-Metaliskonbottomofpan

Note: Cookware with inferior construction material may not perform well. Cookware with larger based diameter can be used, however only the area of the cookware above the induction coil will heat. The more cookware extends past the coil, themore the overall performance will be reduced.

NOTICE:EquipmentDamageHazard

Not intended forusewithaluminumpanswithametaldiskon thebottom. Underhighheat,themetaldiskwillseparatefrom thepan.Thesepansmaydamageyourunitandvoidyour warranty.

FCCSTATEMENT

ThisequipmenthasbeentestedandfoundtocomplywithPart18of FCCRules.Theselimitsaredesigntodoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipment generates,usesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycause harmfulinterferencetoradiocommunications.However,thereisno guaranteeethatinterferencewillnotoccurringinparticularinstallation.If thisequipmentdoescauseharmfulinterferencertoradioortelevision reception,whichcanbedeterminedbyturningthequipmentffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures:

• Reorientorrelocatethereceivingantenna
• Increasetheseparationbetweenthequipmentandreceiver
  Connectthequipmentintoanoutletonacircuitdifferentfromthat towhichthereceiverisconnected
  Consultthedealeroranexperiencedradio/TVtechnicianforhelp

Toassurecontinuedcompliance,anychangesormodificationsnot expresslyapprovedbythepartyResponsibleforcompliancecouldvoid theuser'sauthoritytooperatethisequipment.

CLEARANCEANDENVIRONMENTREQUIREMENTS

Thisunitisnotdesignedtobebenclosedorbuilttoanyarea.Sufficient airflowmustbeallowedaroundtheunit.Blockingtheairflowcould causetheunittooverheat.

Rearotherangetoanysurroundingsurface:4"(10cm)
-Bottomotherangeoanysurroundingsurface:12"(2cm)
-Indooruseonly.
- Donotplatzheequipmentnornearheat-producingequipment.

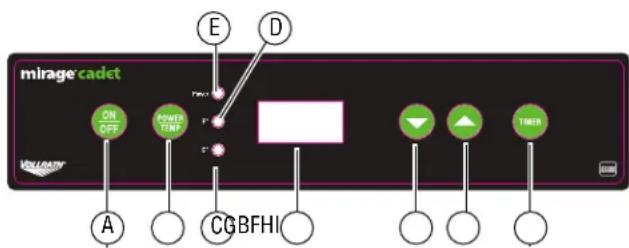

FEATURESANDCONTROLS

AOn/OffButton.Presstoturnuniton.ThePowerLEDandthethreedigit Displaypanelwillilluminatewhenswitchedon.
BPower/TempButton. Presstotoglebetween Powerand Temperature control, andFahrenheit and Celsius.
C°CLEDLight. Illuminates whenthemperatureeinbeingdisplays in degreesCentigrade.
DofLEDLight. Illuminateswhentheterperatureeinbeingdisplayedin degreesFahrenheit.
EPowerOnLEDLight. Illuminateswhentheunition. Thislightwill blinktunnelinduction- readycookwareisdetected.Onceinduction cookwareisdetectedthelightwillremainon.
FDisplayPanel.Displaythepowerlevel,temperature,timetimeoran
errorcode.
GDownButton.Presstodecreasethepowerlevel,temperatureortime,
HUpButton.Presstoincreasethespowerlevel,temperatureortime,
ITimerButton.Pressstartthetimerfunction.

OPERATION

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe unit.Liquidinsidetheunitcouldcauseanelectricalshock.

Ifliquidspillsorboilsoveronttheunit,immediatelyunplugtheunit andremovecookware.Wipeupanyliquidwithapaddedcloth.

CAUTION

BurnHazard

Don't touch cookware,heatingsurface,food,or liquid while heating.Remove cookwarecontaining hot food or liquid from the inductionrangebefore removingthe induction range.

Hotfoodandliquidscanburnskin. Inductionheatingsurfacesheat veryrapidly.Usecautionwhenaddingpre-heatedoil,liquidorother foodalreadyinthecookware.

TurnontheInductionRange

1.Placetheinductionrangeonaflatstablesurface.
2.Plugthepowercordintoagroundedelecricaloutletthatmatches thevoltageonratinglabel.

NOTICE:Thisequipmentrequiresadededicatedelectricalcircuit.

NOTICE:Usingavoltageotherthannameplateratedvoltage willcausedamagetothunit.Incorrectvoltage, modificationtothepowercordorelectricalcomponents candamageunitandwillvoidthewararranty.Placethe induction-readycookwarecontainingfoodinthecenter oftheinductionrange.

NOTICE: Donotpre-heatemptycookware. Because of the speed and efficiency of the induction range, cookware can vary quickly overheat and bedamaged.

NOTICE: Donotdropcookingutensilsorotherobjectsoonto the cookingsurface. Thestrong, non-poroussurface will break. Thewarrantydoesn'tcoverthistypeofabuse.

1. Pressand release. The Display panel will show apowerlevel. This indicates the unit is heating.

AdjustPowerorTemperature

ToSwitchBetweenPowerandTemperatureModes

Pressand release

ToSwitchBetweenFahrenheitandCelsius

Pressandrelease.twotimes.

ToAdjustthePowerLevelorTemperature

1.PressandreleasetoselectPowerorTemperaturemode.

1. Pressortoincreaseordecreasethepowerortemperature.

CookFood

Thedisplaywindowshouldremainconstantduringoperation.lfthedisplayisflashing,seetheTROUBLESHOOTINGsectioninthisismanual.

Removingcookwarefromthecookingsurfaceformorethanten minuteswillcausetheunittoautomaticallyturnoff.Removing cookwareforlessthantenminuteswillnotinterruptoperation.

UsetheTimer

1. Pressand release. The display will show "1" with flashing dotinthelowerrightcorner.
2. Pressand releaseortosetthetimerinfull-minute increments.
3. Whenthetimecleiscomplete,therangewillbeephreetimes andthenturnoff.
   4.Tocancelthetimer,press.Theangewillreturntopowerortemperaturemode.

OverheatProtection

This induction rangeisequipped with an over-heat protection feature. If the temperature of the cookingsurface becomes too hot, the unit will turn off. The display will flash "F5" or "F6" to indicate the equipment is "over-heating protection" mode. After the equipment has cooled, press the ON/OFF button. If display does not show "F5" or "F6", the equipment has cooled and it is ready to resume cooking.

CLEANING

Tomaintaintheappearanceandincreaseservice life,cleanyour inductionrangedaily.

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment.Liquididneshthequipmentcouldcauseanelectricalshock.Donotspraywaterorcleaningproducts.Liquidouldcontacttheelectricalcomponentsandcauseashortcircuitoranelectricalshock.

CAUTION

BurnHazard

Allowequipmenttocoolebeforemovingorcleaning.Cleaninga hotsurfacewithawetspongecouldresultinaburnfromthe steam.Somecleaningproductscan producenoxiousfumes whenappliedtoahotsurface.

NOTICE:Thecookingssurfaceremainshotevenwhenthisequipmentisturnedoff.

NOTICE: Donotuseabrasivematerials, scratchingcleansorsor scouringpadtocleanthequipment. Thesedamage thefinish.

1.Pressandrelease.

2.Unplugthecordfromthewalloutlet.
3. Allow the equipment to cool.
4.Wipethexteriorwithacleandampcloth.
5. Thoroughly wipeoffanymildsoaporchemicalcleaners.

NOTICE:Residuecouldcorrodethesurfaceoftheunit.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Theunitturnedoffafter10minutes.	Thereisnotapot/panontheinductionrangeorthepot/panisnotinduction-readycookware,sotheinductionrangeneturnedOff.Thisisnormal.	Verifythepot/panisinductionready.See“InductionReadyCookware”onpage2.
Theunitison,butnothesing.	Thecookwaremaybetoosmallormaynotbeinduction-ready.
Thedigitaldisplaylightsareflashing.	Thecookwaremaybetoosmallormaynotbeinduction-ready.
F5orF6errorsaredisplayed	Theoverheat-protectionfeaturemayhaveactivated.	See“OverheatProtection”onpage3.
Theunitsuddenlystoppedworking.	Theunitmabetoooclosetoanexternal heatsourceorthearintakemayberestricted.	Relocatetheunitawayfromanyexternalheatsource.Clearanyobstructionstotheairintake.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchases showing the datetheunit was purchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warrantytopurchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

Forcompletewarrantyinformation/productregistrationandnewproductannouncement,visitwww Vollrath.com.

www.vollrath.com

TheVollrathCompany,L.L.C.

1236North18thStreet

Sheboygan,WI53081-3201U.S.A.

MainTel:800.624.2051or920.457.4851

MainFax:800.752.5620or920.459.6573

CustomerService:800.628.0830

CanadaCustomerService:800.695.8560

Technical Services

[e-mail]

InductionProducts:800.825.6036

CountertopWarmingProducts:800.354.1970

Toasters:800-309-2250

AllOtherProducts:800.628.0832
