USER MANUAL EverFrost Powered Cooler 50 Anker

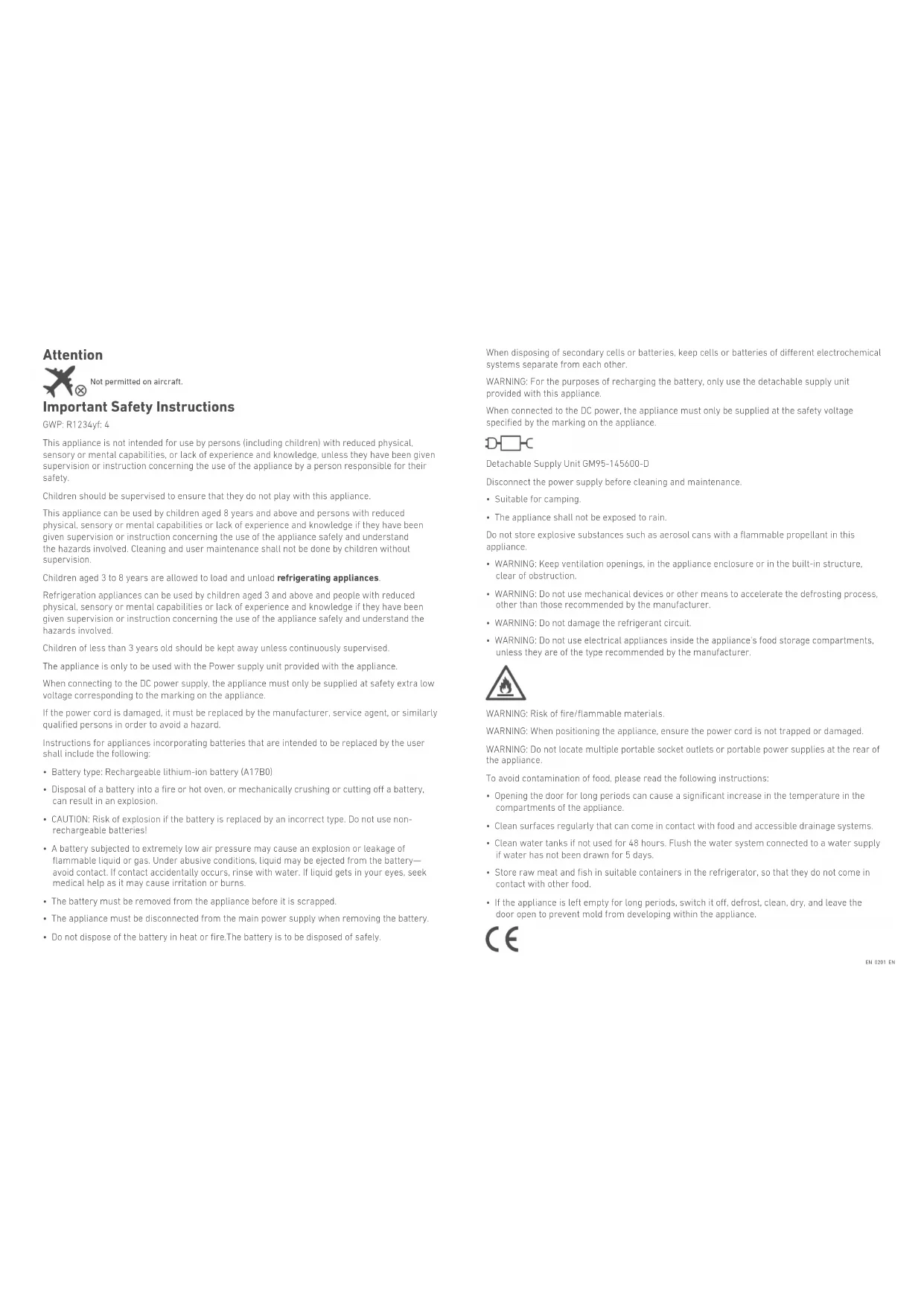

122-138EN 0201 EN Attention Not permitted on aircraft. Important Safety Instructions GWP: R1234yf: 4 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with this appliance. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance safely and understand the hazards involved. Cleaning and user maintenance shall not be done by children without supervision. Children aged 3 to 8 years are allowed to load and unload refrigerating appliances. Refrigeration appliances can be used by children aged 3 and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance safely and understand the hazards involved. Children of less than 3 years old should be kept away unless continuously supervised. The appliance is only to be used with the Power supply unit provided with the appliance. When connecting to the DC power supply, the appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance. If the power cord is damaged, it must be replaced by the manufacturer, service agent, or similarly qualified persons in order to avoid a hazard. Instructions for appliances incorporating batteries that are intended to be replaced by the user shall include the following:

• Battery type: Rechargeable lithium-ion battery (A17B0)

• Disposal of a battery into a fire or hot oven, or mechanically crushing or cutting o a battery, can result in an explosion.

• CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Do not use non- rechargeable batteries!

• A battery subjected to extremely low air pressure may cause an explosion or leakage of flammable liquid or gas. Under abusive conditions, liquid may be ejected from the battery— avoid contact. If contact accidentally occurs, rinse with water. If liquid gets in your eyes, seek medical help as it may cause irritation or burns.

• The battery must be removed from the appliance before it is scrapped.

• The appliance must be disconnected from the main power supply when removing the battery.

• Do not dispose of the battery in heat or fire.The battery is to be disposed of safely. When disposing of secondary cells or batteries, keep cells or batteries of dierent electrochemical systems separate from each other.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit

provided with this appliance. When connected to the DC power, the appliance must only be supplied at the safety voltage specified by the marking on the appliance. Detachable Supply Unit GM95-145600-D Disconnect the power supply before cleaning and maintenance.

• Suitable for camping.

• The appliance shall not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use electrical appliances inside the appliance's food storage compartments, unless they are of the type recommended by the manufacturer.

WARNING: Risk of fire/flammable materials.

WARNING: When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of

the appliance. To avoid contamination of food, please read the following instructions:

• Opening the door for long periods can cause a significant increase in the temperature in the compartments of the appliance.

• Clean surfaces regularly that can come in contact with food and accessible drainage systems.

• Clean water tanks if not used for 48 hours. Flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that they do not come in contact with other food.

• If the appliance is left empty for long periods, switch it o, defrost, clean, dry, and leave the door open to prevent mold from developing within the appliance.EN 0403 EN Declaration of Conformity This product complies with the radio interference requirements of the European Community. Hereby, Anker Innovations Limited declares that the radio equipment type A17A2 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following website: https://www.anker.com. Maximum output power: +4 dBm (For EU) Frequency band: 2.4G band (2.4000GHz - 2.4835GHz) GB Declaration of Conformity Hereby, Anker Innovations Limited declares that this product is in compliance with Radio Equipment Regulations 2017. The full text of the GB Declaration of Conformity is available at the following website: https://www.anker.com. The following importer is the responsible party for EU and UK matters. Anker Technology (UK) Ltd GNR8, 49 Clarendon Road, Watford, Hertfordshire, WD17 1HP, United Kingdom Anker Innovations Deutschland GmbH Georg-Muche-Strasse 3, 80807 Munich, Germany Bluetooth: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Anker Innovations Limited is under license. Other trademarks and trade names are those of their respective owners. Manufacturer: Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong This refrigerating appliance is not intended to be used as a built-in appliance. This symbol indicates that this product shall not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. What's in the Box User ManualXT-60 Cable XT60 Anker EverFrost Powered Cooler 50 Anker Battery for Powered Cooler Car Charging Cable AC Adapter and Charging Cable Storage Basket X2 Overview

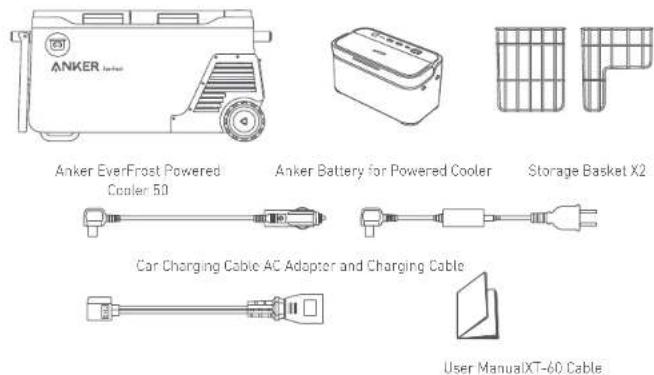

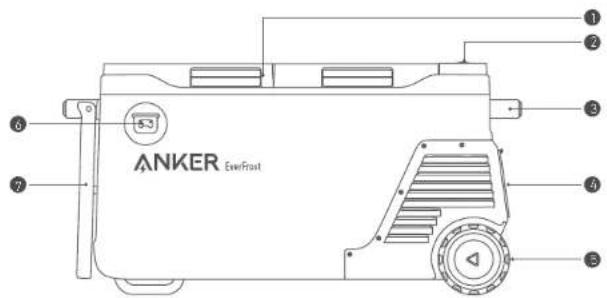

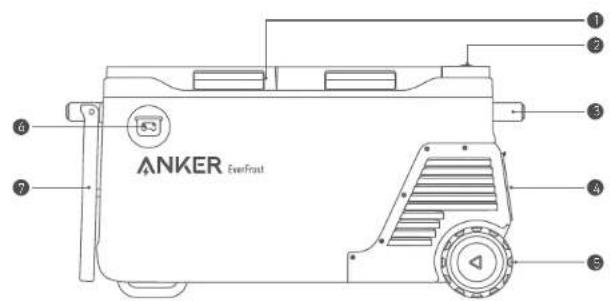

Cooler Cover Wheels LCD Screen Screwdriver Handle Tray Table Battery Cover Prop up the tray and set up the kickstand underneath the cooler.EN 0605 EN LCD Screen

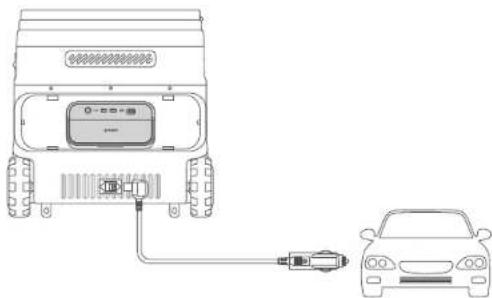

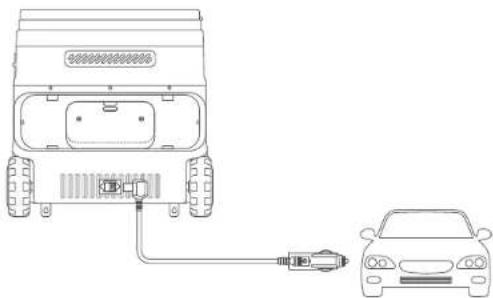

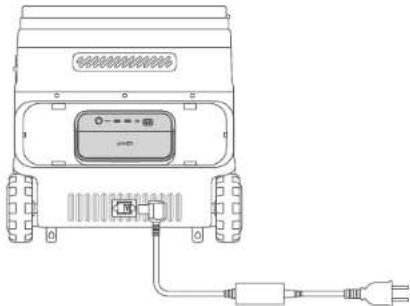

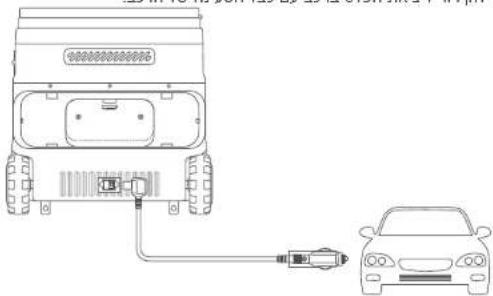

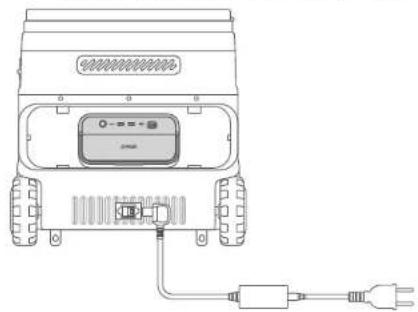

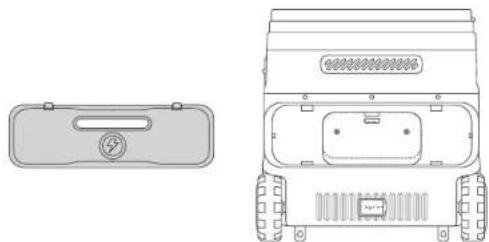

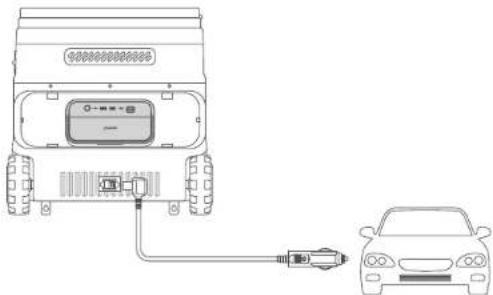

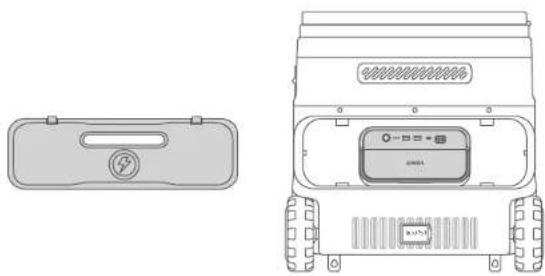

Zone 1 Temperature Voltage Protection Level Zone 2 Temperature Bluetooth Temperature Unit Remaining Battery in Percentage (if using battery to power) Powering Your Cooler We do not recommend using multiple charging methods at the same time. Without the Battery In put Po rt AC Power Power the cooler by connecting to a wall outlet with the AC charging cable. Power via Car Connect the cooler to a car's output port with the car charging cable.EN 0807 EN Recharging via Solar Panel Power the cooler by connecting the battery to a solar panel with an XT-60 to XT-60 cable. In put Por t USB-C Recharging Power the cooler by connecting the battery to a wall outlet with the USB-C cable. In put Por t With the Battery In put Por t AC Power Power the cooler by connecting to a wall outlet with the AC charging cable. Power via Car Connect the cooler to a car's output port with the car charging cable.EN 1009 EN Using Your Cooler

1. Press the power button for two seconds to turn on your cooler. The LCD screen will light up.

2. Push the cover up to open the cooler.3. Press the power button once to light up the LCD screen.

4. Turn o the left/right area separately.

Press the "Up" button first, and then press the "On/O" button at the same time to turn o/start the left area.

Press the "Down" button first, and then press the "On/O" button at the same time to turn o /start the right area.

Installing the Battery Press the snap-fits to remove the battery cover. Place the battery inside and you will hear a click when the installation is successful. Then, place the battery cover back. Input Port Input Port Input Port Input Port

The battery cover will automatically open when lifted up.EN 1211 EN Setting the Temperature To enter the temperature adjustment mode, press the settings button until the temperature number flashes. Press the up or down buttons to adjust the zone temperature, and confirm your temperature by pressing the settings button again.

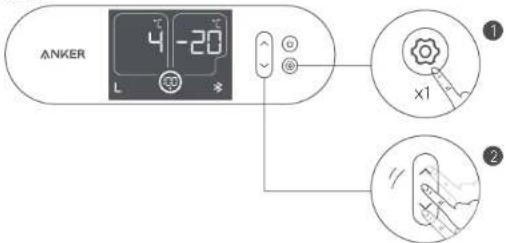

Setting the Temperature Unit To enter the temperature adjustment mode, press the settings button until the temperature unit icon flashes. Press the up or down buttons to choose between "Celsius/Fahrenheit," and confirm the unit by pressing the settings button again.

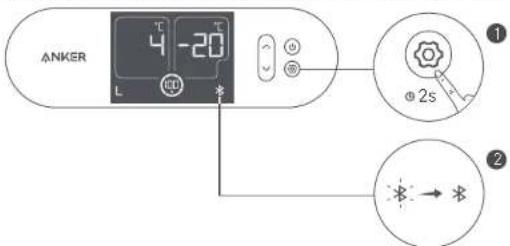

Bluetooth Press the settings button for 2 seconds to turn on Bluetooth. The Bluetooth icon on the screen will flash.It will automatically connect to your phone with Bluetooth on, and the icon will turn steady white.

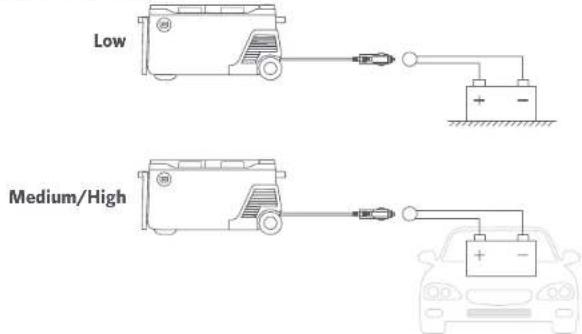

The Bluetooth function will be turned o after 12 hours without any connection. Car Battery Protection Grades To enter the voltage level adjustment mode, press the settings button until the voltage level icon flashes. Press the up or down buttons to choose between "L/M/H", and confirm it by pressing the settings button again. Select "M/H" gear when the product is powered via a car. It's recommended to select "L" gear when powered by an independent power supply. 12V Low MediumHigh 12V 12.5V11.4V 12.2V10.4V 11.3V24.7V 26.1V24.3V 25.3V21.9V 22.9VOperating voltage Start-up voltage Operating voltage Start-up voltage 24V Low Medium/High When the car's battery voltage is lower than the set value without the battery, your cooler will stop working. When the car's battery voltage is lower than the set value, the cooler switches to its own battery for power supply. Once the car battery is restored, it switches to the car battery's power source. The Anker App for Smart Control You can remotely control your powered cooler using the Anker app. Please download the app and its user manual by scanning this QR code. Connect the device to a network before using the app for the first time. After connecting successfully, you can connect your devices o-grid.EN 1413 EN Specifications Storage Capacity 53L Battery Capacity 299Wh AC Input Voltage 100V-240V, 50Hz/60Hz AC Input Power 95W Max DC Input 5.5A(12V)/ 2.5A(24V) Refrigerant R1234yf Size 852 x 430 x 487mm Net Weight 25.3kg/55.78lb Temperature Range In the Fridge -20 ～ 20° C/-4~68° F Operating Temperature Range

• Reminder to close doors: The buzzer will send a reminder if the cooler's cover is not closed for more than 180 seconds.

• The cooler will stop working if the tilt angle exceeds 30 degrees. Place it horizontally, and it will resume normal operation in 5 minutes. FAQ Q1: How long does the cooler's battery last when fully charged? The battery capacity of the cooler is 299.52Wh. When the cooler's temperature is at 25°C (77

) ambient temperature, it will run for 27 hours with 4°C (39.2

) storage temperature. Q2: What ambient temperature can the cooler be used normally? The recommended ambient temperature is 32°F - 104°F (0 - 40°C). Q3: What should I do when using a solar charger to charge Anker EverFrost Powered Cooler? The solar input supports an 11-30V solar charger with an XT-60 connector. We recommend using Anker 100W Solar Panel to get the best compatibility. Anker EverFrost Powered Cooler Warranty Policy This Anker EverFrost Powered Cooler purchased on AnkerDirect and Anker authorized resellers to come with a limited warranty (“warranty”) as set out below. By using an Anker EverFrost Powered Cooler, you agree to be bound by the terms of the Anker limited warranty. 2-year limited warranty for Anker EverFrost Powered Cooler and 3-year limited warranty for the compressor for purchases made on AnkerDirect and Anker authorized resellers. The warranty period starts from the date of purchase. Anker's limited warranty is restricted to the country of purchase. The limited warranty is void on items taken outside the country they were originally bought in or shipped to directly from an authorized online purchase. Exclusions and Limitations Not covered under warranty:

• Products that are damaged or modified.

• Products operated with a damaged cord, plug, or output cable.

• Products that are disassembled.

• Products that are cleaned with harmful chemicals or detergents.

• Non-quality related issues (after 30 days of purchase).

• Products purchased from unauthorized resellers.

• Products without sucient proof of purchase.

• Products that have been refunded.

• Products with an expired warranty.

• Lost, stolen, or free products.

• Damage from outside sources.

• Repairs through 3rd parties.

• Damage from misuse of products (including, but not limited to falls, use of the product in excess of its output rating, exposure of the product to rain or snow, extremely low air pressure, extreme temperatures).

• Purchases from illegitimate sources.

• Batteries that are damaged when not used for a long time or not properly maintained according to the user manual. Anker is Not Liable For:

• Loss of data incurred from the use of Anker products.

• Returning personal items sent to Anker. When returning items with a prepaid shipping label provided by Anker, Anker takes responsibility for any damage or loss incurred in transit. When returning items for non-quality issues, the buyer assumes responsibility for any damage or loss incurred in transit. Anker does not provide refunds for items damaged in transit due to non-quality related warranty claims. For warranty claims, you can send an email to: US/CA/UK/DE/JP market: support@anker.com MEA market: support.mea@anker.com CN market: CED-CN@anker.com Or you can call us at: US/CA: +1 (800) 988 7973 UK: +44(0)1604 936 200 DE: +49(0)69 9579 7960 JP: +81 03 4455 7823 UAE: +971 8000 320 817 KSA: +966 8008 500 030 Kuwait: +965 2206 9086 Egypt: +20 8000 000 826 AU: +61 3 8331 4800 TR: +90(850)460 1414 RU: +8(800)511 8623 CN: +86 400 0550 036 KR: +82 02-1661-9246 IN: +91 1800 3138 831 Middle East & Africa: +971 520750842 This page is attached to the Anker warranty page, and Anker reserves the right of final interpretation of the content.DE 1615 EN Register Your Anker PowerHouse Today Why Register?

1. Hassle-Free Warranty: Confirm the 2-year limited warranty for your Anker EverFrost Powered Cooler and

3-year limited warranty for the compressor.

2. Fast Customer Service: Enjoy exclusive customer service and get what you need quickly.

3. Receive the Latest News: Get exclusive first looks at new products and instant updates on ocial events.
