| Product type | Stand mixer with rotating bowl |
| Brand | Unold |
| Model | Hannah 78720 |
| Dimensions (L × W × H) | Approx. 129 × 20.5 × 34.5 cm |
| Net weight | Approx. 2 kg |
| Power supply | 220–240 V ~ 50/60 Hz, 500 W |
| Bowl capacity | 3.5 liters (stainless steel) |
| Number of speeds | 5 speeds + turbo button |
| Included accessories | 2 beaters, 2 dough hooks, stand, bowl |
| Ejection function | Yes, ejection button for easy removal of accessories |
| Automatic bowl rotation | Yes, stand with tilt arm and bowl rotation |
| Maximum working quantity | 750 g |
| Maximum continuous operating time | 5 minutes (let cool before reusing) |
| Housing material | White plastic |
| Accessory material | Stainless steel |
| Power cord length | Approx. 90 cm |
| Body cleaning | Wipe with a damp cloth, do not immerse |
| Accessory cleaning | Dishwasher safe or wash with soapy water |
| Safety | Unplug before cleaning; do not use empty; do not open the housing |
| Intended use | Household, food preparation |
| Warranty | 24 months (12 months for professional use) |
| After-sales service | UNOLD AG, Mannheimer Straße 4, D-68766 Hockenheim |
Frequently Asked Questions - Hannah 78720 UNOLD
User questions about Hannah 78720 UNOLD
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Juicer in PDF format for free! Find your manual Hannah 78720 - UNOLD and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Hannah 78720 by UNOLD.
USER MANUAL Hannah 78720 UNOLD
Instructions for use Model 78720
Foreword. 20
Technical data. 20
Explanation of the symbols 20
Safety Information 21
Before using the appliance for the first time. 24
Attachments. 24
Operation without holder 25
Operation with holder. 27
Quantities and operating times. 27
Cleaning and care 28
Recipes 28
Guarantee Conditions 31
Waste Disposal/Environmental Protection... 31
Service 19
1 Eject button
2 Speed button/Turbo button
3 Locking button
4 Mounting arm release button
5 Mixing bowl rotation surface
6 Mixing bowl
7 Snap-in opening
8 Indicator lamp
92 dough hooks
102 beaters
FR Page 32
Thank you for having chosen a quality product from the Unold range. Please read these operating instructions carefully. They will familiarize you with the features of your new hand mixer (hereinafter "appliance").
Please ensure that the operating instructions are read and observed by everyone who uses, cleans or maintains the appliance. When handing over the appliance to a new owner, always include the operating instructions.
If you have any queries that are not answered in this document, or if you encounter technical problems, please contact our Customer Service department or your specialist dealer.
TECHNICAL DATA
Power: 500 W, 220-240 V~, 50/60 Hz
Material: Plastic housing white
Stainless steel attachments
Dimensions: approx. 29 × 20.5 × 34.5 cm W/D/H
Weight: approx. 2 kg
Cord length: approx. 90 cm
Short-term operation: 5 minutes
Mixing bowl: Stainless steel, capacity: 3.5 litres
Features: 5 speed settings, turbo button, hand mixer holder with automatic rotating stainless steel bowl, eject button for easy removal of attachments
Accessories: 2 beaters, 2 dough hooks, operating instructions with recipes
Features, technology, colours and design subject to modification; errors excepted.
EXPLANATION OF THE SYMBOLS
This symbol indicates potential hazards that may result in injury or damage to the appliance.
SAFETY INFORMATION
Please read the following instructions and keep them on hand for later reference. Instructions for persons in the household
- This appliance can be used by children 8 years and older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.
- Children must not play with the appliance.
- Children are not allowed to perform cleaning and user maintenance, unless they are 8 years of age or older and are supervised.
- Keep the appliance and the power cord out of the reach of children under 8 years of age.
- Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
- This appliance must not be operated with an external timer or a remote control system.
- Do not, under any circumstances pull the plug out of the electrical socket by pulling on the power cord.
- Do not, under any circumstances, leave the appliance unattended when children are in the vicinity, and do not let children operate the appliance.
- The appliance is intended for household use only, or for similar areas of use, such as,
- kitchenettes in businesses, offices or other workplaces,
agricultural enterprises,
for use by guests in hotels, motels or other lodgings,
in private guest houses or holiday homes.
Electrical safety
-
Mains plug and power cord must not come into contact with water.
-
Do not, under any circumstances, immerse the primary housing in water or clean it in the dishwasher. Danger of short circuit.
- Do not, under any circumstances, operate the appliance with wet or moist hands - danger of electric shock.
- The appliance is not designed for continuous use. To prevent the motor from overheating, do not operate the appliance longer than 3-5 minutes without interruption. After 5 minutes of uninterrupted operation at the latest, allow the appliance to cool at room temperature before continuing to use it.
- When not in use, and before putting the appliance together and taking the appliance apart, and before cleaning, first, always unplug the appliance from the electrical outlet!
- Do not, under any circumstances, open the housing of the appliance. This can result in electric shock.
- Check the appliance, the plug and the power cord regularly for wear or damage. If there is damage to the power cord or other parts, please send the appliance to our customer service organisation for inspection and repair.
Instructions for safe handling of the appliance
- The appliance must always be switched off and disconnected from the mains supply before removing or replacing attachments.
- Only use the appliance in a mixing bowl that is standing on a flat work surface. Do not, under any circumstances, operate the appliance next to hot surfaces.
- Do not, under any circumstances, operate the appliance on hot surfaces.
-
Do not, under any circumstances, use the appliance if only one attachment is mounted or if two different attachments are mounted.
-
Ensure that the power cord is not pinched or does not hang over the set-up surface and work surface, as this can cause accidents.
- Use the appliance only after it has been properly assembled.
- When fitting on the attachments, ensure that they are firmly seated.
- Do not, under any circumstances, operate the appliance without ingredients to mix. This could damage the motor.
- Do not, under any circumstance hold tools, cutlery or body parts in the rotating attachments: Danger of injury!
- Ensure that long hair or loose clothing does not get into the attachments.
- The appliance is suitable only for the processing of foods.
- Attention: If there is a power outage the appliance will immediately continue running after power has been restored - the appliance does not shut off automatically! Danger of injury!
- Do not exceed the maximum processing quantity of 750g .
- If you are processing hot or warm food, there is a risk of burn injury due to possible spraying of the food. Proceed with particular care when processing hot foods.
- Ensure that the appliance has come to a complete standstill before taking off moving parts.
- Do not use the appliance with accessories from other manufacturers.
- Unauthorised repairs can result in serious hazards for the user and void the warranty.
Do not, under any circumstance hold tools, cutlery or body parts in the rotating attachments: Danger of injury! Ensure that long hair or loose clothing does not get into the attachments.
Do not, under any circumstances, open the housing of the appliance. This can result in electric shock.
The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.
BEFORE USING THE APPLIANCE FOR THE FIRST TIME
- Before assembling, ensure that you are assembling the appliance on a level, dry, place.
- Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
- Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our customer service department.
- Before using the appliance for the first time, carefully clean all parts of the appliance (see chapter, „Cleaning").
ATTACHMENTS
- The attachments must be inserted into the respective opening with light pressure, until they noticeably lock in place.
Beaters
- Use these attachments for lightweight foods, such as batters, sponge batters, egg white, sauces, etc. The maximum processing quantity is 750g .
Dough hooks
- Ideal for heavy doughs, such as bread dough, yeast dough, potato dough. Ensure that you insert the dough hooks into the right opening (see illustration). The maximum processing quantity is 750g

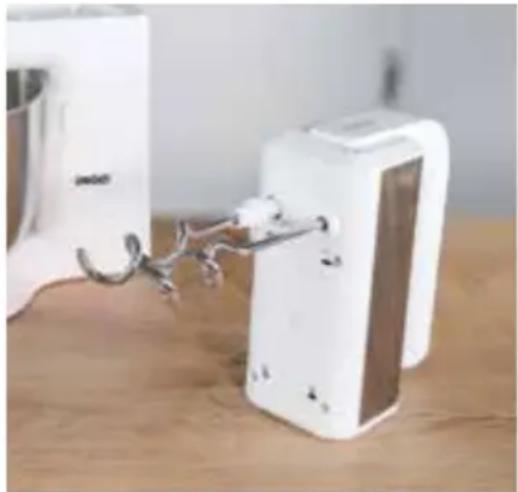

OPERATION WITHOUT HOLDER
Attention: Do not, under any circumstance hold tools, cutlery or body parts in the rotating attachments: Danger of injury!
Ensure that long hair or loose clothing does not get into the attachments. Do not switch on the appliance until all preparations have been completed. Do not, under any circumstances, use the appliance if only one attachment is mounted or if two different attachments are mounted. The attachments (except the wire whisk) must only be used in pairs.
- Prepare the ingredients and place it in the mixing bowl. You can use any other container as well, as long as it is high enough and the attachments can rotate freely. Be aware that some materials are prone to scratches and that the attachments can leave marks.
- Insert the plug into a power socket. The indicator lamp on the front of the appliance lights up blue.
- Make sure that the appliance is switched off (switch set to "0" position).
- Insert the desired attachment in the snap-in opening provided. The attachment with the white gearwheel must be inserted in the larger opening at the right. Caution! Incorrect insertion of attachments can damage the appliance.
- Hold the appliance with the attachments in the mixing bowl to prevent splattering when the appliance is switched on.
- Now select the desired setting. Tip:
Start with a low setting (1-2), then switch to the desired setting. The following settings are available:
- Setting 1 Light mixing of ingredients, marbling (e.g. stirring fruit puree into pudding)
- Setting 2 Working flour into doughs so the dry ingredients without stirring up dust. Mixing ingredients without splattering.
Setting 3 Whipping cream
Setting 4 Beating egg whites, mixing doughs, kneading doughs
- Setting 5 Kneading heavy doughs Caution! First mix these doughs at a low setting.
-
Turbo button Maximum power for fast results. Can also be used as a pulse function by pressing at short intervals. To prevent the motor from overheating, do not use longer than 1 minute.
-
When mixing with the appliance, always hold the bowl firmly with one hand.
- Move the hand mixer back and forth inside the mixing bowl to achieve optimal mixing of the ingredients.
- Important: To interrupt or discontinue operation, first switch off the appliance (set switch to "0") and then remove the attachments from the container.
- After use, always switch off the appliance (set switch to "0") and unplug the appliance from the power socket.
- To remove or change the attachments, switch off the appliance and unplug it from the power supply. Press the eject button. The attachments will be released for removal. The eject button can be pressed only when the switch is set to "0".
- Switch off the appliance and unplug the mains plug from the electrical outlet to remove or change the attachments. Press the eject button. The attachments are loosened and they can be removed. The eject button can only be pressed when the switch is in the O position.
Inserting the hand mixer
- Press the release button for the mounting arm and pull the arm upward as far as it will go.
- Place the mixing bowl on the surface. As needed, either place the ingredients in the bowl first or after all parts have been assembled as described below.
- Attach the desired attachments as described in "Operation".
- Now press the locking button on the back of the housing and insert the hand mixer firmly into the opening provided until the mixer locks into place.
- Press the locking button on the housing again and tilt the mounting arm downward until it is horizontal.
- Now connect the appliance with the power supply and operate the hand mixer as described in "Operation without holder".
Removal of the hand mixer
- Disconnect the plug from the power socket.
- Press the release button for the mounting arm and pull the arm upward as far as it will go.
- Press the locking button and remove the hand mixer.
- Then remove the mixing bowl; the mixed ingredients are ready for use.
QUANTITIES AND OPERATING TIMES
Preparation Max.
quantity
Attachment
Level Max. operating time
Heavy doughs, such as yeast dough
750 g Dough
hooks
3-5 3 minutes
Batters 750g Beaters 2-5 3 minutes
Waffle batter,
Sponge batter
500 g Beaters 2-5 3 minutes
Liquid quantities, such as milk shake
750 g Beaters 1-5 5 minute
CLEANING AND CARE
Before cleaning, always switch off the appliance (place switch in the O position) and unplug it from the electrical outlet.
- Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since these items can damage the appliance.
- Do not immerse the primary appliance in water. Wipe off the appliance with a damp cloth and dry it with a soft cloth. Ensure that water cannot get into the housing.
- Wipe the hand mixer holder with a moist cloth and then dry it.
- Clean the attachments in rinsing water, dry them well, or put them in the dishwasher.
- Let all parts dry completely, before putting them together and using them again.
- Store the hand mixer in a dry location, where it is protected against dust.
RECIPES
For the beaters
Whipped Cream
250 to max. 500g cooled cream, possibly a little sugar
Whip the cream at level 4 with the beaters until the desired creaminess is achieved. Add a little sugar if desired.
Beaten Egg Whites
1-max.5eggwhites
Put the egg whites in a very clean bowl. Note that there must be no egg yolk in the egg white, otherwise the egg white will not solidify. At level 4, in 2 to 5 minutes beat to a firm beaten egg white.
Marble cake
250 g margarine, 250 g sugar, 2 envelopes vanilla sugar, 4 eggs, 250 ml milk, 400 g flour, 1 envelope baking powder, 50 g corn starch, 40 g cocoa powder, 40 g sugar, 2-3 tbsp milk, powdered sugar or glaze.
Beat the margarine with the sugar and vanilla sugar until foamy. Add the eggs a little at a time. Combine the flour with the baking powder and cornstarch and alternately add the flour mixture and milk to the batter. In this regard please note: Mix first at level 1 for approx. one minute, then at level 3 for approx. two to three minutes, then at level 4 until the batter is loosely mixed.
Put approx. 2/3 of the batter in a greased ring (Gugelhupf) baking pan or loaf pan.
Mix the cocoa powder with the sugar and some milk in a separate bowl and then add this mixture to the rest of the dough in the mixing bowl. Mix the batter again and then spoon the dark batter on top of the light batter in the baking pan.
Use a fork to make a spiral pattern through the two batters, then bake at 175^ for approx. 45 minutes. Remove the baking pan from the oven and turn the cake out onto a cooling rack. As soon as the cake has cooled, dust with powdered sugar or coat with glaze, as desired.
Meringue Kisses
4 egg whites, 200g powdered sugar
Only level 4 to 5 beat egg whites until stiff, then trickle in sugar gradually.
Use a spoon or piping bag to make small mounds on a baking sheet lined with baking paper. Bake at 100^ until the meringue mixture is firm and dry. If the kisses brown too quickly, open the oven door slightly.
You can also add ingredients, such as finely ground nuts or cocoa powder to the meringue mixture before baking.
Swabian Light Waffles
125 g butter or margarine, 30 g sugar, 100 g flour, 4 eggs, 1 envelope vanilla sugar, 5 tbsp cream.
Beat egg whites with the wire whisk until stiff (add 1 tbsp of the sugar just before they become stiff). Beat butter or margarine until foamy, then mix in egg yolks, sugar and vanilla sugar. Fold in sifted flour and cream, alternately. For the final step fold in the beaten egg whites.
For the dough hooks
Pizza Dough
200 g flour, 10 g fresh yeast, 1/2 tsp sugar, 1/2 cup lukewarm milk, 3 tbsp oil, 1/2 tsp salt
Copyright UNOLD AG | www.unold.de
Mix the yeast with the sugar, milk and 1-2 tbsp flour in a cup and let stand about 15 minutes in a warm location. Put the rest of the flour in the mixing bowl and add the yeast mixture, oil and salt. Knead all ingredients thoroughly. In the process, please note: Mix at level 1 for approx. one minute, then slowly increase to level 4 until the dough detaches from the bowl and has a silky shine.
Let the dough rest again for approx. 30 minutes. Then roll out into two round discs of dough, place on a baking sheet and add toppings as desired.
The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.
GUARANTEE CONDITIONS
We grant a warranty of 24 months for this UNOLD brand appliance - 12 months for commercial use - from the date of purchase, covering damage that is demonstrably due to factory defects when used as intended. Within the warranty period, we will remedy material and manufacturing defects at our discretion by repair or exchange. Our warranty services apply exclusively to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. Please send appliances for which you seek removal of defects, together with a copy of the machine-generated proof of purchase that shows the date of purchase along with a description of the fault, to our customer service department using suitable packaging. On our website https://unold.de/pages/ rucksendungen, you can print out a return slip (only for return shipments from Germany and Austria). All types of damage attributable to wear and tear, improper handling and non-compliance with the maintenance and care instructions are excluded from the warranty. The warranty claim is void if repairs or interventions on the appliance are carried out by a third party. This manufacturer's warranty does not limit your statutory rights or your claims against the seller or dealer under the purchase contract in accordance with the provisions of the German Civil Code (BGB). Your statutory rights as a consumer, in particular your rights to warranty and the statutory claims for defects in accordance with Sections 437 et seqq. BGB, remain unaffected.
UNOLD AG, Mannheimer Straße 4, D-68766 Hockenheim
WASTE DISPOSAL / ENVIRONMENTAL PROTECTION
Our appliances are produced on a highquality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible, we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. There is a legal requirement to dispose of waste electrical and electronic equipment (WEEE) as well as batteries and accumulators separately from household waste. You can recognise this waste
equipment by the crossed-out wheeled bin symbol (WEEE symbol). Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.
The instruction booklet is also available for download: www.unold.de
