Brand	Bellelli
Model	Trailblazer (BT3720)
Product type	2-in-1 bike trailer (bike and stroller)
Number of passengers	2 children
Minimum age	9 months (or able to sit without assistance)
Maximum passenger height	71.5 cm
Maximum load (including passengers)	41 kg
Maximum total weight	59.5 kg
Max load on hitch bar	4.5 kg
Maximum speed	25 km/h
Maximum tire pressure	43 psi
Front wheels	2 swivel wheels of 7 inches
Rear wheels	2 wheels of 20 inches
Adjustable handlebar height	78 cm to 115 cm (8 positions)
Main features	Convertible bike trailer and stroller, foldable, 5-point harness, parking brake, safety tether, safety flag included
Included accessories	Hitch bar, sun canopy, transparent rain cover, stroller kit (7\" front wheel), 2 bumpers, safety flag
Maintenance and cleaning	Check tire pressure before each use, clean with a damp cloth, store away from moisture
Safety	5-point harness, parking brake, safety tether, high-visibility safety flag, emergency safety strap
Spare parts and repairability	Use only spare parts supplied or recommended by Bellelli
General information	Manufactured in China, imported by Bellelli srl (Italy). Not suitable for children under 6 months (seat). Always wear a helmet.

Frequently Asked Questions - Trailblazer Bellelli

How to assemble the Trailblazer trailer?

Assembly is done in several steps: attach the handlebar to the frame, unfold the inner mechanism, install the rear wheels (20 inches) by pressing the flexible button, secure the plastic fenders, insert the hitch bar. For stroller mode, add the 7-inch front wheel into the support. See the detailed steps in the manual.

What is the maximum load of the trailer?

The maximum total load is 41 kg including passengers and cargo. The maximum total weight (trailer + load) is 59.5 kg.

From what age can the trailer be used for a child?

The recommended minimum age is 9 months, provided the child can sit without assistance. The seat is not suitable for children under 6 months. The maximum passenger height is 71.5 cm.

How to properly fasten the seat belt?

The harness is a 5-point system. For one child, unlock the buckle, place the crotch strap between the legs, attach the shoulder straps and crotch strap, and tighten firmly. The buckle should be centered on the lower chest. For two children, repeat the operation on both sides.

Can the trailer be used as a stroller?

Yes, the Trailblazer is a 2-in-1 trailer. To use it as a stroller, insert the 7-inch front wheel into the support, ensure it is locked, and use the height-adjustable handlebar (78 to 115 cm). Always use the provided safety tether.

What accessories are included with the trailer?

The box contains: the folded trailer, a set of 7-inch swivel front wheels, two 20-inch rear wheels, a hitch bar, a handlebar set, two M4 screws, two bumpers, a safety flag, a sun canopy, and a transparent rain cover.

How to attach the trailer to the bike?

Unscrew the nut and washer from the bike's rear wheel axle, attach the coupler (A) to the axle with a wrench, then slide the connection tube (B) onto the coupler and secure it with the shackle. Then, pass the emergency safety strap around the bike frame and hook the clip onto the hitch bar.

What are the important safety instructions?

Never leave a child unattended, always engage the parking brake when stopped, use the safety flag, check tire pressure before each ride, do not attach to a racing or mountain bike, maximum speed 25 km/h, and children must always wear a helmet.

How to fold and store the trailer?

Remove the flag, fold the handlebar horizontally, open the window protection, slide the white button backward to release the lock, open the plastic clip, push the stopped horizontal tube forward, then press down on the top of both sides to fold the trailer.

Where can I find spare parts for the Trailblazer trailer?

Use only spare parts supplied or recommended by Bellelli. Contact customer service or an authorized dealer to obtain original parts.

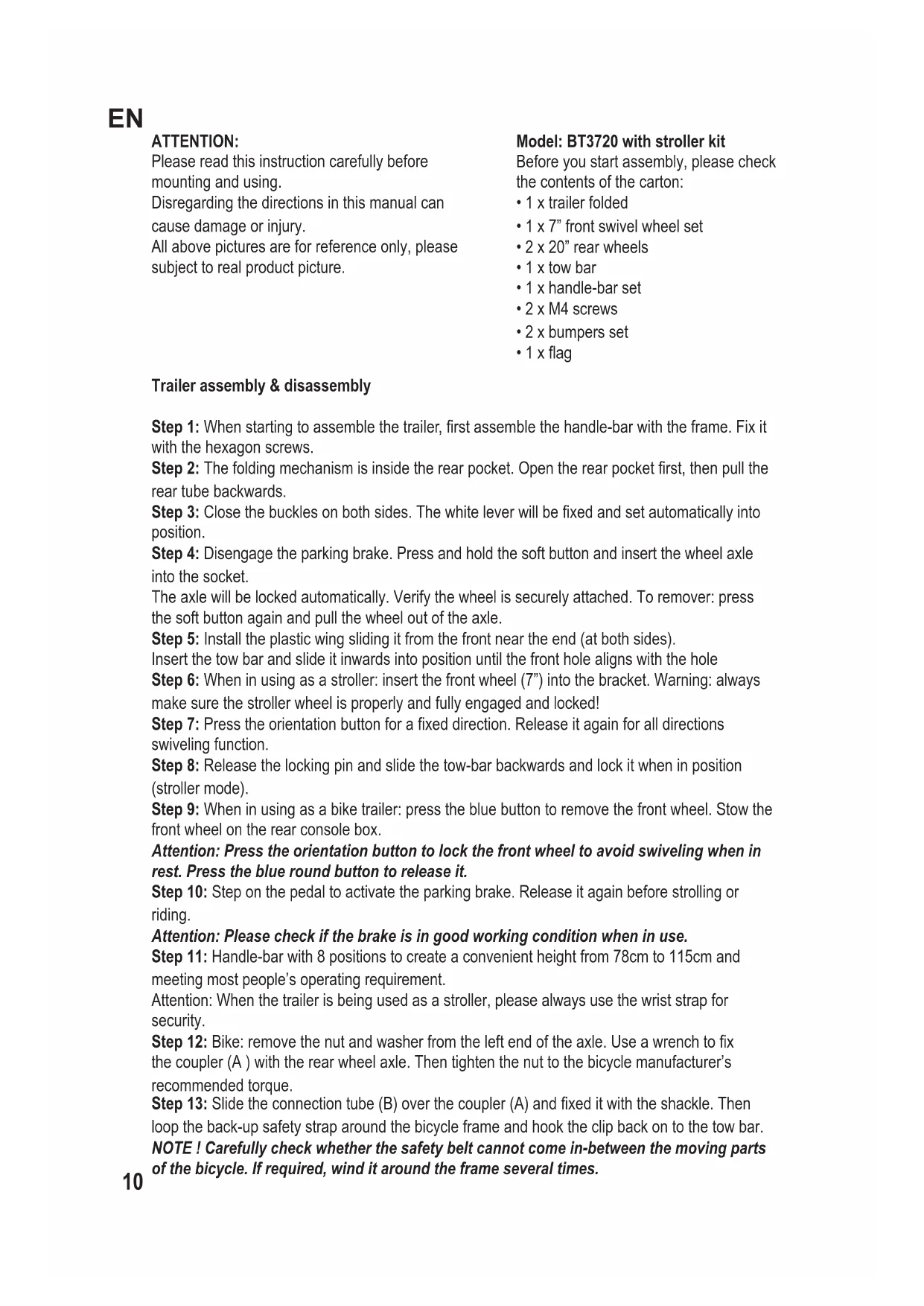

USER MANUAL Trailblazer Bellelli

Please read this instruction carefully before mounting and using.

Disregarding the directions in this manual can cause damage or injury.

All above pictures are for reference only, please subject to real product picture.

Model: BT3720 with stroller kit

Before you start assembly, please check the contents of the carton:

• 1 x trailer folded
• 1 × 7 front swivel wheel set
  2 × 20 rear wheels
• 1 x tow bar
• 1 x handle-bar set
• 2 x M4 screws
• 2 x bumpers set
• 1 x flag

Trailer assembly & disassembly

Step 1: When starting to assemble the trailer, first assemble the handle-bar with the frame. Fix it with the hexagon screws.
Step 2: The folding mechanism is inside the rear pocket. Open the rear pocket first, then pull the rear tube backwards.
Step 3: Close the buckles on both sides. The white lever will be fixed and set automatically into position.
Step 4: Disengage the parking brake. Press and hold the soft button and insert the wheel axle into the socket.
The axle will be locked automatically. Verify the wheel is securely attached. To remove: press the soft button again and pull the wheel out of the axle.
Step 5: Install the plastic wing sliding it from the front near the end (at both sides).
Insert the tow bar and slide it inwards into position until the front hole aligns with the hole
Step 6: When in using as a stroller: insert the front wheel (7") into the bracket. Warning: always make sure the stroller wheel is properly and fully engaged and locked!
Step 7: Press the orientation button for a fixed direction. Release it again for all directions swiveling function.
Step 8: Release the locking pin and slide the tow-bar backwards and lock it when in position (stroller mode).
Step 9: When in using as a bike trailer: press the blue button to remove the front wheel. Stow the front wheel on the rear console box.
Attention: Press the orientation button to lock the front wheel to avoid swiveling when in rest. Press the blue round button to release it.
Step 10: Step on the pedal to activate the parking brake. Release it again before strolling or riding.
Attention: Please check if the brake is in good working condition when in use.
Step 11: Handle-bar with 8 positions to create a convenient height from 78cm to 115cm and meeting most people's operating requirement.
Attention: When the trailer is being used as a stroller, please always use the wrist strap for security.
Step 12: Bike: remove the nut and washer from the left end of the axle. Use a wrench to fix the coupler (A) with the rear wheel axle. Then tighten the nut to the bicycle manufacturer's recommended torque.
Step 13: Slide the connection tube (B) over the coupler (A) and fixed it with the shackle. Then loop the back-up safety strap around the bicycle frame and hook the clip back on to the tow bar. NOTE! Carefully check whether the safety belt cannot come in-between the moving parts of the bicycle. If required, wind it around the frame several times.

Step 14: When the child is in the trailer, the safety straps should always be used and adjusted carefully. When seating a single child in the trailer, always seat the child on the right side. The seat is not suitable for children under 6 months.

Step 15: The sunshade is stored in the top pocket. When needed, it can be pulled out from the pocket for direct use.

Step 16: The transparent cover is made to protect the kids from rain and dust. Usually, the rain cover is rolled up. In case you need it, pull the transparent cover down and fasten the plastic hooks with the loop on the front of the canopy.

Step 17: Before using the trailer, insert the safety flag through the fabric sleeve at the left hand side of the body. This is very important, because the trailer can be easy overlooked in the traffic.

Step 18: When folding the trailer, first take away the safety flag. Then fold the handle-bar in the horizontal position and open the rear window cover.

Step 19: Slide the white button backwards to release the locking device. Then open the plastic clip.

Step 20: Push the horizontal rear tube forward.

Step 21: Press the top of both sides to fold the trailer.

Instruction of the use of the safety belt.

Engage the parking brake.

Open the front cover(s).

Loosen all of the belt adjustments.

WARNING!

Always adjust the shoulder harness and crotch strap so that they meet at the child's lower chest.

Adjusting harness and buckles near your child's neck could cause serious injury.

ONE CHILD

1. Unlock the 5-point harness from the safety lock buckle. (see below)
2. Seat the child in any seat.
3. Place the crotch strap between the child's legs and adjust it so that the strap loop is centered at the child's lower chest.
4. Secure the right-hand and left-hand shoulder harness and the crotch harness. (the main body of the 5-point harness buckle is always fixed with the crotch harness).
5. Fasten the shoulder harness and the crotch harness and tighten securely.

TWO CHILDREN

1. Unlock the 5-point harness from the safety lock buckle on both sides .
2. Seat the children in the trailer.
3. Place the crotch strap between the child's legs and adjust so that the strap loop is centered at the child's lower chest in turn for both side.
4. Secure the right-hand and left-hand shoulder harnesses and crotch harness at both sides (the main bodies of 5-point harness buckles are always fixed with crotch harness).
5. Fasten the shoulder harnesses and crotch harnesses and tighten securely..

GENERAL SATETY INSTRUCTIONS

1. Keep these instructions for future reference. Your child's safety may be affected if you do not follow these instructions.
2. Never leave a child unattended in the trailer.
3. Put on the brake whenever you park the trailer.

EN

1. This product has two functions: one is the bike trailer function, the other is the stroller function.
2. When using as trailer, the front wheel must be locked and stored at the side bumper.
3. Maximum load: BT3720: 41 kgs including passengers and cargo.
4. Maximum total weight: 59.50kg.
5. Minimum age of passengers: 9 months or could be seated without any assistance.
6. Maximum height of passenger : 71.5cm
7. Maximum number of passengers: 2 children.
8. Maximum speed = 25km / h
9. Maximum tire pressure is 43 psi.
10. Maximum tow bar loading capacity: 4.5kg.
11. Never attach the trailer to a racing bike or off-road bike.
12. The rider should be an adult in good physical condition. In addition the rider should pay more attention when driving.
13. The kids in the trailer should always wear an approved helmet.
14. The safety belts should be adjusted carefully and closed.
15. Please assemble the trailer exactly according this instruction.
16. Do not make any modifications to the trailer.
17. Do not park the trailer near a ditch or dangerous road.
18. Don't put anything next to the children when sitting in the trailer as it could be of danger or injury.
19. Ensure that all the locking/packing devices are engaged and function well before use.
20. To avoid injury, ensure that your child is kept away on a safe distance when unfolding/folding the trailer.
21. Do not let your child play with this product.
22. Always use the restraint system.
23. Check the seat unit regularly if it is correctly engaged before use.
24. This seat unit is not suitable for children under 6 months.
25. The bike trailer should always be covered and closed during the drive to prevent debris from entering.
26. When using in the stroller function, it is not suitable for running or skating.
27. The parking brake device must always be engaged when placing and removing the children.
28. Please note the increased braking distance of the bicycle when the trailer is attached.
29. Any load attached to the handle and/or on the sides of the vehicle will affect the stability of the vehicle causing serious risk
30. Accessories which are not approved by the manufacturer, shall not be used.
31. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
32. Check the tire pressure during assembly and before each ride, inspect routinely, maintain cleanly.
33. Keep away from any fire or heat sources when kids are sitting in the trailer.
34. Do not allow any of the children's body, clothing, shoe laces or toys to come into contact with moving parts.
35. Always use the safety flag.
36. Have your bicycle checked by a qualified bicycle mechanic before attaching it to the trailer.

Imported by Bellelli srl - via Meucci, 232-45021 Badia Polesine (Ro) Italia

MADE IN CHINA

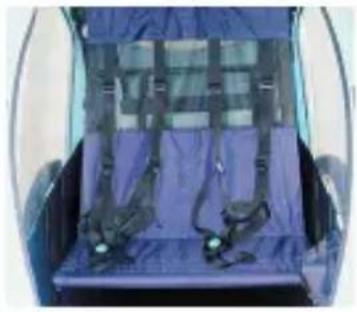

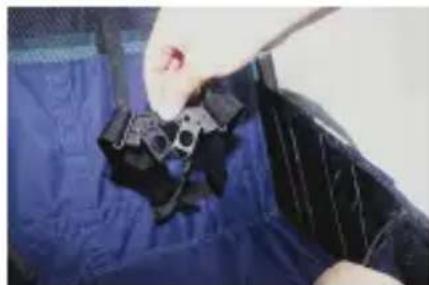

Instructions for the operation of the 2nd lock buckle

Push the blue button.

Pull the buckle out

Release

FR

ATTENTION:
