Product Type	Mobile phone
Brand	myPhone
Model	6410 LTE / HALO 2
Dimensions	121 x 58 x 14 mm
Weight	85 g
Screen	LCD 2.2 inches
Battery	Lithium-ion 900 mAh
Network	GSM 850/900/1800/1900 MHz
SIM slot	1 x Standard SIM
External memory	microSD up to 32 GB
Connectivity	USB Type-C, AC charger, charging dock
Main functions	Calls, SMS, flashlight, FM radio, camera, SOS, hands-free
Power supply	AC charger 100-240V ~ 50/60Hz, output 5V 500mA
Care and cleaning	Use a dry cloth, avoid acidic or alkaline products
Safety	Do not use while driving, turn off in risk zones, keep out of reach of children
Spare parts and repairability	Repair only by authorized service, use original accessories
Operating temperature	0°C to 40°C

Frequently Asked Questions - 6410 LTE myPhone

How to insert the SIM card?

Remove the back cover, insert the SIM card into the designated slot, then replace the battery and cover.

How to change the phone language?

From the home screen, press Menu, then follow the sequence: Up > OK > Down > OK > Down > OK, then choose the desired language.

What to do if the phone does not turn on?

Make sure the battery is charged and correctly installed. Plug in the charger and wait a few minutes.

How to use the flashlight?

Slide the flashlight switch located on the side of the phone to turn it on or off.

How to reset the phone to factory settings?

Go to Menu > Settings > Phone settings > Restore factory settings. The default code is 1234.

Why can't I hear the caller?

Check that the microphone is not blocked and the volume is high enough. If using a headset, make sure it is properly connected.

How to activate the SOS function?

Press and hold the SOS button on the back of the phone to trigger the alarm or automatic call to pre-set numbers.

What types of memory cards are compatible?

The phone accepts microSD cards up to 32 GB.

How to charge the phone?

Use the supplied AC charger or charging dock. Connect the USB Type-C cable to the phone and a power source.

What to do if the phone shows 'Network Error'?

Move to an area with better reception. Check that the SIM card is properly inserted and the account is active.

USER MANUAL 6410 LTE myPhone

https://www.myphone.pl/qr/myphone-6410-LTE

-WODA I INNE PŁ YNY-

Yellow triangular warning sign with a black-and-white icon of a human ear and sound waves

Yellow triangular warning sign with black sun and eye symbol (no text)

Akumulator: Li-ion 1400 mAh, 3.7 V

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

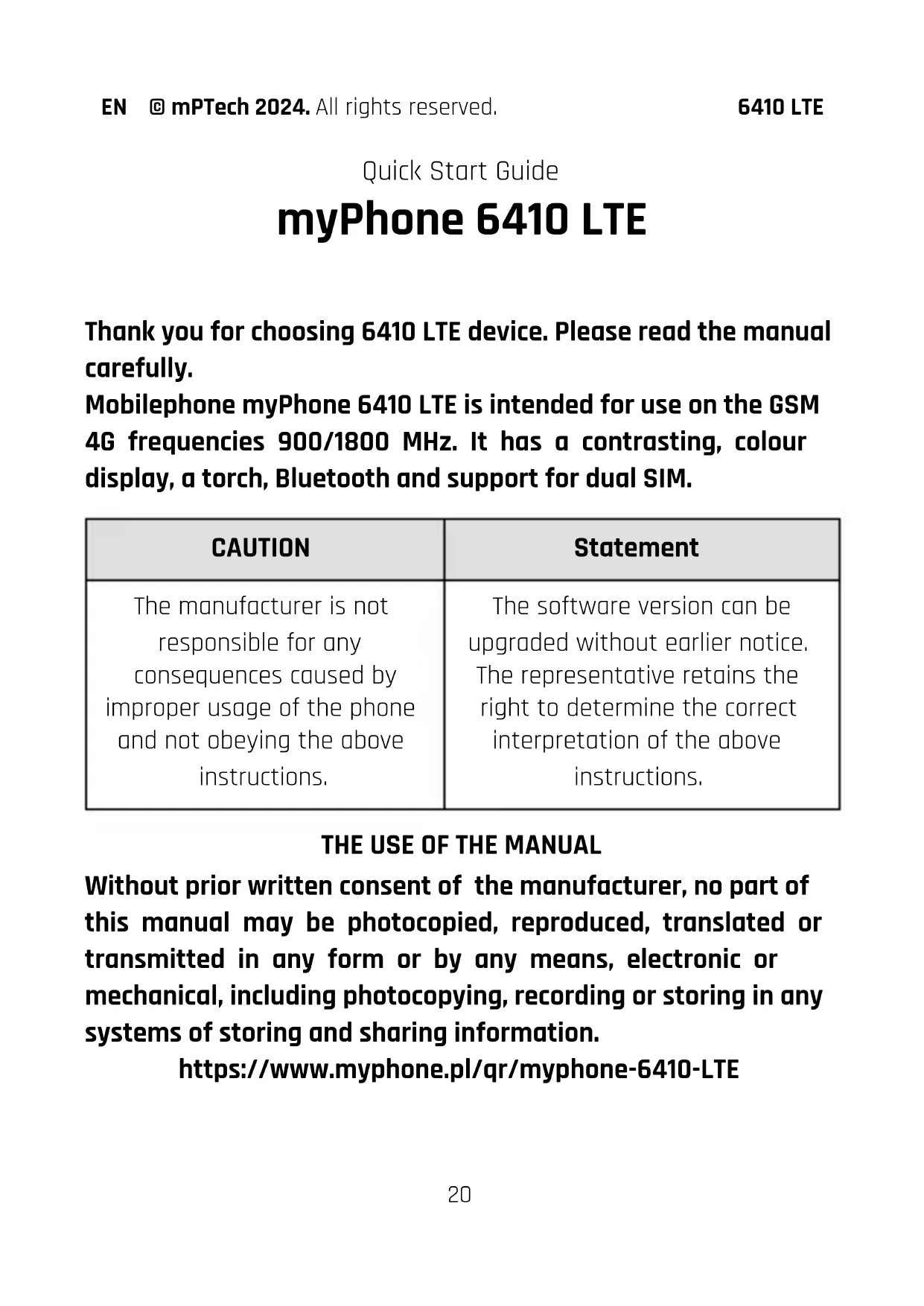

Thank you for choosing 6410 LTE device. Please read the manual carefully.

Mobilephone myPhone 6410 LTE is intended for use on the GSM 4G frequencies 900/1800 MHz. It has a contrasting, colour display, a torch, Bluetooth and support for dual SIM.

CAUTION	Statement
The manufacturer is not responsible for any consequences caused by improper usage of the phone and not obeying the above instructions.	The software version can be upgraded without earlier notice. The representative retains the right to determine the correct interpretation of the above instructions.

THE USE OF THE MANUAL

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

https://www.myphone.pl/qr/myphone-6410-LTE

EN © mPTech 2024. All rights reserved.

6410 LTE

Depending on the installed version of the software, applications, service provider, SIM card or country, some of the descriptions in this manual may not match your phone.

SAFETY

Read these guidelines carefully. Not following these guidelines may be dangerous or illegal.

-DO NOT RISK-

All wireless devices may cause interferences, which could affect the performance of other devices. Do not switch on the device in places where it is prohibited or if it might cause interference or other danger.

—PETROL STATIONS—

Turn off the device while refuelling your car on petrol station. Do not use your device close to chemicals.

-RESTRICTED AREAS-

Switch off device in an airplane since it may disturb the operation of other equipment located therein. The device may interfere with operation of the medical equipment in hospitals and health protection entities. Abide by any kinds of prohibitions, regulations and warnings conveyed by the medical staff.

-QUALIFIED SERVICE-

This product may only be repaired by the manufacturer's qualified service department or by an authorized service center. Repairing by an unauthorized or unqualified service may cause device damage and warranty loss.

-CHILDREN AND PHYSICALLY OR MENTALLY DISABLED PEOPLE-

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with

no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

—WATER AND OTHER LIQUIDS—

Protect the device from water and other liquids. It can influence work and the life span of electronic components. Avoid using the device in environments with high humidity like kitchens, bathrooms or during rainy weather. Particles of water can cause the liquefaction of moisture in the device, and this may have a negative impact on the work of electronic components.

-ROAD SAFETY-

Do not use this device while driving any kind of vehicle.

-BATTERY AND ACCESSORIES-

Avoid exposing the battery to very high/low temperatures (below 0^ C/ 32^ F and over 40^ C/ 104^ F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used only according to its purpose.

Do not destroy, impair or throw the battery into flames - it is dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Excessive charging the battery can cause damage. Therefore a single battery charge should not last longer than 1 day. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire

EN © mPTech 2024. All rights reserved.

6410 LTE

damage, it should not be repaired but replaced with a new one. Use only the original manufacturer's accessories.

Warning sign with yellow triangle and black outline depicting a human ear with sound waves

-SOUNDS-

To avoid hearing damage, do not use the device at high volume levels for a long period of time, do not put operating device directly to the ear.

Yellow triangular warning sign with sun and eye symbol (no text)

-EYESIGHT-

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may cause permanent eye damage!

Manufacturer:

mPTech Sp. z o.o.

Table of contents....24

Package content 24

Technical specification 25

Additional Technical Information 25

Description of phone buttons and functions 25

Turning the phone on/off 27

Inserting SIM card(s), memory card and battery 28

Charging the battery 28

Locking the phone 28

Emergency change of language....29

Software update....29

Factory settings 29

Troubleshooting 29

Device maintenance ....30

Correct disposal of used equipment 31

Correct disposal of used batteries....31

Package content

Before you start using your phone, make sure all of the following items are included in the box:

• mobilephone myPhone 6410 LTE,
• battery,
• charger,
• User manual.

If any of the above items is missing or damaged, please contact your dealer. We advise to keep the container in case of any complaints. Keep the container out of reach of children.

Technical specification

Dual SIM GSM 2G 850/900/1800/1900MHz

3G/4G WCDMA:B1/B8,FDD:B1/B3/B7/B8/B20/TDD:B38

Clear, colourful 2.4" display 240x320 px

Audio player, FM Radio, Torch, Bluetooth, Photo camera

MicroSD card reader: up to 32 GB

Battery: Li-ion 1400 mAh, 3.7 V

Charger input parameters: 5.0V - 0.55A, 2.75W

Charger output parameters: 5.0V 0.55A, 2.75W

Average efficiency during operation (for 230V, 50hz): 805mA-110mA

Energy consumption in no-load condition: less than 1.6mA

Phone dimensions: 126 x 54.6 x 14.2 mm

Phone weight: 79g

Additional Technical Information

The phone will hold up to 300 contacts in its phonebook and its internal memory allows you to store up to 200 text messages. To use the camera and enter your own ringtones, it is recommended to mount the SD memory card in your phone.

Description of phone buttons and functions

1	Display	LCD display.
2	Speaker / Buzzer	A speaker used in phone conversations. It also generates ringtones and notification sounds, and can be used to play music from a player or FM radio.
3	Camera	Camera lens.

EN © mPTech 2024. All rights reserved.
6410 LTE

4	Button	While on the main screen enables entering the Menu, and confirms choice while in the Menu.
5	Button	On the home screen it allows you to enter the phone book [Contacts]. In the Menu, it allows you to exit or abandon a selection.
6	Button	Allows to answer an incoming call. In standby mode, allows you to view the call list.
7	Button	Allows you to reject an incoming call. While in the Menu allows you to return to the main screen. It allows you to turn off the phone in standby mode, and turn it on when the phone is off by holding it down for a long time.
8	Buttons, , , , , and	While in Menu allows to navigate through it. On the main screenTurns on the video player, turns on the alarm Menu,calls up the sound profile selection Menu,calls up the message Menu, works as a buttonand, if held down long enough, turns the flashlight on/off.
9	Gap	Allows to take off a cover of the phone.
10	Phone keypad	Buttons allowing you to dial a phone number and, in the text message
11	Button	mode, type letters and digits.When creating an SMS message, displays symbols to insert into the content. On the home screen, pressed after previously pressinglocks the keypad. When the phone has a locked keypad, pressed after previously pressingunlocks the phone. While on the home screen allows you to switch sound profiles of the phone.
12	Button	When writing an SMS, it switches between character input modes.
13	Headphone port	For connecting headphones (as an antenna when listening to FM radio).
1	LED	Diode is used as a torch.
15	USB-C port	When connected enables recharging the battery. When connected by cable to a computer, you can exchange data (photos, videos, music).
16	Microphone	Do not cover it with your hand while on the phone.

Turning the phone on/off

To turn the phone on/off press and hold Red handset until the phone switches on. If directly after turning the phone on you will see the PIN code request, (in form of “*****”) type the code and press button Menu.

Inserting SIM card(s), memory card and battery

If the phone is switched on - switch it off. Remove the back cover of the phone - use your fingernail to raise it using the gap in the case and remove the battery. Insert the SIM card(s) - place the SIM card(s) with its (their) golden contacts facing down as the recess is embossed.

Insert the microSD memory card - Insert the microSD memory card with its gold contacts facing down, the way in which the slot is made. Insert the battery so that its gold contacts touch the tripple connector in the phone bay. Put on and gently press down the cover until you hear the click of the latches. Make sure the cover is well attached.

Charging the battery

Connect the USB-C plug on the charger cable to the phone's USB-C socket and plug the charger into a wall outlet.

*CAUTION: Improper connection of the charger can cause serious damage to the phone. Damages caused by an improper use of the phone are not covered by the warranty.

While charging, the static battery status icon located in the upper right corner of the screen will be animated. After charging, disconnect the charger from the electrical outlet. Unplug the cable from the phone's electrical outlet.

Locking the phone

To lock the keyboard press [Menu] > <*>. To unlock the keyboard press [Unlock] > <*>,

Emergency change of language

To set the user's language, if someone accidentally chose an unknown one, press the [Menu] > Left > OK > Down> > OK >Down > OK > OK, and choose the language you want.

Software update

The manufacturer, from time to time, provides system software updates through which devices receive new capabilities, fixes, etc. The phone will inform the user about the available update. After receiving the notification, go to the update center: Settings -> Update, in order to run it. The information about an available update can be checked at any time. After choosing an available update, the phone will automatically install it.

During the update process, the device may reboot itself several times. Do not remove the battery or use its functions at that time, as this may cause the device to stop working.

Factory settings

To restore the factory settings, select in the phone Menu:

[Settings] > [Restore factory settings]. The code for resetting to factory settings is: 1122.

Troubleshooting

Message	Possible solution
Insert SIM card	Make sure that the SIM card is installed correctly.
Input PIN	If the SIM card is secured with the PIN code you have to enter the PIN when turn in the phone on and press <OK>.

EN © mPTech 2024. All rights reserved.
6410 LTE

Network fail	In areas with a weak signal, it may not be possible to make calls. You may also not be able to receive calls. Move to another location and try again.
No one can call me	The phone has to be on and within GSM network reach.
Poor sound quality during conversation	Make sure that the speaker and microphone are not covered.
I cannot hear the caller./ The caller cannot hear me	The mic. should be close to mouth.Check if the built-in mic. is not covered.When a headset is un use, check if it has been connected correctly.Check if the built-in speaker isn't covered.
The connection cannot be established	Check if the typed-in phone number is correct. Check if the phone number entered to the [Contacts] is correct. Enter the correct phone number if necessary.

Device maintenance

Follow the instructions below.

• For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.
• Use the original accessories only. Violation of this rule may result in an invalidation of the warranty.

Correct disposal of used equipment

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE).

Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment. To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

Correct disposal of used batteries

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol

indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations. It is not allowed to dispose of batteries and accumulators with unsorted municipal

EN © mPTech 2024. All rights reserved.

6410 LTE

waste. Users of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal.
