VTBAL600 - Scale Perel - Free user manual and instructions

Product type	Hook weighing scale
Brand	Perel
Model	VTBAL600
Maximum capacity	200 kg / 441 lb
Housing material	ABS + stainless steel
Display	LCD screen 36 x 14 mm
Device weight	520 g
Power supply	Batteries (not included, type not specified)
Main functions	Zero/tare, unit conversion (kg/lb), hold function (auto, peak, off), calibration
Use	Weighing by suspending from hook or placing on the scale
Units of measurement	kg, lb (selectable)
Hold mode	Auto hold (automatic lock), Peak hold (max value), No hold (disabled)
Calibration	Possible with a calibration weight (100 kg recommended)
Error indicators	Low battery, overload, calibration required
Maintenance and cleaning	Damp cloth, no harsh chemicals, do not immerse
Safety	Do not open the housing, use appropriate batteries, keep out of reach of children
Warranty	24 months for consumers (Velleman conditions)
Included accessories	None (batteries not supplied)
Documents provided	User manual

Frequently Asked Questions - VTBAL600 Perel

How to turn on the VTBAL600 scale?

Press the ON-OFF/TARE button. The display will show zero when ready.

How to change the weight unit (kg/lb)?

Press the UNIT button repeatedly until the desired unit appears.

What is the Hold function used for?

The Hold function locks the reading. Three modes: Auto hold (automatic lock when stable), Peak hold (maximum value), No hold (no lock). Select with the HOLD button.

How to calibrate the scale?

Turn off the scale, press and hold UNIT and ON-OFF simultaneously until a value appears. Press ON-OFF to reset to 100.0 kg, hang a calibration weight, wait for stabilization and press ON-OFF. 'PASS' confirms calibration.

What does the 'Lo' message on the display mean?

The 'Lo' message indicates low batteries. Replace them as soon as possible.

What is the maximum weight the scale can measure?

The maximum capacity is 200 kg (441 lb). Do not exceed this limit to avoid damaging the device.

Can I use the scale to weigh objects by hanging them?

Yes, the scale is designed to be hand-held or suspended from a solid structure. Use the hook to hang the object to be weighed.

How to clean the scale?

Clean with a damp cloth. Do not use harsh chemicals, solvents, or strong detergents. Never immerse the scale in any liquid.

What types of batteries to use?

The battery type is not specified in the manual. Open the battery compartment and insert suitable batteries respecting polarity. Remove the batteries after use.

Is the scale under warranty?

Yes, Velleman warranty is 24 months for consumers (EU) against manufacturing defects. Keep the receipt. Excluded are damages due to misuse, normal wear, etc.

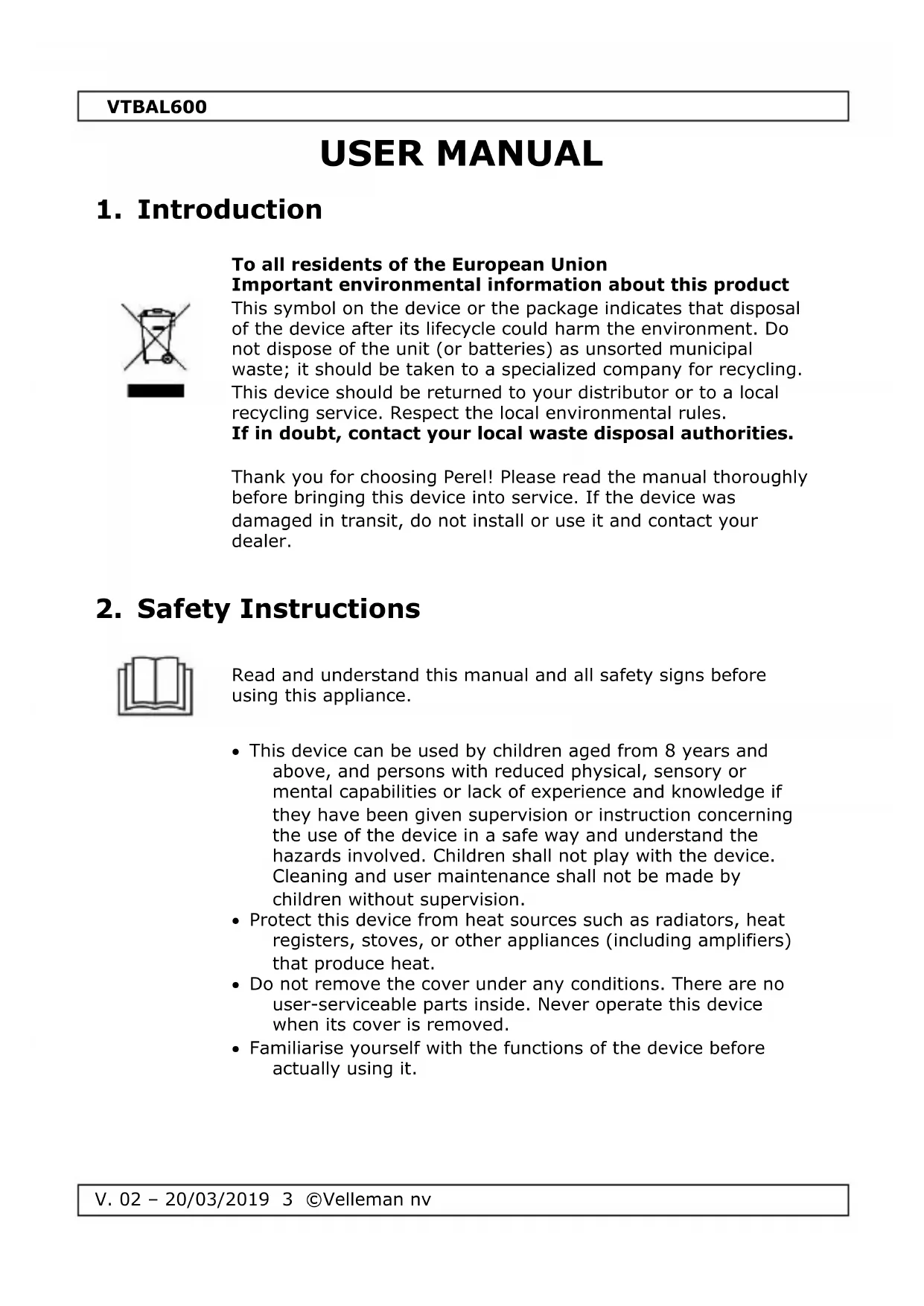

USER MANUAL VTBAL600 Perel

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Protect this device from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• Do not remove the cover under any conditions. There are no user-serviceable parts inside. Never operate this device when its cover is removed.
• Familiarise yourself with the functions of the device before actually using it.

3. General Guidelines

• Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Batteries

WARNING

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries. Dispose of batteries in accordance with local regulations. Keep batteries away from children.

• Open the battery compartment and insert the batteries according to the correct polarity.
• Replace the batteries as soon as the display turns dark.
• Remove the batteries after use.

5. Overview

Refer to the illustrations on page 2 of this manual.

1	on-off/tare
2	unit

3

hold

6. Operation

6.1 General Operation

1. Hold the scale in your hand or hang it on a solid truss.
2. Switch on the scale. The scale is ready-to-use when the display shows 0.
3. Hang the item to be weighed on the hook and wait for the display to stabilize
4. To tare an item, tap the tare button. Place the item to be weighed on the scale.
5. The weight is displayed.

6.2 Unit Conversion

Press the unit button until the desired weighing unit is displayed.

6.3 Hold Function

Press the hold button repeatedly to select the desired hold function:

A auto hold

The weight is locked when stabilized.

P peak hold

The highest weight is locked. Good for measuring forces.

N no hold

The weight does not lock.

6.4 Calibration

1. With the scale off, press and hold the unit and on-off buttons simultaneously until a number appears in the display.
2. Hold the on-off button pressed to reset the value to 100.0kg .
3. Hang the required calibration weight on the hook. Wait for the value to stabilize and press the on-off button. Calibration is complete when PASS appears on the display.

6.5 Error Indications

Battery power running low.

Overloaded. Remove excess weight.

Calibration needed.

7. Cleaning and Maintenance

• Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
• Do not immerse the device in any liquid.

8. Technical Specifications

power supply. 2 x 1.5 V AAA batteries (incl.)

material. ABS ^+ stainless steel

capacity. 200 kg/441 lb.

graduation 200 g/7.05 oz.

units kg/lb./oz.

dimensions 350 x 70 x 70 mm

display 36 x 14 mm

weight 520 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All

worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

8. Specifications techniques

alimentation. 2 x pile AAA de 1.5 V (incl.)

graduation 200 g/7.05 oz

unites. kg/lb/oz

dimensions 350 x 70 x 70 mm
