VTBAL501 - Scale Perel - Free user manual and instructions

Product type	Scale
Brand	Perel
Model	VTBAL501
Power supply	2 AAA/R03 1.5 V batteries (included)
Maximum capacity	100 kg / 220 lb
Graduation	50 g / 1.76 oz
Measurement units	g, kg, oz, lb, lb:oz
Material	ABS + stainless steel
Dimensions	210 x 160 x 39 mm
Display dimensions	64 x 25 mm
Weight	1.85 kg
Functions	Tare, Hold, Calibration, Adjustable auto-off
Safety	Do not immerse, do not disassemble, do not use with open housing
Cleaning and maintenance	Damp cloth, no solvents or harsh detergents
Warranty	24 months against manufacturing defects (see conditions)

Frequently Asked Questions - VTBAL501 Perel

How to turn on the Perel VTBAL501 scale?

Place the scale on a horizontal surface, then press the ON/OFF button. The scale turns on and is ready to weigh.

How to choose the measurement unit?

Turn on the scale, then press the MODE button to cycle through the available units: g, kg, oz, lb, lb:oz.

How to use the tare function?

Place the container or tare object on the platform, press the TARE button once and wait for the display to show '0.00'. Then add the net weight.

How to use the hold function?

Place the object to be weighed on the scale, then press the HOLD button. The displayed value freezes even if you remove the object.

How to calibrate the scale?

Turn on the scale, press ON/OFF and MODE simultaneously until 'CAL' appears. Press MODE again, then place the required calibration weight in the center of the platform. 'PASS' confirms calibration.

What to do if the display shows 'O-Ld'?

'O-Ld' means the scale is overloaded. Immediately remove the object from the platform to avoid damaging the device.

How to disable auto-off?

Turn off the scale. Hold down the TARE button and press the ON/OFF button 4 to 5 times until 'OFFF' appears. Release the buttons.

How to clean the scale?

Use a damp cloth to clean the scale. Never use solvents, harsh detergents, or chemicals. Never immerse the scale in water.

What type of batteries to use?

The scale operates with 2 AAA/R03 1.5 V batteries. Batteries are included. Replace them as soon as the display becomes dim.

What is the maximum capacity of the scale?

The maximum capacity is 100 kg (220 lb). Never exceed this limit to avoid damaging the scale.

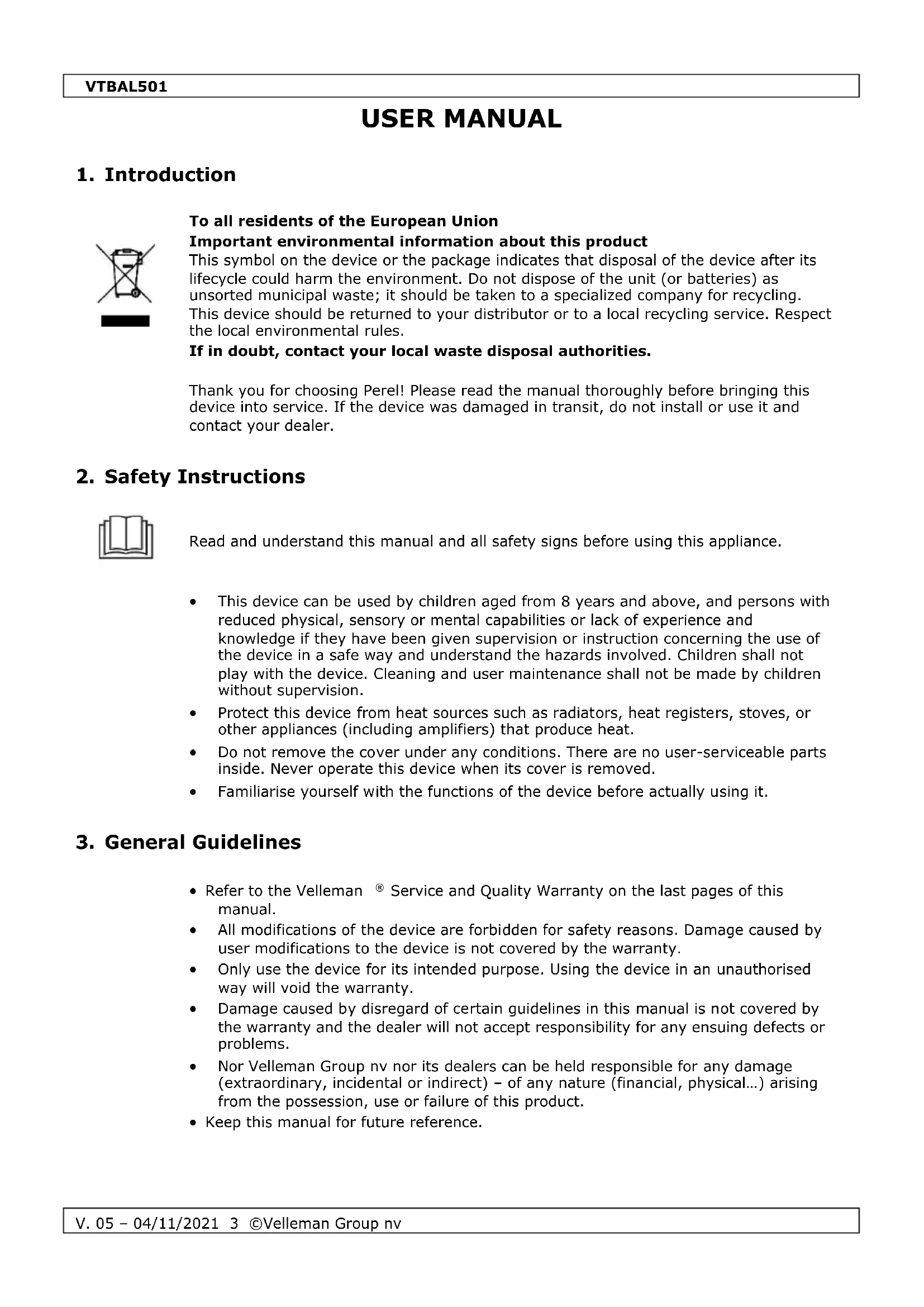

USER MANUAL VTBAL501 Perel

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Protect this device from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• Do not remove the cover under any conditions. There are no user-serviceable parts inside. Never operate this device when its cover is removed.
  Familiarise yourself with the functions of the device before actually using it.

3. General Guidelines

Refer to the Velleman Service and Quality Warranty on the last pages of this manual.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman Group nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) - of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Keep this manual for future reference.

4. Batteries

WARNING

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries. Dispose of batteries in accordance with local regulations. Keep batteries away from children.

• Open the battery compartment and insert the batteries according to the correct polarity.
• Replace the batteries as soon as the display turns dark.
• Remove the batteries after use.

5. Description

Refer to the illustrations on page 2 of this manual.

1	weighing platform
2	on-off button
3	mode button

4	hold button
5	tare button

6. Operation

6.1 General Operation

WARNING

The scales are overloaded as soon as the display shows "O-Ld". Remove the item from the platform.

1. Place the scales on a levelled surface.
2. Press the on-off button to switch on the scales.
3. Place the item on the platform and wait until the reading on the display is stable.
4. Switch off the scales after use. Note that the scales will switch off automatically 5 minutes after the last operation.

6.2 Unit Conversion

1. Switch on the scales.
2. Press the mode button to select the weighing unit.

6.3 Tare Function

1. Switch on the scales.
2. Place the tare item on the platform.
3. Press the tare button once and wait for the display to show "0.00".
4. Add the net weight.

6.4 Hold Function

1. Switch on the scales and weigh the item.
2. Press the hold button to freeze the weight on the display.

VTBAL501

6.5 Calibration

1. Switch on the scales.
2. Press and hold the on-off button. At the same time, press the mode button and wait for the display to show "CAL".
3. Press the mode button again; the required calibration weight will flash on the display. Put the calibration weight in the centre of the platform.
4. Calibration is complete when the display shows "PASS".
5. The scales go back to the normal weighing mode.

6.6 Disabling the Auto Switch-Off Function

1. Switch off the scales.
2. Press and hold the tare button, and at the same time press the on-off button 4 or 5 times until "OFFF" is displayed. Release the buttons. The automatic switch-off function is now disabled.

7. Cleaning and Maintenance

• Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
• Do not immerse the device in any liquid.

8. Technical Specifications

power supply 2 x 1.5 V AAA/R03 batteries (incl.)
material ABS ^+ stainless steel
capacity 100 kg/220 lb.
graduation 50 g/1.76 oz.
units. g/kg/oz./lb./lb:oz.
dimensions 210 x 160 x 39 mm
display 64 x 25 mm
weight 1.85 kg

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Refer to the illustrations on page 2 of this manual.

Refer to the illustrations on page 2 of this manual.

Refer to the illustrations on page 2 of this manual.

Refer to the illustrations on page 2 of this manual.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions:

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
