USER MANUAL Sani 600 Mirror Eurom

Model: Product code:

Sani Mirror 400 Wi-Fi 350418

Sani Mirror 400 Wi-Fi (Swiss plug) 350425

Sani Mirror 600 Wi-Fi 350432

Sani Mirror 600 Wi-Fi (Swiss plug) 350449

Please read and understand these safety instructions. Incorrect use can cause injury and will void EUROM's warranty.

WARNING

• The heater must not be used if the glass panels are damaged.
• Plastic bags can be dangerous. To avoid danger of suffocation, keep this bag away from babies and children.

CAUTION

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

WARNING

In order to avoid overheating, do not cover the heater.

Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with appliance. Cleaning and user maintenance shall not be done by children without supervision.
- Heater must not be located immediately below a socket-outlet.
- If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

The device is equipped with an overheating protection, which switches it off automatically in case of internal overheating. Switch the device off, unplug the power plug, remove the source of overheating, let it cool down and use as normal. Do not use the device if the source of overheating cannot be traced or if the problem persists, but always contact your supplier.

This device is not suitable for use by persons with a physical, sensory or mental disability, or lack of experience and knowledge (including children). Keep the device out of reach of children, unqualified persons and pets. Never leave the device unattended while it is in operation.

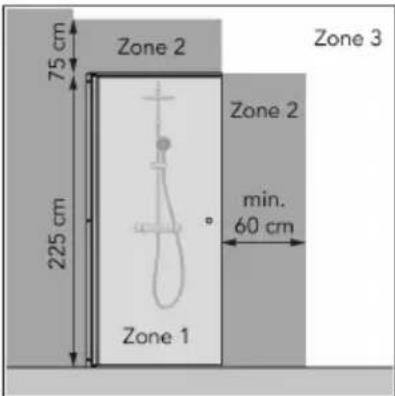

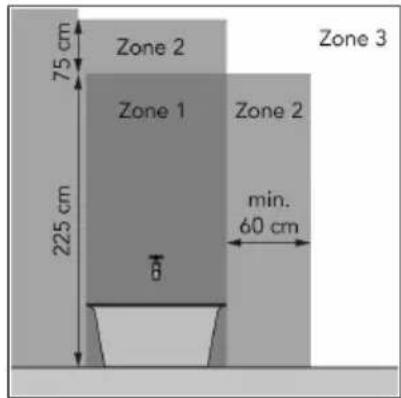

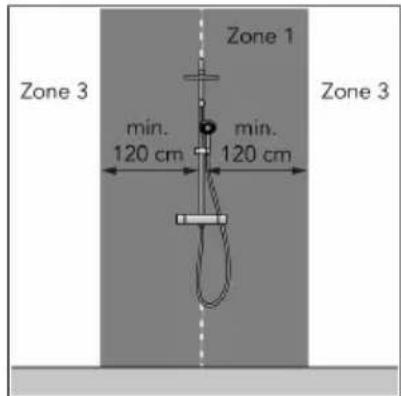

Placement in bathroom

This device is safe to use in the bathroom when the device is mounted:

• in zone 3 of a toilet room or bathroom with a bath, shower with screen or shower without screen, see Figure 13;
  -in a fixed position;
• out of reach for operation by a person in a bath or shower.

Figure 13.

General safety instructions

WARNING

• Prevent splashing water on or in the device.
• Do not immerse any part of the device in water or other liquids.
• Never insert fingers or other objects into the openings of the device.
• Do not expose the device to strong vibrations or mechanical stress.

WARNING

The device becomes very hot during use. Do not touch the device during use or within five minutes after use.

CAUTION

Do not cover the device during usage or after use while the device is still hot. To reduce the risk of fire, keep textiles, curtains, tent canvasses and other flammable material at a minimum distance of 1 meter from the device.

Safety during operation

WARNING

Do not use the device:

• outdoors or in a small space (< 7m^3)
  -lying, leaning or standing;
• if any parts are dirty or wet;
• near large objects, like behind a door, under a shelf or near a cupboard;
• near a water source in zone 1 and zone 2, like a bath, shower or swimming pool;
• near or in a dusty and dirty environment, like a construction site;
• near flammable materials, liquids or fumes, e.g. in a shed, stable or green house;
• near other heat sources and open fire;
• near, under or facing a socket outlet;
  with an appliance that automatically switches the device on, such as a timer, dimmer or any other device.

If the device, the electric cable or plug shows damage or is malfunctioning, immediately take the appliance out of use and disconnect the power supply.

Warranty

EUROM offers a 60-month warranty on this device from the date of purchase. The warranty does not cover wear and tear from normal use. The warranty expires if a defect is the result of unintentional or careless use of the device. The manufacturer, importer and supplier are not liable for incorrect connections.

Introduction

Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION

It is important to read and understand this instruction manual before assembling, installing and using the device.

This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ.

The following symbols and terms are used in this manual to alert the reader to safety issues and important information:

WARNING

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders, light and/or moderate damage to the product or to the environment.

CAUTION

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

Identification

Figure 14.
Figure 15.

Specifications

Type Sani Mirror 400 Wi-Fi Sani Mirror 600 Wi-Fi
Product size: 5 x 50 x 70 cm 5 x 80 x 60 cm
Weight: 8.2 kg 11.2 kg
Voltage: 220 - 240V~ / 50Hz 220 - 240V~ / 50Hz
Power: 400W 600W
Protection rating: IP24 IP24
Protective class: Class I Class I

Hereby, Euromac b.v. declares this product is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.eurom.nl/declaration-of-conformity.

Wi-Fi and Bluetooth Frequency Band: 2.4 2.4835GHz
Maximum radio-frequency power transmitted in this frequency band(s):

Wi-Fi: 17.5dBm

Bluetooth: 6.5dBm

Description

The Sani Mirror Wi-Fi is an easy-to-use electric bathroom heater for use in zone 3 of the bathroom (see Placement in bathroom). The Sani Mirror Wi-Fi can be used with the Eurom Smart App.

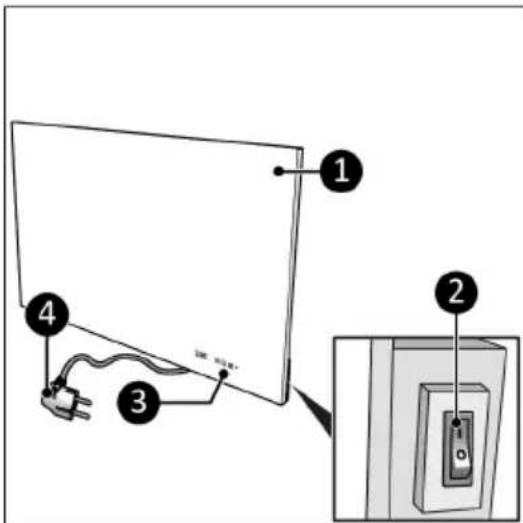

Unboxing

1. Main device
2. ON/OFF switch
3. Control panel and LED display
4. Power plug

Figure 16.

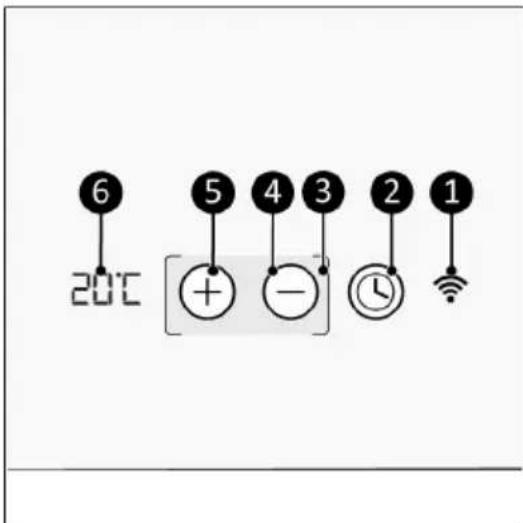

Control panel and display

1. Wi-Fi indication
2. Timer button
3. Square bracket
4. Minus button
5. Plus button
6. Temperature indication

The LED-screen will extinguish automatically after ± 15 seconds, the square brackets remain visible. Touch the device between the square brackets (Figure 17, pos. 3) to light it up again.

Figure 17.

Transport and storage

Clean the device before storing it.
- Transport the device in an upright position.
- Store the device in an upright position, in its original packaging, in a cool, dry and dust-free area.

Installation

The device is packed in one box. Remove all packaging material and check that the device is not damaged. Do not use the device if it is damaged, but always contact your supplier. Keep the packaging for safe storage and transport.

Wall mounting

WARNING

The wall used for mounting must be made from non-flammable material and should be able to withstand a minimum temperature of 125^ .

CAUTION

Make sure to use suitable fastening materials, depending on the surface. Never block the space between the device and the wall.

1. Place the device on a non-flammable and solid wall.

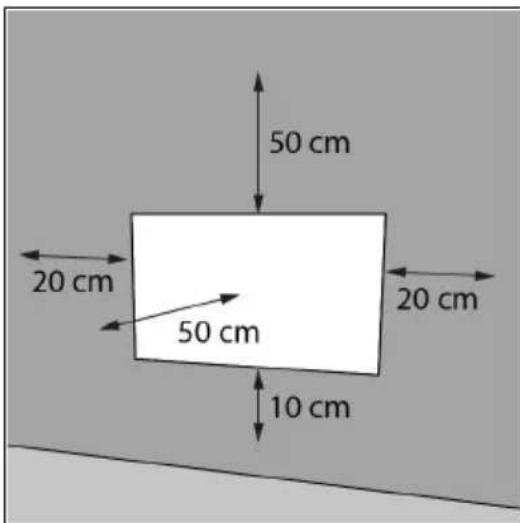

2. Place the device with a minimum distance (Figure 18) of:

3. 50~cm from the ceiling;

4. 20 cm from the side walls;
   -10 cm from the floor:
   -50 cm clearance on the front side

5. Do not mount the device:

6. immediately below a socket outlet;
   -on a ceiling or roof.

Figure 18.

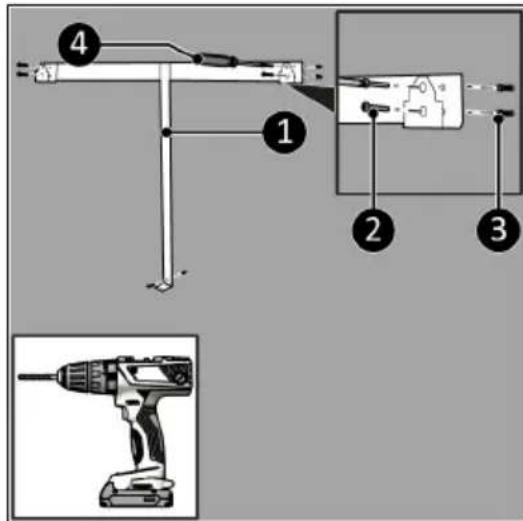

1. Place the wall bracket (Figure 19, pos. 1) against the wall and mark the five holes.
2. Drill five holes at the marked spots.
3. Place plugs (Figure 19, pos. 3).
4. Screw and tighten the wall bracket to the wall with five large screws (Figure 19, pos. 2) using a Phillips screwdriver (Figure 19, pos. 4).

Figure 19.

Figure 20.

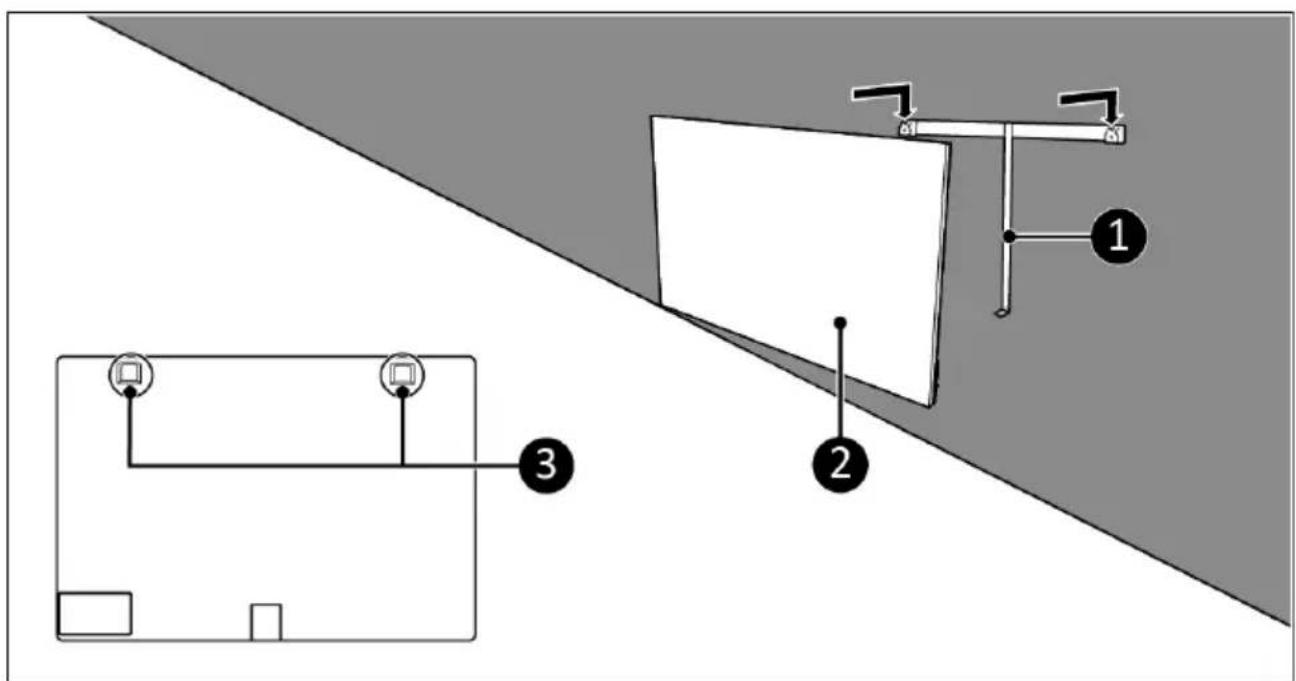

1. Place the device brackets (Figure 20, pos. 3) over the wall bracket (Figure 20, pos. 1).
2. Slide the device (Figure 20, pos. 2) into the openings of the wall bracket.

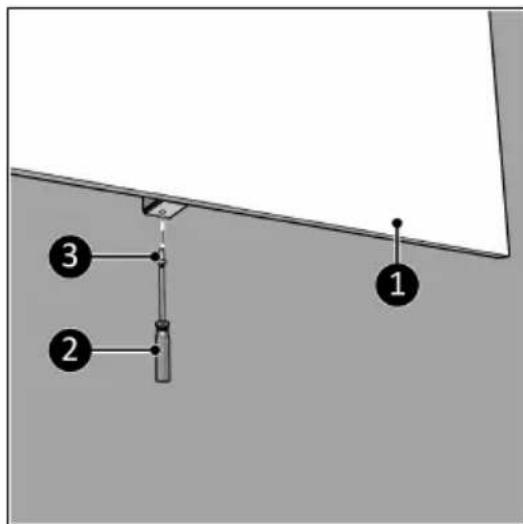

3. Screw and tighten the device (Figure 21, pos. 1) with a small screw (Figure 21, pos. 3) to the wall bracket using a Phillips screwdriver (Figure 21, pos. 2).

Figure 21.

Installation

WARNING

• Do not put the power plug into the wall socket before the device is mounted or placed correctly.
• Do not use an extension cable; this can cause overheating and fire. If using an extension cable is unavoidable, make sure it is undamaged and earthed. Use an extension cable with a minimum power of 800 Watt. Always unwind the extension cable completely to prevent overheating.

CAUTION

Make sure that the main voltage is the same as indicated on the identification label of the device. All electrical connections must stay dry under all circumstances.

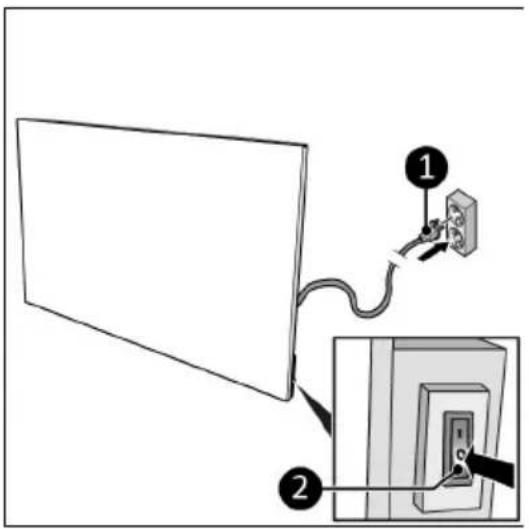

1. Make sure the device is correctly mounted.
2. Make sure the ON/OFF switch is in the OFF position (Figure 22, pos. 2).
3. Place the power plug (Figure 22, pos. 1) into an earthed wall socket that is easily accessible. Use an earthed wall socket with a minimum power of 800 Watt.

Figure 22.

Operation

WARNING

Before every use, make sure that:
- you operate the device with dry hands;
- the device is clean and dry;
- the device is not damaged;
- the device is not covered or blocked;
the device is securely mounted.

CAUTION

When the device is turned on or off, it may emit a sound. This is the material expanding and shrinking during heating and cooling down.

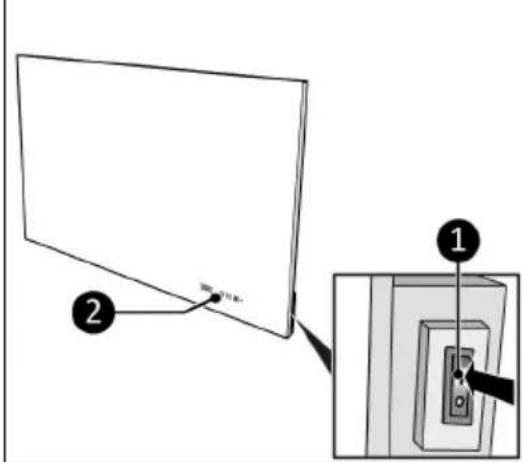

1. Set the ON/OFF switch to the ON position (Figure 23, pos. 1).
2. The control panel and display (Figure 23, pos. 2) will light up.
3. Press the Plus or Minus button to set the desired temperature, from 0^ to 37^ . The device starts heating when the set temperature is higher than the ambient temperature.
4. The display will first show the set temperature for 3 seconds followed by the ambient temperature.

Figure 23.

Set the countdown timer

1. Press the Timer button once or multiple times to set the countdown timer, from 00 to 24 in whole hours.

Eurom Smart App

CAUTION

It is recommended to switch on Bluetooth on your smart phone when connecting your Eurom device for the first time. Doing so will make connecting quicker and easier.

The device can be operated using an app on a smartphone or tablet. The Eurom Smart App can be used to:

• switch the device on and off:
  -regulate the temperature.

The app can also be used to set twenty on and off timer settings daily, on the weekly timer.

1. Open the Eurom Smart App manual with the QR code (Figure 24) or go to www.eurom.nl/nl/manuals.

2. Complete the steps in the Eurom Smart App manual.

3. When the device is connected with Wi-Fi, the Wi-Fi symbol appears on the screen.

If the Wi-Fi symbol is blinking there is no connection.

Figure 24.

Smart Timer

1. Create a schedule with days and times in the Eurom Smart App. Timer settings set in the app:

will be stored on the device;
will not be visible on the device;
will remain available if Wi-Fi disconnects;
will remain available if the device is switched off or unplugged;
can only be removed via the app.

1. Check the data in the app regularly.

Reset Wi-Fi connection

1. Press and hold the Timer button until a beep sounds. Existing connections will be deleted. The Wi-Fi symbol will start blinking and a new connection can be made.

Switch off Wi-Fi connection

1. Press and hold the Minus button until a beep sounds. The Wi-Fi is switched off and the Wi-Fi symbol will disappear from the screen.
2. Press and hold the Minus button until a beep sounds. The Wi-Fi is switched on and the Wi-Fi symbol will appear on the screen.

After operation

CAUTION

Do not use the power cable to unplug or carry the device. Do not wind the power cable too tightly or in sharp corners. Do not wrap the power cable around the device.

1. Make sure the ON/OFF switch is in the OFF position.
2. Disconnect the power plug from the power outlet.
3. Let the device cool down before touching it.
4. Wind the power cable.

Maintenance

WARNING

Do not perform any repairs or modifications to this device.

Maintenance and repairs must be carried out by a EUROM authorized professional. If the electric cable and/or electric plug is damaged, it should be replaced by the manufacturer or its service employee or persons with similar qualifications to prevent risks.

Cleaning

WARNING

The device becomes very hot. Make sure the device is turned off, unplugged and completely cooled down.

CAUTION

Do not use:

scouring pads;
-hard brushes;
- flammable, aggressive or chemical cleaning products.

Prevent water from entering the device. Do not immerse any part of the device in water or other liquids.

It is recommended to clean the device after each use and prior to storage.

1. Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.
2. Let the device dry completely prior to use and storage.

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Attachments

Information requirements for electric local space heaters
Model identifier: Sani Mirror 400 Wi-Fi
Item Symbol Value Unit Item	Unit
Heat output Type of heat output/room temperature control				rol (select one)
Nominal heat output Pnom 0.400 kW single stage			heat out	put and no room temperature control	no
Minimum heat output (indicative)	Pmin 0.00 kW two or more m			manual stages, no room temperature control	no
Maximum continuous heat output	Pmax,c 0.400 kW with mechanical thermostat room temperature control				no
Power consumption with electronic room temperature control				control no
In off mode	Po	0.00	W	electronic room temperature control plus day timer	no
In standby mode	Psm	N.A.	W	electronic room temperature control plus week timer	yes
In idle mode	Pidle	0.73	W	Other control options (multiple selections possible)
In network standby	Pnsm	0.73	W	room temperature control, with presence detection	no
Standby mode with display of information or status			no	room temperature control, with open window detection	yes
Seasonal space heating energy efficiency in active mode	ηS,on 94	0 %	distance	control option yes
				adaptive start control	no
				working time limitation	yes
				black bulb sensor	no
				self-learning functionality	no
				control accuracy	no
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands
Model identifier: Sani Mirror 600 Wi-Fi
Item Symbol Value Unit Item	Unit
Heat output Type of heat output/room temperature control				rol (select one)
Nominal heat output Pnom 0.600 kW single stage			heat out	put and no room temperature control	no
Minimum heat output (indicative)	Pmin 0.00 kW two or more m			manual stages, no room temperature control	no
Maximum continuous heat output	Pmax,c 0.6s00 kW withMech			panic thermostat room temperature control	no
Power consumption with electronic room temperature control				control no
In off mode	Po	0.00	W	electronic room temperature control plus day timer	no
In standby mode	Psm	N.A.	W	electronic room temperature control plus week timer	yes
In idle mode	Pidle	0.73	W	Other control options (multiple selections possible)
In network standby	Pnsm	0.73	W	room temperature control, with presence detection	no
Standby mode with display of information or status			no	room temperature control, with open window detection	yes
Seasonal space heating energy efficiency in active mode	ηS,on 94	0 %	distance	control option yes
				adaptive start control	no
				working time limitation	yes
				black bulb sensor	no
				self-learning functionality	no
				control accuracy	no
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands

Sani Mirror *** Wi-Fi Swiss plug

POWERFUL PRODUCTS SINCE 1974

Art.net

Batch

220-240V~50Hz - *** Watt

IP24

EUROMAC B.V. - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - THE NETHERLANDS - [e-mail]

Obrazok 87.

Špecifikácie

Typ Sani Mirror 400 Wi-Fi Sani	Mirror 600 Wi-Fi
Rozmery vyrobku: 5 x 50 x 70 cm	5 x 80 x 60 cm
Hmotnost: 8,2 kg 11,2 kg
Napätie: 220 - 240V~ / 50Hz 220 - 240V~ / 50Hz
Spotreba: 400W 600W
Stupeš ochrany: IP24 IP24
Trieda ochrany: Trieda I Trieda I

Spolocnost Euromac B.V. tymto vyhlasuje, ze tento vyrobok je v sulade so smernicou 2014/53/EU.

Uplné znenie vyhlásenia o zhode EU je k disposzicii na tejto internetovej adrese: www.eurom.nl/ declaration-of-conformity.
