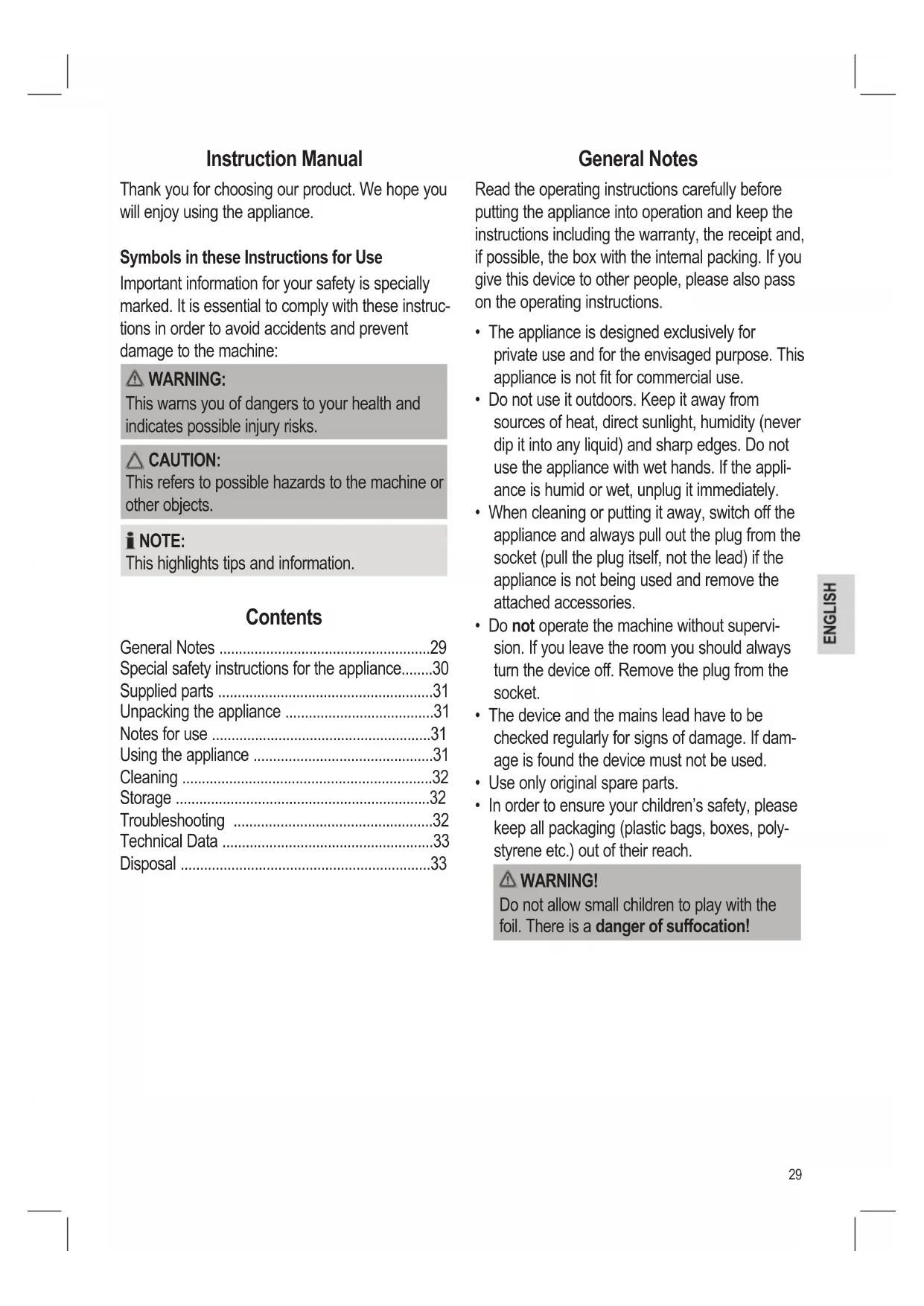

USER MANUAL PCKSW 1093 PROFICOOK

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

IOTE:

This highlights tips and information.

Contents

General Notes 29

Special safety instructions for the appliance.30

Supplied parts 31

Unpacking the appliance 31

Notes for use 31

Using the appliance 31

Cleaning 32

Storage 32

Troubleshooting 32

Technical Data 33

Disposal 33

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety instructions for the appliance

WARNING: The blades of the knives are sharp!

Handle the knives with the necessary care! There is a risk of injury especially during cleaning!

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children.
• Keep the appliance and its cord out of reach of children.
  Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Only use the appliance if you are sure that the lid is fitted properly.
• The appliance is fitted with a circuit breaker that prevents that the appliance can be operated without a lid. Never try to bridge this circuit breaker!
• Before you remove the lid, wait until the knives have stopped rotating!
• This appliance and the lid are not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter "Cleaning".

Supplied parts

1 Device
1 Lid

Unpacking the appliance

1. Remove the appliance from its packaging.
2. Remove all packing materials such as foils, filling material, cord holders, and cardboard packaging.
3. Check the scope of delivery for its completeness.
4. If there are missing parts or obvious damage, do not use the device. Return it to your retailer immediately.

NOTE:

There may still be dust or production residues on the appliance. We recommend cleaning the appliance as described under "Cleaning".

Notes for use

Location

A slip-resistant, level surface is suitable as the location.

Closing and opening the lid

Observe the symbols on the lid and device.

1. Position the lid with the symbol aligned with the symbol.
2. Secure the lid by turning it anticlockwise. The lid is locked when both and are aligned with each other.
3. To open the lid, turn it clockwise and remove it.

Filling quantity

Fill the container with coffee beans, not exceeding the black plastic rim. That equals to an amount of approx. 50g

Electrical connection

1. Check that the mains voltage that you want to use corresponds with the one of the appliance. You will find the information about this on the type plate of the appliance base.
2. Connect the power cord to a properly installed protective contact socket.

Switching on / off

• Press the button to switch on the device.
• When releasing the button, the device will turn off.

NOTE:

The motor drive of the appliance is equipped with a safety switch. If the device cannot be turned on, check the correct fit of the lid.

Pulse operation

Press the button in intervals to operate in pulse mode.

Short-term operation

• The device is suited for a short-term operation of a maximum of 30 seconds.
• Only use the appliance in immediate succession for a maximum of 5 times.
• Maintain a break of 1 minute between operating cycles.

Using the appliance

1. Add the coffee beans into the container. Do not overfill the container!
2. Put the lid on. Lock the lid.
3. Hold the device with one hand. Press the button with the other hand.
4. Work in pulse operation for an optimal result. This helps you set the level of fineness for the beans you are grinding.

The following contains some comments on the degree of fineness for the powder and the intended purpose. Please observe that these are only average values. Changes may occur due to the sort and roasting of the coffee beans, for example.

Fine - espressomachine

Fine/medium - coffee machine

Medium - hand filter

Medium/rough - press coffee

Rough - can

1. To empty the container, remove the lid.

Terminating operation

1. Pull the power cord out of the socket.
2. Remove the lid.
3. Fill the coffee grounds into another suitable container.
4. Clean the appliance as described under "Cleaning".

Cleaning

WARNING:

• Always remove the plug before cleaning.
• Never immerse the device in water for cleaning. Otherwise this might result in an electric shock or fire.
• The cutting surfaces of the knives are sharp. There is a risk of injury! Handle these with the necessary care!

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

• Do not immerse the lid in water. Water accumulated inside the lid cannot be removed.

• Use a dry brush to remove coffee grounds residue.

• Wipe the device and the lid from inside to outside using a damp cloth.
• Only place the lid on the device when all parts are completely dry.

Storage

• Clean the appliance as described and let it dry completely.

• We recommend that you store the appliance in the original packaging, should you not want to use it for a longer period of time.

• Always store the appliance out of the reach of children in a well ventilated and dry location.

Troubleshooting

The device is not functioning.

Remedy:

Check the mains connection.

Other possible causes:

Your device is equipped with a safety switch. It prevents the unintentional starting up of the motor.

Remedy:

Check the correct position of the lid.

Technical Data

Model: PC-KSW 1093

Power supply: 220 - 240 V~, 50/60 Hz

Power consumption: 160 W

Protection class:

Net weight: approx. 0.8 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment

that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
