USER MANUAL WA 1700 ADE

Black and white photo of a wine maker with a coiled spring and label 'ADE' (no additional text or symbols visible)

Silver wine tap with coiled glass and spiral cord (no text or symbols visible)

Simple icon of a person reading a document inside a circle (no text or symbols)

Bedienungsanleitung

WA 1700 | 1701

Operating instructions | Instrucciones de operación | Mode d'emploi Istruzioni per l'uso Instrukcja obsługi

ADE 1 2 3 4 5

LR06 (AA)

Diagram of a mechanical component with bidirectional arrows indicating rotation or force direction (no text or symbols)

22089 Hamburg, Germany

22089 Hamburg, Germany

Garantie

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. Uncork wine bottles effortlessly with this wine opener for a delightful wine experience. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We wish you delightful moments.

Your ADE Team

General information

About this manual

This operating manual describes how to safely use and care for your products.

Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General information....12

Scope of delivery....13

Safety....14

At a glance (scope of delivery)......16

Inserting/changing batteries ...... 17

Use 18

Cleaning....19

Technical Data 20

Declaration of Conformity .....20

Guarantee 21

Disposal 21

Scope of delivery

Electric wine bottle opener
- Foil cutter
- LR06 (AA), 1.5 V batteries _= (4x)
- Operating Manual

Intended Use

This electric wine bottle opener is used to open commercially available wine bottles with natural corks.

The wine bottle opener is not suitable for commercial use, e.g. in gastronomy.

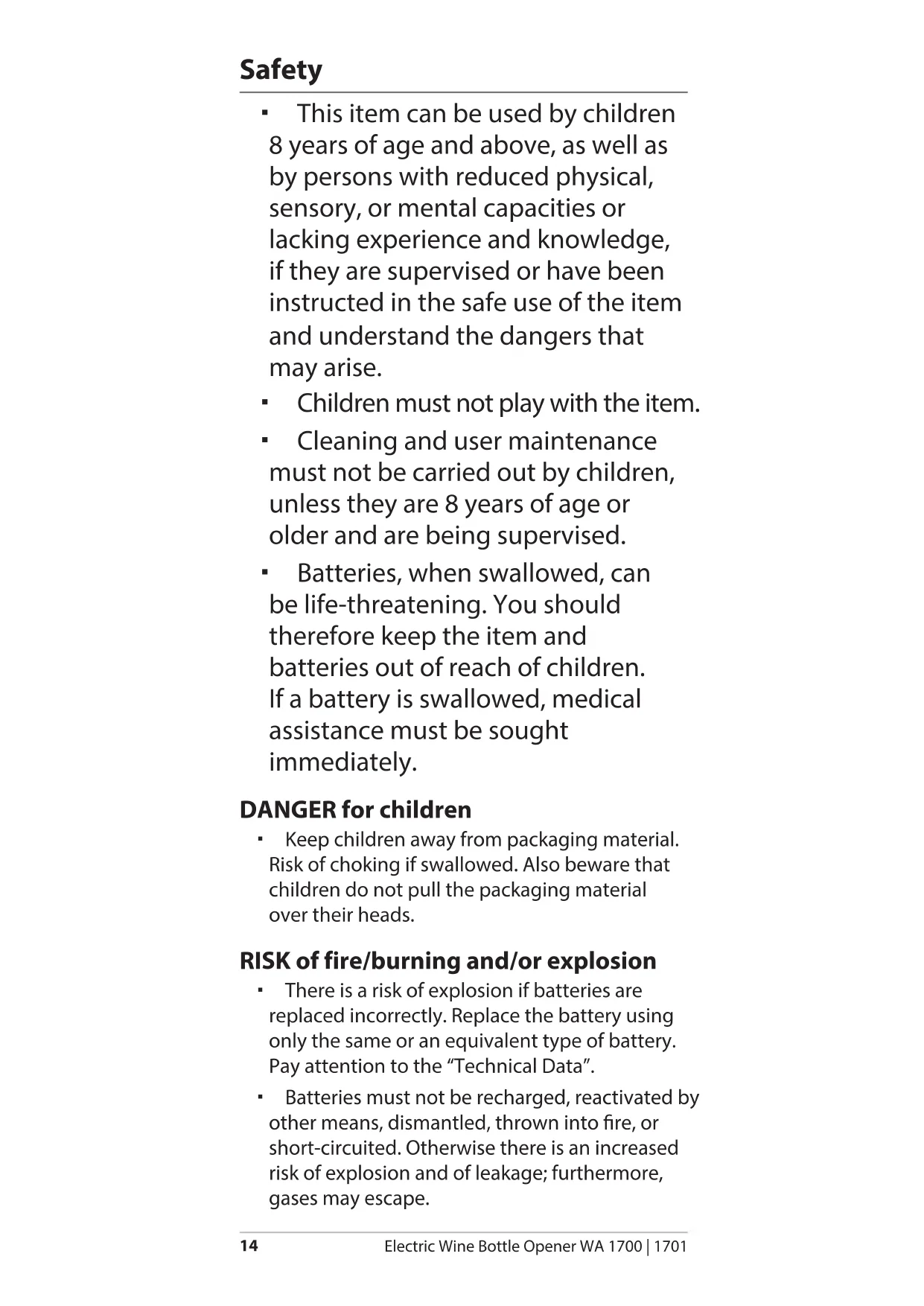

Safety

- This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.

• Children must not play with the item.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries, when swallowed, can be life-threatening. You should therefore keep the item and batteries out of reach of children. If a battery is swallowed, medical assistance must be sought immediately.

DANGER for children

- Keep children away from packaging material. Risk of choking if swallowed. Also beware that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

- There is a risk of explosion if batteries are replaced incorrectly. Replace the battery using only the same or an equivalent type of battery. Pay attention to the "Technical Data".

- Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.

☐ Avoid contact of the battery fluid with skin, eyes, and mucosa. If you do come into contact with it, rinse the affected areas immediately and thoroughly with clean water and consult a doctor immediately.

WARNING against risk of injury

The spiral tip of the corkscrew is pointed. Handle the wine bottle opener carefully.

BEWARE of material damage

☐ Protect the wine bottle opener from strong impacts, vibrations and moisture.
☐ Remove the battery from the item when it is exhausted or if you will not use the item for a long time. You will thus avoid damage that may result from the leakage of battery acid.
☐ When inserting and changing batteries, pay attention to the correct polarity (+/-).
Do not subject the battery to any extreme conditions, by – for example – storing it on radiators or under direct sunlight. Increased risk of leakage!
☐ Clean the battery and device contacts, as needed, before inserting the battery.
Do not make any modifications to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

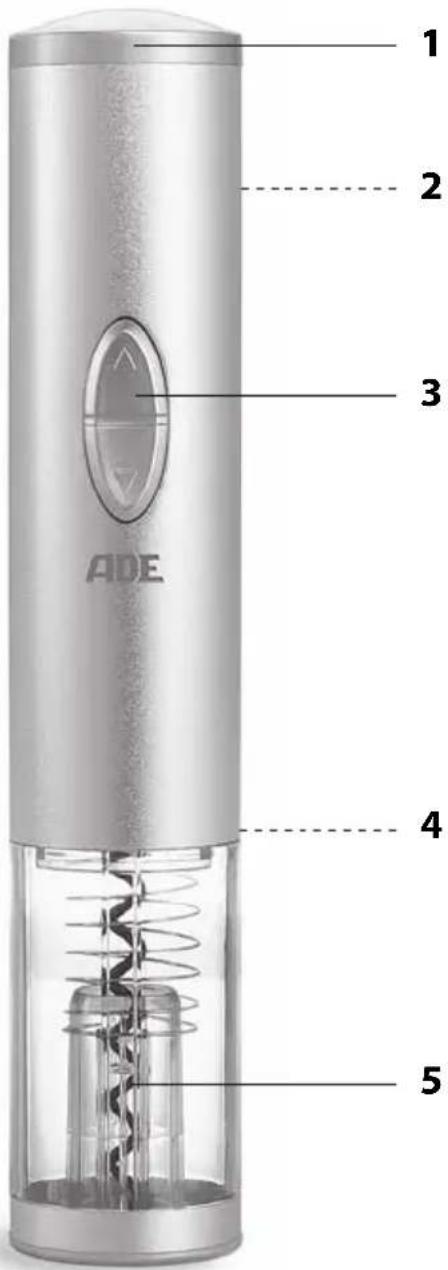

ADE 1 2 3 4 5

1 Battery compartment cover
2 Battery compartment
3 Toggle switch ▲ / ▼
4 Light
5 Corkscrew spiral

Not depicted: Foil cutter

Inserting/changing batteries

To use, you will need 4 LR06, 1.5 V batteries (included in the delivery).

LROG (AA)

1. Turn the battery compartment cover counterclockwise and remove it.

2. Insert the batteries as shown below. Pay attention to the correct polarity (+/-).

3. Replace the battery compartment cover. Note the grooves on the underside of the cover. The battery compartment cover can only be placed flush in one position.

4. Turn the battery compartment cover clockwise onto the wine bottle opener.
5. Check that you have indeed inserted the batteries correctly by pressing ▲/▼ on the toggle switch.

- The corkscrew must rotate upwards or downwards.

-The light must turn red or blue.

If everything works as described, the electric wine bottle opener is ready for use.

Notes on changing the battery:

• It is necessary to change the batteries when the wine bottle opener is no longer working or the cork is no longer pulled out of the bottle.
• Only use the type of battery that is specified in the "Technical Data".
• Dispose of batteries in an environmentally appropriate way (see "Disposal").

Removing foil

Diagram of a mechanical component with bidirectional arrows indicating rotation or force direction (no text or symbols)

-Remove the foil on the neck of the bottle. If the foil does not have a tear-off strip, you can use the supplied foil cutter.

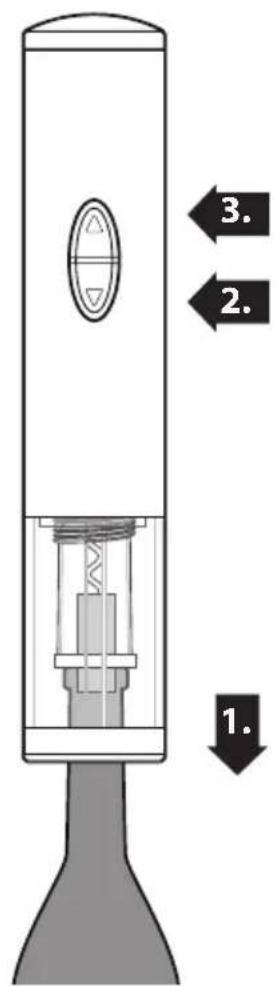

Pulling corks

1. 2. 3.

1. Place the wine bottle opener on the neck of a conventional wine bottle. Hold the wine bottle firmly.

2. Press ▼ on the toggle switch.

The light turns blue and the wine bottle opener is pulled downwards.

- Keep the toggle switch pressed. As soon as the wine bottle opener is pulled all the way down, the corkscrew spiral pulls the cork out of the neck of the bottle. This process takes a few seconds. Continue holding the wine bottle firmly.

-Remove the wine bottle opener. If the wine bottle opener cannot be removed, the cork has not been completely pulled out.

Briefly press ▼ again on the toggle switch and try again.

1. Finally, press ▲n the toggle switch to push the cork out of the wine bottle opener. The light turns red in the process.

Cleaning

WARNING against injury

- Be careful when handling the foil cutter. Its blade poses a risk of injury.

-Wipe the wine bottle opener and foil cutter with a damp cloth.

- The interior of the wine bottle opener can be dusted with a fine, dry brush if necessary.

- The wine bottle opener and foil cutter can be easily stored in the original packaging.

-If you will not use the wine bottle opener for an extended period of time, remove the batteries to avoid possible leakage.

Fault/Remedy

Fault Possible Cause
No function • Are	the batteries empty or have they been inserted incorrectly?
The cork is not pulled out of the bottle.	• The batteries are almost exhausted and must be replaced.
	• The cork is not suitable.

Technical Data

Model: Electric wine bottle opener

WA 1700 (silver),

WA 1701 (black)

Batteries: 4x LR6 (AA)/1.5 V

Rated current: 17 mA

Dimensions: ∅ 51 x 275 mm

Distributor: Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Declaration of Conformity

This item has been manufactured in accordance with the harmonised European standards.

It complies with the provisions of the EC directives specified below:

• EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU

in the currently valid versions.

This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance.

Hamburg, April 2017

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Guarantee

Dear Valued Customer, the company Waagen-Schmitt GmbH guarantees for 3 years from the purchase date the cost-free remedying of defects due to material or fabrication errors by repair or exchange. In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Dispose of the product in accordance with the regulations that apply in your country. You will find complete information about disposal in the full operating manual.

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
