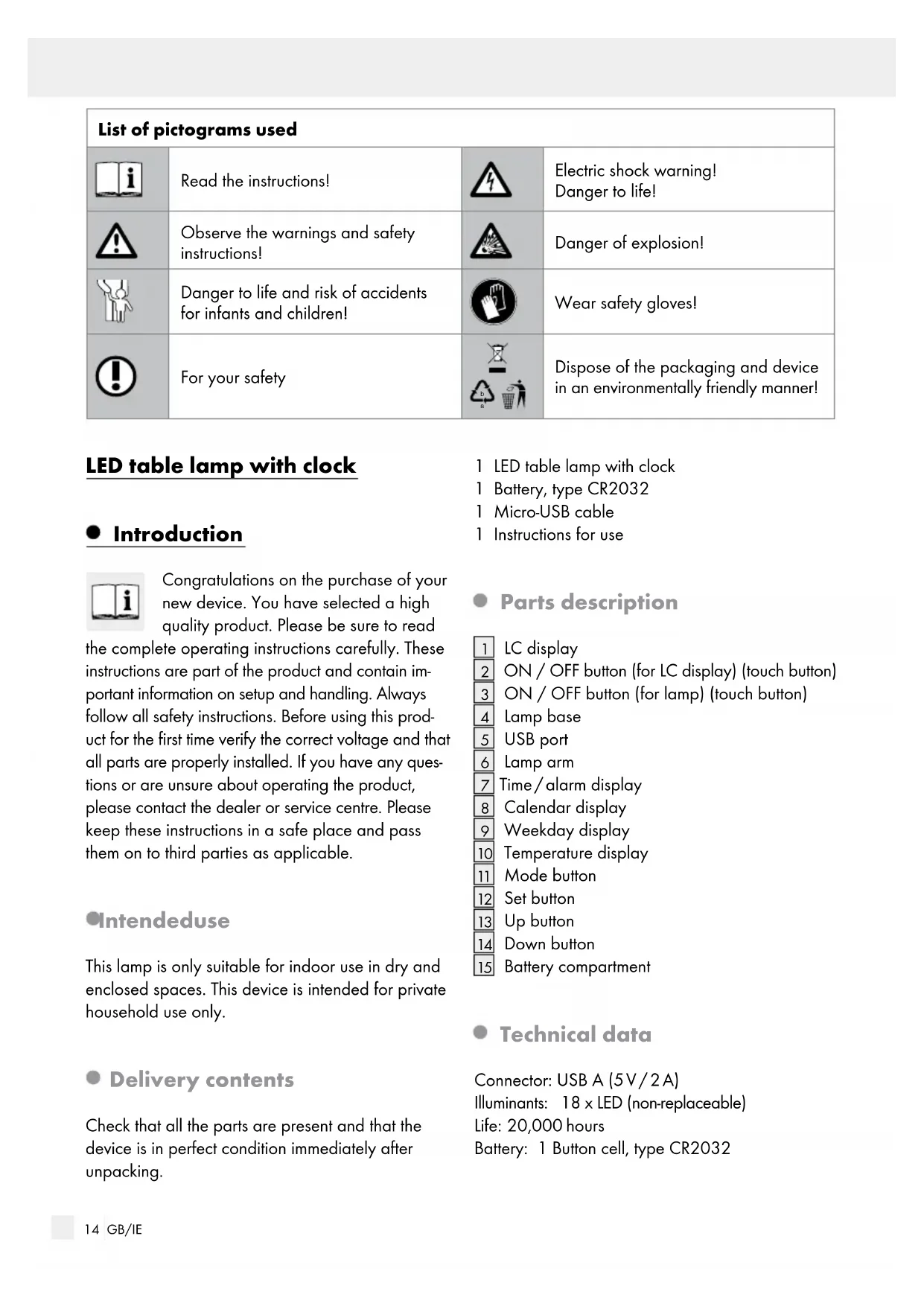

USER MANUAL IAN 297175 Livarno Lux

LED TABLE LAMP WITH CLOCK

Operation and Safety Notes

Dispose of the packaging and device in an environmentally friendly manner! LED table lamp with clock Introduction Congratulations on the purchase of your new device. You have selected a high quality product. Please be sure to read the complete operating instructions carefully. These instructions are part of the product and contain im- portant information on setup and handling. Always follow all safety instructions. Before using this prod- uct for the first time verify the correct voltage and that all parts are properly installed. If you have any ques- tions or are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on to third parties as applicable. Intended use This lamp is only suitable for indoor use in dry and enclosed spaces. This device is intended for private household use only. Delivery contents Check that all the parts are present and that the device is in perfect condition immediately after unpacking. 1 LED table lamp with clock 1 Battery, type CR2032 1 Micro-USB cable 1 Instructions for use Parts description

ON / OFF button (for LC display) (touch button)

ON / OFF button (for lamp) (touch button)

Battery compartment Technical data Connector: USB A (5 V / 2 A) Illuminants: 18 x LED (non-replaceable) Life: 20,000 hours Battery: 1 Button cell, type CR203215 GB/IE Dimensions: ø Lamp base: 90 mm Upper lamp arm: 192 x 40 x 12,5 mm Height with horizontal arm: 260 mm Height with extended arm: 430 mm Material: Plastic (metal in the lamp base) Safety Safety instructions Damage due to failure to comply with these instruc- tions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety instructions! DANGER TO

LIFE AND RISK OF ACCIDENTS

FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Always keep children away from the product. This product is not a toy. This device may be used by children aged 8 years and up, as well as by persons with re- duced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the as- sociated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision. Avoid the risk of fatal injury from electric shock Check the lamp for possible damage before every use. Never use the lamp if it shows any signs of damage. A damaged lamp means danger of death from electric shock. In the event of damage, repairs or other problems with the lamp, please contact the service centre or an electrician. To avoid hazards, if the external flexible lead on this lamp is damaged it must be replaced by the manufacturer, their service representative or an equivalent professional! Ensure before use that the available mains voltage is the same as the voltage required for operating the lamp. Never allow the lamp to come into contact with water or other liquids. Never open any of the electrical equipment or insert objects into these. This will pose the risk of fatal injury from electric shock. The illuminant is not replaceable. To avoid hazards, if the illuminant is damaged it must be replaced by the manufacturer, their service representative or an equivalent profes- sional. This lamp is not suitable for dimmers or electronic switches. Preventing fire and injury hazards Do not look directly into the light source (illumi- nant, LED etc.). To prevent burns, be sure the lamp is switched off and cooled down before touching it. Illumi- nants become very hot. Do not cover the lamp with objects. Excessive heat build-up can result in fire. Do not operate the lamp unattended. For your safety Install the lamp so that it is protected from moisture and dirt. Always be attentive! Always pay attention to what you are doing and use common sense. Never install the lamp if you are having difficulty concentrating or do not feel well.16 GB/IE Safety instructions for batteries / rechargeable batteries

KEEP BATTERIES OUT OF

THE REACH OF CHILDREN! Swallowing batteries can cause chemical burns, perforation of soft tissue, and death. Severe burns may oc- cur within 2 hours of swallowing batteries. Seek immediate medical attention. DANGER TO LIFE! Keep batteries / recharge- able batteries out of reach of children. If acci- dentally swallowed seek immediate medical attention. DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result. Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries. Risk of leakage of batteries / rechargeable batteries Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight. If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous mem- branes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention! WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. In the event of a leakage of batteries / recharge- able batteries, immediately remove them from the product to prevent damage. Only use the same type of batteries / recharge- able batteries. Do not mix used and new bat- teries / rechargeable batteries. Remove batteries / rechargeable batteries if the product will not be used for a longer period. Risk of damage of the product Only use the specified type of battery / re- chargeable battery! Insert batteries / rechargeable batteries accord- ing to polarity marks (+) and (-) on the battery / rechargeable battery and the product. Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting! Remove exhausted batteries / rechargeable batteries from the product immediately. This product has a built-in rechargeable battery which cannot be replaced by the user. The re- chargeable battery must be removed or replaced by the manufacturer or their service centre or a similarly qualified person to avoid hazards. When disposing of the product, you must indicate this product contains a rechargeable battery. Set-up Note: Remove all packaging material from the product. Place the lamp on a flat surface with its back side facing you. You have the option of using the lamp battery operated or USB operated: Battery operation: Remove the insulating stripes from the battery compartment

on the reverse side of the lamp before first use. A melody will sound. USB Operation: Charge the lamp before first use by inserting one end of the USB cable into the USB port

and inserting the other end of the USB cable into the USB interface on the computer or a USB adapter.17 GB/IE Adjusting the lamp Note: Only change the alignment of the lamp when it is switched off. You can adjust the lamp to the lighting conditions you require. Move the lamp arm

at an angle of 180 ° (see Fig. B). Switching the lamp on / off and dimming Switch the lamp on or off using the ON / OFF button

. All you need to do here is press it with your finger (touch button). You can dim the lamp in three stages. The brightest stage is activated automatically when you switch on the lamp. You can dim the bright- ness using the ON / OFF button

Switching the LC display on / off Switch the lighting on the LC display

and off using the ON / OFF button

. All you need to do here is press it with your finger (touch button). Functions Time mode: Displays time, date, week, temperature; 12 / 24 hour format (AM = morning, PM = evening) Alarm/ snooze mode: Set the alarm time and select alarm signals; snooze function can also be operated at the same time Birthday reminder mode: Set the time and date of a birthday; a song will play on the selected day Timer mode: Set time will be counted down Temperature mode: Automatic display of the current temperature: us- ing the set button

to switch between different functions: Output format 12/ 24 hour format Alarm mode Birthday reminder mode Timer mode Note: If no button has been pressed for one minute, the LC display

to set the desired for- mat using the up button

once more to confirm your entry. Enter the information in the following order:18 GB/IE 12 hour display hour minute Year Month Day The following adjustment range is available: years between 2008 and 2099, months be- tween 1 and 12, days between 1 and 31, hours between 1 and 12 or 0 and 23, minutes be- tween 0 and 59. When setting the hours and minutes the seconds are automatically deleted. The week will change automatically when the date has been set. Press the mode button

in the output format to activate the snooze function. Press the up button

again to deactivate the snooze function. Press the mode button

twice in the output format to configure the alarm / snooze mode. Press the set button

to set the desired time and alarm melody or alarm tone using the up button

Note: You have the option of switching be- tween 7 alarm melodies and 2 alarm tones. Press the set button

again to confirm your entry. Enter the information in the following order: Hours minutes music When the alarm sounds press any button to end the alarm. If the snooze function has been activated, then the alarm will sound four times and the snooze display will flash in the LC dis- play

to deactivate the snooze function. The snooze display will disappear. Press the mode button

twice in the output format to configure the alarm / snooze mode. Press the set button

twice to deactivate the alarm. Birthday reminder mode Press the mode button

three times in the out- put format to configure the birthday reminder mode. Press the set button

to set the desired date using the up button

again to confirm your entry. Enter the information in the following order: hour minute year month day On the birthday „Happy Birthday“ will be played for 5 minutes. You can stop playback of the song by pressing any button. Timer mode Press the mode button

four times in the output format to configure the timer mode. Press the set button

to set the desired time using the up button

again to confirm your entry. The timer will begin (countdown from the set time). Enter the information in the following order: hour minute time interval The following adjustment range is available: hours between 0 and 23, minutes between 0 and 59. When the set time has expired, a melody will sound. To end the melody press any button. Temperature mode Press the set button

in the output format to switch between °C and °F.19 GB/IE Music playback Press the down button

in the output format to play back music. You can choose between seven songs. Changing the battery Open the battery compartment

by turning the battery cap anticlockwise using a coin. Remove the old battery and replace this with a new battery (see „Technical Data“). Please note the polarity when inserting the battery. This is indicated in the battery compartment

A melody will sound. To end the melody press any button. Turn the battery cap clockwise onto the battery compartment

using a coin to close it. Maintenance and cleaning

WARNING! DANGER OF ELECTRIC

SHOCK! For electrical safety, never clean the lamp with water or other liquids, nor immerse it in water. CAUTION! RISK OF BURNS! Allow the lamp to cool down completely. Do not use solvents, petrol, etc. Otherwise the lamp will be damaged. Only clean with a dry, lint-free cloth. Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
