USER MANUAL HTR3619FWMP HAIER

• Legend Warning – Important Safety information General information and tips Environmental information Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic ap- pliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal oce. Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings. WARNING! Risk of injury or suocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut o the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance. 2GB Content 1- Safety information p. 4
• 2- Intended use p. 8
• 3- Product description p. 9
• 4- Control panel p. 12
• 5- Use p. 13
• 6- Energy saving tips p. 20
• 7- Equipment p. 21
• 8- Care and Cleaning p. 24
• 9- Troubleshooting p. 26
• 10- Installation p. 29
• 11- Technical Data p. 33
• 12- Customer Service p. 36

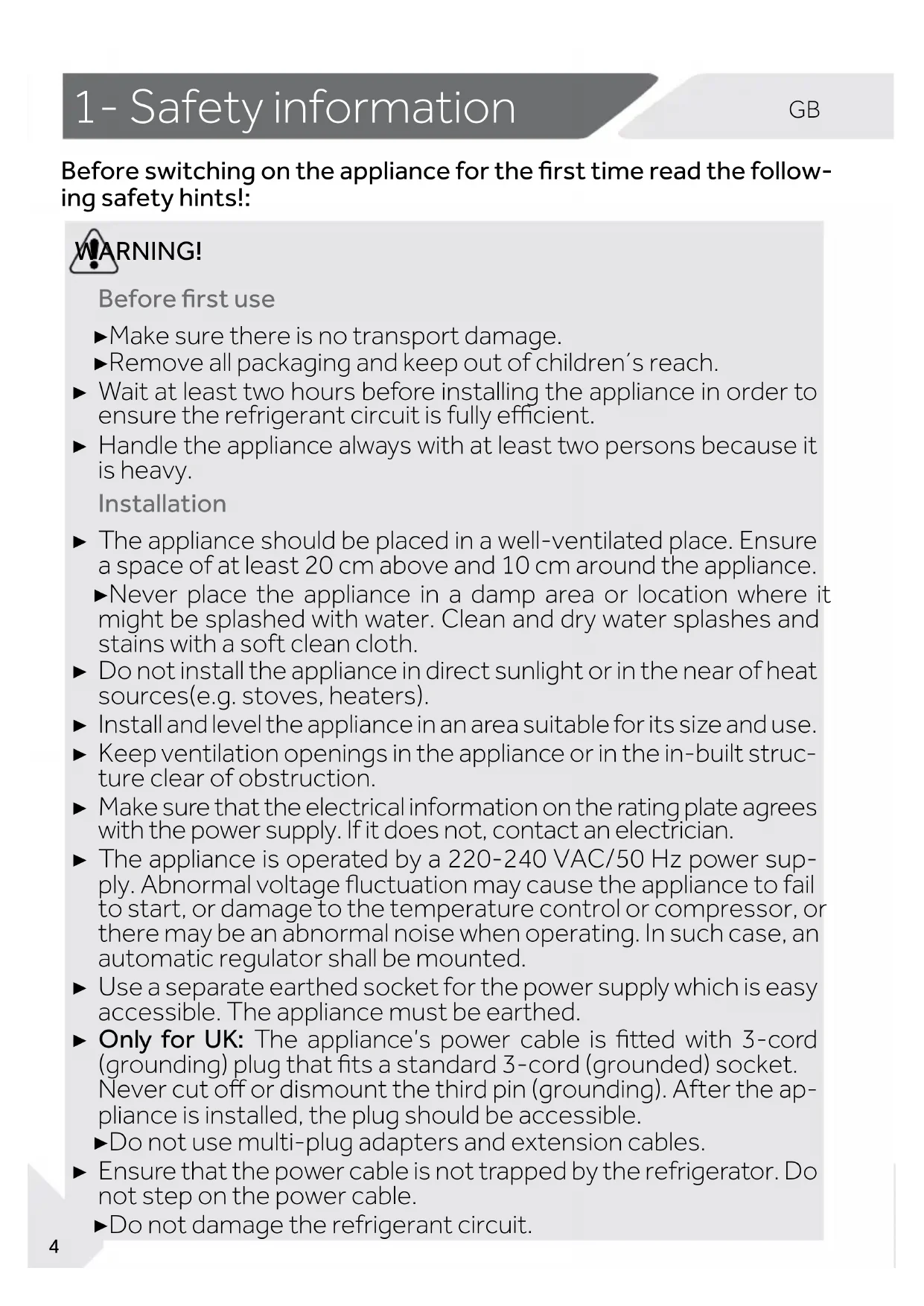

Before switching on the appliance for the rst time read the follow- ing safety hints!: WARNING! Before rst use ▶ Make sure there is no transport damage. ▶ Remove all packaging and keep out of children´s reach. ▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully ecient. ▶ Handle the appliance always with at least two persons because it is heavy. Installation ▶ The appliance should be placed in a well-ventilated place. Ensure a space of at least 20 cm above and 10 cm around the appliance. ▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. ▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters). ▶ Install and level the appliance in an area suitable for its size and use. ▶ Keep ventilation openings in the appliance or in the in-built struc- ture clear of obstruction. ▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. ▶ The appliance is operated by a 220-240 VAC/50 Hz power sup- ply. Abnormal voltage uctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. ▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. ▶ Only for UK: The appliance’s power cable is tted with 3-cord (grounding) plug that ts a standard 3-cord (grounded) socket. Never cut o or dismount the third pin (grounding). After the ap- pliance is installed, the plug should be accessible. ▶ Do not use multi-plug adapters and extension cables. ▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable. ▶ Do not damage the refrigerant circuit. 4GB

1- Safety information

WARNING! Daily use ▶ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ▶ Keep away children under 3 years of age from the appliance un- less they are constantly supervised. ▶ Children shall not play with the appliance. ▶ If cool gas or other inammable gas is leaking in the vicinity of the appliance, turn o the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance. ▶ Notice that the appliance is set for operation at a specic am- bient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or be- low the indicated range. ▶ Do not place unstable articles (heavy objects, containers lled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water. ▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple. ▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your ngers. Open or close the refrigerator doors only when there are no children standing within the range of door movement. ▶ Do not store or use inammable, explosive or corrosive materials in the appliance or in the vicinity. ▶ Do not store medicines, bacteria or chemical agents in the ap- pliance. This appliance is a household appliance. It is not recom- mended to store materials that require strict temperatures. ▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. ▶ Check the condition of food if a warming in the freezer has taken place.

WARNING! Daily use ▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst. ▶ Do not touch frozen goods with wet hands (wear gloves). Espe- cially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! ▶ Do not touch the inside surface of the freezer storage compart- ment when in operation, especially with wet hands, as your hands may freeze onto the surface. ▶ Unplug the appliance in the event of a power interruption or be- fore cleaning. Allow at least 5 minutes before restarting the appli- ance, as frequent starting may damage the compressor. ▶ Do not use electrical devices inside the food storage compart- ments of the appliance, unless they are of the type recommend- ed by the manufacturer. Maintenance / cleaning ▶ Make sure children are supervised if they carry out cleaning and maintenance. ▶ Disconnect the appliance from the electrical supply before un- dertaking any routine maintenance. Allow at least 5 minutes be- fore restarting the appliance, as frequent starting may damage the compressor. ▶ Hold the plug, not the cable, when unplugging the appliance. ▶ Do not scrape o frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts. ▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the man- ufacturer. ▶ If the supply cord is damaged, it must be replaced by the manu- facturer, its service agent or similarly qualied persons in order to avoid a hazard. 6GB

1- Safety information

WARNING! The appliance contains the ammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open re sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse immedi- ately it under running water and call immediately the eye specialist. WARNING! Maintenance / cleaning ▶ Do not try to repair, disassemble or modify the appliance by your- self. In case of repair please contact our customer service. ▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by re, as well as increased energy consumption. ▶ Do not spray or ush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves with hot water. Sudden tem- perature change may cause the glass to break. WARNING! ▶ Taking care to avoid causing a re by igniting ammable material. ▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. ▶ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Refrigerant gas information

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices Changes or modifcations to the device are not allowed. Unintended use may cause haz-

ards and loss of warranty claims. and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and breakfast ant catering business, It is not intended for commercial or industrial use. To avoid contamination of food, please respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. – Clean regularly surfaces that can come in contact with food and accessible drainage systems. – Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. – Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. – Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. – One-, two- and three-star compartments are not suitable for the freezing of fresh food. – If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.GB

3- Product description

Notice 11 Upper freezer storage drawer with pre- freezing rack 12 Lower freezer storage drawer 13 Adjustable feet B: Freezer compartment 14 Water dispenser 15 Water tank Water dispenser (if available) *= Colour code A: Refrigerator compartment 1 Refrigerator LED lamp 2 Air duct and sensor (behind panel) 3 Rating plate 4 Glass shelves 5 O.K.-temperature indicator 6 Glass Shelve 7 Air Duct 8 My Zone box cover 9 My Zone box 10 Door rack

Notice 11 Upper Freezer Box 12 Middle Freezer Box 13 Lower Freezer Box 14 Adjustable feet 15 Water dispenser 16 Water tank B: Freezer compartment *= Colour code A: Refrigerator compartment 1 Refrigerator LED lamp 2 Air duct and sensor (behind panel) 3 Rating plate 4 Glass shelves 5 O.K.-temperature indicator 6 Gass Shelve 7 Air Duct 8 My Zone box cover 9 My Zone box 10 Door rack

(HDR series Fig.3.1.2)GB

Check the accessories and literature in accordance with this list (Fig.:2.2): Please keep the accessories and literature for installation and maintenance. Energy-label Covers User manual Warranty card Door hingesIce cube tray with cover Egg trays

Keys: A Refrigerator temperature setting B Freezer temperature setting and Super-Frz. function on/o C Holiday function on/o D Panel lock/unlock Indicators: a Temperature refrigerator compartment b1 Temperature freezer compartment b2 Super-Freeze function (“Super-Frz.”) c Holiday function d Panel lock 12GB

▶ Remove all packaging materials, keep them out of children`s reach and dispose them in an environmentally friendly manner. ▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ▶ After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION. ▶ Precool the compartments at high settings before loading with food. The function Super-Freeze helps to cool down the freezer compartment quickly. ▶ The refrigerator temperature and freezer temperature are automatically set to 5° C and -18° C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE. Notice: Presettings ▶ The appliance is preset to the recommended temperature of 5°C (refrigerator) and - 18°C (freezer). Under normal ambient condition you need not to set a temperature. ▶ When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached. Empty the appliance before switching o. To switch o the appliance,pull the power cord out o the power socket.

The appliance is in operation as soon as it is connected to the power supply. When the appliance is powered on for the rst time, temperature indicators “a” and “b1”show the presetting values (refer to NOTICE ).

The display screen turns o automatically 30 seconds after pressing a key. The display will be automatically locked. It lights up automatically by touching any key or opening the door .

The buttons on the control panel are sensor keys, which already respond when lightly touched with the nger. Notice: Panel lock The control panel is automatically blocked against activation if 30 seconds no key is touched. For any settings the control panel must be unlocked. ▶ Touch key “D” for 3 seconds to block all panel ele- ments against activation (Fig. 5.5.1). ▶ The related indicator “d” is now displayed (Fig. 5.5.2). ▶ For unlocking touch again the key.

5.5 Lock/unlock panel

Notice: Conict with other functions The temperature in the corresponding compartment cannot be adjusted if any other function (Super-Freeze or Holiday) is activated or the display is locked. The correspond-ing indicator will ash accompanying .

5.7.1 Adjust the temperature for fridge

1. Unlock the panel by touching key “D” if it is locked (Fig. 5.5.1).2. Touch sequentially key “A” (Fridge) until the de-sired value of temperature indicator “a” is ashing (Fig. 5.7.1).The optimum temperature in the refrigerator is 5 °C. Colder temperatures mean unnecessary en-ergy consumption.3. After a few seconds temperature indicator “a” will shine permanently and the setting is conrmed. Fridge

5.6 Door opening alarm

When the refrigerator door is opened for more than 1minute, the door opening alarm will sound (Fig. 5.6). The alarm can be silenced by closing the door. If the door is left open for more than 7 minutes, the light in-side the refrigerator and control panel illumination will automatically switch o. The indoor temperatures are inuenced by the follow-ing factors: ▶ Ambient temperature ▶ Frequency of door opening ▶ Amount of stored foods ▶ Installation of the appliance

5.7 Adjust the temperature

5.7.2 Adjust the temperature for freezer

1. Unlock the panel by touching key “D” if it is locked (Fig. 5.5.1).

2. Touch sequentially key “B” (Freezer) until the de-

sired value of temperature indicator “b1” is ash-ing. (Fig. 5.7.2).The optimum temperature in the freezer is -18°C. Colder temperatures mean unnecessary energy consumption.3. After a few seconds temperature indicator “b1” will shine permanently and the setting is conrmed.

Fresh food should be frozen as quickly as possible to the core. This preserved the best nutritional value, ap- pearance and taste. The Super-Freeze function ac- celerates the freezing of fresh food and protects the goods already stored from undesirable warming. If you need to freeze a large amount of food once, it is recommended to set the Super-Freeze function on ahead for 24h before the usage of frozen room.

1. Unlock the panel by touching key “D” if it is locked

„b2“ illuminates and the function is activated (Fig. 5.8).

3. The same operation can exit Super-Freeze function.

Notice: Automatically switch o The Super-Freeze function will automatically switch o after 56 hours. The appliance is then operated at the previously set temperature. Notice: Automatic fault display When Indicator “a” or “b1” keep blinking due to fault, Please contact professional after sales service personnel as soon as possible. WARNING! During the Holiday function no goods must be stored in the refrigerator compartment. The temperature of + 17 ° C is too high for storing food.

This function sets the refrigerator temperature per- manently to 17°C. This allows to keep the door of the empty refrigera- tor closed without causing an odour or mold - during a long absence (e.g. during holiday). The freezer com- partment is free for your setting.

1. Unlock the panel by touching key “D” if it is locked

2. Touch key “C” (Holiday); indicator “c” illuminates

and the function is activated (Fig. 5.9).

3. The same operation can exit Holiday function.

The fridge compartment is equipped with a MyZone box (Fig.5.10).In accordance with the food’s storage demands,the most suitable temperature can be se- lected to get the optimal nutritional value of the food from Chiller to Fruit&Vegetable.(Fig.5.11.)

5.11 Adjusting MyZone box function

This Myzone box can be used as Chill compartment and Fresh-food storage compartment and also can be preserved for dierent kinds of food which achieved by the control of the fridge air duct pick. Notice: MyZone box ▶ The temperature in this box is from Chill compartment to Fresh-food storage com- partment. ▶ When the fridge air duct pick locates in the right Chiller position, the box will get the lowest temperature.While the fridge air duct pick locates in the left Fruit&Vegetable position,the box will get the highest temperature. ▶ It may be slightly changed due to the dierent ambient temperature or refrigerator working style. ▶ Sometime the temperature in this box may dip below zero, so before you put fruit & vegetable into it, please make right setting.

With the water dispenser cool drinking water can be tapped. The water tank should be cleaned before rst use (see CARE AND CLEANING)

5.12.1 Filling the water tank

WARNING! Use drinking water only. Ensure that the water tank is properly inserted (see EQUIPMENT) Rotate and lift the round lid (A) and pour fresh drinking water into the water tank (Fig.5.12.1). Fill water only up to the mark (2.5 I); as it could over ow when the door opens and closes. Close the round lid (A) until it clicks into place. Notice: Water dispenser ▶ Before relling dispose residual water and clean the water tank. ▶ When you don’t need water for a long time, please empty the water tank and insert the cleaned tank. ▶ The cover (C) on the water tank (Fig.5.12.1) is additionally used to save energy. If you do not want to get water from the water dispenser for a long period , please still install the cover because of better insulating and saving energy.

5.13 Tips on storing fresh food

5.13.1 Storing into the refrigerator compartment

▶ Keep your fridge temperature below 5°C. ▶ Hot food must be cooled to room temperature before storing in the appliance. ▶ Foods stored in the refrigerator should be washed and dried before storing ▶ Food to be stored should be properly sealed to avoid odour or taste alterations. ▶ Do not store excessive quantities of food. Leave spaces between foods to allow cold air owing around them, for a better and more homogeneous cooling. ▶ Foods eaten daily should be stored at the front of the shelf. ▶ Leave a gap between foods and the inner walls, allowing air owing. In special way don’t store foods against the rear wall: foods could freeze against rear wall. Avoid di- rect contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found. ▶ Frozen food can be gently defreezed in the refrigerator compartmentor with defrost function in the MyZone box. This saves energy. ▶ The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba- nana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advis- able to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegeta- bles should also be stored at room temperature. ▶ Unpleasant odours inside the fridge are a sign that something has spilled and clean- ing is required. See CARE AND CLEANING. ▶ Dierent foods should be placed in dierent areas according to their properties (Fig.:

1 Butter, cheese, eggs, spices, etc. Jam, cheese, tomato sauce, etc 2 Drinks and bottled foods. 3 Pickled foods, canned food, etc. 4 Meat products, snack foods, pasta, milk , tofu, dairy, etc. 5 Cooked meat, sausages, etc. 6 MyZone box: Fruit, vegetables, salad, etc.

When storing commercially frozen foods, please follow these guidelines: ▶ Always follow manufacturers’ guidelines for the length of time you should store food for. Do not exceed these guidelines! ▶ Try to keep the length of time between purchase and storage as short as possible to preserve food quality. ▶ Buy frozen foods, which have been stored at a temperature of –18 °C or below. ▶ Avoid buying food which has ice or frost on the packaging – This indicates that the products might have been partially defrosted and refrozen at some point – temper- ature rises aect the quality of food.

5.13.2 Storage into the freezer compartment

▶ Keep the freezer temperature at- 18°C. ▶ 24 hours before freezing switch on the Super-Freeze function; -for small quantities of food 4-6 hours are sucient. ▶ Hot food must be cooled to room temperature before storing in the freezer com- partment. ▶ Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg ▶ It is better to pack food before putting it into the freezer. The outside of the pack- aging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic. ▶ In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of dif- ferent foods. ▶ WARNING!: Acid, alkali and salt etc. could erode the internal surface of the freezer. Do not place the food having these substances (e.g. sea sh) directly on the internal surface. Salt water in the freezer should be cleaned up immediately. ▶ Do not exceed the food storage times recommended by the manufacturers. Only take the required amount of food out of the freezer. ▶ Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is rst cooked, otherwise it may bless edible. ▶ Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer – See TECHNICAL DATA or data at the type plate. ▶ Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months) ▶ When freezing fresh food, avoid bringing it in contact with already frozen food. Risk of thawing!

Energy saving tips ▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters). ▶ Avoid unnecessarily low temperature in the appliance. The energy consumption in- creases the lower the temperature in the appliance is set. ▶ Functions like SUPER-FREEZE consume more energy. ▶ Allow warm food to cool down before placing it in the appliance. ▶ Open the appliance door as little and as briey as possible. ▶ Do not overll the appliance to avoid obstructing the air ow. ▶ Avoid air within the food packaging. ▶ Keep door seals clean so that the door always closes correctly. ▶ Defreeze frozen food in the fridge storage compartmentGB

Notice: Shelves Ensure that all ends of a shelf are level. Notice: Dierences depending on model Due to dierent models, your product may not have all of the following features. Please refer to chapter PRODUCT DESCRIPTION. WARNING! Do not store things that need precision storage temperature such as medicine and food therapy articles, to prevent them deteriorating

The refrigerator is equipped with a multi-air-ow sys- tem, with which cool air ows are located on every shelf level (Fig. 7.1). This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

7.2 Adjustable shelves

The height of the shelves can be adjusted to t your storage needs.1. To relocate a shelf, remove it rst by uplifting its hind edge (1) and pulling it out (2) (Fig. 7.2). 2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is xed inside the slots in the sides

7.3 Removable door racks

The door racks can be removed for cleaning: Place hands on each side of the rack, lift it upwards (1)and pull it out (2) (Fig. 7.3). In order to insert the door rack, the above steps are carried out in reverse order. (1) ar e

For use and setting of the Myzone compartment (Fig.7.4) please check section USE (Myzone box).

Notice:OK-sticker When the appliance is switched on, it may take up to 12 hours for the correct tempera- tures to be reached. Notice: Water tank ▶ Make sure the spout is rmly screwed to the water tank ▶ and the white O-ring (C) is in position. If the water tank is not properly inserted. water can drip from the connection. ▶ Do not use excessive force when removing or in- stalling the water tank. to avoid damging the tank.

7.7.1 Remove water tank

The water tank can be removed and reinstalled for cleaning in the same way as the door racks (Fig.7.7.1)

7.7.2 Insert water tank

1. Make sure the dispenser spout (B) is rmly screwed

to the water tank and the white O-ring (C) is in position (Fig.7.7.2-1).

2. Place the water tank in the position that the dis-

penser spout (B) ts into the opening of the door (D) (Fig.7.7.2-2)

7.5 OK-temperature indicator

The OK-temperature (Fig. 7.5) indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate “OK”.

The LED interior light comes on when the door is opened. The performance of the lights is not aected by any of the appliances other settings.

7.8 Removable freezer drawer

To remove the drawer out, pull out to the maximum ex-tent (1), lift and remove (2) (Fig. 7.8). In order to insert the drawer, the above steps are car-ried out in reverse order. WARNING! Do not overload the drawers: Max. load of each drawer: 35 kg!.

7.9 Pre-freezing rack

The upper drawer is equipped with pre-freezing rack, which can be also placed to the lower drawer if needed. (Fig. 7.9). Fresh frozen food can be separated from al-ready frozen, so that a smooth freezing process can take place and freezing food will not defrosted. After rearrangement of frozen food these compartments can be used for easy storage of small parts such as herbals, ice cream or for the ice cube tray.

7.9 Pre-freezing tray

The lower freezer drawer is equipped with a pre-freez-ing rack (Fig. 7.9). Fresh frozen food can be separated from already frozen, so that a smooth freezing process can take place and freezing food will not defrosted. After rearrangement of frozen food these compart- ments can be used for easy storage of small parts such as herbals, ice cream.

By using the Fresher Pad in the freezer compartment, food put on this pad will be frozen three times faster than in ordinary freezer. The zone of maximum ice crystal formation will be minimized; the quality of food will be saved: ▶ Put the Fresher Pad in the upper freezer drawer in edis eht no doof eht ecalp dna eloh evitcepser eht printed with “Fresher Pad“.

without pad because: ▶outside the appliance. Place the food on the side printed with “Fresher Pad“.8- Care and Cleaning

Clean the appliance when only little or no food is stored. The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odours. WARNING! ▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶ Do not spray or ush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break . ▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. ▶ In case of heating check the condition of frozen goods. WARNING! Disconnect the appliance from the power supply before cleaning. WARNING! Do not replace the LED lamp yourself, it must only be replaced by either the manufac- turer or the authorised service agent.

▶ Always keep the door gasket clean. ▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent (Fig. 8.1). ▶ Rinse and dry with soft cloth. ▶ Do not clean any of the parts of the appliance in a dishwasher. ▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

8.3 Replacing the LED-lamps

The lamp adopts LED as its light source, featuring low energy consumption and long ser- vice life. If there is any abnormality, please contact the customer service . See CUSTOMER SERVICE.GB

8- Care and Cleaning

Notice: Switch o Turn the appliance o only if strictly necessary. WARNING! ▶ Do not lift the appliance by its handles. ▶ Never place the appliance horizontally on the ground.

8.5 Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holi- day-function for the refrigerator: ▶ Take out the food. ▶ Unplug the power cord. ▶ Clean the appliance as described above. ▶ Keep the door and freezer drawers/door open to prevent the creation of bad odours inside.

8.4 Cleaning the water tank (Fig.8.2)

1. Take o the water tank out of the appliance.

2. Removethe cover (C) and unscrew the dispenper

3. Clean the water tank and the dispenser spout with

warm running water and liquid dishwashing deter- gent. Make sure all soap is rinsed o.

8.6 Moving the appliance

1. Remove all food and unplug the appliance.

2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

Parameter Voltage in V 13.2 Max power in W 2 LED Spec white

Problem Possible Cause Possible Solution The compressor does not work.

• Mains plug is not connected in the mains socket.

• Connect the mains plug.

• The appliance is in the defrosting cycle.

• This is normal for an automatic defrosting. The appliance runs frequently or runs for a too long pe- riod of time.

• The indoor or outdoor tempera- ture is too high.

• In this case, it is normal for the ap- pliance to run longer.

• The appliance has been o power for a period of time.

• Normally, it takes 8 to 12 hours for the appliance to cool down com- pletely.

• A door/drawer of the appliance is not tightly closed.

• Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.

• The door/drawer has been opened too frequently or for too long.

• Do not open the door/drawer too frequently.

• The temperature setting for the freezer compartment is too low.

• Set the temperature higher until a satisfactory refrigerator tempera- ture is obtained. It takes 24 hours for the refrigerator temperature to become stable.

• The door/drawer gasket is dirty, worn, cracked or mismatched.

• Clean the door/drawer gasket or replace them by the customer service.

• The required air circulation is not guaranteed.

• Ensure adequate ventilation. The inside of the refrigerator is dirty and/or smells.

• The inside of the refrigerator needs cleaning.

• Clean the inside of the refrigera- tor.

• Food of strong odour is stored in the refrigerator.

• Wrap the food thoroughly. Many occuring problems could be solved by yourself without specic expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! ▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. ▶ Electrical equipment should be serviced only by qualied electrical experts, because improper repairs can cause considerable consequential damages. ▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

Problem Possible Cause Possible Solution It is not cold enough inside the appli- ance.

• The temperature is set too high. • Reset the temperature.

• Too warm goods has been stored. • Always cool down goods before storing them.

• Too much food has been stored at one time.

• Always store small quantities of food.

• The goods are too close to each other.

• Leave a gap between several foods allowing air owing.

• A door/drawer of the appliance is not tightly closed.

• Close the door/drawer.

• The door/drawer has been opened too frequently or for too long.

• Do not open the door/drawer too frequently. It is too cold in- side the appli- ance

• The temperature is set too low. • Reset the temperature.

• The Power-Freezer function is ac- tivated or is running too long.

• Switch o the Power-Freezer function. Moisture forma- tion on the inside of the refrigerator compartment.

• The climate is too warm and too damp.

• Increase the temperature.

• A door/drawer of the appliance is not tightly closed.

• Close the door/drawer.

• The door/drawer has been opened too frequently or for too long.

• Do not open the door/drawer too frequently.

• Food containers or liquids are left open.

• Let hot foods cool to room tem- perature and cover foods and li- quids. Moisture accu- mulates on the refrigerators out- side surface or be- tween the doors/ door and drawer.

• The climate is too warm and too damp.

• This is normal in damp climate and will change when the humidity de- creases.

• The door/drawer is not closed tightly. The cold air in the appliance and the warm air outside it con- densates.

• Ensure that he door/drawer is tightly shut. Strong ice and frost in the freez- er compartment.

• The goods were not adequately packaged.

• Always pack the goods well.

• A door/drawer of the appliance is not tightly closed.

• Close the door/drawer.

• The door/drawer has been opened too frequently or for too long.

• Do not open the door/drawer too frequently.

• The door/drawer gasket is dirty, worn, cracked or mismatched.

• Clean the door/drawer gasket or replace them by new ones.

• Something on the inside prevents the door/drawer to close properly.

• Reposition the shelves, door racks, or internal containers to al- low the door/drawer to close. The appliance makes abnormal sounds.

• The appliance is not located on level ground.

• Adjust the feet to level the appli- ance.

• The appliance touches some ob- ject around it.

• Remove objects around the appli- ance.

Problem Possible Cause Possible Solution A slight sound is to be heard simi- lar to that of ow- ing water.

• This is normal. • - You will hear an alarm beep.

• The fridge storage compartment door is open.

• Close the door or silence the alarm manually. You will hear a faint hum

• The anti-condensation system is working.

• This prevents condensation and is normal. The interior lighting or cooling system does not work.

• Mains plug is not connected in the mains socket.

• Connect the mains plug.

• The power supply is not intact. • Check the electrical supply to the room. Call the local electricity company!

• The LED-lamp is out of order. • Please call the service for chang- ing the lamp. The sides of the cabinet and door strip get warm.

• This is normal. • - Notice: Memory function during power interruption After restoration of power the appliance continues with the settings that were set be- fore the power failure.

In the event of a power cut, food should remain safely cold for about 16 hours. Follow these tips during a prolonged power interruption, especially in summer: ▶ Open the door/drawer as few times as possible. ▶ Do not put additional food into the appliance during a power interruption. ▶ If prior notice of a power interruption is given and the interruption duration is longer than 16 hours, make some ice and put it in a container in the top of the refrigerator compartment. ▶ An inspection of the goods is required immediately after the interruption. ▶ As temperature in the refrigerator will rise during a power interruption or other fail- ure, the storage period and edible quality of food will be reduced. Any food that de- frosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.GB

▶ Take the appliance out of the packaging. ▶ Remove all packaging materials.

10.2 Environmental conditions

The room temperature should always be between 10° C and 43° C, since it can inuence the temperature inside the appliance and its energy consumption. Do not install the appli- ance near other heat-emitting appliances (ovens, refrigerators) without isolation.

10.3 Door reversibility

Before the appliance is permanently installed, check the correct position of the door hinge. If necessary see section the DOOR REVERSIBILITY.

10.4 Space requirement

Required space when door is opened (Fig. 10.4):

WARNING! ▶ The appliance is heavy. Always handle with at least two persons. ▶ Keep all packaging materials out of children´s reach and dispose them in an environ- mentally friendly manner.

10.5 Ventilaton cross-section

To achieve sucient ventilation of the appliance for safety reasons, the information of the required venti- lation cross sections must be observed (Fig. 10.5). 100 mm200 mm100 mm100 mm

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Be- fore connecting the appliance to the power supply you have to wait 2 hours (Fig.10.7) so that the oil runs back into the capsule. 2 h

The appliance should be placed on a at and solid sur- face.

1. Tilt the appliance slightly backwards (Fig. 10.6).

2. Set the feet to the desired level.

3. The stability can be checked by alternately bump-

ing on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door. WARNING! To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

10.8 Electrical connection

Before each connection check if: ▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according. Connect the plug to a properly installed household socket. max 45°

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability. WARNING! ▶ The appliance is heavy. You need two persons to carry out the door reversibility. ▶ Before any operation, rst unplug the appliance from the mains . ▶ Do not tilt the appliance more than 45 ° to prevent damage of the cooling system.

1. Provide necessary tool.2. Unplug the appliance.

3. Remove the ve screws which x the front panel (1) and remove the panel (2).4. Remove the small cover of the front panel from left to right side.5. Unplug the connection cable6. Remove the upper hinge cover (1) and unscrew the upper hinge (three screws) on right side (2).

7. Lift the loose refrigerator door carefully o the

lower hinge.8. Turn the door upside down, unscrew the cover (1) and the door stop (2) with xing part (3).9. Take out new cover (1) and door stop (2) with xing part (3) from the accessory bag and screw them to opposite side. 10. Remove the lower hinge of the upper door.11. Change the positions of the blanking plugs and the screw on the side.

After the change of the door check that the door seals are located properly on the housing and all screws are tightened well.

12. Take out the new lower hinge of upper door from

the accessory bag and screw it to the left side of the appliance.

13. Lift the upper door carefully on to the lower hinge

so that the pivot ts into the hinge barrel.

14. Take out the upper hinge from the accessory

bag. Put the connection cable through the up

per hinge and x the upper hinge with the three screws on left side of appliance. 15 Put the hinge cover (delivered in the accessory bag) over the hinge.

16. Plug in the connection cable and t it into the

17. Replace front panel and x it with the ve screws.

18 Take out the cover from the accessory bag and x it to the right side of upper door.

Next steps (a-h) are only necessary for models with two doors: a Remove lower door b This step needs two persons; one who holds the appliance in place and one who carries out the as- sembly steps! Tilt the appliance slightly backwards and remove the lower hinge with the feet (1). Change also po- sition of the other feet (2). c Unscrew the two grub screws (1), remove the low- er hinge, rotates through 180° (2) and d rex the lower hinge with the 2 grub screws e Screw the lower hinge to the left side of the appliance. f Follow steps 8 and 9. g Lift the lower door carefully on to the lower hinge so that the pivot ts into the hinge barrel.

Take out the new hinge from the accessory bag and screw it to the left side of the appliance.

= 8. + 9. Be sure the pivot ts into the hinge barrel of lo- wer door. Be sure the pivot ts into the hinge barrel of lo- wer door.GB

regulation EU No. 1060/2010 Trade mark Haier HTR3619FN* Category of the model Refrigerator-freezer Annual energy consumption (kWh/year)

Storage volume freezing (L) Star rating Temperature of other compartments > 14°C Non applicable Frostfree system Yes Power cut safe (h) Freezing capacity (kg/24h) Climate class This appliance is intended to be used at an ambient temperature between °C and °C. SN/N/ST/T Airborne acoustical noise emissions (db(A) re 1pW) Construction type Freestanding

based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.

the cover can be removed to increase the volume of the MyZone compartment.

Category of the model Refrigerator-freezer A+ A++ Annual energy consumption (kWh/year)

Storage volume freezing (L) 108 108 Star rating Temperature of other compartments > 14°C Non applicable Frostfree system Yes Power cut safe (h)

This appliance is intended to be used at an am- bient temperature between 10 °C and 43°C. SN/N/ST/T Airborne acoustical noise emissions (db(A) re 1pW)

based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.

the cover can be removed to increase the volume of the MyZone compartment.

11.3 Standards and directives

This product meets the requirements of all applicable EC directives with the correspond- ing harmonised standards, which provide for CE marking.

11.2 Additional technical data

/Temperature rise time (h) Volume cooling (L) Volume freezing (L)

/Temperature rise time (h) Volume cooling (L) Volume freezing (L) Noise emission class and airborne acoustical noise emissions (db(A) re 1pW)

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please rst check section TROUBLESHOOTING. If you cannot nd a solution there, please contact ▶ your local dealer or ▶ the Service & Support area at www.haier.com where you can nd telephone numbers and FAQs and where you can activate the service claim. To contact our Service, ensure that you have the following data available. The information can be found on the rating plate. Model ____________________ Serial No. _____________________ Also check the Warranty Card supplied with the product in case of warranty. For general business enquiries please nd below our addresses in Europe: European Haier addresses Country* Postal address Country* Postal address Italy Haier Europe Trading SRL Via De Cristoforis, 12 21100 Varese ITALY France Haier France SAS 3-5 rue des Graviers 92200 Neuilly sur Seine FRANCE Spain Portugal Haier Iberia SL Pg. Garcia Faria, 49-51 08019 Barcelona SPAIN Belgium-FR Belgium-NL Netherlands Luxembourg Haier Benelux SA Anderlecht Route de Lennik 451 BELGIUM Germany Austria Haier Deutschland GmbH Hewlett-Packard-Str. 4 D-61352 Bad Homburg GERMANY Poland Czechia Hungary Greece Romania Russia Haier Poland Sp. zo.o. Al. Jerozolimskie 181B 02-222 Warszawa POLAND United Kingdom Haier Appliances UK Co.Ltd. One Crown Square Church Street East Woking, Surrey, GU21 6HR

Model: (HDR series Fig.3.1.2)

(HDR series Fig.3.1.2) Model:

(HDR series Fig.3.1.2) Model:

(HDR series Fig.3.1.2) Model:

(HDR series Fig.3.1.2) Model:

(HDR series Fig.3.1.2) Model:

(HDR series Fig.3.1.2) Model:

γία Holiday. Holiday 5.9EL
