USER MANUAL RRTG18PAAW HAIER

Read all of the instructions before using this appliance. When using this appliance, always exercise basic safety precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use

2) This refrigerator must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the installation section.

3) Never unplug your refrigerator by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have

become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.

5) Unplug your refrigerator before cleaning or before making any repairs.

If for any reason this product requires service, we strongly recommend that a certified technician performs the service.

7) If your old refrigerator is not being used, we recommend that you

remove the doors. This will reduce the possibility of danger to children.

8) After your refrigerator is in operation, do not touch the cold surfaces in

the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.

9) Do not refreeze foods, which have been thawed completely. The United

States Department of Agriculture in Home and Garden Bulletin No. 69 reads: "…You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold-below 40˚F". "…Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat." "…Even partial thawing and re-freezing reduce the eating quality of foods, particularly fruits, vegetables, and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible, to save as much of its eating quality as you can." EnglishEnglish

Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use of your refrigerator. Remember to record the model and serial number. They are on a label inside of the refrigerator. Model number Serial number Date of purchase Staple your receipt to your manual.

10) This refrigerator should not be recessed or built-in an enclosed

cabinet. It is designed for freestanding installation only.

11) Do not operate your refrigerator in the presence of explosive fumes.

screwdrivers. SEnglish

3. Freezer Shelf (size of shelves vary

8. Glass Crisper Cover

9. Humidity Control for Crisper

13. Dairy Compartment

1. Remove all packaging material. This includes the corrugated base

and all adhesive tape holding the refrigerator accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed

materials before powering on the refrigerator. Leveling Your Refrigerator:

• Your refrigerator has two leveling legs which are located in the front corners of your refrigerator. After properly placing your refrigerator in its final position, you can level your refrigerator.

• Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them counterclockwise to lower your refrigerator. The refrigerator door will close easier when the leveling legs are raised.

• To assure your refrigerator works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the refrigerator: Sides……………3/4 "(19mm) Top....................1" (25mm) Unpacking Your Refrigerator Adjusting Your Refrigerator Proper Air Circulation

• Avoid the use of three plug adapters or cutting off the third grounding pin order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard.

• Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

• Do not install your refrigerator in any location not properly insulated or heated e.g. garage etc. Your refrigerator was not designed to operate in temperature settings below 55˚ Fahrenheit.

• Select a suitable location for the refrigerator on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located on the front bottom corners of the refrigerator. Install Limitations Use of Extension Cords English 6English

pad and secure them to the left side. It is also necessary to move the bottom hinge axle from the right side of the hinge to the left side. NOTE: If the door fit is too tight between the bottom and center hinges after moving them to the left side, we advise to use only one plastic pad and remove the extra stud under the bot tom hinge axle for proper fit and sealing.English

15• LOW setting allows moist air to exit the crisper for optimum storage of fruits and/or vegetables, which have skins.

• HIGH setting retains moist air in the crisper for optimum storage of fresh, leafy vegetables. Gallon door storage: Your refrigerator may be equipped with gallon door storage shelves. This feature will allow for the storage of gallon size containers. To remove refrigerator door shelves: (see fig. # 15)

1. Remove all items stored on the shelf.

2. Gently push up each side until the shelf is

clear of the door shelf slots and then remove.

3. Carefully push down on each end of the door shelf until it is locked

1. Unplug power to the refrigerator.

2. Remove the highest shelf.

3. Allow light bulb to cool before removing.

4. Remove the bulb by turning it counter

5. Replace with a 25 watt appliance bulb.

6. Replace the bulb cover.

1. Unplug power to refrigerator.

2. Place finger in the bulb cover slot and gently

press outward to remove.

3. Wait for bulb to cool before removing.

4. Remove bulb by turning it counter clockwise.

5. Replace the bulb with a 25 watt appliance bulb.

6. Replace the bulb cover.

fig. #16 fig. #17English 18English Plastic containers with air tight lids Heavy duty aluminum foil Plastic wrap made from plastic film wrap Self-sealing plastic bags Do not refreeze defrosted/thawed foods. It is recommended that the freezing date be marked on the packaging.

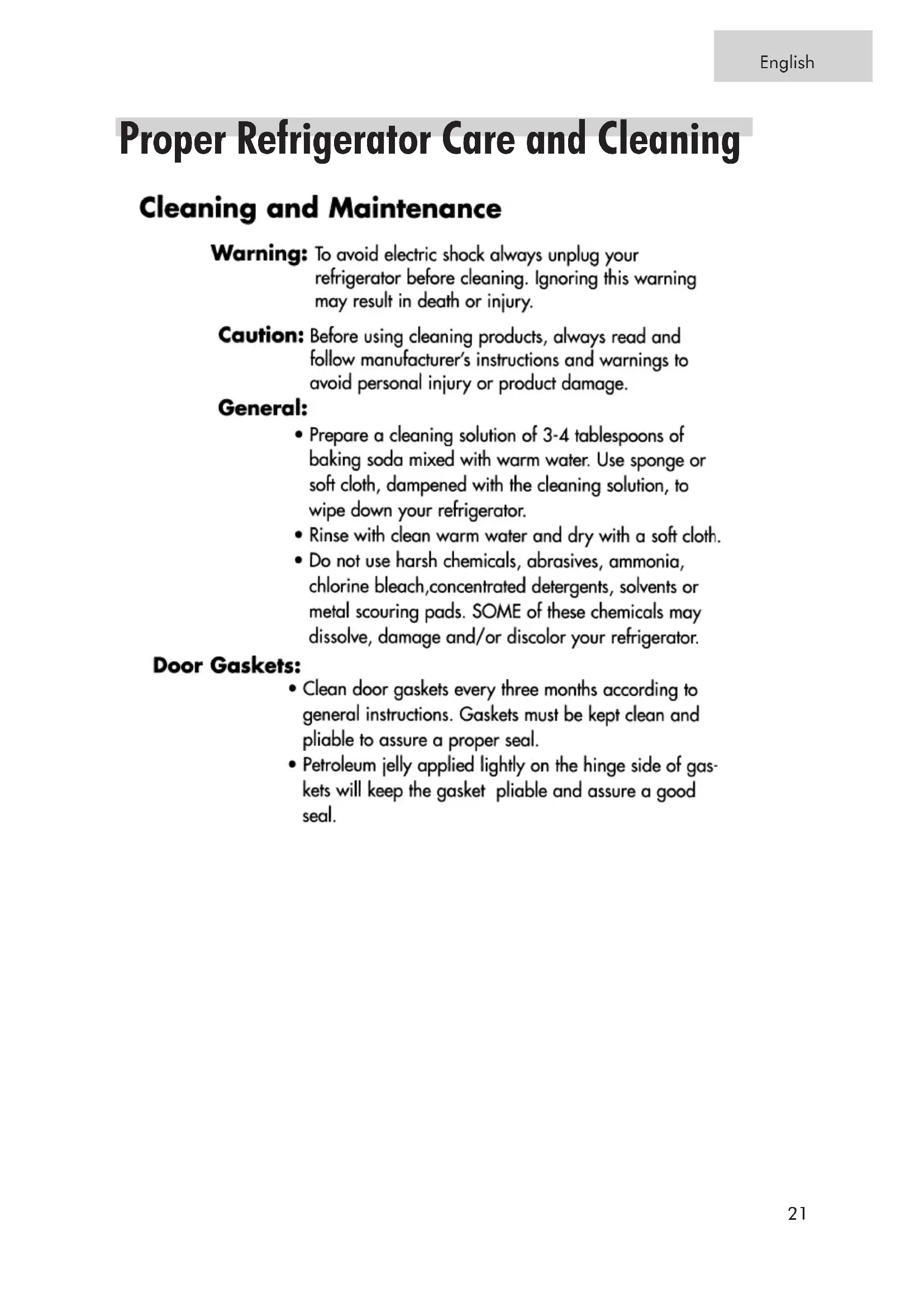

Proper Refrigerator Care and Cleaning 21English “General cleaning” section pg. 21.

22English in “defrost” mode and must complete this cycle before compressor starts to operate. TroubleShooting 23English

• Check front to back slope is approx. 1/4”.
