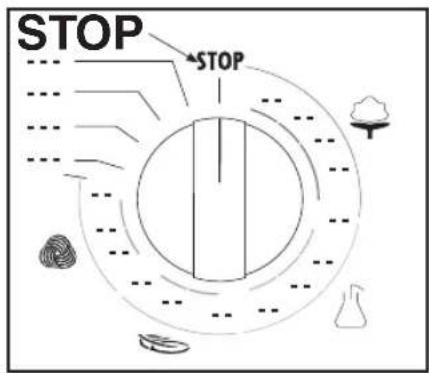

"STOP" SUL PROGRAMMATORE

STOP STOP

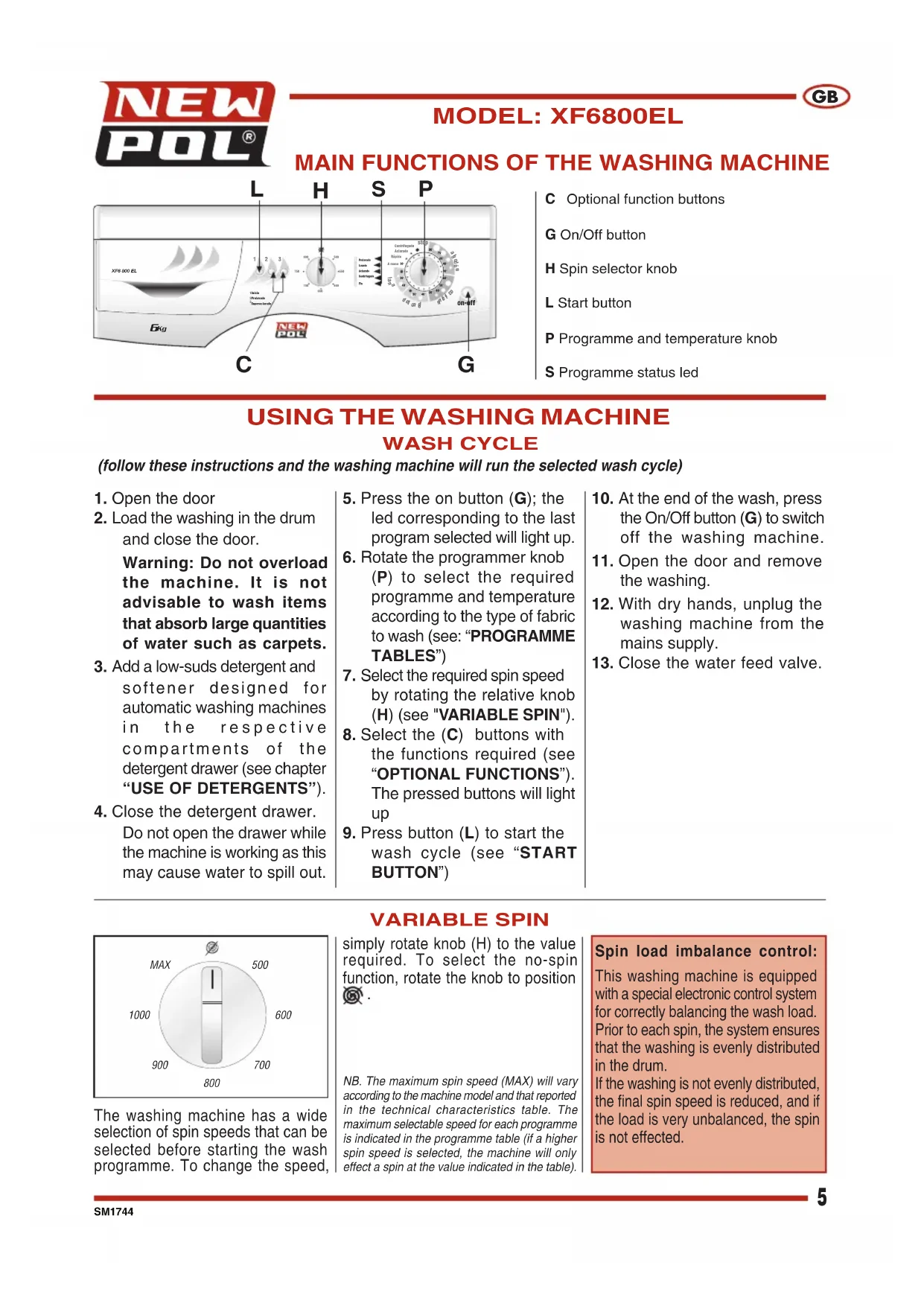

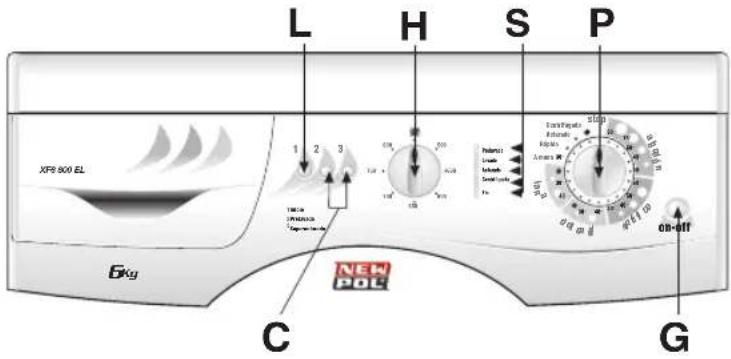

MAIN FUNCTIONS OF THE WASHING MACHINE

L H S P XP8 800 EL 1 2 3 10% 10% Polency: Low High Standard On-off 6kg NEW POL C G

C Optional function buttons

G On/Off button

H Spin selector knob

L Start button

P Programme and temperature knob

S Programme status led

USING THE WASHING MACHINE

WASH CYCLE

(follow these instructions and the washing machine will run the selected wash cycle)

1. Open the door

2. Load the washing in the drum and close the door.

Warning: Do not overload the machine. It is not advisable to wash items that absorb large quantities of water such as carpets.

1. Add a low-suds detergent and softener designed for automatic washing machines in the respective compartments of the detergent drawer (see chapter "USE OF DETERGENTS").

2. Close the detergent drawer. Do not open the drawer while the machine is working as this may cause water to spill out.

3. Press the on button (G); the led corresponding to the last program selected will light up.

4. Rotate the programmer knob (P) to select the required programme and temperature according to the type of fabric to wash (see: "PROGRAMME TABLES")

5. Select the required spin speed by rotating the relative knob (H) (see "VARIABLE SPIN").

6. Select the (C) buttons with the functions required (see "OPTIONAL FUNCTIONS"). The pressed buttons will light up

7. Press button (L) to start the wash cycle (see "START BUTTON")

8. At the end of the wash, press the On/Off button (G) to switch off the washing machine.

9. Open the door and remove the washing.

10. With dry hands, unplug the washing machine from the mains supply.

11. Close the water feed valve.

VARIABLE SPIN

MAX 500 1000 600 900 700 800

The washing machine has a wide selection of spin speeds that can be selected before starting the wash programme. To change the speed,

simply rotate knob (H) to the value required. To select the no-spin function, rotate the knob to position

NB. The maximum spin speed (MAX) will vary according to the machine model and that reported in the technical characteristics table. The maximum selectable speed for each programme is indicated in the programme table (if a higher spin speed is selected, the machine will only effect a spin at the value indicated in the table).

Spin load imbalance control:

This washing machine is equipped with a special electronic control system for correctly balancing the wash load. Prior to each spin, the system ensures that the washing is evenly distributed in the drum.

If the washing is not evenly distributed, the final spin speed is reduced, and if the load is very unbalanced, the spin is not effected.

USING THE WASHING MACHINE

START BUTTON

After selecting the required programme, press this button to start the wash cycle Button (L) will light up to indicate the wash cycle

has started.

START

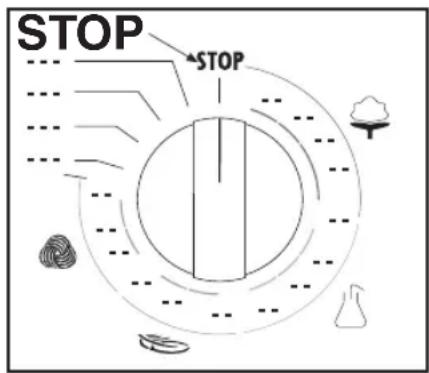

PROGRAMMER KNOB "STOP"

STOP STOP

The stop function resets the washing machine. If, for any

reason, you want to change the wash programme or add more washing to the load during the wash cycle, simply place the programmer knob in position "STOP" (the button will start to flash). Then re-position the knob on the new programme and press the "START" button.

Warning!! only use this function if strictly necessary and then only if the programme to reset has been running for a few minutes. Before opening the door after a reset, wait 2 minutes for the locking mechanism to release.

OPTIONAL FUNCTIONS

START

PREWASH

Press this button and the machine will perform a prewash at the maximum temperature of 40^ C. This function can only be used on the “COTTON” and “SYNTHETICS” programmes.

N.B. When this option is used, the detergent must also be added to the appropriate prewash compartment.

START !

EXTRA RINSE

The washing machine has been designed to reduce water

consumption to a minimum. In very soft water areas, or in the case where detergent residues are noticed at the end of the wash cycle, pressing this button will add one more rinse to the programme.

NB. The use of this function depends on the type of programme selected. Consequently, if the wash programme does not include this function, the button cannot be enabled (see PROGRAMME TABLE").

MONITORING THE WASH

500 600 700 END

The figure alongside shows the 5 main functions of a PREWASH, WASH, RINSE, SPIN, END wash cycle:

Each of these functions will be highlighted during the wash by a led.

In this way, the user is constantly aware of the progress of the wash.

After the spin phase, the

corresponding led will stay lit for approximately 2 minutes. This is the time lapse necessary for the door release mechanism to work, after which the END led will light up.

At this point, press the On/Off button, open the door and remove the washing.

PROGRAMME TABLES

PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED
COTTON	90°		Heavily soiled white cotton fabrics with organic stains.		Max (or lower)
COTTON	75°		Sheets, shirts, tablecloths, towels that are resistant and heavily soiled		Max (or lower)
COTTON^*	60°		For shirts, tablecloths, towels that are resistant and normally soiled		Max (or lower)
COTTON	40°		White and coloured fabrics that are resistant and heavily soiled		Max (or lower)
COTTON	30°		Delicate coloured fabrics that are lightly soiled		Max (or lower)
SYNTHETICS	60°		Colourfast synthetic fabrics that are heavily soiled		800 (or lower)
SYNTHETICS	50°		Colourfast synthetic fabrics that are normally soiled		800 (or lower)
SYNTHETICS	40°		Delicate coloured synthetic fabrics that are lightly soiled		800 (or lower)
SYNTHETICS	30°		Delicate coloured synthetic fabrics that are lightly soiled		800 (or lower)
DELICATES	40°		Delicate cotton, viscous and mixed delicate fabrics		500 (or lower)
DELICATES	30°		Delicate cotton, viscous and mixed delicate fabrics		500 (or lower)
DELICATES	COLD		Fabrics in silk and mixed delicates		500 (or lower)
WOOL****	40°		Machine washable wool		800 (or lower)
WOOL	30°		Machine washable wool		800 (or lower)
WOOL	COLD		Machine washable wool		800 (or lower)
HAND WASH	30°		Hand washable fabrics		800 (or lower)

OPTIONAL WITH PREWASH BUTTON PRESSED

FUNCTION ENABLED

FUNCTION DISABLED

* Reference programme for energy classification purposes according to standard EN 60456
*** Reference program for pure new wool.

PROGRAMME TABLES

PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED
QUICK WASH	40°	—	This programme will wash dirty washing in 35 minutes at a maximum temperature of 40°.		800 (or lower)	○	○
RINSES	—	—	To rinse and refresh the washing		Max	○	●
DRAIN AND SPIN	—	—	Drain and final spin		Max	○	○

FUNCTION ENABLED FUNCTION DISABLED

INTELLIGENT LOAD RECOGNITION SYSTEM

The electronic washing machine is equipped with a special system that automatically recognises the amount of washing loaded in the drum. The machine can thus regulate the amount of water to use for the wash and proportion the wash time accordingly, thus saving water, time and energy.

In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the wash will be reduced by 2 litres for each kg less of washing.

In the case of a half-load or less, the machine will automatically carry out one rinse less than programmed.

N.B. This function is only activated for cotton programmes.

TECHNICAL CHARACTERISTICS

MODEL		XF6800EL
Dimensions:	Width cm.:	59.5
	Height cm.:	85.0
	Depth cm.:	55.0
Maximum recommended load*:		6,0 Kg
		3,0 Kg
		1,5 Kg
Spin max: (rpm)		800
Water pressure:		min. 0,05 MPa - max. 1 MPa
Max. absorbed power/Electrical connection		see plate with technical feature

*To ensure that the wash load is evenly balanced in the machine and to avoid excessive vibration during spinning, the amount of washing must not be less than 1 kg.
