Dear customer, Thank you for having chosen our drier. From this moment on, all your drying problems are solved:your purchase will prove to be extremely useful. We should remind you, however, that the appliance will give you excellent service only if it has been installed correctly and is used properly. Consequently, we suggest that you read the instructions and advice given in this manual carefully before using the drier. If you follow these instructions scrupulously and dedicate the minimum of attention required to the drier, in exchange it will provide you with the service and results you expect. CONTENTS WE SUGGEST THAT YOU KEEP THE FOLLOWING INFORMATION CLOSE AT HAND: MODEL: ....................................................................................................................................................... SERIAL .................................................................................................................................................... DATE OF PURCHASE:..............................................................................................................................

INSTALLING THE APPLIANCE 17

Description of the domestic appliance and control panel 18

DESCRIPTION OF THE MECHANICAL DRIER 19

Description of the domestic appliance and control panel 19

USING THE DRIER 20-24

Sorting the washing 20 Safety instructions and warnings 20 Preparing for drying 20 Loading 21 Using the electronic model 21 Further information on the electronic model timer program 21 Further information on the timer program 22 Program change on the electronic model 22 Program finish on the electronic model 22 Using the mechanical model 22-23 Further information on the mechanical model timer program 23 Program finish on the mechanical model 23 After a program finish on the mechanical model 24 MAINTENANCE 24-26 draining the condensation reservoir 24 Cleaning and maintenance 24-25 Internal light 25 Recommendations 25-26 Electronic model troubleshooting 26 Mechanical model troubleshooting 26 Dimensions 26 GBSM1733

This appliance has been designed for use as a do- mestic drier. Any other use is considered as im- proper and therefore dan- gerous.

Keep this instruction book near to the appliance al- ways, in order that it can be easily consulted when necessary.

Any modifications or at- tempts to interfere with the appliance can be dan- gerous for the user and may damage the product.

On delivery of the appli- ance, check that it has not been damaged during transport. If any damage is discovered, report the matter to the retailer im- mediately.

When positioning the ap- pliance, ensure that the power supply cable is not kinked or squashed and is accessible.

The appliance must not be used by children un- less supervised.

Never dry washing that has been in contact with chemical agents such as dry-cleaning fluids. These products are volatile by nature and could cause an explo- sion.

Do not dry items with parts containing foam rubber or rubber in gen- eral, in that the material could melt and damage other items or even the appliance itself.

If the appliance is sold or given away, remember to hand over this instruction book with it. This will help the new owner use the drier both correctly and safely.

Do not attempt to repair any appliance faults alone, in that repairs car- ried out by a non-profes- sional may cause serious damage and will nullify any rights to repairs un- der guarantee.

Repairs to the appliance can only be carried out by personnel authorised by the customer service cen- tres.. All repairs must make use of original spare parts only.

Spin dry or wring the washing well before load- ing it into the drier. Spun dry washing will dry quicker.

Clean the filter thoroughly each time the drier is used in order to guaran- tee perfect air circulation.

Never insert or remove the plug from the mains socket with wet hands.

The machine must be con- nected to a mains socket fit- ted with an efficient earth complying with current safety standards.

Do not use extension leads or multiple plug adapters to connect the appliance to the mains supply.

Do not expose the appli- ance to atmospheric agents.

When cleaning the appliance, remember to disconnect it from the mains supply.

Do not pull the power sup- ply cable to unplug the appliance from the mains supply. Pull the plug only. The manufacturer will not be held responsible for any acci- dents caused by non-compli- ance with the instructions re- ported in this instruction book. TECHNICAL INFORMATION The domestic appliance has specifically been designed for domestic use and not for indus- trial use. The appliance is fitted with a suppressor for protection against radio interference. GBSM1733

INSTALLING THE APPLIANCE

Position the drier in a well-ventilated room.

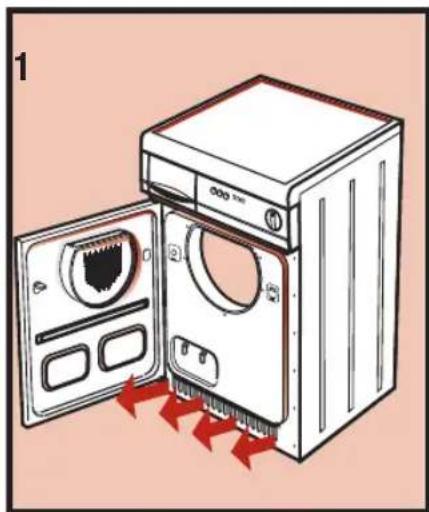

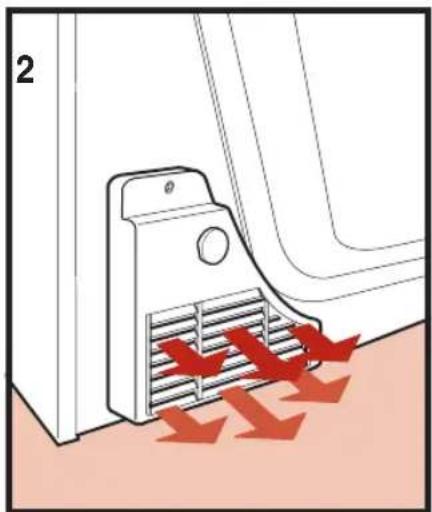

Do not cover the ventila- tion grills on the front and back (fig. 1 and 2) and do not place the drier on thick carpet.

Clean the drum using a soft cloth to remove any dust or grease.

Do not install the drier in rooms subject to freezing temperatures as these could damage the electronics. Connecting the condensa- tion drain to the drainage system. The condensation can be col- lected in the reservoir (fig. 11) or, alternatively, the hose can be connected directly to the drainage system. In this case, the collected wa- ter is pumped out. To connect the condensation hose directly to the drainage system, proceed as follows:

before starting any opera- tions, unplug the appliance from the mains socket.

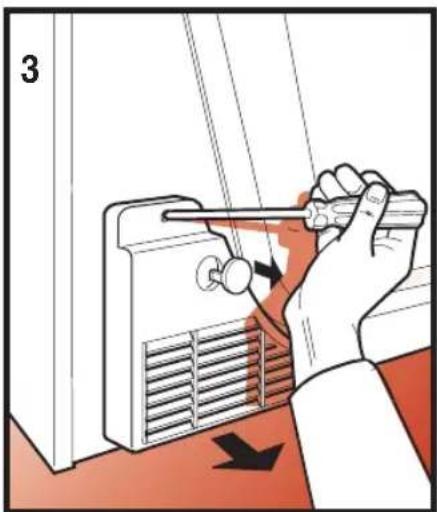

remove the grill on the back of the drier after first removing the screw (fig. 3).

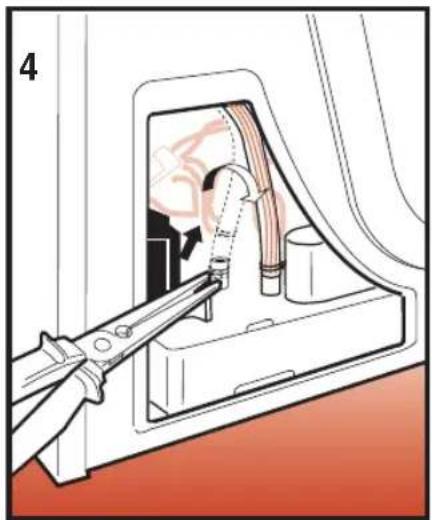

place the hose on the front nozzle and replace the hose clip.

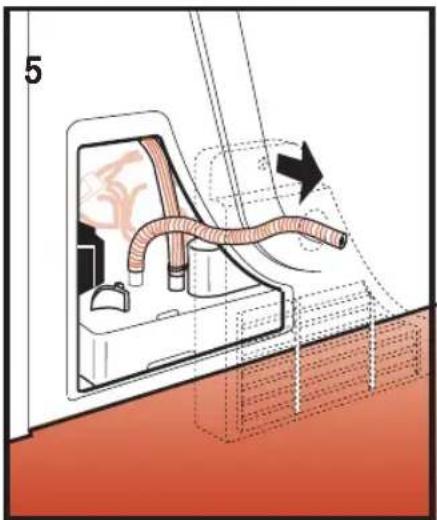

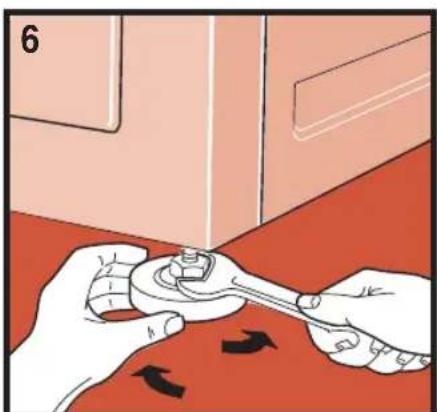

position the hose sup- plied on the free nozzle LEVELLING The appliance can be levelled by rotating the adjustable feet. The appliance must be levelled in order to ensure its correct opera- tion.

(fig. 5). Place the hose clip supplied in position.

pass the hose through the grill (fig. 5) while refit- ting the grill itself.

insert the hose in the drainage pipe.

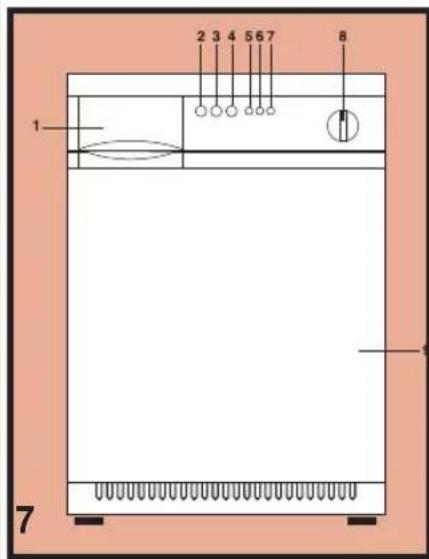

1. Condensation water

reservoir. The condensation is collected in this reser- voir when the conden- sation drain hose is not connected directly to the drainage system.

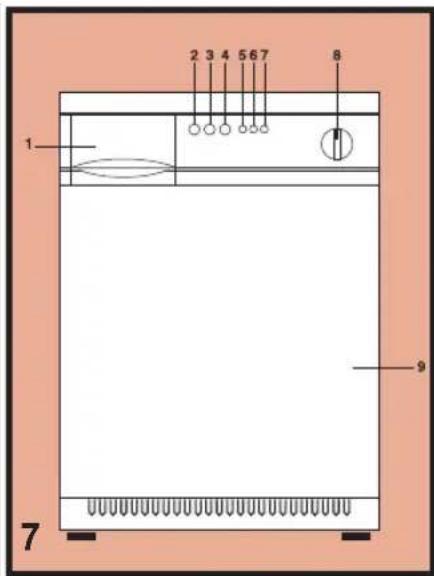

Switches the drier on and off, but does not start the program. OFF (button released) ON (button pressed)

3. Dry selection button

low temperature. Not pressed: high temperature.

4. Condensation drain

button When the reservoir is full (the warning light flashes), position the programmer on STOP, when the reservoir is empty, keep the button pressed for approxi- mately 10 seconds. This will activate the drain pump to remove any remaining conden- sation. On completion, reset the previously selected drying pro- gram.

Lights up when the ap- pliance is switched on and running. The light

will flash continuously on completion of the drying program, signal- ling that the washing can be removed from the drum. When the light is flash- ing at the start of a pro- gram, the program must be reset. Place the knob in the STOP position. The program can be set after the audible signal. An audible signal is also heard on completion of the drying program.

6. Temperature indica-

tor light – Electronic programs: A. In the energetic prgrams section, the light will be lit continuously, sig- nalling that a high temperature has been set. B. In the delicate pro- grams section, the light will be flashing, signalling that a low temperature has been set. In the timed pro- grams section, the light will be l i t continuously. The high or low tem perature must be set according to the type of wash- ing to dry. The light will go out during the last cooling phase.

7. Condensation reser-

voir indicator light This indicator light lights up when the res- ervoir is full. The drier will stop automatically.

The drying time is set by rotating the pro- grammer knob clock- wise only.

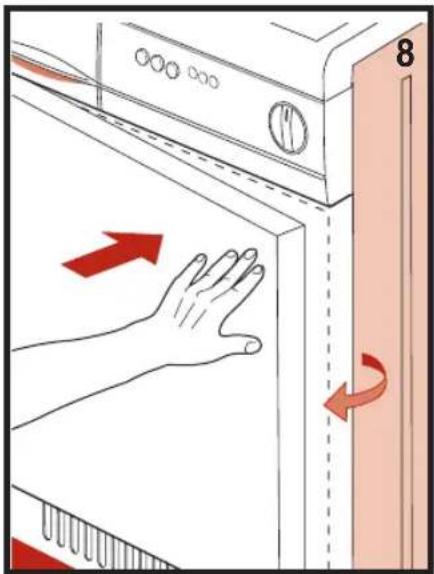

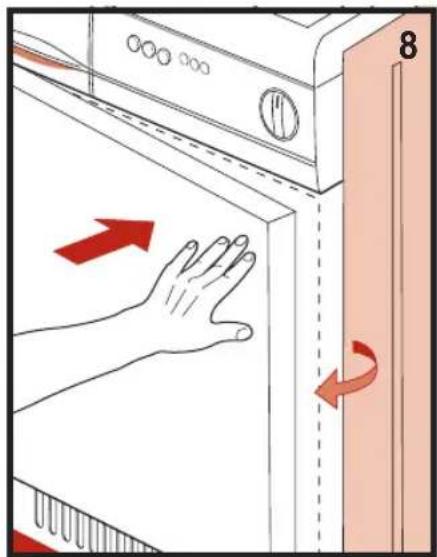

Press the right side of the door (fig. 8) to open it. If the door has been reversed, press the left side.SM1733

ter reservoir. The condensation is collected in this res- ervoir when the con- densation drain hose is not connected di- rectly to the drainage system.

Switches the drier on and off, but does not start the program. OFF (button re- leased) ON (button pressed)

3. Dry selection but-

Pressed: low tem- perature. Not pressed: high temperature.

4. Dual function but-

ton - start program - drain condensa- tion water. The indicator light lights up when the reservoir is full. When the reservoir is empty, keep the but- ton pressed for ap- proximately 10 sec- onds. This will activate the drain pump to re- move any remaining condensation. The drier will restart when the button is re- leased.

Lights up when the appliance is switched on and running.

6. Temperature indica-

tor light A. In the energetic programs section, the light will be lit continuously, sig- nalling that a low temperature has been set. The high or low temperature must be set according to the type of washing to dry. B. The light remains switched off for the delicate pro- grams.

7. Condensation res-

ervoir indicator light This indicator light lights up when the reservoir is full. The drier will stop au- tomatically.

The drying time is set by rotating the pro- grammer knob clock- wise only.

Press the right side of the door (fig. 8) to open it. If the door has been reversed, press the left side.

SAFETY INSTRUCTIONS AND WARNINGS

PREPARING FOR DRYING

Before drying the washing, spin it at the recommended rpm for the type of load. Spinning at maximum rpm will result in up to a 35% saving in energy. The higher the spin speed, the better the drying re- sult. Before drying the washing in the drier, check the items to make sure they can be ma- chine dried. Refer to the clothing care sym- bols on the labels. If the label has no drying sym- bol, proceed as follows:

white/coloured washing and crease-proof wash- ing can be dried at nor- mal temperature using the appropriate drying program.

delicate washing, acrylics for example, must be dried at low temperature. General advice: Jersey often shrinks, not only in the wash but also during drying. Pure linen.

Only dry if indicated by the manufacturer on the label. Otherwise, the fabric could roughen.

Do not dry dark coloured washing together with light coloured washing in order to prevent discolouring. Read these operating in- structions carefully before using the drier. This will ensure your safety and prevent damage to the drier. Repairs to our driers can only be carried out by au- thorised personnel. Repairs carried out by oth- ers or by the user may nul- lify the guarantee. There is no electricity sup- ply to the drier only if the plug has been removed from the mains socket or if the main domestic supply switch has been switched off. Children must be kept away from the drier when it is in operation. Always close the door after using the drier. This will prevent children from leaning on the door and possibly overturning the drier.

if the washing contains parts in rubber or foam rubber;

if the washing has been treated with flammable detergent (stain remov- ing fluid for example);

if the washing has been in contact with hair spray or nail varnish solvent or similar prod- ucts; then there is a risk of fire! Store these operating instructions in a safe place. Sort the washing into fabric types. ADVICE:

delicate fabrics (silk for ex- ample) that require dry cleaning or hand washing cannot be dried too often in the drier (see fabric label).

woollen items must have the “pure new wool” mark with the writing “will not fray”, “superwash”, “will not shrink” or similar. Woollen items with the “wool” mark only should not be dried in the drier.

fabrics containing rubber or foam rubber elements cannot be dried in the drier.

fabrics that have been treated with a stain removing fluid or poisonous or narcotic type products cannot be dried in the drier in that there is a risk of spontaneous combustion. In some countries, the clothing items have wash labels with ma- chine dry symbols. In Holland, for example, this is still not compulsory and not all items of clothing have these symbols. Nevertheless, the labels in ques- tion bear the following informa- tion:

GBSM1733 LOADINGUSING THE ELECTRONIC MODELFURTHER INFORMATION ON THE TIMED PROGRAM OF THE ELECTRONIC MODELThe timed program lasts up to 60minutes and is followed automaticallyby a cooling phase.The program can be shortened byrotating the programmer knob in thedirection of the STOP.The required drying time depends on:

weight and dimensions ofthe washing close zips and fasten but-tons.Tie loose belts and apronties etc. together. Turn jumpers and similaritems inside out. Use a towel to dry very wetfabrics. This will save energy. Load sheets well spread out. Dimensions of the loadeditems:whenever possible, load thedrier with items of differentdimensions.WARNINGMake sure that no washing istrapped between the door and thedrier.This will prevent damage to theappliance and the washing. A1.Close the door se curely

2. Make sure that the

ON/OFF buttuû is OFF.

3. IInsert the plug in

the mains socket. B1.Position the pro- grammer on STOP prior to the se- lected program.

button to switch on the drier. (The warning ght will flash for a short time and an audi- ble signal will be emitted).

3. Position the pro-

grammer on the required program.

(See Program ta- ble). When setting the timed program, set the tem perature using the “dry se- lection” button. At the end of each pro- gram, the drier effects a cooling cycle of ap- proximately 10 min- utes.

Type of washing to dry Quantity of washing to dry in

To change the program, rotate the programmer knob to STOP. CHANGING PROGRAM (ELECTRONIC MODEL) Set the new program. The program must also be reset if the door has been opened during a drying cycle. END OF PROGRAM (ELECTRONIC MODEL)DAFTER THE END OF A PROGRAM (ELECTRONIC MODEL)USING THE MECHANICAL MODELAt the end of the drying pro-gram, the indicator light willflash for a short time and anaudible signal will be emitted.The drier has an automatic Remove the plug from themains socket or switch offthe power supply. Pull the filter upwards. Open it and clean using asoft brush Then replace it. In addition to cleaning af-ter each drying cycle, thefilter must also be washedregularly with soapy wa-ter to remove any dust.This will greatly improvethe efficiency of the drier.NOTE: The required dryingtime depends on: weight and thickness ofthe fabric; Size of the items; type of fabric; degree of dampness ofthe washing. anti-crease function to preventthe washing from creasing.WARNING: Before removingthe washing from the drum,rotate the programmer knob toSTOP, remove the dry washingfrom the drum and then pressthe ON/OFF button.The drum light and the indica-tor light will both switch off. 5,0 kg 2,5 kg 2,5 kg Cotton/LinenFabricTimes in minutesCotton/LinenDry buttonWeight of drywashing 50-80 min. 30-50 min. Wardrobe dry Iron dry Slightly damp 60-100 min. 40-60 min. 80-120 min. 50-80 min. 60-100 min. ENERGETIC PROGRAM SECTIONSyntheti csResistantSM1733

A1.Close the door securely.2. Make sure that the ON/OFF button is OFF.3. Insert the plug in themains socket.B1.Position the programmeron the STOP prior to theselected program.USING THE MECHANICAL MODELFURTHER INFORMATION ON THE TIMED PROGRAM (MECHANICAL MODEL)The timed program is dividedinto two sections: energetic program sec-tion (Cotton/Linen) delicate program section(synthetics); followed au-tomatically by a coolingcycle.The program can beshortened by rotating theprogrammer knob in thedirection of the STOP. Therequired drying time de-pends on:END OF PROGRAM MECHANICAL MODELAt the end of each program, thedrier effects a cooling cycle ofapproximately 10 minutes.WARNING: Before removingthe washing from the drum,press the ON/OFF button, ro-2. Press the ON/OFF but-ton to switch on the drier.(The indicator light willlight up).3. Position the programmeron the required program.(See program table) (theindicator light lights up). To start the program, pressthe “START” button.N.B. For safety reasons, thecycle is interrupted automati-cally if the door is opened. Tocontinue the cycle, re-pressthe START button.NOTEThe duration of the drying cycle depends on: the weight, dimensions, fabric type and degree of damp-ness. In order to prevent the fabrics from creasing, never overload the drier.tate the programmer knob toSTOP and then remove thedry washing from the drum. weight and dimensions ofthe washing type of fabric degree of drying required degree of dampness ofthe washing.(It is recommended thatan appliance of spinspeed of at least 800/1000 or a separate spindrier is used). NOTE Cotton/Linen for example un-derwear, handkerchiefs, table-cloths, sheets.SYNTHETICS:for example, underwear, nylon,dralon, terlenkja, etc.CHANGING THE PROGRAMTo change the program, rotatethe programmer knob to STOP.Set the new program (see Us-ing the drier).

Remove the plug from the mains socket or switch off the power supply.

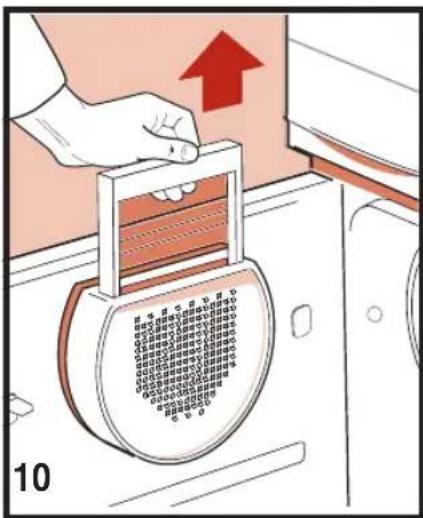

Pull the filter upwards (fig 10).

Open it and clean using a soft brush. Then replace it.

In addition to cleaning af- ter each drying cycle, the fil- ter must also be washed regularly with soapy water to remove any dust. This will greatly improve the effi- ciency of the drier. NOTE: The required drying time depends on:

weight and thickness of the fabric;

degree of dampness of the washing.

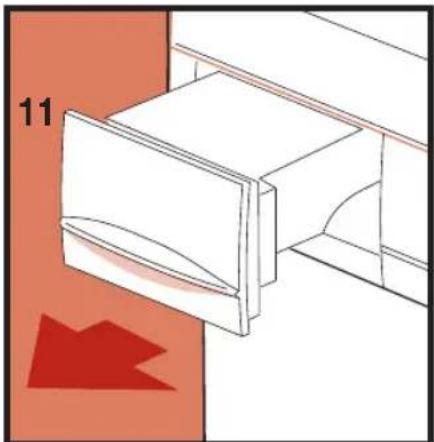

If the condensation drain hose is not connected directly to the drainage system, the condensa- tion is collected in the reservoir (fig. 11). The reservoir must be emptied after each drying cycle. To empty the reservoir, proceed as follows:

empty the container. The drain hole is located on the top right.

after emptying the container, replace it in position and slide it as far as it will go.

to continue, or start the pro- gram, repeat the operations from point “4” (condensation drain button).

If the reservoir is not emptied or it fills up during a drying cycle, the condensation res- ervoir warning light with light up and the drier will stop.

CLEANING AND MAINTENANCE

1. Thread filter in the door (fig.

2. Thread filter in the door

Disconnect the drier from the mains supply before cleaning. It is important to clean the drier after each drying cycle in order to save in drying time and consequently en- ergy. Remove the filter by pulling up- wards and then clean it. (fig. 10).

Then proceed as described above.SM1733

CLEANING AND MAINTENANCE

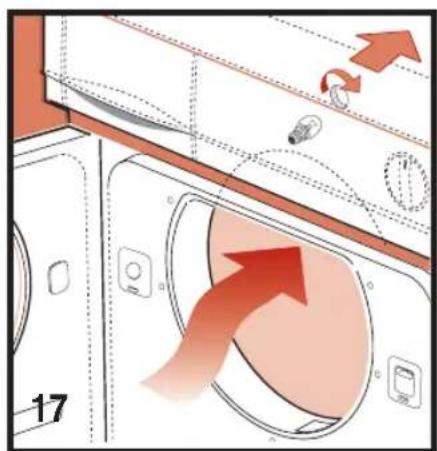

INTERNAL LIGHT The drier is fitted with an inter- nal light. To replace the bulb, proceed as follows:

remove the plug from the mains socket or switch off the power supply.

remove the lamp cover. RECOMMENDATIONS When drying large items, re- arrange them during the dry- ing cycle. This will help reduce creas- ing to a minimum.

The washing must be spun dry before being placed in the drum of the drier. While the energy con- sumed by the spin is mini- mal, the drying action is another matter. It is rec- ommended, therefore, that the washing is spun dry whenever possible at the highest possible rpm or in a separate spin drier. In this way, the drying time is reduced with a re- sulting substantial saving in energy.

of rating higher than 15 W!

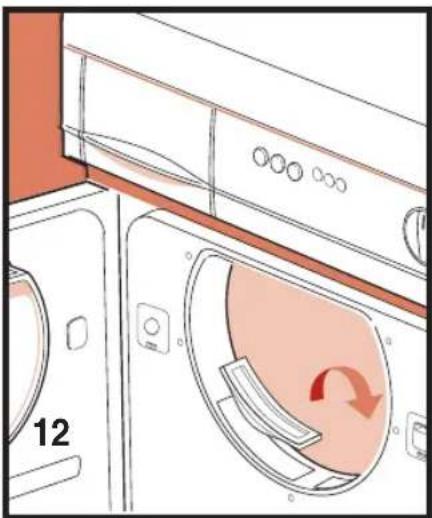

Replace the lamp cover. IIt is also possible to remove the two thread filters from the door opening and clean them (fig. 12). The filters can be cleaned by simply placing them under hot running water. The condenser should be

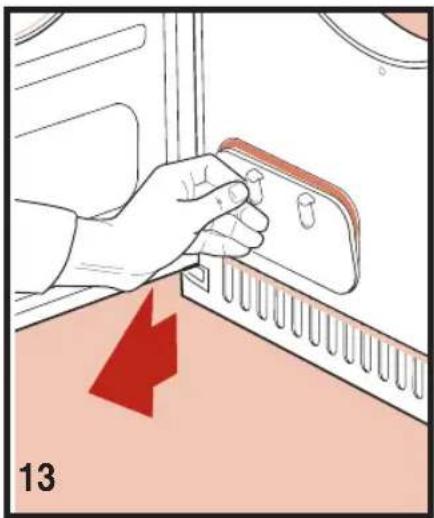

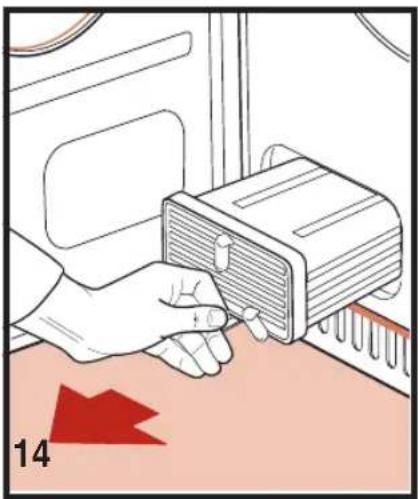

cleaned two or three times a year (fig. 13-16). Open the door, rotate the le- ver to the vertical position and remove the cover (fig. 13). Rotate the 3 levers to the ver- tical position and remove the condenser (fig. 14). Wash the front and back (fig. 15-

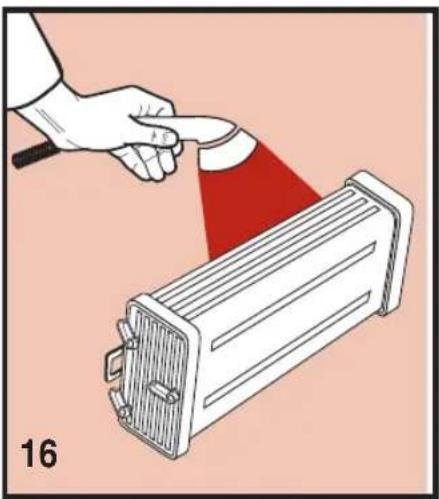

16) and sides of the condenser.

To dry the condenser, rest it on one side on a towel. When the condenser is dry, re- place it following the same pro- cedure in reverse order.SM1733

RECOMMENDATIONS ■ Always add a softener to the wash. This will improve the drying results and reduce drying time. ■ The layer of fibre threads in the filter is not the result of the drying procedure. The threads come from the MAINTENANCE

ELECTRONIC MODEL TROUBLESHOOTING

If the machine is not working properly, carry out the following checks before calling for techni- cal assistance:

1. The program will not start:

■ The plug is not inserted in the mains socket. ■ The door is not closed properly. ■ The ON/OFF button has

MECHANICAL MODEL TROUBLESHOOTING

If the machine is not working properly, carry out the following checks before calling for techni- cal assistance:

1. The program will not start:

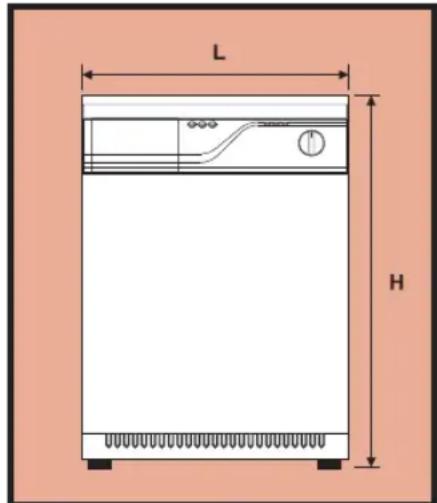

■ The plug is not inserted in the mains socket. ■ The door is not closed properly. ■ The ON/OFF button has not been pressed. DIMENSIONS: fibres of fabrics damaged or unthreaded during the wash and, above all, as a result of wear.

2. The program has been set,

the indicator light is flash- ing, but the drier does not start: ■ position the programmer on “STOP”, wait for the audible signal and set the program required.

3. The drier does not dry

within the set time: ■ Check that the filter is clean. ■ Check that the correct program has been se- lected. ■ Check that the air sup ply is not blocked. If the problem is not caused by one of the above, call technical assistance. Width cm: Height cm: Depth cm: Dimensioni:

5 kg ( dry) see characteristics plate see characteristics plate Max. capacity Power rating Voltage ■ The START button has not been pressed.

2. The program has been

set,the indicator light is flashing, but the drier does not start:

position the program mer on “STOP”, wait for the audible signal and set the program re quired.

3. The drier does not dry

within the set time: ■ Check that the filter is clean. ■ Check that the cor rect program has been selected. ■ Check that the air sup ply is not blocked. If the problem is not caused by one of the above, call technical assistance.SM1733
