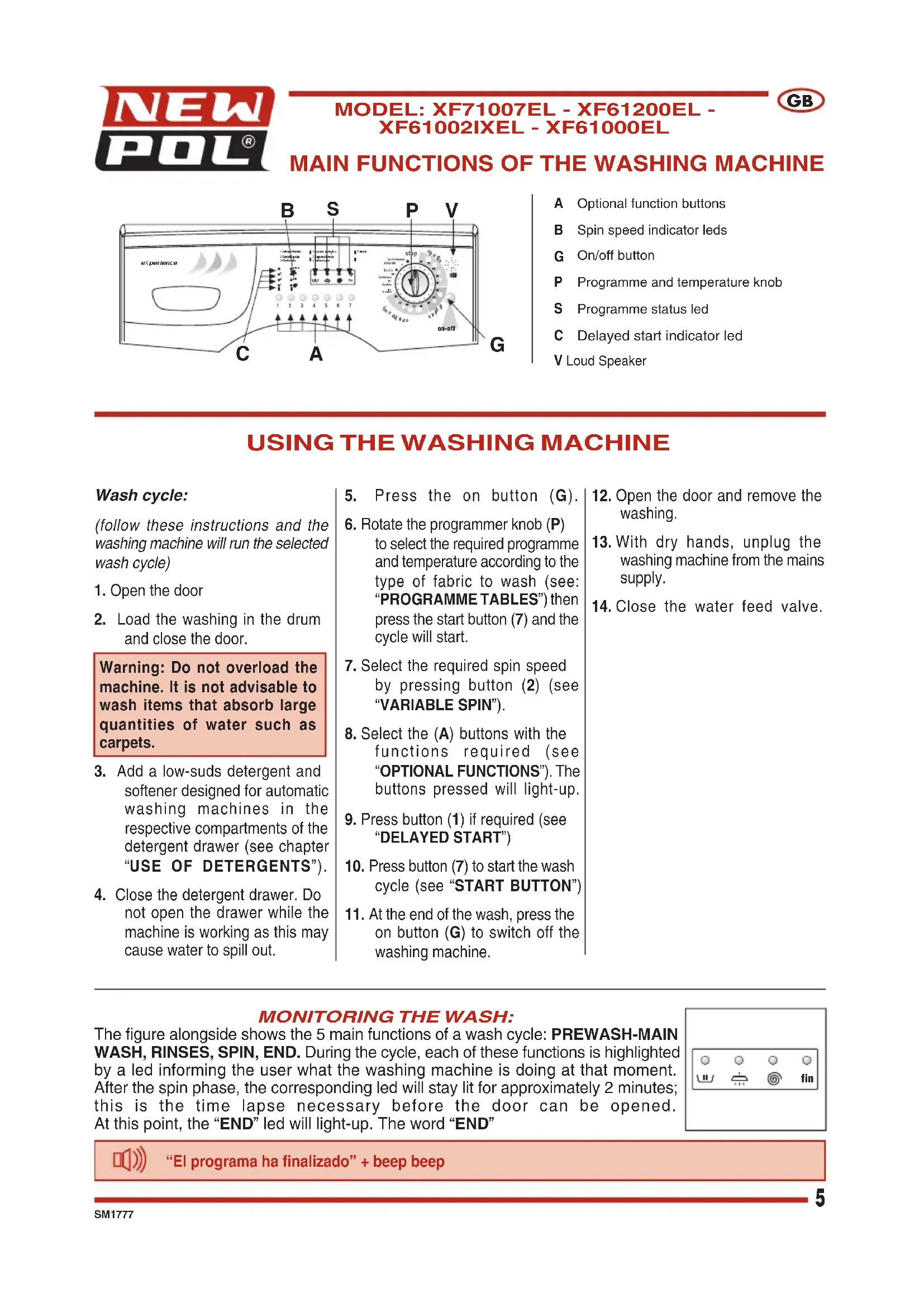

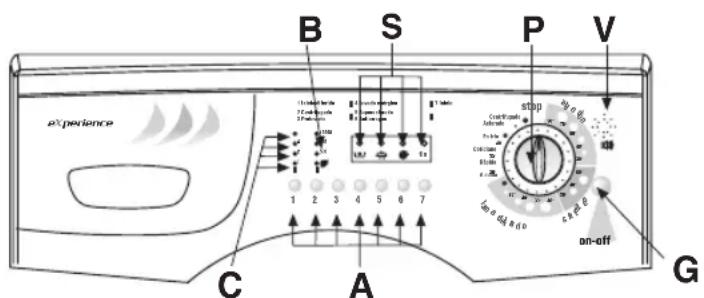

MAIN FUNCTIONS OF THE WASHING MACHINE

A Optional function buttons
B Spin speed indicator leds
G On/off button
P Programme and temperature knob
S Programme status led
C Delayed start indicator led
V Loud Speaker

USING THE WASHING MACHINE

Wash cycle:

(follow these instructions and the washing machine will run the selected wash cycle)

1. Open the door
2. Load the washing in the drum and close the door.

Warning: Do not overload the machine. It is not advisable to wash items that absorb large quantities of water such as carpets.

1. Add a low-suds detergent and softener designed for automatic washing machines in the respective compartments of the detergent drawer (see chapter "USE OF DETERGENTS").

2. Close the detergent drawer. Do not open the drawer while the machine is working as this may cause water to spill out.

3. Press the on button (G).

4. Rotate the programmer knob (P) to select the required programme and temperature according to the type of fabric to wash (see: "PROGRAMMETABLES") then press the start button (7) and the cycle will start.
5. Select the required spin speed by pressing button (2) (see "VARIABLE SPIN").
6. Select the (A) buttons with the functions required (see "OPTIONAL FUNCTIONS"). The buttons pressed will light-up.
7. Press button (1) if required (see "DELAYED START")
8. Press button (7) to start the wash cycle (see "START BUTTON")

9. At the end of the wash, press the on button (G) to switch off the washing machine.

10. Open the door and remove the washing.

11. With dry hands, unplug the washing machine from the mains supply.
12. Close the water feed valve.

MONITORING THE WASH:

The figure alongside shows the 5 main functions of a wash cycle: PREWASH-MAIN WASH, RINSES, SPIN, END. During the cycle, each of these functions is highlighted by a led informing the user what the washing machine is doing at that moment. After the spin phase, the corresponding led will stay lit for approximately 2 minutes; this is the time lapse necessary before the door can be opened. At this point, the "END" led will light-up. The word "END"

Values may vary according to the model

The machine offers a wide selection of spin speeds that can be selected beforehand according to the wash programme. To change the spin speed, simply press button (2) to select the required speed. The corresponding speed led will light-up each time the button is pressed. To exclude the spin, select the led corresponding to symbol if present, or the writing "no-spin".

N.B. the maximum spin speed will vary according to the model and is indicated by the LEDs on the machine. The maximum spin speed that can be selected for each programme is

indicated by the ledsthat light-up automatically when the wash programme is selected.

Spin load imbalance control:

This washing machine is equipped with a special electronic control system for correctly balancing the wash load. Prior to each spin, the system ensures that the washing is evenly distributed in the drum.

If the washing is not evenly distributed, the final spin speed is reduced, and if the load is very unbalanced, the spin is not effected.

* Values may vary according to the model

^*1000

^*800

^*500

2

3

DELAYED START:

VOCE: El programa se inicia al cabo de : 1 hora 2 horas, 3 horas, 4 , 5, 6, 7 ,8, 9, 10, 11,12,13,14, 15,16 horas

• Values may vary according to the model

The machine is fitted with a delayed start function. This allows the washing machine to be programmed to start the wash cycle up to 8 hours later. The delay

in hours can be selected as follows: press the button (1) to set a delay of 1, 2, 4, 8, hours. Press START (7). the button (1) signalling that the function has

been activated. The machine will wait for the number of hours set to elapse and then start the wash cycle automatically.

START BUTTON:

Press this button to start the wash cycle. The button (7) to indicate

that the wash cycle has started

PROGRAMMER KNOB "STOP":

VOCE: Ha efectuado un reset + beep-beep (sonido)

The stop function resets the washing machine. If, for any reason, you want to change the wash programme or add more washing to the load during the wash cycle, simply place the programmer knob in position "STOP". Then re-position the knob on the new programme and press the "START" button.

Warning!! only use this function if strictly necessary and then only if the programme to reset has been running for a few minutes. Before opening the door after a reset, wait 2 minutes for the locking mechanism to release.

STOP

OPTIONAL FUNCTIONS

If one of the following buttons is selected, it will light up. If a function button has been pressed by mistake or is no longer required, the option can be cancelled by simply re-pressing the button.

PREWASH:

VOCE: Prelavado

Press this button to obtain a short prewash of maximum temperature 40^ and approximately 10 minutes duration. This function can only be used with "COTTON, SYNTHETIC and DAILY" programs.

Button 3 will light up.

NB: Pressing this button for 3 seconds enables/disables the voice function

When this button is pressed, the washing machine will run a wash cycle at the set temperature, though with a longer duration.

The button is enabled for the "COTTON" and "SYNTHETICS" programs.

EXTRA RINSE:

VOCE: Superclarado

The washing machine has been designed to reduce water consumption to a minimum. In very soft water areas, or in the case where

detergent residues are noticed at the end of the wash cycle, pressing this button will add one more rinse to the program.

ANTI-CREASE:

Antiarrugas

When this button is pressed, at the end of the wash cycle, the items loaded in the washing machine will continue to rotate for a further thirty minutes to reduce creasing. With this function enabled, the spin speed is 800 rpm. The function cannot be activated for the "WOOL" program.

NB. The use of this function depends on the type of programme selected. Consequently, if the wash programme does not include this function, the button cannot be enabled (see "PROGRAMME TABLE").

Prewash

3

Energetic wash

4

Extra rinse

5

PROGRAMME TABLES

	PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	BUTTONS ENABLED
						Prewash	Energetic wash	Extra rinse	Anti crease
Algodon 90° para blanco muy sucio	COTTON	90°	90°	Heavily soiled white cotton fabrics with organic stains.	2+1
Algodon 75° para blanco normal	COTTON	75°	75°	Sheets, shirts, tablecloths, towels that are resistant and heavily soiled	2+1
Algodon 60° para colores resistentes	COTTON*	60°	60°	For shirts, tablecloths, towels that are resistant and normally soiled	2+1
Algodon 40° para colores delicados	COTTON	40°	40°	White and coloured fabrics that are resistant and heavily soiled	2+1
Algodon 30° para lavado economico	COTTON	30°	30°	Delicate coloured fabrics that are lightly soiled	2+1
Sintético 60° para cargas mixtas	SYNTHETICS	60°	60°	Colourfast synthetic fabrics that are heavily soiled	2+1
Sintético 40° para blancos resistentes	SYNTHETICS	40°	40°	Colourfast synthetic fabrics that are normally soiled	2+1

PROGRAMME TABLES

	PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	BUTTONS ENABLED
						Prewash	Energetic wash	Extra rinse A	anti crease
Sintetico 30°para colores delicados	SYNTHETICS	30°	30°	Delicate coloured synthetic fabrics that are lightly soiled	251
Delicado 40°para cortinas	DELICATES	40°	40°	Delicate cotton, viscous and mixed delicate fabrics	251	○	○	○
Delicado 30°para poliester	DELICATES	30°	30°	Delicate cotton, viscous and mixed delicate fabrics	251	○	○	○
Lavado lana 40°	WOOL ***	40°		Machine washable wool	251	○	○	○	○
Lavado seda 30°	WOOL	30°	30°	Machine washable wool	251	○	○	○	○
Lavado frio para tejidos delicados	WOOL	COLD	—	Machine washable wool	251	○	○	○	○
Lavado a mano 30°	HAND WASH	30°		Hand washable fabrics	251	○	○	○	○
Rápido 35°	QUICK WASH	35°	35°	Delicate cotton, viscous and mixed delicate fabrics lightly soiled	251	○	○	○	○
Diario 40°	DAILY WASH	40°	40°	Delicate cotton fabrics, delicate coloureds that are lightly soiled	251		○	○
Lavado frio	COLD WASH COLD	COLD	—	Delicate fabrics	251	○	○
Aclarados	RINSES	—	—	To rinse and refresh the washing	251	○	○		○
Vaciado y centrífugado	DRAIN AND SPIN	—	—	Drain and final spin	251	○	○	○

FUNCTION ENABLED FUNCTION DISABLED

OPTIONAL WITH PREWASH BUTTON PRESSED

• Reference programme for energy classification purposes according to standard EN 60456

** Reference program for pure new wool.

"EASY LOGIC" TECHNOLOGY

The electronic washing machine is equipped with a special system that automatically recognises the amount of washing loaded in the drum. The machine can thus regulate the amount of water to use for the wash and proportion the wash

time accordingly, thus saving water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the

wash will be reduced by 2 litres for each kg less of washing. In the case of a half-load or less, the machine will automatically carry out one rinse less than programmed. N.B. This function is only activated for cotton programmes.

TECHNICAL CHARACTERISTICS

MODELLO →		XF61200EL	XF71007EL	XF61002IXEL	XF61000EL
Dimensions:	Width cm.:	59.5	59.5	59.5	59.5
	Height cm.:	85.0	85.0	85.0	85.0
	Depth cm.:	55.0	55.0	55.0	55.0
Maximum recommended load:		6 Kg	7 Kg	6 Kg	6 Kg
		3 Kg	3,5 Kg	3 Kg	3 Kg
		1,5 Kg	1,5 Kg	1,5 Kg	1,5 Kg
Max. spin: (rpm)		1200	1000	1000	1000
Water pressure:		min. 0,05 MPa - max. 1 MPa
Max. absorbed power/Electrical connection		see plate with technical feature

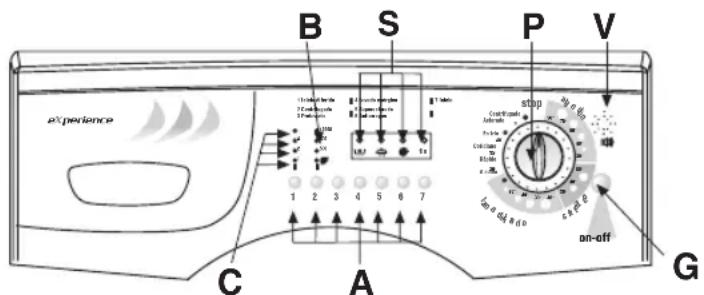

FUNCIONES PRINCIPALES DE LA LAVADORA
