USER MANUAL 543 XP HUSQVARNA

Transportation and storage. 34

Technical data. 34

Accessories 35

Declaration of Conformity 38

Introduction

Intended use

This chainsaw for forest service is designed for forest work such as felling, limbing and cutting.

Note: National regulations can set limit to the operation of the product.

Product description

The Husqvarna 543 XP, 543 XPG are chainsaw models with a combustion engine.

Work is constantly in progress to increase your safety and efficiency during operation. Speak to your servicing dealer for more information.

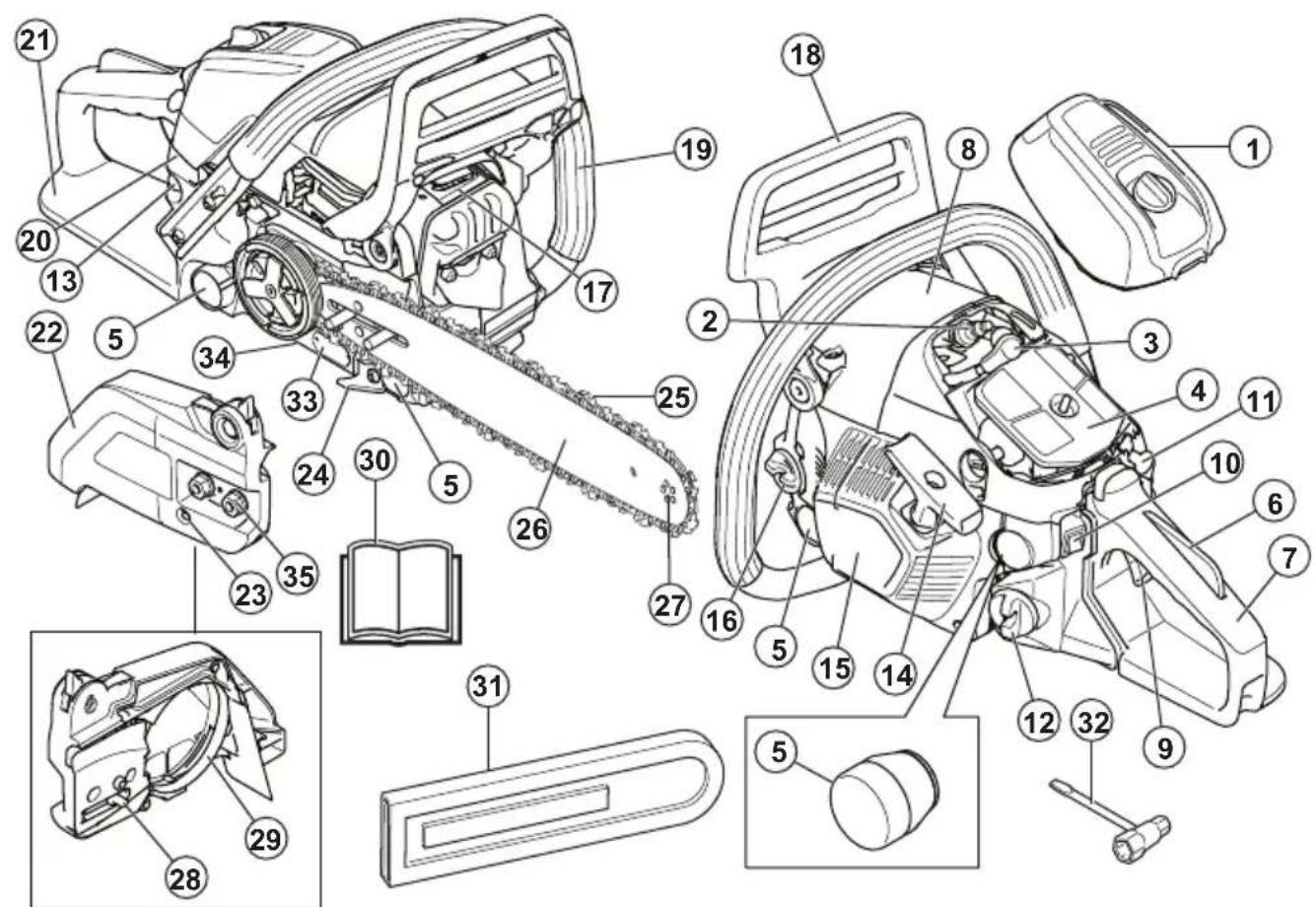

Product overview

1. Air filter cover
2. Spark plug
3. Spark plug cap
4. Air filter

5. Vibration damping system, 4 units

6. Throttle trigger lockout

7. Rear handle
8. Information and warning decal
9. Throttle trigger

10. Start/stop switch

11. Choke control

12. Fuel tank
13. Air purge bulb
14. Starter rope handle
15. Starter housing
16. Chain oil tank
17. Muffler
18. Chain brake and front hand guard
19. Front handle
20. Switch for heated handles (543 XPG)
21. Right hand guard
22. Clutch cover
23. Chain tensioning screw
24. Chain catcher
25. Saw chain
26. Guide bar
27. Bar tip sprocket
28. Chain adjuster pin
29. Brake band
30. Operator's manual
31. Transportation guard
32. Combination wrench
33. Product and serial number plate
34. Oil pump adjustment screw
    35.Bar nuts

Symbols on the product

Careless or incorrect use of this product can result in serious or fatal injury to the operator or others.

Read the operator's manual carefully and make sure you understand the instructions before you use this product.

Always wear approved protective helmet, approved hearing protection and protective goggles or a visor.

This product is in accordance with applicable EC Directives.

This product conforms to the applicable UK regulations.

Noise emissions to the environment label as per EU and UK directives and regulations, and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". The guaranteed sound power level

of the product is specified in Technical data on page 34.

Both of the operator's hands must be used to operate the chainsaw.

Never operate the chainsaw holding it with one hand only.

Never let the guide bar tip come in contact with any object.

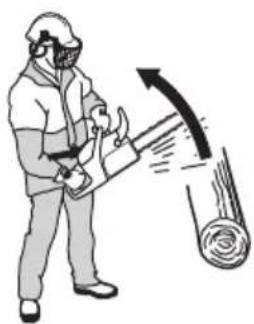

Warning! Kickback may occur when the nose or tip of the guide bar touches an object, and cause a lightning fast reverse reaction, kicking the guide bar up and towards the operator. May cause serious personal injury.

Chain brake, activated (right). Chain brake, not activated (left).

Choke lever in "open position".

Choke lever in "closed position".

Air purge.

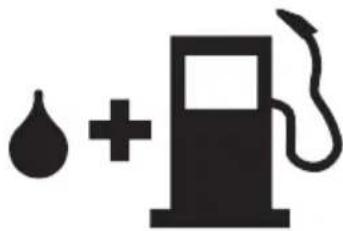

Refuelling.

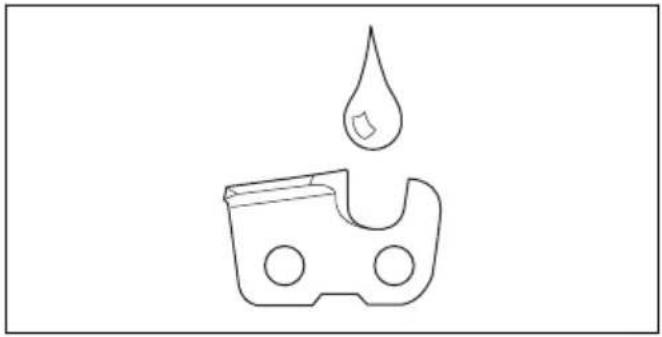

Chain oil fill.

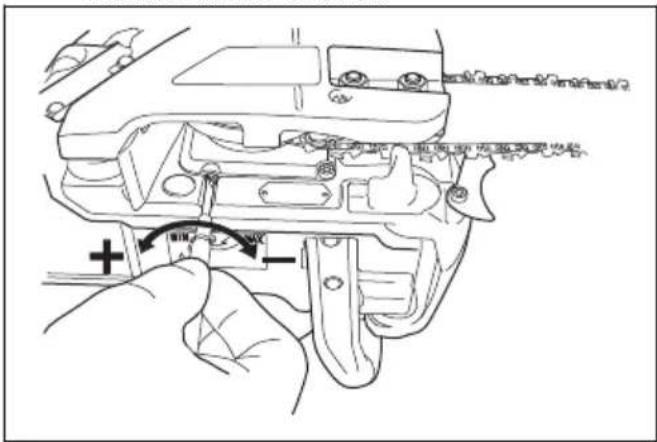

Adjustment of the oil pump.

Note: Other symbols/decals on the product refer to certification requirements for certain markets.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• A chainsaw is a dangerous tool if used carelessly or incorrectly and can cause serious injury or death. It is very important that you read and understand the contents of this operator's manual.
• Under no circumstances may the design of the product be modified without the permission of the manufacturer. Do not use a product that appears to have been modified by others and only use accessories recommended for this product. Nonauthorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.
• A used muffler/spark arrester and spark arrester mounting face may contain deposits of combustion particles that may be carcinogenic. Avoid being exposed to these compounds when handling the muffler and/or spark arrester. Prior to any handling of the muffler and/or the spark arrester, refer to Muffler on page 7.

• Long term inhalation of the engine's exhaust fumes, chain oil mist and sawdust can represent a health risk.

• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• The information in this operator's manual is never a substitute for professional skills and experience. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your servicing dealer or an experienced chainsaw user. Do not attempt any task that you feel unsure of!

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

Before using the product you must understand the effects of kickback and how to avoid them. Refer to Kickback information on page 12 for instructions.
- Never use a product that is faulty.
- Never use a product with visible damage to the spark plug cap and ignition cable. A risk of sparking arises, which can cause a fire.
- Never use the product if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.
- Do not use the product in bad weather such as dense fog, heavy rain, strong wind, intense cold, etcetera. Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etcetera.
- Never start a product unless the guide bar, saw chain and all covers are fitted correctly. Refer to Assembly on page 9 for instructions. Without a bar

and saw chain attached to the product the clutch can come loose and cause serious injury.

• Never start the product indoors. Exhaust fumes can be dangerous if inhaled.
• The exhaust fumes from the engine are hot and can contain sparks, which can start a fire. Never start the product near flammable material!
• Observe your surroundings and make sure that there is no risk of people or animals coming in contact with or affect your control of the product.
• Never allow children to use or be in the vicinity of the product. As the product is equipped with a spring-loaded start/stop switch and can be started by low speed and force on the starter handle, even small children under some circumstances can produce the force necessary to start the product. This can mean a risk of serious personal injury. Therefore remove the spark plug cap when the product is not under close supervision.
• You must have a steady stance in order to have full control of the product. Never work standing on a ladder, in a tree or where you do not have a firm ground to stand on.

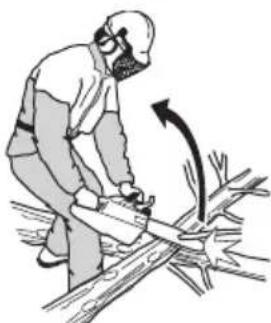

• Lack of concentration can lead to kickback if the kickback zone of the bar accidentally touches a branch, nearby tree or some other object.

• Never use the product by holding it with one hand. This product is not safely controlled with one hand.
  Always hold the product with both hands. The right hand should be on the rear handle, and the left hand

on the front handle. All people, whether right or left handed, should use this grip. Use a firm grip with thumbs and fingers encircling the handles. This grip minimizes the risk of kickback and lets you keep the product under control. Do not let go of the handles!

• Never use the product above shoulder height.

• Do not use the product in a situation where you cannot call for help in case of an accident.
• Before moving your product, switch off the engine and lock the saw chain using the chain brake. Carry the product with the guide bar and saw chain pointing backwards. Fit a transportation guard to the guide bar before transporting the product or carrying it for any distance.
• When you put the product on the ground, lock the saw chain using the chain brake and ensure you have a constant view of the product. Switch the engine off before leaving your product for any length of time.
• Sometimes chips get stuck in the clutch cover causing the saw chain to jam. Always stop the engine before cleaning.
• Running an engine in a confined or badly ventilated area can result in death due to carbon monoxide poisoning.
• The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Do not start the product indoors or near flammable material.
• Use the chain brake as a parking brake when you start the product and when you move short distances. Always carry the product in the front handle. This decreases the risk that you or a person near you get hit by the saw chain.
  Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally

appear in the fingers, hands or wrists. These symptoms may be increased in cold temperatures.

• It is not possible to cover every conceivable situation you can face when using this product. Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Do not hesitate to contact your dealer or Husqvarna if you have any questions about the use of the product. We will willingly be of service and provide you with advice as well as help you to use your product both efficiently and safely. Attend a training course in chainsaw usage if possible. Your dealer, forestry school or your library can provide information about which training materials and courses are available.

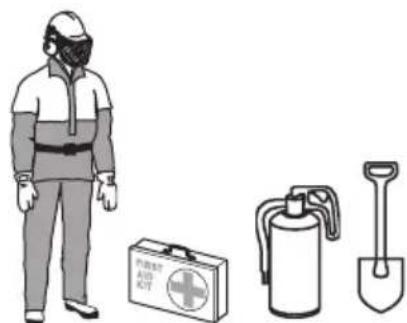

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Most chainsaw accidents occur when the saw chain touches the operator. You must use approved personal protective equipment during operation. Personal protective equipment does not give you full protection from injuries but it decreases the degree of injury if an accident occurs. Speak to your servicing dealer for recommendations about which equipment to use.
• Your clothing must be close-fitting but not limit your movements. Regularly do a check of the condition of the personal protective equipment.
• Use an approved protective helmet.

• Use approved hearing protection. Long-term exposure to noise can result in permanent damage to the hearing.

• Use protective glasses or a face visor to decrease the risk of injury from thrown objects. The product can throw objects, such as wood chips, small pieces of wood and more, at large force. This can result in serious injury, especially to the eyes.

• Use gloves with saw protection.
• Use pants with saw protection.
• Use boots with saw protection, steel toe-cap and non-slip sole.
  Always have a first-aid kit with you.
• Risk of sparks. Keep fire extinguishing tools and a shovel near to prevent forest fires.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. Refer to Maintenance and checks of the safety devices on the product on page 23.
  If the safety devices are defective, speak to your Husqvarna servicing dealer.

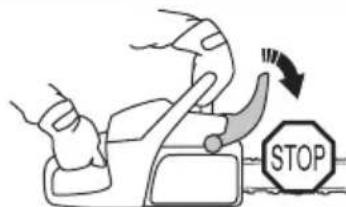

Chain brake and front hand guard

Your product has a chain brake that stops the saw chain if you get a kickback. The chain brake decreases the risk of accidents, but only you can prevent them.

The chain brake engages (A) manually by your left hand or automatically by the inertia release mechanism. Push the front hand guard (B) forward to engage the chain brake manually.

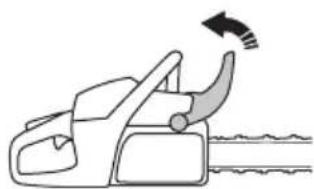

Pull the front hand guard rearward to disengage the chain brake.

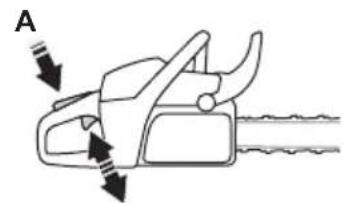

Throttle trigger lockout

The throttle trigger lockout prevents accidental operation of the throttle trigger. If you put your hand around the handle and press the throttle trigger lockout (A),

it releases the throttle trigger (B). If you release the handle, the throttle trigger and the throttle trigger lockout move back to their initial positions. This function locks the throttle trigger at idle speed.

B

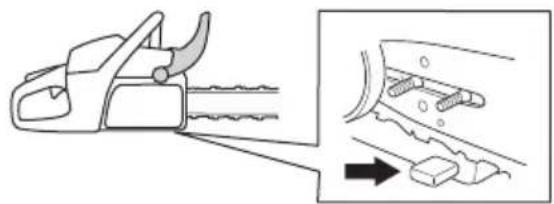

Chain catcher

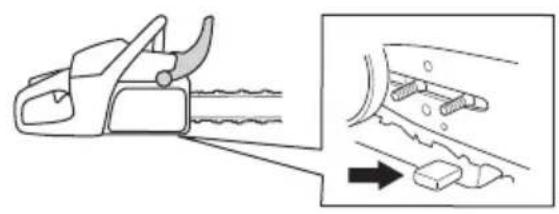

The chain catcher catches the saw chain if it breaks or comes loose. Correct saw chain tension and correctly applied maintenance on the saw chain and guide bar, decrease the risk of accidents.

Right hand guard

The right hand guard is a protection for your hand on the rear handle. The right hand guard gives you protection if the saw chain breaks or derails. The right hand guard also gives you protection from branches or twigs.

Vibration damping system

The vibration damping system decreases vibration in the handles. Vibration damping units operate as a separation between the product body and the handle unit.

Refer to Product overview on page 2 for information about where the vibration damping system is on your product.

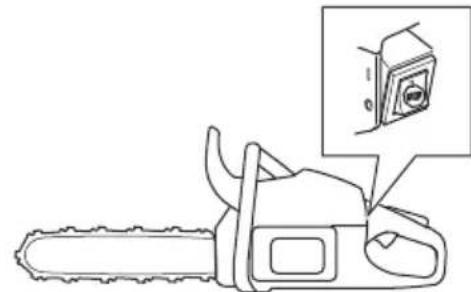

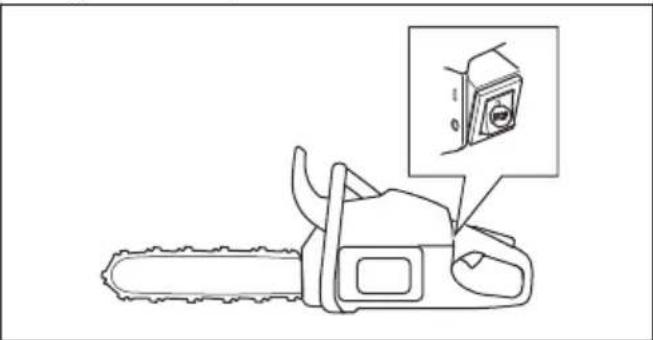

Start/stop switch

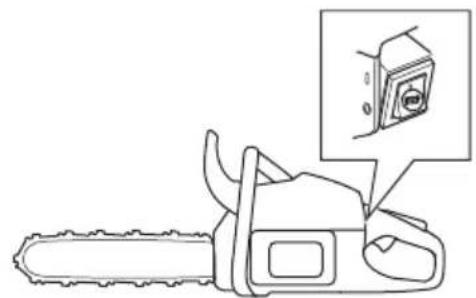

Use the start/stop switch to stop the engine.

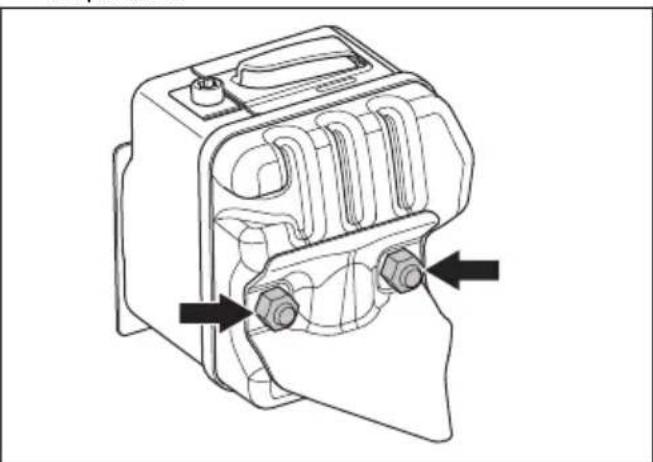

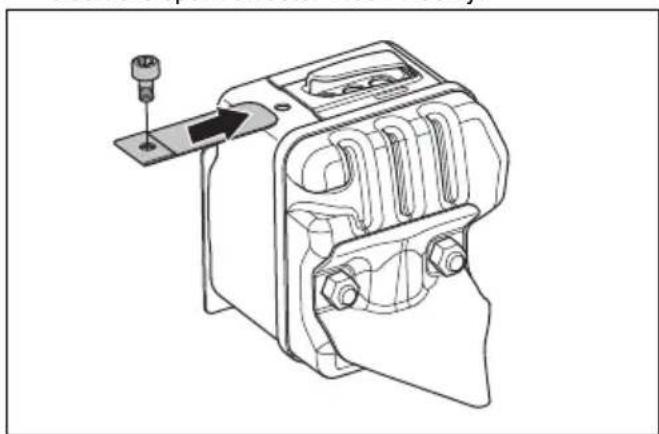

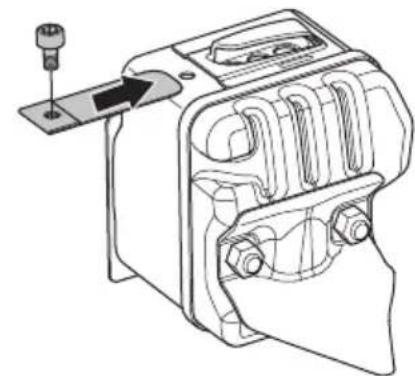

Muffler

WARNING: The muffler becomes very hot during/after operation and at idle speed. There is a risk of fire, especially when you operate the product near flammable materials and/or fumes.

WARNING: Do not operate a product without a muffler or with a defective muffler. A defective muffler can increase the noise level and the risk of fire. Keep fire extinguishing tools near. Do not use a product without, or with a broken, spark arrester mesh if you must have a spark arrester mesh in your area.

The muffler keeps the noise levels to a minimum and points the exhaust fumes away from the operator. In areas with a hot, dry weather there is a high risk of fire. Obey local regulations and maintenance instructions.

Fuel safety

WARNING: Read the warning instructions that follow before you use the product.

Make sure there is plenty of ventilation when refuelling or mixing fuel (petrol and two-stroke oil).

• Fuel and fuel vapour are highly flammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.
  Take care when handling fuel and chain oil. Be aware of the risks of fire, explosion and those associated with inhalation.
• Do not smoke and do not place any hot objects in the vicinity of fuel.
• Always stop the engine and let it cool for a few minutes before refuelling.
• When refuelling, open the fuel cap slowly so that any excess pressure is released gently.
• Tighten the fuel cap carefully after refuelling.
• Never refuel the machine while the engine is running.

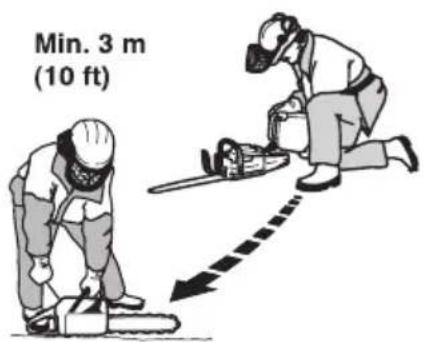

• Always move the product at least 3m (10 ft) away from the refuelling area and fuel source before starting.

After refuelling, there are some situations where you must never start the product:

• If you have spilled fuel or chain oil on the product. Wipe off the spillage and allow remaining fuel to evaporate.
• If you have spilled fuel on yourself or on your clothes. Change your clothes and wash any part of your body that has come in contact with fuel. Use soap and water.
• If the product leaks fuel. Regularly do a check for leaks from the fuel tank, fuel cap and fuel lines.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you do maintenance on the product.

• Do only the maintenance and servicing given in this operator's manual. Let professional servicing personnel do all other servicing and repairs.

• Regularly do the safety checks, maintenance and service instructions given in this manual. Regular maintenance increases the life of the product and decreases the risk of accidents. Refer to Maintenance on page 21 for instructions.

• If the safety checks in this operator's manual is not approved after you do maintenance, speak to your servicing dealer. We guarantee that there are professional repairs and servicing available for your product.

Safety instructions for the cutting equipment

WARNING: Read the warning instructions that follow before you use the product.

• Only use approved guide bar/saw chain combinations and filing equipment. Refer to Accessories on page 35 for instructions.
• Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.

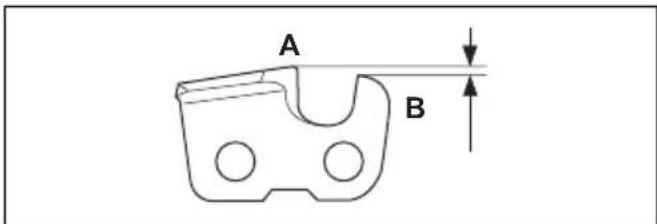

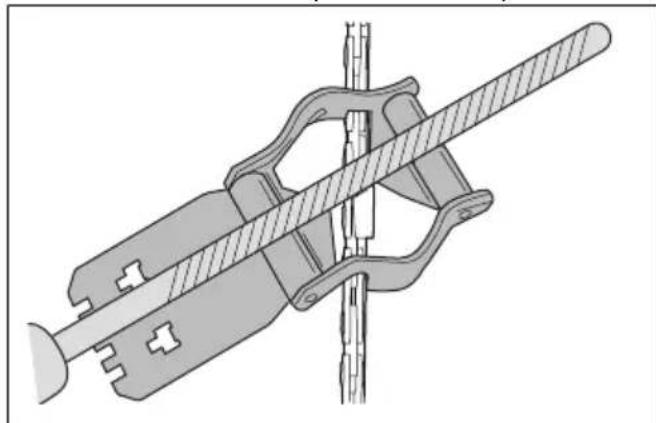

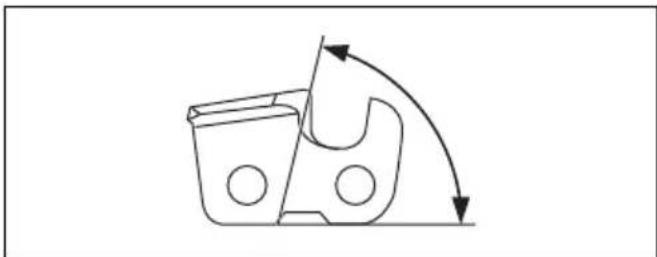

• Keep the cutting teeth correctly sharpened. Obey the instructions and use the recommended file gauge. A saw chain that is damaged or incorrectly sharpened increases the risk of accidents.

• Keep the correct depth gauge setting. Obey the instructions and use the recommended depth gauge setting. Too large depth gauge setting increases the risk of kickback.

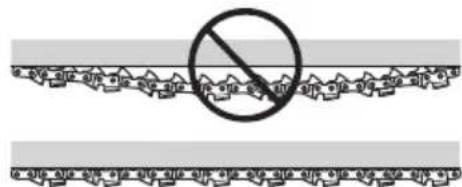

• Make sure that the saw chain has the correct tension. If the saw chain is not tight against the guide bar, the saw chain can derail. An incorrect saw chain tension increases wear on the guide bar, saw chain and chain drive sprocket. Refer to To adjust the tension of the saw chain on page 30.

• Do maintenance on the cutting equipment regularly and keep it correctly lubricated. If the saw chain is

not correctly lubricated, the risk of wear on the guide bar, saw chain and chain drive sprocket increases.

Assembly

Introduction

WARNING: Read and understand the safety chapter before you assemble the product.

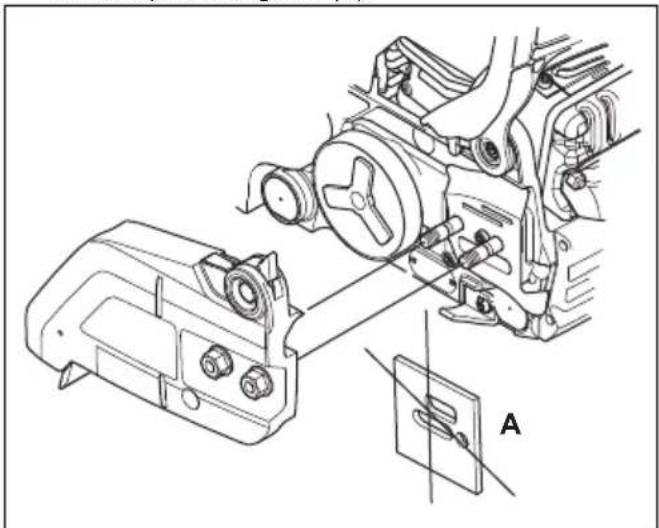

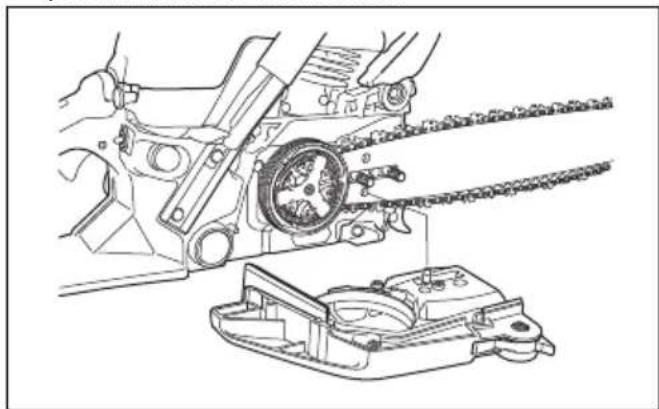

To assemble the guide bar and saw chain

1. Disengage the chain brake.
2. Remove the bar nuts and the clutch cover. Remove the transportation guard (A).

1. Assemble the guide bar onto the bar bolt. Move the guide bar to its most rear position.

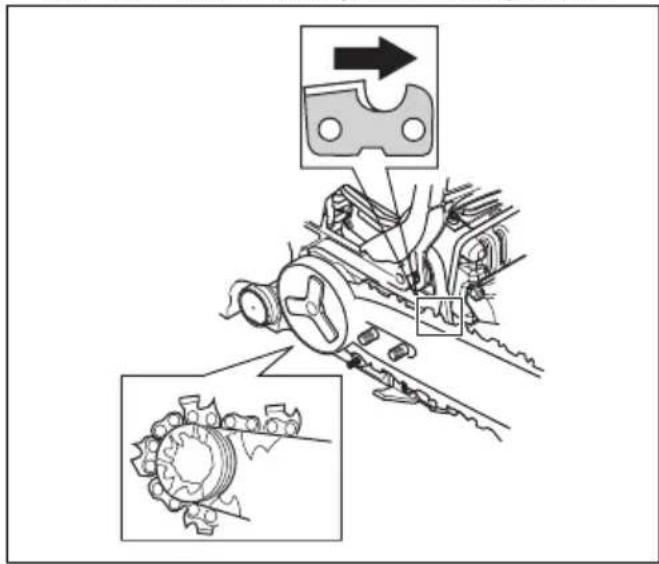

2. Install the saw chain correctly around the drive sprocket and put it in the groove on the guide bar.

WARNING: Always use protective gloves when you assemble the saw chain.

1. Make sure that the edges of the cutters point forward on the top edge of the guide bar.
2. Align the hole in the guide bar with the chain adjuster pin and install the clutch cover.

1. Tighten the bar nut finger tight.

Operation

Introduction

WARNING: Read and understand the safety chapter before you use the product.

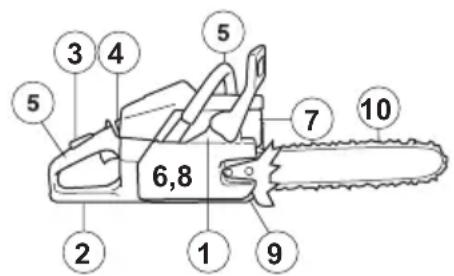

To do a function check before you use the product

1. Make sure that the chain brake operates correctly and that it is not damaged.
2. Make sure that the right hand guard is not damaged.
3. Make sure that the throttle lockout operates correctly and that it is not damaged.
4. Make sure that the start/stop switch operates correctly and that it is not damaged.
5. Make sure that there is no oil on the handles.
6. Make sure that the vibration damping system operates correctly and that it is not damaged.
7. Make sure that the muffler is correctly attached and that it is not damaged.
8. Make sure that all parts of the product are correctly attached and not damaged or missing.
9. Make sure that the chain catcher is correctly attached.
10. Do a check of the saw chain tension.

Fuel

This product has a two-stroke engine.

CAUTION: Incorrect type of fuel can result in engine damage. Use a mixture of gasoline and two-stroke oil.

Premixed fuel

• Use Husqvarna premixed alkylate fuel for best performance and extension of the engine life. This fuel contains less harmful chemicals compared to regular fuel, which decreases harmful exhaust fumes. The quantity of remains after combustion is

lower with this fuel, which keeps the components of the engine more clean.

To mix fuel

Gasoline

• Use good quality unleaded gasoline with a maximum of 10% ethanol contents.

CAUTION: Do not use gasoline with an octane grade less than 90 RON/87 AKI. Use of a lower octane grade can cause engine knocking, which causes engine damages.

Two-stroke oil

• For best results and performance use Husqvarna two-stroke oil.
• If Husqvarna two-stroke oil is not available, use a two-stroke oil of good quality for air-cooled engines. Speak to your servicing dealer to select the correct oil.

CAUTION: Do not use two-stroke oil for water-cooled outboard engines, also referred to as outboard oil. Do not use oil for four-stroke engines.

To mix gasoline and two-stroke oil

Gasoline, liter Two-stroke oil,	liter
	2% (50:1)
5 0.10
10 0.20
15 0.30
20 0.40

CAUTION: Small errors can influence the ratio of the mixture drastically when you mix small quantities of fuel. Measure the quantity of oil carefully and make sure that you get the correct mixture.

1. Fill half the quantity of gasoline in a clean container for fuel.
2. Add the full quantity of oil.
3. Shake the fuel mixture.
4. Add the remaining quantity of gasoline to the container.
5. Carefully shake the fuel mixture.

CAUTION: Do not mix fuel for more than 1 month at a time.

To fill the fuel tank

WARNING: Obey the procedure that follows for your safety.

1. Stop the engine and let the engine become cool.
2. Clean the area around the fuel tank cap.

1. Shake the container and make sure that the fuel is fully mixed.
2. Remove the fuel tank cap slowly to release the pressure.
3. Fill the fuel tank.

CAUTION: Make sure that there is not too much fuel in the fuel tank. The fuel expands when it becomes hot.

1. Tighten the fuel tank cap carefully.
2. Clean fuel spillage on and around the product.
3. Move the product 3m / 10 ft or more away from the refueling area and fuel source before you start the engine.

Note: To see where the fuel tank is on your product, refer to Product overview on page 2.

To do a run-in

• During the first 10 hours of operation, do not apply full throttle without load for extended periods.

To use the correct chain oil

WARNING: Do not use waste oil, which can cause injury to you and the environment. Waste oil also causes damage to the oil pump, the guide bar and the saw chain.

WARNING: The saw chain can break if the lubrication of the cutting equipment is not sufficient. Risk of serious injury or death to the operator.

WARNING: This product has a function that lets the fuel run out before the chain oil. Use the correct chain oil for this function to operate correctly. Speak to your servicing dealer when you select your chain oil.

• Use Husqvarna chain oil for maximum saw chain life and to prevent negative effects on the environment. If Husqvarna chain oil is not available, we recommend you to use a standard chain oil.
• Use a chain oil with good adherence to the saw chain.
• Use a chain oil with correct viscosity range that agrees with the air temperature.

CAUTION: If the oil is too thin, it runs out before the fuel. In temperatures below 0^ / 32^ some chain oils become too thick, which can cause damage to the oil pump components.

• Use the recommended cutting equipment. Refer to Accessories on page 35.
• Remove the cap to the chain oil tank.
• Fill the chain oil tank with chain oil.
• Attach the cap carefully.

Note: To see where the chain oil tank is on your product, refer to Product overview on page 2.

Kickback information

WARNING: A kickback can cause serious injury or death to the operator or others. To decrease the risk you must know the causes of kickback and how to prevent them.

A kickback occurs when the kickback zone of the guide bar touches an object. A kickback can occur suddenly and with large force, which throws the product in the direction of the operator.

Kickback always occurs in the cutting plane of the guide bar. Usually, the product is thrown against the operator but can also move in a different direction. It is how you use the product when the kickback occurs that causes the direction of the movement.

A smaller bar tip radius decreases the force of the kickback.

Use a low kickback saw chain to decrease the effects of kickback. Do not let the kickback zone touch an object.

WARNING: No saw chain fully prevents kickback. Always obey the instructions.

Common questions about kickback

• Will the hand always engage the chain brake during a kickback?

No. It is necessary to use some force to push the front hand guard forward. If you do not use the force necessary, the chain brake will not be engaged. You must also hold the handles of the product stable with two hands during work. If a kickback occurs, it is possible that the chain brake does not stop the saw

chain before it touches you. There are also some positions in which your hand can not touch the front hand guard to engage the chain brake.

• Will the inertia release mechanism always engage the chain brake during kickback?

No. First, the chain brake must operate correctly. Refer to To do a check of the chain brake on page 23 for instructions about how to do a check of the chain brake. We recommend you to do this each time before you use the product. Second, the force of the kickback must be large to engage the chain brake. If the chain brake is too sensitive, it can engage during rough operation.

• Will the chain brake always protect me from injury during a kickback?

No. The chain brake must operate correctly to give protection. The chain brake must also be engaged during a kickback to stop the saw chain. If you are near the guide bar, it is possible that the chain brake does not have time to stop the saw chain before it hits you.

WARNING: Only you and the correct working technique can prevent kickbacks.

To start the product

To prepare to start with a cold engine

WARNING: The chain brake must be engaged when the product is started to decrease the risk of injury.

1. Move the front hand guard forward to engage the chain brake.

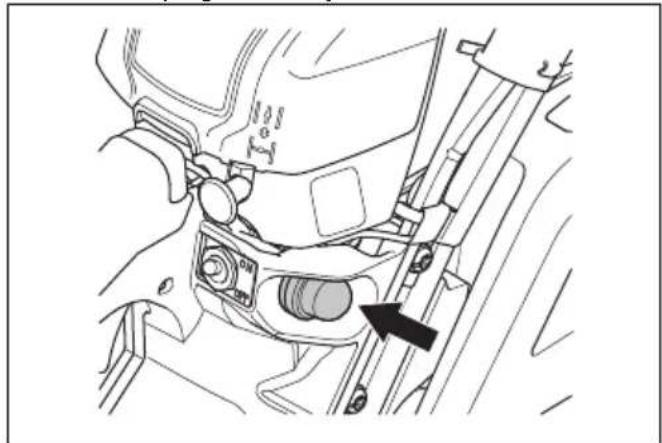

1. Push the air purge bulb approximately 6 times or until fuel starts to fill the bulb. It is not necessary to fill the air purge bulb fully.

1. Set the choke to choke position.

1. Continue to To start the product on page 13 for more instructions.

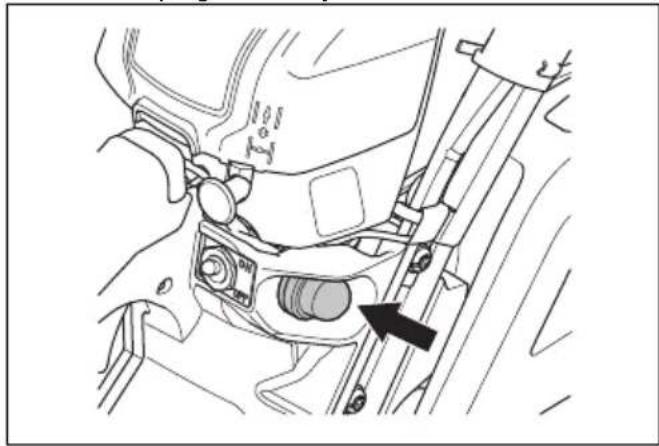

To prepare start with a warm engine

WARNING: The chain brake must be engaged when the product is started to decrease the risk of injury.

1. Move the front hand guard forward to engage the chain brake.

1. Push the air purge bulb approximately 6 times or until fuel starts to fill the bulb. It is not necessary to fill the air purge bulb fully.

Note: Do not set the choke to the choke position.

1. Continue to To start the product on page 13 for more instructions.

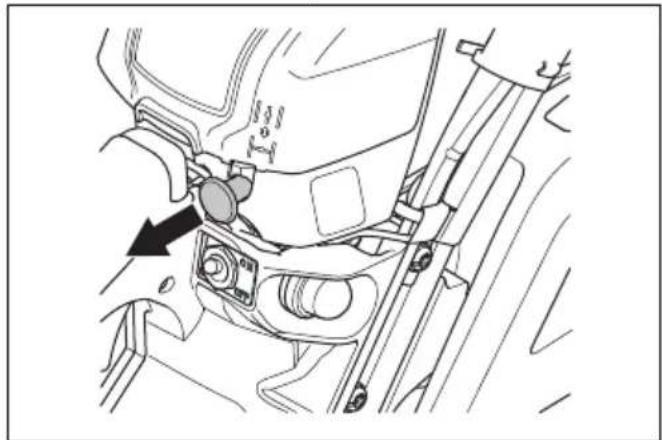

To start the product

WARNING: You must keep your feet in a stable position when you start the product.

WARNING: If the saw chain rotates at idle speed, speak to your servicing dealer and do not use the product.

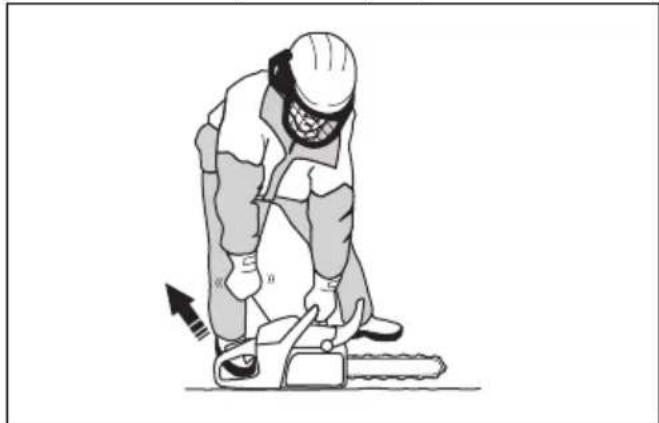

1. Put the product on the ground.
2. Put your left hand on the front handle.
3. Put your right foot into the footgrip on the rear handle.
4. Pull the starter rope handle slowly with your right hand until you feel resistance.

WARNING: Do not twist the starter rope around your hand.

1. Pull the starter rope handle quickly and with force.

CAUTION: Do not pull the starter rope to full extension and do not let go of the starter rope handle. This can cause damage to the product.

a) If you start your product with a cold engine, pull the starter rope handle until the engine fires.

Note: You can identify when the engine fires through a "puff" sound.

b) Disengage the choke.

1. Pull the starter rope handle until the engine starts.
2. Quickly disengage the throttle trigger lockout to set the product to idle speed.

1. Move the front hand guard rearward to disengage the chain brake.

1. Use the product.

To stop the product

• Push the start/stop switch to position 0 to stop the engine.

Pull stroke and push stroke

You can cut through wood with the product in 2 different positions.

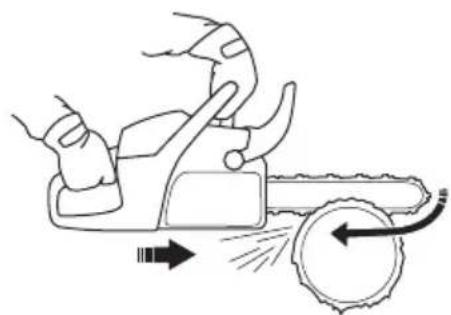

• To cut on the pull stroke is when you cut with the bottom of the guide bar. The saw chain pulls through the tree when you cut. In this position you have

better control of the product and the position of the kickback zone.

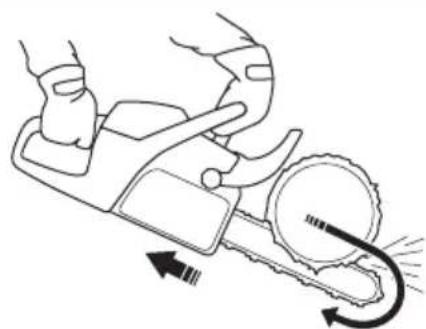

• To cut on the push stroke is when you cut with the top of the guide bar. The saw chain pushes the product in the direction of the operator.

WARNING: If the saw chain is caught in the trunk, the product can be pushed at you. Hold the product tightly and make sure that the kickback zone of the guide bar does not touch the tree and causes a kickback.

To use the cutting technique

WARNING: Use full throttle when you cut and decrease to idle speed after each cut.

CAUTION: Engine damage can occur if the engine runs for too long at full throttle without load.

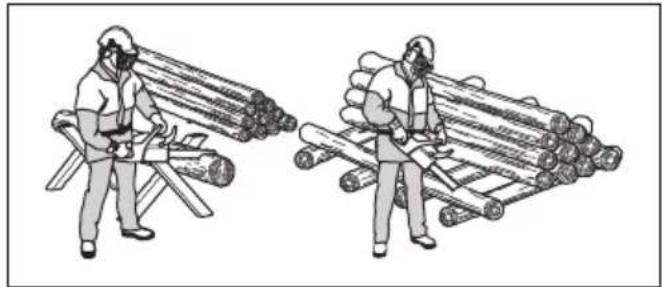

1. Put the trunk on a saw horse or runners.

WARNING: Do not cut trunks in a pile. That increases the risk of kickback and can result in serious injury or death.

1. Remove the cut pieces from the cutting area.

WARNING: Cut pieces in the cutting area increase the risk of kickback and that you can not keep your balance.

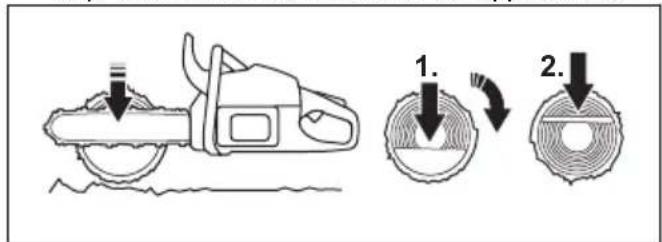

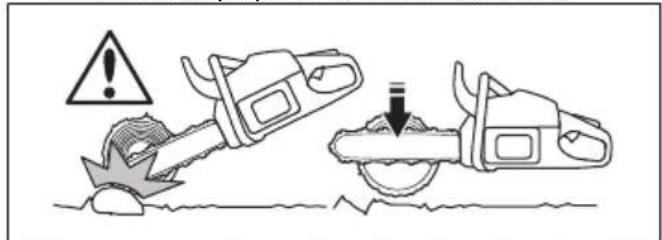

To cut a trunk on the ground

1. Cut through the trunk on the pull stroke. Keep full throttle but be prepared for sudden accidents.

WARNING: Make sure that the saw chain does not touch the ground when you complete the kerf.

1. Cut approximately 35 through the trunk and then stop. Turn the trunk and cut from the opposite side.

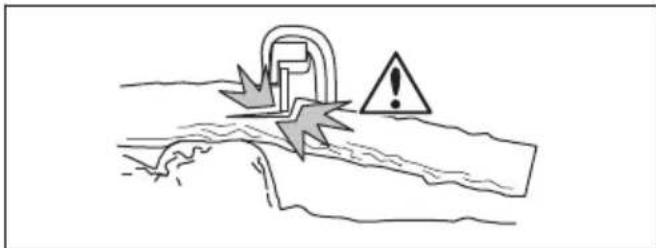

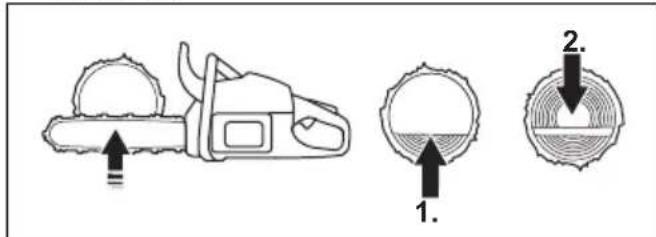

To cut a trunk that has support on one end

WARNING: Make sure that the trunk does not break during cutting. Obey the instructions below.

1. Cut on the push stroke approximately 13 through the trunk.
2. Cut through the trunk on the pull stroke until the two kerfs touch.

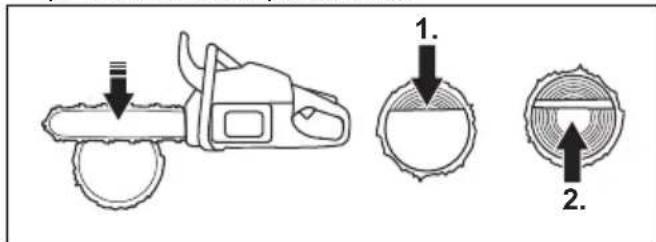

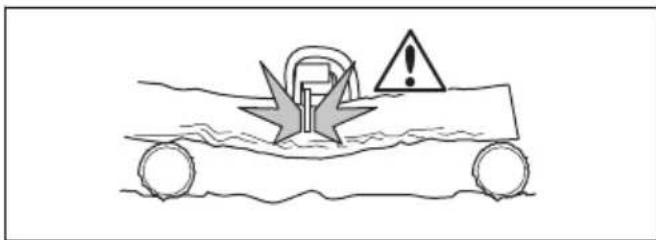

To cut a trunk that has support on two ends

WARNING: Make sure that the saw chain does not get caught in the trunk during cutting. Obey the instructions below.

1. Cut on the pull stroke approximately 13 through the trunk.
2. Cut through the remaining part of the trunk on the push stroke to complete the cut.

WARNING: Stop the engine if the saw chain gets caught in the trunk. Use a lever to open up the kerf and remove the product. Do not try to pull the product out by hand. This can result in injury when the product suddenly breaks free.

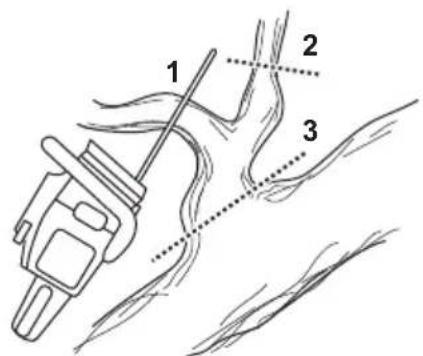

To use the limbing technique

Note: For thick branches, use the cutting technique. Refer to To use the cutting technique on page 14.

WARNING: There is a high accident risk when you use the limbing technique.

Refer to Kickback information on page 12 for instructions how to prevent kickback.

WARNING: Cut limbs one by one. Be careful when you remove small limbs and do not cut bushes or many small limbs at the same time. Small limbs can get caught in the saw chain and prevent safe operation of the product.

Note: Cut the limbs piece by piece if it is necessary.

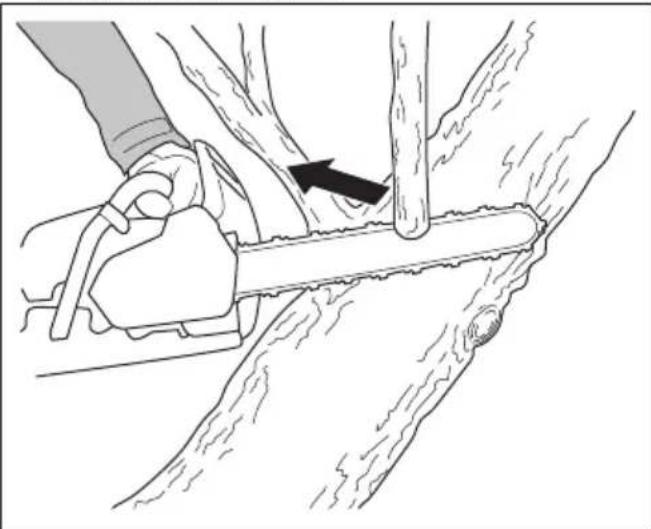

1. Remove the limbs on the right side of the trunk.

a) Keep the guide bar on the right side of the trunk and keep the body of the product against the trunk.
b) Select the applicable cutting technique for the tension in the branch.

WARNING: If you are not sure about how to cut the branch, speak to a professional chainsaw operator before you continue.

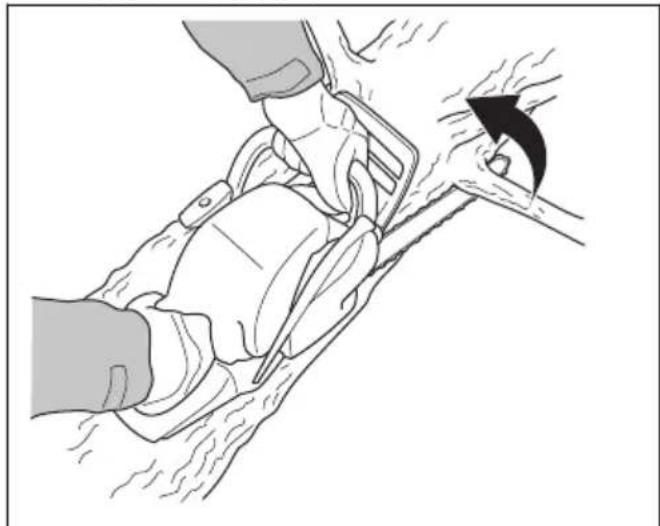

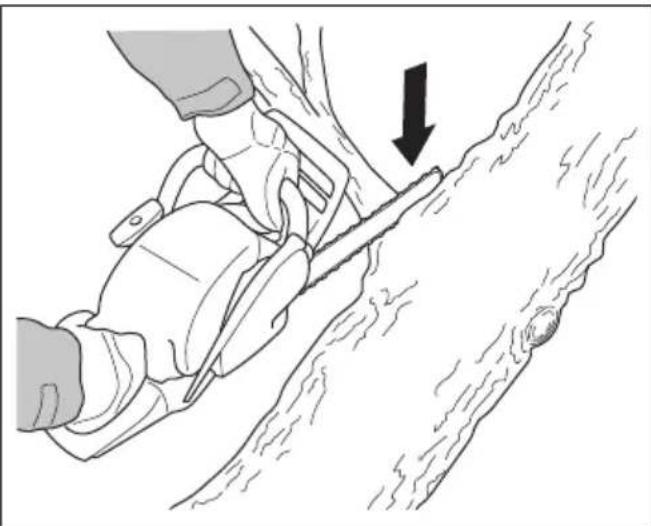

1. Remove the limbs on the top of the trunk.

a) Keep the product on the trunk and let the guide bar move along the trunk.
b) Cut on the push stroke.

1. Remove the limbs on the left side of the trunk.

a) Select the applicable cutting technique for the tension in the branch.

WARNING: If you are not sure about how to cut the branch, speak to a professional chainsaw operator before you continue.

Refer to To cut trees and branches that are in tension on page 20 for instructions on how to cut branches that are in tension.

To use the tree felling technique

WARNING: You must have experience to fell a tree. If possible, engage in a training course in chainsaw operation. Speak to an operator with experience for more knowledge.

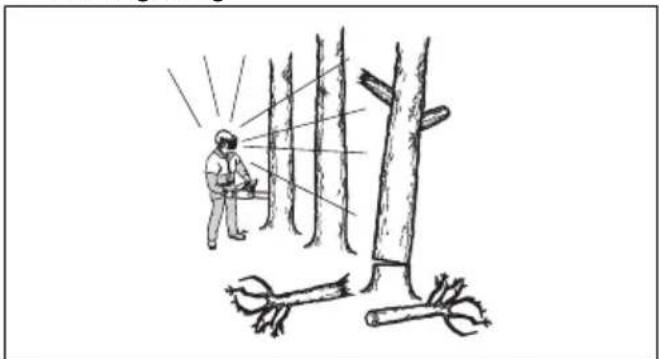

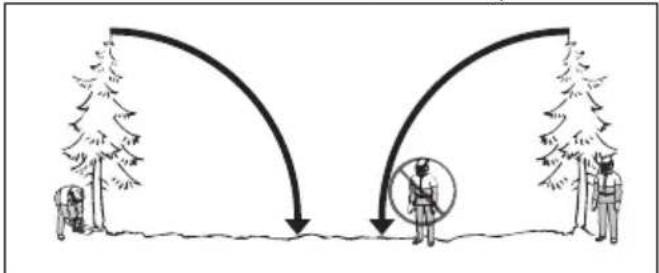

To keep a safe distance

1. Make sure that persons around you keep a safe distance at a minimum of 2 1/2 tree lengths.

1. Make sure that no person is in the risk zone before or during felling.

To calculate the felling direction

1. Examine in which direction it is necessary for the tree to fall. The goal is to fell it in a position where you can limb and cut the trunk easily. It is also important that you are stable on your feet and can move about safely.

WARNING: If it is dangerous or not possible to fell the tree in its natural direction, fell the tree in a different direction.

1. Examine the natural fall direction of the tree. For example the tilt and bend of the tree, wind direction, the location of the branches and weight of snow.
2. Examine if there are obstacles, for example other trees, power lines, roads and/or buildings around.
3. Look for signs of damage and rot in the stem.

WARNING: Rot in the stem can mean a risk that the tree falls before you complete the cutting.

1. Make sure the tree has no damaged or dead branches that can break off and hit you during felling.

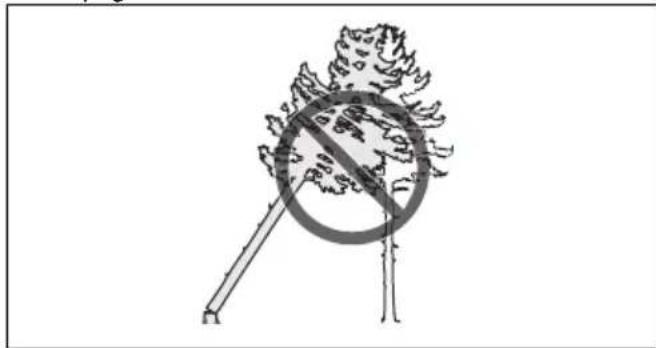

2. Do not let the tree fall onto a different standing tree. It is dangerous to remove a caught tree and there is a high accident risk. Refer to To free a trapped tree on page 19.

WARNING: During critical felling operations, lift your hearing protection immediately when the sawing is complete. It is important that you hear sounds and warning signals.

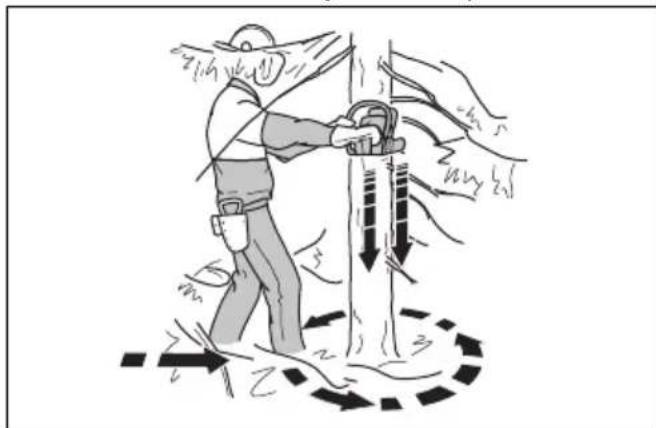

To clear the trunk and prepare your path of retreat

Cut off all branches from your shoulder height and down.

1. Cut on the pull stroke from the top down. Make sure that the tree is between you and the product.

1. Remove undergrowth from the work area around the tree. Remove all cut off material from the work area.
2. Do a check of the area for obstacles such as stones, branches and holes. You must have a clear path of retreat when the tree starts to fall. Your path of retreat must be approximately 135 degrees away from the felling direction.
3. The danger zone
4. The path of retreat
5. The felling direction

To fell a tree

Husqvarna recommends you to make the directional cuts and then use the safe corner method when you fell a tree. The safe corner method helps you to make a correct felling hinge and control the felling direction.

WARNING: Do not fell trees with a diameter that is more than two times larger than the guide bar length. For this, you must have special training.

The felling hinge

The most important procedure during tree felling is to make the correct felling hinge. With a correct felling hinge, you control the felling direction and make sure that the felling procedure is safe.

The thickness of the felling hinge must be equal and a minimum of 10% of the tree diameter.

WARNING: If the felling hinge is incorrect or too thin, you have no control of the felling direction.

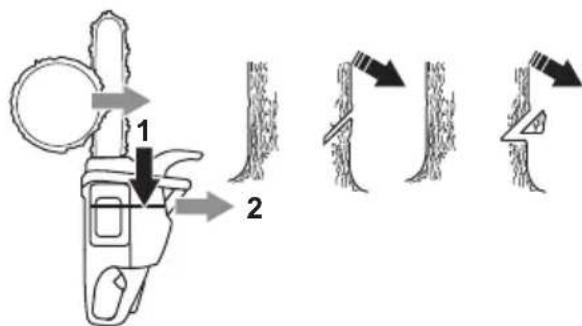

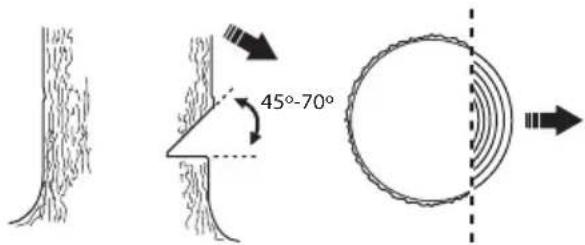

To make the directional cuts

1. Make the directional cuts 14 of the diameter of the tree. Make a 45^ - 70^ angle between the top directional cut and bottom directional cut.

a) Make the top directional cut. Align the felling direction mark (1) of the product with the felling direction of the tree (2). Stay behind the product and keep the tree on your left side. Cut with a pull stroke.
b) Make the bottom directional cut. Make sure that the end of the bottom directional cut is at the same point as the end of the top directional cut.

1. Make sure that the bottom directional cut is horizontal and at a 90^ angle to the felling direction.

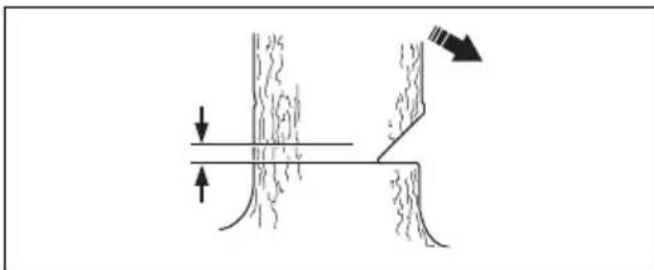

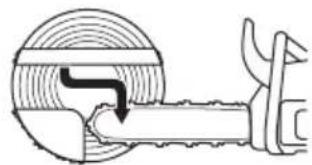

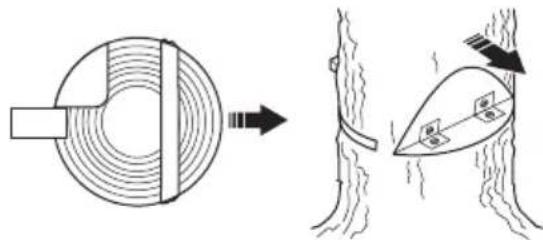

To use the safe corner method

The felling cut must be made slightly above the directional cut.

WARNING: Be careful when you cut with the guide bar tip. Start to cut with the lower section of the guide bar tip as you make a bore cut into the trunk.

1. If the usable cutting length is longer than the tree diameter, do these steps (a-d).

a) Make a bore cut straight into the trunk to complete the felling hinge width.

b) Cut on the pull stroke until 1% of the trunk is left.
c) Pull the guide bar 5-10 cm/2-4 in rearward.
d) Cut through the remaining of the trunk to complete a safe corner that is 5-10 cm/2-4 in wide.

1. If the usable cutting length is shorter than the tree diameter, do these steps (a-d).

a) Make a bore cut straight into the trunk. The bore cut must extend 3/5 of the tree diameter.
b) Cut on the pull stroke through the remaining trunk.

c) Cut straight into the trunk from the other side of the tree to complete the felling hinge.
d) Cut on the push stroke, until 13 of the trunk is left, to complete the safe corner.

1. Put a wedge in the kerf straight from behind.

1. Cut off the corner to make the tree fall.
   Note: If the tree does not fall, hit the wedge until it does.
2. When the tree starts to fall, use the path of retreat to move away from the tree. Move a minimum of 5 m/15 ft away from the tree.

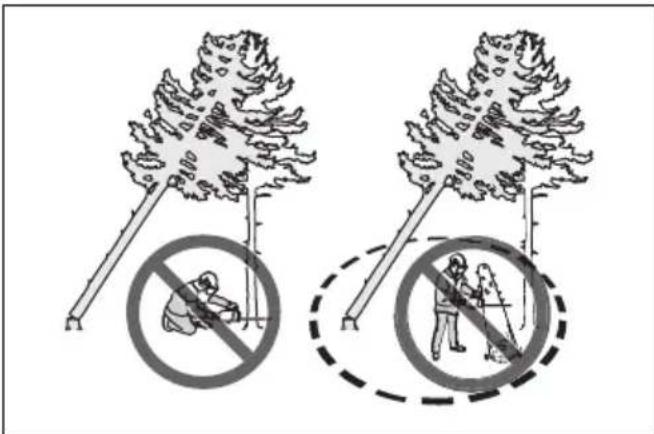

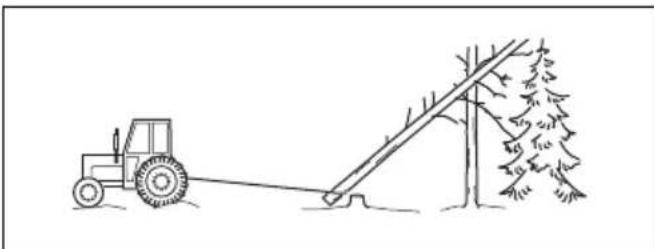

To free a trapped tree

WARNING: It is very dangerous to remove a trapped tree and there is a high accident risk. Keep out of the risk zone and do not try to fell a trapped tree.

The safest procedure is to use one of the following winches:

• Tractor-mounted

• Portable

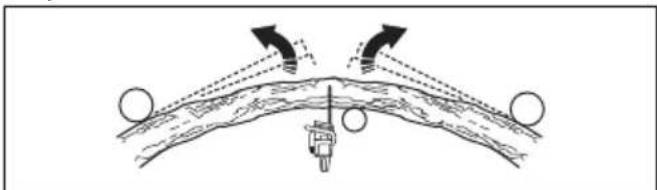

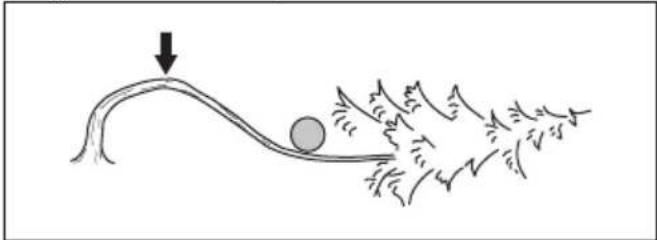

To cut trees and branches that are in tension

1. Figure out which side of the tree or branch that is in tension.
2. Figure out where the point of maximum tension is.

1. Examine which is the safest procedure to release the tension.

Note: In some situations the only safe procedure is to use a winch and not your product.

1. Keep a position where the tree or branch can not hit you when the tension is released.

1. Make one or more cuts of sufficient depth necessary to decrease the tension. Cut at or near the point of maximum tension. Make the tree or branch break at the point of maximum tension.

WARNING: Do not cut straight through a tree or branch that is in tension.

WARNING: Be very careful when you cut a tree that is in tension. There is a risk that the tree moves quickly before or after you cut it. Serious injury can occur if you are in an incorrect position or if you cut incorrectly.

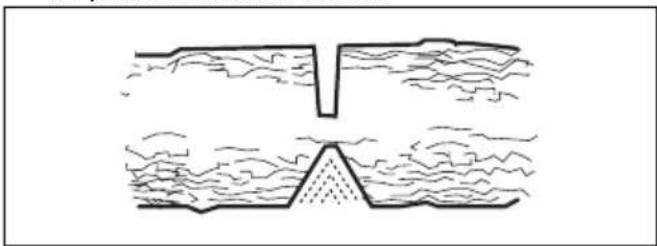

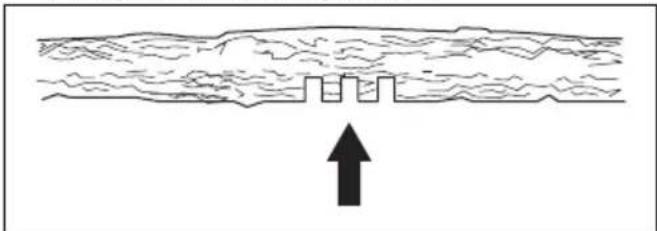

1. If you must cut across tree/branch, make 2 to 3 cuts, 1 in. apart and with a depth of 2 in.

1. Continue to cut more into the tree until the tree/ branch bends and the tension is released.

1. Cut the tree/branch from the opposite side of the bend, after the tension is released.

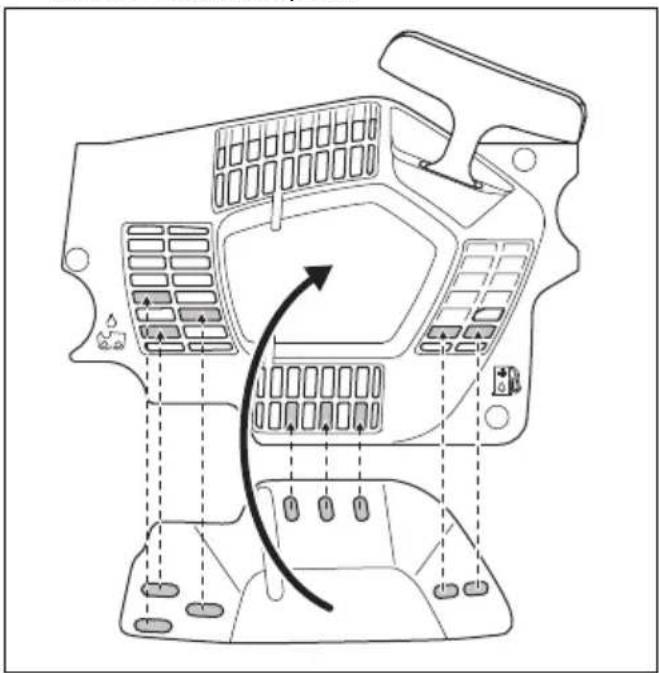

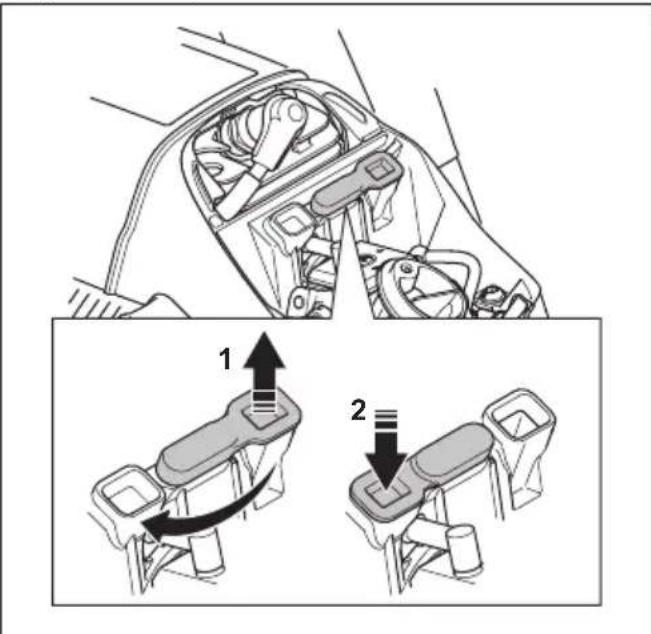

To use the product in cold weather

CAUTION: Snow and cold weather can cause operation problems. Risk of too low engine temperature or ice on the air filter and the carburetor.

1. In temperatures below 0^ / 32^ , move the plug from position 1 to position 2.

1. For temperatures below -5^ / 23^ or in conditions with snow, a winter cover is available. Assemble the winter cover on the starter housing. The winter cover decreases the flow of cool air and keeps snow away from the carburetor space.

Put the winter plug in in position 1 if the temperature increases above 0^ / 32^ . Risk of too high engine temperature and damage to the engine.

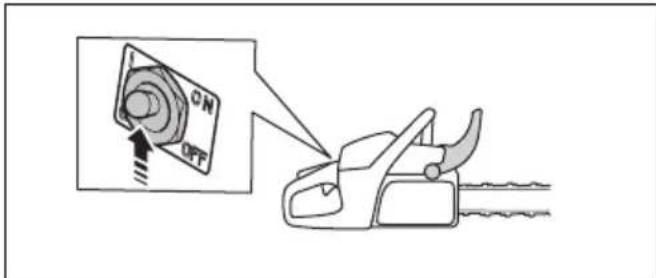

Heated handles (543 XPG)

On models with the designation "G", the front and rear handles have electrical heating coils. A generator supplies power to the heating coils.

Push the switch to engage the heat in the handles. The heat is on when you can see the red mark on the switch.

Electrical carburetor heating (543 XPG)

Adjustment of the carburetor heating is done electrically through a thermostat. This keeps the correct carburetor temperature and prevents ice in the carburetor.

CAUTION: Remove the winter cover if the temperature increases above -5^ / 23^

Maintenance

Introduction

WARNING: Read and understand the safety chapter before you do maintenance on the product.

Maintenance schedule

Daily maintenance Weekly maintenance	Monthly maintenance
Clean the external parts of the product and make sure that there is no oil on the handles.	Clean the cooling system. Refer to To clean the cooling system on page 32.	Do a check of the brake band. Refer to To do a check of the brake band on page 23.
Do a check of the throttle trigger and throttle trigger lockout. Refer to To do a check of the throttle trigger and throttle trigger lockout on page 23.	Do a check of the starter, starter rope and return spring.	Do a check of the clutch centre, clutch drum and clutch spring.
Make sure that there is no damage on the vibration damping units.	Lubricate the needle bearing. Refer to To lubricate the needle bearing on page 30.	Clean the spark plug. Refer to To do a check of the spark plug on page 27.
Clean and do a check of the chain brake. Refer to To do a check of the chain brake on page 23.	Remove burrs from the edges of the guide bar. Refer to To do a check of the front hand guard and the chain brake activation on page 23.	Clean the external parts of the carbu-retor.
Do a check of the chain catcher. Re-fer to To do a check of the guide bar on page 31.	Clean or replace the spark arrester screen on the muffler. Refer to To do a check of the chain catcher on page 24.	Do a check of the fuel filter and the fuel hose. Replace if necessary.

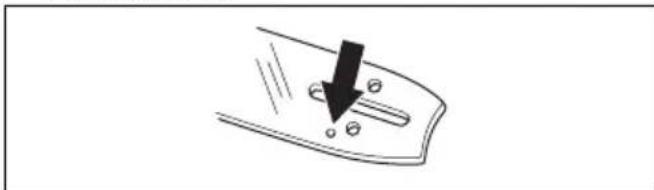

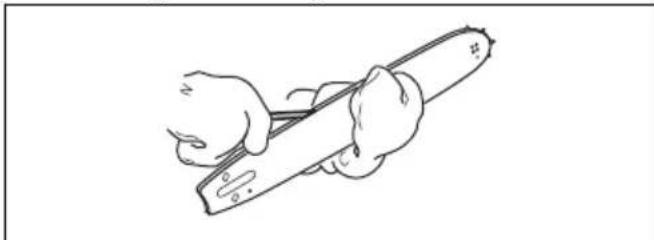

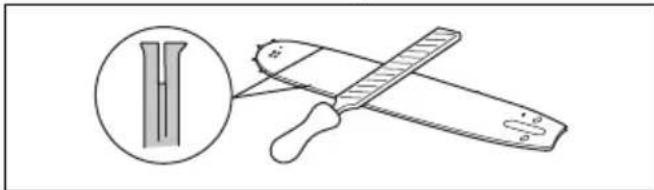

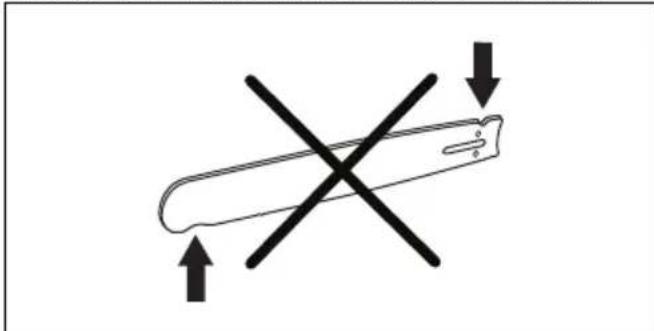

Turn the guide bar, do a check of the lubrication hole and clean the groove in the guide bar. Refer to To do a check of the guide bar on page 31.	Clean the carburetor area. Do a check of all cables and connec-tions.	Empty the fuel tank.
Make sure that the guide bar and saw chain are getting sufficient oil.	Clean or replace the air filter. Refer to To clean the air filter on page 27.
Do a check of the saw chain. Refer to To examine the cutting equipment on page 31.	Clean between the cylinder fins. Empty the oil tank.
Sharpen the saw chain and do a check of its tension. Refer to To sharpen the saw chain on page 27.
Do a check of the chain drive sprock-et. Refer to To do a check of the rim sprocket on page 30.
Clean the air intake on the starter.
Make sure that nuts and screws are tightened.
Do a check of the stop switch. Refer to To do a check of the start/stop switch on page 24.
Make sure that these are no fuel leaks from the engine, tank or fuel lines.
Make sure that the saw chain does not rotate when the engine is at idle speed.
Make sure that there is no damage on the right hand guard.
Make sure that the muffler is correct-ly attached, has no damages and that no parts of the muffler are miss-ing.

Maintenance and checks of the safety devices on the product

To do a check of the brake band

1. Use a brush to remove wood dust, resin and dirt from the chain brake and clutch drum. Dirt and wear can decrease the function of the brake.

1. Do a check of the brake band. The brake band must be at a minimum of 0.6mm / 0.024 in thick at its thinnest point.

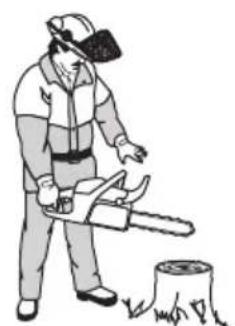

To do a check of the front hand guard and the chain brake activation

1. Make sure that the front hand guard is not damaged and that there are no defects, such as cracks.
2. Make sure that the front hand guard moves freely and that it is attached safely to the clutch cover.

1. Hold the product with 2 hands above a stump or other stable surface.

WARNING: The engine must be off.

1. Let go of the front handle and let the guide bar tip fall against the stump.

1. Make sure that the chain brake engages as the guide bar tip hits the stump.

To do a check of the chain brake

1. Start the product. Refer to To start the product on page 12 for instructions.

WARNING: Make sure that the saw chain does not touch the ground or other objects.

1. Hold the product tightly.
2. Apply full throttle and tilt your left wrist against the front hand guard to engage the chain brake. The saw chain must stop immediately.

WARNING: Do not let go of the front handle.

To do a check of the throttle trigger and throttle trigger lockout

1. Make sure that the throttle trigger and throttle trigger lockout move freely and that the return spring works correctly.

1. Press down the throttle trigger lockout and make sure that it goes back to its initial position when you release it.

1. Make sure that the throttle trigger is locked at the idle position when the throttle trigger lockout is released.

1. Start the product and apply full throttle.
2. Release the throttle trigger and make sure that the saw chain stops and stays stationary.

WARNING: If the saw chain rotates when the throttle trigger is in the idle position, speak to your servicing dealer.

To do a check of the chain catcher

1. Make sure that there is no damage on the chain catcher.
2. Make sure that the chain catcher is stable and attached to the body of the product.

To do a check of the right hand guard

• Make sure that the right hand guard is not damaged and that there are no defects, such as cracks.

To do a check of the vibration damping system

1. Make sure that there are no cracks or deformation on the vibration damping units.
2. Make sure that the vibration damping units are correctly attached to the engine unit and handle unit.

Refer to Product overview on page 2 for information about where the vibration damping system is on your product.

To do a check of the start/stop switch

1. Start the engine.

2. Push the start/stop switch to the STOP position. The engine must stop.

To do a check of the muffler

WARNING: Do not use a product that has a defective muffler or a muffler that is in bad condition.

WARNING: Do not use a product if the spark arrester mesh on the muffler is missing or defective.

1. Examine the muffler for damages and defects.
2. Make sure that the muffler is correctly attached to the product.

1. If your product has a special spark arrester mesh, clean the spark arrester mesh weekly.

1. Replace a damaged spark arrestor mesh.

Carburetor with adjustment limitations

Note: If you do not know which carburetor type that you have on your product, speak to your servicing dealer.

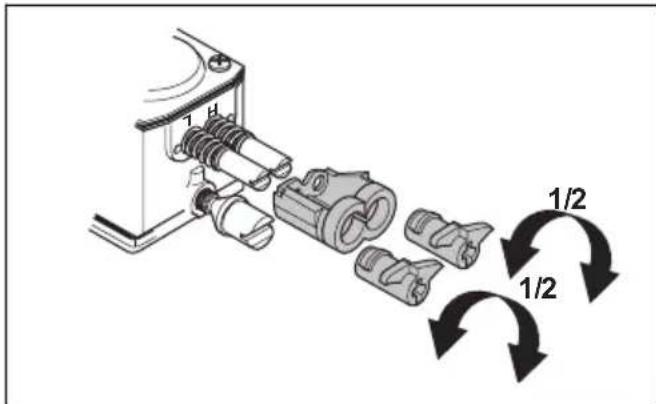

Carburetor adjustment

Because of environmental and emissions laws, your product has adjustment limitations on the carburetor adjuster screws. This decreases the harmful exhaust fumes from your product. You can only turn the adjustment screws maximum 12 turn.

Basic adjustments and run-in

The basic carburetor adjustments are done at the factory. For the recommended idle speed, refer to Technical data on page 34.

CAUTION: Do not operate the product at too high speed during the first 10 hours of operation.

CAUTION: If the saw chain rotates at idle speed, turn the idle speed screw counterclockwise until the saw chain stops.

To adjust the low speed needle (L)

• Turn the low speed needle clockwise until stop.

Note: If the product has a bad acceleration capacity or if the idle speed is not correct, turn the low speed needle counterclockwise. Turn the low speed needle until the acceleration capacity and idle speed is correct.

To adjust the idle speed screw (T)

1. Start the product.
2. Turn the idle speed screw clockwise until the saw chain starts to rotate.
3. Turn the idle speed screw counterclockwise until the saw chain stops.

Note: The idle speed is correctly adjusted when the engine runs correctly in all positions. The idle speed must also be safely below the speed at which the saw chain starts to rotate.

WARNING: If the saw chain does not stop when you turn the idle speed screw, speak to your servicing dealer. Do not use the product until it is correctly adjusted.

To adjust the high speed needle (H)

The engine is adjusted at the factory to operate at sea level. At higher altitudes, in different weather or different temperatures it can be necessary to adjust the high speed needle.

• Turn the high speed needle to make adjustments.

CAUTION: Do not turn the high speed needle screw across the adjustment limitation stop. This can cause damage to the piston and the cylinder.

To examine if the carburetor is correctly adjusted

Make sure that the product has the correct acceleration capacity.
- Make sure that the product 4-cycles a little at full throttle.
Make sure that the saw chain does not rotate at idle speed.
- If the product is not easy to start or has less acceleration capacity, adjust the low and high speed needles.

CAUTION: Incorrect adjustments can cause damage to the engine.

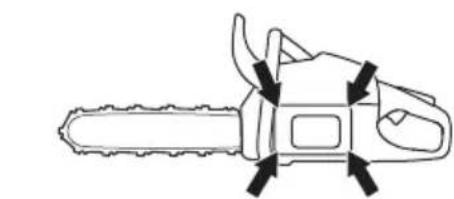

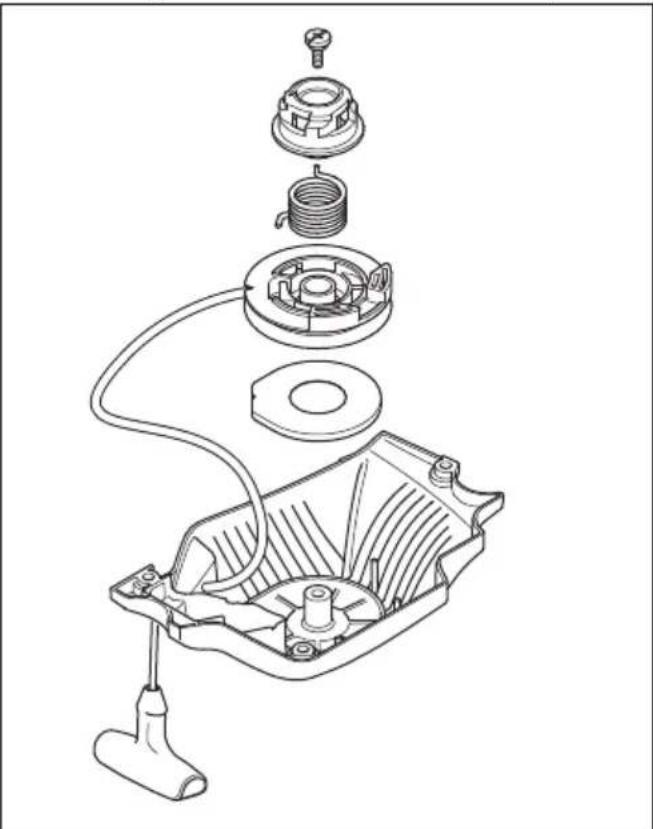

To replace a broken or worn starter rope

1. Loosen the screws to the starter housing.
2. Remove the starter housing.

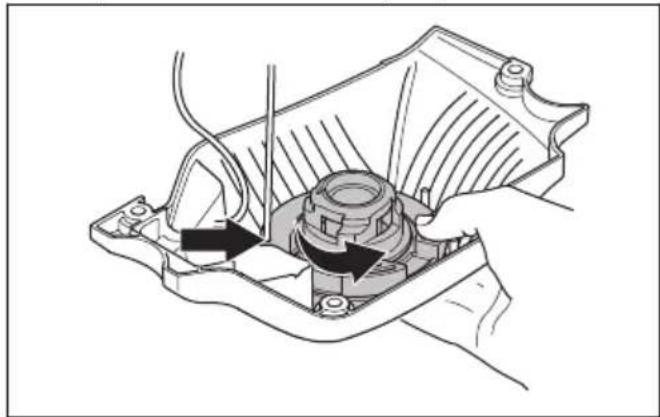

1. Pull out the starter rope approximately 30~cm / 12 in and put it in the notch on the pulley.

1. Let the pulley rotate slowly rearward to release the recoil spring.
2. Remove the center screw and remove the pulley.

WARNING: You must be careful when you replace the return spring or the starter rope. The recoil spring is in tension when it is wound up in the starter housing. If you are not careful, it can eject and cause injuries. Use protective glasses and protective gloves.

1. Remove the used starter rope from the handle and the pulley.
2. Attach a new starter rope to the pulley. Wind the starter rope approximately 3 turns around the pulley.
3. Pull the starter rope through the hole in the starter housing and the starter rope handle.

4. Attach the center screw in the center of the pulley.

5. Make a tight knot at the end of the starter rope.

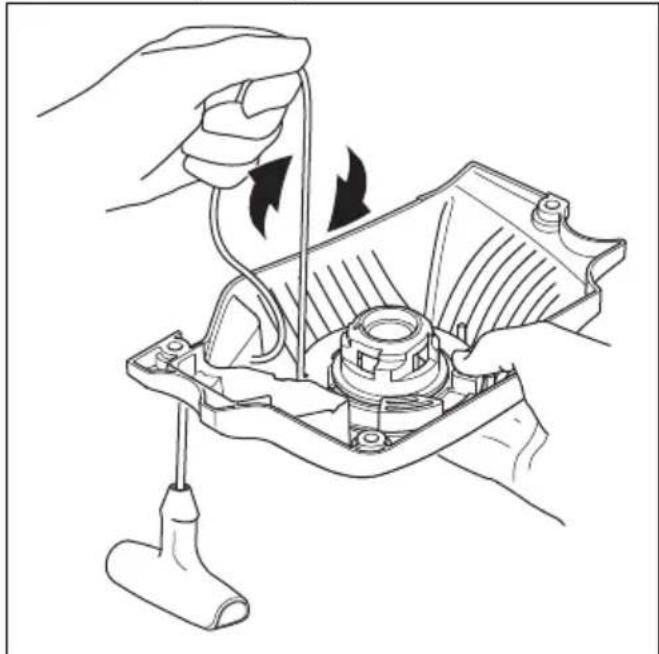

To tighten the recoil spring

1. Put the starter rope into the notch in the pulley.
2. Turn the starter pulley approximately 2 turns clockwise.
3. Make sure that you can turn the pulley 12 turn after the starter rope is fully extended.

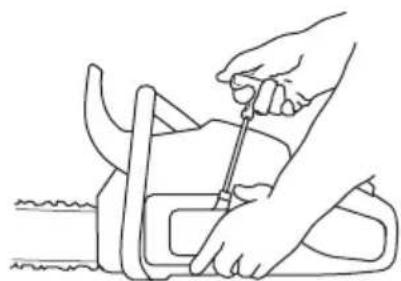

To assemble the starter housing on the product

1. Pull out the starter rope and put the starter in position against the crankcase.
2. Slowly release the starter rope until the pulley engages with the pawls.
3. Tighten the screws that hold the starter.

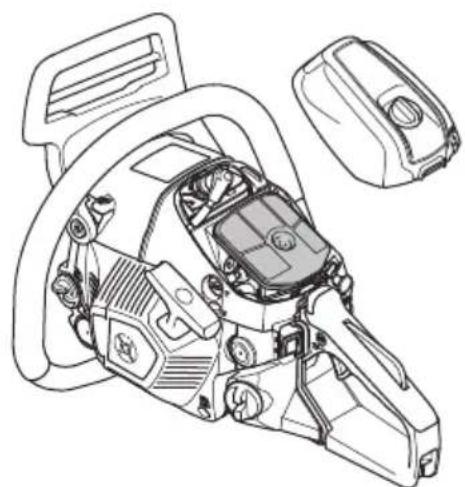

To clean the air filter

Clean the air filter regularly from dirt and dust. This prevents carburetor malfunctions, starting problems, loss of engine power, wear to engine parts and more fuel consumption than usual.

1. Remove the cylinder cover and the air filter.
2. Use a brush or shake the air filter clean. Use detergent and water to clean it fully.

Note: An air filter that is used for a long time can not be fully cleaned. Replace the air filter regularly and always replace a defective air filter.

1. Attach the air filter and make sure that the air filter seals tightly against the filter holder.

Note: Because of different work conditions, weather or season, your product can be used with different types of air filter. Speak to your servicing dealer for more information.

To do a check of the spark plug

CAUTION: Use the recommended spark plug. Refer to Technical data on page 34. An incorrect spark plug can cause damage to the product.

1. If the product is not easy to start or to operate or if the product operates incorrectly at idle speed, examine the spark plug for unwanted materials. To decrease the risk of unwanted material on the spark plug electrodes, do these steps:

a) make sure that the idle speed is correctly adjusted.
b) make sure that the fuel mixture is correct.
c) make sure that the air filter is clean.

1. Clean the spark plug if it is dirty.
2. Make sure that the electrode gap is correct. Refer to, Technical data on page 34.

1. Replace the spark plug monthly or more frequently if necessary.

To sharpen the saw chain

Information about the guide bar and saw chain

WARNING: Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.

Replace a worn or damaged guide bar or saw chain with the guide bar and saw chain combination recommended by Husqvarna. This is necessary to keep the safety functions of the product. Refer to Accessories on page 35, for a list of replacement bar and chain combinations that we recommend.

• Guide bar length, in/cm. Information about the guide bar length can usually be found on the rear end of the guide bar.

• Number of teeth on bar tip sprocket (T).

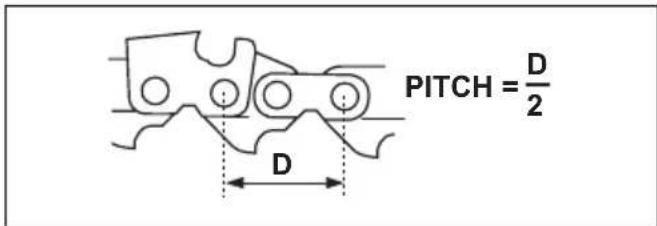

• Chain pitch, in. The distance between the drive links of the saw chain must align with the distance of the teeth on the bar tip sprocket and drive sprocket.

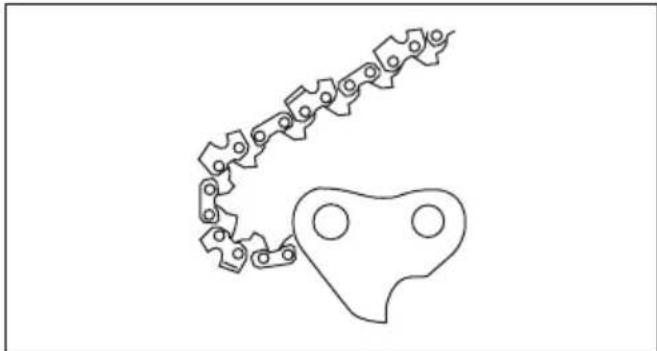

• Number of drive links. The number of drive links is decided by the type of guide bar.

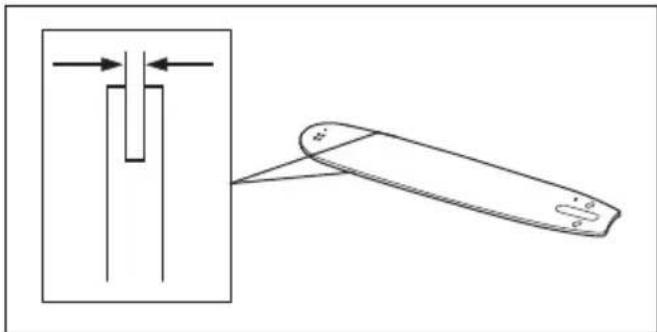

• Bar groove width, in/mm. The groove width in guide bar must be the same as the chain drive links width.

• Chain oil hole and hole for chain tensioner. The guide bar must align with product.

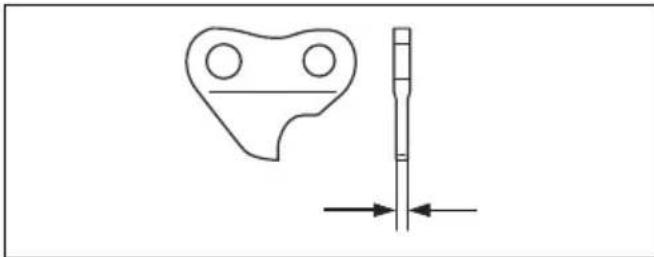

• Drive link width, mm/in.

General information about how to sharpen the cutters

Do not use a blunt saw chain. If the saw chain is blunt, you must apply more pressure to push the guide bar through the wood. If the saw chain is very blunt, there will be no wood chips but sawdust.

A sharp saw chain eats through the wood and the wood chips becomes long and thick.

The cutting tooth (A) and the depth gauge (B) together makes the cutting part of the saw chain, the cutter. The difference in height between the two gives the cutting depth (depth gauge setting).

When you sharpen the cutter, think about the following:

Filing angle.

• Cutting angle.

• File position.

• Round file diameter.

It is not easy to sharpen a saw chain correctly without the correct equipment. Use Husqvarna file gauge. This will help you to keep maximum cutting performance and the kickback risk at a minimum.

WARNING: The force of the kickback increases a lot if you do not follow the sharpening instructions.

Note: Refer to To sharpen the saw chain on page 27 for information about sharpening of the saw chain.

To sharpen the cutters

1. Use a round file and a file gauge to sharpen the cutting teeth.

Note: Refer to Accessories on page 35 for information about which file and gauge that Husqvarna recommends for your saw chain.

1. Apply the file gauge correctly on to the cutter. Refer to the instruction supplied with the file gauge.
2. Move the file from the inner side of the cutting teeth and out. Decrease the pressure on the pull stroke.

1. Remove material from one side of all the cutting teeth.

2. Turn the product around and remove material on the other side.

3. Make sure that all cutting teeth are the same length.

General information about how to adjust the depth gauge setting

The depth gauge setting (C) decreases when you sharpen the cutting tooth (A). To keep maximum cutting performance you must remove filing material from the depth gauge (B) to receive the recommended depth gauge setting. See Accessories on page 35 for instructions about how to receive the correct depth gauge setting for your saw chain.

WARNING: The risk of kickback increases if the depth gauge setting is too large!

To adjust the depth gauge setting

Before you adjust the depth gauge setting or sharpen the cutters, refer to General information about how to adjust the depth gauge setting on page 29, for instructions. We recommend you to adjust the depth gauge setting after each third operation that you sharpen the cutting teeth.

We recommend that you use our depth gauge tool to receive the correct depth gauge setting and bevel for the depth gauge.

1. Use a flat file and a depth gauge tool to adjust the depth gauge setting. Only use Husqvarna depth gauge tool to get the correct depth gauge setting and bevel for the depth gauge.
2. Put the depth gauge tool on the saw chain.

Note: See the package of the depth gauge tool for more information about how to use the tool.

1. Use the flat file to remove the part of the depth gauge that extends through the depth gauge tool.

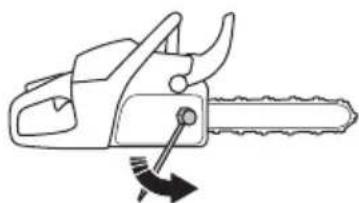

To adjust the tension of the saw chain

WARNING: A saw chain with an incorrect tension can come loose from the guide bar and cause serious injury or death.

A saw chain becomes longer when you use it. Adjust the saw chain regularly.

1. Loosen the bar nuts that hold the clutch cover/chain brake. Use a wrench.

Note: Some models have only one bar nut.

1. Tighten the bar nuts by hand as tightly as you can.
2. Lift the front of the guide bar and turn the chain tensioning screw. Use a wrench.
3. Tighten the saw chain until it is tight against the guide bar but still can move easily.

1. Tighten the bar nuts using the wrench and lift the front of the guide bar at the same time.
2. Make sure you can pull the saw chain around freely by hand and that it does not hang from the guide bar.

Note: Refer to Product overview on page 2 for the position of the chain tensioning screw on your product.

To do a check of the saw chain lubrication

1. Start the product and let it operate at 3 / 4 throttle. Hold the bar approximately 20~cm / 8 in above a surface of light color.
2. If the saw chain lubrication is correct, you see a clear line of oil on the surface after 1 minute.

1. If the saw chain lubrication does not operate correctly, do a check of the guide bar. Refer to To do a check of the guide bar on page 31 for instructions. Speak to your servicing dealer if the maintenance steps does not help.

To do a check of the rim sprocket

The clutch drum has a rim sprocket that can be replaced.

1. Make sure that the rim sprocket is not worn. Replace if necessary.
2. Replace the rim sprocket each time you replace the saw chain.

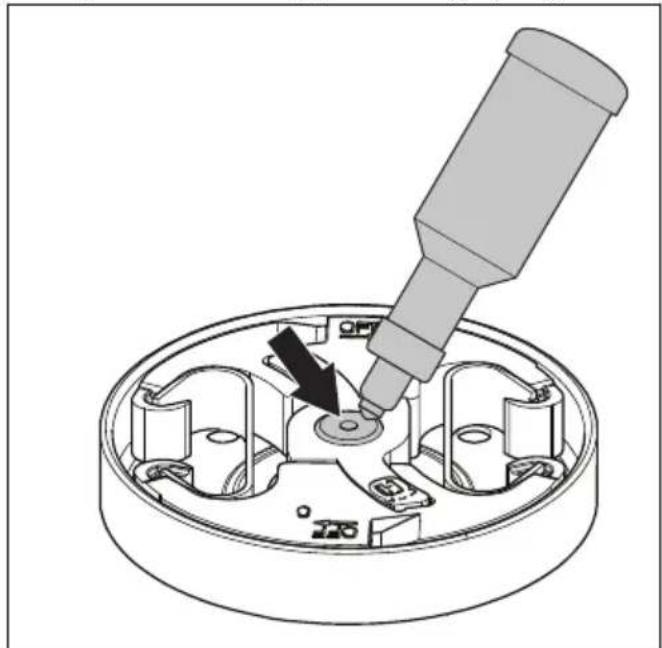

To lubricate the needle bearing

1. Pull the front hand guard rearward to disengage the chain brake.
2. Loosen the bar nuts and remove the clutch cover.

Note: Some models have only one bar nut.

1. Put the product on a stable surface with the clutch drum up.

2. Lubricate the needle bearing with a grease gun. Use engine oil or a bearing grease of high quality.

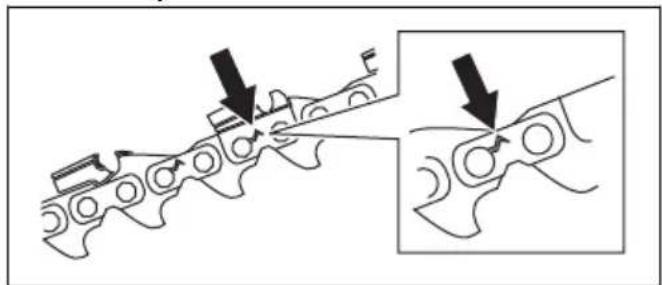

To examine the cutting equipment

1. Make sure that there are no cracks in rivets and links and that no rivets are loose. Replace if it is necessary.

1. Make sure that the saw chain is easy to bend. Replace the saw chain if it is rigid.
2. Compare the saw chain with a new saw chain to examine if the rivets and links are worn.
3. Replace the saw chain when the longest part of the cutting tooth is less than 4mm / 0.16 in. Also replace the saw chain if there are cracks on the cutters.

To do a check of the guide bar

1. Make sure that the oil channel is not blocked. Clean if it is necessary.

1. Examine if there are burrs on the edges of the guide bar. Remove the burrs using a file.

1. Clean the groove in the guide bar.

1. Examine the groove in the guide bar for wear. Replace the guide bar if it is necessary.

1. Examine if the guide bar tip is rough or very worn.

1. Make sure that the bar tip sprocket turns freely and that the lubricating hole in the bar tip sprocket is not blocked. Clean and lubricate if it is necessary.

1. Turn the guide bar daily to extend its life cycle.

To do maintenance on the fuel tank and the chain oil tank

• Drain and clean the fuel tank and the chain oil tank regularly.
• Replace the fuel filter yearly or more frequently if necessary.

CAUTION: Contamination in the tanks causes malfunction.

To adjust the chain oil flow

WARNING: Stop the engine before you make adjustments to the oil pump.

• Turn the adjustment screw of the oil pump. Use a screwdriver or combination wrench.

a) Turn the adjustment screw clockwise to decrease the chain oil flow.
b) Turn the adjustment screw counterclockwise to increase the chain oil flow.

Recommended settings for the oil pump

• Guide bar length 33-38 cm/13-15 in: Minimum flow
• Guide bar length 38-41 cm/15-16 in: Medium flow
• Guide bar length -46 cm/-18 in: Maximum flow

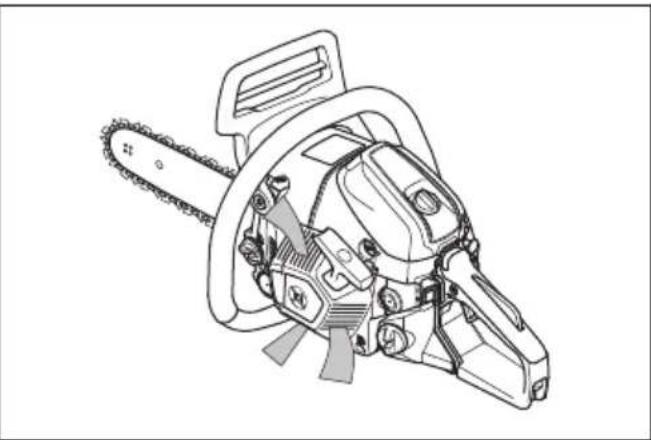

Air cleaning system

AirInjectionTM is a centrifugal air cleaning system that removes dust and dirt before the particles are caught by

the air filter. Airlnjection™ extends the life of the air filter and the engine.

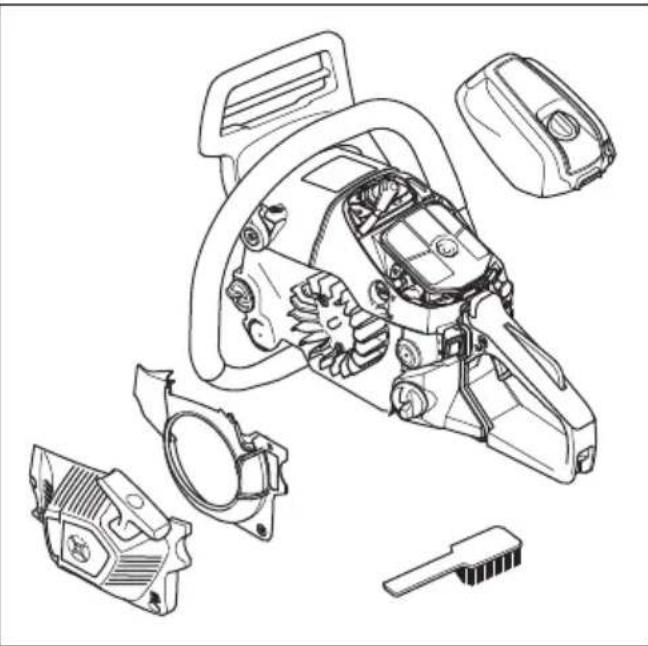

To clean the cooling system

The cooling system keeps the engine temperature down. The cooling system includes the air intake on the starter and the air guide plate, the pawls on the flywheel, the cooling fins on the cylinder, the cooling channel and the cylinder cover.

1. Clean the cooling system with a brush weekly or more frequently if it is necessary.
2. Make sure that the cooling system is not dirty or blocked.

CAUTION: A dirty or blocked cooling system can make the product too hot, which can cause damage to the product.

Troubleshooting

The engine does not start

Product part to examine Possible cause	Action
Starter pawls The starter pawls are block. Adjust or replace the starter pawls.
		Clean around the pawls.
		Speak to an approved service workshop.
Fuel tank Incorrect fuel type. Drain the fuel tank and fill with cor-		rect fuel.
		You have tried to start the product, speak to your servicing dealer. If you have not tried to start the product, drain the fuel tank.
Ignition, no spark The spark plug is dirty or wet. Make sure that the spark plug is dry and clean.		is dry and clean.
		The electrode gap is incorrect. Clean the spark plug. Make sure that the electrode gap and spark plug is correct, and that the correct spark plug type is the recommended or equivalent.
		Refer to Technical data on page 34 for the correct electrode gap.
Spark plug and cylinder The spark plug is loose. Tighten the spark plug.
		Remove and clean the spark plug. Put the product on its side with the spark plug hole away from you. Pull the starter rope handle 6-8 times. Assemble the spark plug and start the product. Refer to To start the product on page 12.

The engine starts but stops again

Product part to examine	Possible cause Action
Fuel tank Incorrect fuel type. Drain the fuel tank and fill with cor-rect fuel.
Carburetor The idle speed is not correct. Speak to your servicing dealer.
Air filter Clogged air filter. Clean or replace the air filter.
Fuel filter Clogged fuel filter.	Replace the fuel filter.

Transportation and storage

Transportation and storage

• For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. Sparks or open flames, for example from electrical devices or boilers, can start a fire.
• Always use approved containers for storage and transportation of fuel.
• Empty the fuel and chain oil tanks before transportation or before long-term storage. Discard the fuel and chain oil at an applicable disposal location.
• Use the transportation guard on the product to prevent injuries or damage to the product. A saw chain that does not move can also cause serious injuries.
• Remove the spark plug cap from the spark plug and engage the chain brake.
• Attach the product safely during transportation.

To prepare your product for long-term storage

1. Stop the product and let it become cool before you disassemble it.
2. Disassemble and clean the saw chain and the groove in the guide bar.

CAUTION: If the saw chain and guide bar are not cleaned, they can become rigid or blocked.

1. Attach the transportation guard.
2. Clean the product. Refer to Maintenance on page 21 for instructions.
3. Do a complete servicing of the product.

Technical data

Technical data

	Husqvarna 543 XP Husqvarna 543 XPG
Engine
Cylinder displacement, cm3	43.1 43.1
Idle speed, rpm 2500-2700 2500-2700
Maximum engine power acc. to ISO 8893, kW/hp @ rpm	2.2/2.9 @ 9600 2.2/2.9 @ 9600
Ignition system1
Spark plug NGK CMR7H NGK CMR7H
Electrode gap, mm 0.65 0.65
Fuel and lubrication system
Fuel tank capacity, liter/cm3	0.42/420 0.42/420
Oil tank capacity, liter/cm3	0.27/270 0.27/270
Type of oil pump Adjustable Adjustable
Weight
Weight, kg 4.5 4.7
Noise emissions
Sound power level, measured dB(A) 1	12 112
	Husqvarna 543 XP Husqvarna 543 XP
Sound power level, guaranteed LWA dB(A)	113 113
Sound levels2
Equivalent sound pressure level at the operator's ear, dB(A)	101 101
Equivalent vibration levels, a hveq3
Front handle, m/s2	4.5 4.5
Rear handle, m/s2	4.2 4.2
Saw chain/guide bar
Type of drive sprocket/number of teeth	Rim/7 Rim/7
Saw chain speed at 133% of maxi-mum engine power speed, m/s.	24.6 24.6

Accessories

Recommended cutting equipment

Chainsaw models Husqvarna 543 XP, 543 XPG have been evaluated for safety according to EN ISO 11681-1:2011 (Machinery for forestry - Portable chainsaw safety requirements and testing) and fulfill the safety requirements when equipped with the below listed guide bar and saw chain combinations.

Low kickback saw chain

A saw chain that is designated as Low kickback saw chain, meets the low kickback requirement specified in ANSI B175.1-2012.

Kickback and guide bar nose radius

For sprocket nose bars the nose radius is specified by the number of teeth, such as 10T. For solid guide bars the nose radius is specified by the dimension of the nose radius. For a given guide bar length, you can use a guide bar with smaller nose radius than given.

Guide bar Saw chain
Length, in/cm	Pitch, in Gauge, in	/mm Max. nose radius	Type Length, drive links (no.)		Low kickback
13/33 0.325 0.050/1.3 10T Husqvarna H30 56 Yes
15/38 64
16/41 66
18/46 72
Length, in/cm Pitch, in Gauge, in/mm Max. nose radius				Type Length, drive links (no.)		Low kickback
13/33 0.325 0.050/1.3 10T Huscovarna				SP33G	56
15/38 64
16/41 66
18/46 72
13/33 0.325 0.058/1.5 10T Huscovarna H25 56 Yes
15/38 64
16/41 66
18/46 72
13/33 0.325 0.058/1.5 11T Huscovarna				S35G	56 Yes
15/38 64
16/41 12T 66
18/46 R33 72

The usable cutting length is usually 1 in less than the nominal guide bar length.

Pixel

Pixel is a guide bar and saw chain combination that is more light weight and designated to offer more energy efficient use by cutting narrow cuts. Both guide bar and saw chain need to be Pixel to get these benefits. Pixel cutting equipment is marked with this symbol.

Filing equipment and filing angles

Use a Husqvarna file gauge to sharpen the saw chain. A Husqvarna file gauge makes sure that you get the correct filing angles. The part numbers are given in the table below.

If you are not sure how to identify the type of saw chain on your product, refer to www.husqvarna.com for more information.

SP33G 3/16	in / 4.8 mm 586 93	84-01	0.025 in / 0.65 mm	30°	80°
H30 3 / 16 in / 4.8 mm 505 69 81-08		0.025 in / 0.65 mm	30° 85°
H25 3 / 16 in / 4.8 mm 505 69 81-09		0.025 in / 0.65 mm	30° 85°
S35G 3 / 16 in / 4.8 mm 587 80 91-01		0.025 in / 0.65 mm	30° 60°

Declaration of Conformity

EU Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Chainsaws for forest service
Brand Husqvarna
Type / Model 543 XP,	543 XPG
Identification Serial numbers dating from 2022 and onwards

complies fully with the following EU directives and regulations:

Regulation Description
2006/42/EC "relating to machinery"
2014/30/EU "relating to electromagnetic compatibility"
2000/14/EC "relating to the noise emissions in the environment"
2011/65/EU "on the restriction of the use of certain hazardous substances in electrical and electronic equipment"

and that the following standards and/or technical specifications are applied: EN ISO 12100:2021, ISO 14982:2009, EN ISO 11681-1:2011, EN IEC 63000:2018.

Certificate Number: 0404/12/2360

Notified body: 0404, RISE SMP Svensk Maskinprovning AB Box 7035, SE-750 07 Uppsala, Sweden has carried out EC type examination in accordance with the machinery directive's (2006/42/EC) article 12, point 3b, annex IX on behalf of Husqvarna AB.

0404, RISE SMP Svensk Maskinprovning AB has certified conformity with the council's directive 2000/14/EC, conformity assessment procedure: Annex V.

For information relating to noise emissions, refer to Technical data on page 34.

Huskvarna, 2022-05-09

Stefan Holmberg, R&D Director, Technology Management, Husqvarna AB

Responsible for technical documentation

UK Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:

[phone], declare on our sole responsibility that

the product:

Description Chainsaws	for forest service
Brand Husqvarna
Type / Model 543 XP, 543 XPG
Identification Serial numbers dating from 2022 and onwards

complies fully with the following UK regulations:

Regulations

The Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 8

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and that the following standards and/or technical

specifications are applied: EN ISO 12100:2021,

ISO 14982:2009, EN ISO 11681-1:2011, EN IEC

63000:2018.

For information relating to noise emissions, refer to

Technical data on page 34.

Huskvarna, 2022-05-09

Stefan Holmberg, R&D Director, Technology

Management, Husqvarna AB

Responsible for technical documentation

UK Importer:

Husqvarna UK Ltd

Preston Road, Co. Durham

DL56UP

Inhalt

Einleitung. 40

Sicherheit. 42

Montage. 47

Betrieb. 48

Wartung 61

Fehlerbehebung. 74

Stefan Holmberg, R&D Director, Technology Management, Husqvarna AB

Stefan Holmberg, Responsible R&S, Technology Management, Husqvarna AB

Start/stop-schakelaar

WAARSCHUWING: Geen enkele
