HC 3660 - Hair Straightener CLATRONIC - Free user manual and instructions

USER MANUAL HC 3660 CLATRONIC

Consommation 28-33 W

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with all of the following instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible risks of injury.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used.
• Do not operate the machine without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil used for packaging the appliance. There is a danger of suffocation!

Special safety information for this appliance

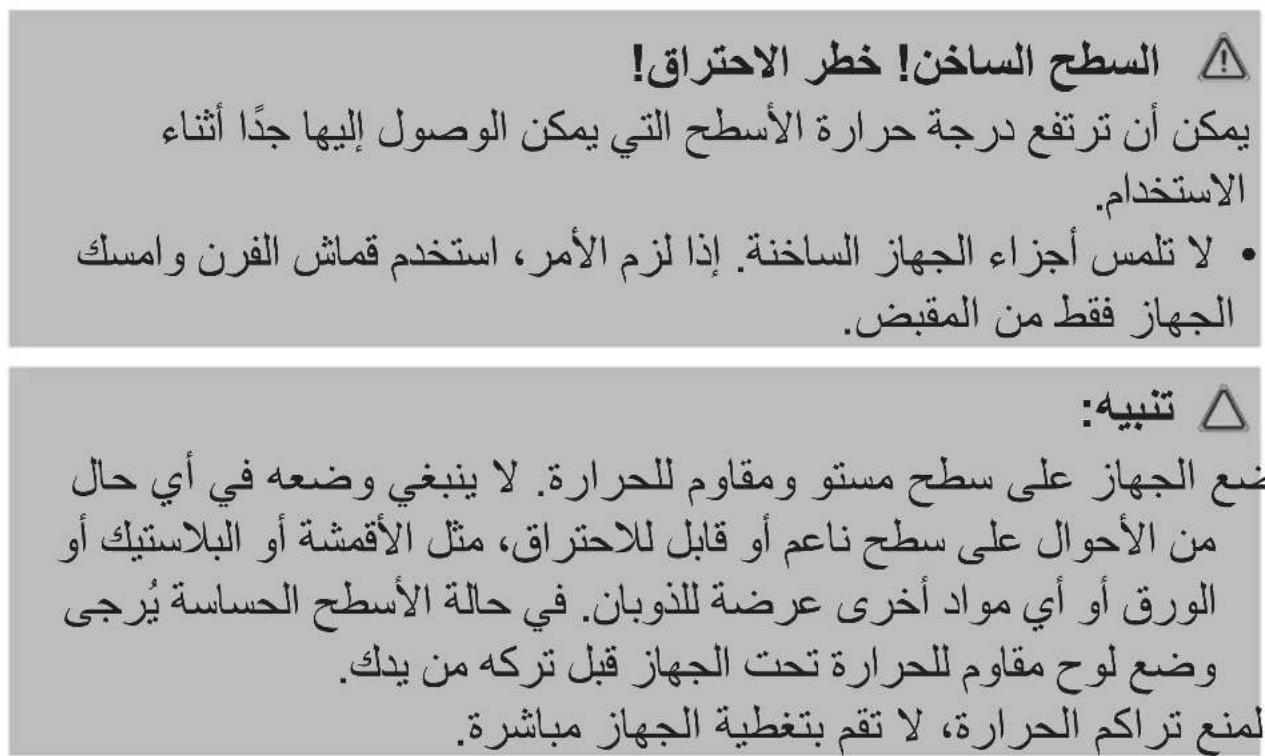

HOT SURFACE! Risk of burning!

The temperature of accessible surfaces can get very hot during use.

• Do not touch the hot parts of the appliance. If necessary, you should use an oven cloth and hold the appliance only by the handle.

CAUTION:

• Leave the appliance only on a flat and heat-resistant surface. In no event should it be placed on a soft or combustible surface, i.e. fabrics, plastic, paper, or any other materials susceptible to melting. In case of sensitive surfaces please place a heat-resistant board under the appliance before placing it down.

• In order to prevent heat from building up, do not directly cover the appliance.

• Please ensure that the mains lead does not come into contact with the hot sections of the appliance.

• Allow the appliance to completely cool down before cleaning it and storing it away.
• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and fully understand the hazards involved when operating the appliance.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be done by children unless they are older than 8 years and supervised.
• Keep the appliance and its cord out of reach of children younger than 8 years.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• This appliance is not intended for being immersed in water during cleaning. Observe all instructions provided in the chapter "Cleaning".

Overview of the Components / Delivery Scope

1. Hair straightener
2. Heating plates
3. Heat insulated handle
4. ON/OFF switch
5. Safety interlock
6. Hanging loop
7. Attached power cord
8. Blue LED indic
9. 360^ Turnable joint

Unpacking the Appliance

• Remove the appliance from the packaging.
• Remove any packaging materials that may be present inside the packaging or inside the appliance.
• Check the overview of the components / delivery scope.

Using the Appliance

Instructions for Use

Before you start to straighten your hair for the first time using this appliance.

• Remove any packaging that is still present. Unwind the mains lead completely. Make sure there are no knots in

the mains lead that could damage the appliance or cause any risk to the user.

• Clean the housing and the heating plates (2) with a damp cloth.
• Please ensure the power switch (4) is put into the OFF position.
• Close the plates of the hair straightener and slide the safety interlock (5) into the locking position by sliding it towards the heating plates (2).

NOTE:

• Keep the heating plates (2) closed while heating.
• The blue control LED indicator (8) remains on to show that the appliance is in operation and caution should be used around the appliance.

• The heating plates (2) should always be closed during the intervals between hair straightening.

• Insert the plug in a duly installed protective contact socket.

• Slide the power switch (4) into the ON position. The blue control LED indicator (8) will light up and will stay lit until the appliance has been turned off.

NOTE:

Any smoke or smells produced by the appliance during this procedure is normal. Please ensure for sufficient ventilation.

1. Wait for the heating plates (2) to heat up.
2. Unlock the hair straightener by sliding the safety interlock (5) into the unlocking position by sliding it away from the heating plates and the plates will open. The appliance is now ready to be used.
3. Straighten the hair by gently pressing the heating plates (2) together with the hair pressed between the plates. Avoid any contact with the heating plates (2) by holding the appliance only by the heat insulated handle (3). Repeat this until the hair is straightened before moving on to the next section. The 360^ turnable joint ensures for easy handling of the appliance without kinking the power cord or obstructing the user while operating the appliance.
4. After use, slide the power switch (4) into the OFF position to turn off the appliance before unplugging the mains plug from the power socket. The blue LED indicator (8) turns off.

5. Remove the mains plug from the socket and allow the appliance to cool down.

6. After the appliance has completely cooled down, wipe the heating plates (2) clean with a paper towel.

WARNING:

Pay attention to the heated up heating plates (2). Risk of burning.

CAUTION:

Do not use pointed or sharp objects to avoid damaging the additional Tourmaline coating of the heating plates (2).

Electrical connection

1. Check whether the mains voltage that you want to use matches the one of the appliance. You will find the information about this on the power plug.
2. Insert the plug in a duly installed protective contact socket.
3. After sliding the power switch (4) into the ON position the blue control LED indicator (8) will light up and will stay lit until the appliance has been switched off.
4. Switch off the appliance by sliding the power switch (4) into the OFF position. The blue LED indicator (8) will turn off and the mains plug can be removed from the power socket.

Switching Off

If you would like to interrupt operation or switch the appliance off, slide the power switch (4) into the OFF position and remove the mains plug from the power socket. The blue LED indicator (8) turns off.

Hanging loop

• The appliance can be hung by using the designated hanging loop (6) for temporary storing.
• Please make sure the appliance is safely turned off and the power switch (4) is put into the OFF position to avoid any risk of injury or potential damage to the appliance while moving around the appliance while hanging.
• Ensure that the power cord is not obstructing the movement around the appliance while hanging to avoid any risk of injury or potential damage to the appliance.

Cleaning

WARNING:

• Always pull out the plug from the mains socket before cleaning the appliance and wait until the appliance has cooled down.
• Under no circumstances should you immerse the appliance in water for cleaning purposes. Doing so might result in an electric shock or cause a fire to start.

CAUTION:

• Do not use any wire brush or other abrasive objects in order to avoid permanent damage to the appliance.
• Do not use any acidic or abrasive detergents in order to avoid permanent damage to the appliance.

Heating plates

Remove any hair or hair product residues with a damp cloth or paper towel to avoid it sticking to the heating plates (2).

Housing

Clean the housing after use with a slightly damp cloth once the appliance has completely cooled down.

Technical Data

Model: HC 3660

Power supply: 220 - 240 V~, 50/60 Hz

Power consumption: 28 - 33 W

Protection class:

Net weight: approx. 0.36 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic, paper, glass, or biological waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human and animal health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authorities.

Instrukcja obslugi

jusill 111 glc iably biaial yjb jc yil luyu .6

（2）

jll jjnnn nn jnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

jill jll l Jlll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll Jll

jill jll jll 360 jll jll jaiy

jll jll l pssss s

OFF (4)

bi j 1

.8)LED

jll jil g jil jil jil jil jil jil jil

puiil jbi/ ciigai ie aie jbi

jeoo.1

1.2

jdl jgsjia 3

ON/OFF 4

Jia Jia .5

6

38 all 15.7

LED 8

360 9

g

aai jao jao 1

jgl jal jol jal jal jal jal jal jal jal jal jal

yill / cllsall jbi gle aolal o jill

jglal p

j 100

i 1

piisinnllg jbi

Aa 2

（4）a1b1

OFF

（5）（204

(2)

jglal

Jgally aaiuie 1jzuii iiaaiae ie jy

GARANTIEKARTE

warranty card · garantiekaart · carte de garantie · scheda di garanzia · tarjeta de garantia · cartao de garantia · garantikort · karta gwarancyjna · zaručni list · kartica jamstva · carte de garantie · Γαραυμούηνα καρτa · zaručnly list · garancijski list · garanciajegy · rapaHTIHHΦopMynp · ΓαρΑΤΗΝΤΑΟι Καλει

HC 3660

24 Monate Garantie gemäß Garantiererklung 24 months warranty according to warranty declaration 24 maanden garantie volgens garantieverklung 24 mois de garantie selon la déclaration de garantie 24 mesi di garanzia seconde la dichiarazione di garanzia 24 meses de garantia de acuardo con la déclaracion de garantia 24 maneds garantiat i henhold til garantibetingelsene 24 misiacj gwarancj na podstawie oswiadzenia gwarancyjngo zarauka 24 miciud prohlasei o zaruce 24 mesecno jamstvo u skladu s jamsstvenom deklaracionj 24 lunigarantie conform déclaratie de garantie 24 mecaea rapaniB CbotetBnC rapaHIOHHATA deknapaJN 24-mesaacna zarauka podfa vhyasieno o zaruke 24-mesecnagarcia, skladno z garancjsko izavo 24 honap garancia a garanciafeletetelekben leirtak szerint - rapaHTHa N 24 micui BIDIOIBHO 39 npo raptanio - raptanra 24 meca cornacho 38nHbIM RAPATINHMnpaBnAM

Kaufdatum, Handlsterpmel, Unterschied - date of purchase, dealer stamp, signature - aankoepodium, dealsterpmel, handelkening - date d'achat, tampon du concessionaire, signature - data de acquiste, timbre del rvenitiere, fimra - fecha de compra, selle del distribuidor, fimra - data de compra, carimbo de distribuidor, assinatura - kogsdato, forhandierstempe, signatur - data zakupu, piecetr保税dawcy, podis - datum zakeuperil, naiziko projece, podis - datum kupevine, zig trogova, petis - data de schizpe, stampila furnuzuliu, semnatura - daia na noxmyam, lvear na Ioposasa, Iopmec - datum nukpu, pehtika obchodnika/rodajcu, podis - datum napka, zig trogova, podis - vassanas datuma, kereskedb belyegzje, alalir - daa nprobnien, ne-ataknpnoabua, nneik - daa nproobpenen, ilanarn npnoabua, Iopmncs.

CTC

CATHRONIC INTERNATIONAL GMBH

www.clatronic.com
