Product type	Mini stepper
Brand	SportPlus
Model	SPMSP008B
Dimensions (L × W × H)	48 × 52 × 131 cm
Total weight	12.2 kg
Maximum user weight	100 kg
Power supply	1 LR03 AAA battery / 1.5 V
Braking system	Speed independent
Movement type	Dependent walking
Resistance mechanism	2 hydraulic cylinders
Adjustable step height	Yes, via rotary knob (right = higher, left = lower)
Computer functions	Step count, time, calories, steps/minute, auto scan
Start/stop	Automatic: starts when moving, stops after approx. 4 minutes of inactivity
Step count always displayed	Yes (upper part of screen)
Control buttons	MODE (lower display selection) and RESET (reset)
Class	H.C. (private domestic use)
Intended use	Cardiovascular strengthening, toning calves, thighs and glutes
Assembly required	Yes, by an adult; tools provided (hex key, open-end wrench)
Maintenance and cleaning	Slightly damp cloth with mild detergent; do not use if parts are damaged
Storage	In a safe place, sheltered from the elements
Safety	Do not use by multiple people at once; free space of at least 1 m around; keep out of reach of children
Warranty	2 years from date of purchase (private use only)
Customer service	Tel: [phone] – 34 / Email: [e-mail] / Website: www.SportPlus.de

Frequently Asked Questions - SPMSP008B SportPlus

What are the dimensions and weight of the SportPlus SPMSP008B?

The dimensions are 48 x 52 x 131 cm and the total weight is 12.2 kg.

What type of battery does the computer use?

The computer operates with 1 LR03 AAA battery of 1.5 V (not included).

What is the maximum supported weight?

The maximum user weight is 100 kg.

How to adjust the difficulty of the stepper?

The step height is adjusted via the rotary knob: turn right to increase the height (more difficult), left to decrease it.

Why doesn't the computer display the step count?

If the step height is too low, the computer does not receive a signal. Slightly increase the height so that the sensor detects movement.

How to reset the computer display?

Press the RESET key to reset the current values. The MODE key allows changing the display (time, calories, etc.).

Can I use this device for commercial purposes?

No, the SPMSP008B is designed solely for private domestic use. Commercial use voids the warranty.

How to maintain and clean the mini stepper?

Clean it with a slightly damp cloth and a mild detergent. Do not use the device if parts are damaged or have sharp edges.

Where to store the device after use?

Store it in a dry place, sheltered from the elements, out of reach of children and pets.

What is the warranty period and how to contact customer service?

The warranty is 2 years from the date of purchase. Contact customer service by phone at [phone] – 34 or by email at [e-mail].

USER MANUAL SPMSP008B SportPlus

Congratulations for choosing a SportPlus product. We have every expectation that you will be fully satisfied with your new purchase.

To guarantee optimal function of this product, please adhere to the following instructions:

Before using this product for the first time, please read the manual carefully!

Please read the safety instructions carefully and use the equipment only as described in the manual to avoid hazards and personal injury.

Please retain this manual for future reference.

Should you pass on this product, ensure to include the corresponding instruction manual.

CONTENTS

1. TECHNICAL DATA 17
2. SAFETY INSTRUCTIONS 18
3. INFORMATION ON ASSEMBLY 20
4. ASSEMBLY INSTRUCTIONS 21
5. USING THE PRODUCT 26
   5B. USING THE COMPUTER 27
6. EXPLOSION VIEW 28
7. PARTS LIST 29
8. MAINTENANCE, CLEANING AND CARE 30
9. NOTES ON DISPOSAL 30
   10.COMPLAINTS & WARRANTY 30

1. TECHNICAL DATA

Product specifications

Dimensions (L x W x H) 48 x 52 x 131 cm
Total weight 12,2 kg
- Braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
- Step motion. dependent
Class. H.C.
Max. weight of user 100 kg

Computer specifications

Number of batteries. 1
Type of batteries LR03 AAA/1,5 V

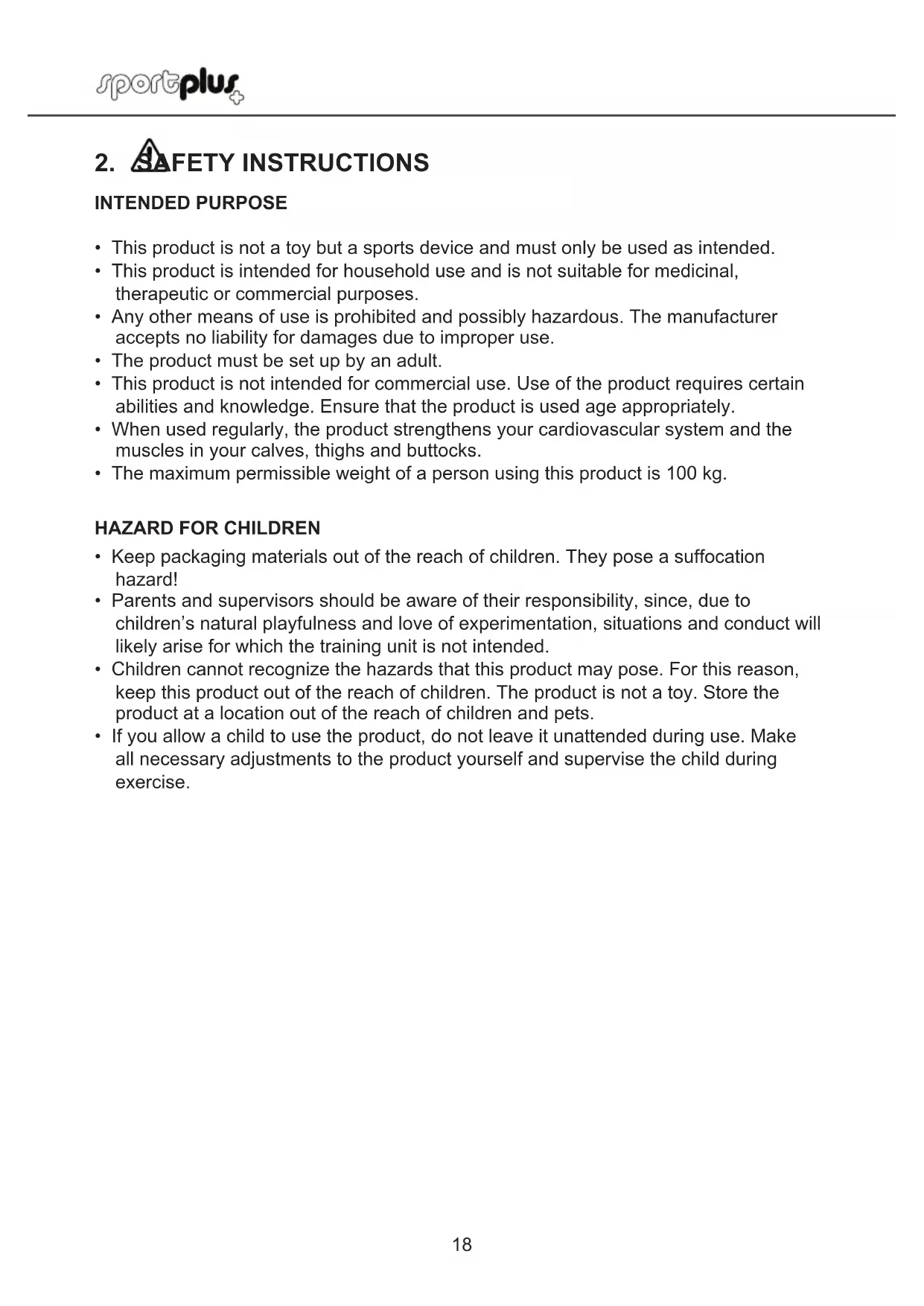

2. SAFETY INSTRUCTIONS

INTENDED PURPOSE

This product is not a toy but a sports device and must only be used as intended.
- This product is intended for household use and is not suitable for medicinal, therapeutic or commercial purposes.
- Any other means of use is prohibited and possibly hazardous. The manufacturer accepts no liability for damages due to improper use.
The product must be set up by an adult.
- This product is not intended for commercial use. Use of the product requires certain abilities and knowledge. Ensure that the product is used age appropriately.
- When used regularly, the product strengthens your cardiovascular system and the muscles in your calves, thighs and buttocks.
The maximum permissible weight of a person using this product is 100kg

HAZARD FOR CHILDREN

• Keep packaging materials out of the reach of children. They pose a suffocation hazard!
• Parents and supervisors should be aware of their responsibility, since, due to children's natural playfulness and love of experimentation, situations and conduct will likely arise for which the training unit is not intended.
• Children cannot recognize the hazards that this product may pose. For this reason, keep this product out of the reach of children. The product is not a toy. Store the product at a location out of the reach of children and pets.
• If you allow a child to use the product, do not leave it unattended during use. Make all necessary adjustments to the product yourself and supervise the child during exercise.

2. SAFETY INSTRUCTIONS

CAUTION - RISK OF INJURY

• Do not use the product if it is damaged or defective. In this case, contact a professional workshop or our service center.
• Always verify that the product is in impeccable condition before use. Defective components must be replaced immediately as failure to do so may impair the functioning and safety of the unit.
• Make sure that no more than one person uses the product at a time.
• Always use the product on a horizontal, level, nonslip and solid surface. Never use the product near water and make sure there is a safety clearance of at least 1 meter on all sides of the product. Prevent your arms and legs from coming near the product's moving components. Do not put any objects into any openings on the product.

CAUTION - PRODUCT DAMAGE

• Thoroughly check the device for damages and signs of wear before and after use. Do not alter the product in any way! For your own safety, use original replacement parts only.
• Have all repairs carried out in a professional workshop or from similarly qualified persons - improper repairs can lead to serious risks for the user. Use the product for the intended purposes as described in this user manual only.
• Shield the product from spraying water, moisture, high temperatures and direct sunlight.

ADVICE WITH REGARD TO BATTERIES

• Batteries could be fatal if swallowed. For this reason, store batteries out of the reach of children. If a battery has been swallowed, seek medical attention immediately.
• Remove the batteries if they are empty or if you are no longer using the product. In this way, you will avoid damages that can be caused by leaking.
• The batteries may not be charged or activated with other means, dismantled, thrown into fire or short-circuited. There is a DANGER OF EXPLOSION!
• Heed correct polarity (+ and -) when inserting the batteries. Always replace all batteries with new ones. Do not use old and new batteries or batteries of different types together!
• Preferably use alkaline batteries, since they last longer than regular zinc-carbon batteries.
• A battery replacement is necessary as soon as the display starts to fade or fades completely.

3. INFORMATION ON ASSEMBLY

Assembly of the product must be carried out carefully by an adult person. Ask for the assistance of another person with technical insight in case of doubt.
- Before beginning assembly of the product, read all assembly steps carefully and review the diagram.
- Remove all packaging materials and place all individual components on a free surface. This will give you a good overview and simplify assembly. Shield the assembly surface from filth and scratching by laying down suitable padding.
- Check the components against the components list to make sure all are present. Do not dispose of all packaging materials until assembly is completed.
- Please note that there is always a risk of injury when using tools to carry out manual tasks. Therefore, please exercise caution when assembling this product.
- Make sure your work environment is hazard-free. For example, do not leave any tools lying around. Place the packaging materials somewhere where they will not pose any hazards during assembly. Packaging foil or plastic bags pose a suffocation hazard for children!
- After assembling the product according to the instructions, make sure that all screws, bolts and nuts are installed correctly and tightened.
- If necessary, lay out protective padding (not included) beneath the product to protect your floor as there is no guarantee that, for instance, the rubber feet will not leave marks behind.

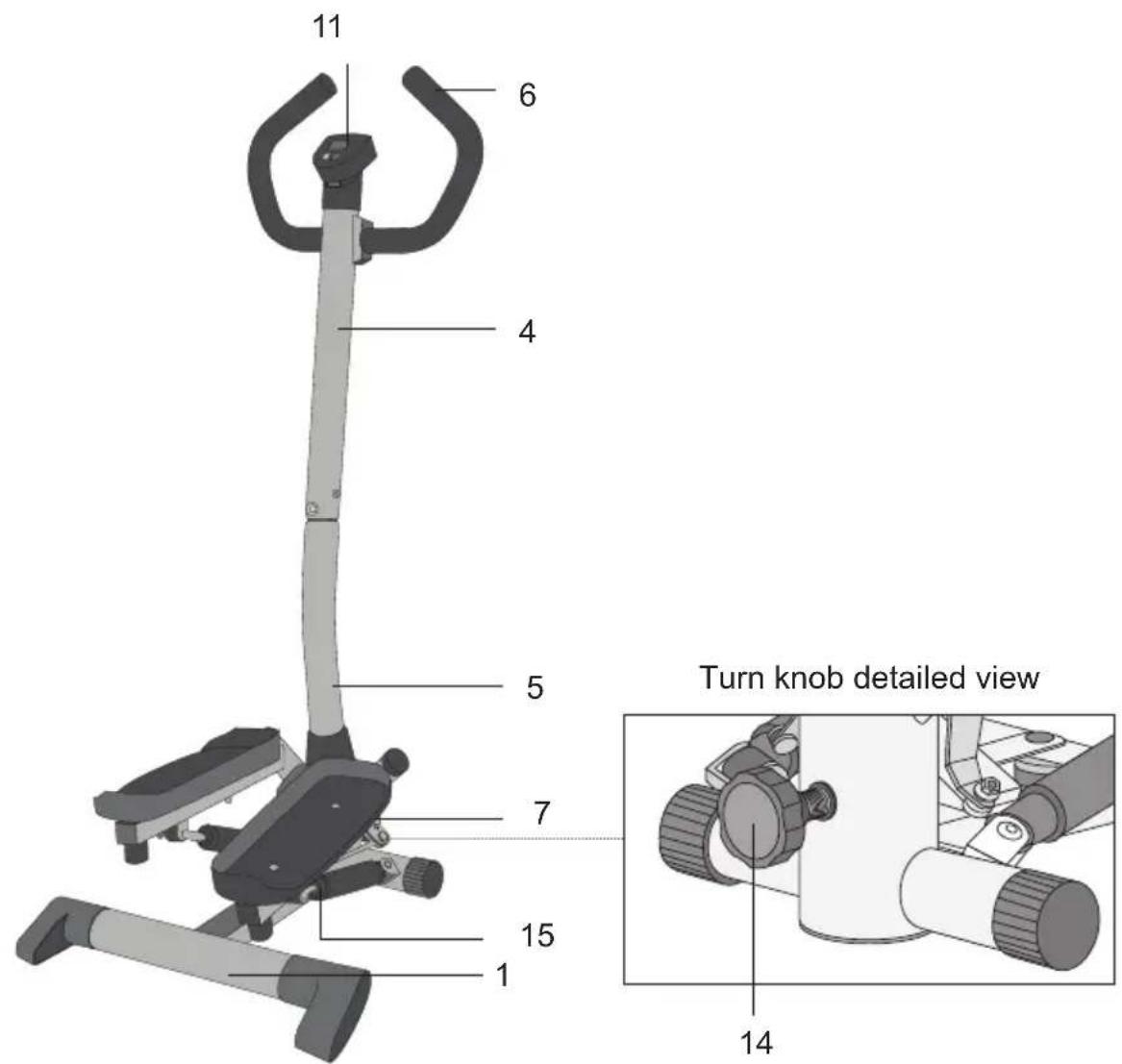

4. ASSEMBLY INSTRUCTIONS

11. Computer 7. Pedals
6. Handle 15. Hydraulic cylinder
4. Top frame 1. Base
5. Bottom frame 14. Turn knob

The side stepper was designed to ensure simple assembly and use.

IMPORTANT: Unpack all parts and check for damages.

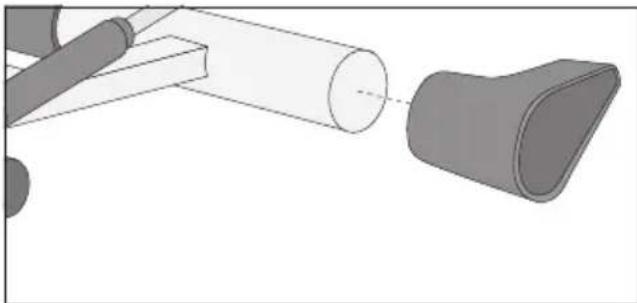

4. ASSEMBLY INSTRUCTIONS

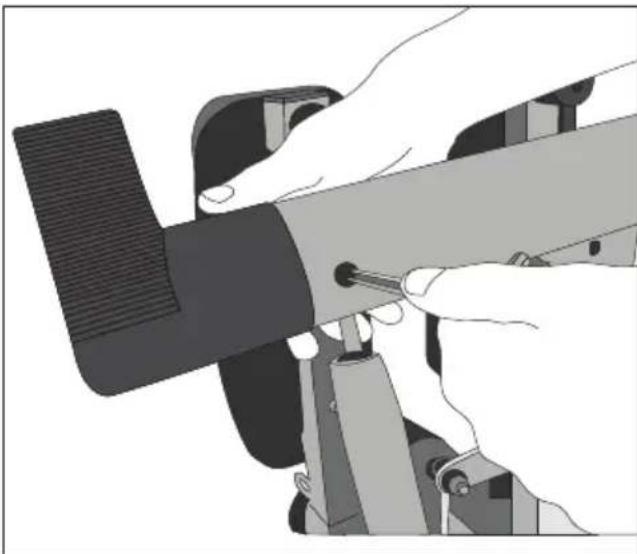

STEP1A:

• Insert the two rear feet (51, 52) into the tail end of the rear stabilizer of the base (1).

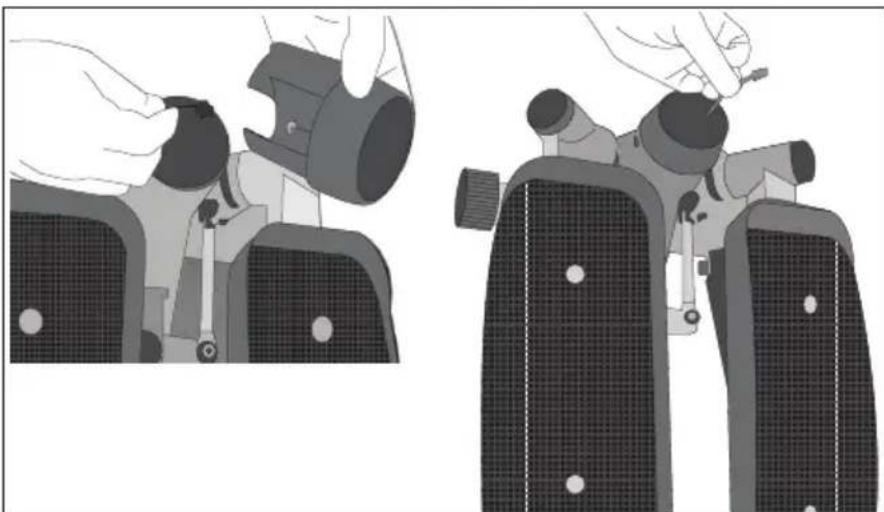

STEP1B:

• Fasten the feet with one screw (48) each.

STEP 2:

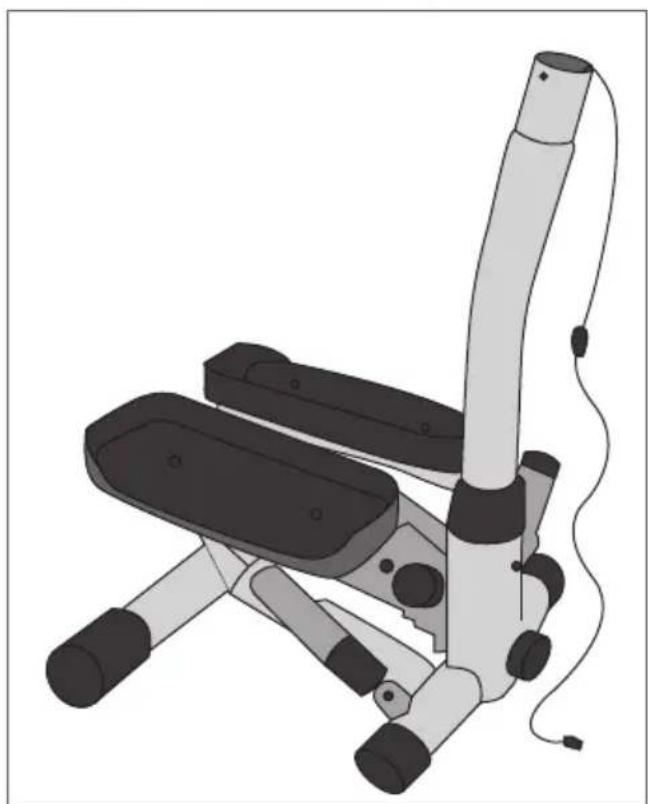

• Guide the connector of the computer cable (44) through the cover (13) of the base (1).

• Place the cover (13) on the base (1) and press on the base. (See fig. on the left).

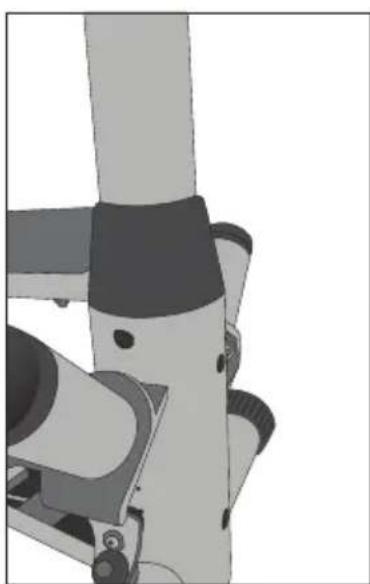

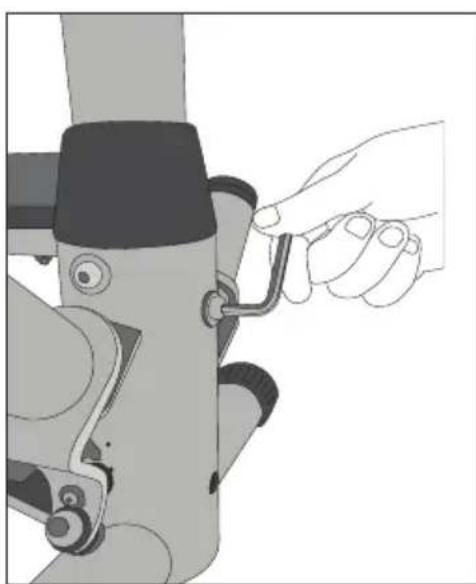

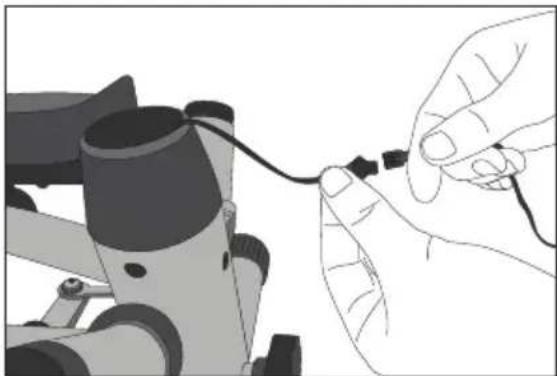

STEP 3:

• Connect the male end of the computer cable (44) to the female connector on the base (1).
• Guide the computer cable from below through the bottom frame (5).

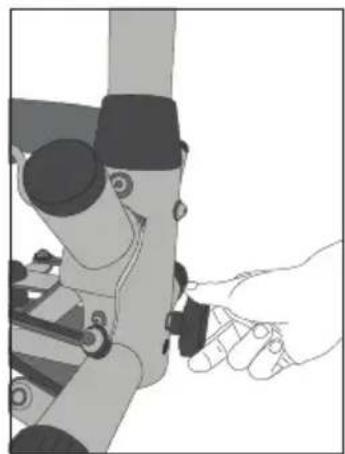

STEP 4:

• Insert the bottom frame (5) into the base and secure with 4 washers (38) and 4 screws (39).
• Tools: Allen wrench (54).

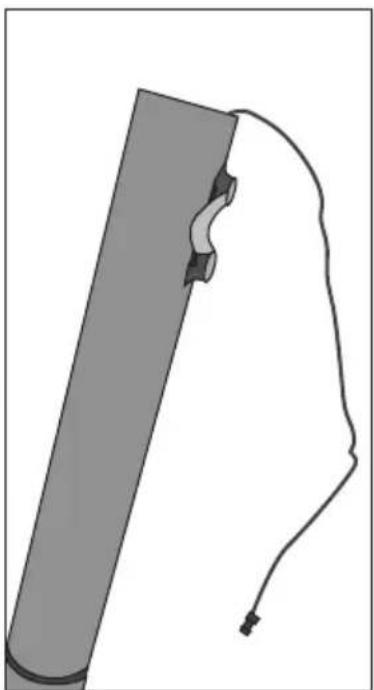

STEP 5:

• Turn the turn knob (14) into the designated fitting on the front of the base (1).

STEP 6:

• Guide the computer cable (44) from below through the top frame (4).

• Attach the top frame (4) to the bottom frame (5) and secure with 2 washers (49) and 2 screws (43) as well as with 1 nut (47) and 1 threaded bolt (8).

• Tools: Allen wrench (54) and open-end wrench (53).

STEP7A:

• Attach the handle (6) to the top frame (4) using 2 spring washers (9) and 2 screws (45)

• Tools: Allen wrench (54).

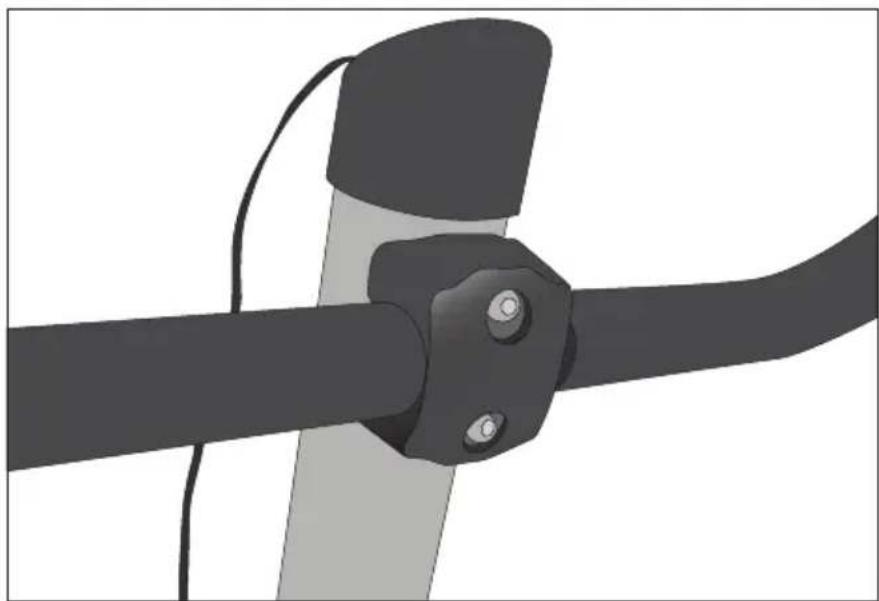

STEP7B:

• Place the plastic cover (46) onto the handle mount.

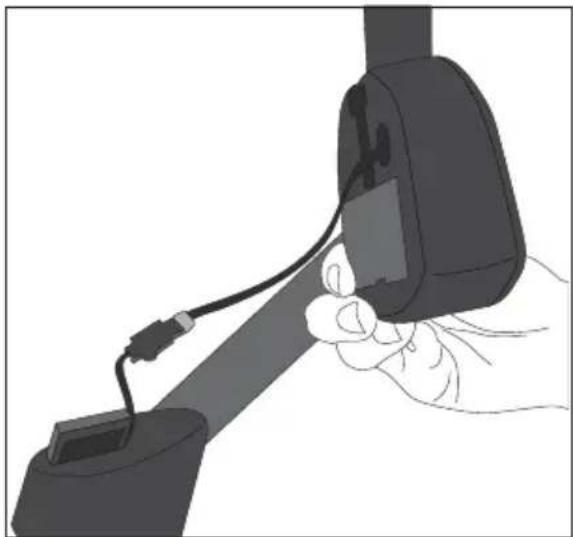

STEP8A:

• Guide the computer cable (44) into the computer mount (10). Slide the computer mount onto the top frame (4) and then push latter one down.

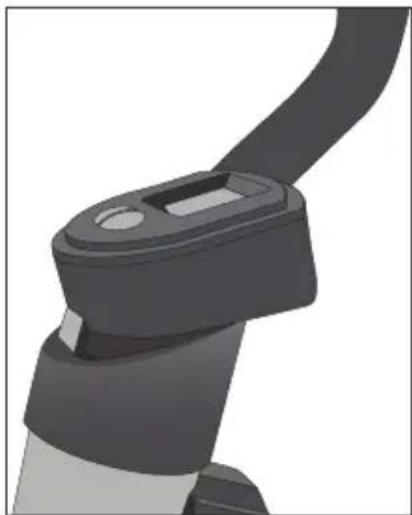

STEP8B:

• Connect the computer cable (44) to the computer (11).

STEP8C:

• Attach the computer (11) to the computer mount (10).

5. USING THE PRODUCT

First steps

IMPORTANT: Set up the side stepper on a horizontal, even and stable surface. We recommend placing a rectangular carpet or rubber padding under the side stepper. This will protect the floor, especially after use over an extended period. Make sure there is a safety clearance of at least 2.5 meters on all sides of the product.

Adjusting the stepping height

Turn knob

The stepping height can be adjusted by turning the turn knob. The higher the stepping height, the higher the difficulty level.

Turn right to increase the stepping height.

Turn left to decrease the stepping height.

PLEASE NOTE! If the stepping height is set too low, the computer does not receive a correct signal and will not count!

5 B. USING THE COMPUTER

Turning on/off

The computer turns on automatically, once you start exercising. When pausing or finishing the training, the computer will turn off automatically after approx. 4 minutes. All data recorded and displayed until that moment will be deleted.

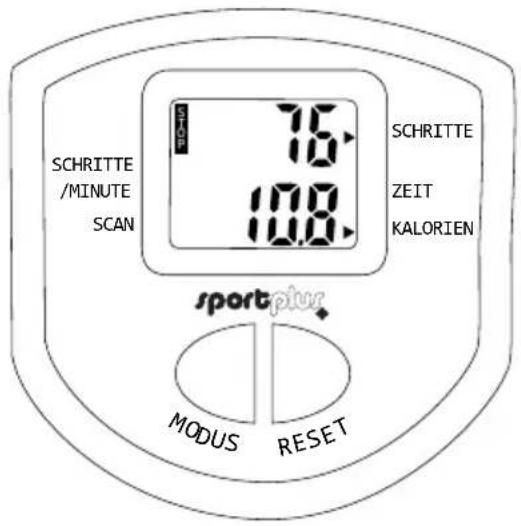

Display readings

SCHRITTE: Display of all steps taken.

ZEIT: Display of covered training time in minutes and seconds.

KALORIEN: Used energy in calories (approximate value).

SCHRITTE/

MINUTE: Number of steps you could take within one minute at that speed.

SCAN: All displays are shown for a few seconds in sequence.

Function buttons

MODUS: If necessary, press the button repeatedly until the display shows the desired reading. The arrow in the display indicates the readings currently displayed.

RESET: Press this button during use in order to reset the display to zero.

Observe the following:

• The SCHRITTE reading (reading of all steps taken) in the upper part of the display is shown continuously and cannot be deactivated or modified.
• Use the MODUS function button in order to select different readings in the lower part of the display.
• When pausing the training, the upper left corner of the display will show: STOP.

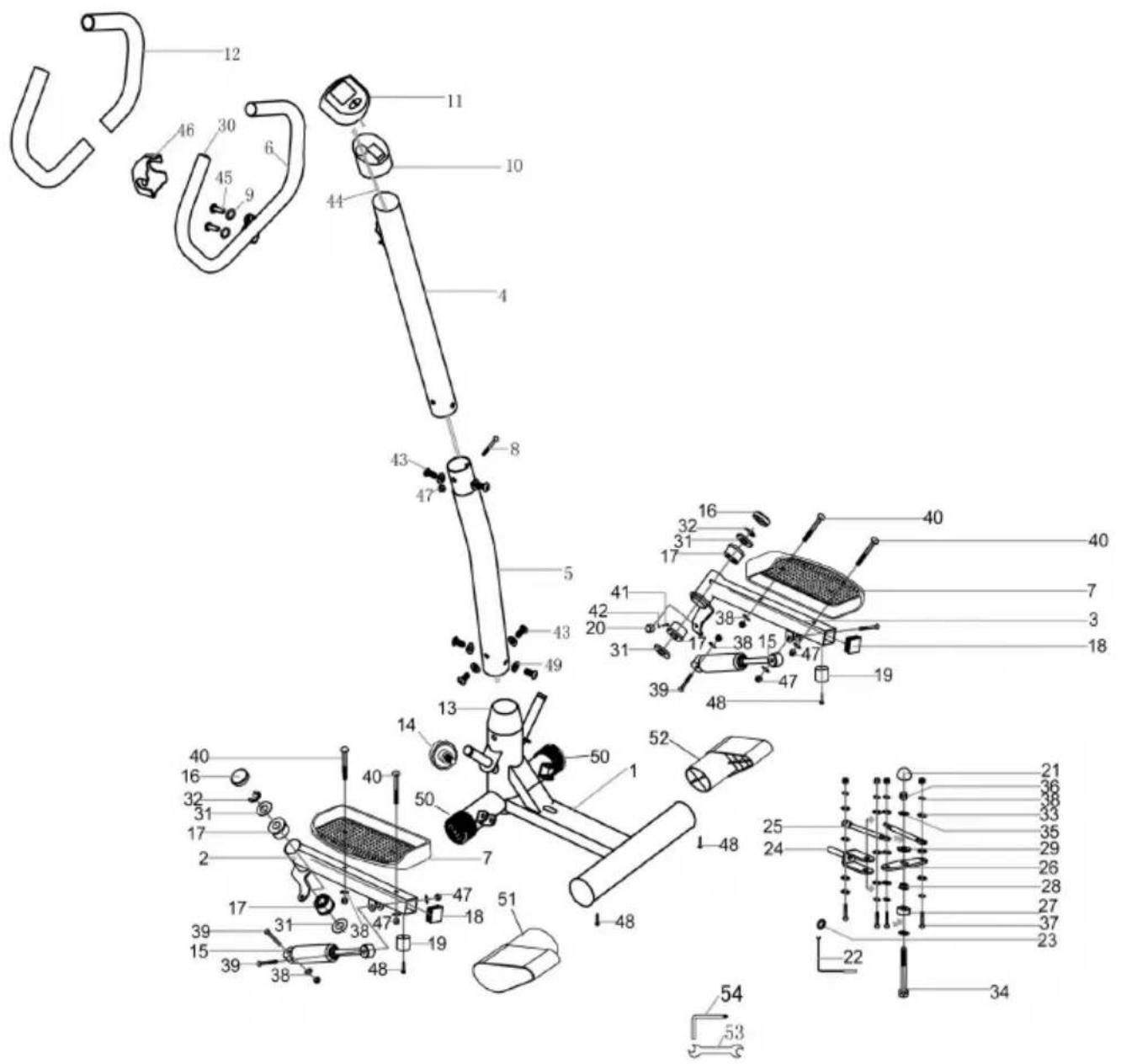

6. EXPLOSION VIEW

1. PARTS LIST

Part No.	DESCRIPTION No.	Part	No.	DESCRIPTION No.
1 Base 1 28 T cover 1
2 Pedal tube, left 1 29 Plastic		cover 1
3	Pedal tube, right	1	30	Plastic cover (Φ25)	2
4	Top frame	1	31	Washer (Φ5.5)	4
5	Bottom frame	1 32	C clip	2
6	Handle	1	33	Washer	12
7	Pedals	2	34	Screw M12x80	1
8	Bolt M8	1	35	Washer (Φ12)	2
9	Spring washer	2	36	Nut (M12)	1
10	Computer mount	1	37	Screw M3x30	4
11	Computer	1	38	Washer (Φ8)	20
12	Handle bar foam grips	1	39	Screw (M8x40)	4
13	Cover (Φ76)	1	40	Screw (M8x50)	4
14	Turn knob	1	41	Cross-headed screw (ST 5x10)	1
15	Hydraulic cylinder	2	42	Washer (Φ5)	1
16	Washer (Φ12)	2	43	Threaded screw (M8x25)	6
17	Ball bearings	4	44	Computer cable	1
18	Plastic cover	2	45	Threaded screw (M8x25)	2
19 Shock absorber 2 46 Plastic			cover 1
20	Magnet	1	47	Nut M8	13
21 Plastic sleeve 1 48 Cross-headed screw					4
22	Sensor	1	49	Waved washer	6
23	Clip	1	50	Front plastic cover	2
24	Clamp	1	51	Rear stabilizer, left	1
25	Connection bar	2	52	Rear stabilizer, right	1
26	Connection sheet	1	53	Open-end wrench	1
27	Plastic cover	1	54	Allen key wrench	1

8. MAINTENANCE, CLEANING AND CARE

• Clean the unit regularly with a slightly damp cloth and a mild cleaning agent.
• If parts are damaged or if there are sharp edges and corners, the product must not be used anymore! Contact our service department in case of any doubt.
• Store the product at a safe, weather-proof location in order for the product not to get damaged or cause injuries.

9. NOTES ON DISPOSAL

Packaging materials are raw materials and can be recycled. Separate the packaging materials correctly and dispose of them properly in the interest of the environment. Your local administration can provide additional information.

10. COMPLAINTS & WARRANTY

Please do not hesitate to contact our service team in one of the following ways if you have technical questions, questions about our products or to order replacement parts:

Service time: Monday to Friday, 9:00 am to 6:00 pm

Service hotline: +49 (0)40 - 780 896 - 34 or +49 (0) 700 - 77 67 87 587*

Email: [e-mail]

Web: http://www.SportPlus.de

*German national fixed-line network, call charges depend on your phone company/your phone contract.

**Call charges depend on your phone company/your contract and may vary depending on your phone company. Please contact your network provider/phone company to enquire about current terms.

Please have the following information at hand when you call:

• Operating Instructions
• Model number (located on the title page of this manual)
  Description of accessory parts
• Accessory number
  Proof of purchase with purchase date

IMPORTANT NOTE

Please do not send your product to our service team without being requested to do so. The costs and risk of loss for unsolicited shipments will be borne by the sender. We reserve the right to refuse to accept unsolicited shipments or to return the corresponding merchandise to the sender carriage forward, that is, at the sender's expense.

TERMS OF WARRANTY

SportPlus guarantees that the product this warranty applies to was manufactured using high-quality materials and has been inspected with the utmost attention.

The operation and assembly of the product according to the user manual is a precondition of this warranty. The warranty can be voided due to improper use and/or improper transport of the product.

The warranty period is 2 years beginning on the date of purchase. If the product you have purchased is defective, please contact our service team within 24 months from the date of purchase. Excluded from the warranty are:

• External forceful impacts.
• Interference, repairs or alterations by amateurs and by persons who have not been authorized by us.
• Failure to observe the user manual.
• If the afore-mentioned warranty terms are not met.
• If the defect was caused by improper use or maintenance, neglect or accidents.
• Also excluded are wear parts and consumable materials.

This product is intended for private use only. There is no warranty for commercial use.

Chere cliente,

Cher client,

ATTENTION -DOMMAGES AU PRODUIT

INDICATIONS POUR LA MANIPULATION DE PILES

MISES EN GARDE IMPORTANTES!

DISPOSITIONS DE LA GARANTIE
