SP-HG-013 - Exercise bike SportPlus - Free user manual and instructions

USER MANUAL SP-HG-013 SportPlus

3D technical illustration of a mechanical lifting device with lever and frame (no text or symbols)

sportplus+

Technical diagram of a mechanical assembly with numbered components for identification and assembly reference.

4. TEILELISTE

- Maulschlüssel (M8, M10)

- Schraubenschlüssel

5. MONTAGEHINWEISE

Technical diagram of a mechanical assembly with numbered components for identification

SCHRITT 1

Line drawing of a human figure in standing posture, no text or symbols present

Line drawing of a seated human figure in profile, no text or symbols present

Line drawing of a person in a forward bend yoga pose (no text or symbols)

Line drawing of a person in a seated posture, no text or symbols present

6. TRAINING

ÜBUNGEN

KLIMMZÜGE MIT OBER- UND UNTERGRIFF/BIZEPS UND RÜCKENMUSKULATUR

Line drawing of a person performing a physical exercise on a treadmill (no text or symbols)

Line drawing of a person seated in a mobility device with overhead arm (no text or symbols)

6. TRAINING

TRIZEPS

Line drawing of a person using a walking exercise machine (no text or symbols)

LIEGESTÜTZE

Line drawing of a person performing a leg exercise using a stationary exercise machine (no text or symbols)

Congratulations for choosing a SportPlus product. We have every expectation that you will be fully satisfied with your new purchase.

To guarantee optimal function of this product, please adhere to the following instructions:

• Before using this product for the first time, please read the manual carefully!
• The product has been designed with safety features.
- Nevertheless, please read the safety instructions carefully and use the equipment only as described in the manual to avoid hazards and personal injury.
- Please retain this manual for future reference. Should you pass on this product, ensure to include the corresponding instruction manual.

TABLE OF CONTENTS

1. ⚠️ SAFETY INSTRUCTIONS.... 19
2. EXPLOSION VIEW 21
3. PARTS LIST....22
4. ASSEMBLY 22
5. TRAINING....28
6. MAINTENANCE, CLEANING AND CARE....33
7. DISPOSAL ADVICE 33
8. RECLAMATIONS & GUARANTEES 34
9. TERMS OF WARRANTY 35

1. TECHNICAL DATA

Product Information

Measurements (L x W x H): approx. 108 x 100 x 227 cm

Total weight: approx. 28kg

Class: H.C. (Domestic use), EN 957-1, EN 957-2

Maximum user weight: 110kg

2. SAFETY INSTRUCTIONS

INTENDED PURPOSE

• The product is intended for domestic use only and is not suitable for medical or commercial use.
  • The maximum permissible weight of a person using this product is 110kg.

2. SAFETY INSTRUCTIONS

DANGER FOR CHILDREN

• Children do not recognize the danger connected with handling the product. Keep it away from children. The product is not a toy. The product should be stored in a place out of the reach of children and pets.
• Parents and other responsible adults should be aware of the fact that due to the natural play instinct and the experimental nature of children, situations and behaviour can be expected to occur, which are not suitable for the construction of this training device.
- Do not leave children unsupervised with this equipment. A responsible adult should make the appropriate equipment adjustments and supervise activity at all time.
- Please make sure that children do not play with the packaging material. There is a danger of suffocation!

CAUTION - RISK OF INJURY

• Do not use the product if it is damaged or defective. Should this be the case, please consult a qualified technician or our service centre.
- Check this product prior to each use for soundness. Defective parts should be repaired or replaced immediately, otherwise they may affect the function and safety of the machine.
• This equipment is not to be used by more than one person at a time.
• Only use this product on flat, non-slip solid surfaces. Do not use it near water and always allow sufficient surrounding space of at least 1 metre for safety reasons.
• Do not insert any materials in the existing openings of the product.

CAUTION-DAMAGES TO PRODUCT COULD OCCUR

• Please do not attempt to alter or modify the product in any way. Only use original spare parts. Repairs should only be carried out by qualified technicians – unauthorized repairs could put the user at risk. Use this product only for the intended purposes as described in this manual.
• Protect this product from splashes, humidity, high temperatures and direct sunlight.

ADVICE FOR ASSEMBLY

• The product should be carefully assembled by a responsible adult. In cases of doubt, please consult a technically qualified person.
• Before commencing with assembly, read the safety and assembly instructions carefully.
- Remove all packaging materials and lay out all the parts. This will give you an overview and simplify assembly. If possible, use an underlay to protect the assembly space from dirt and scratches.
- Use the "Parts List" to ensure that no parts are missing. Dispose of all packaging materials first when the assembly is completed.
• Please bear in mind that there is always a risk of injury when using tools for technical work. Therefore, proceed carefully and cautiously when assembling this product.
• To avoid danger, please keep the working area clear of tools. Dispose of all the packaging materials in such a way that danger can be avoided. Foils and plastic bags are potentially hazardous to children (danger of suffocation)!
• After you have assembled the product according to the instructions, ensure that all screws, bolts and nuts are correctly affixed and tightened.
- If needed, place a protective mat (not supplied) under the product in order to protect the floor, since e.g. the rubber feet might leave marks.

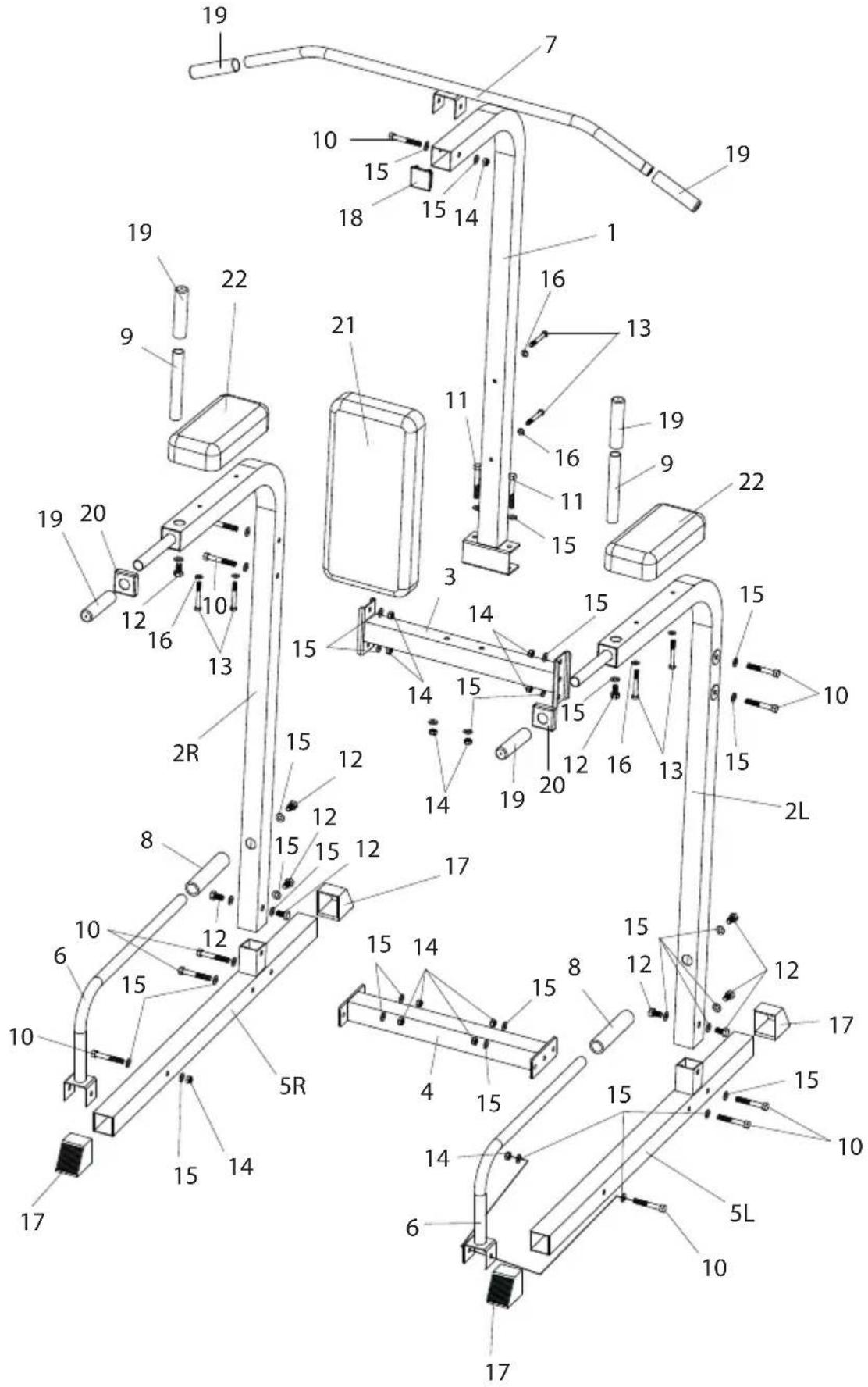

3. EXPLOSION VIEW

Technical diagram of a mechanical assembly with numbered components for identification and assembly reference.

4. PARTS LIST

No. Description	Pieces
1 High pull frame	1
2R Main frame (right)	1
2L Main frame (left)	1
3 Top connection bar	1
4 Bottom connection bar	1
5 Bottom tube	1
6 Push-up bar	2
7 Pull-up bar	1
8 Foam	2
9 Handle tube	2
10 Hex bolt M10*70mm	11
11 Hex bolt M10*75mm	2
12 Hex bolt M10*20mm	10
13 Hex bolt M8*65mm	6
14 M10 nylon locknut	13
15 M10 washer	36
16 M8 washer	6
17 50mm end cap	4
18 50mm square plug	1
19 Hand grip	6
20 Square Mid-empty plug	2
21 Back cushion	1
22 Arm pad	2

TOOLS NEEDED

Allen wrench (M8 and M10)

Adjustable wrench

5. ASSEMBLY

Take all parts out of the packaging carefully and place them on a flat surface. When doing this, use a floor-protecting underlay. Assembly of the individual parts should be carried out by 2 people! Before assembly, check the parts list to see whether all parts are present. Some parts have already been pre-assembled to simplify the assembly process for you. We recommend using the supplied tools to assemble this Pull-up station.

5. ASSEMBLY

Technical diagram of a mechanical assembly with numbered components for identification

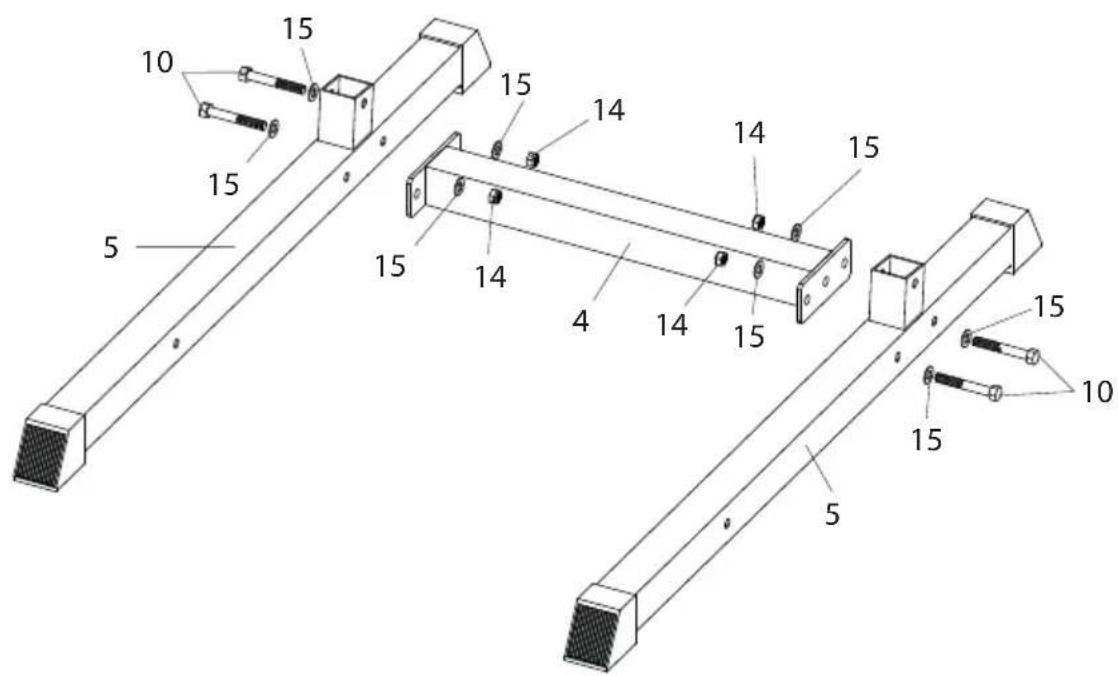

STEP 1

- Attach the bottom connection bar (4) to the bottom tubes (5), using 4 hex bolts (10), 4 nylon locknuts (14) and 8 washers (15).

5. ASSEMBLY

2R 15 12 15 12 8 6 10 15 15 5R 14 14 6 15 15 5L 10 2L 15 12 15 12 15 12 15 15 15 10

STEP 2

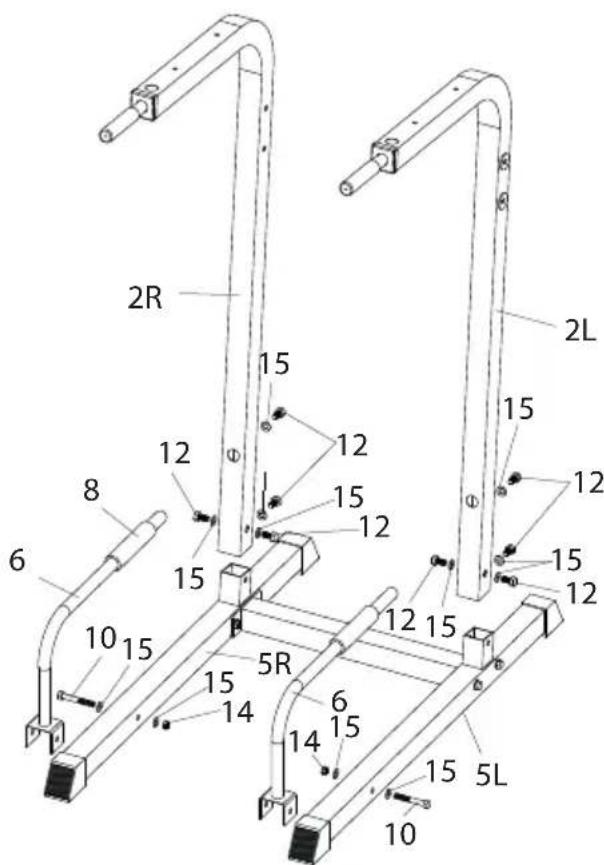

• Attach the main frame (2R, 2L) to the bottom tube (5), using 6 hex bolts (12) and six M10 washers (15).
• Attach the push-up bars (6) to the main frame (2R, 2L), using 2 hex bolts (12) and two M10 washers (15).
• Attach the push-up bars (6) to the bottom tubes (5), using 2 hex bolts (10), 2 nylon locknuts (14) and 4 washers (15).

5. ASSEMBLY

15 14 14 15 15 14 3 14 15 10 15 15 15 10 5R 5L

STEP 3

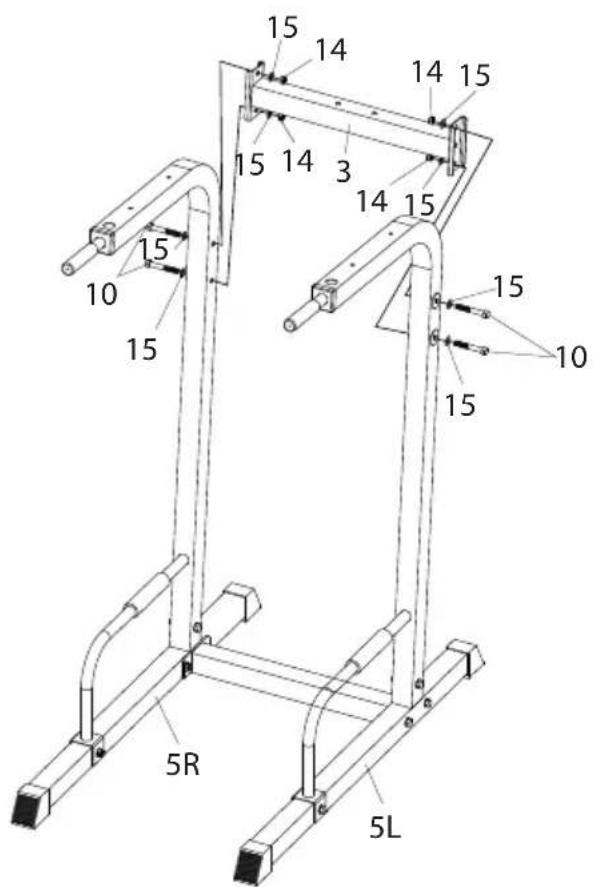

- Attach the bottom connection bar (3) to the main frame (2R, 2L), using 4 hex bolts (10), 8 washers (15) and 4 nylon locknuts (14).

5. ASSEMBLY

7 10 14 15 1 11 11 15 15 3 15 14 15

STEP 4

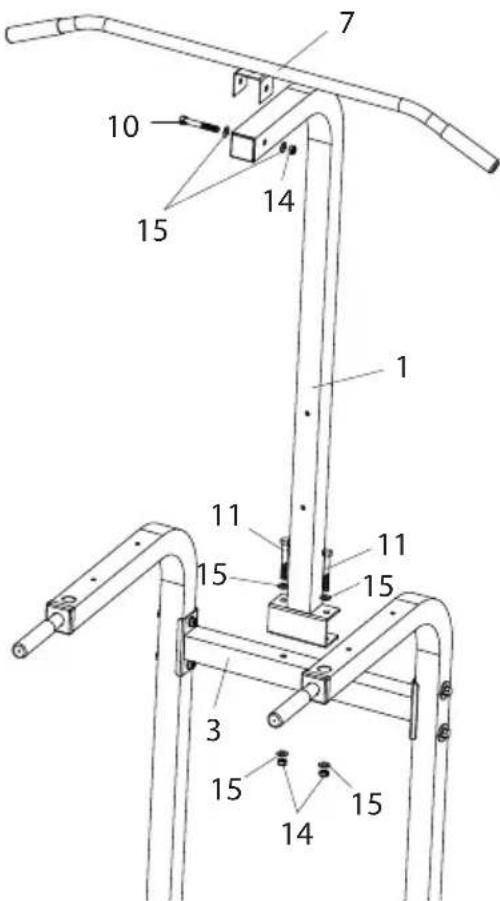

• Attach the pull-up bar (7) to the high pull frame (1), using 1 hex bolt (10), 2 washers (15) and 1 nylon locknut (14).
• Attach the high pull frame (1) to the top connection bar (3), using 2 hex bolts (11), 4 washers (15) and 2 nylon locknuts (14).

5. ASSEMBLY

1 22 21 9 15 12 15 12 2R 16 13 22 9 15 12 16 13 2L

STEP 5

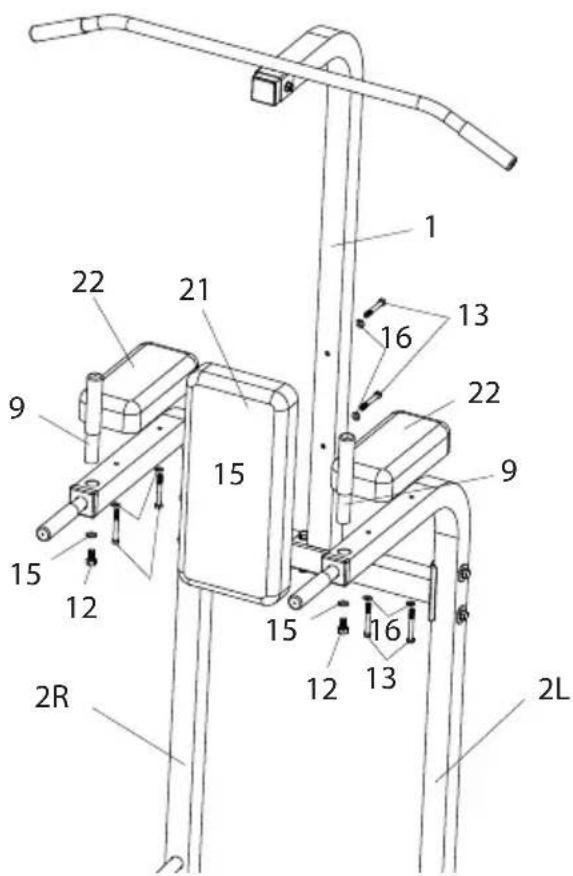

• Attach the 2 handle tubes (9) to the main frame (2R, 2L), using 2 hex bolts (12) and 2 washers (15).
• Attach the 2 arm pad (22) to the main frame (2R, 2L), using 4 hex bolts (13) and 4 washers (16).
• Attach the back cushion (21) to the high pull frame (1), using 2 hex bolts (13) and 2 washers (16).

6. TRAINING

TRAINING TIPS

All recommendations in this manual are only intended for healthy persons and not for persons with heart/cardiovascular problems!

All tips are only rough suggestions for a training program. If necessary, consult your doctor for corresponding tips with respect to your personal requirements.

The following pages will explain exactly how to operate your new training device and will illustrate the fundamentals of fitness training. In order to reach your desired training goal, it is imperative to inform yourself about important points for creating a training program in general and about the exact way to operate your Pull-up station using this manual as a guide. That is why we ask you to please read all of the points listed here thoroughly and to pay close attention to them.

DESIGNING A TRAINING PROGRAM

In order to reach noticeable physical and health improvements, the following factors have to be considered before determining the necessary training effort.

1. INTENSITY

The level of physical strain during training must exceed the normal burden without reaching a point of breathlessness or exhaustion.

WARNING!

Over-exercise may result in serious injury or death. If you feel faint stop exercising immediately.

2. FREQUENCY

Most experts recommend a combination of health-conscious nutrition, which must be adapted accordingly to the training goal, and physical strengthening three to five times per week. A normal adult must train twice per week to retain his/her current level of fitness. In order to improve his/her condition and to change body weight, a person requires minimum 3 training sessions per week.

6. TRAINING

3. TRAINING PHASES

Each training session should consist of 3 training phases:

• "Warm-up phase",
• "Training phase" and
• "Cool-down phase"

In the "warm-up phase", your body temperature and oxygen intake should slowly increase.

This can be achieved with gymnastic exercise or stretches lasting from 5 to 10 minutes.

A list of exercises for properly stretching leg muscles can be found below.

After the warm-up, the real training should begin ("training phase"). The training intensity should be low for the first few minutes and should then increase to the corresponding training intensity for a period of 15 to 30 minutes. To relieve your circulation after the training phase and to prevent muscle cramps or pulled muscles, you should have a "cool-down phase" after the "training phase".

During this phase, which should be approx. 5 to 10 minutes long, 30 seconds long stretching exercises and/or light gymnastic exercises should be carried out.

4. MOTIVATION

The key for a successful training program is regularity. You should set a firm time and place for each training day and also prepare yourself mentally for your training session. Only exercise when you are in a good mood and always focus on your goal. With regular training, you will notice daily improvements and how you are approaching your personal training goals.

STRETCHING EXERCISES

The stretching exercises illustrated on the following pages are suitable for the warm-up and the cool-down phases. Please note that in the warm-up phase, the stretches should only be held briefly (approx. 5 to 10 seconds) and should then be relaxed again. This should increase muscle tension and prepare the muscle for the approaching training phase. In the cool-down phase, the stretches should be held longer (at least 30 seconds) in order to decrease muscle tension again after the training demands.

As rule of thumb, never complete all stretches to the extreme. Should you feel pain, stop the stretch immediately and try it again a bit later, but less intensively.

6. TRAINING

EXERCISE 1: STRETCHING THE QUADRICEPS (FRONT THIGH)

Support yourself on the wall with one hand and grasp one foot with the other one as illustrated and guide it into the front thigh stretching position. To do this, pull the heel of the grasped foot as far as possible towards your buttocks (without feeling pain).

Depending on the phase, hold this stretch for approx. 5-10 seconds (warm-up) or approx. 30-40 seconds (cool-down) and then repeat with the other foot.

Repeat this stretch at least twice per side.

EXERCISE 2: STRETCHING THE INNER THIGH

Sit on the floor and bring the soles of your feet together. In the process, pull your heels as far as possible towards you and then carefully push your knees down towards the floor. Do not use force and never push your knees down with your hands! Only stretch as far as you can without feeling pain.

Depending on the phase, hold this stretch for approx. 5-10 seconds (warm-up) or approx. 30- seconds (cool-down).

Repeat twice.

EXERCISE 3: STRETCHING THE CALF MUSCLES AND THE HAMSTRINGS

Stand up straight with your feet about shoulder width apart.

Now bend over forward at the hips and try to bring your hands as close as possible to your feet (advanced learners can touch their feet without pain). Depending on the phase, hold this position for approx. 5–10 seconds (warm-up) or approx. 30 seconds (cool-down).

Repeat twice.

EXERCISE 4: STRETCHING THE HAMSTRINGS

Sit on the floor and bend one leg as illustrated and straighten the other one out. Bend forward and try to guide your hand on the side of the straight leg as far as possible towards your foot without pain. Here, advanced learners can touch their foot and can even pull their toes back to stretch their calves as well. Depending on the phase, hold this stretch for approx. 5-10 seconds (warm-up) or approx. 30 seconds (cool-down).

Repeat twice.

Line drawing of a seated human figure in profile, no text or symbols present

Line drawing of a person bending forward with hands on hips (no text or symbols)

Line drawing of a person in a seated posture, no text or symbols present

6. TRAINING

EXERCISES

PULL UPS AND CHIN UPS/BICEPS AND LAT

- Grab the Hand grips (19), with your palms facing the Pull-up station, and make sure the grip is firm. If you can't reach the hand grips easily, step on the push-up bars (6).

TIP: For chin ups simply grab the handles having your palms facing yourself, hands should be at shoulders' width.

• When you are sure your grip on the hand grips is secure, step off the push-up bars (6) and let your lower body dangle until you find balance again.
• Pull yourself up. Stop pulling when your chin is above the pull-up bar (7).
• Slowly lower your body till you are back to the original position. Repeat the movement according to your training program.

Note: Lower yourself slowly and with extreme caution, the downward movement is an essential part of the exercise.

DO NOT let your body "fall" down quickly. RISK OF INJURY!

This exercise mainly develops biceps, lat muscles and posterior deltoids.

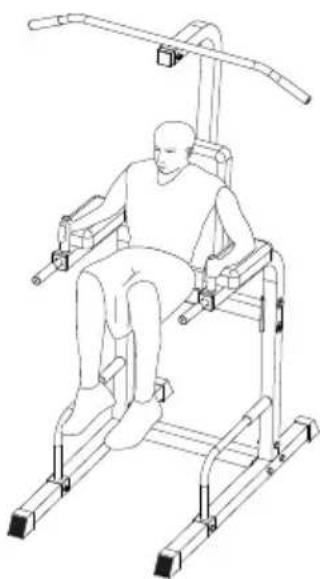

LEG RAISES/ABS

• Do this if you wish to step up your standard crunch or sit-up exercises.
• Step on the push-up bars (6), your back must be facing the Pull-up station.
• Lay your forearms on the arm pads (22), grab the handle tubes (9) and place your back comfortably against the back cushion (21).
• Step off the push-up bars (6) and support yourself on your forearms/elbows only.
• Straighten your legs, and then lift them in front of you to form a 90 degree angle to your torso.

Note: Beginners may find it easier to start with their legs bent (see illustration).

Repeat the movement according to your training program.

Line drawing of a person performing a physical exercise on a treadmill (no text or symbols)

Line drawing of a person seated in a mobility device with overhead arm (no text or symbols)

6. TRAINING

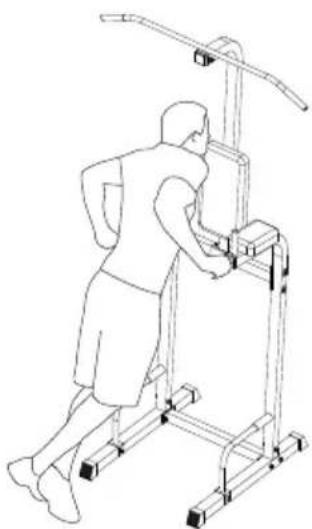

DIPS/TRICEPS

• Step on the push-up bars (6), facing the Pull-up station.
• Grab the handle tubes (9) and push, you should be able to lift yourself, keep pushing until your arms are almost completely extended.

Note: We recommend not "lock" your arms in full-extended position.

• Now, slowly lower yourself. Your torso should be kept upright and your elbows close to your body.
• Lower yourself until the upper arm and forearm form a 90 degree angle.
• Then push yourself back up and bring your body back to the original position.

Repeat the movement according to your training program.

Line drawing of a person using a horizontal bar exercise machine (no text or symbols)

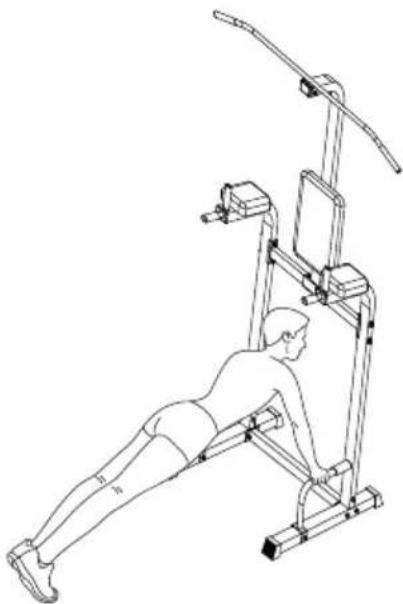

PUSH UPS/PECTORALS, TRICEPS, FRONT DELTOID

• Grab the Push bars (6), with legs extended behind you, your chest facing the ground.
- Bend your arms and lower your body, stop when your elbows are slightly behind your back, keep elbows tucked towards your body, and push yourself back up.

Repeat the movement according to your training program.

Line drawing of a person performing a leg exercise using a stationary leg machine (no text or symbols)

7. MAINTENANCE, CLEANING AND CARE

• After the assembly and before using the pull-up station, always make sure that all bolts/nuts are fully and correctly tightened.
- Once every so often, clean the pull-up station with a mildly moisted cloth and a mild detergent.
• This is especially important for the seat and the handles, for these parts are in constant contact with parts of your body during the whole training.

8. DISPOSAL ADVICE

Packaging material and raw materials can be reused.

Separate the packaging correctly and, in the interests of the environment, take it to a suitable recycling depot. More information regarding recycling can be found appropriate administration office.

Old appliances do not belong in household waste!

Dispose of old appliances properly! You are thereby participating in environmental protection.

Your local administration office can inform you regarding collection points and opening hours.

9. RECLAMATIONS & GUARANTEES

In the case of a product defect, please contact our customer service directly. For this purpose, it is recommended that you retain the sales receipt for proof of purchase. Of course our service team is available at any time to assist you with additional questions regarding the assembly, to the use of your SportPlus product as well as regarding the ordering of spare parts.

CUSTOMER SERVICE

For technical questions, information about our products and to order spare parts, our service team is available for you as follows:

Service time: Monday to Friday, 9.00 a.m. to 6 p.m.

Service hotline: [phone]

E-Mail: [e-mail]

URL: http://www.SportPlus.org

Please ensure that you have the following information ready.

• Operating Instructions
• Model number (located on the front cover of these instructions)
• Description of accessories
- Accessory number
• Proof of purchase with purchase date

Important note:

Please do not send your product to our service team without a request for it. The costs and danger of losing a non-requested delivery will be at the expense of the sender. We reserve the right to refuse non-requested deliveries or to send back such packages at the expense of the sender.

10. TERMS OF WARRANTY

SportPlus guarantees that the product under warranty has been manufactured from the highest quality materials and has been checked with the utmost care.

A prerequisite for the warranty is the operation and proper assembly of the product according to the operating instructions. Improper use and/or improper transport of the product can result in the warranty becoming invalid.

The term of warranty lasts 2 years, beginning from the date of purchase. Should your purchased product be defective, please consult our customer service team within 24 months (starting at the date of purchase). The warranty cannot be honoured when defects or damages occur as a result of:

• External forceful impacts.
• Tampering, repairs or alterations made by unauthorised or untrained persons in any way.
• The operating instructions not being followed.
• The aforementioned warranty conditions not being followed.
• Incorrect use or maintenance, neglect or accidents.
• The warranty also does not apply to wearing and consumable items.
• Also excluded are wear parts and expendable items (foam, cushioning, bearings).

This product is intended only for domestic use. The warranty does not extend to equipment used for commercial purposes.
