USER MANUAL SPLBOX200 IBIZA SOUND

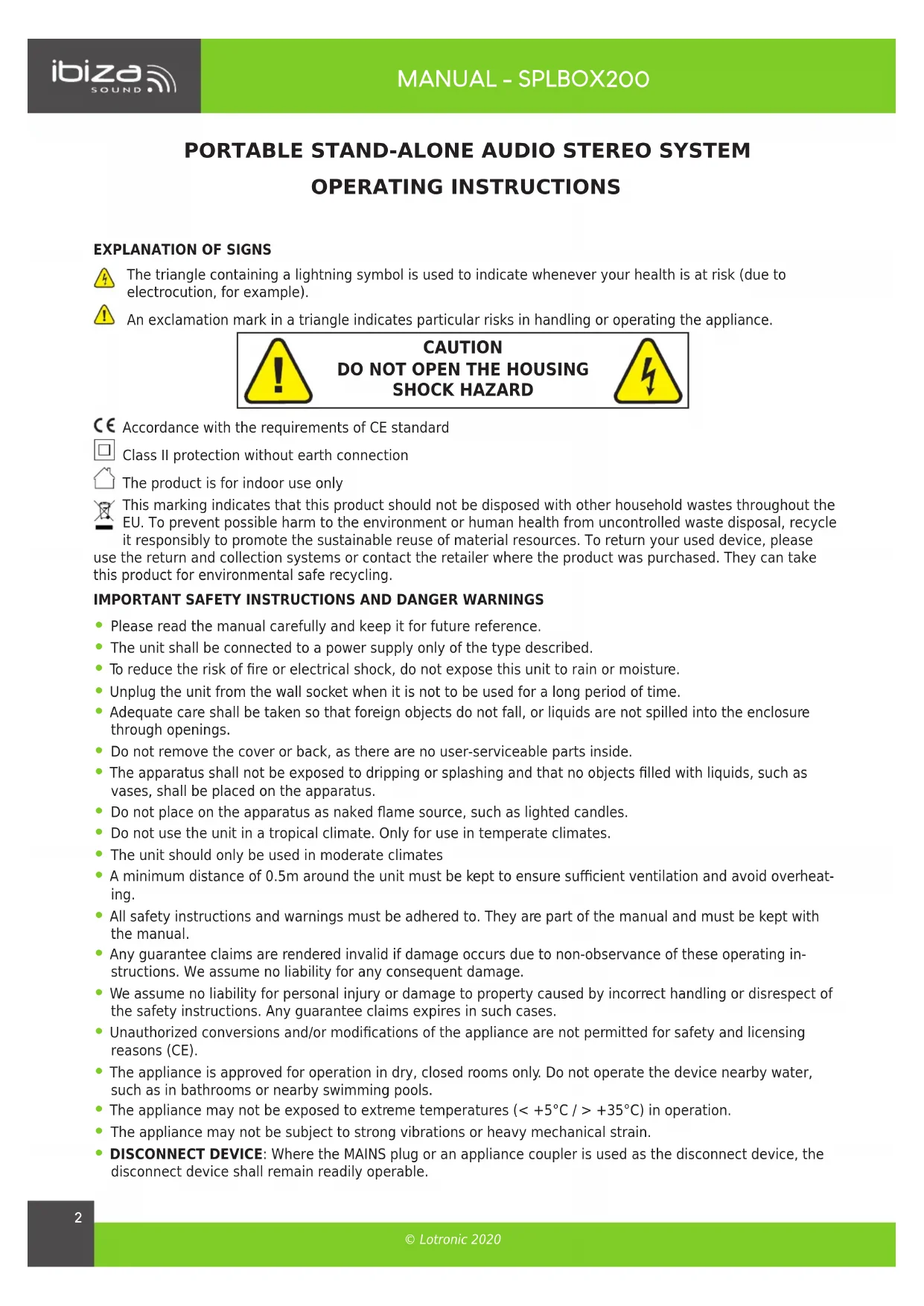

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example). An exclamation mark in a triangle indicates particular risks in handling or operating the appliance. Accordance with the requirements of CE standard Class II protection without earth connection The product is for indoor use only This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

• Please read the manual carefully and keep it for future reference.

• The unit shall be connected to a power supply only of the type described.

• To reduce the risk of 󰊟re or electrical shock, do not expose this unit to rain or moisture.

• Unplug the unit from the wall socket when it is not to be used for a long period of time.

• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure through openings.

• Do not remove the cover or back, as there are no user-serviceable parts inside.

• The apparatus shall not be exposed to dripping or splashing and that no objects 󰊟lled with liquids, such as vases, shall be placed on the apparatus.

• Do not place on the apparatus as naked 󰊠ame source, such as lighted candles.

• Do not use the unit in a tropical climate. Only for use in temperate climates.

• The unit should only be used in moderate climates

• A minimum distance of 0.5m around the unit must be kept to ensure su󰊡cient ventilation and avoid overheat- ing.

• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.

• Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating in- structions. We assume no liability for any consequent damage.

• We assume no liability for personal injury or damage to property caused by incorrect handling or disrespect of the safety instructions. Any guarantee claims expires in such cases.

• Unauthorized conversions and/or modi󰊟cations of the appliance are not permitted for safety and licensing reasons (CE).

• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.

• The appliance may not be exposed to extreme temperatures (< +5°C / > +35°C) in operation.

• The appliance may not be subject to strong vibrations or heavy mechanical strain.

• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. CAUTION

1. PRIOR to using the unit for the first time, please charge fully the battery without any interruption. 2. Charge the battery regularly after each use. Don't wait until it is discharged! 3. DON'T allow the battery to discharge completely! Once the battery is fully discharged, the current drain for recharging will be so high that it will damage the charger and/or the power supply of the unit. 4. If you don't use the unit for a longer period of time, please CHARGE THE BATTERY COMPLETELY AT 100% and check/charge it once per month otherwise the battery will be out of use. The life time of the battery depends on the observance of these recommendations. ** BATTERIES ARE NOT COVERED BY THE WARRANTY ** We cannot be held responsible for damaged batteries further to the non-observance of these basic rules.

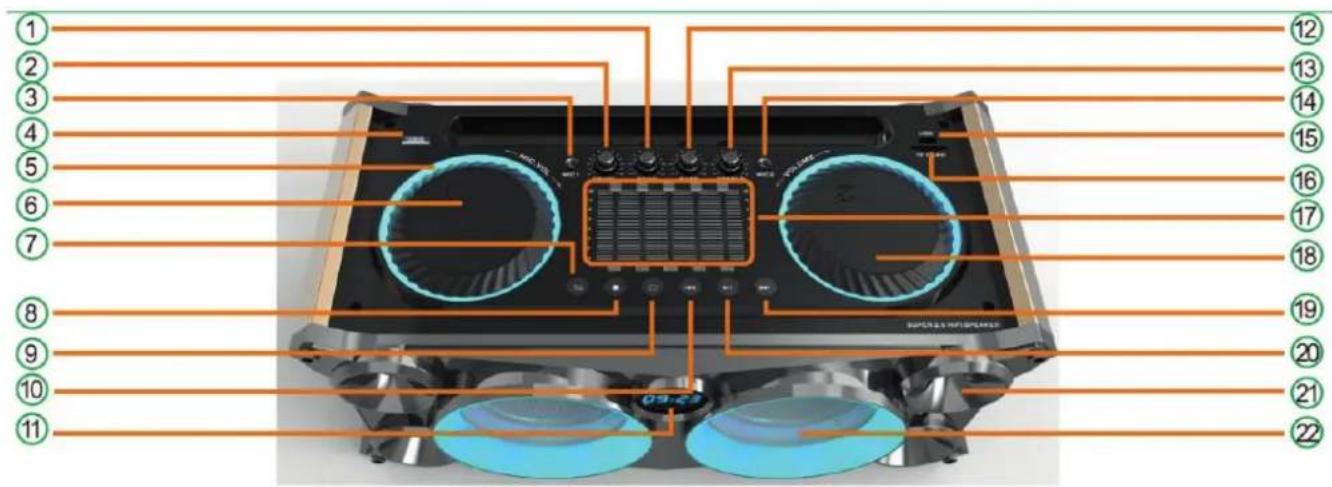

DESCRIPTION OF CONTROLS & CONNECTORS

1. Mic BASS control 2. Mic TREBLE control 3. Mic Input connector 4. 3-position switch: Power ON (DC supply)/OFF/ON (AC supply) 5. Flash Light Lens 6. Mic volume control 7. Mode (Press shortly to skip to FM/Bluetooth/LINE IN/USB/SD Mode) 8. Record (Press and hold above 3 seconds to Record, short press to play) Insert a USB/SD support and plug in the microphone prior to start recording. You can record from the external microphone, Line in and FM input and save your record to the USB/SD storage device. Press and hold the REC button for more than 3 seconds to start recording, Press shortly to play your recording 9. Repeat: single-all-cancel repeat. Press “REPEAT” button above 3 seconds to restore factory settings 10. Previous : In USB/SD/Bluetooth mode: press shortlyPrevious song; Press above 3 Secondsfast back

ward. In FM mode: Short press to go to the previous frequency, long press to go directly to previous channel. 11. LED Display Screen: In FM mode: displays the FM frequency In USB/SD mode: displays the playing time In AUX mode: displays LINE In Bluetooth mode: displays BLUE Otherwise it displays the current time 12. Echo Control 13. Guitar Volume Control 14. Guitar InputMANUAL - SPLBOX200

© Lotronic 2020 15. USB Input 16. SD/MMC Input 17. EQ Control 18. Main Volume rotary Knob 19. Next : In USB/SD/Bluetooth mode: press shortlyNext song; Press above 3 Secondsfast forward. In FM mode: Short press to go to the next frequency, long press to go directly to next channel. In FM mode, the first time you use this speaker, press and hold PLAY/PAUSE button for 2-3 seconds to search FM channels automatically In LINE IN mode, this button is not working. 20. Play/ Pause: In USB/SD/Bluetooth mode this button has the Play/Pause function In FM mode: press 2-3 seconds to scan automatically the FM radio channels. Press again to stop auto- searching In LINE mode, this button has no function 21. Treble/Tweeter Speaker 22. BASS & Mid range Speaker

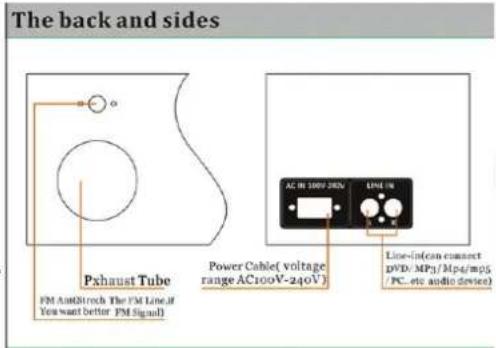

DESCRIPTION OF REAR & SIDE

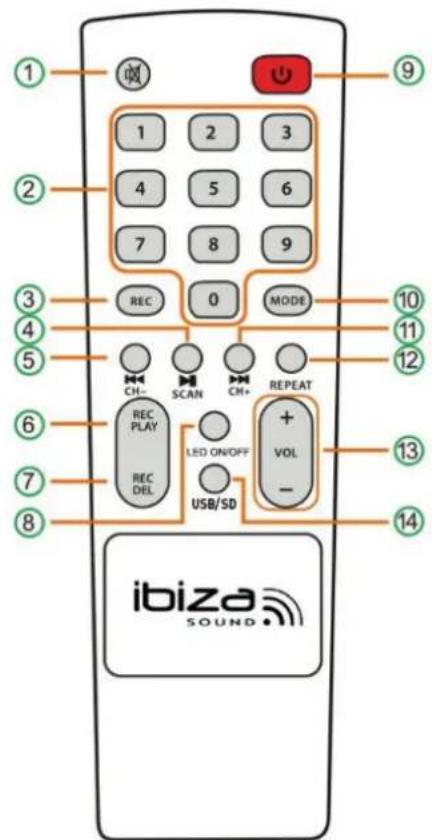

Bass re󰊠ex port FM Ant: Stretch the FM wire antenna to improve FM signal reception Power input connector (Voltage range 100-240V~) Line input: to connect a DVD/MP3/Mp4/mp5/PC..etc. audio device REMOTE CONTROL 1. MUTE: Stops the sound. Press again to switch the sound on again. 2. Number buttons: In USB/SD mode: press to access directly the track In FM mode: press to select directly a stored radio station In all other modes, these buttons have no function. 3. Record function 4. Pause/Play: In USB/SD/Bluetooth mode this button has the Play/ Pause function In FM mode: press to scan automatically the FM radio channels. Press again to stop auto-searching In LINE mode, this button has no function 5. Previous : In USB/SD/Bluetooth mode: press shortlyPrevious song; Press above 3 Secondsfast backward. In FM mode: Short press to go to the previous frequency, long press to go directly to previous channel. In LINE mode: no function 6. Play recorded 󰊟les on the USB/SD media 7. Delete recorded 󰊟les on the SD/USB storage device 8. Switches the LEDs on the front panel ON and OFF. 9. Standby button 10. Mode: Short press to cycle through FM/Bluetooth/LINE IN/USB/SD Mode 11. Next : In USB/SD/Bluetooth mode: press shortlyNext song; Press above 3 secondsfast forward. In FM mode: Short press to go to the next frequency, long press to go directly to next channel. In LINE mode: no function 12. Repeat: single-all-cancel repeat 13. Volume adjustment 14. Press to switch into USB/SD mode. In USB/SD mode: Plays the track on the USD/SD.MANUAL - SPLBOX200

www.ibiza-light.com INSTALLING THE BATTERIES IN THE REMOTE CONTROL Remove the battery cover from the back of the remote control as shown and insert 2x AAA size batteries ensur

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations.. Batteries shall not be exposed to excessive heat such as sunshine, 󰅰re or the like. When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion. ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type. Keep new and old batteries out of the reach of children. If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children. If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact imme- diately a doctor.

BLUETOOTH PAIRING PROCEDURE

Press MODE button on the unit or the remote control until BLUETOOTH is selected. 1. Put the cell phone within 3 meters; 2. Activate the Bluetooth features on your cell phone so that the cell phone starts to search for the Bluetooth device. Please refer to the users’ manual for details 3. Select “SPLBOX200” from the device found by the cell phone 4. Shortly press the PLAY/PAUSE button ▶ to play or pause the music. Shortly press the “ ” or “” button to select the previous or next track. FM (RADIO) MODE: Press MODE button shortly after startup to switch over to “FM” status. Auto radio station search and storage: Long press on the PLAY/PAUSE button and the unit will automatically search for radio stations in the radio frequency range between 87.5 and 108.0 MHz. 20 radio stations may be stored. Press a number button on the remote to access directly a stored radio station. LINE IN MODE: Press the MODE button on the unit or the remote control until LINE is selected. Play the music of the device connected to the LINE input. USB OR SD MODE: 1. Press MODE to select “USB” or "SD" and insert the USB or SD device. The unit will automatically read and play the music in the USB or SD device. 2. Press “▶” button shortly to pause or play. 3. Shortly press “” button to go to the previous song. 4. Shortly press “” button to go to the next song. TROUBLESHOOTING Problem Possible cause Solution No sound output when power on 1: No input sound source 1:Connect a Line signal 2: Volume knob in the lowest position 2: Adjust volume 3: USB/SD no plug 3: Insert a USB/SD Card Distortion of sound 1:Volume too loud 1:Turn volume lower 2: Audio 󰊟le error 2:Check and change the audio 󰊟le 3: Adjust Bass/Treble by “MENU” and “Main volume”MANUAL - SPLBOX200

© Lotronic 2020 No sound from the Microphone 1:Microphone socket not fully plugged in 1:Completely plug in the microphone socket 2: Microphone switch is not on 2:Power on microphone 3: Microphone volume too low 3:Adjust microphone volume No sound from the USB/SD card 1:incompatible song format 1:songs format should be MP3/WMA 2: Illegal operation causes failures 2: Power o󰊞, then power on 3:USB/SD Card not inserted properly 3:Insert USB/SD card properly FM Radio problems 1:Can’t search radio channels 1: The FM ANT is not extended 2:FM no sound 2: Switch to next Channel and try 3:FM signals too weak 3: Try and position the FM ANT to a di󰊞e

rent angle 4:FM sound not clear 4: Twist FM ANT to other side or try “Auto scan” Speaker makes much noise 1:Wired Microphone too close to the speaker 1:Do not let wired Microphones head point at the speaker 2:Wired Microphone switch on but no use 2:Turn o󰊞 wired microphone if not in use 3: Microphone volume too loud 3:Reduce microphone volume 4:Mobile phone too close to the speaker 4: Keep mobile away from the speaker during calls 5:Too close to the equipment which inter

fere the speaker 5:Keep the speaker away from other sources of interference Blue-connect Failure 1: Blue-connect Disconnected 1: Find the right device Name “ SPL

BOX200". Or press "REPEAT" Button to Restore Factory Settings. 2: Blue-connect Connected but no voice 2: Con󰊟rm if you connected the right de

EN 62087 : 2012 Place and date of issue: Saintes (Belgium), on 21/12/2017 AKBAR Guive Technical ManagerDéclaration CE de Conformité
