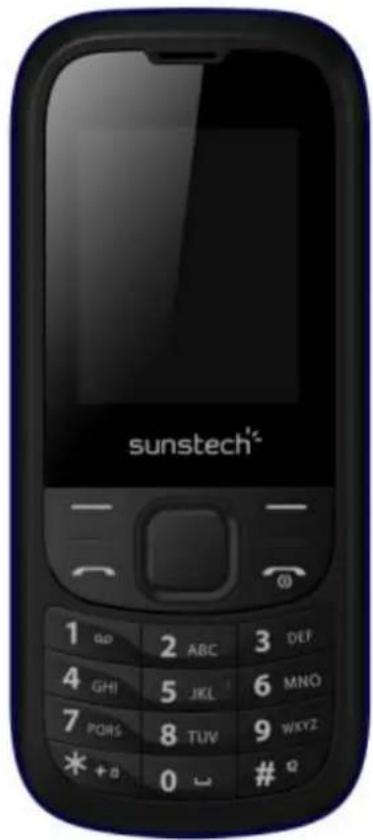

USER MANUAL TEL205 Sunstech

Appendix C: Abbreviation and explanation

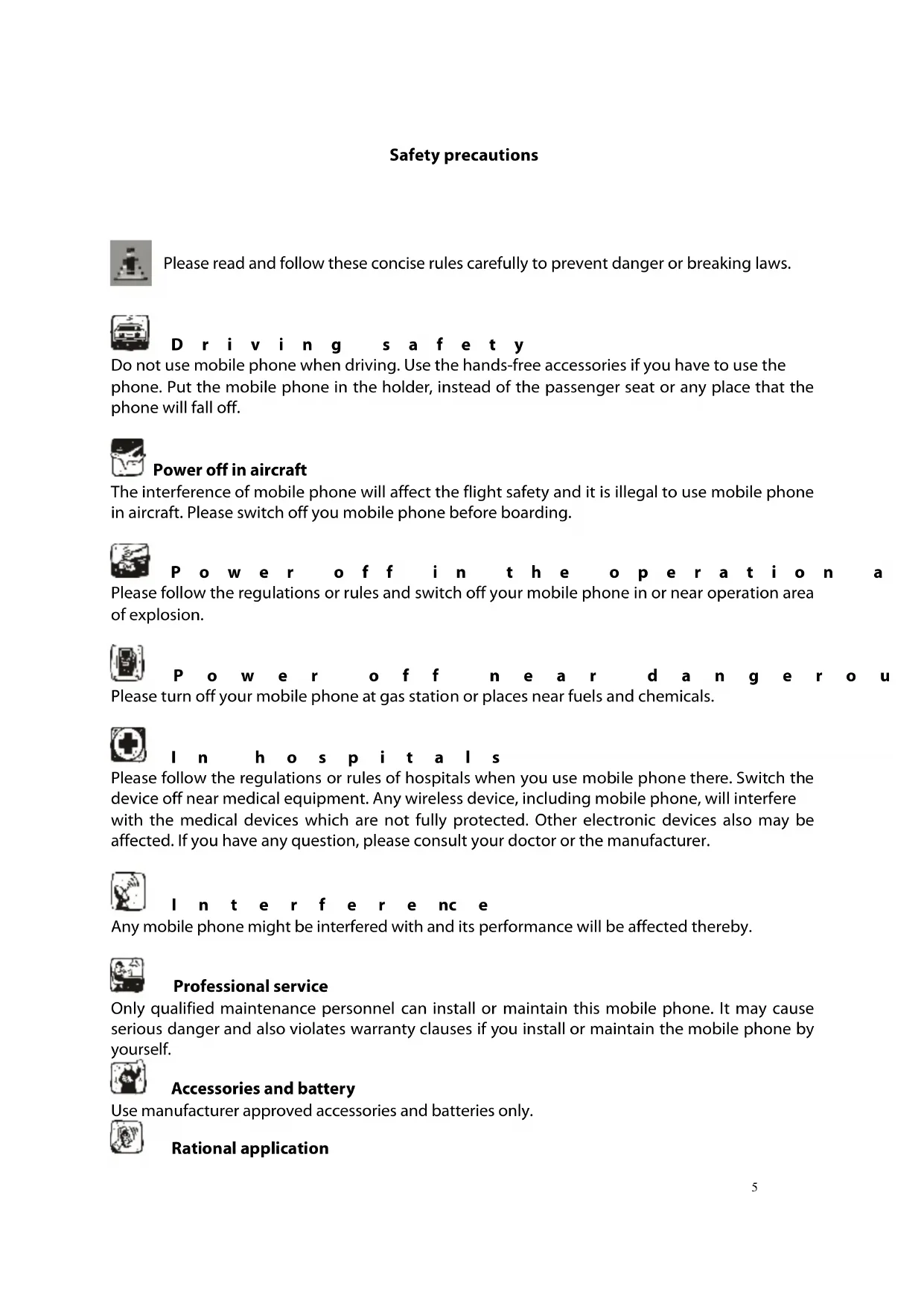

Please read and follow these concise rules carefully to prevent danger or breaking laws.

Driving safety Do not use mobile phone when driving. Use the hands-free accessories if you have to use the phone. Put the mobile phone in the holder, instead of the passenger seat or any place that the phone will fall off. Power off in aircraft The interference of mobile phone will affect the flight safety and it is illegal to use mobile phone in aircraft. Please switch off you mobile phone before boarding. Power off in the operation area of explosion Please follow the regulations or rules and switch off your mobile phone in or near operation area of explosion. Power off near dangerous articles Please turn off your mobile phone at gas station or places near fuels and chemicals. In hospitals Please follow the regulations or rules of hospitals when you use mobile phone there. Switch the device off near medical equipment. Any wireless device, including mobile phone, will interfere with the medical devices which are not fully protected. Other electronic devices also may be affected. If you have any question, please consult your doctor or the manufacturer. Interference Any mobile phone might be interfered with and its performance will be affected thereby. Professional service Only qualified maintenance personnel can install or maintain this mobile phone. It may cause serious danger and also violates warranty clauses if you install or maintain the mobile phone by yourself. Accessories and battery Use manufacturer approved accessories and batteries only. Rational application6 Use the mobile phone in normal way. Do not put your mobile phone in the environment with too high temperature (higher than 60ć), for example, put it under the window which is irradiated by sunshine directly. Please use wet or antistatic cloth to clean your phone. Do not use the cloth with static to wipe the phone. Emergency call Make sure that the mobile phone is switched on and in service area, enter the emergency number (e.g. 110) and press the Call key to call the number. Report your position and explain your condition briefly. Do not end the call without permission.

Note: Like other mobile phones, the characteristics of this phone may be not supported because of the network coverage or wireless signals transmission. Certain networks even don’t support emergency call. Therefore, do not depend on mobile phone only for very important communication (e.g. medical emergency). Please consult your local network operator. About the phone The mobile phone has 21 keys, one display, one earphone, charger/data cable port and one external memory card (T-FLASH card) interface. Display settings The display area consists of three parts: 1> the top line displays icons, indicating the signal intensity and battery status. 2> the center area displays the text and figures, including numbers, words and dynamic icons. 3> the bottom line displays different options for operating, such as menu, names, ok and back. Keys functions Keys Functions Left soft key Press this key to enter the main menu under standby mode; Press this key to confirm the function you choose; Press this key to answer a call Right soft key Press this key to enter phonebook list under standby mode; Press this key to go back to previous menu; Press this key to reject a call. Call key Press this key to call out; Press to pick up phone when there is an incoming call; Press to enter call logs under standby mode. End key Power Off: Long press to power off under standby mode; Power On: Long press to power on if the phone is power off; Press this key to go back to standby screen.7 Navigation keys Press them to scroll the options when browsing a function list. In edit state, press direction keys to navigate. Under standby mode, press a direction key to enter the specified function page. You can also customize direction keys to match the desired functions. In conversation status, press up or down direction key to tune the sound volume. OK key Press OK key to confirm and enter main menu. Number keys Dial numbers under standby mode and enter numbers and characters in editing mode. Under standby mode, long press 0 key to open/close the torch.

• key Under standby mode, press * key twice to display “+” to call international numbers;”P” and “W” to call extension numbers. Help to lock the keypad with pressing left soft key first. Under players and FM mode, press * key to decrease volume. # key Under standby mode, press and hold this key to switch between current profile and silent profile. Under players and FM mode, press # key to increase volume. Status icons Icons might be displayed on screen.

Icons Introductions Signal intensity New message Missed calls Keypad lock Battery status Alarm clock activated Silent Ring only Vib. only Vib. and ring Vib. then ring8 Getting started First call 1> Insert the SIM cards (switch off the phone at first). For detailed installation guide, please refer to “Installing the SIM card”. 2> Charge the battery. Refer to “Battery and charging”. 3> Press and hold the End key to switch on the mobile phone. 4> If the display prompts, enter the four-digit password and press “OK “key. 5> If the display prompts, enter the PIN code (provided together with the SIM card) and press” OK” key. 6> Enter area code and telephone number and then press the Call key or left soft key to dial out by SIM1 or SIM2 . Note: Before using the mobile phone, please insert valid SIM cards and charge the battery. Installing SIM cards When you register mobile phone, you can apply for two different telephone numbers and two SIM cards (Subscriber Identity Module). With the two cards, you can use the functions of the mobile phone. The SIM card saves the parameters required by the communication, and personal information, including PIN code (personal identity number), contacts, short messages and other system services.

Warning: Do not bend or scratch the SIM card, or contact static, dust or water; if the SIM card is

lost, please contact your network operator. Please switch off the mobile phone before installing the SIM card. The SIM card is inserted into the rear side of the mobile phone. Note: The T-flash card is tiny. Please keep it away from children to avoid swallowed. If the SIM card is invalid or damaged, the phone displays “Insert SIM card”. Switch off the phone and take out the SIM card, and then re-insert it into the slot properly. If the SIM card is damaged, please contact your network operator. If the SIM card is locked, please contact your network operator. Installing memory card Since the mobile phone doesn’t have enough space, you may need to install a memory card (T-FLASH card). To install the T-FLASH card: open the rear cover, take out the battery, insert the T-FLASH card into the slot, install the battery and then turn on the mobile phone. To remove the T-FLASH card: open the buckle and take out the T-FLASH card, and then lock the buckle. Note: T-Flash card is tiny. Please keep it away from children. Please select qualified T-FLASH cards, such as SANDISK, V-DATA, and Transcend. Please match with the mobile phone when you purchase the card.9 Battery and charging Installing the battery Only use qualified battery and accessories. When the battery isn’t used, put it in the protective case. Note: Please operate according to the figure to avoid damaging the battery contact. Charging the battery The new battery will reach its optimized performance after complete charging and discharging for several times. Please charge in time when the battery voltage is low. Over discharging will damage the battery. Disconnect the charger from the AC power supply and the mobile phone after charging. While charging, the battery status icon flashes from right to left, and stops flashing after charging. It is normal that the battery becomes warm in the charging process. Battery status Your mobile phone can monitor and display the battery status. 1> You can check the battery status from the icon in the upper right corner of the screen. 2> If the electricity is insufficient, the “Low Battery” prompt shows up. The mobile phone sends warning tone if the “System alert” in Profiles is activated. 3> During charging, the icon of battery status blinks until the charging completes. Note: The actual standby time and call time depend on the operation, local network, and settings of the SIM card and mobile phone. Using battery The performance of the battery is affected by various factors, including wireless network settings, signal intensity, environment temperature, the function or settings that you select, accessories and the mode of voice, data or other applications that you select. To keep the battery in optimum performance, please follow the rules below: The charging of new battery or batteries which haven’t been used for long time may be longer; Keep the battery in room temperature when it is being charged; It is normal that the charging time becomes longer after long time using. If the call time becomes shorter and charging time becomes longer after normal charging, you need to change a qualified battery. Unqualified battery may damage your phone and cause danger. If the battery is left unused for too long time or the battery voltage is too low, it takes certain period of time to display the charging interface normally when the charger is connected. Note: To protect your safety and the environment, do not dispose the battery randomly.

Warning: The short circuit of battery may cause explosion, fire or body hurt.

ƷPrecautions of using battery 1> Switch off the phone before removing the battery. 2> Use the battery carefully. It will cause short circuit to connect the anode (+) and cathode (-) of the battery with metal objects (coin, clip, etc.), and damage the battery and metal objects.10 When the battery is removed and put in the bag, do not contact the anode and cathode of the battery with metal objects (e.g. keys). 3> Do not put the battery in fire, or use in any place with high temperature. 4> Do not disassemble or refit the battery. 5> Do not put the battery in the place with strong mechanical impact or break through with hard object. 6> Store the battery in cool and dry place, and avoid high temperature (> 60°C) and direct sunlight. 7> Stop using if there is any particular smell or overheating. 8> Stop using the battery if there is any crack, distortion or electrolyte leakage. 9> If the electrolyte stains the skin or clothes, please wash with soap and clean water immediately; the electrolyte enters the eyes, wash with clean water immediately and go to see the doctor. 10> Do not use the battery in low temperature, in which the battery can’t get the maximum standby/call time. 11> Do not wash the battery with water or organic solvent, or put it in water. 12> Fully charge the battery if it won't be used for a long time. 13> You are recommended to return wasted batteries to the manufacturer of mobile phone or put them in the specified public recovery area of wasted batteries. Do not put them together with other garbage or dispose casually. Using 3Ʒ -in-1 charger (charger + data cable + earphone port) The 3-in-1 charger may charge the battery through the mobile phone. 1> Connect the data cable and charger 2> Connect the data cable of the 3-in-1 charger to the I/O slot of the mobile phone. 3> Connect the charger plug of the 3-in-1 charger to the appropriate power outlet. 4> During charging, the icon of battery status blinks until the charging completes. 5> After charging, the battery icon stops flashing, and you can pull out the 3-in-1 charger. Note: If the battery voltage is too low and can’t turn on the mobile phone, the charging icon may appear on the screen after several minutes. The mobile phone may be turned on or off during charging.

Warning: Make sure that the local voltage and power match the rated voltage and power of

the 3-in-1 charger. Switching on/off 1> Press and hold the End key to switch on the mobile phone. The screen shows the power on video. 2> If the phone lock is activated, please input the password and press “OK” key. The default password is 1122. 3> If the PIN code is activated, please input the code and press “OK” key. The PIN code is provided by the network operator. 4> Access to standby interface. 5> Press and hold the End key to switch off the mobile phone. Password The mobile phone and SIM cards have several passwords, which will prevent your mobile11 phone and SIM cards from illegal operation. Press “OK” key after inputting the valid password (expressed in *). If there is misinput; please press the “Clear” key to delete the error and then input the correct numbers. You can change the PIN code, PIN2 code and phone password in “Settings – Security settings – SIM1/SIM2/ phone security”. Phone password The phone password is the phone lock, which can prevent your mobile phone from illegal operation. The phone password is provided together with the mobile phone by the manufacturer. The default password is 1122. If the mobile phone is locked, you need to enter the password to turn on the mobile phone. SIM1 PIN PIN code: The PIN (Personal Identity Number) code is provided with the SIM card and will prevent your SIM card from illegal operation. If the PIN lock is activated, the screen displays “Enter PIN” when you turn on the mobile phone. While entering PIN code, the screen shows * instead. You can get the PIN code when you get the SIM card from the network operator. PIN2: the personal identity number required by certain functions such as call expense. PUK and PUK2 (8-digit) You also need to input PUK (personal unblocking key) code to change locked PIN code. To change the locked PIN2, use PUK2. If the codes are not provided with the SIM card, please contact local service provider.

Warning: If you enter invalid PIN code for three times consecutively, the SIM card will be

locked. In this case, please contact the local network operator. The SIM card may be damaged permanently if you try to decode by yourself. SIM2 PIN PIN code: The PIN (Personal Identity Number) code is provided with the SIM2 card and will prevent your SIM2 card from illegal operation. If the PIN lock is activated, the screen displays “Enter SIM PIN” when you turn on the mobile phone. While entering SIM2 PIN code, the screen shows * instead. You can get the PIN code when you get the SIM card from the network operator. PIN2: the personal identity number required by certain functions such as call expense. PUK and PUK2 (8-digit) You also need to input PUK (personal unblocking key) code to change locked SIM PIN code. To change the locked PIN2, use PUK2. If the codes are not provided with the SIM card, please contact local service provider.

Warning: If you enter invalid PIN code for three times consecutively, the SIM card will be

locked. In this case, please contact the local network operator. The SIM card may be damaged permanently if you try to decode by yourself. Disabling password Disabling password is necessary to enable call barring. You can get this password from your network operator when you subscribe for this function.12 Using hands free kit With the hands free kit, you can make or answer calls without holding the mobile phone. When you inert the hands free kit into the earphone port, the hands free kit can be used as the handset and the microphone of the mobile phone. Keypad lock When the keypad is locked, the mobile phone will be locked automatically if there is no operation in certain period of time. To unlock: Press the left soft key and * key. Note: When the keypad is locked, it will be invalid. If there is new call, you can answer as usual, and the mobile phone will resume the locked status after the call Specified keys 1> Under standby mode, press * key/# key to decrease/increase the volume of players and FM. 2> In the dial interface, press and hold the # key to activate/deactivate the silent profile 3> In dialing interface, press and hold * key to input “+”, “P” or “W”; “+” is used to call international numbers and “P” and “W” are used to call extension numbers. Note: The difference between W and P: if P is pressed, it pauses for three seconds and then sends DTMF; if W is pressed, a window pops up and asks if “Send DTMF?” Language and input methods The mobile phone provides English, French, Spanish and Portuguese languages. The phone provides ABC/abc/ES/DI/di/Numeric input methods. You may need to input text when you use the phone. For example: store a name in the phonebook or write a short message. In edit state, press # key to switch input methods of body text. And you can press * key to enter symbol selection screen. Noun Making a DDD To make a call with SIM1, enter a number and press the call key to call out by SIM1; the “SIM1 calling” characters appear in front of the number; to make a call with SIM2, enter a number and press the call key to call out by SIM2; the “SIM2 calling” characters appear in front of the number. Once the other party answers, the screen displays the call status. Press the End key to end the call. To make a DDD: area code + telephone number + call key Making an IDD If you need to make an international call, press and hold the * key until the prefix symbol “+” of international long distance call appears on the screen , and you can make a call in any country13 (for example, +86 in China). Enter the prefix number, and then enter the country code and full phone number. The country codes are according to the international tradition, and Germany is 49, UK 44, Sweden 46, etc. To make an IDD: “+” country code + area code +telephone number + call key Calling extension Some extensions of fixed telephone can’t be dialed through directly and you need to dial through the exchange before dialing the extension. If you insert the pause symbol P between the exchange number and the extension number when you input the phone number, the mobile phone will complete the dialing and dial extension automatically. To enter “P”: press and hold the stylus, or press * for three times (the symbol “P” appears on the screen). To call an extension of fixed telephone (excluding +): telephone number + P + extension number + call key Emergency call You can always make an emergenc y call when you are in the coverage area of the network (you can know by checking the indicating stripe of network signal intensity on the upper left corner of the screen). If your network operator doesn’t provide roaming service in your area, you can only make emergency calls. If you are located in a service area of the network, emergency calls can also be made without a SIM card. Note: In certain areas, 112 (emergency call) is provided by the network operator; if it is abnormal, please contact the network operator. IMEI IMEI is International Mobile Equipment Identity. Turn off the mobile phone and take out the battery, and you can find the label printed with this bar code in the rear side. This number is also saved in the mobile phone. When the phone is turned on, enter “*#06#” to display the number. Calling When the marks of network providers to appear on screen, you can call or answer the call. The signal strength is showing on the top left corner. Making Calls Enter area code and phone number and press call key to dial out by SIM1/SIM2. Use the right soft key to delete if there is wrong input. Press and hold right soft key to clear all characters. Note: Obstacles give lots of effects on calling quality; moving around in a small range will improve signal strength effectively. Making an International Call Please refer to “Making an IDD”.14 Dialing extension Please refer to “Calling extension”. Making a call from the phonebook Open the phonebook list, scroll to search the desired number, press call key to dial out by SIM1/SIM2. Latest numbers redial Under standby mode, press call key to access the call history. Press the up/down key to reach the desired number or name and press call key to dial out by SIM1/SIM2. Receiving Calls Press call key to receive an incoming call. During a call, you can operate by pressing Left soft key: Hold, End single call, Phonebook and so on; and you can also set Mute on/off. Press end key to end a call. Rejecting Calls Press end key to reject an incoming call. Options in a Call During a call, press left soft key to enter options to select Hold, End single call, Phonebook, Call history, Messaging, Sound recorder, Mute and Volume. Hold: This function supports two calls at the same time. You can dial another number during a call. Dial another number during a call (You can only dial by SIM1 when your first call is from SIM1, to dial by SIM2 is the same to SIM1). x Press options and select a number from Phonebook or Call history and press call key to dial. x Type in another number you want to dial and press call key to dial. Mute on/off: If you set Mute function, then you can hear what that side is speaking but your voice couldn’t be heard at that side. Note: If the caller can be identified, the caller’s name and phone number will display. If the caller can’t be identified, the screen will only display the caller’s number. When you use the function list or Phonebook, you can also answer a call. Adjust volume You can press Up/Down navigation keys to adjust volume during a call.15 Menu guide Phonebook Contacts saved in the mobile phone contain the following information: the telephone name and number. You can add new contacts to phone or SIM1/SIM2. You can per form the following operations in this mode: View: View detailed information of the contact. Send text message: Send a message from SIM1/SIM2. Call: Make a call from SIM1/SIM2. Edit: Edit name and number of the contact. Delete: Delete the contact. Copy: Copy the contact to phone or SIM1/SIM2. Move: Move the contact to phone or SIM1/SIM2. Send vCard: Send vCard as text message or via Bluetooth. Add to Blacklist: Add the contact to blacklist. Mark several or mark all to operate. Caller groups: You can create new group. Phonebook settings: You can perform the following operations in this mode. x Preferred storage: Add a new contact to the SIM1/SIM2, Phone or All. x Speed dial: Set on/off, you can edit and alter speed dial list. x My number: To add owner’s number and other detailed information. x Extra numbers: To set owner numbers and Fixed dial of SIM1/SIM2. x Memory status: To check phonebook memory status of SIM1/SIM2 and phone. x Copy contacts: To copy contacts from SIM1/SIM2 and phone to other paths respectively. x Move contacts: To move contacts from SIM1/SIM2 and phone to other paths respectively. x Delete all contacts: Delete all contacts from SIM1/SIM2 and phone. Enter the Contacts interface to perform the following operations: Quick search: In the input area where the cursor locates, enter the first letter to locate the first qualified entry in the contacts list. For example, to search for “Lisa”, enter letter “L”. Search name: Enter the desired name, and search the matched entry in the Contacts.

Enter this menu, you can view: Write message, Inbox, Drafts, Outbox, Sent messages and SMS settings. Write message You can enter this function menu to write short messages. Short message is a network service. To send or receive short messages, you may need to subscribe for this service from your network operator. The short messages are sent to the16 message center and then to the recipients (GSM subscribers). The short messages are saved in the network if the mobile phone of recipient isn’t switched on or can’t receive short messages (memory is full). The validity depends on user’s settings and network operator. With SMS, you can send and receive chain text messages, which may affect the charge of messaging. Please contact your network operator for details. Each message may contain 160 characters. While editing the message, select the “Input method” option. Press # key to switch the input method. Press the right soft key to delete one character before the cursor, or hold right soft key long to clear all characters; press the End key to return to standby mode; When writing messages, you can insert number, name and bookmark in editing message. When the editing message is finished, you can press direction up/down key to option: enter recipient or select contacts from phonebook or call history to send. This mobile phone supports group messages with more than 600 characters each (the characters limit of common text message). If the message contains more than limited characters, the phone sends it in two or more messages. ǂIf the memory is full, an icon will flash in the top line of the screen; since the mobile phone supports dual SIM cards, the messages are saved in SIM1 and SIM2 separately, and the prompts appear separately. To receive new messages normally, delete the short messages in corresponding SIM cards. If the recipient has received the message, the mobile phone sends an alert tone of message report (report is enabled)

Note: When you send message via SMS service, the mobile phone may display “Sent”. It indicates that the message has been sent to the SMS center. But it doesn’t mean that the recipient has received the message. Contact your network operator for more information. Inbox You can read the received short messages in the Inbox, including SIM1 messages and SIM2 messages. Press left soft key of options in messages list interface, you can perform the following operations: View: View the info of the message. Reply: Reply in text message by SIM1 or SIM2. Call sender: Call the sender by SIM1 or SIM2. Forward: Forward the message to another contact by SIM1 or SIM2. Delete: Delete the message. Delete all: Delete all the messages in the Inbox of corresponding SIM cards; if SIM1 is selected. Save to Phonebook: Save the sender’s number to phonebook of SIM1/SIM2/phone. Filter by: Filter by SIM1/SIM2/All messages.17 Drafts Save the edited text message and perform operations respectively. You can perform the following operations to the short messages saved in Drafts: View, send, Edit, Delete and Delete all. Outbox Turn on “Save sent message” in SMS settings, messages will be saved in Sent messages; if the message isn’t sent successfully, the message will be saved in the Outbox. You can perform the following operations to the short messages saved in Outbox: View, Resend, Edit, Delete and Delete all. Sent messages Turn on “Save sent message” in SMS settings, messages will be saved in Sent messages; you can perform the following operations to the short messages saved in sent messages: View, Forward, Delete and Delete all. SMS settings You can set the SIM1/SIM2 SMS parameters in this menu. SMSC address: Check and edit SMS center address. Validity period: Set validity period as 1hour/6hours/12hours/1day/3days/1week/Maximum. Message type: Set message type as Text/Fax group3/Fax group4/Page/Email. Delivery report: The network notifies whether the recipient has received the message or not. Reply path: Transfer the replay path to the network and this function requires the support of SMS center. Voicemail server: Add and call the voice mail number saved in the list. Note: The number of SMS center is provided by the network operator. Memory status: You can check the memory status of SIM1/SIM2 and phone in this menu. Save sent message: Turn on/off save sent message. Preferred storage: Set preferred storage as Phone/SIM. Call center Call logs This mobile phone can register the missed calls, answered calls and dialed numbers of SIM, as well as the time and expense of all calls. When the mobile phone is turned on in network service area and supported by the network, it can register the missed calls and received calls. In the lists of missed calls, received calls and dialed numbers, you can check the date and time of the calls, edit or delete the telephone numbers in the list, save the numbers in Contacts. Missed calls18 This menu displays the missed calls that you did not answer. In the missed calls list, you can view the details of the record by pressing the Left soft key. In the lists of missed calls, you can check the date and time of the calls, call, send message, save to phonebook, edit before call and delete. Note: When the mobile phone prompts missed call, you can press “View” to access the list of missed calls. Select the desired number and press the Call key to call this number. Dialed calls This menu displays the recent calls you have dialed. In the dialed calls list, you can view the details of the record by pressing left soft key. In the lists of dialed calls, you can check the date and time of the calls, call, send message, save to phonebook, edit before call or delete. Received calls This menu displays the calls you have received. In the list of received calls, you can view the details of the record. In the lists of received calls, you can check the date and time of the calls, call, send message, save to phonebook, edit before call or delete. Delete call logs Delete call logs. You can select dialed calls, missed calls and received calls to clear. Or you can directly select all calls to delete. Call settings Call waiting: Set to activate or deactivate the call waiting. For call holding and multi-party conference, you need to activate this function first. It requires network support. Call divert: This function is a network service and you need to subscribe from the network operator first. This function can divert the qualified calls to specified telephone number. Name Description Divert all voice calls Divert all incoming calls Divert if unreachable If the network can’t connect to your mobile phone (power off or out of service area), it will divert the incoming calls for you. Divert if no answer If you don’t answer the calls in specified time, the network diverts the call for you. Divert if busy When you are calling, the network diverts the incoming call. Divert all data calls Need network support, divert all coming data calls. Cancel all diverts Cancel all diverting settings. Call barring: Outgoing calls:

1. All voice calls: Set call barring for all outgoing calls of SIM.

2. International voice calls: Set call barring for international calls of SIM;19

International voice calls except to home: When you are abroad, you can only call the numbers from the country you locate and home country (i.e. the country where your network operator locates). Incoming calls:

1. All voice calls: Set call barring for all incoming calls of SIM.

2. Voice calls when roaming calls: Set call barring for all calls of SIM except the calls from

the numbers in local service area. Cancel all: Cancel call barring settings of SIM. In this case, you can make and answer calls normally. Change barring password: Change the password of call barring for SIM. Line switching: You can set Line1 or Line2. The default setting is Lin1. Advanced settings Blacklist: Set On/Off for blacklist and add blacklist numbers. Auto redial: Select On or Off for auto redial in this option. If the first call isn’t connected successfully, the mobile phone will redial for ten times at most automatically. Auto call record: Set on/off auto call record. Call time display: Set On/Off for call time display. Call time reminder: Select single or periodic alert tone in the calling process so that you can know the call time. You can also disable the alert tone. Reject by SMS: Set on/off auto call record. Answer mode: Turn on/off press any key to answer the phone and auto answer when headset mode. Note: Some settings need network support. Call barring needs local network support and you need to apply this service first.

Multimedia Camera In this menu, you can take pictures with the embedded camera and adjust the camera settings. The camera lens is in the rear side of the mobile phone and the screen is the viewfinder window. The pictures are taken in JPG format. After downloading to PC, please view with appropriate software. If the mobile phone memory is insufficient, please delete certain pictures or other files in “File manager”. In the camera interface, you can perform the following operations: Descriptions of Camera options Options Description Switch to video recorder Switch Camera to video recorder. Photos View the saved pictures. LED highlight: Set LED highlight on/off. Anti-flicker: 60Hz (default), 50Hz. Camera settings Delay timer: 5sec, 10sec, 15sec or Off. Image settings Image size: 128* 160, 160*120, 640*480.20 Image quality: Low, Normal, Good. White balance Set Auto, Daylight, Tungsten, Fluorescent, Cloudy, Incandescent. Scene mode Set Auto or Night. Storage Choose Phone or Memory. Restore default Restore the default settings. Note: After replacing the T-Flash card, it is necessary to create Photos menu before using the camera. Image viewer Image: All the pictures are saved in Album. Description of image list options: Options Description View View selected image. Image information Check detailed information of selected image. Browse style Choose List/Matrix style. Send Send via Bluetooth. Use as Use as Wallpaper/Screen saver. Rename Change the name of selected image. Delete Delete the selected image. Delete all files Delete all the images in the Album. Storage Phone or Memory card. Video recorder Press OK key to start video recording. The recording time depends on the time limit and the capacity of the memory card. Enter options to perform the following settings. Description of video recorder options: Options Description Switch to Camera Switch to Camera. Camcorder settings Anti-flicker: 60Hz (default), 50Hz. Video settings Video quality: Set Normal; Good; Fine; Low. Storage Phone or Memory card. Video player In this mode, you can also perform the following operations. Description of video player options: Options Description21 Play Support playing video files in 3gp, MP4 format. Send Send via Bluetooth. Rename Change the name of selected video file. Delete Delete the selected video file. Delete all files Delete all the files in video player folder. Storage Phone or Memory card. Audio player Audio Player supports MP3, wav and AMR audio format files and so on. In the list of audio files, you can perform the following operations: Play: Play the selected audio file. Details: Check Size/Time/Title/Artist/Album of the selected audio file. Refresh list: Refresh the playlist. Settings: In setting interface, you can perform the following operations. Pre. playlist: Set as Phone or Memory card. List auto gen.: Select on/off for List auto gen. Repeat: Turn off repeat play, repeat play the selected audio file, or repeat all the audio files in the list. Shuffle: Play audio files randomly. Background play: Play audio files at background. Sound recorder In this mode, you can perform the following operations. New record: Record audio file. List: View the recorder list. Settings: Select the memory card or phone for storage; set audio quality with low/high. FM radio In this mode, you can perform the following operations. Channel list: Edit the channel name and frequency in the list. Manual input: Input a frequency as your need. Auto search: Scan channels automatically. Settings: Set background play on/off. Games Puzzle: This phone provides a Puzzle game. You can choose start game/Best grades/Help. Games settings: You can Activate/deactivate BGM, Sound effect, Vibration and set volume level as your need. File Manager Open22 In this menu, you can manage the pictures, MP3 files and folders in this menu. Note: Open files in the memory card. Audio – Audio folder Open audio files, you can perform the following operations: Play: Play the selected file. Send: Send the selected audio file via Bluetooth. New folder: Create a new folder in the directory. Rename: Change the name. Delete: Delete the selected file. Mark several: Mark several files to copy, move or send via Bluetooth. Copy: Copy files to phone or memory card. Move: Move files to phone or memory card. Delete all files: Delete all files in the current folder. Details: View the date and size of selected file. Photos – Photo folder View: View the selected image. Image information: Check the File name, Date, Size, Image width and Image height. Send: Send the selected photo via Bluetooth. Use as: Use the selected image as wallpaper or Screen saver. New folder: Create a new folder in the directory. Rename: Change the name. Delete: Delete the selected file. Mark several: Mark several files to copy, move or send via Bluetooth. Copy: Copy files to phone or memory card. Move: Move files to phone or memory card. Delete all files: Delete all files in the current folder. Details: View the date and size of selected file. Videos – Video folder Play: Play the selected file. Send: Send the selected video file via Bluetooth. New folder: Create a new folder in the directory. Rename: Change the name. Delete: Delete the selected file. Mark several: Mark several files to copy, move or send via Bluetooth. Copy: Copy files to phone or memory card. Move: Move files to phone or memory card. Delete all files: Delete all files in the current folder. Details: View the date and size of selected file.

My Music – MP3 folder Play: Play the selected music.23 Send: Send the selected music file via Bluetooth. New folder: Create a new folder in the directory. Rename: Change the name. Delete: Delete the selected file. Mark several: Mark several files to copy, move or send via Bluetooth. Copy: Copy files to phone or memory card. Move: Move files to phone or memory card. Delete all files: Delete all files in the current folder. Details: View the date and size of selected file. Format Format the memory card. Rename Change the name of memory card. Details Check Name, Total size and Free size of the memory card. Organizer Calculator Press number keys 0-9 to enter the figures you need to calculate and press the # key to enter radix point; you can also enter operators such as +, -, ×, ÷; press left soft key to clear last input or result, press and hold left soft key to clear all the contents or results. Press OK key to get the result. Note: The precision of the calculator is limited and there are errors, especially when it is indivisible. Calendar In the camera interface, you can perform the following operations: Jump to date: Skip to the specified date. Go to today: Skip to the date of today. Go to weekly/monthly view: You can select weekly view or monthly view of calendar. Alarm The time format of alarm clock is the same to clock. When the mobile phone is turned off, the alarm clock is still valid only if the battery voltage isn’t low. The mobile phone allows setting 5 alarm clocks and the default option is Off. You can customize the alarm time and date for every alarm clock separately. When the alarm time arrives, the mobile phone rings and displays current time and date on the screen. Press “Stop” to stop the alarm; press “Snooze”, the alarm stops and rings again after a few minutes according to your settings. If the mobile phone is still power off till the alarm time, the phone switches on and alarms automatically. If you press “Stop”, the phone displays whether switch on the mobile phone or24 not. Press “No” to switch off, or press “Yes” to switch on. Torch You can set on/off for torch. User profiles This mobile phone provided several profiles. You can customize the ringtone according to events and environment. You can customize a profile and activate it. Available options are: General, Silent, Meeting, Outdoor and My style. General You can customize the following items in General profile: Alert type: Set Ring only, Vib only, Vib and ring and Vib then ring as your need. Ring type: Repeat and Beep once. SIM1/SIM2 incoming call: Set up the tone of incoming call of SIM1/SIM2. Ringtone volume: Set the volume of ringtone. SIM1/SIM2 message: You can set silent or tone1 as the message tone of SIM1/SIM2. Message volume: Set the volume of message. Keypad: Set Click, Tone or Silent. Keypad volume: Set the keypad volume. Power on/off: Set tone of power on/off. System alert: Set On/Off. After customized, select “Save” in “Options”. Silent Ring, Volume and Alert type mustn’t be set. You select “Activate” in “Options”. Meeting Please refer to “General” for more details. Outdoor Please refer to “General” for more details. My style Please refer to “General” for more details. If the earphone is connected in Silent profile, the headset profile switches on, and the Silent profile resumes when the earphone is disconnected. In standby mode, press and hold the # key to switch to Silent mode, and press and hold this key again to resume original profile. Note: The Headset profile is activated automatically when the earphone is inserted and the original profile resumes when the earphone is removed.

Settings Shortcuts The system default several shortcut menu, can be manually add to ten, select one menu, press the left soft key into the “Options”, can undertake the following operation: ¾ Add: to add other menu.25

Edit: edit the current menu. ¾ Delete: delete selected shortcut menu. ¾ Delete all: delete the entire shortcut menu. ¾ Change order: rearrange menu. Multi SIM settings You can set the dual SIM mobile phone accordingly: Multi SIM open; Only SIM1 open; Only SIM2 open; Phone settings Time and date: Set home city: You can set home city as your need. Set time/date: Set current time and date and turn on/off Daylight saving. Set format: Set the displaying format of time and date and Date separator with “.” “:” “/” and “–”. Update with time zone: Set on/off for this function. Auto power on/off: Set the time of schedule power on/off. Language: Select the phone language (Available options are English, French, Spanish, Portuguese). The default language is Spanish. Pref. input method: ABC/abc/Abc/VI/Vi/vi/Numeric. Display: Wallpaper: Select wallpaper from System or User defined in Phone/Memory card. Screen saver: Set on/off and select image from System or User defined in Phone/Memory card. Show date and time: Turn on/off Dedicated key: You can configure short cut functions for the direction Up, Down, Left, and Right key respectively. In the standby mode, press any one of them to access the appointed function. Auto update time: you can set On/Off or first confirm. Flight mode: Phone cannot receive any signal at Flight mode. You can set Normal mode or Flight mode in this menu. UART settings: Set SIM1/SIM2. Misc. settings: LCD backlight: In this function, you can set the time of LCD backlight and the brightness. Press Vib setting: Set press Vib setting on/off. Network settings In this menu, you can set SIM1/SIM2 network and preferred networks.26 Names Descriptions New search: The phone searches new network. Select network: The phone selects available network. Network selection Selection mode: Automatic: The phone selects available network automatically. Manual: Only register specified network. If this network is unavailable, the phone won’t register other networks. Security settings SIM1/SIM2 security PIN lock: Activate/deactivate PIN lock. Change PIN: You can change the SIM1/SIM2 PIN to your private password in 4-8 digits. Change PIN2: You can change the SIM1/SIM2 PIN2 to your private password in 4-8 digits. Phone security Phone lock: You can activate or deactivate phone lock. The phone lock is a 4-8 digit password (default: 1122), Change password: Change the phone lock password. Auto keypad lock You can activate or deactivate keypad lock. The keypad locks in certain time automatically (5sec, 30sec, 1 min and 5mins). M Tracker Input phone password to set mobile tracker. Connectivity In the Bluetooth interface, you can perform the following operations: Power: Activate/deactivate the Bluetooth. Visibility: Set on/off. My device: Support search new device and so on. Search audio device: Search devices like headset. Activate the Bluetooth wireless function before searching. My name: Display my Bluetooth name and you can edit name as your needs. Advanced: Set audio path, the preferred storage and view my address. Restore factory settings Access the setting, select Reset, enter the password, and follow the prompt to reset and restart the mobile phone. This operation will restore all default settings. Note: The default password is 1122. The phone will auto power on after shutdown.27 Services With this function, you can access the services on the Internet, including weather, news, financial info, etc. This service is provided by network operator. New menus appear according to SIM cards. It is invalid if the SIM card and your network operator don’t support this function. Please contact your network operator for more information.

Appendix Appendix A: Please take care of your mobile phone Maintenance The mobile phone is made in exquisite process. Please be careful while using. The suggestions below will help to extend the service life of the mobile phone. 1> Keep the mobile phone and all its parts and accessories away from children. 2> Keep the mobile phone dry. Keep it away from the substances such as rain, moisture and liquids that may erode the circuits. Do not use the mobile phone at places with too much dirt or put it at these places to avoid damaging the activate parts. 3> Do not put the mobile phone at the place with high temperature; otherwise, it will shorten the life of the circuit, and damage the battery and plastic parts. 4> Do not put the mobile phone at cold place. When it becomes warm (normal temperature), moisture will generate in the mobile phone and damage the circuit board. 5> Do not wash the mobile phone with corrosive chemical agent, cleaner or strong detergent. Dip soap water with soft cloth to wipe the mobile phone. 6> If the mobile phone or any accessory can’t work normally, please send it to qualified service center. Note: Please dispose the used products according to local regulations.28 Appendix B: Troubleshooting

Failure Reason Can’t switch on 1ǃ The battery has been run out; 2ǃ The battery isn’t installed properly. SIM card error 1ǃ SIM card is dirty. Clean the SIM card. 2ǃ Re-install the SIM card. 3ǃ SIM card is damaged. Please change a new one. 4ǃ (SIM2 is same) Weak signal Check the icon of signal strength, where four strips indicate the strongest signal and two or less strips indicate weak signal. (SIM2 is same) Can’t make calls (I) You have set to hide your own number, but the network operator doesn’t support this service. (II). The ambient has strong interference. (III). You have enabled call barring. (IV). You have activated Line 2, but the network operator doesn’t support this service. Can’t charge the battery (I). The battery may be over discharged and it takes a while to charge after connected to the charger. (II) Battery performance has decreased. Can’t connect to network (I). The signal is too weak, or there is radio interference. (II). Check whether the SIM card is installed properly, whether the contact is poor or whether the card is damaged? Please contact your network operator if the SIM card is damaged. The photos taken are too dark (I) The brightness is too low; (II) The environment is too dark The photos taken are blurry (I) The object is moving; (II) Your hand shakes when you press the shutter The photos taken are distorted The object is too close Can’t access service menu The SIM card doesn’t support

Appendix D: Optional parts T-FLASH card This is also called as memory card, which is used to save data. Hands free kits The hands free kits include earphone and mini microphone, which are used for hands free call. USB data cable In power off state, connect the mobile phone to PC with the USB data cable to access files and charge the battery. In power on state, connect the mobile phone to PC with the USB data cable to access the storage device. Travel charger Used for travel charging Note: Please use qualified accessories. Made in China30

www.sar-tick.com This product can be adjusted to the SAR national limits of 2 W/Kg. The specific SAR maximum values are in the information section of this guide. When you hold the product or use it on your body, maintain a distance of 1.5 cm from your body to ensure the radiofrequency exposure standards. This device offers communication and entertainment services that follow SUNSTECH’s high standards and technological experience. x The content may differ from the final product of the software provided by the suppliers of services or transmitters and it is subject to alteration without prior notice. x The elements that come with the device and any available accessory may vary according to the region or supplier of the services. x The elements provided are designed uniquely for this device and may not be compatible with other devices. x You may purchase additional accessories at your local SUNSTECH distributor. Ensure that they are compatible with the device before you purchase them. x Other accessories may not be compatible with the device. x SUNSTECH is not held responsible for problems of insufficient return or any change to the operating system’s software. Any attempt to personalize the operating system may cause the device or the applications to function incorrectly. Instruction icons

Warning: Situations that can cause injuries to yourself or

Precaution: Situations that can cause damages to the device or other equipment. Note: Notes, recommendations of use or additional information. Copyright Copyright 2013 Afex suns, S. A. This guide is protected by international copyright laws. Reproduction, distribution, translation or transmission of any part of this guide is not allowed under any circumstances or through any means, be it electronic or mechanic. This includes photocopies, records or storage in any information retrieval and storage systems, without31 previous written authorization from Afex Suns, S. A. Safety information This section contains safety information for mobile devices. Some of the content may not apply to your device. In order to avoid injury to yourself or third parties or damage to the device, read the device’s safety information before you use it. Warning If you do not comply with these safety regulations and warnings, you may suffer serious injury or even death. Do not use damaged power cords or connectors or loose sockets. Unsafe connections may cause an electric discharge or a fire. Do not touch the power cord if your hands are wet and do not pull the cord to disconnect the charger. If you do so, you may be electrocuted. Do not bend or damage the power cord. If you so do, this may cause an electric discharge. Do not cause a short-circuit in the charger or the device. If you do so, this may cause an electric discharge or the device may not function correctly. Use batteries, chargers, accessories and supplies that have been approved by the manufacturer. x The use of generic batteries or chargers may shorten the useful life of the device or cause incorrect functioning. It may also cause a fire or the battery may explode. x Only use batteries or chargers that have been approved by SUNSTECH, specifically designed for the device. Any non compatible batteries and chargers may cause serious physical injuries or damage the device. x SUNSTECH will not be held responsible for the safety of the user whenever accessories or supplies that have not been approved by the brand are used. Do not cut or drop the charger or the device. When handling or disposing of the device and charger do so with caution. x Never throw the battery or the device into the fire. Never place the battery or the device on any sources of heat, such as, ovens, microwaves, glasshouses or radiators, etc. If it overheats, the device may explode. Follow all local regulations with regards to disposing of the used battery or device. x Do not squash the device or make holes in it. x Avoid exposing the device to high pressure because this may cause an internal short-circuit and overheating.32 Protect the device, battery and charger in order to stop them from getting damaged. x Avoid exposing the device and battery to very high or very low temperatures. x Extreme temperatures may damage the device and reduce the charging capacity and the duration of the device and battery. x Avoid the battery entering into contact with metal objects because this may cause a connection between the positive and negative terminals of the battery and damage it temporarily or permanently. x Never use damaged chargers or batteries. Do not store the device in or near heaters, microwaves, heated kitchen equipment or high pressure containers. x The battery may have leakages. x The device may overheat and cause a fire. Do not use or store the device in places with a lot of dust or material transported by air. Dust or foreign materials may cause the device to malfunction and may result in a fire or an electric discharge. Safety information Do not bite or suck the device or the battery. x This may damage the device or cause an explosion or a fire. x Children and animals may choke on small pieces. x When children use the device, ensure that they do so correctly. Do not insert the device or the accessories provided into your eyes, ears or mouth. If you do so, you make choke or suffer serious injuries. Do not handle damaged lithium-ion batteries or batteries that show evidence of leakage. To dispose of lithium-ion batteries safely, contact your closest authorized service centre. PLUGGABLE EQUIPMENT: the socket-outlet shall be installed near the equipment and shall be easily accessible.

Precaution If you do not comply with these regulations and warnings, you may suffer injuries or cause material damage. Do not use the device near other electronic devices. x Most electronic devices use radiofrequency signals. The device may interfere with other electronic devices. x If you use a LTE data connection, this may cause an interference with other devices, such as audio equipment and telephones.33 Do not use the device in a hospital, plane or car that may be affected by interference caused by radiofrequency. x If possible, avoid using the device at any distance lower than 15 cm from a pacemaker, because the device may cause interferences with it. x To minimize any possible inter ference with a pacemaker, use the device only on the opposite side of the body in relation to the position of the pacemaker. x If you use medical equipment, contact the manufacturer of the equipment before using the device in order to ascertain whether the equipment will be affected by the radiofrequency emitted by the device. x If electronic devices are used on a plane, these may interfere with the electronic navigation instruments. Ensure that the device is turned off during take-off and landing. After take-off you may use the device on “airplane mode” as long as this is allowed by the cabin crew. x The electronic devices in your car may malfunction due to the radio interference of the device. Contact the manufacturer for further information. Do not expose the device to smoke or strong emanations. If you do so, you may damage the outside part of the device or cause its malfunctioning. If you use hearing devices, contact the manufacturer for further information about radio interference. The radiofrequency that the device emits may interfere with some hearing devices. Before using the device, contact the manufacturer in order to ascertain whether the hearing device will be affected by the radiofrequency emitted by the device. Do not use the device near other devices or apparatuses that emit radiofrequency, such as sound systems or radio towers. Radiofrequency may cause the malfunctioning of the device. Turn off the device in potentially explosive atmospheres. x Turn off the device instead of removing the battery in potentially explosive atmospheres. x Always respect the standards, instructions and warning signs in potentially explosive atmospheres. x Do not use the device in petrol stations or near fuel or chemicals or in demolition areas. x Do not store or transport flammable liquids, gases or explosive material in the same compartment in which the device, its parts or accessories are. If you become aware of the device or the battery letting off strange odours or sounds or if you see smoke or liquid coming out of the device or battery, stop using the device immediately and take it to an authorized service Centre. If you do not do so, this may cause a fire or an explosion. Comply with all the safety regulations and warnings related to the use of mobile devices34 when driving a vehicle. When driving, your main responsibility is to control the vehicle safely. If the law does not allow mobile phone use when driving, do not use the mobile device. For your and others’ safety use your common sense and remember the following advice: x Get to know the device and its operating functions, like speed dialling and recall system. These functions allow the time necessary to make and receive calls to be reduced. x Put the device in a place where it is easy to reach. Make sure that you can access the wireless device without taking your eyes off the road. If you receive a telephone call at an inconvenient time, let voice-mail answer it. x Stop phone calls when there is heavy traffic or when there are adverse climate conditions. Rain, sleet, snow, ice and heavy traffic can be very dangerous. x Do not jot down or look for telephone numbers. Jotting down a task or looking at your calendar may distract you from your main responsibility, which is to drive safely. x Dial carefully and assess the state of the traffic. Make phone calls when you are not moving or before hitting traffic. Try to schedule phone calls when the car is parked. x Do not have very stressful or emotional phone calls that may distract you. Tell the person that you are speaking to that you are driving and end any conversations that may take away your attention from the road. Correct use and maintenance of the mobile device. Keep the device dry. x Humidity and liquids may damage the parts or the electronic circuits of the device. x Do not turn on the device if it is wet. If it is already turned on, turn it off and take the battery out immediately (if you cannot turn it off or take the battery out, just leave it as it is). After this, dry the device with a towel and take it to the service centre. x Liquids will change the colour of the label which indicates the damage caused by the water inside the device. The damage caused by the water in the device may cancel the manufacturer’s warranty. Place the device only on flat surfaces. If it drops, the device may get damaged. Do not store the device in very hot or cold places. It is recommended that you use the device at temperatures between 5º and 35º. x Do not store the device in places with very high temperatures, such as inside a car in the summer. If you do so, you may cause the screen to malfunction, the device may get damaged or the battery may explode. x Do not expose the device to direct sunlight for long periods of time (for example, on the dashboard of a car). x Store the battery at temperatures between 0º and 45º. Do not store the device with metal objects, such as coins, keys and necklaces.35 x The device may get scratches or stop working properly. x If the battery terminals come into contact with metal objects, a fire may occur. Do not store the device near magnetic fields. x It is possible for the device to start malfunctioning and for the battery to lose power due to being exposed to these fields. x Cards with magnetic stripe, such as credit cards, telephone cards, travel passes may get damaged due to the magnetic fields. If the device overheats, stop using it and its applications for a while. Prolonged skin exposure to a hot device may cause symptoms of burning with low temperature, such as red spots and pigmentation. Do not use the device if the back cover is not in place. The battery may come out of the device, which can cause damage or malfunctioning. If the device has a lamp or a camera flash, do not use it near people’s or animal’s eyes. This may cause a temporary loss of vision or damage the eyes. Be careful when exposing yourself to intermittent light. x When you use the device, leave some lights turned on in the bedroom and do not have the screen too close to your eyes. x Convulsions or fainting may occur due to exposure to intermittent light when looking at videos or playing games with intermittent lights for prolonged periods of time. If you feel unwell, stop using the device immediately. x If anyone close to you suffered from convulsions or fainting when using a similar device, visit a doctor before using the device. x If you feel discomfort, such as muscle cramps or you feel disoriented, stop using the device immediately and visit a doctor. x To avoid eye fatigue, have frequents breaks when using the device. Reduce the risk of injury caused by repetitive movements. When you carry out repeated actions, such as pressing keys, drawing characters on the touch screen or playing a game, you may feel discomfort in your hands, neck, shoulders or other parts of the body. When you use the device during prolonged periods of time, hold it with relaxed hands, touch the keys lightly and rest frequently. If you continue feeling discomfort during or after taking these steps, stop using the device and visit a doctor. When you use earphones, protect your hearing and your ears.36

x Excessive exposure to loud sounds can cause damage to hearing. x Exposure to loud sounds while you are walking may distract you and cause an accident. x Always lower the sound before connecting the earphones to an audio source and use the minimum amount of volume necessary to listen to music or have a conversation. x In dry environments, static electricity may accumulate in the earphones. Avoid using earphones in dry environments or touch metal objects to discharge the static electricity before connecting the earphones to the device. x Do not use an earphone while you are driving or riding a vehicle. If you do so you may get distracted and cause an accident or you may be subject to legal action, depending on the area where you are driving. Use the device with caution while you are walking or moving. x Always pay attention to what is happening around you to avoid physical injury to yourself and others. x Make sure the earphone cord does not get entangled round your arms or nearby objects. Do not take devices in your front pockets or round your waist. You may get injured or damage the device if it falls. Do not paint your device or put any stickers on it. x Paint and stickers can obstruct the mobile parts and stop the device from working properly. x If you are allergic to paint or to the metal parts of the device, you may get a stingy feeling, eczema or swelling. If this happens, stop using the device and visit a doctor. Do not use the device if the screen is cracked or broken. The broken glass can cause hand and face injuries. Take the device to an authorized service centre to get it repaired. Install the mobile devices and the equipment with caution. x Make sure that the whole mobile device or related equipment that is installed in your vehicle is assembled safely. x Avoid placing the device and the accessories where the airbag is or next to it. Any wireless equipment installed incorrectly can cause serious injuries when the airbags inflate quickly. Do not allow the product to fall or to be subject to strong impacts. x The device may get damaged or malfunction.37 x If you bend or deform it the device may get damaged and its parts may malfunction. Guarantee of the maximum duration of the battery and charger. x Avoid charging the device for over a week, because overcharging can reduce the battery’s service life. x With time, the device will run out of battery (even when it is not being used) and you will need to recharge it to use it again. x Disconnect the charger from the power sources when it is not being used. x Use the battery only for the purpose for which it was designed. x If you do not use the battery for a long time, you may reduce its service life and performance. You may also cause the malfunctioning or explosion of the battery or a fire. x Follow all the instructions in this manual to guarantee the longest service life possible for your device and battery. Any damage or operating problems caused by not complying with the warnings and instructions may cancel the manufacturer’s warranty. x With time, the device may wear out. Some parts and repairs are covered under the warranty during the validity period; however, the damages or deterioration caused by the use of accessories not approved by the brand are not covered. Take the following information into account when using the device. x Use it in a vertical position, as you would a traditional telephone. x Speak directly into the microphone. x Do not cover the antenna area with your hands or other objects. This may cause connection problems or cause the battery to run down. Do not unassembled, change or repair the device. x Any alteration or change to the device may cancel the manufacturer’s warranty. If you need to repair the device, take it to an authorized service centre. x Do not disassemble or make holes in the battery, this may cause an explosion or a fire. x Turn off the device before removing the battery. If you remove the battery while the device is still turned on, this may cause malfunctioning. Take the following information into account when cleaning the device. x Use a towel or a rubber cloth to clean the device and the charger. x Clean the battery terminals with cotton or with a towel. x Do not use chemical substances or detergents. If you do so, you may cause discoloration or corrosion of the outside part of the device or you may cause an electric discharge or a fire. Do not use it for any other purpose other than the one it was designed for. The device may malfunction. When you use the device in public, try not to disturb others.38 Only allow qualified professionals to carry out the maintenance of your device. It is possible for damages to occur and the manufacturer’s warranty is cancelled if you allow non qualified personnel to carry out the maintenance of the device. Be careful when handling SIM cards, memory cards or cables. x When inserting a card or connecting a cable to the device, make sure the card is inserted correctly or that the cable is connected on the right side. x Do not take the card out when the device is transferring information or it has access to it, because you may lose data and damage the card or the device. x Protect the cards from strong discharges, static electricity and noise generated from other electronic devices. x Do not touch the contacts or the gold terminals with your fingers or with metal objects. If the card is dirty clean it with a soft cloth. x If you insert a card or connect a cable forcefully or incorrectly you may cause damage to the multifunctional socket or other parts of the device. Make sure you have access to emergency services. It is possible that in some areas or circumstances you may not be able to make emergency phone calls. Before travelling to remote areas or developing countries, plan an alternative form of communicating with the emergency services. Protect your personal data and avoid confidential information from being spread or used incorrectly. x When you use the device, make sure you make back-up copies of important data. SUNSTECH will not be held responsible for any loss of data. x When you dispose of the device, make a back-up copy of all the data and after re-establish the device to avoid personal information from being used inappropriately. x Read the licenses screen carefully when you download applications. Be especially careful with applications that have access to various functions or a significant amount of your personal information. x Control your accounts frequently to avoid any suspicious or non-authorized use. If you find any indication of your personal information not being used appropriately, contact your services supplier to delete or change the information in your account. x If you lose the device or it is stolen, change the passwords of your accounts to protect your personal information. x Avoid using applications from unknown sources and block the device with a pattern, a password or a PIN. Do not distribute material protected with copyright. Do not distribute material protected with copyright without the authorization of the content owners. If you do so, you may violate copyright laws. The manufacturer will not be held39 responsible for any legal problem caused by illegal use of material protected by the user. Malware and virus Follow these suggestions to protect the device against malware and virus. If you do not do so, you may cause damages or loss of data that may not be covered under the warranty. x Do not download unknown applications. x Do not use unreliable websites. x Delete any suspicious text messages or emails from unknown senders. x Create a password and change it regularly. x Deactivate the wireless functions, such as Bluetooth, when you are not using them. x If the device behaves strangely, execute an antivirus program to detect a possible infection. x Execute an antivirus program on the device before starting applications and files that you just downloaded. x Install anti-virus programs on your computer and execute them regularly to detect any possible infections. x Do not edit the registration adjustments or change the device’s operating system. Information about the certification of the Specific Absorption Rate (SAR). THIS DEVICE FOLLOWS INTERNATIONAL STANDARDS OF EXPOSURE TO RADIO WAVES. Your mobile device is a radio transmitter and receiver. It was designed to not exceed the limits of exposure to radio waves (electromagnetic fields of radiofrequency) recommended by international standards. The standards were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to ensure the safety of all people, regardless of their age or state of health. The exposure to radio wave standards use a measurement unit known as the Specific Absorption Rate, SAR. The SAR limit for mobile devices is 2 W/Kg. The SAR tests are carried out using standard operation positions with the device transmitting at its maximum certified energy level in all frequency bands. The highest SAR amounts under the ICNIRP standards for this device model are: Maximum SAR for this model and conditions under which it registered SAR for positions near the head.

SAR for positions near the body. 0.0399 W/Kg

During the use, the real SAR values for this device are usually a lot lower from the values indicated previously. This is due to maximizing the system’s efficiency and to minimize the interference with the network, the operation capacity of your mobile device reduces automatically when the maximum power is not needed for the call. The lower the amount of energy leaving the device, the lower the SAR amount will be.40 A SAR test was carried out with the device on the body with a distance of 1.5 cm. To comply with the radiofrequency exposure requirements, while using the device on the body, the device shall have to be at least 1.5 cm away from the body. Some organizations, like the World Health Organization or the Food and Drug Administration of the United States suggest that if users want to reduce exposure, they can use a hands free accessory to main the wireless device far away from the head and body when in use, or reduce the amount of time spent using the device. Correct disposal of this product.

(Electronic device waste) (This applies in countries where recollection systems happen separately). The presence of this symbol on the product, accessories or information material indicates that neither the product nor its electronic accessories (such as, the charger, helmets, USB cable) should be disposed of with other household waste. To avoid any possible damage to the environment or human health caused by uncontrolled disposal of waste, separate these products from other waste and recycle them. This way, you are promoting the sustainable reuse of material resources. Individual users can contact the establishment where they purchased the product or the relevant local authorities to get information about where and when they can take it in order to submit it to ecological and safe recycling. Business users can contact their supplier and check the purchase contract conditions. This product and its electronic accessories should not be disposed of with other commercial waste. Correct disposal of this product’s batteries

(This applies in countries where recollection systems happen separately). The presence of this mark on the batteries, manual or product packaging indicates that when the service life of the batteries has ended they should not be disposed of with other household waste. The chemical symbols Hg, Cd and Pb indicate that the battery has mercury, cadmium or lead at levels a lot higher than the reference values admitted by the 2006/6 Directive of the European Union. If the batteries are not disposed of correctly, these substances may cause personal injury or damage the environment. To protect natural resources and promote recycling, separate the batteries from other waste and recycle them through the free collection service in your area.41 Exemption from responsibility clause Part of the content and services to which you obtain access through this device belong to third parties and are protected under copyright, patent, registered trademark and/or other intellectual property laws. This content and services are only for personal use and not commercial use. It is possible that the content or the services cannot be used if not authorized by the content owner or the supplier of the services. Without prejudice to the aforementioned information, except when expressly authorized by the content owner or service supplier, you cannot change, copy, reedit, charge, publish, transmit, translate, sell, create derivative works, explore or distribute in any way or by any means the content or the services shown through this device. “THE CONTENT AND THE SERVICES OF THIRD PARTIES ARE PROVIDED “AS IS”. SUNSTECH DOES NOT GUARANTEE THE CONTENT OR THE SERVICES PROVIDED, EITHER EXPRESSLY OR IMPLICITLY, FOR NO PURPOSE. SUNSTECH EXPRESSLY RENOUNCES ANY IMPLICIT GUARANTEES, INCLUDING BUT NOT LIMITED TO, MERCHANTABILITY OR SUITABILITY GUARANTEES FOR A PURPOSE IN PART ICULAR. SUNST EC H DOES NOT GUARANT EE THE VERACITY, VALIDITY, REPRODUCTION, LEGALITY OR INTEGRITY OF ANY TYPE OF CONTENT OR SERVICE PROVIDED THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, WILL SUNSTECH BE HELD RESPONSIBLE. BOTH IN TERMS OF CONTRACT OR PREJUDICE TO ANY DIRECT OR INDIRECT, ACCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, LAWYERS’ FEES, EXPENSES OR ANY OTHER TYPE OF DAMAGE FROM OR IN RELATION TO ANY TYPE OF INFORMATION INCLUDED IN OR AS A RESULT OF THE USE OF ANY TYPE OF CONTENT OR SERVICE BY YOURSELF OR A THIRD PART Y, THE POSSIBI LIT Y OF THE R EF ER RED DAMAGE S IS KNO WN.” The services of third parties may cease or be interrupted at any time and SUNSTECH does not carry out representations or guarantees in relation to the availability of content or service for any period of time. The content and services are transmitted by third parties through networks and transmission locations over which SUNSTECH has no control. Without limiting the generality of this clause, SUNSTECH expressly renounces any responsibility for any interruption or suspension of content or service provided through this device. SUNSTECH is not responsible for customer service regarding content and services. Any question or request for service regarding content or services should be sent directly to the services and content suppliers.42

This warranty is granted without prejudice and in addition to the recognized rights for the consumer vis-à-vis the seller provided in the Royal Legislative Decree of 16 November, approving the restated text of the General Law for the Protection of Consumers and Users and other complementary legislation. Therefore, the recognized legal rights for the consumer are not limited or excluded according to the relevant Regional, National or European legislation. This warranty shall be valid in all the European Union Member States with the limitations that legally correspond in the country in which they are intended to be implemented in accordance with their implementing legislation. Notwithstanding the foregoing, SUNSTECH shall respect the rights and limitations related to the product warranty that legally correspond in each of the States listed in the Attachment in accordance with their implementing legislation for any product provided that it is intended for the EU market and has been purchased or used by the consumer or user within the EEA.

This SUSTECH product has a two (2) year warranty counting from the date of delivery and/or purchase. During the above timeframe, SUNSTECH shall be held responsible for any lack of conformity of the product in relation to the contract in accordance with the provisions of the Law for the Protection of Consumers and Users, that shall entitle the consumer to request the repair or replacement of the product, unless one of these options is objectively impossible or disproportionate. Accordingly, the remedy (i.e. the repair or replacement) shall be deemed to be disproportionate if it imposes unreasonable costs on the seller. In order to determine this, the following shall be considered: (i) the value of the product if there were no lack of conformity; (ii) the relevance of the lack of conformity; and (iii) if the other form of remedy could be carried out without major inconvenience to the consumer and user. To determine whether the costs are unreasonable, the costs incurred by one form of remedy must be significantly higher than the costs corresponding to the other form of remedy. In addition, the consumer may choose between requesting a reduction in the price or terminating the contract, if he is not entitled to demand the repair or replacement of the product and whenever these actions would not be completed within a reasonable timeframe and would cause more inconvenience to the consumer and user. However, the termination shall not take place where the lack of conformity is minor.43 Both the repair and the replacement of the product as result of the product’s lack of conformity shall be free of charge for the consumer and user, including labour and materials. In any case, repairs under warranty shall be carried out by SUNSTECH’s Official Technical Assistance Service or its authorized distributors.

3. Conditions for the warranty to be exercised

To exercise the legal and commercial warranty, it is necessary to submit documentary evidence showing the delivery and/or purchase date of the product, whether the invoice, receipt, delivery slip or sealed and dated warranty card. Documents which have been tampered with or falsified will not be accepted. The consumer shall contact SUNSTECH’s Customer Service Team using the website (under the support section) and will be informed about what action to take. At that time, the consumer shall have to provide a clear description of the malfunction or the lack of conformity of the product with the contract. In any case, repairs under the warranty shall be carried out by SUNSTECH’s Official Technical Assistance Services or its authorized distributors so that SUNSTECH can be held responsible under the legal and/or commercial warranty.

The warranty does not foresee or include periodic maintenance or product installation revisions. In addition, the product will not be considered as lacking conformity in relation to the contract and therefore, it will not be covered by the legal or commercial warranty when: x The lack of conformity corresponds to a discrepancy with the safety standards or the local or national techniques of a different country to the one it was originally designed and produced in; x This product or any of its identification features (number of series, etc.) have been partially or completely opened, assembled, unassembled, handled and/or repaired by a person not part of SUNSTECH’s Official Technical Assistance Services team or its authorized distributors x The lack of conformity is a result of an incorrect installation (except if the installation has been carried out by one of SUNSTECH’s authorized sellers or under its responsibility, or by the consumer following SUNSTECH’s installation instructions) or an abusive or inadequate use of the product, including but not limited to, a usage that is not in accordance to the normal purpose of the product or the directions for use and maintenance, as defined by SUNSTECH; x The lack of conformity has been caused by a computer virus, an action or a manipulation of passwords, software installation, manipulation or reinstallation, etc.; x The lack of conformity is due to the use of accessories, chargers or consumables that are not SUNSTECH originals and therefore are not designed for that product;44 x The lack of conformity is due to the use of any third party software or application that modifies, changes or adapts the software that was approved and/or included by SUNSTECH in the product; x The lack of conformity is a result of downloading or using third party multimedia services and/or contents available or accessible through the product; x Damages in or through the battery, which are due to it being overcharged, are produced; x Any of the box seals or battery cells have been damaged, or there is clear evidence that shows these were handled; and/or x The product damages are caused by any unforeseeable or force majeur circumstances, especially, lightning, water, fire, applying incorrect voltage or any other cause that is not due to the product manufacturing or design. Under no circumstances will SUNSTECH be held responsible for the loss of any data stored in the product. The consumer will be held responsible for any back-up copies and the protection of any data from loss, damage or destruction. None of the warranties included here cover the replacement of parts, due to ware or rupture of mechanisms, rubber, boxes and/or plastic, as well as any aesthetic damage resulting from the normal use of the product, for example, if the screen loses its shine with the use of the product. In the same way, the warranties do not cover any type of damage produced during the transportation of the product (including but not limited to aesthetic damage, blows, lines, scratches, stains, dents, etc.) in which case the applicable provisions under SUNSTECH’s general contract conditions will apply. For further information go to www.sunstech.es You can also contact: AFEX SUNS, S.A. Metall, 6-8 08110 Montcada i ReixacDECLARATION OF CONFORMITY Council Directive(s) to which conformity is declared: Directive (1999/5/EC) - R &TTE Directive (2011/65/EU) - RoHS Application of the Standards: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN 50332-1:2000 EN 50332-2:2003 EN 50566:2013 EN 50360:2001/A1:2012 EN 62209-1:2006 EN 62209-2:2010 EN 62479:2010 EN 301 489-1 V1.9.2 EN 301 489-7 V1.3.1 EN 3 01 489-17 V2.2.1 EN 301 511 V9.0.2 EN 300 328 V1.9.1 IEC 62321:2008 IEC 62321:2013 Manufacturer’s name: AFEX SUNS, S.A. Manufacturer’s address: c/Metall 6-8, 08110, Montcada i Reixac Type of equipment: Mobile phone Trade: SUNSTECH Model no.: TEL205 (Serial number range:160700001 - 160705050) We, the undersigned, hereby declare under our sole responsibility that the specified equipment is in conformity with the above Directive(s) and Standard(s) Place: Barcelona ______________________________ (Signature) Víctor Planas Bas_________ (Full name) Date: 25 -July-2016 General Manager __ (Position)
