USER MANUAL uSUN300 Sunstech

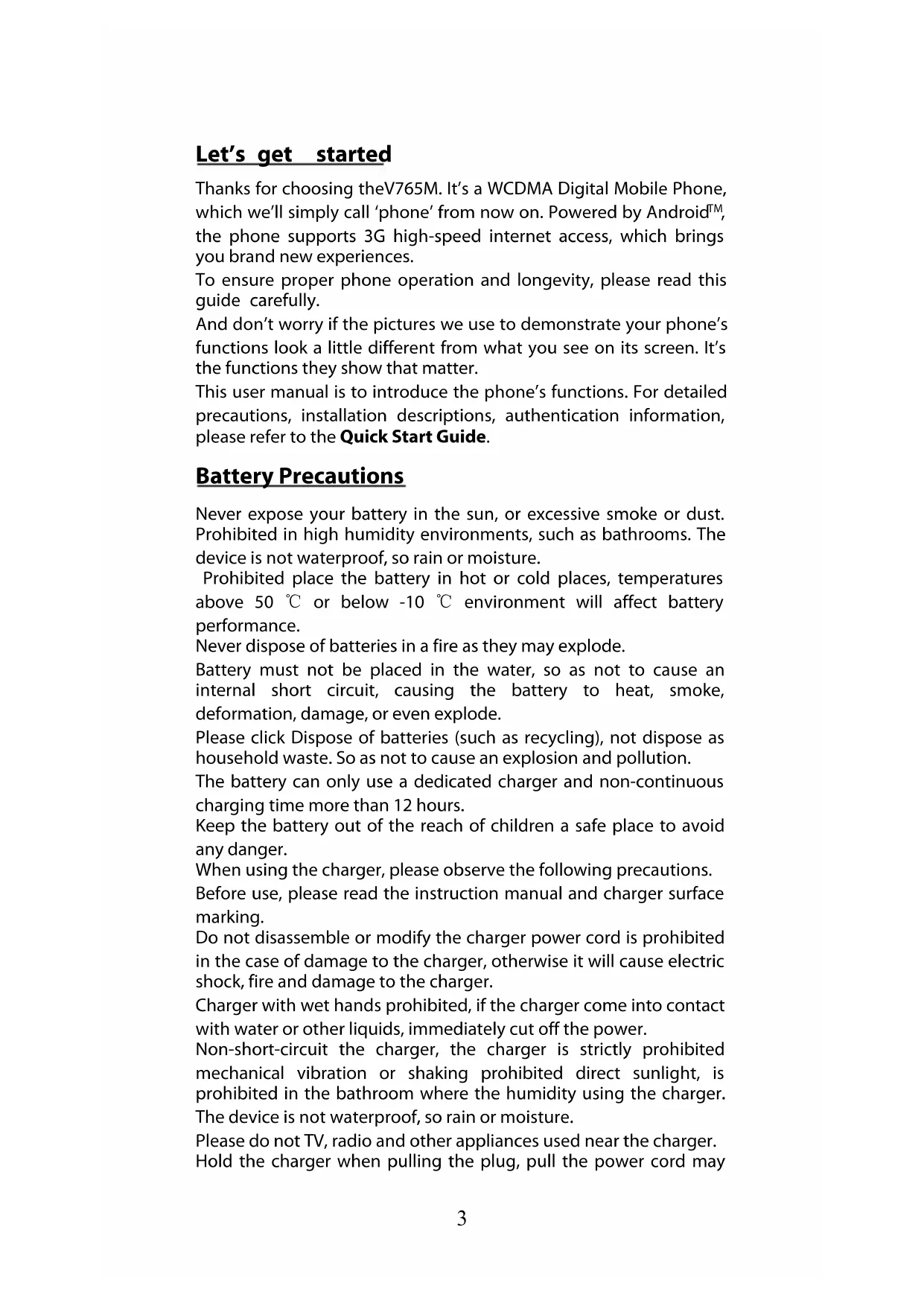

the phone supports 3G high-speed internet access, which brings you brand new experiences. To ensure proper phone operation and longevity, please read this guide carefully. And don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on its screen. It’s the functions they show that matter. This user manual is to introduce the phone’s functions. For detailed precautions, installation descriptions, authentication information, please refer to the Quick Start Guide. Battery Precautions Never expose your battery in the sun, or excessive smoke or dust. Prohibited in high humidity environments, such as bathrooms. The device is not waterproof, so rain or moisture. Prohibited place the battery in hot or cold places, temperatures above 50 or below ℃ -10 environment will affect batt℃ ery performance. Never dispose of batteries in a fire as they may explode. Battery must not be placed in the water, so as not to cause an internal short circuit, causing the battery to heat, smoke, deformation, damage, or even explode. Please click Dispose of batteries (such as recycling), not dispose as household waste. So as not to cause an explosion and pollution. The battery can only use a dedicated charger and non-continuous charging time more than 12 hours. Keep the battery out of the reach of children a safe place to avoid any danger. When using the charger, please observe the following precautions. Before use, please read the instruction manual and charger surface marking. Do not disassemble or modify the charger power cord is prohibited in the case of damage to the charger, otherwise it will cause electric shock, fire and damage to the charger. Charger with wet hands prohibited, if the charger come into contact with water or other liquids, immediately cut off the power. Non-short-circuit the charger, the charger is strictly prohibited mechanical vibration or shaking prohibited direct sunlight, is prohibited in the bathroom where the humidity using the charger. The device is not waterproof, so rain or moisture. Please do not TV, radio and other appliances used near the charger. Hold the charger when pulling the plug, pull the power cord may4 damage the cord. Keep the charger in a safe place out of the reach of children to avoid danger. SAR SAR indicator 1.0w/kg Getting to know your phone Key definitions Menu ke

Touch it to open a menu with items that affect the current screen or application. Home ke

Touch it to open the home screen. If you’re viewing the left or right extended home screen, Press it to open the central home screen. Back ke

Touch it to open the previous screen you were working in. If the onscreen keyboard is open, touch it to close the keyboard. Power ke

Press it to turn on/off the display. Long press it to open a menu with options for Airplane mode, for Silent mode, for Vibration mode, and for powering off and for rebooting the phone. Volumekeys Adjust the volume. Long press it to quickly adjust the ring tone volume to maximum or minimum. Screen control You can control your phone through a series of operations on the screen. - Touch: You can touch the items on the screen to select, to open the applications or to use the keyboard to input characters. - Swipe or slide: Quickly move your finger across the surface of the screen, without pausing when you first touch (so you don't drag something instead). - Touch & hold: You can touch & hold some items to get the item’s available menu. - Drag: You can drag some items on the screen to realize some operations. - Switch between landscape mode and portrait mode: You can switch to the landscape mode by rotating your phone. The landscape mode is only valid under some interfaces, such as the text input interface, the message viewing interface, etc. - Pinch: In some apps (such as Maps and Gallery), you can zoom in and out by placing two fingers on the screen at once and pinching5 them together (to zoom out) or spreading them apart (to zoom in). Open and switch applications Open and close the All Apps screen On the home screen, touch the icon to open the All Apps screen. You can slide the All Apps screen left or right to view more applications. After opening the All Apps screen, touch an icon to enter the corresponding application. Touch the Back key to return to the previous screen. Touch the Home key to return to the home screen. Switch to a recently used application On the home screen, touch & hold the Homekey, opens a list of thumbnail images of apps you've worked with recently. To open an app, touch it. To remove a thumbnail from the list, swipe it left or right. Home Screen Arrange & work with apps From All Apps, you can: - Explore your widgets: Touch the widgets tab at the top of any All Apps screen. - Get more apps: Touch the Play Store icon at the top of any All Apps screen. Manage notifications - Open notifications panel: When a new notification appears on the notification bar, you can drag the notification bar down from the top of the screen to open notifications panel when your phone has been in idle mode or lock the screen. - Respond to a notification: Touch it. - Dismiss a notification: Swipe it sideways. - Close notifications panel: Drag the tab at the bottom of the notification panel to the top of the screen. Display area The home screen can be extended to exceed the screen’s width in order to provide more space for newly added shortcuts, widgets, etc. On the home screen, slide your finger on the screen to extend to the left or right. Place an app icon on a Home screen Touch & hold the app icon, slide your finger, and lift your finger to drop the icon in place. Delete items on the homepage Touch & hold the app icon, slide your finger toward the top of the screen, and drop the app over the Remove icon. Use folders You can combine several app icons in a folder. Drop one app icon over another on a Home screen, and the two icons will be6 combined. From any Home screen, you can - Open a folder: Touch it. The folder opens: - Rename a folder: Touch its name. - Move icons around your Home screens: Touch, hold and slide. Favorites tray The app icons you keep in the favorites tray remain visible on every Home screen. - Place an app icon in the Favorites tray: Touch, hold, & slide to move one of the Favorites icons out of the tray. Then use the same technique to move another one into the same position. The All Apps icon in the center is permanent, you can't move it. Change wallpaper

1. Touch & hold anywhere that’s not occupied on the home screen. A

list of options appears.

2. Select wallpaper from Gallery/ LiveWallpapers/ Wallpapers.

Switch to sleep mode Sleep mode is a kind of power saving mode,which also helps to prevent inadvertent operations. If your phone has been in idle mode for a while, it will automaticallyswitch to sleep mode. You can also press the Powerkey to turn off the screen and enable sleep mode. Wake up your phone After the phone switches to the sleep mode, the screen will be turned off and locked. In this case, please awake your phone and unlock the screen if you want to use your phone.

1. Press the Powerkey to turn on the screen.

icon to the right tounlock the screen. If you've set anunlockpattern or password, youneed to draw the unlock pattern or input the password to enter the main interface. (For details, please see Systemsettings> Security> Screenlock). Make and answer calls Make a call Directly make a call On the home screen or in the All Apps screen, touch the button to display the dialing keypad. Touch the numeric buttons to input the telephone number and touch the button to make the call. Make the call from Contacts7 On the home screen or in the All Apps screen, touch the icon, touch the desired contact and touch the phone number to dial it. Make the call from Call log On the home screen or in the All Apps screen,touch the button, notice the three tabs at the top of the phone, the call log tab shows recent calls. Touch the phone icon in a call log to return it. Make an international call On the home screen or in the All Apps screen, touch the button to display the dialing keypad. Touch & hold the “0” key until “+” appears on the screen, then dial the country code or region code, city code and phone number. Dial from Messaging

1. On the home screen or in the All Apps screen, touch the

2. Select and open one message or conversation.

icon at the top of the phone to dial. Answer a call Your phone will ring or vibrate (depends on the current mode and settings) upon an incoming call. - Slide the icon from middle to right to answer the call. - If the earphone is inserted, press the key on the earphone to answer the call. Reject a call Slide the icon from middle to left to reject the call. End a call Touch the button to hang up the call. Adjust the volume In a call, you can raise or lower the volume by using the volume keys. Turn the speaker on or off In a call, touch the button to turn on the speaker, and touch it again to turn off speaker. Add one call In a call, touch the button then dial a number and touch the phone icon to add one call and put the current caller on hold. This function requires the support of the network operator. Open the dialing keypad8 In a call, you can touch the button to open the dialing keypad to input additional numbers. Contacts You can place calls from the Phone app , the People app , or other apps or widgets that display contact information. Wherever you see a phone number, you can usually touch it to dial. The contacts interface can be divided into the following tab pages: - Caller groups: Groups of callers you have created. - Contacts: View the list of contacts. - Favorites: Display the numbers you usually call. All of your contacts are displayed alphabetically in a scrollable list. You can slide your finger up or down to scroll quickly. Add new contact

1. In People, touch the add contacts icon

at the bottom right hand corner of the screen.

2. Select a memory location.

3. Input all contact information. Slide up to move to the next field or

icon to save your contact. Delete contacts

1. In People, touch the Menu keyand then select Delete contact.

2. Touch the contacts you want to delete, then select OK.

Edit contact details

1. In People, touch the contact whose details you want to edit.

1. In People, touch the

list all matched contacts. Add a contact to Favorites You can tap the contact you want to add to favorites in the contact interface, and then touch in the upper right corner to add it to Favorites directly. You can only add the contacts stored on the phone to the Favorites. Create a group of contacts By creating groups of contacts, you can manage multiple contacts and send a message to an entire group.

1. In People, touch the

2. Touch the icon at the bottom of the screen.

3. Select a memory location.

3. Enter the group’s name and type the person’s name or touch

icon to select the contacts you want to add to the group, then touch

4. Press the Menu key then touch Edit to add members to the

Accounts You can synchronize contacts information to your phone from multiple Google

Accounts, Microsoft Exchange ActiveSync accounts or other kinds of accounts, depending on the applications installed on your phone. In People, touch the Menu key and then select Accounts. Import/Export contacts

1. In People, touch the Menukey to select Import/export.

2. You can select your Google account, your SIM Card, Phone

contact, Phone storage and SD Card. Share a contact You can share a contact with someone.

1. In People, tap the contact you want to share.

2. Touch the Menukey and then touch Share.

3. Select application with which to share (Bluetooth

, Email, Gmail, MMS, SMS and SD Card). Messaging In Messaging, you can send or receive text messages and multimedia messages. On the home screen or in the All Apps screen, touch the Messaging icon to open. Send messages

1. In Messaging, touch the

2. Input your desired telephone number in Type name or number.

You can also touch the button to select contacts you want to send message from the People and then touch OK.

3. You can touch the

icon attach pictures, videos or audio file and the phone will convert the message to a multimedia message.

4. Input some text in Typetext message. You can touch the Menu

key to select: - Addsubject: Add a message subject.10 - Insertquick text: Insert a quick text. - Insert contact: Insert contact information.

5. After that, touch the

icon to send the message. Receive messages

1. In idle mode, you will be reminded about the new messages in

the notification area. Slide down to open the notification panel to view.

2. Touch the message.

3. Directly input text to reply to the message.

icon at the top of the phone to directly call back. Touch & hold the text to pop up the Messageoptions menu, you can Copy, Forward, Lock/Unlock or Delete the message, etc. Message thread The messages from one contact or number will be aligned in one message thread in chronological order. You can manage these threads in the messaging interface. On the Messaging screen, touch the Menu key and then touchDelete all threads to delete all threads. Settings In Messaging, touch the Menu keyand then touch Settings to perform relevant settings. After the setting of a Gmail account is completed, your phone will automatically enter the inbox of this Gmail account.

1. In the inbox of the Gmail account you want to use, touch

2. Fill in one or more recipients. You can touch the Menu key to add

3. Enter the email subject and then compose your message.

4. If you want to attach a photo or video, Touch the Menu key >

to send. Replying to or forwarding email messages in Gmail

1. In the Gmail inbox, touch the email message.

2. To reply to the sender, touch

. or Touch and choose whether to Reply all or Forward.

3. If you selected Reply all, enter your reply message. If you selected

to send. Network Applications Network connection Your phone can connect to the Internet, so you may need to pay for some data service. For details, please consult your network service11 provider. Ways of Connecting to the Internet Your phone’s networking capabilities allow you to access the Internet via the mobile network’s GSM/WCDMA connection and Wi-Fi. GSM/WCDMA data connection Different locations may have different mobile networks available. Initially, your phone is configured to use the fastest mobile network available for data. You can also configure your phone to access a different set of networks entirely, or to behave in special ways when roaming. The icons on the Status bar indicate which kind of data network you’re connected to. On the home screen, touch the Menukey and then touch System settings> More…> Mobilenetworksto perform relevant settings. Wi-Fi Turn on/off Wi-Fi

1. On the home screen, touch the Menukey and then touch System

2. To turn on Wi-Fi, touch OFF and slide it to the right. Touch ON and

slide to the left to turn off Wi-Fi. Connect to Wi-Fi

1. On the home screen, touch the Menukey and then touch System

3. Touch Wi-Fi. Your phone will automatically search for all nearby

4. Select the network you would like to connect to from the list.

- If you’ve selected an open network, your phone will automatically connect to it. - If you’ve selected a security network, you need to input the password. Browser You can use Browserto view web pages and to search for information on the web. Open Browser

1. On the home screen or in the All Apps screen, touch the Browser

2. Touch the URL field at the top to input a web address.

3. Enter a new address and then touch Go.

You can touch the Menukey > Bookmarks/History to select the bookmark you want to open, and touch SAVED PAGES or HISTORY to open other web pages. Browse web After opening a web page, you could slide your finger on the screen to view other parts of the page.12 Zoom in or out You can use two fingers to zoom in or out. Spread your fingers apart or pinch them together to zoom in or out. Browse options When you’re browsing web pages, touch the Menukey to select: You can perform more operations such as Save to bookmarks, Save for offline reading, Share page, Find on page, Request desktop site, etc. Settings You can choose settings that will affect how page content is displayed and privacy and security preferences to suit your browse style. On the Browser screen, touch the Menukey > Settings to enter the settings interface. Bluetooth

function, you can exchange data with other Bluetooth devices that are within a short distance. Because Bluetooth

devices communicate through radio waves; interference might exist due to obstacles or other electronic devices. Turn on/off Bluetooth

1. On the home screen, touch the Menukey and then touch System

to turn it on or off. Pairing

when it is on to automatically search for devices. Your phone will scan for and display all Bluetooth

2. Touch the ID of the desired device.

1. Select a file or item, such as a contact or a media file from an

appropriate application or File manager.

2. Open it, touch the Menu key and choose Share, or touch and

hold it, choose then touch the icon.

3. Search for and pair with a Bluetooth

1. On the home screen, touch the Menukey and then touch System

settings>Wireless & networks.

function is not turned on, turn it on.

, thenthe Menukey> Rename phone to edit the name of your device, then touch Rename.

4. Touch the name of the phone to toggle it to Visibility timeout so

that other Bluetooth

devices can find your device. Settings Airplane mode13 In areas where the use of mobile devices is restricted, you can activate the Airplane mode to disable phone function but still use other functions of your phone such as calendar, music and games. You will not be able to make/answer calls, send/receive messages in Airplane mode.

1. On the home screen, touch the Menukey and then touch System

2. Check the box for Airplane mode. The phone will turn off all

wireless connections when Airplane mode is enabled. Tip: On the home screen, you can press and hold the Powerkey, then select Airplane mode. Device Audio profiles Touch the Menu key and then touch System settings > Audio profiles, you can set the predefined profiles. General: Touch , you can set volume for ringtones, alarms and notifications, set the ringtone for voice calls & video calls and set the default notification ringtone, etc. Silent: Silence all sounds (including call and notification ringtones) except the audio from music, videos, and other media or any alarms you have set. Meeting: Make your phone vibrate only upon incoming calls. Outdoor: Make your phone vibrate and ring upon incoming calls. Display Tou ch System settings > Display. Lock screen notifications: Select to show notifications on lock screen. Wallpaper: Choose a wallpaper. Auto-rotate screen: Set the interface to rotate automatically when you rotate the device. Brightness: Adjust the brightness of the screen. Font size: Set the font size. Sleep: Choose the delay before the screen automatically turns off. Storage To copy files between a PC and your phone’s SD card, you should set the SD card as USB mass storage.

1. Connect your phone to your PC with the USB cable.

2. Touch Turn on USB storage.

During this time, you can’t access the SD card from your phone, so you can’t use applications that rely on the SD card, such as Camera, Gallery and Music. Safely remove the SD card Just flick down the notification panel and touch Turn off USB storage.14 Check space on the SD card

1. On the home screen, touch the Menukey and then touch System

1. On the home screen touch the Menukey and then touch System

Accounts and sync Adding your accounts

1. Touch System settings > Accounts> Add account.

2. Touch the account type you want to add.

3. Follow the onscreen instructions to enter your account

information. Most accounts require a username and password, but the details depend on the kind of account and the configuration of the service you're connecting to. Depending on the kind of account, you may be asked to configure what kinds of data you want to sync, name the account, and other details. When you're finished, the account is added to the list in Accounts & sync. Depending how you configured the account, email, contacts, and other information may start syncing to your device. Language You can choose the language your phone displays. On the home screen, touch the Menukey and then touch System settings > Language & input > Language. Voice input & output settings On the home screen, touch the Menukey and then touch System settings > Language & input >and look under SPEECHto configure the Android voice input feature and the text-to-speech synthesizer, for applications that can take advantage of it. Date & time You can set the format of date and time. On the home screen touch the Menukey and then touch System settings > Date & time. About phone You can check the phone’s status, legal information, software version, etc. On the home screen touch the Menukey and then touch System Settings > About phone. Experiencing Multimedia Camera Your phone has a camera, which can be used to take photos and record video clips.15 Note: Please respect others’ rights and abide by the local regulations and customs when taking photos. Take photos

1. In the All Apps screen, touch the Camera icon to open the

icon to take photos after the view is satisfactory. To view it, slide the screen to the left or just tap the picture in the right corner of the screen. Record video clips You can use icon to change from Camera to Camcorder or vice versa. Tap the icon to start recording and touch the icon to end. After a video is recorded, you can slide the screen to the left or touch the frame in the corner to view the video. Camera settings On the camera screen, touch the icon, and then touch to set GPS location info, Exposure, Color effect, Scene mode, White balance and Anti-flicker. Touch to set Face Detection, Self timer, Continuous shot, Picture size and Preview size. Touch to set Microphone, Audio mode, Time lapse intervaland Video quality. Touch the icon to change to the back or front camera. Music Player You can listen to music saved on the memory card with the music player. Open the music player First copy music files to a mounted memory card. In the All Apps screen, touch Music to open. Listen to music

1. Touch Artists / Albums / Songs / Playlists to find the music file

2. Touch the file to start playing it.

Create playlists In order to manage your music files conveniently, you can create some playlists.

2. Select the music file(s) you want to add to a playlist and touch &

hold it until the shortcut menu pops up.

3. Touch Add to playlist.

5. Input the name for a new playlist.16

6. Touch Save. In this case, the music files you selected will be

automatically added to the newly created playlist. Manage playlists

1. In Music, touch Playlists.

2. Select the playlist you want to edit or play from the list and touch

& hold it until the shortcut menu pops up. - Play: Play the music in the playlist. - Rename: Change the name of the playlist. You can rename self-created playlists only. - Delete: Delete the playlist. You can delete self-created playlists only. Add music to playlists

1. In Music, touch Songs.

2. Select the music file you want to add to playlist and touch & hold

it until the shortcut menu pops up.

3. Touch Add to playlist.

4. Select the playlist you want to add to.

Set music as phone ringtone

1. In Music, touch Songs or Playlists.

2. Select the music file and touch & hold it until the shortcut menu

3. Touch Use as phone ringtone.

Videos Player You can watch video files saved on the SD card through the video player.

1. In the All Apps screen, touch the Gallery icon to open the list of

2. Select the video file you want to play, and touch

icon to play. Gallery The Gallery categorizes your pictures and videos by storage location and stores these files in folders. Tap a folder to view the pictures or videos inside. Sound Recorder You can record audio files through sound recorder. Open the sound recorder Before opening the sound recorder, please insert a memory card. In the All Apps screen, touch the Sound Recorder icon to open it. Record audio files

1. Put the microphone close to your mouth and touch

3. Touch Save to save the recording or touch Discard not to save it.

FM radio17 With the FM Radio, you can search for radio channels, listen to them, and save them on your phone. Note that the quality of the radio broadcast depends on the coverage of the radio station in your area. The wired headset that comes with your phone works as an antenna, so always connect the headset when using the radio. When you receive an incoming call while listening to the radio, the radio will be turned off. To tune in, plug your headset into your phone. In the All Apps screen, press theFM Radio icon to open it. The FM radio scans and saves available stations automatically. - Tap or to scan for available FM channels. - Tap / to change the frequency by +/–0.1 MHz. - Press the Volume Keys to adjust the volume. - Touch to select preset list. - Touch to switch off the radio. - Touch to search radio channels, choose the sound from speaker and record FM. - Touch to add to favorites/remove from favorites. More Applications Filemanager In the All Apps screen, touch the File Managericon. You can view all files saved in the phone or on the memory card. Clock In the All Apps screen, touch the Clock icon. Adding an Alarm

icon at the top of the screen. Turning on/off an Alarm On the Alarms screen, slide the ON/OFF button next to an alarm to turn it on or off. Stopwatch

1. On the Clock screen, touch

2. Touch START to start timing, press STOP to pause.

1. On the Clock screen, touch

2. Set the length of time to count down.

Calculator In the All Apps screen, touch the Calculator icon. On the Calculator screen, slide the screen to the right or left to switch between Advanced paneland Basic panel. Tip: Tap and hold the Calculator’s display to open a menu where you can copy what you’ve entered and access other tools. Calendar Touch the Calendaricon in the All Apps screen. Creating a new Event

1. On the calendar screen, touch the Menukey and then touch New

2. Enter the event name and location.

3. To set the duration for the event, touch FROM and TO.

4. Enter the event time zone and description.

5. If you have more than one calendar, select the calendar where

you want to save the event.

6. Select the REPETITION.

7. Set the time of the reminder in REMINDERS.

On the calendar screen, touch an event to view its details. Changing your calendar view On the calendar screen, touch the date at the top and choose Day, Week, Month, or Agenda. Swipe to scroll vertically or horizontally. In the Day or Week views, spread your fingers apart or pinch them together to zoom in or out. Displaying and synchronizing calendars Initially, all calendars that you create or subscribe to in Google

Calendar on the web are available to synchronize and display in Calendar on your phone. You can select which Google calendars to keep synchronized and which to show.

1. On the calendar screen, touch theMenu key and then touch

Calendars to display.

2. Touch which calendars you would like to be displayed.

3. If you have more calendars you would like to synchronize and

display, touch Calendars to sync, then touch the checkbox next to the calendar(s) you would like to synchronize, touch OK, and then you are returned to the Calendars to display screen where what you chose is now displayed and where you can choose which to display in the calendar. Downloads With Downloads, you can manage logs of files you have downloaded from the web. Touch the Downloadsicon in the All Apps screen. Maps19 You use Maps to find your current location; to view real-time traffic conditions; to get detailed directions by foot, public transportation, bicycle, or car.

1. Touch Maps on the home screen or in the All Apps screen.

, and then tap the Search Maps search box on the top to find the location you need. Navigation You can use Google Navigation to get turn-by-turn driving directions, both spoken and displayed on your screen.

1. On the home screen touch the Menu key and touch System

settings > Location access. 2.Slide the ON/OFF button next to GPSsatellitesto turn it on or off.

3. In the All Apps screen, touch Navigation icon.

Manage applications You can view and manage applications installed in your phone. Install new applications You can install applications from the Play Store or from elsewhere. When installing applications that are not from the Play Store, make sure the software is suitable for your phone. Installing applications from the Play Store

1. On the home screen or in the All Apps screen, touch the Play

2. Search for the applications you want to install.

Installing applications not in the PlayStore

1. Copy the application to the SD card and find the file from File

3. Touch the file and complete the installation according to the

wizard. Uninstall applications

1. On the home screen, touch the Menukey and then select System

2. Scroll the list and touch the application you want to uninstall.20

-Recovery mode uSUN300 How to enter in Recovery Mode. Please, follow these steps. 1-To enter in the recovery mode first you should power off the device, Then long-press the “ON-OFF” key and “VOL +” Key at the same time until the Internal menu. Recovery Mode : <<== Fastboot Mode : Normal Mode : With the key “VOL +” select the Recovery Mode option and then push the “VOL –“ to select. Android has appeared: 2-Push the “Power” and appears other menu. With “vol –“ key select “wipe data / factory reset” then press “Vol

3- Select “ Yes delete all user data ” with the “Vol –“ Key and then

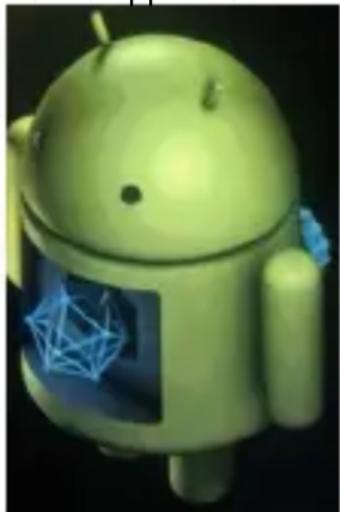

press “VOL +” to select. Android-appeared.

+ "button and the unit will re-start itself. (this process may last for a few minutes)21 How to download the software using the unit. IMPORTANT: When you download the software, all data will be deleted as photos, videos and Apps that you have been installed. Do not interrupt this process please make sure the battery is fully charged. Please, follow these steps.

1- Open browser and search and open this link:

2- Select the model of the tablet that you have and download the

software.(This software is installed In the INTERNAL SD).

3- When it finished the download, select the App " Update

system" in your unit. 4-Select the software and wait until the process is finished.

This warranty is granted without prejudice and in addition to the recognized rights for the consumer vis-à-vis the seller provided in the Royal Legislative Decree of 16 November, approving the restated text of the General Law for the Protection of Consumers and Users and other complementary legislation. Therefore, the recognized legal rights for the consumer are not limited or excluded according to the relevant Regional, National or European legislation. This warranty shall be valid in all the European Union Member States with the limitations that legally correspond in the country in which they are intended to be implemented in accordance with their implementing legislation. Notwithstanding the foregoing, SUNSTECH shall respect the rights and limitations related to the product warranty that legally correspond in each of the States listed in the Attachment in accordance with their implementing legislation for any product provided that it is intended for the EU market and has been purchased or used by the consumer or user within the EEA.

This SUSTECH product has a two (2) year warranty counting from the date of delivery and/or purchase. During the above timeframe, SUNSTECH shall be held responsible for any lack of conformity of the product in relation to the contract in accordance with the provisions of the Law for the Protection of Consumers and Users, that shall entitle the consumer to request the repair or replacement of the product, unless one of these options is objectively impossible or disproportionate. Accordingly, the remedy (i.e. the repair or replacement) shall be deemed to be disproportionate if it imposes unreasonable costs on the seller. In order to determine this, the following shall be considered: (i) the value of the product if there were no lack of conformity; (ii) the relevance of the lack of conformity; and (iii) if the other form of remedy could be carried out without major inconvenience to the consumer and user. To determine whether the costs are unreasonable, the costs incurred by one form of remedy must be significantly higher than the costs corresponding to the other form of remedy. In addition, the consumer may choose between requesting a reduction in the price or terminating the contract, if he is not entitled to demand the repair or replacement of the product and whenever these actions would not be completed within a reasonable timeframe and would cause more inconvenience to the consumer and user. However, the termination shall not take place23 where the lack of conformity is minor. Both the repair and the replacement of the product as result of the product’s lack of conformity shall be free of charge for the consumer and user, including labour and materials. In any case, repairs under warranty shall be carried out by SUNSTECH’s Official Technical Assistance Service or its authorized distributors.

3. Conditions for the warranty to be exercised

To exercise the legal and commercial warranty, it is necessary to submit documentary evidence showing the delivery and/or purchase date of the product, whether the invoice, receipt, delivery slip or sealed and dated warranty card. Documents which have been tampered with or falsified will not be accepted. The consumer shall contact SUNSTECH’s Customer Service Team using the website (under the support section) and will be informed about what action to take. At that time, the consumer shall have to provide a clear description of the malfunction or the lack of conformity of the product with the contract. In any case, repairs under the warranty shall be carried out by SUNSTECH’s Official Technical Assistance Services or its authorized distributors so that SUNSTECH can be held responsible under the legal and/or commercial warranty.

The warranty does not foresee or include periodic maintenance or product installation revisions. In addition, the product will not be considered as lacking conformity in relation to the contract and therefore, it will not be covered by the legal or commercial warranty when:

• The lack of conformity corresponds to a discrepancy with the safety standards or the local or national techniques of a different country to the one it was originally designed and produced in;

• This product or any of its identification features (number of series, etc.) have been partially or completely opened, assembled, unassembled, handled and/or repaired by a person not part of SUNSTECH’s Official Technical Assistance Services team or its authorized distributors

• The lack of conformity is a result of an incorrect installation (except if the installation has been carried out by one of SUNSTECH’s authorized sellers or under its responsibility, or by the consumer following SUNSTECH’s installation instructions) or an abusive or inadequate use of the product, including but not limited to, a usage that is not in accordance to the normal purpose of the product or the directions for use and maintenance, as defined by SUNSTECH;

• The lack of conformity has been caused by a computer virus, an24 action or a manipulation of passwords, software installation, manipulation or reinstallation, etc.;

• The lack of conformity is due to the use of accessories, chargers or consumables that are not SUNSTECH originals and therefore are not designed for that product;

• The lack of conformity is due to the use of any third party software or application that modifies, changes or adapts the software that was approved and/or included by SUNSTECH in the product;

• The lack of conformity is a result of downloading or using third party multimedia services and/or contents available or accessible through the product;

• Damages in or through the battery, which are due to it being overcharged, are produced;

• Any of the box seals or battery cells have been damaged, or there is clear evidence that shows these were handled; and/or

• The product damages are caused by any unforeseeable or force majeur circumstances, especially, lightning, water, fire, applying incorrect voltage or any other cause that is not due to the product manufacturing or design. Under no circumstances will SUNSTECH be held responsible for the loss of any data stored in the product. The consumer will be held responsible for any back-up copies and the protection of any data from loss, damage or destruction. None of the warranties included here cover the replacement of parts, due to ware or rupture of mechanisms, rubber, boxes and/or plastic, as well as any aesthetic damage resulting from the normal use of the product, for example, if the screen loses its shine with the use of the product. In the same way, the warranties do not cover any type of damage produced during the transportation of the product (including but not limited to aesthetic damage, blows, lines, scratches, stains, dents, etc.) in which case the applicable provisions under SUNSTECH’s general contract conditions will apply. For further information go to www.sunstech.es

You can also contact: AFEX SUNS, S.A. Pallars, 189-191 08005 BARCELONA25

This product can be adjusted to the SAR national limits of 2 W/Kg. The specific SAR maximum values are in the information section of this guide. When you hold the product or use it on your body, maintain a distance of 1.5 cm from your body to ensure the radiofrequency exposure standards. This device offers communication and entertainment services that follow SUNSTECH’s high standards and technological experience.

• The content may differ from the final product of the software provided by the suppliers of services or transmitters and it is subject to alteration without prior notice.

• The elements that come with the device and any available accessory may vary according to the region or supplier of the services.

• The elements provided are designed uniquely for this device and may not be compatible with other devices.

• You may purchase additional accessories at your local SUNSTECH distributor. Ensure that they are compatible with the device before you purchase them.

• Other accessories may not be compatible with the device.

• SUNSTECH is not held responsible for problems of insufficient return or any change to the operating system’s software. Any attempt to personalize the operating system may cause the device or the applications to function incorrectly. Instruction icons

Warning: Situations that can cause injuries to

yourself or third parties.

Precaution: Situations that can cause damages to the device or other equipment. Note: Notes, recommendations of use or additional information. Copyright Copyright 2013 Afex suns, S. A. This guide is protected by international copyright laws.26 Reproduction, distribution, translation or transmission of any part of this guide is not allowed under any circumstances or through any means, be it electronic or mechanic. This includes photocopies, records or storage in any information retrieval and storage systems, without previous written authorization from Afex Suns, S. A. Safety information This section contains safety information for mobile devices. Some of the content may not apply to your device. In order to avoid injury to yourself or third parties or damage to the device, read the device’s safety information before you use it. Warning If you do not comply with these safety regulations and warnings, you may suffer serious injury or even death. Do not use damaged power cords or connectors or loose sockets. Unsafe connections may cause an electric discharge or a fire. Do not touch the power cord if your hands are wet and do not pull the cord to disconnect the charger. If you do so, you may be electrocuted. Do not bend or damage the power cord. If you so do, this may cause an electric discharge. Do not cause a short-circuit in the charger or the device. If you do so, this may cause an electric discharge or the device may not function correctly. Use batteries, chargers, accessories and supplies that have been approved by the manufacturer.

• The use of generic batteries or chargers may shorten the useful life of the device or cause incorrect functioning. It may also cause a fire or the battery may explode.

• Only use batteries or chargers that have been approved by SUNSTECH, specifically designed for the device. Any non compatible batteries and chargers may cause serious physical injuries or damage the device.

• SUNSTECH will not be held responsible for the safety of the user whenever accessories or supplies that have not been approved by the brand are used. Do not cut or drop the charger or the device. When handling or disposing of the device and charger do so with caution.

• Never throw the battery or the device into the fire. Never place the battery or the device on any sources of heat, such as, ovens, microwaves, glasshouses or radiators, etc. If it overheats, the device may explode. Follow all local regulations with regards to disposing27 of the used battery or device.

• Do not squash the device or make holes in it.

• Avoid exposing the device to high pressure because this may cause an internal short-circuit and overheating. Protect the device, battery and charger in order to stop them from getting damaged.

• Avoid exposing the device and battery to very high or very low temperatures.

• Extreme temperatures may damage the device and reduce the charging capacity and the duration of the device and battery.

• Avoid the battery entering into contact with metal objects because this may cause a connection between the positive and negative terminals of the battery and damage it temporarily or permanently.

• Never use damaged chargers or batteries. Do not store the device in or near heaters, microwaves, heated kitchen equipment or high pressure containers.

• The battery may have leakages.

• The device may overheat and cause a fire. Do not use or store the device in places with a lot of dust or material transported by air. Dust or foreign materials may cause the device to malfunction and may result in a fire or an electric discharge. Safety information Do not bite or suck the device or the battery.

• This may damage the device or cause an explosion or a fire.

• Children and animals may choke on small pieces.

• When children use the device, ensure that they do so correctly. Do not insert the device or the accessories provided into your eyes, ears or mouth. If you do so, you make choke or suffer serious injuries. Do not handle damaged lithium-ion batteries or batteries that show evidence of leakage. To dispose of lithium-ion batteries safely, contact your closest authorized service centre. Precaution If you do not comply with these regulations and warnings, you may suffer injuries or cause material damage. Do not use the device near other electronic devices.

• Most electronic devices use radiofrequency signals. The device may interfere with other electronic devices.

• If you use a LTE data connection, this may cause an interference with other devices, such as audio equipment and telephones.28 Do not use the device in a hospital, plane or car that may be affected by interference caused by radiofrequency.

• If possible, avoid using the device at any distance lower than 15 cm from a pacemaker, because the device may cause interferences with it.

• To minimize any possible interference with a pacemaker, use the device only on the opposite side of the body in relation to the position of the pacemaker.

• If you use medical equipment, contact the manufacturer of the equipment before using the device in order to ascertain whether the equipment will be affected by the radiofrequency emitted by the device.

• If electronic devices are used on a plane, these may interfere with the electronic navigation instruments. Ensure that the device is turned off during take-off and landing. After take-off you may use the device on “airplane mode” as long as this is allowed by the cabin crew.

• The electronic devices in your car may malfunction due to the radio interference of the device. Contact the manufacturer for further information. Do not expose the device to smoke or strong emanations. If you do so, you may damage the outside part of the device or cause its malfunctioning. If you use hearing devices, contact the manufacturer for further information about radio interference. The radiofrequency that the device emits may interfere with some hearing devices. Before using the device, contact the manufacturer in order to ascertain whether the hearing device will be affected by the radiofrequency emitted by the device. Do not use the device near other devices or apparatuses that emit radiofrequency, such as sound systems or radio towers. Radiofrequency may cause the malfunctioning of the device. Turn off the device in potentially explosive atmospheres.

• Turn off the device instead of removing the battery in potentially explosive atmospheres.

• Always respect the standards, instructions and warning signs in potentially explosive atmospheres.

• Do not use the device in petrol stations or near fuel or chemicals or in demolition areas.

• Do not store or transport flammable liquids, gases or explosive material in the same compartment in which the device, its parts or accessories are. If you become aware of the device or the battery letting off strange odours or sounds or if you see smoke or liquid coming out of the device or battery, stop using the device immediately and take it to an authorized service Centre.29 If you do not do so, this may cause a fire or an explosion. Comply with all the safety regulations and warnings related to the use of mobile devices when driving a vehicle. When driving, your main responsibility is to control the vehicle safely. If the law does not allow mobile phone use when driving, do not use the mobile device. For your and others’ safety use your common sense and remember the following advice:

• Get to know the device and its operating functions, like speed dialling and recall system. These functions allow the time necessary to make and receive calls to be reduced.

• Put the device in a place where it is easy to reach. Make sure that you can access the wireless device without taking your eyes off the road. If you receive a telephone call at an inconvenient time, let voice-mail answer it.

• Stop phone calls when there is heavy traffic or when there are adverse climate conditions. Rain, sleet, snow, ice and heavy traffic can be very dangerous.

• Do not jot down or look for telephone numbers. Jotting down a task or looking at your calendar may distract you from your main responsibility, which is to drive safely.

• Dial carefully and assess the state of the traffic. Make phone calls when you are not moving or before hitting traffic. Try to schedule phone calls when the car is parked.

• Do not have very stressful or emotional phone calls that may distract you. Tell the person that you are speaking to that you are driving and end any conversations that may take away your attention from the road. Correct use and maintenance of the mobile device. Keep the device dry.

• Humidity and liquids may damage the parts or the electronic circuits of the device.

• Do not turn on the device if it is wet. If it is already turned on, turn it off and take the battery out immediately (if you cannot turn it off or take the battery out, just leave it as it is). After this, dry the device with a towel and take it to the service centre.

• Liquids will change the colour of the label which indicates the damage caused by the water inside the device. The damage caused by the water in the device may cancel the manufacturer’s warranty. Place the device only on flat surfaces. If it drops, the device may get damaged. Do not store the device in very hot or cold places. It is recommended that you use the device at temperatures between 5º and 35º.

• Do not store the device in places with very high temperatures, such as inside a car in the summer. If you do so, you may cause the screen to malfunction, the device may get damaged or the battery30 may explode.

• Do not expose the device to direct sunlight for long periods of time (for example, on the dashboard of a car).

• Store the battery at temperatures between 0º and 45º. Do not store the device with metal objects, such as coins, keys and necklaces.

• The device may get scratches or stop working properly.

• If the battery terminals come into contact with metal objects, a fire may occur. Do not store the device near magnetic fields.

• It is possible for the device to start malfunctioning and for the battery to lose power due to being exposed to these fields.

• Cards with magnetic stripe, such as credit cards, telephone cards, travel passes may get damaged due to the magnetic fields. If the device overheats, stop using it and its applications for a while. Prolonged skin exposure to a hot device may cause symptoms of burning with low temperature, such as red spots and pigmentation. Do not use the device if the back cover is not in place. The battery may come out of the device, which can cause damage or malfunctioning. If the device has a lamp or a camera flash, do not use it near people’s or animal’s eyes. This may cause a temporary loss of vision or damage the eyes. Be careful when exposing yourself to intermittent light.

• When you use the device, leave some lights turned on in the bedroom and do not have the screen too close to your eyes.

• Convulsions or fainting may occur due to exposure to intermittent light when looking at videos or playing games with intermittent lights for prolonged periods of time. If you feel unwell, stop using the device immediately.

• If anyone close to you suffered from convulsions or fainting when using a similar device, visit a doctor before using the device.

• If you feel discomfort, such as muscle cramps or you feel disoriented, stop using the device immediately and visit a doctor.

• To avoid eye fatigue, have frequents breaks when using the device. Reduce the risk of injury caused by repetitive movements. When you carry out repeated actions, such as pressing keys, drawing characters on the touch screen or playing a game, you may feel discomfort in your hands, neck, shoulders or other parts of the body. When you use the device during prolonged periods of time, hold it with relaxed hands, touch the keys lightly and rest frequently. If you continue feeling discomfort during or after taking these steps, stop using the device and visit a doctor. When you use earphones, protect your hearing and your ears.31

• Excessive exposure to loud sounds can cause damage to hearing.

• Exposure to loud sounds while you are walking may distract you and cause an accident.

• Always lower the sound before connecting the earphones to an audio source and use the minimum amount of volume necessary to listen to music or have a conversation.

• In dry environments, static electricity may accumulate in the earphones. Avoid using earphones in dry environments or touch metal objects to discharge the static electricity before connecting the earphones to the device.

• Do not use an earphone while you are driving or riding a vehicle. If you do so you may get distracted and cause an accident or you may be subject to legal action, depending on the area where you are driving. Use the device with caution while you are walking or moving.

• Always pay attention to what is happening around you to avoid physical injury to yourself and others.

• Make sure the earphone cord does not get entangled round your arms or nearby objects. Do not take devices in your front pockets or round your waist. You may get injured or damage the device if it falls. Do not paint your device or put any stickers on it.

• Paint and stickers can obstruct the mobile parts and stop the device from working properly.

• If you are allergic to paint or to the metal parts of the device, you may get a stingy feeling, eczema or swelling. If this happens, stop using the device and visit a doctor. Do not use the device if the screen is cracked or broken. The broken glass can cause hand and face injuries. Take the device to an authorized service centre to get it repaired. Install the mobile devices and the equipment with caution.

• Make sure that the whole mobile device or related equipment that is installed in your vehicle is assembled safely.

• Avoid placing the device and the accessories where the airbag is or next to it. Any wireless equipment installed incorrectly can cause serious injuries when the airbags inflate quickly. Do not allow the product to fall or to be subject to strong impacts.

• The device may get damaged or malfunction.

• If you bend or deform it the device may get damaged and its parts may malfunction. Guarantee of the maximum duration of the battery and charger.

• Avoid charging the device for over a week, because overcharging can reduce the battery’s service life.32

• With time, the device will run out of battery (even when it is not being used) and you will need to recharge it to use it again.

• Disconnect the charger from the power sources when it is not being used.

• Use the battery only for the purpose for which it was designed.

• If you do not use the battery for a long time, you may reduce its service life and performance. You may also cause the malfunctioning or explosion of the battery or a fire.

• Follow all the instructions in this manual to guarantee the longest service life possible for your device and battery. Any damage or operating problems caused by not complying with the warnings and instructions may cancel the manufacturer’s warranty.

• With time, the device may wear out. Some parts and repairs are covered under the warranty during the validity period; however, the damages or deterioration caused by the use of accessories not approved by the brand are not covered. Take the following information into account when using the device.

• Use it in a vertical position, as you would a traditional telephone.

• Speak directly into the microphone.

• Do not cover the antenna area with your hands or other objects. This may cause connection problems or cause the battery to run down. Do not unassembled, change or repair the device.

• Any alteration or change to the device may cancel the manufacturer’s warranty. If you need to repair the device, take it to an authorized service centre.

• Do not disassemble or make holes in the battery, this may cause an explosion or a fire.

• Turn off the device before removing the battery. If you remove the battery while the device is still turned on, this may cause malfunctioning. Take the following information into account when cleaning the device.

• Use a towel or a rubber cloth to clean the device and the charger.

• Clean the battery terminals with cotton or with a towel.

• Do not use chemical substances or detergents. If you do so, you may cause discoloration or corrosion of the outside part of the device or you may cause an electric discharge or a fire. Do not use it for any other purpose other than the one it was designed for. The device may malfunction. When you use the device in public, try not to disturb others. Only allow qualified professionals to carry out the maintenance of your device.33 It is possible for damages to occur and the manufacturer’s warranty is cancelled if you allow non qualified personnel to carry out the maintenance of the device. Be careful when handling SIM cards, memory cards or cables.

• When inserting a card or connecting a cable to the device, make sure the card is inserted correctly or that the cable is connected on the right side.

• Do not take the card out when the device is transferring information or it has access to it, because you may lose data and damage the card or the device.

• Protect the cards from strong discharges, static electricity and noise generated from other electronic devices.

• Do not touch the contacts or the gold terminals with your fingers or with metal objects. If the card is dirty clean it with a soft cloth.

• If you insert a card or connect a cable forcefully or incorrectly you may cause damage to the multifunctional socket or other parts of the device. Make sure you have access to emergency services. It is possible that in some areas or circumstances you may not be able to make emergency phone calls. Before travelling to remote areas or developing countries, plan an alternative form of communicating with the emergency services. Protect your personal data and avoid confidential information from being spread or used incorrectly.

• When you use the device, make sure you make back-up copies of important data. SUNSTECH will not be held responsible for any loss of data.

• When you dispose of the device, make a back-up copy of all the data and after re-establish the device to avoid personal information from being used inappropriately.

• Read the licenses screen carefully when you download applications. Be especially careful with applications that have access to various functions or a significant amount of your personal information.

• Control your accounts frequently to avoid any suspicious or non-authorized use. If you find any indication of your personal information not being used appropriately, contact your services supplier to delete or change the information in your account.

• If you lose the device or it is stolen, change the passwords of your accounts to protect your personal information.

• Avoid using applications from unknown sources and block the device with a pattern, a password or a PIN. Do not distribute material protected with copyright. Do not distribute material protected with copyright without the authorization of the content owners. If you do so, you may violate copyright laws. The manufacturer will not be held responsible for34 any legal problem caused by illegal use of material protected by the user. Malware and virus Follow these suggestions to protect the device against malware and virus. If you do not do so, you may cause damages or loss of data that may not be covered under the warranty.

• Do not download unknown applications.

• Do not use unreliable websites.

• Delete any suspicious text messages or emails from unknown senders.

• Create a password and change it regularly.

• Deactivate the wireless functions, such as Bluetooth, when you are not using them.

• If the device behaves strangely, execute an antivirus program to detect a possible infection.

• Execute an antivirus program on the device before starting applications and files that you just downloaded.

• Install anti-virus programs on your computer and execute them regularly to detect any possible infections.

• Do not edit the registration adjustments or change the device’s operating system. Information about the certification of the Specific Absorption Rate (SAR).

THIS DEVICE FOLLOWS INTERNATIONAL STANDARDS OF

EXPOSURE TO RADIO WAVES. Your mobile device is a radio transmitter and receiver. It was designed to not exceed the limits of exposure to radio waves (electromagnetic fields of radiofrequency) recommended by international standards. The standards were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to ensure the safety of all people, regardless of their age or state of health. The exposure to radio wave standards use a measurement unit known as the Specific Absorption Rate, SAR. The SAR limit for mobile devices is 2 W/Kg. The SAR tests are carried out using standard operation positions with the device transmitting at its maximum certified energy level in all frequency bands. The highest SAR amounts under the ICNIRP standards for this device model are: Maximum SAR for this model and conditions under which it registered SAR for positions near the head.

SAR for positions near the body. 0.0399 W/Kg During the use, the real SAR values for this device are usually a lot lower from the values indicated previously. This is due to maximizing the system’s efficiency and to minimize the interference35 with the network, the operation capacity of your mobile device reduces automatically when the maximum power is not needed for the call. The lower the amount of energy leaving the device, the lower the SAR amount will be. A SAR test was carried out with the device on the body with a distance of 1.5 cm. To comply with the radiofrequency exposure requirements, while using the device on the body, the device shall have to be at least 1.5 cm away from the body. Some organizations, like the World Health Organization or the Food and Drug Administration of the United States suggest that if users want to reduce exposure, they can use a hands free accessory to main the wireless device far away from the head and body when in use, or reduce the amount of time spent using the device. Correct disposal of this product.

(Electronic device waste) (This applies in countries where recollection systems happen separately). The presence of this symbol on the product, accessories or information material indicates that neither the product nor its electronic accessories (such as, the charger, helmets, USB cable) should be disposed of with other household waste. To avoid any possible damage to the environment or human health caused by uncontrolled disposal of waste, separate these products from other waste and recycle them. This way, you are promoting the sustainable reuse of material resources. Individual users can contact the establishment where they purchased the product or the relevant local authorities to get information about where and when they can take it in order to submit it to ecological and safe recycling. Business users can contact their supplier and check the purchase contract conditions. This product and its electronic accessories should not be disposed of with other commercial waste. Correct disposal of this product’s batteries

(This applies in countries where recollection systems happen separately). The presence of this mark on the batteries, manual or product packaging indicates that when the service life of the batteries has ended they should not be disposed of with other household waste. The chemical symbols Hg, Cd and Pb indicate that the battery has mercury, cadmium or lead at levels a lot higher than the reference values admitted by the 2006/6 Directive of the European Union. If the batteries are not disposed of correctly, these substances may cause personal injury or damage the environment.36 To protect natural resources and promote recycling, separate the batteries from other waste and recycle them through the free collection service in your area. Exemption from responsibility clause Part of the content and services to which you obtain access through this device belong to third parties and are protected under copyright, patent, registered trademark and/or other intellectual property laws. This content and services are only for personal use and not commercial use. It is possible that the content or the services cannot be used if not authorized by the content owner or the supplier of the services. Without prejudice to the aforementioned information, except when expressly authorized by the content owner or service supplier, you cannot change, copy, reedit, charge, publish, transmit, translate, sell, create derivative works, explore or distribute in any way or by any means the content or the services shown through this device. “THE CONTENT AND THE SERVICES OF THIRD PARTIES ARE PROVIDED “AS IS”. SUNSTECH DOES NOT GUARANTEE THE CONTENT OR THE SERVICES PROVIDED, EITHER EXPRESSLY OR IMPLICITLY, FOR NO PURPOSE. SUNSTECH EXPRESSLY RENOUNCES ANY IMPLICIT GUARANTEES, INCLUDING BUT NOT LIMITED TO, MERCHANTABILITY OR SUITABILITY GUARANTEES FOR A PURPOSE IN PARTICULAR. SUNSTECH DOES NOT GUARANTEE THE VERACITY, VALIDITY, REPRODUCTION, LEGALITY OR INTEGRITY OF ANY TYPE OF CONTENT OR SERVICE PROVIDED THROUGH THIS DEVICE AND

Import/export. (Importar/exportar).

8. Touchez DONE (FAIT).
