USER MANUAL SPBT4110BK NEDIS

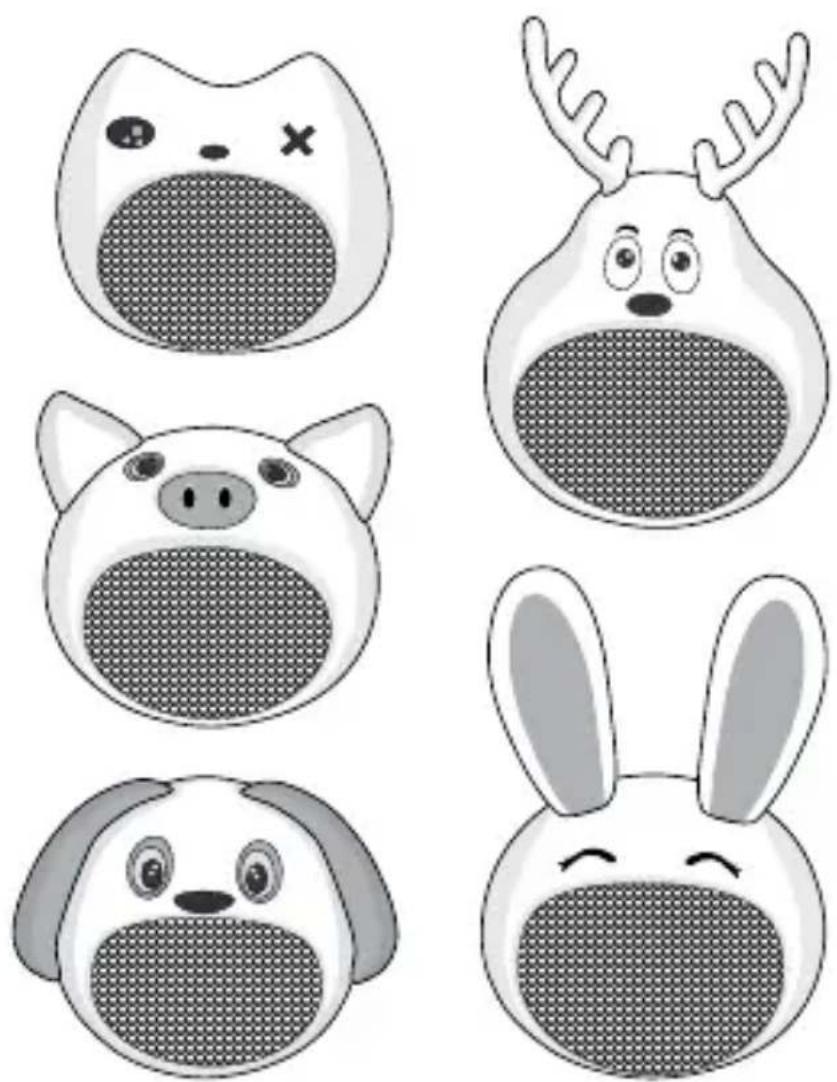

with a unique and fun design

SPBT4110BK | SPBT4110BN

SPBT4110NC | SPBT4110PK

SPBT4110Y W

EN Quick start guide 4

DE Kurzanleitung 8

ned.is/spbt4110bk nec/spt4110bn

ned.is/spbt4110ncnedE/spt2410pk

ned.is/spbt4110yw

A

Bluetooth® Speaker

SPBT4110BK | SPBT4110NC

SPBT4110YW | SPBT4110BN

SPBT4110PK

For more information see the extended manual online:

ned.is/spbt4110bk |ned.is/spbt4110nc

ned.is/spbt4110yw |ned.is/spbt4110bn

ned.is/spbt4110pk

Intended use

The Nedis SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK is a Bluetooth speaker that plays audio from your media device.

The product is exclusively intended for playing music from a Bluetooth device and for answering and making hands-free phone calls.

This product is not a toy, it is intended as a speaker.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Bluetooth	* Speaker
Article number SPBT4110BK | SPBT4110NC|SPBT4110YW | SPBT4110BN |SPBT4110PK
Power input 5 VDC; 0.5 A
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Bluetooth® signal range Up to 10 m
Frequency response 100 Hz - 20 KHz
Max. radio transmit power 3.89 dBm (SPBT4110BK: 3.47 dBm)
Max. antenna gain -0.58 dBi
Peak power 9 W
Power (RMS) 3 W
Impedance 4 Ω
Sensitivity 81 dB
Driver size 40 mm
Battery type Lithium-ion (602040)
Charging time Up to 1.5 hours
Battery capacity 400 mAh
Play time Up to 3 hours
Built-in microphone Yes

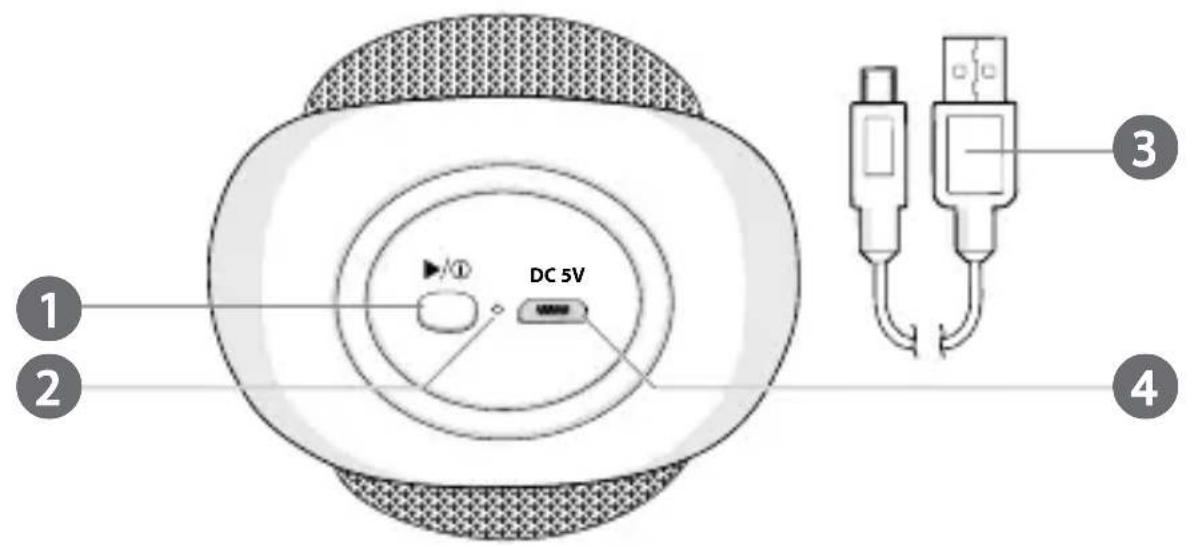

Main parts (image A)

Power button

Status indicator LED

Micro USB cable

Micro USB port

Safety instructions

RNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• This product can be used by children aged from 6 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.
• Not to be used by very young children (0-3 years).
• Usage by children should be supervised at all times.
• Do not drop the product and avoid bumping.

• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

• Disconnect the product from the power source and other equipment if problems occur.

• Do not expose the product to water or moisture.
• Do not use the product where splashing of water might occur e.g. bathrooms, swimming pools or close to a washbowls.
• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
• Provide enough ventilation during charging.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not open the product.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.
• Listening on high volume for a long time will damage your hearing.

Charging the product

1. Plug the micro USB cable A ③ into the micro USB port A ④.

2. Plug the other end of A (3) into a USB adapter.

3. The status indicator LED A (2) lights up red.

turns off when the product is fully charged.

Pair with Bluetooth

1. Press and hold the power button A ① for 2 seconds to switch on the product.
2. A (2) blinks and the product emits a tone to indicate pairing mode is active.
3. Enable Bluetooth on the device you want to pair the speakers with.
4. Select "SPBT4110" from the list of available Bluetooth devices on your device.

True Wireless Stereo (TWS)

TWS only works with two speakers of the same type.

1. Disable Bluetooth on the device you want to pair the speakers with.
2. Switch on both speakers.
3. Double press A (1) on one of the speakers.
4. After a few seconds A 2 blinks and the product emits a tone to indicate pairing mode is active.

5. A (2) of the other speaker lights up.

6. Enable Bluetooth on the device you want to pair the speakers with.

7. Select "SPBT4110" from the list of available Bluetooth devices on your device.
8. Double press A (1) of one of the speakers, to switch off the TWS function.

Controlling the music

• Press A (1) to play or pause the music.

Making phone calls

To answer an incoming call, press A ①.
To end a call, press A ①.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK from our brand Nedis^®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

webshop.nedis.com/spbt4110bk#support
webshop.nedis.com/spbt4110nc#support
webshop.nedis.com/spbt4110yw#support
webshop.nedis.com/spbt4110bn#support
webshop.nedis.com/spbt4110pk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Phone: [phone] (during office hours)

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
