USER MANUAL TE1319RW SIEMENS

Intendeduse Intended use This appliance is intended for domestic use only. Only use the appliance indoors at room temperature and up to 2000 m above sea level. Important safety information Please read and follow the operating instructions carefully and keep them for later refer- ence! Enclose these instructions when you give this appliance to someone else. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. W Warning Risk of electric shock! ■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed. ■ Connect and operate the appliance only in accordance with the specications on the rating plate. ■ Do not use the appliance if the power cord and/or appli- ance are damaged. ■ Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards. ■ Never immerse the appliance or mains cord in water. ■ If there is a fault, pull out the mains plug immediately or switch o󰀨 the power supply. ■ Avoid spillage on the connector. ■ Please note the special information on cleaning in the instructions. Intended use Important safety information8 en Importantsafetyinformation W Warning Hazard due to magnetism! The appliance contains perma- nent magnets which can a󰀨ect electronic implants such as pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10 cm from the appliance and from the following parts upon removal: milk container, milk system, water tank, drip tray and brewing unit. W Warning Risk of su󰀨ocation! ■ Do not allow children to play with packaging material. ■ Store small parts safely as they can be easily swallowed. W Warning Risk of injury! ■ Do not reach into the grinding unit! ■ Improper use of this appliance may result in injury. W Warning Risk of re! ■ The appliance gets hot. ■ Never operate the appliance in a cupboard. W Warning Risk of burns! ■ The milk system becomes extremely hot. After use, always let it cool down before you touch it. ■ After use the surfaces of the heating element or hotplate can remain hot for some time. ■ Freshly prepared beverages are very hot. Leave to cool a little if necessary.9

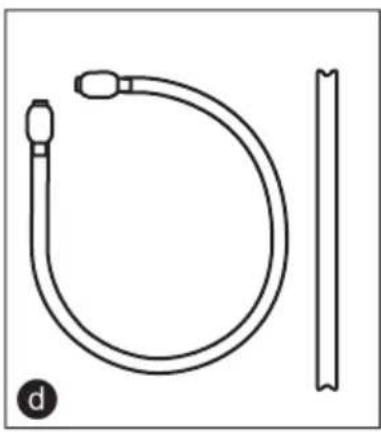

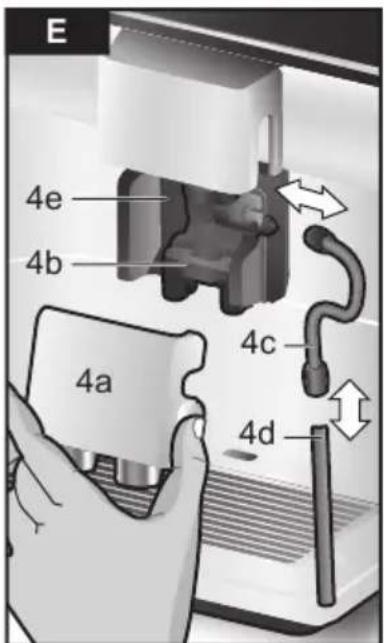

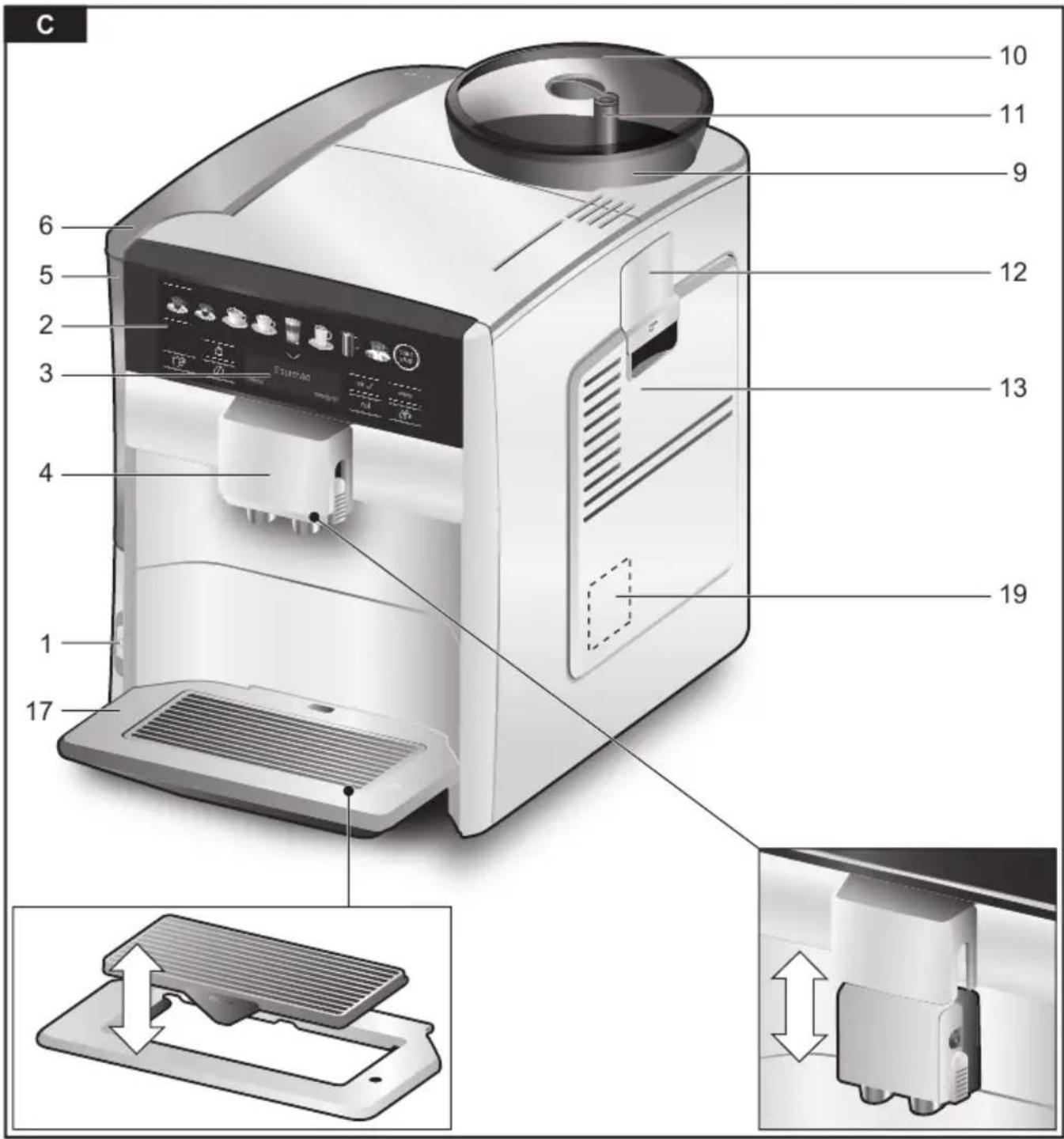

Included in delivery W Warning Hazard due to magnetism! The appliance contains perma- nent magnets which can a󰀨ect electronic implants such as pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10 cm from the appliance and from the following parts upon removal: milk container, milk system, water tank, drip tray and brewing unit. W Warning Risk of su󰀨ocation! ■ Do not allow children to play with packaging material. ■ Store small parts safely as they can be easily swallowed. W Warning Risk of injury! ■ Do not reach into the grinding unit! ■ Improper use of this appliance may result in injury. W Warning Risk of re! ■ The appliance gets hot. ■ Never operate the appliance in a cupboard. W Warning Risk of burns! ■ The milk system becomes extremely hot. After use, always let it cool down before you touch it. ■ After use the surfaces of the heating element or hotplate can remain hot for some time. ■ Freshly prepared beverages are very hot. Leave to cool a little if necessary. 1 MainsswitchJ 2 Controlpanel(seenextpage) 3 Display 4 Drinksoutlet(coffee,milk,hotwater), height-adjustable a) Cover b) Milksystem/coffeeoutlet(two-part) c) Milktube d) Suctionpipe e) Milksystemholder 5 Removablewatertank 6 Lidforwatertank 7 Storagecompartmentformeasuring spoon 8 Measuring spoon (insertionaidforwaterfilter) 9 Beancontainer 10 Aromacover 11 Dialselectorforgrindinglevel 12 Drawer (forgroundcoffee/cleaningtablet) 13 Doortobrewingunit 14 Brewingunit a) Lockingmechanism b) Cover 15 Ejectlever 16 Storagecompartment for quick reference guide 17 Driptray a) Driptraypanel b) Driptray(two-section) c) Coffeegroundscontainer d) Floater 18 Compartmentforpowercord 19 Ratingplate(Enumber,FD) *Theseuserinstructionsdescribeanumber ofapplianceversions.Itemsmarked*are notpresentinallmodels. Overview (Figures B, C, D, E, F and Gonthefold-outpages) Included in delivery (Figure Aonthefold-outpages) a Fullyautomaticcoffeemachine b User Manual c Quickreferenceguide d Milktubeandsuctionpipe e Waterhardnesstestingstrip f Measuring spoon g Waterfilter

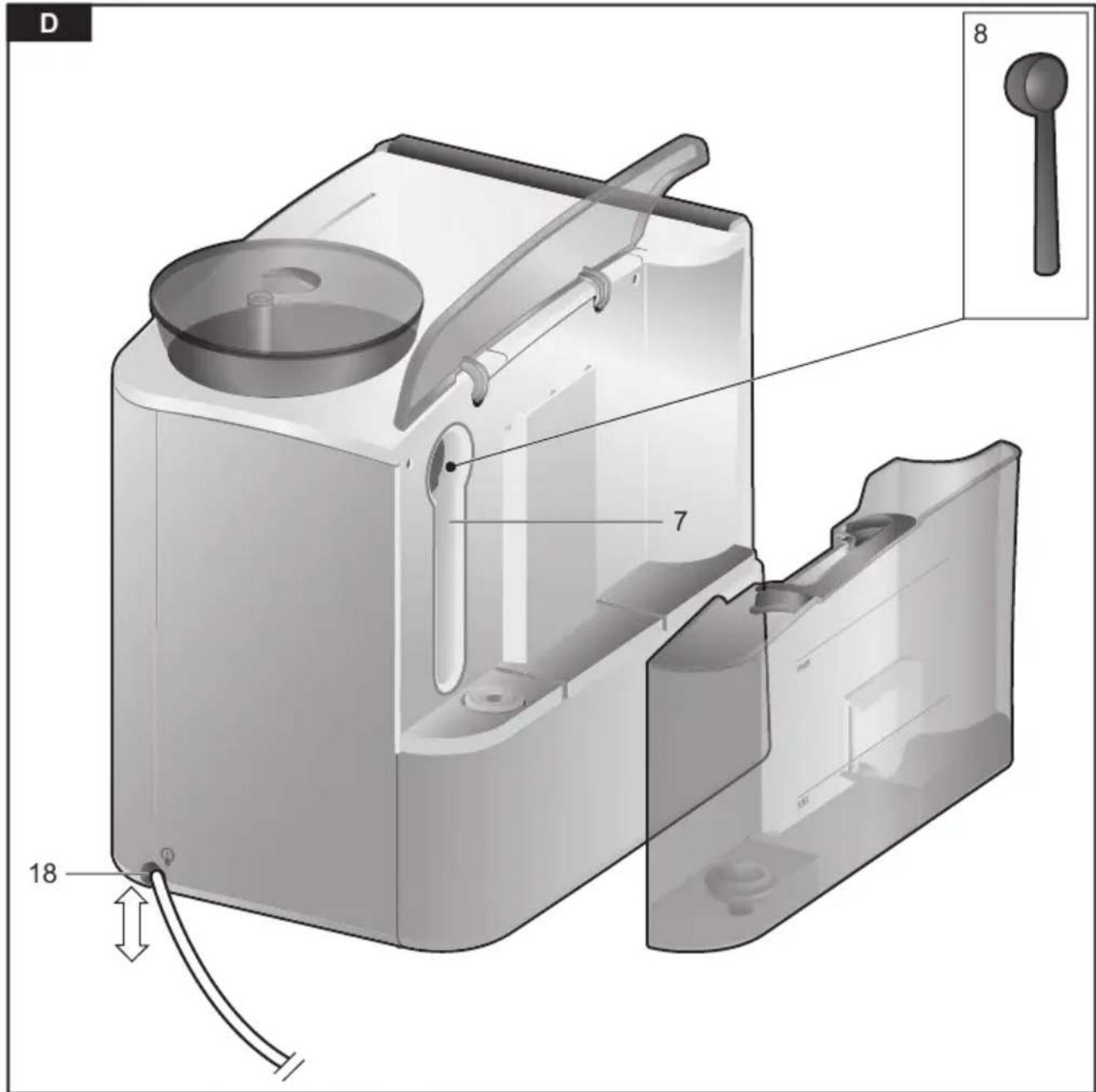

Important: Fillthewatertank5 withfreshcleanwatereveryday. Thetank5shouldalwayscontain sufficientwaterforoperatingthe appliance.

Thedrinkispreparedintwostages (twogrindingoperations).Please waituntiltheprocessiscompletely finished.

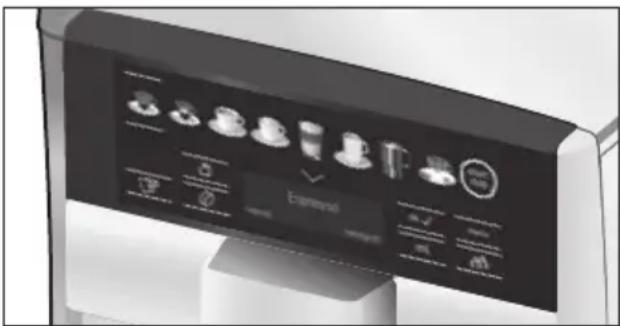

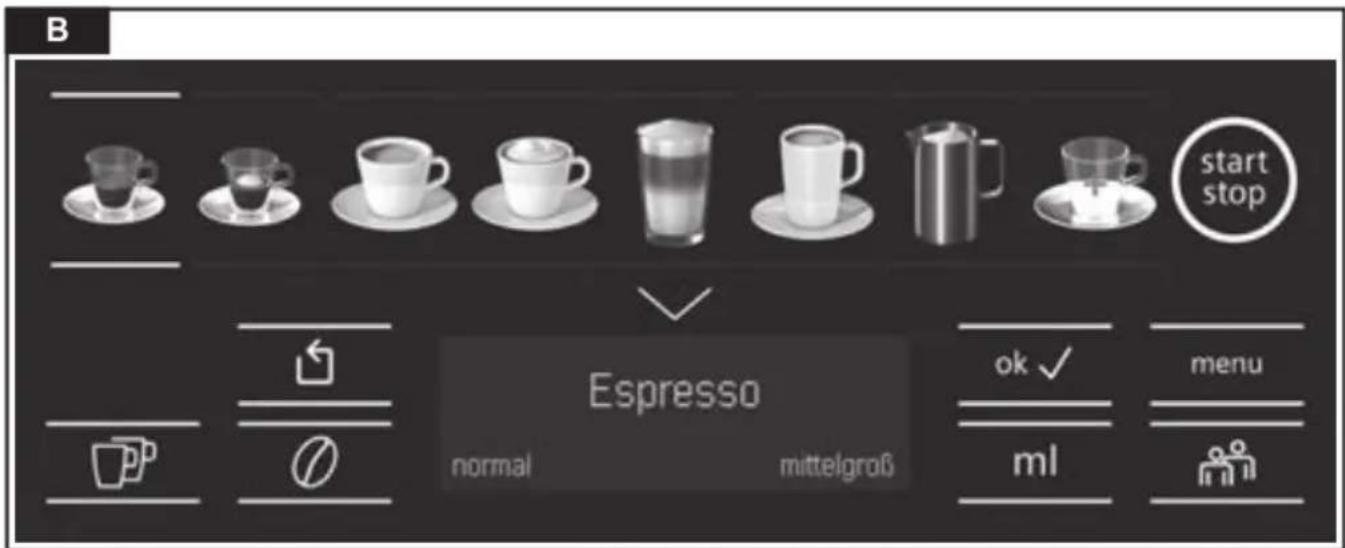

Youcanchangethecupsizeand coffeestrengthbytouchingD and H.IfyouselectGround coffee, followtheproceduredescribedunder “Preparationusinggroundcoffee”. For example: ■ Touch Drepeatedlyuntilthedisplay showslarge. ■ Touch Hrepeatedlyuntilthedisplay showsmild. ■ Touch Ctobegindispensing thebeverage. Thecoffeeisbrewedandthendispensed intothecup.

Caution! Donotplaceco󰀨eebeansorinstant co󰀨eeinthisdrawer. ■ Closethegroundcoffeedrawer12. ■ Touch Ctobegindispensingthe beverage. Thecoffeeisbrewedandthendispensed intothecup.

Touch Cagainto prematurelyhaltdispensing. Adjusting the grind setting Youcanusetherotaryselector11toadjust thegrindsettingfromcoarsetofine.

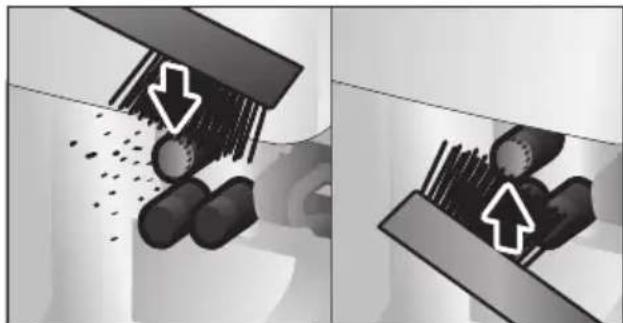

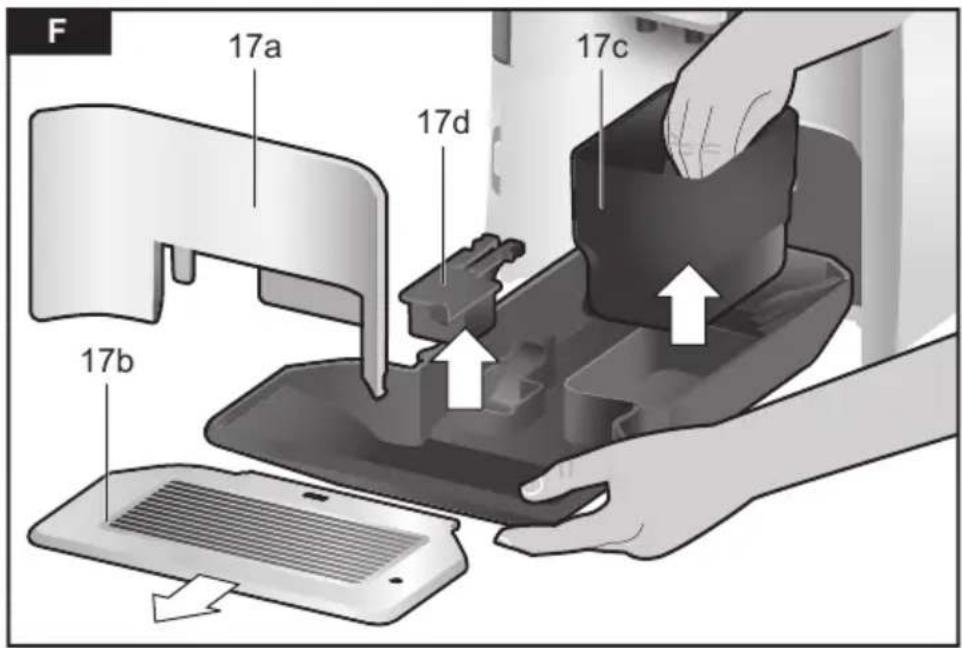

Important:Thedriptray17 and coffeegroundscontainer17c should beemptiedandcleanedeverydayin ordertopreventdeposits.

Iftheapplianceiscoldwhen switchedon,orifitisswitchedoff afterdispensingcoffee,itrinsesauto- matically.Thesystemistherefore self-cleaning.

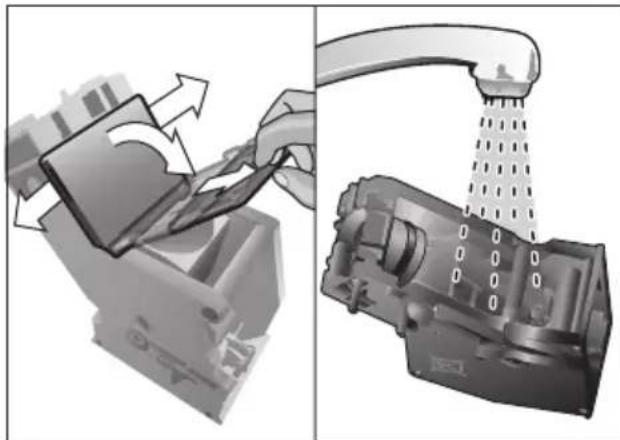

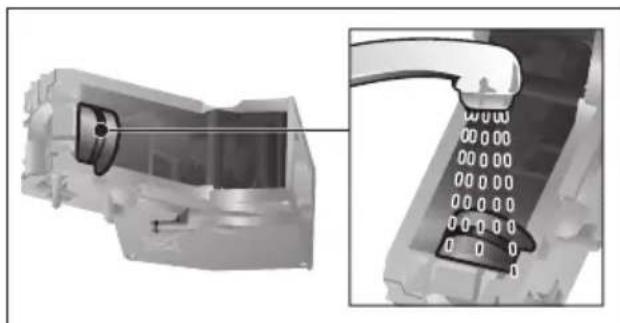

Important:Iftheapplianceisnot usedforalengthyperiod(e.g.while youareonholiday),cleantheentire appliancethoroughly,including thebeveragedispenser4,milk system4b,driptray17andbrewing unit14. Cleaning the milk system

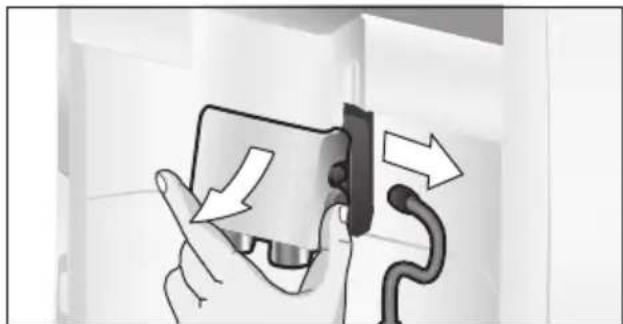

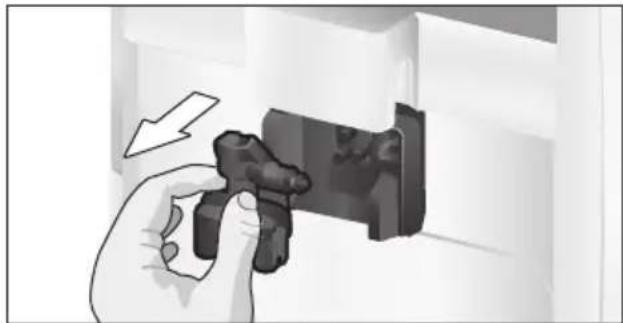

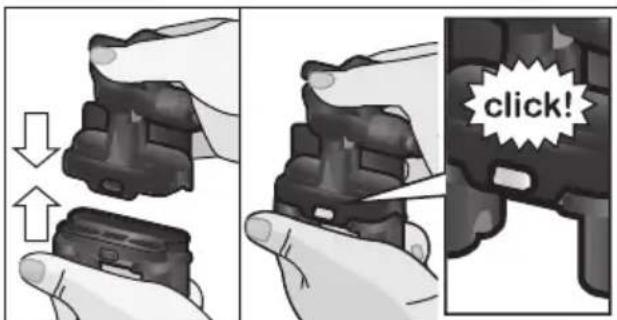

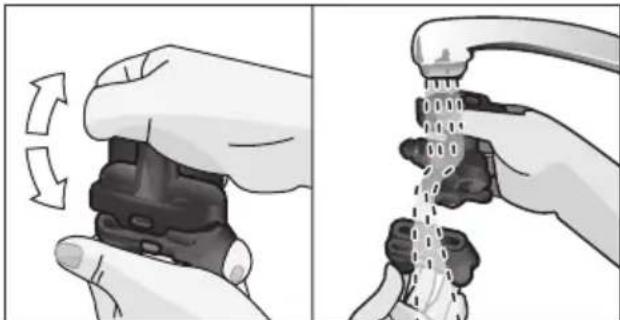

Themilksystem4bisautomatically cleanedwithashortjetofsteam directlyafterpreparingamilkdrink. Cleanthemilksystemmanuallyonce aweekormorefrequentlyifrequired. Forparticularlythoroughcleaning, themilksystem4bcanbeauto- maticallyrinsedwiththeprogramme “Cleaning the milk system”(seethe section“Serviceprogrammes– Cleaningthemilksystem”). Cleaning by hand

Important:ifdescalingisnot performedontheapplianceingood time,thenthefollowingappears: Descaling overdue. Appliance will soon be locked --> press menu for 3 sec. Immediatelyperformthedescaling processinaccordancewiththe instructions.Iftheapplianceis locked,itcanonlybeoperatedagain oncethedescalingprocesshasbeen carriedout.

Important:Wipeovertheappliance withasoftdampclothtoensurethat youimmediatelyremoveanytraces ofdescalingsolution.Itispossiblefor corrosiontoformunderneathsuch deposits.Newspongeclothsmay containsaltsthatcancauserustfilms toformonstainlesssteel,sosuch clothsshouldalwaysbethoroughly rinsedbeforeuse.Cleanthesuction pipe 4dofthedrinksoutletparticu- larlycarefully. The appliance has finished descaling and is readyforuseagain.

Dispose of packaging in an environ- mentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the frame- work for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities. Guarantee The guarantee conditions for this appliance are as dened by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Changes reserved.27

Simpletroubleshooting Simple troubleshooting Problem Cause Remedial action The appliance no longer responds. Faultintheappliance Pulloutthemainsplug,wait 10seconds,plugitbackin. Thegrinderwillnotstart. Theapplianceistoohot. Disconnecttheappliancefrom themainsandleavetocoolfor onehour. Coffeeormilkfrothquality varieswidely. Build-upoflimescaleinthe appliance. Descaletheappliance accordingtotheinstructions. Milkfrothqualityvaries widely Thequalityofthemilk frothdependsonthetype ofmilkortheplant-based alternativeused. Optimisetheresultthroughthe selectionofthetypeofmilkor plant-baseddrink. Nohotwaterdispensed. Themilksystemorthe intakeofthemilksystemis soiled. Cleanthemilksystemorthe intake(seethesection“Care anddailycleaning”). Toolittlemilkfroth,none atall,orthemilksystem isnottakinginanymilk. Themilksystemorthe intakeofthemilksystemis soiled. Cleanthemilksystemorthe intake(seethesection“Care anddailycleaning”). Milknotsuitable. Donotusemilkthathasbeen boiled.Usecoldmilkwithafat contentofatleast1.5%. Themilksystemisassem- bledincorrectly. Moistentheupperandlower sectionsandfitthemtogether. Build-upoflimescaleinthe appliance. Descaletheappliance accordingtotheinstructions. Themilk/blendedmilk drinksaretoocold. Themilkusedistoocold. Uselukewarmmilk. Thepersonallyselected per-cupquantityis notreached.Coffee dispensingslows toatrickleorstops completely. Coffeeisgroundtoofinely. Pre-groundcoffeeistoo fine. Adjustthegrindingleveltoa coarsersetting.Useacoarser groundcoffee. Heavybuild-upoflime- scaleintheappliance. Descaletheappliance accordingtotheinstructions. Coffeehasno“crema”. Unsuitabletypeofcoffee. Useatypeofcoffeewitha higherproportionofrobusta beans. Thebeansarenolonger fresh. Usefreshbeans. Thegrindingsettingisnot suitableforthebeans. Adjustthegrindingunittoafiner setting. If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions28 en Simpletroubleshooting Problem Cause Remedial action Coffeeistoo“acidic”. Thegrindingsettingistoo coarseorthepre-ground coffeeistoocoarse. Adjustthegrindingunittoafiner settingorusefinerpre-ground coffee. Unsuitabletypeofcoffee. Useadarkerroast. Coffeeistoo“bitter”. Thegrindingsettingis too fineorthepre-ground coffee is too fine. Adjustthegrindingunittoa coarsersettingorusecoarser pre-groundcoffee. Unsuitabletypeofcoffee. Changethetypeofcoffee. Thecoffeetastes“burnt”. Thebrewingtemperatureis toohigh Reducethetemperature,see thesection“Menu–Coffee temperature”. Thegrindingsettingis toofineorthepre-ground coffeeistoofine. Adjustthegrindingunittoa coarsersettingorusecoarser pre-groundcoffee. Unsuitabletypeofcoffee. Changethetypeofcoffee. Theapplianceisnot dispensing drinks Airinthewaterfilter. Dipthewaterfilterinwateruntil nomoreairbubblesescape, thenreplacethefilter. Theapplianceisnot dispensing drinks Residuesoflimescale removerareblockingthe watertank. Removethewatertankand cleanthoroughly. Thewaterfilterdoesnot stayinpositioninthe watertank. Thewaterfilterisnotfitted correctly. Firmlypressthewaterfilter straightdownintothetank connection. The coffee grounds are notcompactandaretoo wet. Thegrindingsettingistoo fineortoocoarse,ornot enough ground coffee has beenused. Adjustthegrindingunittoa coarserorfinersetting,oruse 2levelmeasuringspoonsof groundcoffee. Waterdrippedontothe innerflooroftheappli- ancewhenthedriptray wasremoved. Driptrayremovedtoo early. Waitafewsecondsafterthe lastdrinkwasdispensedbefore removingthedriptray. DisplayshowsPlease refillbeancontainer althoughthecontaineris alreadyfull,orthegrinder isnotgrindinganybeans. Beansarenotfallinginto thegrindingunit(beanstoo oily). Gentlytapthebeancontainer. Possiblychangethetypeof coffee.Whenthebeancontainer isempty,wipeitwithadrycloth. Display Empty drip tray despiteemptydriptray. Emptyingisnotdetected whentheapplianceis switchedoff. Whentheapplianceisswitched on,removeandre-insertthe driptray. Thedriptrayissoiled. Cleanthedriptraythoroughly. If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions 29
