Product Type	Mobile 4G Router (MiFi)
Brand	TP-Link
Model	M7000
Dimensions (approx.)	120 × 60 × 15 mm
Weight (approx.)	100 g
Power Supply	Rechargeable battery via 5V/1A charger or USB
Network Interface	4G LTE, Wi-Fi 802.11 b/g/n
Supported Frequencies	Multiple LTE bands (depending on operator)
Number of Wi-Fi Users	Up to 10 devices simultaneously
Wi-Fi Security	WPA/WPA2, customizable SSID
Management	tpMiFi app (iOS/Android) and web interface (http://tplinkmifi.net)
Main Features	Mobile hotspot, data management, roaming, PIN block
SIM Card Slot	1x micro SIM
Memory Card Slot	1x micro SD (not included)
Care and Cleaning	Wipe with a soft, dry cloth; avoid moisture
Operating Temperature	0°C to 40°C
Safety	Physical reset button, auto shutdown after 10 minutes without connection
Spare Parts and Repairability	Removable battery (replaceable), SIM adapter included
Warranty	Manufacturer warranty according to TP-Link terms

Frequently Asked Questions - M7000 TP-LINK

How to start up the TP-Link M7000?

Insert the SIM card and battery, then press and hold the power button for 5 seconds. Connect your devices to the Wi-Fi network shown on the label.

What to do if I cannot access the internet?

Check the SIM card PIN status, APN settings of your operator, enable roaming if necessary, and make sure mobile data is activated. See the full FAQ in the manual.

How to administer the router without the app?

Connect to the MiFi Wi-Fi network, open a browser and type http://tplinkmifi.net or http://192.168.0.1. Create a password or use 'admin' for older firmware.

How to restore factory settings?

While powered on, remove the cover, use a paperclip to press the RESET button until the screen shows 'Power Off'. All settings will be erased.

How to change the Wi-Fi name and password?

From the tpMiFi app or web interface, go to Wi-Fi settings and change the SSID and security key. Validate to apply the changes.

The MiFi turns off by itself, is this normal?

Yes, to save energy, the MiFi turns off Wi-Fi after 10 minutes without any connected device. Press the power button to reactivate it.

Can I use a foreign SIM card?

Yes, if it is unlocked. Enable roaming in the settings if you are abroad. Check LTE band compatibility.

How to update the firmware?

Log into the web interface, go to 'Advanced' > 'System Tools' > 'Firmware Upgrade'. Download the latest version from the TP-Link website and follow the instructions.

What do the LED indicators mean?

The power LED lights up solid blue when the device is on. The Wi-Fi LED blinks during data transfers. See the manual for exact details.

How to charge the battery?

Use the provided 5V/1A wall charger (recommended) or a computer USB port. Charging time is about 2-3 hours.

USER MANUAL M7000 TP-LINK

Quick Installation Guide

Mobile Wi-Fi

For technical support, the user guide and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2023 TP-Link 7106510306 REV2.2.0

CONTENTS

01 / Deutsch 05 / English 09 / Español 13 / Ελληνικά 17 / Français 21 / Italiano 25 / Português 29 / Suomi 33 / Nederlands 37 / Svenska 41 / Norsk 45 / Dansk

tpMiFi-App

Note: Images may differ from actual products.

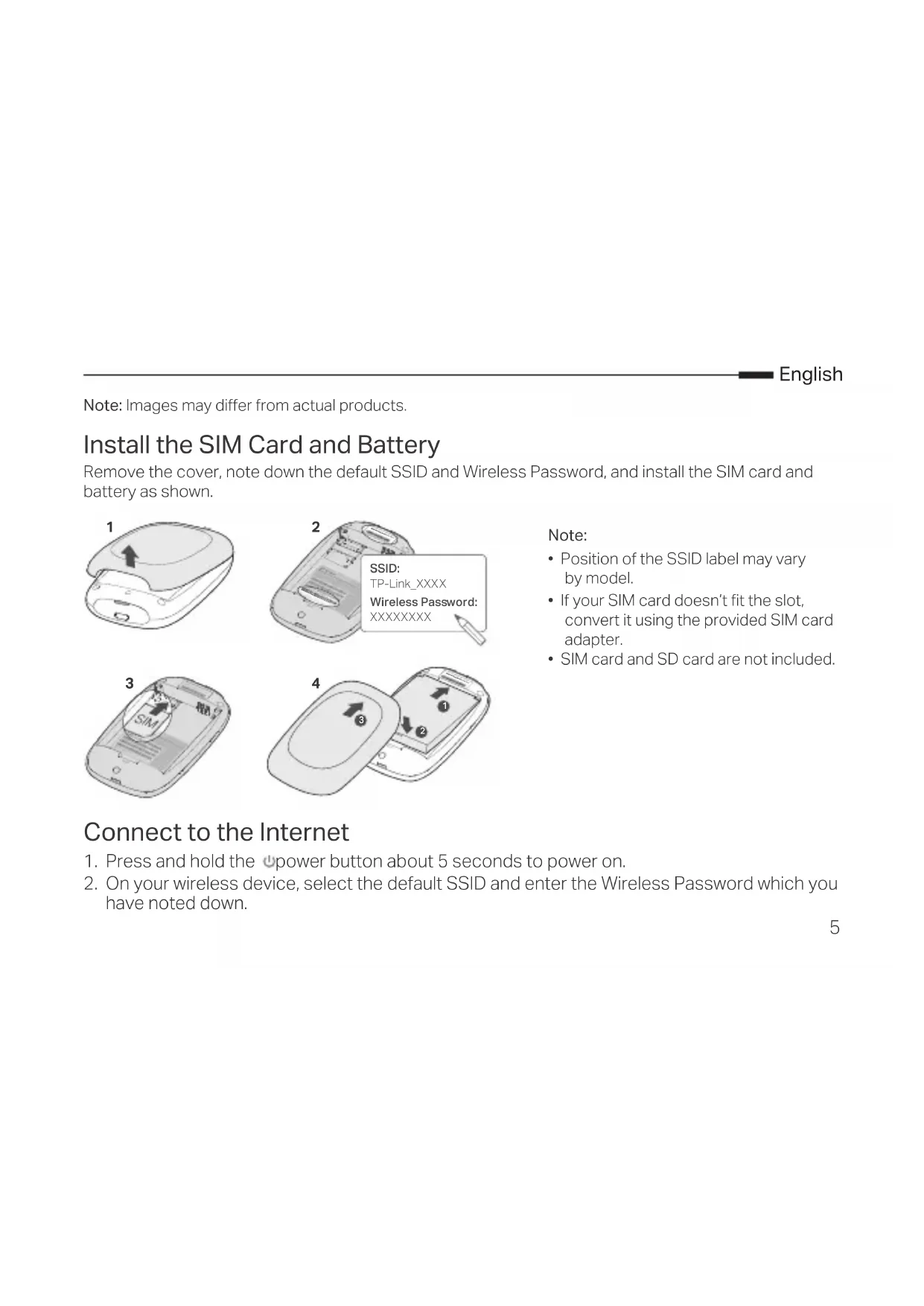

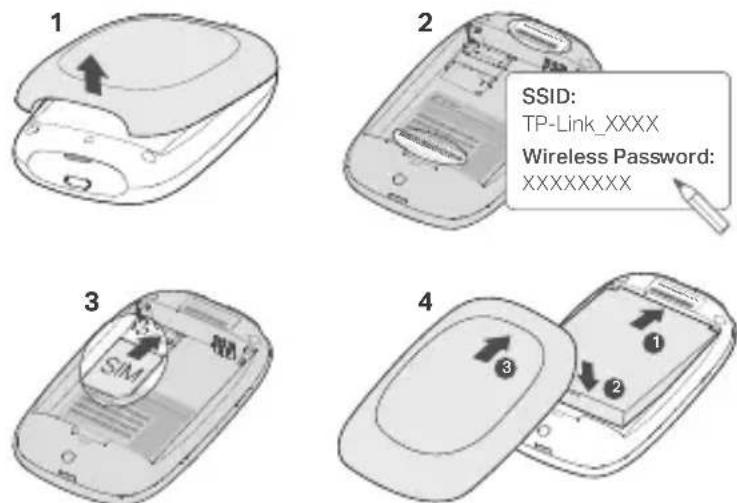

Install the SIM Card and Battery

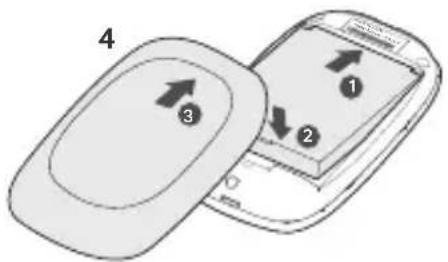

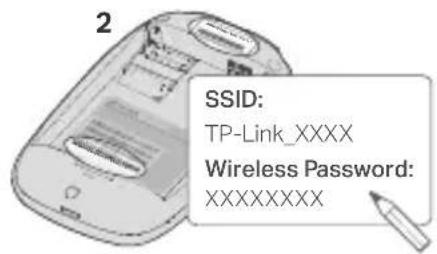

Remove the cover, note down the default SSID and Wireless Password, and install the SIM card and battery as shown.

Note:

• Position of the SSID label may vary by model.
• If your SIM card doesn't fit the slot, convert it using the provided SIM card adapter. • SIM card and SD card are not included.

Connect to the Internet

1. Press and hold the ⬆ power button about 5 seconds to power on.
2. On your wireless device, select the default SSID and enter the Wireless Password which you have noted down.

Note: We highly recommend that you change the default wireless name and password for network security.

Enjoy!

Note:

• If you can't access the internet, please refer to FAQ > Q3.
• For power saving, the Mobile Wi-Fi will turn off the Wi-Fi connection if no wireless devices are connected to the Mobile Wi-Fi for 10 minutes. Press the power button to resume the Wi-Fi connection.

Charging Your Mobile Wi-Fi

Method 1: Via a Wall Outlet (Recommended)

Method 2: Via a Computer

tpMiFi App

Download the tpMiFi App (for iOS and Android) to conveniently manage your Mobile Wi-Fi.

1. Search for the tpMiFi App from the Apple Store or Google Play, or scan the QR code.
2. Connect your wireless device to the Mobile Wi-Fi.
3. Launch tpMiFi. Create a password to log in, or enter admin for earlier firmware versions.

FAQ (Frequently Asked Questions)

Q1. Is there any other alternative to manage the Mobile Wi-Fi besides the tpMiFi app?

A. You can manage the Mobile Wi-Fi by using its web management page.

1. Connect your Wi-Fi device to the Mobile Wi-Fi's wireless network.
2. Open your web browser and type http://tplinkmifi.net or http://192.168.0.1 in the address bar. Create a password to log in, or enter admin for earlier firmware versions.

Q2. What should I do if I cannot log in to the web management page?

• Verify that your device is connected to the Mobile Wi-Fi.
• Verify that you have entered http://tplinkmifi.net or http://192.168.0.1 correctly.
• Verify that your device is set to obtain an IP address automatically.

Q3. What should I do if I cannot access the internet?

A1. Check PIN status

- Refer to Q1 to log in to the web management page on your phone. If the current SIM card status is "PIN Locked", you will need to unlock it using the PIN code.

A2. Verify the ISP parameters

1. Refer to Q1 to log in to the web management page on your phone. Go to Dial-up > View Profile Details (or Advanced > Dial-up > Dial-up Settings) and verify the parameters (i.e. APN, Username, and Password) provided by your ISP.
2. If not, create a new profile with the correct information, then choose the new created profile from the Profile List.

A3. Check the Data Roaming settings

1. If your SIM card is operated in a roaming service area, refer to Q1 to log in to the web management page on your phone.

1. Go to Dial-up (or Advanced > Dial-up > Dial-up Settings) and enable the Data Roaming option.

A4. Check Mobile Data

- Refer to Q1 to log in to the web management page on your phone. Go to Dial-up (or Advanced > Dial-up > Dial-up Settings) to verify that Mobile Data is On. If not, enable this option.

A5. Check Data Limit

- Refer to Q1 to log in to the web management page on your phone. Go to Device > Data Usage Settings (or Advanced > Data Usage Settings) to check whether your data usage has exceeded the Total/Monthly allowance.

Q4. How do I restore the Mobile Wi-Fi to its factory default settings?

- With the Mobile Wi-Fi powered on, remove the cover. Use a pin to press and hold the RESET button until the "Power Off" appears on the screen OR all LEDs turn on momentarily.

Note: Restoring the Mobile Wi-Fi to its factory defaults will clear all previous settings and you have to reconfigure it.

tpMiFi App

tpMiFi App

tpMiFi App

Method 2: Via Computer

tpMiFi App

tpMiFi App

1. Go to Dial-up or Advanced > Dial-up > Dial-up Settings and enable the Data Roaming option.

tpMiFi App

tpMiFi App

tpMiFi App

tpMiFi App

Note:

tpMiFi App

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.

CAUTION!

Risk of explosion if the battery is replaced by an incorrect type.

CAUTION!

• Avoid replacing a battery with an incorrect type that can defeat a safeguard.
• Avoid disposing of a battery into fire or a hot oven, or mechanically crushing or cutting a battery, which can result in an explosion.
• Do not leave a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; do not leave a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/EU and (EU)2015/863.
