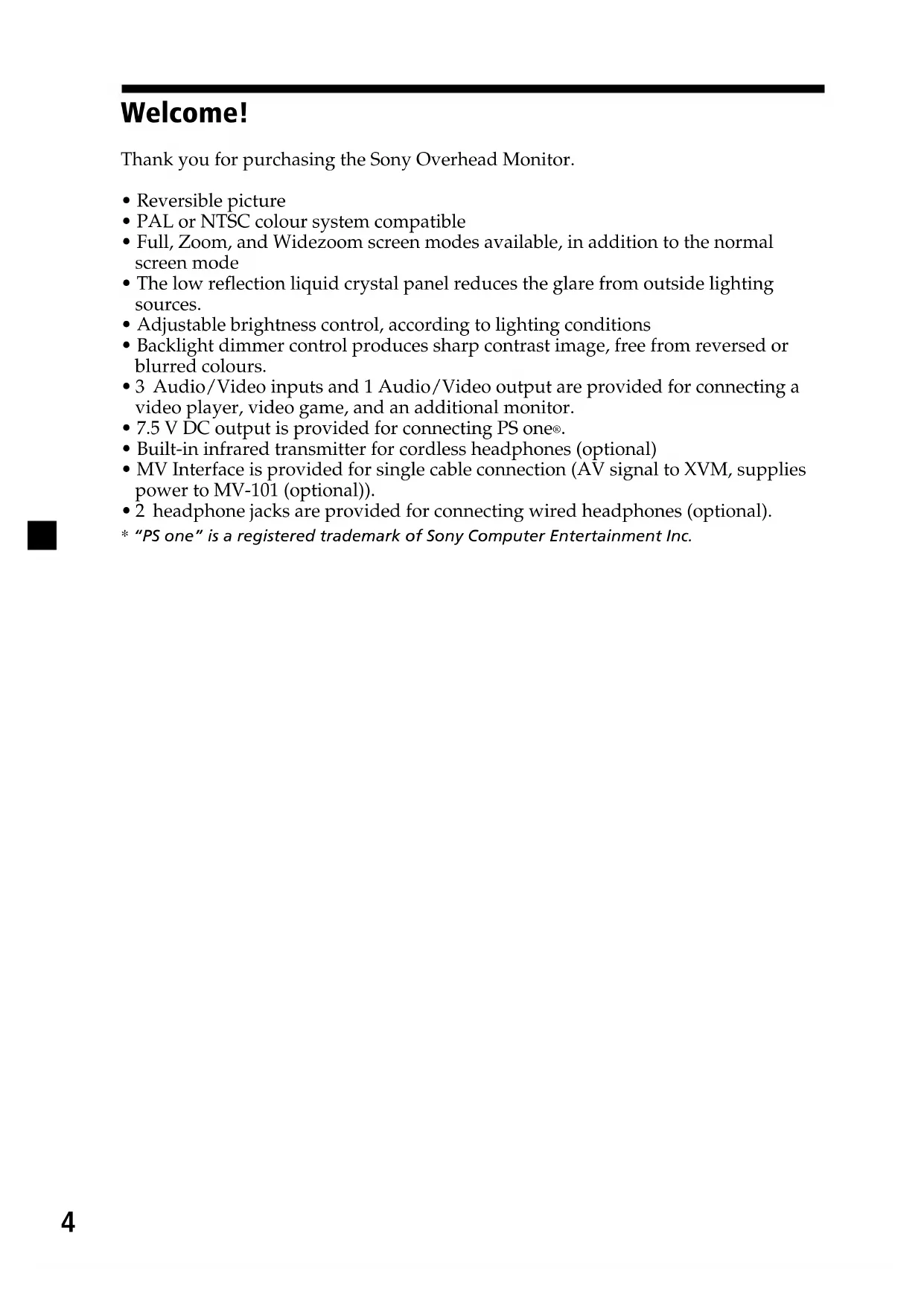

• Full, Zoom, and Widezoom screen modes available, in addition to the normal screen mode

• The low reflection liquid crystal panel reduces the glare from outside lighting sources.

• Adjustable brightness control, according to lighting conditions

• Backlight dimmer control produces sharp contrast image, free from reversed or blurred colours.

• 3 Audio/Video inputs and 1 Audio/Video output are provided for connecting a video player, video game, and an additional monitor.

• 7.5 V DC output is provided for connecting PS one

• Built-in infrared transmitter for cordless headphones (optional)

• MV Interface is provided for single cable connection (AV signal to XVM, supplies power to MV-101 (optional)).

• 2 headphone jacks are provided for connecting wired headphones (optional).

• “PS one” is a registered trademark of Sony Computer Entertainment Inc.5 Precautions To avoid the risk of serious injury or accident, read the following precautions before installing and operating the unit. On safety Comply with your local traffic rules and regulations.

• While driving - The driver must not watch or operate the monitor. It may lead to distraction and cause an accident. - The driver must not use the headphones. It may lead to distraction and cause an accident. Park the car in a safe place when the driver watch and operate the monitor, or use headphones.

• After installing - Do not hang onto the monitor. - Do not insert your hands, fingers or foreign objects into the unit. It may cause injury or damage to the unit. - Take care not to bump your head against the unit when getting up from the back seat. - Take extra care not to wind the wire of the headphones around your neck avoiding injury or suffocation in the event of a sudden movement of the vehicle. - Keep small articles out of the reach of children. On installation

• Installing this unit requires technical expertise. This unit should be installed by a qualified technician or service personnel.

• If you try to install this unit by yourself, do it properly, referring to the installation and wiring diagrams in this operating manual. Improper installation may result in fire or electric shock.

• Before installation, be sure to turn the ignition switch to the OFF position or take the key out. Installing this unit with the ignition on may cause battery drain or a short circuit.

• Do not damage any pipes, tubes, the fuel tank or electric wiring when installing this unit. This can cause a fire. If you drill a hole in car panels, make sure that any hidden car parts will not be damaged.

• Do not use any nuts or bolts for safety devices such as steering linkage, fuel supply or braking systems. This can cause a fire or an accident.

• Take care to prevent cords and wires from getting tangled or crimped in the moving portion of a seat rail. continue to next page t6 Where to install Before installing this unit, please check your local traffic rules and regulations. Follow the diagram below to install this unit in a suitable position in your car. Do not install this unit where: - It will obstruct the driver’s view when the monitor is in either the open or closed position. - It will obstruct the operation of the airbag system. - It will obstruct the operation of the vehicle, especially the steering wheel, shift lever, or brake pedal. -A driver or passengers may injure themselves when getting into or out of the car. Before installing Make sure that the POWER SELECT switch is set to the correct position. A*: If your car has an accessory position on the ignition key. B : If your car has no accessory position on the ignition key.

• A is the factory preset position. When the POWER SELECT switch is set to B Press (POWER) on the monitor to turn on. The monitor does not turn on by pressing (POWER) on the card remote commander. Note Be sure to turn off the monitor after driving your car. To turn off the monitor, follow the operations below: – Press (POWER) on the monitor. – Press (POWER) on the card remote commander. – Close the display monitor until it clicks*. If the power is left on, it will cause battery drain.

• When the display monitor is in the reverse position, the monitor is not turned off. For details on the reverse position, refer to page 7. If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

Approximately 300 mm Approximately 150 mm POWER SELECT switch7 continue to next page t Location of controls 1 OPEN button Press to open the monitor. 2 Receptor for the card remote commander/Transmitter for the cordless headphones 3 UP/DOWN (M/m) buttons Press to select the desired item. Monitor

• The reverse position of the display monitor You can close with the LCD surface out after turning around 180 degrees, and images on the screen can be turned upside down by pressing (REVERSE) on the monitor. Before closing the display monitor, make sure that the monitor is turned and facing the enclosure (you will hear a click). Each time you press (REVERSE) on the monitor, the reverse screen mode switches between on and off. 4 MENU button Press to adjust the various display settings. 5 REVERSE button* Press to switch images upside down. 6 INPUT button Press to select the input source. 7 POWER button REVERSE 180˚ c c8

• For function details, refer to the operating instructions supplied with the DVD player.

• Sony DVD changer DVX-100 is not controllable with this card remote commander.9 Operation Opening the display monitor Press (OPEN) to open the display monitor, then press (POWER) to turn on the monitor. Tip If your car has no ACC (accessory) position on the ignition key switch, and the POWERSELECT switch is set to the B position, the monitor does not turn on by pressing(POWER) on the card remote commander (page 6). Returning the display monitor to its enclosure Close the display monitor until it clicks. The monitor turns off automatically. Notes• Be careful not to catch your finger in the display monitor when closing.• Do not put any foreign objects between the LCD panel and the enclosure when closing. Adjusting the tilt and swivel This display monitor can be adjusted within the angles shown. Tip Before closing the display monitor, make sure thatthe monitor is turned and facing the enclosure(you will hear a click). POWER OPEN

MENU DISPLAYENTER VOL SUBTITLEAUDIO OFF INPUTPOWER When NTSC Video is selected VIDEO1 NTSC When PAL Video is selected VIDEO1 PAL Selecting the input source You can select the input source and colour system. 1 Press (POWER). The power is turned on. Tip If your car has no ACC (accessory) position on the ignition key switch, and the POWER SELECT switch is set to the B position, the monitor does not turn on by pressing (POWER) on the card remote commander (page 6). 2 Press (INPUT) to select the desired input source. Each time you press (INPUT), the indication changes in the following sequence:

• To select the connected Sony DVD player MV-101 Press (INPUT) repeatedly to select “VIDEO 4.” 3 Press V or v to select PAL or NTSC colour system. Press either button while the source indication (such as “VIDEO 1”) is displayed. POWER INPUT B VIDEO 1 B VIDEO 2 B VIDEO 3 B VIDEO 4*11 NormalNormalZoomZoomFullFullWideWide Setting the screen mode In addition to the normal mode, full, zoom, and widezoom modes are also available. Press (MODE) repeatedly. The current mode is displayed on the screen first. Each time the button is pressed, the screen mode switches in the following sequence: The screen mode is set after 5 seconds without pressing (MODE). Tip Images may appear coarse-grained when viewed in the zoom mode.

MENU DISPLAYENTER VOL SUBTITLEAUDIO OFF MODE Normal (regular) An image with an aspect ratio of 4 to 3 (regular image). Zoom An image with an aspect ratio of 4 to 3 enlarged to the left and right edges of the screen, with the overflowing parts (top and bottom) cut off to fill the screen. Full An image with an aspect ratio of 4 to 3 enlarged to the left and right edges of the screen. Widezoom An image with an aspect ration of 4 to 3, with only the left and right sides of the image being enlarged to fill the screen.12 Changing the display settings

Press v to darken the picture Press V to brighten the picture Brightness 32 or MENU.Press Vv,

You can adjust the display settings manually if the display is hard to see from the position where you are seated. 1 Press (MENU). The “Picture” screen appears. Each time you press (MENU), the setting screen changes in the following sequence:

• Appears only when the NTSC colour system is selected. 2 Press V or v to adjust to the desired setting. When “Picture” is selected Picture 32 or MENU.Press Vv, The setting value of the item selected appears in this area. B Picture B Brightness B Color B Hue* B Dimmer Menu Off b Blue Back b Mode b Video Adjust When “Brightness” is selected13 When “Color” is selected When “Dimmer” is selected When this function is set to on, the brightness of the screen will be adjusted automatically. When “Mode” is selected “Normal,” “Full,” “Zoom,” or “Widezoom” can be set as the screen mode. For details, refer to page 11. Video Adjust;

Dimmer; On or MENU.Press Vv, Mode; Zoom or MENU.Press Vv, Blue Back; On or MENU.Press Vv, When “Hue” is selected*

When “Video Adjust” is selected “Picture”, “Brightness”, “Color”, “Hue” and “Dimmer” settings will be reset to the factory preset level. When “Blue Back” is selected The blue background screen appears when no signal, or a weak signal is received. When a continuously weak video signal is received, the blue background may flicker. If this occurs, set to off.

“Hue” is adjustable only when the NTSC colour system is selected.

“CTR” appears only when is in the center of the bar.14 Adjusting the volume You can adjust the volume of the wired headphones and the connected equipment with the supplied card remote commander. Press (VOL)(+) or (VOL)(–) on the card remote commander. Quickly attenuating the sound Press (ATT) on the card remote commander. To restore the previous volume level Press (ATT) again. Connecting headphones There are two output jacks (stereo mini) for wired headphones on the connection box. Adjust the volume using (VOL)(+) or (VOL)(–) on the card remote commander. Using cordless headphones You can use infrared cordless headphones, MDR-IF0140 (optional) with the unit. Please refer to the operating instructions for MDR-IF0140. Notes• The volume of the cordless headphones cannot be adjusted with the supplied cardremote commander. Use the volume control on the cordless headphones.• For your safety, do not use the headphones while driving your car.• Do not leave the headphones in a place subject to direct sunlight, or in a hightemperature.• If the cordless headphones are used while exposed to direct sunlight, sensitivity of theinfrared receptor may deteriorate, and inferior quality sound may result. ATT On

MENU DISPLAYENTER VOL SUBTITLEAUDIO OFF ATT VOL+/–15 Connections Installation diagram Refer to the installation diagram and ask a qualified technician for the installation of the unit. Be sure to securely fasten all equipment to the car chassis, etc., to prevent them moving while your car is in motion. Note All equipment other than one Overhead Monitor and one Connection Box is optional. Overhead Monitor Sony mobile DVD player

Front Left speaker Rear Left speaker Subwoofer Tweeter Left Head unit Tweeter Right Front Right speaker Rear Right speaker Notes on the locations for PS one

— on a dashboard, or in a place subject to direct sunlight. — in a place near magnetic source such as magnets, speakers and a TV/Monitor. — on an unstable or uneven surface. — in a place subject to excessive vibration. — in a place subject to excessive dust or dirt. — in poorly ventilated or humid place. — in a place to subject to temperature extremes (below 5˚C or above 35˚C). Refer to the operating instructions supplied to PS one

Connection diagram Front: Audio L/R/ Video Input 1 Overhead Monitor XVM-R70 (7-inch wide colour LCD Monitor) Connection box XA-115 Rear:

7.5 V (max 2 A) DC Output

4 Pin Power connector 22 Pin connector Audio L/R/ Video Outputs Audio L/R/ Video Input 2 Audio L/R/ Video Input 3 Headrest Monitor XVM-H65 (optional) Refer to the connection diagram for the proper connections. You can make connections shown in A area. Please ask a qualified technician for the other connections. Connection box XA-113 (optional) Headphone jacks (stereo mini) DVD (MV) connector*

Remote Signal (IR) Output*

DVD (MV) connector is only for MV-101. For details, refer to the Installation/Connections manual supplied with MV-101.

(optional) To 7.5 V DC Output To Audio L/R/Video Input ACC (5 m) Remote Commander Signal receiver cord (5m) (Stereo Mini jack) RCA pin cord (optional) Fuse (8 A) Fuse (1 A) To Remote Signal (IR) Output RCA pin cord (optional) Sony mobile DVD player DVX-11A (optional) Red Yellow Black Precautions on PS one

• Be sure to fasten PS one

in a safe place securely.

• For your safety, do not use PS one

while driving your car.

• Make sure that the operating voltage of PS one

is 7.5 V. Other voltages may cause malfunction, or damage PS one

Additional Information Maintenance Fuse replacement When replacing the fuse, be sure to use one matching the amperage rating stated onthe original fuse. If the fuse blows, check the power connection and replace the fuse.If the fuse blows again after replacement, there may be an internal malfunction. Insuch a case, consult your nearest Sony dealer.WarningNever use a fuse with an amperage rating exceeding the one supplied with the unitas this could damage the unit. Replacing the lithium battery Under normal conditions, batteries will last approximately 1 year. (The service lifemay be shorter, depending on the conditions of use.)When the battery becomes weak, the range of the card remote commander becomesshorter. Replace the battery with a new CR2025 lithium battery. Use of any otherbattery may present a risk of fire or explosion.Notes on lithium battery• Keep the lithium battery out of the reach of children. Should the battery beswallowed, immediately consult a doctor.• Wipe the battery with a dry cloth to assure a good contact.• Be sure to observe the correct polarity when installing the battery.• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur. WARNING Battery may explode if mistreated.Do not recharge, disassemble, or dispose of in fire.+ side up19 About the liquid crystal display (LCD) panel Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction. The picture may become unclear, or the LCD panel may be damaged. Notes on cleaning — Clean the LCD panel with a slightly damp soft cloth. — Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray.

• Do not use the unit in temperatures under 5 °C or over 45 °C.

• If your car was parked in a cold or hot place, the picture may not be clear. The monitor is not damaged. The picture will become clear after the temperature in your car becomes normal. Some stationary blue or red dots may appear on the monitor. These are called bright spots, and can happen with any LCD. The LCD panel is highly sophisticated, and more than 99.99 % of the segments used in the panel are flawless. However, there is a possibility that less than 0.01 % of the segments are defective and may not light up properly.20 Specifications Monitor System Liquid crystal colour display Display Manual flipdown panel Drive system TFT-LCD active matrix system Picture size 7 inches wide screen (16:9) 154 × 87 mm, 176 mm (w/h, d) Picture segment 336,960 (w 1440 × h 234) dots Power requirements 12 V DC car battery (negative ground) Current drain Approx. 800 mA Dimensions 230 × 57 × 270 mm (w/h/d) Operating temperature 5 °C – 45 °C Mass Approx. 1.5 kg Connection box XA-115 A/V Output Output Impedance: less than 220 Ω less than 100 pF Output Level: 0 dBs ±0.3 dB (0.775 V rms) (Vol Max) Video: 75 Ω 1Vp-p A/V Input ×3 Input Impedance: more than 10 K Ω less than 1000 pF Input Level: ±1.3 dBs +0/–0.3 dB (0.775 V rms) Video: 75 Ω 1 Vp-p DC output 7.5 V (max 2 A) Dimensions 150 × 42 × 80 mm (w/h/d) Mass Approx. 260 g Card remote commander RM-X122 Power requirements CR2025 lithium battery Operable range Approx. 2.5 m Dimensions 52 × 125 × 10 mm (w/h/d) Mass Approx. 40 g (including batteries) Supplied accessories Connection box XA-115 (1) Card remote commander RM-X122 (with supplied battery) (1) Monitor cable (5 m) (1) Power supply cord (1) DC-DC cord (3 m) (1) Stereo Mini Plug-to-Plug cable (5 m) (1) Mounting plate (1) Screws (4) Tapping Screws (4) Operating Instructions (1) Optional accessories DVD player DVX-11A, MV-101 Headrest Monitor XVM-H65 Cordless headphones MDR-IF0140 PS one

Design and specifications are subject to change without notice.21 Troubleshooting The following checklist will help you solve problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures. General No picture, no sound Good picture, but no sound Dotted lines or stripes No picture, or no sound when you connect the optional equipment Makes noise when the ignition key is in the ON, ACC, or OFF position. No response when pressing the buttons on the card remote commander

• The power cord or battery has been disconnected.
