1 – Introduction Items included with this product This product includes the following items. Take care when opening the package to avoid damaging the items. Keep the packing materials for transportation in the future. Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation. 0 Main unit................................................................................................× 1 0 Power cord.............................................................................................× 1 0 Owner’s Manual (this document) including warranty...........× 1 Conventions used in this manual In this manual, we use the following conventions: 0 When we refer to buttons, connectors and other parts of this unit and other equipment, we use a bold font like this: MENU button. 0 When we show characters that appear on the display, the typeface looks like this: MENU . 0 The four buttons under the display are called the function buttons. From left to right, they are shown as buttons F1, F2, F3 and F4. Moreover, the functions at the bottoms of the screens will be shown after the button names. Examples: F1 button, F4 button 0 SD/SDHC/SDXC memory cards are referred to as “SD cards”. 0 Computers, portable audio devices and other equipment connected to this unit using Bluetooth are called “Bluetooth devices”. 0 Groups of recorded data are referred to as “songs”. 0 The song that is currently selected is called the “current song”. 0 Information shown on a computer display is written like this: OK . 0 As necessary, additional information is provided under TIP, NOTE and CAUTION headings. TIP These are tips about how to use the unit. NOTE These provide additional explanations and describe special cases. ATTENTION Failure to follow these instructions could result in damage to equipment or lost data, for example.

CAUTION Failure to follow these instructions could result in injury. Product registration Customers in the USA, please visit the following TASCAM web- site to register your TASCAM product online. https://tascam.com/us/ Precautions for placement and use 0 The operating temperature range of this unit is 5–35 °C. 0 Do not install this unit in the following types of locations. Doing so could make the sound quality worse or cause mal- function. Places with significant vibrations Next to a window or in another location exposed to direct sunlight Near heaters or other extremely hot places Extremely cold places Very humid or poorly ventilated places Very dusty places 0 To enable good heat dissipation, do not place anything on top of the unit. 0 Do not place the unit on top of a power amplifier or other device that generates heat. Notes about power supply 0 Insert the included power cord all the way into the AC IN connector. 0 Do not connect a power supply other than one that is AC100V - 240V (50/60Hz). 0 Hold the power cord by its plug when connecting or discon- necting it. Beware of condensation Condensation could occur if the unit is moved from a cold place to a warm place, it is used immediately after a cold room has been heated or it is otherwise exposed to a sudden temperature change. To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using it. Cleaning the unit Use a dry soft cloth to wipe the unit clean. Do not wipe with chemical cleaning cloths, thinner, alcohol or other chemical agents. Doing so could damage the surface or cause discoloration. About TASCAM customer support service TASCAM products are supported and warrantied only in their country/region of purchase. To receive support after purchase, on the TASCAM Distributors list page of the TEAC Global Site (http:// teac-global.com/), search for the local company or representative for the region where you purchased the product and contact that organization. When making inquiries, the address (URL) of the shop or web shop where it was purchased and the purchase date are required. Moreover, the warranty card and proof of purchase might also be necessary.18 TASCAM Model 24 1 – Introduction About SD cards This unit uses SD cards for recording and playback. This unit can use SD cards that are Class 10 or higher and com- patible with SD, SDHC or SDXC standards. A list of SD cards that have been confirmed for use with this unit can be found on our web site. Please access to a product page of this product from the TEAC Global Site (http://teac-global.com) to find the list or contact the TASCAM customer support service. Precautions for use SD cards are delicate media. In order to avoid damaging SD cards, please take the following precautions when handling them. 0 Do not leave them in extremely hot or cold places. 0 Do not leave them in extremely humid places. 0 Do not let them get wet. 0 Do not put things on top of them or twist them. 0 Do not hit them. 0 Do not remove or insert them during recording, playback, data transmission or other access. 0 When transporting them, put them into cases, for example. SD card write protection This unit writes track information to the media in order to im- prove operation performance. Since, for example, setting infor- mation cannot be written to SD cards that are write-protected, settings will not be retained when the unit is restarted and performance will be otherwise affected. Note about formatting SD cards formatted by this unit are optimized to improve perfor- mance during recording. Use this unit to format the SD cards to be used with it. Errors might occur when recording with this unit using an SD card formatted by a computer or other device. Bluetooth® This unit has a built-in Bluetooth audio receiver, and can input sound played on a computer or portable audio device that supports Bluetooth (Bluetooth device). ATTENTION The Bluetooth function of this unit is not guaranteed to en- able connection or operation with all Bluetooth devices. Profiles This unit supports the following Bluetooth profiles. 0 A2DP (Advanced Audio Distribution Profile) In order to transfer audio by Bluetooth, the Bluetooth device must support A2DP. Even if a Bluetooth device supports the same profiles, though, its functions might differ according to its specifications. Codecs This unit supports the following codecs. It will automatically select one of them during audio transfer. 0 SBC 0 AAC The unit will select the appropriate codec to use according to the codec compatibility of the other Bluetooth device and com- munication conditions. NOTE i You cannot select the codec to be used by pressing a button, for example. i Due to characteristics of Bluetooth wireless technology, playback from this unit will be slightly delayed compared to playback from the Bluetooth device. Content protection This unit supports SCMS-T as a form of content protection when transmitting audio, so it can play protected audio. Transmission security This unit supports security functions during Bluetooth transmis- sion in accordance with the Bluetooth standard specifications, but it does not guarantee the privacy of such transmissions. TEAC CORPORATION will bear no responsibility should an infor- mation leak occur during transmission by Bluetooth.TASCAM Model 24

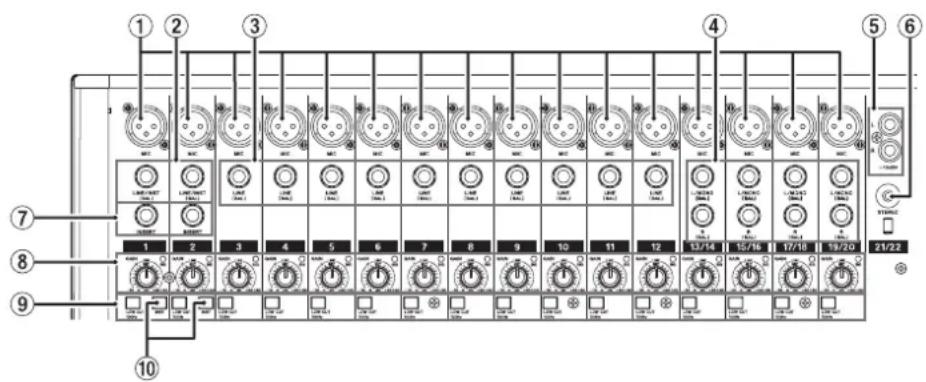

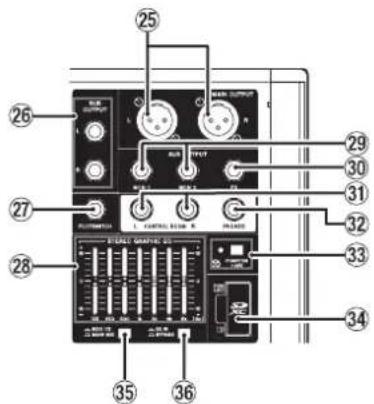

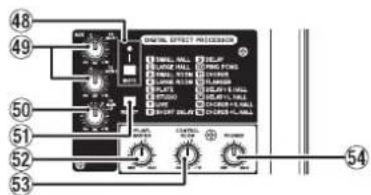

2 – Names and Functions of Parts Top panel a Analog input jack section Use this section to connect the input jacks for each channel and to adjust the input levels. b Input channel mixing section Use this section to choose input sources for each channel, adjust compressors and equalizers, and set levels sent to each bus (MAIN MIX L/R, PFL/AFL L/R, MONITOR OUT 1/2, FX, SUB L/R). c Analog output jack section Use this section to connect the output jacks and adjust the output equalizer. d Screen operation section Use this section to operate the meter, home and MENU screens shown on the display. e Built-in effects operation section Operate the built-in effects and adjust the output levels for each output in this section. f Analog output adjustment section Adjust the output levels from the MAIN OUTPUT, SUB OUTPUT, OUTPUT MON 1 and OUTPUT MON 2 jacks in this section.20 TASCAM Model 24 2 – Names and Functions of Parts Analog input jack section 1 MIC input jacks (1-12, 13/14-19/20) These are balanced XLR jacks for mic input. o XLR (1: GND, 2: HOT, 3: COLD) 2 LINE/INST (BAL) mono input jacks (1-2) These standard TRS jacks are mono line inputs. When directly connecting a guitar, bass or other instrument, set the INST switch to on (pushed in). o TRS (Tip: HOT, Ring: COLD, Sleeve: GND) 3 LINE (BAL) input jacks (3-12) These standard TRS jacks are line inputs. o TRS (Tip: HOT, Ring: COLD, Sleeve: GND) 4 L/MONO (BAL)/R (BAL) stereo input jacks (13/14- 19/20) These standard TRS jacks are stereo line inputs. If only the L/MONO (BAL) jack in a pair is connected, the same signal was be sent to both left and right channels. o TRS (Tip: HOT, Ring: COLD, Sleeve: GND) 5 −10dBV (external input) jacks (21/22, RCA pin) These RCA pin jacks are analog line inputs. Use RCA cables to connect CD players and similar devices to these jacks. 6 STEREO input jack (21/22, stereo mini) This stereo mini jack is a line input jack. Use this to connect with the line output jack of a tablet or other external device. 7 INSERT jacks (1-2, standard) Use these standard TRS jacks to connect external devices (effects). o TRS (Tip: SEND, Ring: RETURN, Sleeve: GND) 8 GAIN knobs and SIG indicators (1-12, 13/14-19/20) Use the GAIN knobs to adjust the input levels of each chan- nel. its SIG indicator will light green when a signal is input (− 56dB or higher). If a SIG indicator stays lit red continuously, lower the GAIN knob. 9 LOW CUT switches (1-12, 13/14-19/20) Turn this switch on (pushed in) to enable low cut filters that cut noise and other sounds at low frequencies. 0 INST switches (1-2) Set according to the LINE/INST (BAL) input jack input sourc- es. Turn the INST switch on (pushed in) when connecting an guitar, bass or other equipment with high output impedance. Turn the INST switch off (not pushed in) when connecting electronic instruments, audio devices, mics and other equip- ment.TASCAM Model 24

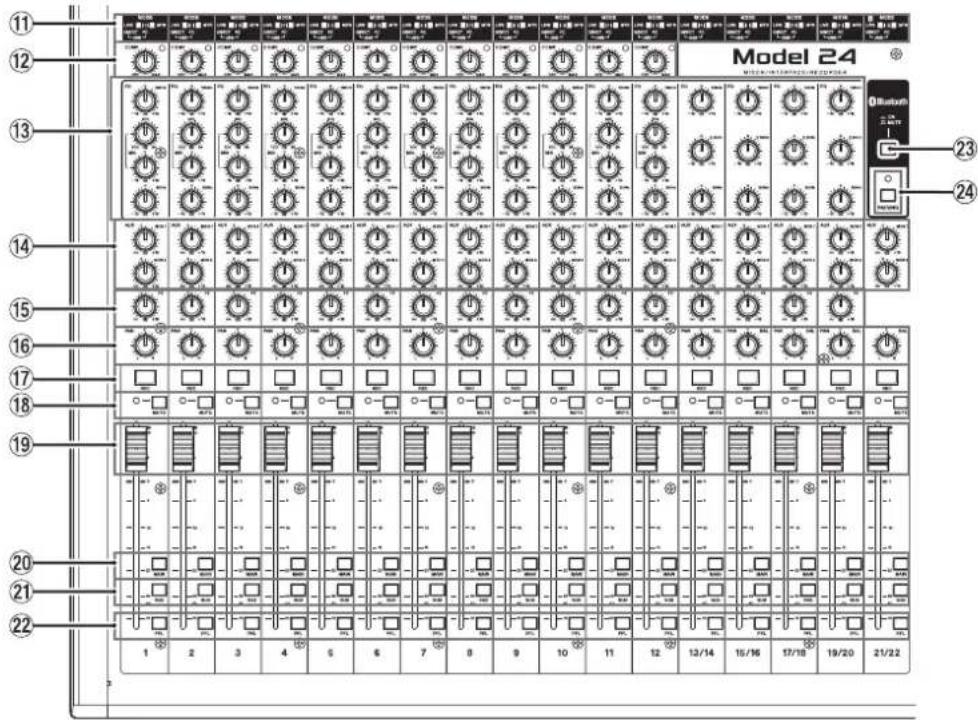

2 – Names and Functions of Parts Input channel mixing section q MODE switches (1-12, 13/14-19/20, 21/22) Use these to select the input source for each channel. (See “Setting the MODE switch” on page 36) w COMP knobs and indicators (1-12) Use these knobs to adjust the compression thresholds for the signals input to each channel. When compression is activated, the COMP indicators light. e EQ knobs (1-12, 13/14-19/20) i Use these to boost and attenuate the HIGH, MID and LOW bands of each channel. Setting range: ±15 dB i The central frequencies of the MID bands can be set for channels 1-12. Setting range: 100 Hz – 8 kHz (default: 600Hz) i Channels 13/14-19/20 are fixed at 2.5 kHz. r MON 1/MON 2 knobs (1-12, 13/14-19/20, 21/22) Use these to adjust the levels of signals sent to the MONITOR OUT 1/2 buses. t FX knobs (1-12, 13/14-19/20) Use to adjust the levels of the signals sent to the FX bus. y PAN knobs (1-12, 13/14-19/20, 21/22) Use to adjust the stereo positions of the signals input to each channel. NOTE i When PAN knobs are centered (C), signals are reduced by 3 dB and sent to both left and right MAIN MIX L/R buses. i When a PAN knob is turned all the way to the left (L), that channel signal is sent only to the left MAIN MIX L/R bus. It is not sent to the right bus. i When a PAN knob is turned all the way to the right (R), that channel signal is sent only to the right MAIN MIX L/R bus. It is not sent to the left bus. u REC buttons and indicators (1-12, 13/14-19/20, 21/22) Use these to select the channels to record to the SD card. i MUTE switches and indicators (1-12, 13/14-19/20, 21/22) When these switches are on (pushed in, MUTE indicator lit), those channels are muted. o Channel faders (1-12, 13/14-19/20, 21/22) Use these to adjust the send levels of channel signals. p MAIN switches (1-12, 13/14-19/20, 21/22) Turn these switches on (pushed in) to send channel signals to the MAIN MIX L/R bus. a SUB switches (1-12, 13/14-19/20, 21/22) Turn these switches on (pushed in) to send channel signals to the SUB L/R bus. s PFL switches (1-12, 13/14-19/20, 21/22) Turn these switches on (pushed in) to send channel signals to the PFL/AFL L/R bus. d ON/MUTE switch Set this switch to ON to input audio from a paired Bluetooth device. f PAIRING button and indicator Press and hold this button to activate Bluetooth pairing mode. Press when pairing to end pairing mode. (See “Connecting with Bluetooth devices” on page 29)22 TASCAM Model 24 2 – Names and Functions of Parts Analog output jack section g MAIN OUTPUT L/R jacks These analog outputs are XLR jacks. o XLR (1: GND, 2: HOT, 3: COLD) h SUB OUTPUT L/R jacks These standard TRS jacks are analog outputs. o TRS (Tip: HOT, Ring: COLD, Sleeve: GND) j FOOTSWITCH jack This standard TS jack is for connecting a footswitch. o TS (Tip: HOT, Sleeve: GND) NOTE This unit was designed to be used with unlatched (momen- tary) footswitches that have to be pushed to function (short- ed when pushed). k STEREO GRAPHIC EQ faders This 7-band graphic equalizer affects signals output from the MAIN OUTPUT and AUX OUTPUT MON 1/2 jacks. l AUX OUTPUT MON 1/2 jacks These standard TRS jacks are analog outputs. o TRS (Tip: HOT, Ring: COLD, Sleeve: GND) ; AUX OUTPUT FX jack This standard TRS jack is an analog output. When an external effect is connected, signals will not be sent to the built-in effect. When using an external effect, turn the built-in effect off. o TRS (Tip: HOT, Ring: COLD, Sleeve: GND) z CONTROL ROOM L/R jacks These standard TRS jacks are analog outputs. Use these to monitor signals from the MAIN MIX L/R bus or PFL/AFL L/R bus. o TRS (Tip: HOT, Ring: COLD, Sleeve: GND) x PHONES jack Use this standard stereo jack to connect stereo headphones. Use an adapter to connect headphones with a mini plug. Use this to monitor signals from the MAIN MIX L/R bus or PFL/AFL L/R bus. (See “Block diagram / Schéma fonctionnel / Diagrama de bloques” on page 166) c PHANTOM +48V switch and indicator Use this switch to supply +48V phantom power to the 1-2, 3-12 and 13/14-19/20 MIC input jacks on the top of the unit. The indicator lights when the PHANTOM +48V switch is set to on (pushed in). (See “Setting phantom power” on page 36) v SD card slot Insert SD cards in this slot. (See “Inserting and removing SD cards” on page 30) b MON 1/2/MAIN MIX switch Set which output signals are affected by the equalizer. MAIN MIX: Equalizer is applied to signals sent from the MAIN MIX L/R bus. MON 1/2: Equalizer is applied to signals sent from the MONITOR OUT 1/2 buses. NOTE Also set the EQ IN/BYPASS switch to EQ IN. n EQ IN/BYPASS switch When this switch is EQ IN, the equalizer will affect the output signals set with the MON 1/2/MAIN MIX switch. When set to BYPASS, the equalizer will not be applied re- gardless of the MON 1/2/MAIN MIX switch setting. Screen operation section m Display Shows a variety of information. , USB indicator This lights when the USB connection is working. . PFL/AFL indicator This indicator lights when either at least one channel PFL switch is on (pushed in) or when the MON 1/MON 2 fader AFL switch is on (pushed in). / Function buttons The functions of these buttons change depending on the screen shown on the display. The functions shown at the bottom of the display are the currently assigned functions. NOTE For convenience, the four buttons under the display are called the function buttons in this manual. From left to right, they are called the F1, F2, F3 and F4 buttons.TASCAM Model 24

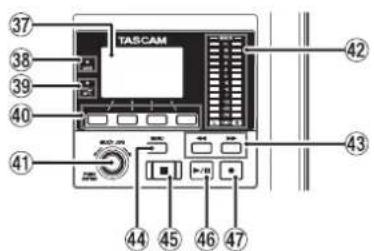

2 – Names and Functions of Parts ! MULTI JOG dial This dial functions as a dial when turned and as a button when pressed. Dial functions i Turn when the Home Screen is open to move the file play- back position. (See “Locate function” on page 40) i When a MENU Screen is open, turn to select items and change setting values. (See “Basic MENU screen operations” on page 27) Button function i Press when the Home Screen is open to designate a locate point. (See “Locate function” on page 40) i When a Menu Screen is open, press to confirm selections and settings (ENTER button function). @ Output level indicators These are output level indicators for the MAIN OUTPUT jacks. # m/, buttons i When stopped and during playback, press and hold these buttons to search backward/forward. i When the Home Screen is open, press the m button to locate to the beginning of the current song (00:00:00, which is the zero point). i When the Home Screen is open, press the , button to locate to the end of the current song. i If the current song has auto punch in or out points set, you can also locate to those points. i If the current song has marks set, these can also be used to locate to them. i While pressing the 8 button, press the m button to locate to the point where recording last started. i While pressing the 8 button, press the , button to locate to the point where recording last stopped. i When the SD PLAY Screen is in playback state, press to skip a file. (See “Playing WAV files on SD cards (SD PLAY mode)” on page 48) $ MENU button i When the Meter Screen is open, press to open the Home Screen. i When the MENU Screen or a menu item settings screen is open, press to return to the Home Screen. i When the Home Screen is open, press to open the MENU Screen. (See “Menu structure” on page 27) and (See “Basic MENU screen operations” on page 27) % 8 button/indicator Press to stop playback or recording. This button lights when stopped. Press this button when paused to return to the beginning of the song or file. ^ 7/9 button/indicator Press this button to start playback. This button lights during playback and recording. This button blinks when paused. & 0 button/indicator Press this button to start recording. This button lights during recording. Press this button during playback to start recording (Manual punch in). Built-in effects operation section

• MUTE switch/indicator When the MUTE switch is on (pushed in, MUTE indicator lit), the signal from the built-in effect is muted. ( TO MON 1/TO MON 2 knobs Use these to adjust the levels of signals sent from the built-in effects to the MONITOR OUT 1/2 buses. ) TO MAIN LR knob Use this to adjust the levels of signals sent from the built-in effects to the MAIN MIX L/R buses. Q SELECT button Open the EFFECT Screen and make built-in effect settings. (See “Using the built-in effects” on page 38) The built-in effect return signal is return to the MAIN MIX L/R bus and MONITOR OUT 1/2 buses. W PFL/AFL MASTER knob Use this to adjust the send level from the PFL/AFL L/R bus. E CONTROL ROOM knob Use to adjust the output levels of the CONTROL ROOM L/R jacks. R PHONES knob Use this to adjust the headphone output level.

CAUTION Before connecting headphones, minimize the volume with the PHONES knob. Failure to do so could result in a sudden loud noise that could harm hearing, for example.24 TASCAM Model 24 2 – Names and Functions of Parts Analog output adjustment section T MUTE switches and indicators (SUB, MON 1, MON 2, MAIN) When MUTE switches are on (pushed in, MUTE indicators lit), signals to the corresponding output jacks are muted. Y MAIN switch (SUB) When this switch is on (pushed in), the SUB OUTPUT L/R jack output signal is sent to the MAIN MIX L/R bus. U AFL switches (MON 1/MON 2) When these switches are on (pushed in), the AUX OUTPUT MON 1/2 jack output signals are sent to the PFL/AFL L/R bus. I SD MAIN MIX RETURN switch When this switch is on (pushed in), playback of stereo master files recorded on the SD card is output from the MAIN OUT- PUT and AUX OUTPUT MON 1/2 jacks. ATTENTION Be aware that when this switch is on (pushed in), the sound of the MAIN MIX L/R bus is not output. O SUB fader Use to adjust the output level of the SUB OUTPUT jacks. P MON 1/MON 2 faders Use to adjust the output levels of the AUX OUTPUT MON 1/2 jacks. A MAIN fader Use to adjust the output level of the MAIN OUTPUT jacks. Rear panel S USB port This is a B-type USB port. Use a USB cable (Type-A to Type-B) to connect the unit to a computer. (See “Connecting with a Computer” on page 49) ATTENTION The unit should be connected directly to the computer, not through a USB hub. Moreover, noise could be picked up if the cable is too long. D AC IN connector Connect the included power cord here. F POWER switch Press to turn the unit on and off.

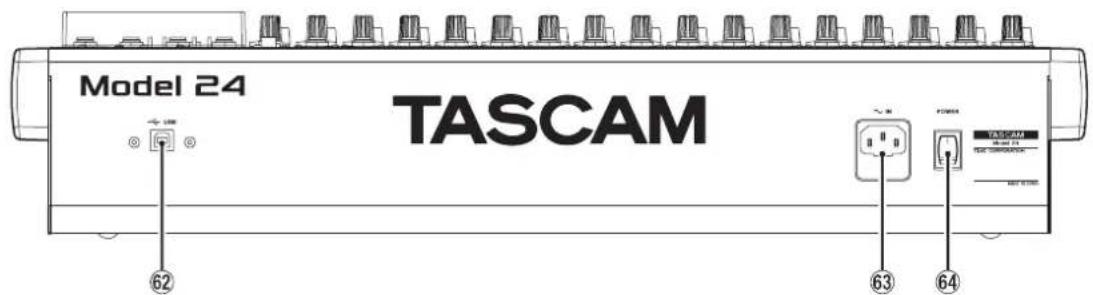

CAUTION Before turning the unit on, lower the volumes of connected equipment to their minimum levels. Failure to do so might cause sudden loud noises, which could harm your hearing or result in other trouble. NOTE Do not do this when the unit is operating (including record- ing, playing back or writing data to an SD card). Doing so could cause proper recording to fail and recorded data to be lost.TASCAM Model 24

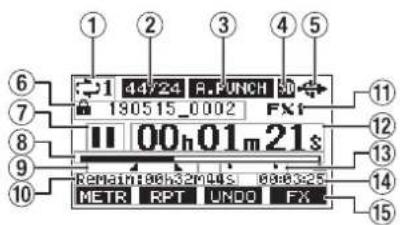

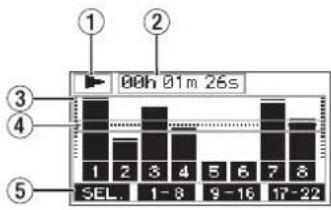

2 – Names and Functions of Parts Home Screen When the Meter Screen is open, press the MENU button to open the Home Screen. 1 Repeat playback status An icon appears when the repeat playback function is on. (See “Repeat playback function” on page 40) 2 Song format This shows the current song file format. 44.1kHz, 16bit 44.1kHz, 24bit 48kHz, 16bit 48kHz, 24bit NOTE If no song is loaded, the operation format of the unit will be shown like or . 3 Automatic punch in/out function on/off status The icon appears when the automatic punch in/out function is on. (See “Automatic punch in/out function” on page 41) 4 SD card present status When an SD card is loaded, the icon appears. When an SD card is protected, the icon appears. Since system files cannot be updated when the icon appears, automatic punch in/out settings will not be retained and previously loaded songs will not be loaded when the unit is turned on again. 5 USB connection status During USB connection, the icon appears. 6 Song name This shows the name of the current song. If a song is protected, an icon appears before the file name. (See “Protecting/unprotecting songs” on page 34) If a song has unsaved marks, an icon appears before the file name. (See “Adding marks” on page 45) 7 Transport status This icon shows the recorder operation status. Indicator Meaning

Stopped at the beginning of the file

Playback 8 Playback position The current playback position is shown by a bar. 9 Automatic punch in/out point setting status When the automatic punch in/out function is on, these show the status of automatic punch in/out point setting. Punch in point Punch out point 0 Remaining time The remaining time available for recording on the SD card is shown (in hours: minutes: seconds). NOTE The remaining recordable time on an SD card depends on the number of recording channels and SD card capacity. q Built-in effect status When a built-in effect is on, the number of the effect in use is shown. When the built-in effect is off, the icon appears. (See “Using the built-in effects” on page 38) w Recorder time counter This shows the elapsed time from the beginning of the song. e Mark indicators An icon is shown at each mark. r Song length This shows the length of the current song (in hours: minutes: seconds). t Function button functions This shows the functions assigned to the function button on the Home Screen. i F1 button: This opens the Meter Screen. i F2 button: This turns the repeat playback function on/off. i F3 button: This returns to the state before the previous operation. i F3 button: This restores the state after the previous operation. i F4 button: This turns the built-in effect on/off. i F4 button: This adds/deletes marks. NOTE i The F3 button and indicators appear when those operations are possible. i Set the F4 button function on the KEY FUNCTION screen. (See “Using mark functions” on page 45)26 TASCAM Model 24 2 – Names and Functions of Parts Meters Screen This shows the levels of the signals being input to the unit.1 Transport statusThis icon shows the recorder operation status.2 Recorder time counterThis shows the elapsed time from the beginning of the song.3 Track level metersThese show the signal levels of each channel.4 Level meter guideThis provides guidance for level adjustment. The guide is shown at the -12dB level.5 Function button functionsThis shows the functions assigned to the function button on the Meter Screen. i F1 Press to change the input sources shown on the Meter Screen. i F2 Press to show the level meters for channel 1–8 signals on the Meter Screen. i F3 Press to show the level meters for channel 9–16 signals on the Meter Screen. i F4 Press to show the level meters for channel 17–22 and MAIN MIX L/R bus signals on the Meter Screen. Meter Screen details When the Meter Screen is open, press the F1 button to change the signal sources shown by the meters. Channel input level screens The levels of signals input on each channel are shown depend-ing on their MODE switch settings. LIVE INPUT Screen This shows the levels of signals being input to the input jacks. MTR RETURN Screen This shows the playback signal levels of songs recorded on SD cards. Channels that have recording data in the song Channels that do not have recording data in the song PC RETURN Screen This shows the levels of signals output from a computer when used as a USB audio interface. NOTE Output from the computer, including from Windows Media Player and iTunes, is sent to channels 1-2.TASCAM Model 24

2 – Names and Functions of Parts Menu structure When the Home Screen is open, press the MENU button to open the MENU Screen.The various menu items are as follows.Menu item Function Page SONG Work with songs on an SD card page 32TRACK CLEARClear specific tracks or all trackspage 43AUTO PUNCHSet the auto punch in/out functionpage 41A.PUNCH PRE ROLLSet the pre-roll point page 42IMPORTImport chosen WAV files to song trackspage 43STEREO MIX EX- PORT Use stereo mix export functionpage 44SD PLAY Play WAV files on an SD card page 48STORAGESD cards can be accessed from a computerpage 49SYSTEM Open the SYSTEM ScreenSee below On the MENU Screen, select SYSTEM to open the SYSTEM Screen. The menu items on the SYSTEM Screen are as follows.Menu item Function PageINFORMATIONView SD card information, song information and the firmware versionpage 46DATE/TIMEDate and time settings page 31SONG NAMESet the song name format page 46DISPLAYAdjust the display page 31KEY FUNCTIONSet the function of the function buttonpage 45FOOTSWMake footswitch settings page 41MIDI TIME CODESet the MIDI time code page 47USB AUDIOMake USB audio settings page 56INITIALIZERestore factory default settingspage 47MEDIA FORMATFormat the SD card page 47 NOTE The settings for all menu items are retained even when the unit is turned off. Basic MENU screen operations After using the MENU button to open the MENU Screen, it can be operated in the following manner.This is an overview of basic operations. Function button assign-ments differ according to the screen shown on the display. Selecting items (moving vertically on a page): Turn the MULTI JOG dial. Opening a submenu from a page: Press the MULTI JOG dial. Confirming a selected item: Press the MULTI JOG dial (ENTER button function). Going back one step in a menu: Press the F1 button. Returning to the Home Screen from a MENU Screen: Press the F1 button. Menu operation procedures This explanation uses an example of setting the pre-roll point.

4. Press the MULTI JOG dial to open the settings screen.

A.PUNCH PRE ROLL Screen open

5. Turn the MULTI JOG dial to change the setting.

6. To set another item on the same screen, press the MULTI

JOG dial to move the cursor to the next setting.

7. Repeat steps 5 to 6 as necessary to set other items.

8. Press the F1 button to return to the MENU Screen.28

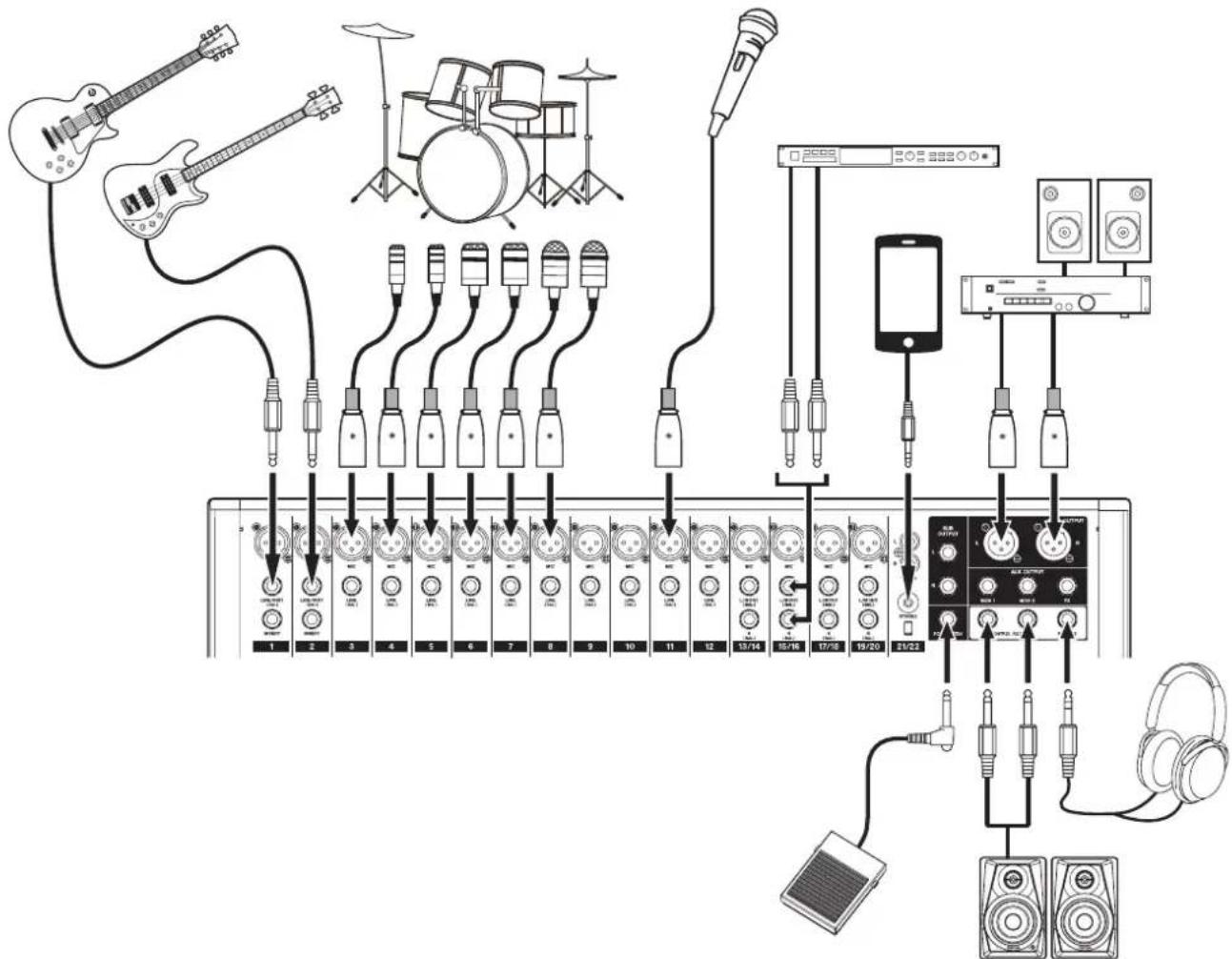

TASCAM Model 24 3 – Preparation Connecting other equipment This is an example of Model 24 connections. Precautions before making connections 0 Carefully read the operation manuals of the devices to be connected and then connect them correctly. 0 Before making connections, turn this unit and all equipment to be connected off (standby). 0 Install all connected devices, including this unit, so that they are powered from the same line. When using a power strip or similar device, be sure to use one that has high current capacity (thick cable) in order to minimize fluctuations in power voltage. 0 Before connecting audio equipment, set the following knobs and faders to their lowest values. Failure to do so could cause sudden loud noises from monitoring equipment, and this could damage the equipment or harm hearing. o GAIN knobs (channels 1-12, 13/14-19/20) o Channel faders (channels 1-12, 13/14-19/20, 21/22) o SUB fader o MON 1/MON 2 faders o MAIN fader o CONTROL ROOM knob o PHONES knob 0 Set the PHANTOM +48V switch to off. Examples of connections to a Model 24TASCAM Model 24

3 – Preparation Connecting microphones Dynamic mics Connect to MIC input jacks. Condenser mics When using a condenser microphone that requires phan-tom power, connect it to a MIC input jack and then turn the PHANTOM +48V switch on (pushed in). (See “Setting phan-tom power” on page 36)The PHANTOM +48V indicator lights when the PHANTOM +48V switch is on (pushed in). Connecting guitars, basses and similar instruments When connecting a guitar, bass or other instrument with high impedance output (Hi-Z) directly to this unit, use the LINE/INST (BAL) jacks on channels 1-2 and turn the INST switch on (pushed in) for that jack. NOTE When connecting an instrument with active output or when the sound passes through an effects unit, for example, that is connected to this unit, the INST switch does not need to be set to on. Connecting electronic devices and other audio equipment Use the following inputs to connect electronic devices and other audio equipment. o LINE/INST (BAL) input jacks* o LINE (BAL) input jacks o L/MONO (BAL)/R (BAL) input jacks o −10dBV input jacks (21/22) o STEREO input jack (21/22)* When an INST switch is on (pushed in), input through the LINE/INST (BAL) input jack will be unbalanced. Connecting monitor speakers Connect monitor speakers (powered speakers or an amplifier and speaker system) to the CONTROL ROOM L/R jacks.Depending on the PFL switch and AFL switch settings, signals from the MAIN MIX L/R bus and PFL/AFL L/R bus can be moni-tored.Use the CONTROL ROOM knob to adjust the speaker volume. Connecting headphones Connect headphones to the PHONES jack (standard stereo).Depending on the PFL switch and AFL switch settings, signals from the MAIN MIX L/R bus and PFL/AFL L/R bus can be moni-tored CAUTIONBefore connecting headphones, minimize the volume with the PHONES knob. Failure to do so could result in a sudden loud noise that could harm hearing, for example. Connecting a computer Use a commercially-available Type-A-Type-B USB cable to con-nect the unit to a computer USB 2.0 port.When the USB connection is working, the USB indicator in the screen operation section lights.ATTENTIONThe unit should be connected directly with the computer instead of via a USB hub. Moreover, noise could be picked up if the cable is too long. Connecting with Bluetooth devices This unit can input sound from a computer, portable audio de-vice or other equipment that supports Bluetooth (A2DP). Pairing Follow the procedures below to enable communication with a Bluetooth device. NOTE Pairing also requires operation of the Bluetooth device.Refer to the operation manual of the Bluetooth device for procedures.

1. Press the ON/MUTE switch to set it to ON.

2. Confirm that the PAIRING indicator on this unit is blinking.

If it is unlit, press the PAIRING button. NOTE When the unit is turned on, it automatically becomes ready for pairing. If 2 minutes pass in pairing mode, it will end. Press this button to reactivate pairing mode when it is disabled.

3. Select “Model 24” (this unit) on the other Bluetooth device.

When pairing succeeds, the PAIRING indicator will stop blinking and remain lit, and connection with the other device will be complete. NOTE i Some older Bluetooth devices require the input of a passkey. Enter “0000” in such cases. i Pairing will automatically end if connection is not confirmed within two minutes. i When this unit is turned on, it will automatically try to con-nect with the Bluetooth device to which it was previously connected. At this time, pairing will automatically end af-ter five minutes if connection is not possible because that Bluetooth device is not turned on or its Bluetooth function is turned off. Unpairing The Bluetooth device that is currently connected can be un-paired from the unit.

1. Press and hold the PAIRING button for at least two seconds.

2. This ends the pairing. The PAIRING indicator will start blink-

ing and the unit will be ready to pair.30 TASCAM Model 24 3 – Preparation Inserting and removing SD cards Inserting SD cards Insert an SD card into the SD card slot on the top of the unit to enable playback and recording by this unit. NOTE SD cards can be inserted whether or not the unit is on or off.

1. Open the SD card slot cover.

2. The SD card should be inserted with its label facing left.

3. Close the SD card slot cover.

Removing SD cards Turn the unit off or stop operation before removing an SD card. CAUTIONNever remove an SD card when the unit is operating (includ-ing recording, playing back, or writing data to the SD card). Doing so could cause proper recording to fail, data to be lost, and sudden loud noises from monitoring equipment, which might damage the equipment, harm hearing or cause other trouble.

1. Press the SD card in gently to make it to come up.

2. Pull the SD card out.

SD card write protection switches SD cards have write-protection switches that prevent writing new data to them.If you slide the write-protection switch to the “LOCK” position, writing will not be possible. Move the write-protection switch to the unlocked position in order to record, erase and otherwise edit data on the card. Turning the power on and off

CAUTION i Turn down the volume of the sound system connected to the unit before starting up or shutting down the unit. i Do not wear connected headphones when turning the unit on and off. Loud noises could damage the speakers or harm your hearing. Before turning the power on

1. Make the following settings on the top of the unit.

o Other knobs w all the way left o Faders w all the way down o Switches w off (not pushed in)

2. Minimize the output levels of audio sources and input levels

of amplifiers connected to this unit. Turning the power on

1. Use the POWER switch on the back of the unit to turn its

power on.Startup screenMeter ScreenAfter the unit starts and the Startup Screen is shown, the Meter Screen will open. NOTE After the unit is turned on, the PAIRING indicator will blink for a set amount of time.

2. Turn connected input audio source devices on.

3. Finally turn amplifiers on.

Turning the power off Before turning the power off, minimize the levels of output fad-ers and knobs, and then follow the procedures above in reverse.Failure to follow the correct order could result in clicking noises, for example, that might damage equipment. CAUTIONDo not disconnect the power cord when the unit is operating (including recording, playing back, or writing data to an SD card). Doing so could cause proper recording to fail, recorded data to be lost, and sudden loud noises from monitoring equipment, which might damage the equipment, harm hear-ing or cause other trouble. NOTE When the unit is started up for the first time (or when the built-in clock is reset after being left unused without power for a long time), the DATE/TIME Screen appears before the Startup Screen to allow the date and time of the built-in clock to be set. (See “Setting the built-in clock date and time” on page 31)TASCAM Model 24

3 – Preparation Setting the built-in clock date and time Using its internal clock, this unit includes the date and time when a file is recorded.

2. Turn the MULTI JOG dial to change a value, and press the

MULTI JOG dial to confirm it and move the cursor to the next item. NOTE Use the F2 and F3 buttons to move the cursor.

3. Change the year, month, day, hour and minute in order, and

complete the date and time setting.

4. Press the F4 button to confirm the setting and return

to the SYSTEM Screen. NOTE i When making a setting, you can press the F1 button to cancel the changes and return to the SYSTEM Screen. i When setting the time, the time display will be stopped. i By setting the TYPE item to “DATE” on the SONG NAME Screen, the date and time set here can be used for song names. (See “Setting the song name format” on page 46) Adjusting the display The display contrast and brightness can be adjusted. Adjusting the display contrast

1. On the SYSTEM Screen, select DISPLAY to open the DISPLAY

Screen. (See "Menu operation procedures" on page 27)

4. Press the MULTI JOG dial to confirm the setting.

5. Press the F1 button to return to the MENU Screen.

Adjusting the display brightness

1. On the SYSTEM Screen, select DISPLAY to open the DISPLAY

Screen. (See “Menu operation procedures” on page 27)

2. Press the MULTI JOG dial to move the cursor to the DIMMER

3. Adjust the display brightness.

Options: HIGH (default), LOW

4. Press the MULTI JOG dial to confirm the setting.

5. Press the F1 button to return to the MENU Screen.

Preparing an SD card for use In order to make an SD card usable in this unit, whether for recording or playback, this unit must be used to create a system file on it first. ATTENTION In order to record, this unit must be used to format it first. (See “Formatting SD cards” on page 47)

1. “No sys file. Make sys file. Are you sure?” appears

in a pop up when a new card or a card formatted by anoth- er device is inserted into the unit.

2. Press the MULTI JOG dial to create a system file.

When system file creation is complete, the Home Screen will reopen.32 TASCAM Model 24 4 – Managing Songs This recorder treats each recording data group as one song and manages data by song. For one song, WAV files are saved for 22 tracks and a stereo master file. To record or produce music, a song that has already been creat- ed needs to be loaded or a new song needs to be created. This chapter describes functions that range from basic opera- tions such as procedures for loading songs and creating new songs to various song management functions. NOTE The maximum recording time for a single song is 23:59:59. Viewing the song list To open a list of songs saved on an SD card, select SONG on the MENU Screen, and press the MULTI JOG dial to open the SONG Screen. (See “Menu operation procedures” on page 27) On the SONG Screen, the following functions are assigned to the function buttons. 0 Press the F1 button to return to the MENU Screen. 0 Press the F2 button to show the date on the SONG Screen. 0 Press the F3 button to show the size on the SONG Screen. 0 Press the F4 button to open the NEW Screen where you can create a new song. (See “Creating a New Song” on page 32) Song Operation Select the desired song file on the SONG Screen and press the MULTI JOG dial to open a pop-up menu list with possible song operations. To use a song operation, turn the MULTI JOG dial to select the desired item, and press the MULTI JOG dial. LOAD/SAVE Loads the selected song. When the selected song is the current song, SAVE will appear and information about it will be saved. INFORMATION View information about the selected song.

Clear all marks in the song. DELETE Deletes the selected song. PROTECT Protect the selected song. UNPROTECT Stop protection of the selected song. RENAME Edits the name of the selected song. Creating a New Song To record or play with this unit, you must create or load a song. The following procedure can be used to create a new song.

1. Open the SONG Screen when the recorder is stopped. (See

3. Turn the MULTI JOG dial to select the recording file format.

Options: 44.1kHz - 16bit (default), 44.1kHz - 24bit, 48kHz - 16bit, 48kHz - 24bit

4. Edit the name of the song as necessary.

To edit the name of the song, press the F2 button to open the NAME EDIT Screen. For details about how to edit song names, see “Editing text” on page 34. TIP The song name can also be edited later using the RENAME Screen.

5. Press the F4 button to save the currently loaded

song and create a new song. When song creation completes, the SONG Screen reopens. NOTE i To cancel song creation, press the F1 button. i A maximum of 100 songs can be created on a single SD card. i Songs are created in the MTR folder on the SD card.TASCAM Model 24

4 – Managing Songs Loading Songs Use the following procedure to load the song you want.

1. Open the SONG Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27) NOTE The * icon appears for a song currently being loaded. An icon will appear before protected songs.

2. Select the song that you want to load and press the MULTI

JOG dial to open the menu list pop-up.

3. Select LOAD, and press the MULTI JOG dial.

After the selected song loads, the SONG Screen will reopen. Saving the current song Song information, including marks added during playback of the current song as well as deleted marks, can be saved.

1. Open the SONG Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Select the current song, and press the MULTI JOG dial to

This saves the song information. ATTENTION After saving, undoing or redoing the previous operation will no longer be possible. Viewing song information Information about a song, including its name (title), sampling frequency, bit rate, size, and date and time last written, can be checked.

1. Open the SONG Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Select the song with information that you want to check

and press the MULTI JOG dial to open the menu list pop- up.

3. Select INFORMATION, and press the MULTI JOG dial.

The first page of the INFORMATION Screen will open. The protection status, song name, sampling frequency, bit rate, size, and date and time last written will be shown.

4. Turn the MULTI JOG dial to open the second page of the

INFORMATION screen. The name of the product used to create the song will be shown.

5. After checking, press the F1 button to return to the

SONG Screen. Clearing all marks This operation clears all marks added to the selected song.

1. Open the SONG Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Select the song with the marks that you want to delete and

4. Press the F4 button to confirm deletion of marks.

When mark deletion completes, the SONG Screen reopens. ATTENTION Deleted marks cannot be restored. Deleting songs You can delete songs. Deleting unnecessary songs when the SD card space is low can create more open space.

1. Open the SONG Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Select the song that you want to delete and press the

MULTI JOG dial to open the menu list pop-up.

3. Select DELETE, and press the MULTI JOG dial.

The DELETE Screen will open.

4. Press the F4 button to confirm deletion.

When song deletion completes, the SONG Screen reopens. ATTENTION Deleted songs cannot be restored. NOTE i To cancel song deletion, press the F1 button. i The current song cannot be deleted. To delete the current song, load another song first.34 TASCAM Model 24 4 – Managing Songs Protecting/unprotecting songs By protecting a song, you can disable editing, recording and deletion operations for that song.You can protect and stop protecting songs.

1. Open the SONG Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Select the song that you want to protect or unprotect and

press the MULTI JOG dial to open the menu list pop-up.

3. Select PROTECT or UNPROTECT, and press the MULTI JOG

dial. The PROTECT or UNPROTECT screen will open.

4. Press the F4 button to protect or unprotect the song.

NOTE To cancel protection or unprotection, press the F1 button.

5. When song protection or unprotection completes, the SONG

Screen reopens. NOTE i icons appear before songs that are protected in the song list shown for copying, deletion and other operations. i If you try to execute a prohibited operation (editing, record-ing, deletion) on a protected song, “Song is protected.” will appear in a pop-up message on the display. Editing song names

1. Open the SONG Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Select the song with name that you want to change and

press the MULTI JOG dial to open the menu list pop-up.

3. Select RENAME, and press the MULTI JOG dial.

The RENAME Screen will open.

4. Edit the song name.

For details about how to edit song names, see “Editing text” below. NOTE To cancel song name editing, press the F1 button.

5. When finished editing the song name, press the F4

button to confirm the song name.When song name editing is complete, the SONG Screen reopens. Editing text Use these operations to edit text. Changing the cursor (editing point) position: Use the F2 and F3 buttons.You can also press the MULTI JOG dial to move to the next character. Deleting the character at the cursor position: Turn the MULTI JOG dial.You can input up to 11 characters, including symbols, num-bers, and uppercase and lowercase letters. Leaving a single space open: Turn the MULTI JOG dial to select a blank space at the left end of any row, and press the MULTI JOG dial. Canceling edits: Press the F1 button. Confirming the changes: Press the F4 button.TASCAM Model 24

4 – Managing Songs Loading songs created on different TASCAM Model series products Songs created on TASCAM Model series products with different channel counts can be loaded on this unit. Use the following procedure to load the song you want.

1. Open the SONG Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Select the song that you want to load and press the MULTI

JOG dial to open the menu list pop-up. The name of the product used to create the song will be shown next to the LOAD item if it is different from this unit. Loading a song made on a Model 16

3. Select LOAD, and press the MULTI JOG dial.

After the selected song loads, the SONG Screen will reopen. Loading a song from a unit with fewer chan- nels on a unit with more channels When loading a song from a unit with fewer channels on a unit with more channels, empty tracks will be created for the addi- tional channels and the song will be converted for use with the model with more channels before loading. Example: Loading a song from a Model 16 to a Model 24 Source song Song after loading Tracks 1–14 Tracks 1–14 are loaded.

Empty tracks are created for tracks 15–22. Track 15 (MAIN MIX L) This is loaded as track 23 (MAIN MIX L). Track 16 (MAIN MIX R) This is loaded as track 24 (MAIN MIX R). NOTE i If the SD card is write-protected, the song will be loaded without conversion, See “SD card write protection switches” on page 30 for information about SD card write-protec- tion. i If a song is protected, it will be loaded without conversion. It will automatically be converted if protection is disabled. See “Protecting/unprotecting songs” on page 34 on page 25 for information about song protection. Loading a song from a unit with more chan- nels on a unit with fewer channels When loading a song from a unit with more channels on a unit with fewer channels, some tracks will not be available for record- ing and playback. Example: Loading a song from a Model 24 to a Model 16 Source song Song after loading Tracks 1–14 Tracks 1–14 are loaded. Tracks 15–22 These are not loaded. Track 23 (MAIN MIX L) This is loaded as track 15 (MAIN MIX L). Track 24 (MAIN MIX R) This is loaded as track 16 (MAIN MIX R).36 TASCAM Model 24 5 – Basic recording Selecting the input source This unit has 22 inputs (22 line/16 mic inputs) with separate MIC and standard jacks. The LINE/INST (BAL) input jacks on channels 1–2 support high impedance input, including direct guitar input. Turn the INST switch on (pushed in) when connecting an guitar or similar instrument directly. ATTENTION Do not connect to both the MIC jack and the standard input jack (LINE/INST (BAL), LINE (BAL), L/MONO (BAL) or R (BAL)) on a channel at the same time. TIP Set the INST switch to off (not pushed in) when connecting an electric-acoustic guitar with a built-in preamp or an active electric guitar, as well as when an effect is connected be- tween an guitar and this unit. Setting the MODE switch Using the MODE switch settings of each channel to select their input sources individually. LIVE: Use the signal from the input jack as the input source. PC: Use a signal from a computer connected to the USB port as the input source. MTR: Use a playback signal from the SD card as an input source. When a MODE switch is set to “MTR”, the signal from the input jack on that channel will be recorded. This function is useful when recording and playing back repeat- edly because the monitored sound is automatically switched according to the recording or playback status. Sounds on channels when in MTR mode Transport status REC button off REC button on Stop Muted Sound from input jack Playing back Playback sound only Playback sound only + sound from input jack Recording Playback sound only Sound from input jack Setting phantom power When connecting a condenser mic that requires phantom power, press the PHANTOM +48V switch when the recorder is stopped to turn phantom power on/off. When phantom power is on, the PHANTOM +48V indicator lights, and phantom power is supplied to the MIC input jacks (1-12, 13/14-19/20).

CAUTION Set the following knobs and faders to their minimum values before changing the PHANTOM +48V switch on/off setting. Depending on the connected mics, sudden loud noises from monitoring equipment could occur, and this could damage the equipment or harm hearing.

• PHONES knob ATTENTION i Before connecting condenser mics, turn this unit and all equipment to be connected off (standby). i The PHANTOM +48V switch turns it on/off for the input channels (1-12, 13/14-19/20) simultaneously. Do not turn the PHANTOM +48V switch on (pushed in) when connecting a mic that does not require phantom power. i Do not connect or disconnect mics when the PHANTOM +48V switch is on (pushed in). Doing so could cause a loud noise and might damage this unit and connected equipment. i Turn the PHANTOM +48V switch on (pushed in) only when using a condenser microphone that requires phantom power. Turning the PHANTOM +48V switch on (pushed in) when a dynamic mic or other mic that does not require it is connect- ed could damage this unit and connected equipment. i When using condenser mics that require phantom power and dynamic mics together, be sure to use balanced dynamic mics. Unbalanced dynamic mics cannot be used when phan- tom power is enabled. i Supplying phantom power to some ribbon mics could break them. If you are unsure, do not supply phantom power to a ribbon mic. Monitoring Monitoring is important when recording and mastering. With this unit, monitoring is possible using an external monitor- ing system (powered monitor speakers or an amp and speakers) or using stereo headphones. Use the CONTROL ROOM and PHONES knobs to adjust the level of the monitoring system.TASCAM Model 24

5 – Basic recording SIG indicators and level meters The channel 1-12, 13/14-19/20 SIG indicators and level meters shown on the Meter Screen can be used to check the levels of this unit’s audio signals. The level meters are for visually checking signal levels and can also be used to check whether or not signals are being input to this unit. For example, even if nothing can be heard when monitoring, if the Meter Screen level meters are moving, signals are being input to this unit. The SIG indicators light green when signals (of at least −56 dB) are input through their channels. If a SIG indicator lights red, the input source signal is too loud or the GAIN knob is turned up too far. If the SIG indicator lights red even when the GAIN knob is turned all the way to the left, the input source signal is to loud. Lower its volume. Track level meters (1-12, 13/14-21/22) These show track playback signal or track input signal levels. Channels for which the MODE switch is set to “MTR” will show the following signal levels according to the operation status. REC button Transport status Level meter display Unlit PLAY Track playback signal Blinking (recording standby) PLAY Playback signal Track input + playback signal Stop Track input signal Blinking (recording) Record Track input signal NOTE When the playback signal is shown, the level of the recorded signal on the track is being shown, so the levels of the level meters cannot be changed. When the input signal is shown, adjusting channel 1-12, 13/14-19/20 GAIN knobs will change the levels of the level meters. TIP Please see “Meter Screen details” on page 26 for details about the Meter Screen. MAIN MIX L/R level meters (MAIN) These show the MAIN MIX L/R bus levels. Recording This unit can simultaneously record up to 24 tracks, including 22 channel inputs and the MAIN MIX L/R bus. The following recording operations assume that mics, guitars and other things to record have been connected to the unit, input signals have been assigned as track recording sources, monitoring equipment has been connected and a song has been loaded.

1. Press the REC buttons for channel to record.

Press the REC button to start recording standby. It will blink red. When a MODE switch is set to “MTR”, the signal from the input jack on that channel will be recorded. (See “Setting the MODE switch” on page 36) NOTE i The MAIN MIX L/R bus does not have a REC button, but it is always in recording standby. The signals of the MAIN MIX L/R bus will always be recorded if the 0 button is pressed. i When the REC buttons of tracks that already have recordings is blinking, press them to make them unlit.

2. Set the recording levels.

Use the GAIN knobs of each channel to adjust their input levels. Watch the SIG indicators above and to the right of the GAIN knobs, and set the levels suitably. At the same time, check that the sound heard through headphones or a monitoring system is not distorted and that an unintended effect has not been set. NOTE If an input is too loud, the SIG indicator will light red. If the SIG indicator lights red even when its GAIN knob is turned all the way to the left, lower the volume of the input source.

3. Press the 0 button.

Recording will start and the 0 and 7/9 buttons will light. The REC buttons for tracks to record will stop blinking and stay lit.

4. When recording has completed, press the 8 button.

5. Use the m/, buttons and 8 button, for example to

locate to a position you want to check. TIP For details about the locate function, see“Locate function” on page 40.

6. Press the 7/9 button to play the recorded tracks.

Use the channel and MAIN faders to adjust the playback levels. Use the volume of the monitoring system to adjust the final monitoring level. Use the PAN knobs of each channel to set the position of each track signal between left and right speakers. NOTE i The channel PAN knobs and channel faders control the play- back output signals of already recorded tracks or the moni- toring volume of input signals. They do not control signals to be recorded. i If you are not satisfied with a recording, repeat the above procedure from the beginning.38 TASCAM Model 24 5 – Basic recording Undoing operations If you make a mistake operating the unit or want to do a re-cording over, for example,the operation last conducted can be undone. Editing, recording and other operations can be undone.The following types of operations can be undone. 0 Recording operations 0 Auto punch in/out operations 0 Track clearing operationsIf a song is loaded or the unit is turned off, Information used for undoing and redoing will be lost, so undoing and redoing previous operations will no longer be possible. NOTE Files used for undoing are temporarily saved on the SD card. If you want to delete those files to make more space on the SD card, reload the current song on the SONG Screen. Undoing the previous operation

1. When the Home Screen is open, press the F3 button.

The following confirmation pop-up message will appear.

2. Press the F4 button to return to the state before the

previous operation. NOTE To cancel undoing, press the F1 button. Redoing an undone operation

1. After undoing, when the “ ” appears on the Home

Screen, press the F3 button.The following confirmation pop-up message will appear.

2. Press the F4 button to restore the previous operation

and return to the state before undoing. NOTE To cancel redoing, press the F1 button. Using the built-in effects This unit has built in effects, so you can apply effects without an external effect device.Channels 1-12 and 13/14-19/20 can have an effect applied. Their signals are sent to the built-in effect by the FX bus.The return signal is returned to the MAIN MIX L/R and MONITOR OUT 1/2 buses.

1. Use the FX knobs of each channel to adjust the levels of

signals sent to the FX bus.

2. Use the EFFECT Screen to select the type of effect. (See

“Setting the built-in effect” on page 38)

3. Use the TO MAIN LR and TO MON 1/TO MON 2 knobs to

adjust the return levels for the MAIN MIX L/R and MONITOR OUT 1/2 buses.

4. When the AFL switch is on (pushed in), use the CONTROL

ROOM/PHONES knob to adjust the return level. NOTE The sound with the effect applied can be monitored from the CONTROL ROOM L/R jacks or PHONES jack. Setting the built-in effect

3. Set the built in effect type.

4. Select PARAMETER, and adjust the amount of the set effect.

You can check the effect as you change it. Options: 1 (default), 100 NOTE Press the F4 button to set the PARAMETER value for the currently selected TYPE to its default.

5. Press the F3 button to turn the built-in effect on.

The CURRENT STATUS will change from OFF to ON. NOTE Press the F2 button to turn the built-in effect off.

6. Press the F1 button to return to the Home Screen.40

TASCAM Model 24 6 – Recorder functions Locate function When the Home Screen is open, you can use the MULTI JOG dial to set the locate point. On the Home Screen, the current position of the recorder is shown as a time in hours (h), minutes (m) and seconds (s). By setting the time in this display area, you can change the current position of the recorder. Changing the playback position When the Home Screen is open and the recorder is stopped or playing back, you can use the MULTI JOG dial to set the locate point. Using the direct locate function to locate

1. When the Home Screen is open and the recorder is

stopped, press the MULTI JOG dial to enable direct locate mode. A cursor will appear at the location to be changed in the recorder counter.

2. Turn the MULTI JOG dial to change a value, and press the

MULTI JOG dial to confirm it and move the cursor to the next item.

3. Change the seconds, minutes and hours in that order to

move to that time as the current recorder position.

4. Press the 7/9 button to start playback or the 0 button

to start recording from that position. Repeat playback function The repeat playback function can be used to play something over and over. When the Home Screen is open, press the F2 button to set the repeat playback function. Nothing shown: The current song will keep playing regard- less of whether the area is recorded or not. : The current song will play and then stop. : The current song will play repeatedly. Punch in/out function Punching in and out is a technique used to replace parts of already recorded tracks. You can start playback of a recording, switch to recording when it reaches the part to be replaced (punch in), and then switch back to playback when the end of that part is reached (punch out) and stop after two seconds.

1. Determine the part you want to replace in advance.

Select a point where the replacement audio can be com- bined well with the original track audio.

2. Press the REC button for the track with the part to be re-

placed to enter recording standby (REC button blinks). NOTE i Set the punch in and out points at least one second apart. i Punch in recording is not possible when the REC button is on for eight or more channels.

3. Start playback before the part to be replaced.

4. When the part to be replaced is reached, press the 0 but-

ton, and perform the part. Recording will start (punch in).

5. When the end of the part to be replaced is reached, press

the 8 button. The unit will switch to playback and then stop after two seconds. Using the footswitch to punch in/out By connecting the recommended TASCAM RC-1F footswitch (sold separately) to the FOOTSWITCH jack on the top of the unit, you can use it to punch in/out. To use a footswitch to punch in/out, you must set the foot switch function assignment to “PUNCH IN/OUT” in advance. (See “Setting up the footswitch” on page 41) At step 4 above, press the footswitch instead of the 0 button, and at step 5 press it again instead of the 8 button. TASCAM RC-1F NOTE This unit was designed to be used with unlatched (momen- tary) footswitches that have to be pushed to function (short- ed when pushed).TASCAM Model 24

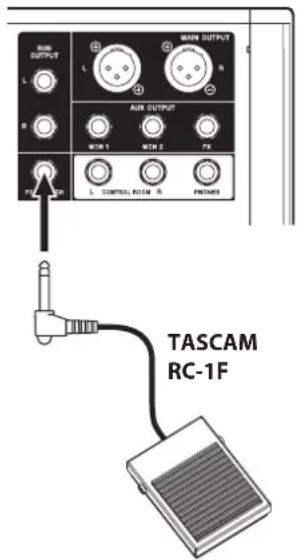

6 – Recorder functions Setting up the footswitch Use the FOOTSW Screen to set the footswitch.

1. Open the FOOTSW Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Turn the MULTI JOG dial to select the function to assign to

the footswitch. Option Meaning PLAY / PAUSE (default) Press to start playback when stopped or paused. Press to pause when play- ing.

Press during playback to punch in. Press when recording to punch out. FX MUTE Mute the built-in effect signal.

3. Press the MULTI JOG dial to confirm the assigned function.

A * appears next to the selected function.

4. Press the F1 button to return to the MENU Screen.

Setting the footswitch polarity The setting of this unit can be changed according to the polarity of the footswitch being used. Select “NORMALLY OPEN” or “NORMALLY CLOSE” so that the actual footswitch movement matches that shown by the illustration on the screen. NOTE When using a TASCAM RC-1F, set the POLARITY switch to N. OPEN.

1. Open the FOOTSW Screen when the recorder is stopped. (See

“Menu operation procedures” on page 27)

2. Press the F4 button to open the POLARITY Screen,

and turn the MULTI JOG dial to set the footswitch polarity. Options: NORMALLY OPEN (default), NORMALLY CLOSE

3. Press the F1 button to return to the FOOTSW Screen.

Automatic punch in/out function Using the automatic punch in/out function, you can automati- cally record between punch in and out points set in advance. To use the automatic punch in/out functions, start playback from a pre-roll point before the punch in point where recording will start. Recording will stop when the punch out point is reached, but playback will continue for two seconds before stopping. Setting the punch in/out points

1. Open the AUTO PUNCH Screen when the recorder is stopped.

(See “Menu operation procedures” on page 27)

2. Press the 7/9 button to start playback.

3. Press the MULTI JOG dial to set the punch in and out

points. The set points are shown next to the IN and OUT items. NOTE i You can also turn the MULTI JOG dial to set the points. i Set the punch in and out points at least one second apart. i Press the F2 button to clear set punch in and out points. i Press the F3 button to select either the punch in or out point. An * will appear next to the selected item.

4. Press the 8 button to stop playback.

5. Press the F4 button to turn the automatic punch in/

out function on. The icon appears on the AUTO PUNCH Screen.

6. Press the F1 button to return to the MENU Screen.

TIP i By setting only the punch in point, you can start recording with automatic punch in and then continue recording until you press the 8 button to stop. i By setting only the punch out point, you can start recording by pressing the 0 button and then stop recording with automatic punch out.42 TASCAM Model 24 6 – Recorder functions Setting a pre roll point When using automatic punch in, the amount of playback time before the punch in point can be set (pre roll point).

1. Select A.PUNCH PRE ROLL on the MENU screen to open the

A.PUNCH PRE ROLL screen. (See “Menu operation proce- dures” on page 27)

2. Set the pre-roll point.

Option Meaning OFF Do not locate to a point before the punch in point. Manually moving to somewhere before the punch in point beforehand will be necessary. 1sec. – 10sec. (default: 2sec.) Locate to a pre roll point the set time before the punch in point and start playback.

3. Press the F1 button to return to the MENU Screen.

Rehearsing punching in and out You can rehearse before punch in/out recording. In rehearsal, recording will not occur, but monitoring will be the same as if recording.

1. Press the MENU button when the recorder is stopped to

open the Home Screen. Confirm that the icon appears on the Home Screen.

2. Press the REC buttons for the tracks you want to record

using automatic punch in/out. NOTE Punch in recording is not possible when the REC button is on for eight or more channels.

3. Press the 7/9 button.

Auto punch in/out rehearsal starts. o The transport starts playback from the pre-roll point. Both track playback and input source signals can be monitored. (See “Setting a pre roll point” on page 42) o When the punch in point is reached, only the input source signal will be monitored. The 0 button will blink showing that it is rehearsal mode. o When the punch out point is reached, both track play- back and input source signals will be monitored. The 0 button will become unlit. o Playback will automatically stop two seconds after the punch out point. The 7/9 button will blink. Rehearsal can be repeated. Using automatic punching in and out Follow these procedures to punch in and out automatically and record.

1. Confirm that the icon appears on the Home Screen.

2. Press the REC buttons for the tracks you want to record

using automatic punch in/out. NOTE Punch in recording is not possible when the REC button is on for eight or more channels.

3. Press the 0 button.

o The transport starts playback from the pre-roll point. Both track playback and input source signals can be monitored. (See “Setting a pre roll point” on page 42) o When the punch in point is reached, only the input source signal will be monitored. The 0 button will light. o When the punch out point is reached, both track play- back and input source signals will be monitored. The 0 button will become unlit. o Playback will automatically stop two seconds after the punch out point. The 7/9 button will blink.TASCAM Model 24

7 – Track editing Clearing tracks The selected track will be cleared.

1. Open the TRACK CLEAR Screen when the recorder is

stopped. (See “Menu operation procedures” on page 27)

2. Turn the MULTI JOG dial to select the track to clear, and

press the MULTI JOG dial. A confirmation message will appear. NOTE Press the F2 button to open a message asking to con- firm that you want to clear all tracks.

3. Press the F4 button to clear the track(s).

NOTE i To cancel clearing tracks, press the F1 button. i Undoing is possible only for the last cleared track.

4. After clearing tracks completes, the TRACK CLEAR Screen

will reopen. Importing tracks You can import audio files that you have to tracks in the current song. Files that can be imported to tracks must be WAV (BWF) format (“.WAV” extension). To import an audio file with a different format (.mp3, etc.) to this unit, it must be converted to a WAV file that matches the format of the song it will be imported into beforehand.

1. Connect this unit with a computer. (See “Connecting with a

Computer” on page 49)

2. Use the computer to copy WAV files on it to this unit’s

3. Follow the proper disconnection procedures on the com-

puter before disconnecting the USB cable. (See “Discon- necting” on page 50)

4. Open the TRACK IMPORT Screen when the recorder is

stopped. (See “Menu operation procedures” on page 27) WAV files in the MUSIC folder will be shown.

5. Select a WAV file to import.

o Turn the MULTI JOG dial to select a WAV file. o Press the MULTI JOG dial when a folder is selected to show its contents. o Press the F1 button to return to the MENU Screen. o Press the F2 button to move up one level.

6. Press the F4 button.

A confirmation message will appear if the bit length of the WAV file to be imported differs from the current song. Confirmation message example o Press the F1 button to return to the TRACK IM- PORT screen. o Press the F4 button to continue to the TRACK IMPORT screen. In this case, the file will be imported and the bit length will be changed to match the cur- rent song. NOTE i If there are no openings for tracks to import, an “Import er- ror. No track” pop-up message will appear. i To cancel importing a track, press the F1 button. i Importing is not possible under the following conditions.

• Not enough open space is available on the SD card

• There are no empty tracks

• If the sampling frequency of the WAV file you are trying to import differs from the current song Example: Trying to import a 48kHz WAV file when the current song is 44.1kHz i If there is no file that can be imported, a “No File” pop-up message will appear. i If the imported WAV file is stereo, selection will be of two con- secutive tracks. It cannot be put into a single mono track.

7. Select the track to import, and press the F4 button to

import it. When importing completes, the TRACK IMPORT Screen reopens. NOTE i Press the F1 button to cancel importing. i The part of the track imported before canceling will remain; it will not be deleted.44 TASCAM Model 24 7 – Track editing Mixing down A mixdown is when the volume, panning and other settings of individual track recordings are adjusted and combined into a well-balanced stereo mix. The MAIN MIX L/R bus does not have a REC button, but it is always in recording standby. Pressing the 0 button always records the signals on this bus. By mixing down with the desired adjustments after recording, stereo mix files can be created from the track audio recorded on each channel.

1. Adjust the recorded sound and play it back.

o Set the MODE switches of the recorded tracks to“ MTR”. o Turn on the MAIN switches of the recorded tracks. (Turn off the MAIN switches of unrecorded tracks.) o While using speakers or headphones, for example, to lis- ten to the sounds of all the recorded tracks being output from the MAIN OUTPUT jacks, adjust the channel faders and EQ and PAN knobs. After confirming, stop playback at the beginning of the song.

2. Mix down the playback sound.

o With the REC buttons off (unlit) on each channel, press the 0 button to create a stereo mix from the playback sounds of all the recorded tracks. o During mixdown, all fader and EQ and PAN knob adjust- ments will be recorded from the time that the 0 button is pressed and track playback is started until the 8 button is pressed to stop playback. This will overwrite the existing stereo file. Stereo mix export function MAIN MIX L/R bus recording files (mono) can be converted to a single stereo file. Converted stereo files are saved in the “MUSIC” folder. Saved files are named according to the song name. For example, the file name will be “181228_0002_2-MIX_01.wav” if the song name is “181228_0002”. If the size of the converted file would exceed 2 GB, multiple files will be created with numbers like “02” and “03” at their ends.

1. Load the song to be exported as a stereo mix in advance.

For details about loading songs, see “Loading Songs” on page 33.

2. When the recorder is stopped, open the MENU screen and

4. Press the F4 button to start conversion.

NOTE i If a converted file already exists, a message to confirm over- riding appears. Press the F3 button to delete the existing file and start conversion. This operation cannot be undone. i Conversion is not possible if no MAIN MIX L/R bus file has been recorded. The message shown below will appear. i During conversion, press the F1 button to cancel conversion. A file with the part converted before canceling will remain.

5. When conversion completes, the MENU Screen will reopen.

NOTE Converted files can be played using this unit’s SD PLAY mode. For details about playback with the SD PLAY mode, see “Play- ing WAV files on SD cards (SD PLAY mode)” on page 48.TASCAM Model 24

Marks can be used to cue for playback, for example. In addition to use with this unit, mark information added to WAV files can be used with software, for example, that supports the BWF format. NOTE The mark function cannot be used with songs created on a Model 24 running firmware version 1.32 or older. Using mark functions In order to set and clear marks, the Home Screen F4 button function must be switched from to .

4. Press the MULTI JOG dial to confirm the setting.

The KEY FUNCTION Screen reopens. NOTE When the F4 button function has been changed, the built in effect can be turned on/off with the F3 button on the EFFECT Screen. (See “Using the built-in effects” on page 38) Adding marks When playing or recording, press the F4 button to add a mark at the current point. When a mark is added, a pull-up showing the mark number appears at the bottom of the display. Mark icons appear below the playback position bar where marks are set. 0 The [ xx ] in the mark name is a number given to all marks that is incremented in order. 0 Marks added during recording will automatically be saved in the song when recording stops. 0 Marks added during playback will not be automatically saved. Save song information after stopping playback to save mark data. (See “Saving the current song” on page 33) NOTE If an icon appears at the beginning of a song name, it has unsaved mark data. Save the song information to save the mark data. (See “Saving the current song” on page 33) Moving between marks When stopped, paused or playing back, press the m or , button to move (skip) to the previous or next mark. When skipping, the mark name appears in a pull-up at the bot- tom of the display. Clearing individual marks Marks can be cleared when stopped or paused.

1. Skip to a mark that you want to delete when stopped or

paused. (See “Moving between marks” on page 45)

3. Press the F4 button to clear the mark.

NOTE i Repeat steps 1 - 3 to clear multiple marks. i To clear all marks in the current song, select the CLR ALL MARKS item from the menu list shown on the SONG Screen. (See “Clearing all marks” on page 33)46 TASCAM Model 24 9 – Settings and Information Viewing information Use the INFORMATION screen to view various types of informa-tion about the unit. Follow the procedures below to view the INFORMATION screen.

1. On the SYSTEM Screen, select INFORMATION to open the

Information Screen. (See “Menu operation procedures” on page 27)The Information Screen has 3 pages. The CARD page opens first.

2. Turn the MULTI JOG dial to cycle through the CARD, SONG

and FIRMWARE screens.CARD ScreenShows the use status of the currently loaded SD card.SONG ScreenShows the number of songs on the loaded SD card.FIRMWARE ScreenShows the unit’s system firmware version.

3. Press the F1 button to return to the MENU Screen.

CARD Screen The CARD Screen shows the status of the currently loaded SD card. TOTAL SIZE Shows the total amount of space on the SD card. USED SIZE Shows the amount of space used on the SD card. REMAIN SIZE Shows the amount of space unused on the SD card. SONG Screen The SONG Screen shows the use status of the MTR folder. TOTAL SONG This shows the total number of songs in the MTR folder. FIRMWARE Screen The FIRMWARE Screen shows the firmware version. VERSION This shows the system firmware version of this unit. Setting the song name format Set the name format used by the unit for created songs.

1. On the SYSTEM Screen, select SONG NAME to open the SONG

NAME Screen. (See “Menu operation procedures” on page 27)

2. Set the file name format.

Option MeaningDATE (default)Use the date for the song name.(Example: 180101_0001) WORD Use the 6-character song name set on the EDIT screen.(Example: TASCAM_0001) NOTE The date is set using the unit’s internal clock. (See “Setting the built-in clock date and time” on page 31) Setting the WORD item To set the characters, select WORD on the TYPE Screen. An EDIT item will appear on the SONG NAME Screen that can open the WORD EDIT Screen. For details about how to set characters, see “Editing text” on page 34.TASCAM Model 24

9 – Settings and Information Setting MIDI time code operation When connected to a computer, this unit can send MIDI time code (MTC) as a USB MIDI device. When MIDI time code is enabled, it sends quarter-frame messag- es during playback and recording. It sends full messages when locating. A DAW, for example, can be set to synchronize with the MIDI time code from this unit so it can operate in time with the recorder of this unit. For details, check the operation manual of that application being used.

1. When the recorder is stopped, on the SYSTEM Screen, select

This opens the MODE Screen.

3. Turn the MULTI JOG dial to set MIDI time code operation.

Option Meaning OFF (default) MIDI time code is not transmitted. MTC MASTER MIDI time code is transmitted. NOTE The MIDI time code frame type sent by this unit is 30 frames per second (non-drop). Restoring factory default settings You can restore the various settings stored in the memory of the unit to their factory default values. Use the following menu procedures to do so.

3. When the setting completes, the SYSTEM Screen will reopen.

NOTE i Press the F1 button to cancel execution. i The date and time setting is not initialized. Formatting SD cards Formatting erases all music files on the SD card and automati- cally creates new MTR, MUSIC and UTILITY folders as well as a tascam_m.sys file. ATTENTION i Formatting an SD card erases all the data on it. This cannot be undone. i Always use this unit to format media to be used with it. Op- eration of this unit might be affected when using an SD card that has been formatted by a computer or other device.

1. On the SYSTEM Screen, select MEDIA FORMAT to open the

MEDIA FORMAT Screen. (See “Menu operation procedures” on page 27) QUICK: Execute quick formatting. ERASE (Recommendation): Erase and format the card.

3. Press the F4 button to start formatting.

4. When formatting is complete, the SYSTEM Screen will

reopen. NOTE i Pressing the F1 button during an ERASE format will cancel erasure and execute a QUICK format instead. i The writing speeds to SD cards and other storage media that use flash memory tend to decrease after writing occurs repeatedly. If the writing speed decreases, this could have a negative impact on recording. Using the ERASE function of this unit should restore the writ- ing speed of the SD card.* For this reason, we recommend using the ERASE function at the following times. o Whenever the card has been written to until it became completely full o On a regular schedule (about once per month) o Before starting important recordings

• Writing speed might not be restored depending on the SD card condition (including malfunction and age).48 TASCAM Model 24 9 – Settings and Information Playing WAV files on SD cards (SD PLAY mode) The WAV files in the MUSIC folder on an SD card can be played back. (See “Loading WAV files from a computer” on page 50) To play files recorded on this unit, use the stereo mix export function to convert the recorded (mono) files to a single stereo file. Then, use the SD PLAY mode to play it. (See “Stereo mix export function” on page 44) The following audio file formats can be played back in SD PLAY mode. WAV: 44.1/48kHz, 16/24-bit BWF: 44.1/48kHz, 16/24-bit NOTE Playback signal is sent from channels 21 and 22.

1. Set the channel 21/22 MODE switch to “MTR”.

2. Set the channel 21/22 MON 1/MON 2 and BAL knobs and

the channel fader to their middle positions.

3. Open the SD PLAY Screen when the recorder is stopped.

(See “Menu operation procedures” on page 27)

4. Select a file to play back.

o Turn the MULTI JOG dial to select a WAV file. o Press the MULTI JOG dial when a folder is selected to show its contents. o Press the F1 button to return to the MENU Screen. o Press the F2 button to move up one level. NOTE Only WAV files can be played back. Unsupported files will not be shown.

5. Press the F4 button or 7/9 button to start WAV file

playback. The SD PLAY Screen will show playback status. o Press the F1 button to return to the file selection screen. o Press the F2 button to turn the repeat playback function on and select the repeat playback mode. Display Meaning No indicator The folder that contains the currently playing WAV file will play back, and then playback will stop. The currently playing WAV file will play back repeatedly. The folder that contains the currently playing WAV file will play back repeat- edly. o Press the F3 button to skip to the beginning of the WAV file. Press near the beginning of the WAV file to skip to the beginning of the track before it. o Press the F4 button to skip to the beginning of the next WAV file.

6. Press the F1 button twice to return to the MENU

10 –Using a computer to transfer data By connecting this unit with a computer using a commercial- ly-available USB cable, you can back up song data on the SD card in the unit to the computer, as well restore backed up song data to the unit. You can also export track and stereo master files from songs to the computer and import audio files from the computer. Backed up data can be restored to other Model 24 units. Since this allows you to freely move files between Model 24 units, you can easily conduct additional recording or mixing at different locations. ATTENTION You can conduct the same operations by removing the SD card from the unit and connecting it directly to a computer or by using a card reader instead of using USB to connect the unit and the computer. Turn the unit’s power off or stop operation before removing the SD card. This unit can transfer the following data to a computer. Entire songs This unit can transfer all the data for a song from the MTR folder to a computer. This operation is called “backing up”. Data backed up to a computer can also be transferred to the MTR folder, and restored as a song file. This operation is called “restoring”. ATTENTION Do not change names, delete or otherwise alter individual files inside the MTR folder. Doing so could prevent loading data as a song and make proper recording and playback operations impossible. WAV files By placing WAV files from the computer into the MUSIC folder, you can import them to song tracks. Moreover, WAV files in the MUSIC folder can be played back in SD PLAY mode. Connecting with a Computer You cannot use this unit’s recording, playback and other record- er functions when it is connected to a computer by USB. To connect with a computer, use a Type-A to Type-B USB2.0 cable to connect the USB port on the back of this unit to a USB port on the computer. The USB cable can be connected either before or after turning this unit on.

1. Use a USB cable (Type-A to Type-B) to connect the comput-

er to this unit’s USB port. ATTENTION i If using this unit as external storage media with a computer, recorder functions, including recording and playback, cannot be used when in USB storage mode. i The unit should be connected directly with the computer instead of via a USB hub. Moreover, noise could be picked up if the cable is too long.

2. On the MENU Screen, select STORAGE to open the STORAGE

Screen. (See “Menu operation procedures” on page 27)

3. To connect with the computer, press the F4 button.

The unit enters USB storage mode and connects with the computer. Make sure that the SD card is inserted properly.

4. This unit appears on the computer as an external drive

named “TASCAM_M” (if the card was formatted by this unit). NOTE Follow these procedures to open This PC. Windows 10 Left-click the Windows Start button, and from Windows System select PC. Windows 8.1 Left-click the Windows Start button, click the down arrow icon on the Start screen, and select This PC under Win- dows System in the application list. Windows 7 Left-click the Windows Start button, and select Computer in the Start menu.50 TASCAM Model 24 10 –Using a computer to transfer data

5. Click the TASCAM_M drive on the computer to show the

MTR, MUSIC and UTILITY folders. ATTENTION i This unit receives power through its power cord. It cannot be powered by USB. i Do not disconnect the power cord or turn off the power during data transfer. Data will be lost if the power is inter- rupted during transfer. Lost data cannot be restored. i Do not change the names of folders in TASCAM_M. NOTE i Do not change names, delete or otherwise alter individual files inside the MTR folder. i The UTILITY folder is used when updating the unit system, for example.

6. Press the F1 button to return to the Meter Screen.

Disconnecting Before disconnecting the USB cable, use the proper procedures for your computer to unmount the unit (as an external drive). See the computer’s operation manual for instructions about how to unmount an external volume. Press the F1 button to disconnect from the computer and return to the Home Screen. Loading WAV files from a computer

1. Use a USB cable (Type-A to Type-B) to connect the comput-

er to this unit’s USB port. (See “Connecting with a Comput- er” on page 49)

2. Click the “Model 24” drive on the computer to show the

MTR, MUSIC and UTILITY folders.

3. Drag and drop files on the computer that you want to trans-

fer to the unit to the MUSIC folder. ATTENTION i The UTILITY folder is used when updating the unit system, for example. i Do not change names, delete or otherwise alter individual files inside the MTR folder. Doing so could prevent loading data as a song and make proper recording and playback operations impossible. TIP i You can manage the content of MTR or MUSIC folders from the computer. i You can create subfolders in the MUSIC folder up to the second level for use with this unit. The Model 24 cannot recognize sub-folders and files located at the third layer level or below.TASCAM Model 24

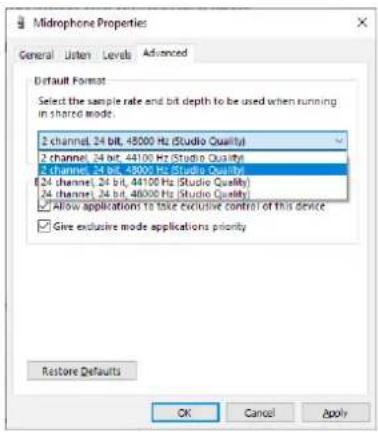

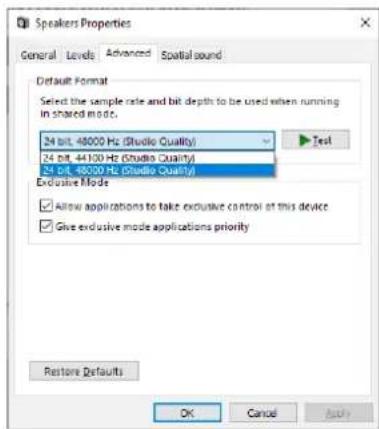

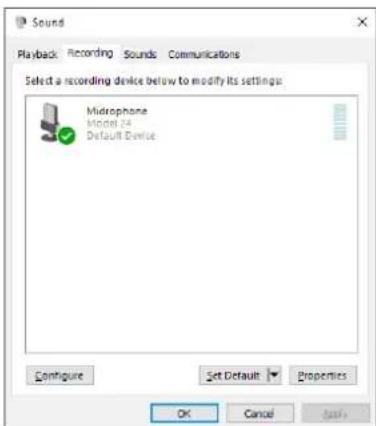

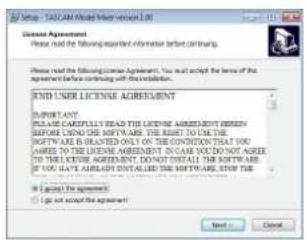

11 – USB audio interface functions Installing the dedicated software To use this unit as a USB audio interface with a Windows com-puter, dedicated software must be installed on the computer.Download the latest software from the product page on the TEAC Global Site (http://teac-global.com/).Installing the dedicated software will install a driver and a Set-tings Panel application.ATTENTIONBefore starting to install software, quit other applications. NOTE With a Mac, the standard OS driver will be used, so instal-lation of dedicated software is not strictly necessary. We recommend installing this software, however, because it has a notification function about updates for the unit firmware and software. Installing the Windows dedicated soft- ware Follow the procedures below to install the Windows dedicated software.ATTENTION i Complete installation of the Windows dedicated software on the computer before connecting the unit to it with the USB cable. i If you connected the unit to the computer using the USB ca-ble before installing the Windows dedicated software and the “Found New Hardware Wizard” launched, close the Wizard and disconnect the USB cable. Windows dedicated software installation procedures

1. Download the latest Windows dedicated software from the

TEAC Global Site (http://teac-global.com/) and save it on the computer to be used with the unit.

2. Uncompress the saved software (zip file) on the computer

desktop or another location.

3. Double-click the “TASCAM_Model_Mixer_Installer_x.xx.exe”

file in the folder that appears after uncompression to launch the installation software.ATTENTIONIf you open a zip file without decompressing it and dou-ble-click the “TASCAM_Model_Mixer_Installer_x.xx.exe” file in the folder that opens, installation will not start. Right-click the zip file and select “Extract All”, for example, to decom-press it and then try again.

4. When a Security Warning or User Account Control screen

appears, click the Yes button.

5. Read the contents of the User License Agreement, and se-

lect “I accept the agreement” if you agree to the terms. Then, click the Next > button.

6. Next, click the Install button.

8. The following screen appears when installation has com-

pleted.Click the Finish button.The installer will quit and the Windows Settings Panel will launch. NOTE The first time you connect the unit by USB to the computer after installing the software, installation of the device driver will be executed. Some time might be necessary before the unit is recognized because Windows Update will be automat-ically searched at this time. If the unit is still not recognized after a while, open the software installation screen from the notification area at the bottom right of the computer dis-play, and click “Skip obtaining driver software from Windows Update” to stop the search.52 TASCAM Model 24 11 – USB audio interface functions Installing the Mac dedicated software NOTE i Install the Mac dedicated software on the computer before connecting the unit to it with the USB cable. i Depending on the Gatekeeper setting, a warning message might appear during installation. Please see “Working with Gatekeeper” on page 52 for information about Gatekeeper. Mac dedicated software installation proce- dures

1. Download the latest dedicated software for the operating

system you are using from the TEAC Global Site (http://teac-global.com/) and save it on the computer to be used with the unit.

2. Double-click “TASCAM_MODEL MIXER_Installer_x.xx.dmg”,

which is the saved disk image file for the Mac dedicated software, and double-click “ModelMixer_Installer.pkg” inside the folder that opens. NOTE Depending on the computer’s settings, the downloaded zip file might not have been uncompressed automatically. In this case, uncompress the zip file first and then double-click the disk image file.

3. When the installer starts, click the “Continue” button.

4. Next, select the desired language and click the “Continue”

5. Click the “Read License” button and check the contents of

the Software License Agreement. If you agree to the con-tents of the license, click “Agree”.Then, click the “Next” button.

6. Next, click the “Install” button to start installation.

7. The following screen appears when installation has com-

pleted.Click the “Close” button. Working with Gatekeeper When using macOS, depending on the Gatekeeper security function setting, a warning message might appear during installation.The solution depends on the warning message shown.See the following explanations for details. When the Gatekeeper setting is “Allow ap- plications downloaded from: the Mac App Store” The following security warning might be shown: “‘ModelMix-er_Installer.pkg’ can’t be opened because it was not down-loaded from the Mac App Store.”In this case, click the “OK” button to close the message. Then, control-click (or right-click) the file and click “Open” in the menu.TASCAM Model 24

When the “‘ModelMixer_Installer.pkg’ can’t be opened be- cause it was not downloaded from the Mac App Store. Are you sure you want to open it?” security warning message appears, click the “Open” button. This warning message might also appear when the Gate- keeper setting is something other than “Allow applications downloaded from: the Mac App Store.” The following security warning might be shown: “ModelMix- er_Installer.pkg” can’t be opened because it was not down- loaded from the Mac App Store. In this case, copy the file from the folder where it is to the desktop or another folder, and then open it. Alternatively, change the Gatekeeper settings to “Allow apps downloaded from: App Store and identified developers” and try opening it again. When the Gatekeeper setting is “Allow ap- plications downloaded from: the Mac App Store” “‘TASCAM_MODEL MIXER_Installer_x.xx.dmg’ is an application downloaded from the Internet. Are you sure you want to open it?” might appear as a security warning message. In this case, click the “Open” button. Changing the Gatekeeper setting The Gatekeeper setting can be changed using the “Allow applications downloaded from:” item on the “General” page of the “Security & Privacy” pane of the System Preferences. To change this, you must click the lock icon ( ) at the bottom left and enter a password to unlock the settings. This setting will lock again when you close the System Pref- erences by clicking the button or typing command-Q, for example, or when you click “Show All” to close the open pane. ATTENTION Changing the Gatekeeper settings could result in security risks. If you changed the Gatekeeper setting to decrease security (use one of the lower settings), set it back to the original setting after updating the driver and/or firmware. 11 – USB audio interface functions54 TASCAM Model 24 Uninstalling the dedicated software NOTE Normally, there is no need to uninstall the dedicated soft- ware. Follow these procedures if a problem occurs or you no longer intend to use the unit with the computer. Uninstalling the Windows dedicated soft- ware

1. Open the “Uninstall or change a program” screen using the

procedures for the operating system being used (Windows 10/Windows 8.1/Windows 7).

2. Select “TASCAM Model_Mixer x.xx” from the list, and dou-

3. Then, follow the instructions that appear on the screen.

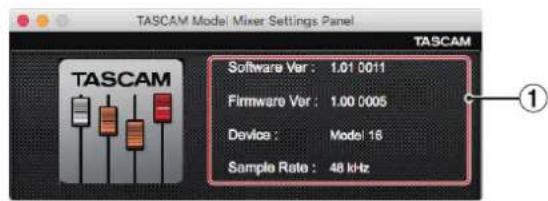

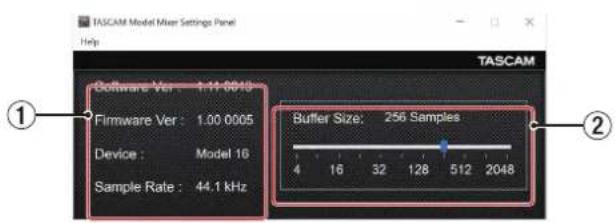

Uninstalling the Mac dedicated software Delete “TASCAM Model_Mixer” from the Application folder to complete uninstallation. Opening the Settings Panel Open the Settings Panel in the following manner. Windows 0 From the “Start” menu select “TASCAM Model Mixer” under “TASCAM”. Mac 0 On the Launchpad, click “TASCAM Model Mixer”. 0 Using the Finder, open the Applications folder and click “TAS- CAM Model Mixer” to open the Settings Panel. 0 In the Audio Devices window of the Audio MIDI Setup appli- cation, control-click (right-click) “TASCAM Model Mixer”. Alter- natively, click the button and click “Configure device…” from the menu that appears to open the Settings Panel. Notification function If the computer you are using is connected to the Internet, the latest information about unit firmware and software, for exam- ple, can be shown when the Settings Panel is launched. NOTE Put a check in the “Do not show the same message again” checkbox to prevent the same message from being shown the next time it is launched. Settings Panel overview Windows Settings Panel Mac Settings Panel 1 Status display area This shows the current status of the software. Item displayed Meaning Software Ver This is the software version. Firmware Ver This is the firmware version used by the connected unit. Device This is the name of the connected unit. (No Device is shown when no device is connected.) Sample Rate This shows the sampling frequency of the current song. If an SD card is not loaded, this shows the sampling frequency set by the computer. 2 Buffer Size (Windows only) You can adjust the size of the buffer used to handle the audio input and output signals transferred to and from the com- puter. Smaller buffer sizes result in less audio signal delay (latency), but require high-speed processing by the computer. If the processing cannot keep up, for example, due to other system operations, clicking and popping noises might occur and the audio signal might even drop out. Increasing the buffer size will stabilize operation and sup- press negative effects on audio signals, but the delay in audio signals sent to the computer will increase. You can use the slider on the panel to adjust the buffer size for this unit according to the use conditions. Options 4, 8, 16, 24, 32, 64, 128, 256 (default), 512,1024, 2048 11 – USB audio interface functionsTASCAM Model 24

2. Double-click Sound in the Control Panel.

NOTE If the Control Panel is set to be viewed as icons, a Sound icon will appear.

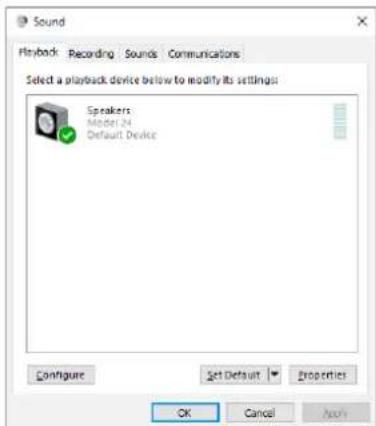

3. On the Playback page, right-click Model 24, and click Set as

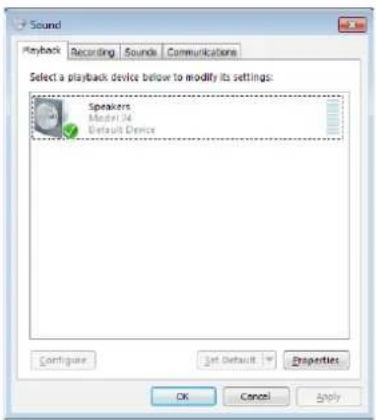

Default Device in the pop-up menu that appears. When you do this, the green check mark appears next to the selected device. Windows 7 screen NOTE Set the default device according to the ASIO device being used on the Recording tab in the same manner as on the Playback tab.

4. After completing the setting, click the OK button.

5. Launch Windows Media Player and start playback to input

the playback sound from the computer to channels 1 and 2 on the Model 24. (MODE switches: PC) NOTE i If you change the setting while Windows Media Player is running, the software will not recognize that the device has been changed. In this case, restart Windows Media Player. i If you still cannot hear sound after making the settings and completing the procedures above, restart the computer. i If you make this setting, sound will be output through this unit, but no sound will be output from the computer’s speak- ers or headphone jack. Simultaneous ASIO/WDM playback The driver for this unit can simultaneously play ASIO output from a DAW and WDM output from Windows Media Player, for example. The sample rates of both sources must be set to the same value for simultaneous playback to be possible. Moreover, the sample rate must also be set to the same value for both playback and recording in the Windows Sound Properties. When the sample rates are the same Example: Windows (WDM) at 44100 Hz, ASIO at 44100 Hz The Windows audio and ASIO sound are mixed and played simultaneously. When the sample rates are different Example: Windows (WDM) at 48000 Hz, ASIO at 44100 Hz Only sound from a DAW and other ASIO sources are output. Sound from Windows Media Player and other WDM sources are not output. When the DAW is shut down, for example, and output from ASIO sources stops, sound from Windows Media Player and other WDM sources will become audible.56 TASCAM Model 24 11 – USB audio interface functions USB audio mode The sound input to the computer can be changed to allow the MAIN MIX L/R bus signal to be sent to communication applica-tions and streaming software.

1. When the recorder is stopped, select USB AUDIO on the

SYSTEM Screen, and open the USB AUDIO Screen. (See “Menu operation procedures” on page 27)

2. Turn the MULTI JOG dial to set USB audio mode.

Option MeaningMULTI INPUT (default)The inputs of channels 1–12, 13/14–21/22 and the output of the MAIN MIX L/R bus are input to USB channels 1–24.STEREO MIXThe output of the MAIN MIX L/R bus is input to USB channels 1–2. Setting procedures for use with OBS Stu- dio and other streaming applications Conduct the procedures in this document before launching the streaming application. Model 24 unit settings ATTENTIONThe following content is supported by Model 24 firmware V1.60 and later. If using a firmware version older than V1.60, update it to use these features. (See “FIRMWARE Screen” on page 46)Set the MODEL 24 USB audio mode to STEREO MIX. (See “USB audio mode” on page 56) NOTE The MAIN fader does not affect streamed audio. To enable use of a fader, turn on the MAIN switch (SUB) and use the SUB bus fader. 0 For Macs, the above settings make use with streaming appli-cations possible. Windows computer sound settings Set the input and output device, sampling frequency, bit rate, and number of channels according to the setup.

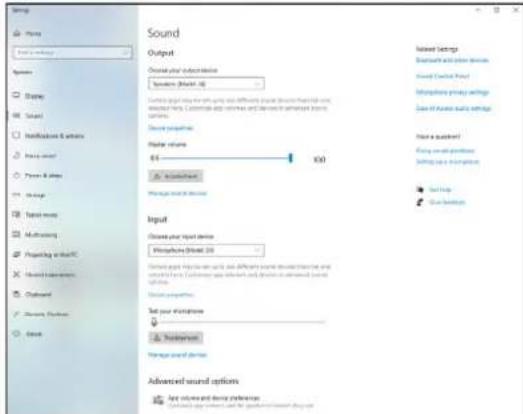

1. Open the Sound Settings screen.

NOTE This can also be opened by right-clicking the sound icon at the bottom right of the desktop screen, selecting “Open Sound settings” and then selecting “Sound”.

2. Set the output device to “Speakers (Model 24)”.

3. Set the input device to “Microphone (Model 24)”.

4. Click “Sound Control Panel” to open the Sound window.

5. Open the Recording tab, and select “Model 24”.

6. Click “Properties” for “Model 24” to open the Microphone

o Select a 2-channel setting when using OBS Studio or another application that supports 2-channel audio devices. Otherwise, select a 24-channel setting. o Select the sample rate according to the sample rate of the song loaded in the unit. Any sample rate can be used when not loading a song.

8. Open the Playback tab, and select “Speakers (Model 24)”.

9. Click “Properties” for “Speakers (Model 24)” to open the

Set the sample rate and bit depth for the Default Device on the Play tab to the same values set on the Record tab.

11. Launch the streaming application, and proceed with

streaming and other functions.

12. After completing streaming, restore the settings to multi-

channel to use multiple channels with other applications as necessary. o In step 1, set the USB audio mode to MULTI INPUT. o In step 7, set the Microphone Properties to 24-channel.58 TASCAM Model 24 12 – Messages The following is a list of messages that appear in pop-up windows. Refer to this list if one of these pop-up messages appears on the Model 24 and you want to check the meaning or determine a proper response. Message Meaning and response Card Error The SD card cannot be recognized properly. Replace the SD card. Card Full The SD card has no remaining capacity. Erase unnecessary files or transfer them to a computer. Dup File Name A file with the same name already exists. Change the file name. File Not Found The file cannot be found or the file may be damaged. Check the relevant file. No sys file Make sys file The system file is missing. This unit requires a system file for operation. When this message appears, press the MULTI JOG dial to create a system file. Song Protected This operation is not possible because the song is protected. Remove protection. Invalid Card Change Card Something might be wrong with the SD card. Change the SD card. I/O Too Short The time between the punch in and out points is too short. Set them with at least 1 second between them. MBR error Init card The SD card is not formatted properly or the card is broken. Change the SD card or press the MULTI JOG dial while this message is being shown to format the card. Formatting will erase all the data on the SD card. No Card A SD card is not set. Insert a recordable SD card. Non-supported The file format is not supported. Please see “Playing WAV files on SD cards (SD PLAY mode)” on page 48 for file formats that this unit can use. Card Protected The SD card is write-protected. Disable SD card write-protection. USB Fs mismatch The sampling rate of the current song and the USB audio interface are not the same. Change the sampling rate of one so that they are the same. Current Song The current song cannot be deleted. To delete the current song, load another song first. Invalid I/O point The punch in/out point settings on the AUTO PUNCH Screen are not set correctly. Automatic punching in/out occurred at an invalid position for the punch in or out point. Start the automatic punch operation from a valid point. Write error REC continue Writing to the SD card timed out. This has caused audio to be interrupted and noise to occur. REC stop Card slow Writing to the SD card timed out, and recording stopped. SD card writing performance has become worse. Execute the erase format function or change the SD card. Need to set I/O point. Neither the punch in or out points are set for the automatic punch in/out function. Either the punch in or out point must be set. Sample rate Unmatch The sampling frequency of the WAV file to be imported does not match the current song. Select a WAV file with the same sampling frequency as the current song or convert the sampling frequen- cy before importing. Remain time is not enough The SD card does not have enough open space, so importing is not possible. Erase unnecessary files or transfer them to a computer. 8 track punch in limit The maximum number of tracks for punch in recording is eight. Press REC buttons to reduce the number of recording tracks to eight or less. Song is not loaded No song is loaded. Create a new song or load a song. Song number full The maximum number of songs that can be created on an SD card is 100. Erase unnecessary songs. SD PLAY: cannot record SD PLAY mode is for playback only. Recording is not possible. SD CARD cluster size error Recording is not possible because the SD card cluster size is not right. Back up the contents of the SD card on a computer and then format it with this unit. Then, restore the data from the computer. Import error. No track Importing is not possible because there are no open tracks. Use TRACK CLEAR to clear a track. (See “Clearing tracks” on page 43) Already protected The selected song is already protected. Already unprotected The selected song is already unprotected.TASCAM Model 24

12 – Messages Message Meaning and response Can't Save Data If any of these errors occurs, turn the unit off and restart it. If these error messages continue to appear frequently, please contact the store where you purchased this unit or TASCAM customer support service. Device Error File Error Not Continued Player Error UNDO not available Writing Failed Sys Rom Err System Err XX (XX is a number.)60 TASCAM Model 24 13 – Troubleshooting If you are having trouble with the operation of this unit, please try the following before seeking repair. If these measures do not solve the problem, please contact the store where you bought the unit or TASCAM customer support service. The unit will not turn on. 0 Confirm that the power plug and other connectors are insert- ed completely. The SD card is not recognized. 0 Confirm that the SD card is inserted completely. No sound is output. 0 Are the input sources and MODE switches set properly? 0 Are that channel faders raised to suitable levels? 0 Is the MAIN fader raised to a suitable level? 0 Is a monitoring system correctly connected to the PHONES jack or CONTROL ROOM L/R jacks? Is the monitoring system set up correctly? 0 Is the PHONES knob or CONTROL ROOM knob place to a suitable level? 0 Is the SD MAIN MIX RETURN switch on (pushed in, during playback of anything other than a stereo master file)? The sound I want to record is distorted 0 Are the channel GAIN knobs set too high? Are the input source levels to high? 0 Is the EQ set too high? 0 Are any channel faders or the MAIN fader raised too high? 0 Is the monitoring level too high, causing the monitoring system to distort? Noise occurs when a passive guitar or bass is connected directly 0 Connecting another device to the unit’s SUB OUTPUT jacks (stereo output) could reduce noise. 0 It could be affected by interference noise from another device, for example. If a power amplifier or other device with a large transformer, or a fluorescent light, for example, is nearby, changing the distance or orientation of such devices could reduce noise. Playback is not possible. 0 If you are trying to play a WAV file, confirm that it uses a sam- pling frequency (44.1/48 kHz) and a bit depth (16/24-bit) that are supported by this unit. There is noise. 0 Confirm that the connection cables do not have contact issues. Sound via Bluetooth breaks up or is noisy. 0 Are there any wireless LAN devices, other Bluetooth devices, microwave ovens or similar equipment nearby? Keep such devices as far away as possible during use. 0 Try reducing the distance between this unit and the other Bluetooth device. Try changing the positions of this unit and the other Bluetooth device. 0 The operation of apps other than for music playback on the smartphone could cause the sound to break up. In this case, stop operation of apps other than the one used for music playback. Cannot connect or communication is inter- rupted when using Bluetooth. 0 Confirm that the other Bluetooth device power is on and that its Bluetooth function is on. 0 Confirm that the other Bluetooth device is not too far away. Are there walls or other obstacles, for example, between this unit and the other Bluetooth device? Try changing the positions of this unit and the other Blue- tooth device. 0 Turn OFF and restart the Model 24. 0 Remove the “Model 24” pairing record from the other Blue- tooth device, and try pairing the unit with that Bluetooth device again. (See “Connecting with Bluetooth devices” on page 29) Cannot pair with another Bluetooth device. 0 Confirm that the other Bluetooth device supports A2DP. 0 Confirm that the other Bluetooth device is in a state that allows transmission. For details, check the operation manual of that Bluetooth device. 0 Turn the power off for both this unit and the other Bluetooth device once, turn them both on again and try pairing them. 0 Turn off Bluetooth devices other than the one that you are trying to pair with. 0 Remove the “Model 24” pairing record from the other Blue- tooth device, and try pairing the unit with that Bluetooth device again. (See “Connecting with Bluetooth devices” on page 29)TASCAM Model 24

13 – Troubleshooting A computer does not recognize the unit when connected by USB. 0 Has the dedicated software been installed? (See “Installing the dedicated software” on page 51) 0 This unit cannot be used with USB 1.1. Use a USB 2.0 or USB

14 – Specifications Control input/output FOOTSWITCH jack Connector: 6.3mm (1/4”) standard TS jack (Tip: HOT, Sleeve: GND, Unlatch type correspondence) USB port Connector: 4-pin USB B-type Protocol: USB 2.0 HIGH SPEED (480 Mbps) Computer system requirements Check the TEAC Global Site (http://teac-global.com/) for the latest information about supported operating systems. Windows Supported operating systems Windows 10 32-bit Windows 10 64-bit Windows 8.1 32-bit Windows 8.1 64-bit Windows 7 32-bit SP1 or later Windows 7 64-bit SP1 or later (Windows 8, Windows Vista and Windows XP are not supported) Computer hardware requirements Windows computer with a USB 2.0 port CPU/processor speed 2 GHz or faster dual core processor (x86) Memory 2 GB or more ATTENTION Operation of this unit was confirmed using standard com- puters that meet the above requirements. This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions. Mac Supported operating systems macOS Mojave (10.14 or later) macOS High Sierra (10.13 or later) macOS Sierra (10.12 or later) OS X El Capitan (10.11 or later) Computer hardware requirements Mac with a USB 2.0 port CPU/processor speed 2 GHz or faster dual core processor Memory 2 GB or more iOS device Operation has been confirmed with Apple devices running the following iOS versions. iPadOS13 iOS13 iOS12 iOS11 ATTENTION To connect an iOS device that has a Lightning connector, a genuine Apple Lightning to USB Camera Adapter (sold sepa- rately) is necessary. Supported audio drivers Windows ASIO2.0, WDM Mac Core Audio iOS divice Core Audio Audio performance Noise Residual output noise (22kHz, A-weighted) MAIN MIX OFF: -100 dBu MAIN MIX -0dB, 1ch-0dB: -80 dBu Equivalent input noise (EIN) -128 dBu (Rs=150 Ω, MIC IN w INSERT SEND, gain knob at MAX, A-weighted) Total harmonic distortion ratio (THD+N) (gain knob at MIN, 1kHz) MIC IN w MAIN OUT: 0.01% or less MIC IN w MAIN OUT: 0.004% @+4dBu Frequency response (All GAIN knobs minimized, 1 kHz) 20 Hz to 30 kHz (+0.5/–1.0 dB, analog) 20 Hz to 20 kHz (+0.5/–1.0 dB, digital) Crosstalk (PAN knobs turned completely left or right, 1 kHz) Between channels: -80 dB Between input and output: -80 dB Maximum gain (All GAIN knobs maximized, PAN knobs turned completely left or right, EQ knobs and STEREO GRAPHIC EQ faders at middle positions) MIC w MAIN OUT: 74 dB MIC w INSERT OUT: 54 dB MIC w SUB OUT: 74 dB MIC w CONTROL ROOM OUT: 79 dB MIC w MONITOR OUT: 75 dB MIC w FX OUT: 75 dB USB/SD w MAIN OUT: 24 dB Phantom Power +48V64 TASCAM Model 24 14 – Specifications Bluetooth Bluetooth version: 4.0 Output class: 2 (about 10m* unobstructed transmission distance) Supported profile: A2DP Supported A2DP codecs: SBC, AAC Supported A2DP content protection: SCMS-T

• The transmission distance is only an estimate and might vary depending on the surrounding environment and radio wave conditions. Other Power AC100-240V, 50-60 Hz Power consumption 52W Dimensions With side panels

576.0 × 513.0 × 117.4 mm (W x H x D, including protru-

sions) Without side panels

540.0 × 503.0 × 117.4 mm (W x H x D, including protru-

sions) Weight 10kg Operating temperature range 5°C – 35°C 0 Illustrations in this manual might differ in part from the actual product. 0 Specifications and external appearance might be changed without notification to improve the product.TASCAM Model 24

< In the United States > This warranty gives you specic legal rights and you may also have other rights which vary from state to state. This warranty is only valid within the country the unit was originally purchased. WHAT IS COVERED AND WHAT IS NOT COVERED Except as specied below, this warranty covers all defects in materials and workmanship in this product. The following are not covered by the warranty:

1. Damage to or deterioration of the external cabinet.

2. Damage resulting from accident, misuse, abuse or neglect.

3. Damage resulting from failure to perform basic daily

maintenance and/or calibration or otherwise resulting from failure to follow instructions contained in your owner’s manual.

4. Damage occurring during shipment of the product. (Claims

must be presented to the carrier)

5. Damage resulting from repair or attempted repair by anyone

other than TEAC or an authorized TASCAM service station.

6. Damage resulting from causes other than product defects,

including lack of technical skill, competence, or experience of the user.

7. Damage to any unit which has been altered or on which the

serial number has been defaced, modied or is missing.

WHO IS COVERED UNDER THE WARRANTY

This warranty may be enforced only by the original purchaser. This warranty is not valid if the product was purchased through an unauthorized dealer.

All parts except heads and disk drives are warranted for one (1) year from the date of original purchase. Heads and disk drives are warranted for ninety (90) days from date of original purchase. Labor is warranted for ninety (90) days from date of original purchase.

WHAT WE WILL PAY FOR

We will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this warranty.

HOW YOU CAN GET WARRANTY SERVICE

Your unit must be serviced by an authorized TASCAM service station in the United States. (This warranty is not enforceable outside the U.S.) If you are unable to locate an authorized TASCAM service station in your area, please contact us. We either will refer you to an authorized service station or instruct you to return the unit to the factory. Whenever warranty service is required, you must present a copy of the original dated sales receipt from an Authorized TASCAM Dealer. You must pay any shipping charges if it is necessary to ship the product to service. However, if the necessary repairs are covered by the warranty, we will pay return surface shipping charges to any destination within the United States.

LIMITATION OF IMPLIED WARRANTIES

Any implied warranties, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

TEAC’s liability for any defective product is limited to repair or replacement of the product, at TEAC’s option. TEAC shall not be liable for:

1. Damages based upon inconvenience, loss of use of the

product, loss of time interrupted operation or commercial loss; or

2. Any other damages, whether incidental, consequential or

otherwise. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. To locate an Authorized Service Center in Your Area
