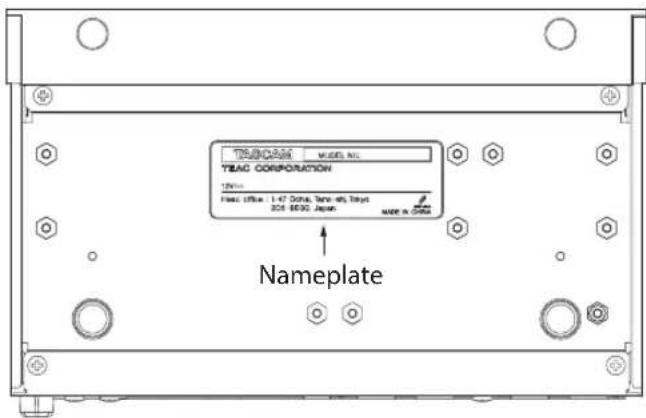

The nameplate is located on the bottom of the unit as shown below.

Front side

TRAC/CAE M.005, No. TEAC CORPORATION 100% Face office: 1.47 GHz, Temp. w/s, Tokyo 326 8530, Japan user in GB Nameplate

Contents

IMPORTANT SAFETY INSTRUCTIONS ....3

Introduction......6

Features......6

Included items 6

Conventions used in this manual ....7

Precautions for placement and use....7

Beware of condensation ....7

Cleaning the unit 7

Using the TEAC Global Site ....7

Product registration....7

About TASCAM customer support service....7

Names of parts....8

Front panel....8

Rear panel....8

Connecting Euroblock plugs (MM-2D-E only)....9

Installing the attachment brackets....10

Installing on or under a desk....10

Overview of settings 10

DSP overview....11

Input channels....11

Mixer....11

Output channels 11

Application overview 12

Notes about Dante 12

Connecting to a Dante network ....12

Switched (daisy chain) connection 12

Using Dante Controller 13

Dante Controller overview 13

Audio routing settings....13

Changing sampling frequencies and bit depths with

Dante Controller....14

Specifications....15

General 15

Input/output ratings....15

Control input/output....15

Audio performance....15

Other 16

Introduction

Thank you very much for purchasing a TASCAM MM-2D-E/MM-2D-X AD/DA Converter.

Before using this unit, read this Owner's Manual carefully so that you will be able to use it correctly and enjoy working with it for many years. After you have finished reading this manual, please keep it in a safe place for future reference.

You can also download this Owner's Manual from the TEAC Global Site (http://teac-global.com/).

Features

● Supports 2 channels of analog line/mic inputs

● Supports 2 channels of analog line/mic outputs

● MM-2D-E: balanced Euroblock model

● MM-2D-X: balanced XLR model

● Mic inputs support phantom power and remote gain control

● Built-in DSP mixer enables a variety of audio processing

● Dante interface included as standard feature

- AES67 (Dante AES67 mode) is also supported, so connection is possible with Ravenna and other network audio technologies compatible with AES67

● Supports daisy-chain connection in Dante switch mode

● Flexible routing is possible using Dante Controller

● Supports PoE (Power over Ethernet)

● Supports power daisy-chaining

● Support for sampling frequencies and bit lengths up to 96kHz and 24-bit

● LEDs for input signal/overload and output signal

● Reference level can be set

● Dedicated remote control application for Windows, Mac, iOS and Android (TASCAM DCP CONTROL)

● Half rack size

Included items

This product includes the following items.

Take care when opening the package to avoid damaging the items. Keep the box and packing materials for transportation in the future.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

● Main unit ....x 1

● Installation brackets....×2

- Euroblock plugs (MM-2D-E only)....×4

● Cable band kit (MM-2D-E only)....× 1

- Owner's Manual (this document) including warranty ....x 1

Conventions used in this manual

In this manual, we use the following conventions:

• When we refer to buttons, connectors and other parts of this unit and other equipment, we use a bold font like this: STATUS indicator.
  ● As necessary, additional information is provided under TIP, NOTE and CAUTION headings.

TIP

These are tips about how to use the unit.

NOTE

These provide additional explanations and describe special cases.

ATTENTION

Failure to follow these instructions could result in damage to equipment or lost data, for example.

CAUTION

Failure to follow these instructions could result in injury.

Precautions for placement and use

● The operating temperature range of this unit is 0–40 °C.
- Do not install this unit in the following types of locations.
Doing so could make the sound quality worse or cause malfunction.

Places with significant vibrations

Next to a window or in another location exposed to direct sunlight

Near heaters or other extremely hot places

Extremely cold places

Very humid or poorly ventilated places

Very dusty places

● To enable good heat dissipation, do not place anything on top of the unit.

- Do not place this unit on top of a power amplifier or other device that generates heat.

- When installing this unit on or under a desk, use the included attachment brackets.

● To mount this unit in a rack, use a TASCAM AKRS1 (sold separately).

Beware of condensation

Condensation could occur if the unit is moved from a cold place to a warm place, it is used immediately after a cold room has been heated or it is otherwise exposed to a sudden temperature change.

To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using it.

Cleaning the unit

Use a dry soft cloth to wipe the unit clean. Do not wipe with chemical cleaning cloths, thinner, alcohol or other chemical agents. Doing so could damage the surface or cause discoloration.

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site:

http://teac-global.com/

In the TASCAM Downloads section, select the desired language to open the Downloads website page for that language.

Product registration

Customers in the USA, please visit the following TASCAM website to register your TASCAM product online.

https://tascam.com/us/

About TASCAM customer support service

TASCAM products are supported and warranted only in their country/region of purchase.

To receive support after purchase, on the TASCAM Distributors list page of the TEAC Global Site (http://teac-global.com/), search for the local company or representative for the region where you purchased the product and contact that organization.

When making inquiries, the address (URL) of the shop or web shop where it was purchased and the purchase date are required.

Moreover, the warranty card and proof of purchase might also be necessary.

Front panel

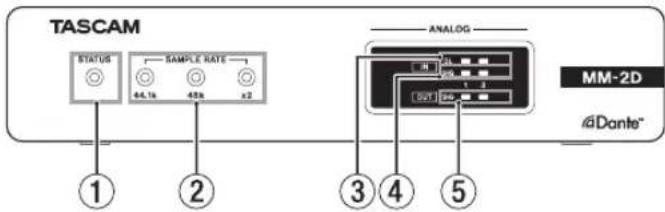

TASCAM STATUS 64.1x 4.0x x2 ANALOG MM-2D @Dante® ① ② ③ ④ ⑤

① STATUS indicator

The STATUS indicator blinks blue under the following conditions.

• When no LAN cable is connected
• When the Dante module is not operating properly

② SAMPLE RATE indicator

The lit/unlit state of the three SAMPLE RATE indicators (44.1k, 48k and ×2) show the sampling frequency status of the unit.

	44.1 kHz 48 kHz x2
44.1 kHz Lit Unlit Unlit
48 kHz Unlit Lit Unlit
88.2 kHz Lit Unlit Lit
96 kHz Unlit Lit Lit

③ OL indicators

These light when analog input signals overload.

④ IN SIG indicators

These light when sound is being input through the analog inputs.

Input is judged to have occurred when the signal level exceeds -60 dBFS.

⑤ OUT SIG indicators

These light when sound is being output through the analog outputs.

Output is judged to have occurred when the signal level exceeds -60 dBFS.

Rear panel

MM-2D-E

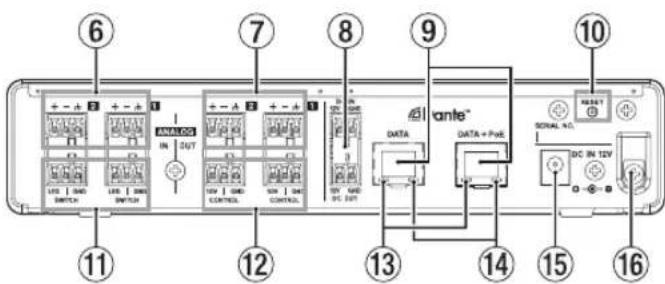

⑥ ⑦ ⑧ ⑨ ⑩ Iante™ DATA DATA + PoE DATA SIGNAL NO. DC IN 12V ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

MM-2D-X

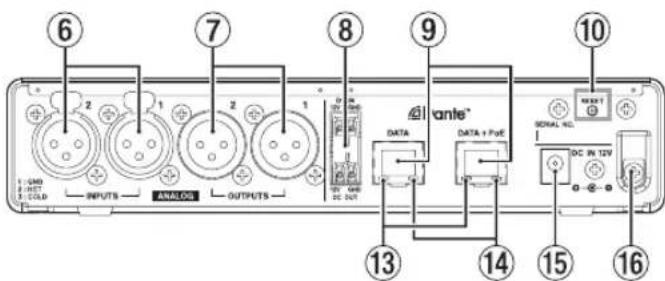

6 7 8 9 10 13 14 15 16 I amle* DATA DATA + PolE DC IN 12V SIGNAL ICL OUTPUTS ANALOGS

⑥ Analog input connectors

MM-2D-E

These are balanced Euroblock analog input connectors. (HOT, COLD, GND from the left)

MM-2D-X

These are balanced XLR analog input jacks. (1: GND,

2: HOT, 3: COLD)

⑦ Analog output connectors

MM-2D-E

These are balanced Euroblock analog output connectors.

(HOT, COLD, GND from the left)

MM-2D-X

These are balanced XLR analog output jacks.

(1: GND, 2: HOT, 3: COLD)

⑧ DC IN/DC OUT connectors

The DC-IN connector is above, and the DC-OUT connector is below. (Left is 12V, and right is GND.)

These connectors are specifically for power daisy-chaining.

ATTENTION

Disconnect the AC adapter before connecting the DC IN and DC OUT connectors.

NOTE

• Power daisy-chaining can be enabled by connecting the DC OUT and DC IN connectors. Power daisy-chaining of up to two units is possible
• When powering by PoE, the first unit in the powerdaisy-chain will not be powered. In this case, use a dedicated PS-P1220E AC adapter (sold separately) to power the first unit in the daisy chain.

⑨ DATA/DATA+PoE connectors

These are Dante transmission connectors.

Use to connect the unit to a Dante network.

Use the DATA+PoE connector when connecting to a switching hub that supports PoE power supply. In this case, use of an AC adapter is not necessary.

Either connector can be used when using a switching hub that does not support PoE power supply.

⑩ RESET button

This resets the settings.

Press and hold for 5 seconds to reset all Dante settings.

Press and hold for 10 seconds to reset all unit settings.

⑪ External control connectors (LED/SWITCH, MM-2D-E only)

LED connectors: These are open collector mute status output connectors.

SWITCH connectors: These are control input connectors. These mute the audio signals from the analog input connectors. These can also be used by operating (short/open) a switch connected between the SWITCH and GND connectors.

GND connectors: These are grounds for the control connectors.

⑫ External control connectors (CONTRO, MM-2D-E only)

By connecting variable resistors between the CONTROL and GND connectors, the selected audio signal levels can be adjusted.

The 10V connectors are for supplying power to variable resistors.

(Left is 10V, center is CONTROL and right is GND.)

⑬ Gigabit link status indicator

Orange indicates that a gigabit Ethernet link has been established.

⑭ Link status/activity indicator

Green indicates that a link is established between the devices.

Blinking indicates that signals are being transmitted between the devices.

⑮ DC IN 12V connector

Connect a PS-P1220E AC adapter (sold separately) here.

⑯ Cord holder

When using a PS-P1220E AC adapter (sold separately), hook its cord here to prevent accidental disconnection.

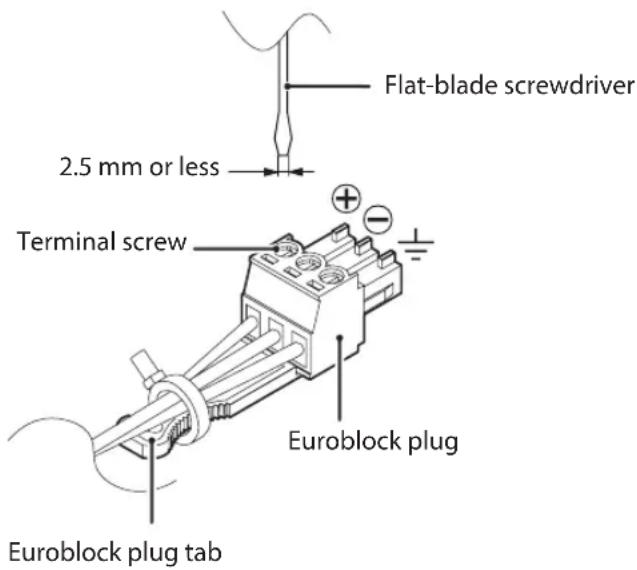

Connecting Euroblock plugs (MM-2D-E only)

Flat-blade screwdriver 2.5 mm or less Terminal screw Euroblock plug Euroblock plug tab

1. Loosen the Euroblock plug terminal screws.

NOTE

Use a flat-blade screwdriver with a width of 2.5mm or less.

1. Insert wires.

NOTE

AWG16–AWG28 wires are compatible with the included Euroblock plugs. Using wires within the compatible range, trim about 7 mm of the protective sheaths from their ends.

1. Tighten the Euroblock plug terminal screws.

NOTE

Confirm that the wires cannot be pulled out.

1. Use an included wire band to attach the wires to the Euroblock plug tab.

Installing the attachment brackets

By installing the included attachment brackets on this unit, you can fix it in place on top of or underneath a desk, for example.

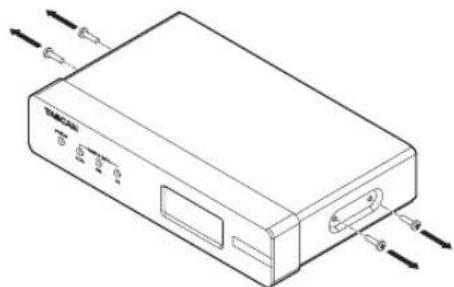

1. Remove the four screws installed in the left and right sides of the enclosure.

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

1. Align the included attachment brackets with the enclosure.

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

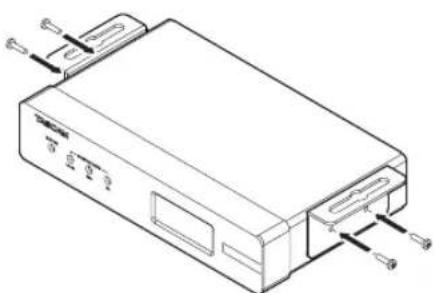

NOTE

When installing this unit on a desk, align the brackets as shown in the illustration below.

Line drawing of a rectangular electronic device with ports and a connector (no text or symbols)

1. Use the four removed screws to install the attachment brackets on the unit.

Technical line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Installing on or under a desk

To install this unit on or under a desk, use 4 commercially-available screws that are suitable for the material and thickness of the desk.

NOTE

The width of the attachment bracket openings is 7.1 mm. See the dimensional diagrams at the end of this manual for details about the attachment brackets.

1. With the two attachment brackets already installed on the unit, align the unit with the desk as desired.
2. Make marks where the screw holes will be made in the desk.
3. Drill pilot holes for the screws in the desk.
4. Attach the unit to the desk with 4 screws.

Overview of settings

Make various settings as necessary according to the connected equipment.

All of the following settings can be made using the dedicated remote control application (TASCAM DCP CONTROL).

Setting mic/line inputs

Gain, pad and trim settings can also be made with the application.

Setting phantom power

Phantom power can be turned on when an external mic that requires it is connected to the unit.

This can be turned on/off independently for each channel.

ATTENTION

• Before making connections, turn this unit and all equipment to be connected off (standby).
• Confirm that phantom power is off before connecting a line-level device to an analog input jack. If you connect a line level device while phantom power is being supplied, that device and this unit could be damaged.
• Do not connect or disconnect mics with the analog input jacks while phantom power is on. Doing so could cause a loud noise and might damage the equipment.
• Turn phantom power ON only when using a condenser microphone that requires phantom power. Turning phantom power on when a dynamic mic or other mic that does not require it is connected could damage this unit and connected equipment.
• When using condenser mics that require phantom power and dynamic mics together, be sure to use balanced dynamic mics. Unbalanced dynamic mics cannot be used when phantom power is enabled.
• Supplying phantom power to some ribbon mics will break them. If you are unsure, do not supply phantom power to a ribbon mic.
• Some condenser microphones will not operate when phantom power is set to 48V.

Setting the reference level

You can set the analog input and output headroom (difference between the maximum and reference levels).

DSP overview

This unit has a built-in DSP mixer. A variety of audio processes suitable for different applications and conditions are available.

All of the following settings can be made using the dedicated remote control application (TASCAM DCP CONTROL).

See the back of this manual for DSP block diagrams.

Input channels

Input polarity setting

Set according to the polarity of the input channel signal.

Compressor

When the input volume exceeds the THRESHOLD level, the input volume is compressed, reducing output volume variation.

Input equalizer

This unit has 4-band equalizers for the input channels.

Use the equalizer to increase or decrease the levels of specific frequency ranges. This can be used, for example, to enhance the sound of individual instruments, to adjust the balance of a wide frequency range and to cut specific unwanted frequencies.

Automatic level control function

When the input sound level is too low or too high, the input level will be increased or decreased automatically to an appropriate level.

Input channel fader

Adjust the level sent to the mix bus.

Input mute

Mute the input channel signal.

Mixer

Matrix mixer

This unit has simple matrix mixer functions.

Ducking function

When a mic signal is input, the ducking function can automatically lower the volume of background music or other sound input through the line input channels.

Ambient noise compensator (ANC) function

The ANC function can measure ambient noise and automatically adjust the volume to make the main sound source easier to hear.

Routing setting

Audio can be routed to multiple output channels through the matrix mixer, the ducking function and the ANC function.

Output channels

Output equalizer

This unit has 10-band equalizers for the output channels. Use the equalizer to increase or decrease the levels of specific frequency ranges. This can be used, for example, to enhance the sound of individual instruments, to adjust the balance of a wide frequency range and to cut specific unwanted frequencies.

Delay function

Use to adjust the delay of output channel signals.

Output channel fader

Use to adjust the level sent to the output jack.

Output mute

Mute the output channel signal.

Output limiter function

This prevents distortion caused by sudden excessive output signal levels.

Output polarity setting

Set according to the polarity of the output channel signal.

Application overview

Using the TASCAM DCP CONNECT remote control application, you can operate the unit from a distance.

For details about the application, please see its Owner's Manual.

You can download the application Owner's Manual from the TEAC Global Site (http://teac-global.com/).

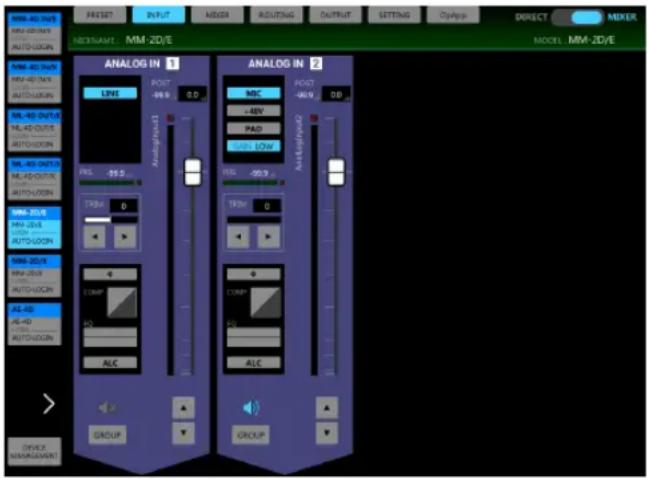

ANALOG IN 1 LINE POST -96.9 D.D. Analog/IN 2 MBC -48V PAD ADC LOW POST -96.9 D.D. Analog/IN 3 TRIM 0 TRIM 0 COMP COMP AUC AUC GROUP GROUP MODEL MM-2D/E MODE: MM-2D/E Device Management

INPUT screen

Notes about Dante

Dante is a transmission protocol developed by Audinate.

Using networks based on gigabit Ethernet standards, it enables multichannel (512 IN/512 OUT) transmission and high precision, for example.

Check the Audinate website for details about Dante.

https://www.audinate.com/

Connecting to a Dante network

In order to set up and use this card, you must also set up the Ethernet network that it is connected to, a computer that runs Dante Controller and other devices that support Dante.

Requirements for LAN cables used for connections with the connectors on this unit

Use STP cables that are at least category 5e.

Both crossover and straight cables can be used.

ATTENTION

This unit is not compatible with 100Mbps Ethernet switching hubs. Always use switching hubs that support Layer 2 and Gigabit Ethernet.

NOTE

• Set the computer to set the IP address automatically.
• Restarting the computer might be necessary if a previous network setting is still active on the computer.

Switched (daisy chain) connection

Dante devices can be daisy-chained when there are few connected devices and when not using a switching hub. Connect them as shown below.

Switched (daisy chain) connection example

NOTE

• When using a switched (daisy chain) connection, either DATA or DATA+PoE connectors can be used.
• If the number of connected devices increases, raising the latency setting will be necessary.

Using Dante Controller

Dante Controller overview

This unit uses the Dante Controller application, which is available at the Audinate website, to connect with other devices that support Dante.

Download the latest version of the Dante Controller application and an operation manual from the Audinate website.

Audinate download page

https://www.audinate.com/products/software/dante-controller

Make at least the following settings using a computer that has Dante Controller installed.

• Adjust the sampling frequency and bit depth of each Dante device.
• Set the audio routing.

NOTE

Settings made using Dante Controller are stored in the built-in memory of each Dante device.

Unless settings are modified, connections will not change even if Dante Controller is quit or the computer is disconnected from the Dante network.

Audio routing settings

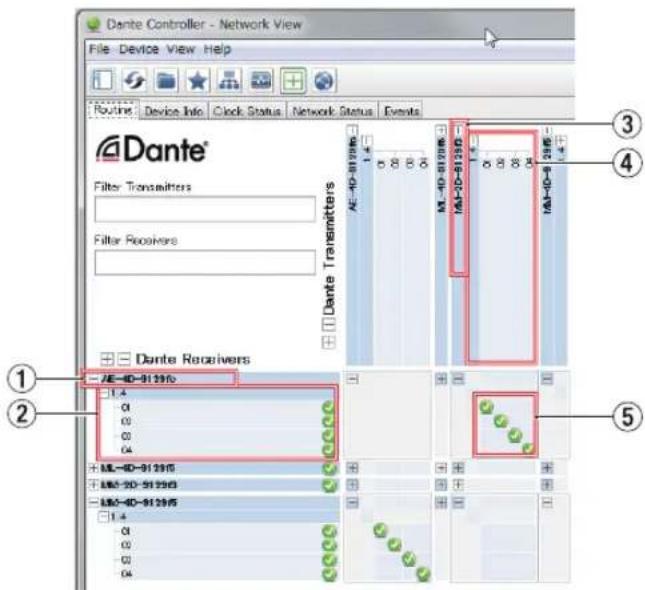

When Dante Controller is launched, the Network View screen shown below will open.

On this screen, you can set and monitor conditions related to the Dante network.

Dante Controller - Network View File Device View Help Routine Device Info Clock Status Network Status Events Dante® Filter Transmitters Filter Receivers Dante Receivers AE-40-81296 AE-40-81296 ML-40-81296 MA-40-81296 MA-40-81296 AE-40-81296 AE-40-81296 AE-40-81296 AE-40-81296 AE-40-81296 AE-40-81296 AE-40-81296 AE-40-81296 AE-40-81296 AE 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5

① Receiving device name

This is the name of a receiving device on the Dante network.

② Receiving device channels

These are the names of the channels of the receiving device on the Dante network.

③ Transmitting device name

This is the name of a transmitting device on the Dante network.

④ Transmitting device channels

These are the names of the channels of the transmitting device on the Dante network.

⑤ Audio routing

Route the audio channels of the transmitting and receiving devices that you want to connect here.

Left-click the intersection of the channels you want to connect on the matrix to connect them.

NOTE

While pressing the computer keyboard Ctrl key, left-click the "-" at the intersection of device names to connect all connectable channels at once.

Changing sampling frequencies and bit depths with Dante Controller

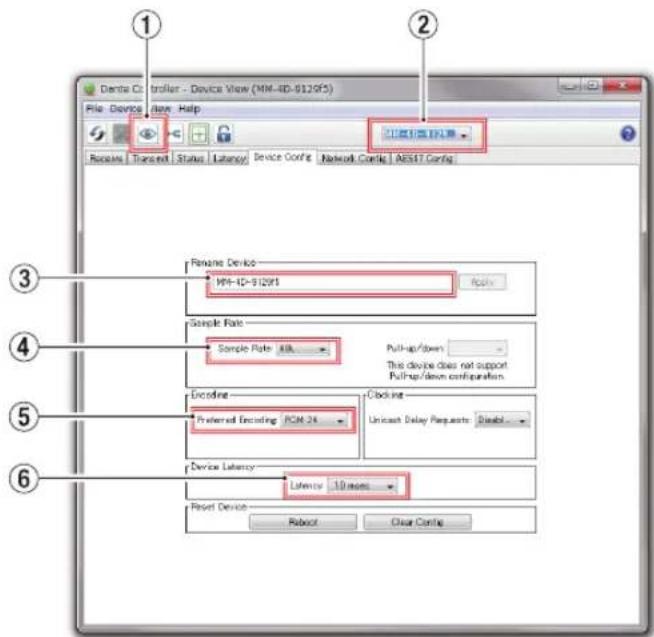

Double-click a device name on the Network View screen to open the Device View screen.

On this screen, you can set and monitor conditions related to devices on the Dante network.

Click the Device Config tab to open the page where you can change the sampling frequency, bit rate and other settings of the device selected in 1 shown in the illustration below.

Dental Controller - Device View (MM-4D-91295) File Device Back Help Recover Transient Status Latency Device Config Network Config ASIST Config ① ② ③ ④ ⑤ ⑥ Recover Device MM-4D-91291 Sample Rate Sample Rate: 10K Pull-up/down This device does not support Pull-up/down configuration. Encoding Preferred Encoding: PCM-24 Clock int Unicast Delay Requests: Disable... Device Latency: Latency: 10 times Reset Device Reset Clear Config

① Identify Device

If the unit is selected by device name (①), clicking this icon will cause all 3 SAMPLE RATE indicators to start blinking.

Clicking it again will return them to their ordinary status.

This allows the quick identification of the device being operated when multiple units are being used at the same time, for example.

② Device name

This is the name of the device that can have its settings changed in the current Device View.

③ Change device name

Edit the device name.

④ Sampling frequency

Set the sampling frequency.

⑤ Bit depth

Set the bit depth.

⑥ Latency setting

Set the latency.

Use the following guidelines to change the latency setting.

Selectable latency value	Connected network setup guideline
1 msec	The transmission route from the transmitting device to the receiving device passes through 10 gigabit switching hub.
2 msec	The transmission speed of the transmitting device is 100 Mbps.
5 msec	Use this maximum selectable latency value when creating a large-scale network.

ATTENTION

- Changing the name of a device will clear audio routing settings. For this reason, we recommend changing device names to names that are easy to identify before setting audio routings.

- Depending on network connection conditions, setting the latency to a value higher than the guideline might be necessary.

NOTE

When using a switched (daisy chain) connection, which does not use a switching hub, set the latency according to the number of Dante devices that signals pass-through as shown below.

Switched (daisy chain) connection example

Passes through 2 devices

Passes through 1 devices

Specifications

General

Formats and channels

44.1/48/88.2/96kHz, 16/24-bit, 2 channels

Input/output ratings

DATA/DATA+PoE connectors

Connector: RJ-45

Transmission protocol: Dante

Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)

Cables: category 5e or faster STP cables

ANALOG IN connectors

Connector:

Euroblock (balanced) 3.81 mm pitch (MM-2D-E)

XLR-3-31 (1: GND, 2: HOT, 3: COLD, MM-2D-X)

Minimun input level: -74 dBu

Maximum input level: +26 dBu

Input impedance: 2.0 kΩ or higher

ANALOG OUT connectors

Connector:

Euroblock (balanced) 3.81 mm pitch (MM-2D-E)

XLR-3-32 (1: GND, 2: HOT, 3: COLD, MM-2D-X)

Nominal output levels:

+4 dBu (when Ref. Level not -9 dBFS)

+6 dBu (when Ref. Level set to -9 dBFS)

Maximum output level (switchable):

+15 dBu (Ref. Level: -9 dBFS)

+18 dBu (Ref. Level: -14 dBFS)

+20 dBu (Ref. Level: -16 dBFS)

+22 dBu (Ref. Level: -18 dBFS)

+24 dBu (Ref. Level: -20 dBFS)

Output impedance: 200 Ω or lower

- 0dBu=0.775Vrms

Control input/output

External control connectors

(LED/SWITCH, MM-2D-E only)

Connectors: Euroblock (balanced) 3.81mm pitch

LED connectors

Output format: open collector (10Ω output impedance, 48V withstand voltage, 35mA maximum current)

Low level maximum output voltage: 0.5V

SWITCH connectors

Maximum input voltage: 5.5V

High level minimum input voltage: 2.31V

Low level maximum input voltage: 0.99V

External control connectors

(CONTROL, MM-2D-E only)

Connectors: Euroblock (balanced) 3.81mm pitch

10V/CONTROL/GND connectors:

Connect variable resistors (10kΩ recommended)

10V CONTROL GND

Audio performance

- MIC IN → DANTE OUT

Mic amp EIN (equivalent input noise)

-125 dBu (150Ω, 22kHz LPF+A, JEITA)

Frequency response

±0.5 dB: 20 Hz – 20 kHz

(44.1/48 kHz sampling frequency, JEITA)

±0.5 dB: 20 Hz - 40 kHz

(88.2/96 kHz sampling frequency, JEITA)

Distortion (THD+N)

0.005%

(when -1 dBFS input, 44.1/48/88.2/96 kHz sampling frequency, JEITA)

S/N ratio

105 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA)

Crosstalk

100 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA)

Dynamic range

105 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA)

• DANTE IN → LINE OUT

Frequency response

±0.5 dB: 20 Hz – 20 kHz
(44.1/48kHz sampling frequency, JEITA)
±0.5 dB: 20 Hz – 40 kHz
(88.2/96kHz sampling frequency, JEITA)

Distortion (THD+N)

0.005%

(when -1 dBFS input, 44.1/48/88.2/96 kHz sampling frequency, JEITA)

S/N ratio

105 dB

(44.1/48/88.2/96 kHz sampling frequency, JEITA)

Crosstalk

100 dB

(44.1/48/88.2/96 kHz sampling frequency, JEITA)

Dynamic range

105 dB

(44.1/48/88.2/96 kHz sampling frequency, JEITA)

Note: JEITA indicates compliance with JEITA CP-2150

Other

Power

PoE class 0

TASCAM PS-P1220E AC adapter (sold separately)

Power consumption

6W (MM-2D-E)

6W (MM-2D-X)

Dimensions

214 × 44.45 × 136.1 mm (W x H x D, including protrusions)

Weight

878 g (MM-2D-E)

878 g (MM-2D-X)

Operating temperature range

0^ C-40^ C

● See the back of this manual for dimensional drawings and DSP block diagrams.
● Illustrations in this manual might differ in part from the actual product.
- Specifications and external appearance might be changed without notification to improve the product.

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

AVERTISSEMENT : POUR PRÉVENIR LES RISQUES D'INCENDIE ET D'ÉLECTROCUTION, N'EXPOSEZ PAS CET APPAREIL À LA PLUIE NI À L'HUMIDITÉ.

Pour le Canada

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.

CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA.

TBIAC CORPORATION 120mm Plaque office: 1.47 Oxtus, Torso, eti, Tokyo JCF-5030, Japan Made in China Plaque signalétique

Sommaire

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES ......17

Introduction....20

Performances audio....29

Autres 30

Introduction

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

NOTE

Line drawing of a rectangular electronic device with ports and a connector (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

https://www.audinate.com/

https://www.audinate.com/products/software/dante-controller

Dental Controller - Device View (MM-4D-01291) File Device New Help Recovery Transcript Status Latency Device Config Network Config AESIT Config Recovery Device MM-4D-01291 Apply Sample Rate Sample Rate: 16. Pull-up/down This device does not support Pull-up/down configurations. Encoding Preferred Encoding: PCM 24 Clockint Unicast Delay Requests: Cancel... Device Latency: Latency: 10 times Reset Device Reset Clear Config ① ② ③ ④ ⑤ ⑥

Responsible: TEAC AMERICA, INC.

Dirección: 10410 Pioneer Blvd. Suite #1 and #4, Santa Fe Springs, California 90670, U.S.A.

⑧ Conectores DC IN/DC OUT

⑮ Conector DC IN 12V

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

NOTA

Line drawing of a rectangular electronic device with ports and a clip, no text or symbols present

Technical line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

https://www.audinate.com/

https://www.audinate.com/products/software/dante-controller

Dental Controller - Device View (MM-4D-012915) File Device New Help Recovery Transient Status Latency Device Config Network Config ASIST Config Recovery Device MM-4D-01291 Sample Rate Sample Rate: 10K Pull-up/down This device clear not support Pull-up/down configurations. Encoding Preferred Encoding: PCM_24 Clockint Unicast Delay Requests: Cancel... Device Latency: Latency: 10 times Reset Device Reset Clear Conlc ① ② ③ ④ ⑤ ⑥

+15 dBu (Ref. Level: -9 dBFS)

+18 dBu (Ref. Level: -14 dBFS)

+20 dBu (Ref. Level: -16 dBFS)

+22 dBu (Ref. Level: -18 dBFS)

+24 dBu (Ref. Level: -20 dBFS)

⑧ Stromversorgungsanschlüsse DC IN / DC OUT

Line drawing of a rectangular electronic device with ports and control buttons (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Line drawing of a rectangular electronic device with ports and a connector (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

https://www.audinate.com/products/software/dante-controller

Dentra Controller - Device View (MM-4D-91205) File Device Item Help Receive Transport Status Latency Device Config Network Config RESET Config ① ② ③ ④ ⑤ ⑥ Penset Device MM-4D-91205 Apply Sample Rate Sample Rate: 100 Pull-up/daily This device does not support Pull-up/downConfiguration Encoding Preferred Encoding PCM 24 Locking Uncount Delay Requests: Disable... Device Latency: Latency: 10 times Reset Device Reset Clear Config

XLR-Anschlüsse (XLR-3-31, 1: Masse, 2: Heiß (+), 3: Kalt (−))

⑧ Connettori DC IN/DC OUT

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

NOTA

Line drawing of a rectangular electronic device with ports and a connector (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

https://www.audinate.com/

https://www.audinate.com/products/software/dante-controller

Dentle Controller - Device View (MN-4D-0129F5) File Device Item Help Resume Turnout Status Latency Device Config Network Config ASSET Config Reverse Device MN-4D-0129F1 Sample Rate Sample Rate 88 Push-up/down This device does not support Pull-up/down configuration Encoding Preferred Encoding PCM.26 Clocking Unicast Delay Requests Disks... Device Latency Latency 10 times Reset Device Reset Clear Config

Line drawing of a rectangular electronic device with ports and connectors, no text or symbols present

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

メモ

Line drawing of a rectangular electronic device with a connector and ports (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

机に設置する

https://www.audinate.com/

Danteネットワークとの接続方法

https://www.audinate.com/products/software/dante-controller

Dante Controller - Network View File Device View Help Routing Device Info Clock Status Network Status Events Dante® Filter Transmitters Filter Receivers Dante Recivers AE-40-01/06 1.4 0 8 8 8 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 4 5

① 受信デバイス名

Dentra Controller - Device View (MM-4D-9129F5) File Device New Help Received Transmit Status Latency Device Config Network Config AES17 Config Request Device MM-4D-9129F1 Sample Rate Sample Rate: 10K Pull-up/down This device does not support Pull-up/down configuration Encoding Preferred Encoding PCM 24 Clocking Uncost Delay Requests: Broadcast... Device Latency: Latency: 10 mscc Reset Device Reset Clear Config

① Identify Device

XLR-3-31 (1: GND, 2: HOT, 3: COLD) (MM-2D-X)

最小入力レベル：-74dBu

最大入力レベル：+26dBu

入力インピーダンス：2.0kΩ以上

ANALOG OUT端子

コネクター：

Euroblock (Balanced) 3.81mmピッチ (MM-2D-E)

XLR-3-32 (1: GND、2: HOT、3: COLD) (MM-2D-X)

基準出力レベル：

+4dBu (Ref.Level: -9dBFS以外)

+6dBu (Ref.Level: -9dBFS設定時)

最大出力レベル（切り換え）：

+15dBu (Ref.Level: -9dBFS)

+18dBu (Ref.Level: -14dBFS)

+20dBu (Ref.Level: -16dBFS)

+22dBu (Ref.Level: -18dBFS)

+24dBu (Ref.Level: -20dBFS)

出力インピーダンス：200Ω以下

dBu=0.775Vrms

コントロール入出力定格

http://teac-global.com/support/opensource/form/

To request the source codes, please access the following URL and fill in the registration form.

http://teac-global.com/support/opensource/form/

Please note that we are unable to answer any inquiries or questions about the contents of the source codes.

Software Licensing

Precision Time Protocol daemon (v1b2)

http://sourceforge.net/projects/ptpd/files/

Copyright (c) 2009-2012 George V. Neville-Neil, Steven Kreuzer, Martin Burnicki, Jan Breuer, Gael Mace, Alexandre Van Kempen

Copyright (c) 2005-2008 Kendall Correll, Aidan Williams All Rights Reserved

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE AUTHORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHORS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

mdnsd - embeddable Multicast DNS Daemon

https://github.com/cooljeanius/mdnsd

The mdnsd source code is licensed by the BSD License - text provided below.

Copyright (c) 2007, Jer - [e-mail]

All rights reserved.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THE-

ORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

IwIP (v2.0.3)

http://savannah.nongnu.org/projects/lwip/

IwIP is licenced under the BSD licence:

Copyright (c) 2001-2004 Swedish Institute of Computer Science. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR 'AS IS' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

FreeRTOS (v6.0.4)

tropicssl (v6a6997f)

http://gitorious.org/tropicssl/

Copyright (c) 2009, StackFoundry LLC < [e-mail]>.

Based on XySSL: Copyright (c) 2006-2008, Christophe Devine.

Based on PolarSSL: Copyright (c) 2009, Paul Bakker

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the names of PolarSSL or XySSL nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

< In the United States >

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty is only valid within the country the unit was originally purchased.

WHAT IS AND IS NOT COVERED

Except as specified below, this warranty covers all defects in materials and workmanship in this product. The following are not covered by the warranty:

1. Damage to or deterioration of the external cabinet.
2. Damages resulting from accident, misuse, abuse or neglect.
3. Damage resulting from failure to perform basic daily maintenance and/or calibration or otherwise resulting from failure to follow instructions contained in your owner's manual.
4. Damage occurring during shipment of the product. (Claims must be presented to the carrier)
5. Damage resulting from repair or attempted repair by anyone other than TEAC or an authorized TASCAM service station.
6. Damage resulting from causes other than product defects, including lack of technical skill, competence, or experience of the user.
7. Damage to any unit which has been altered or on which the serial number has been defaced, modified or is missing.

WHO IS COVERED UNDER THE WARRANTY

This warranty may be enforced only by the original purchaser. This warranty is not valid if the product was purchased through an unauthorized dealer.

LENGTH OF WARRANTY

All parts except heads and disk drives are warranted for one (1) year from the date of original purchase. Heads and disk drives are warranted to ninety (90) days from date of original purchase. Labor is warranted for ninety (90) days from date of original purchase.

WHAT WE WILL PAY FOR

We will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this warranty.

HOW YOU CAN GET WARRANTY SERVICE

Your unit must be serviced by an authorized TASCAM service station in the United States. (This warranty is not enforceable outside the U.S.) If you are unable to locate an authorized TASCAM service station in your area, please contact us. We either will refer you to an authorized service station or instruct you to return the unit to the factory. Whenever warranty service is required, you must present a copy of the original dated sales receipt from an Authorized TASCAM Dealer.

You must pay any shipping charges if it is necessary to ship the product to service. However, if the necessary repairs are covered by the warranty, we will pay return surface shipping charges to any destination within the United States.

LIMITATION OF IMPLIED WARRANTIES

Any implied warranties, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

TEAC's liability for any defective product is limited to repair or replacement of the product, at TEAC's option. TEAC shall not be liable for:

1. Damages based upon inconvenience, loss of use of the product, loss of time interrupted operation or commercial loss; or

2. Any other damages, whether incidental, consequential or otherwise.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

To locate an Authorized Service Center in Your Area

CALL 1-800-447-8322

This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.

These warranty provisions in Japanese are valid only in Japan.

< In other countries/areas >

This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province.

If you have a warranty claim or request, please contact the dealer where you bought the product.

If you require repair services for your TASCAM equipment, please contact the dealer where the product was purchased from or the TASCAMDistributor in your country. A list of TASCAMD distributors can be found on our website at: http://teac-global.com/

Model / Modèle / Modell Modello / Modelo / 型名

Owner's name / Nom du possesseur / Name des Eigentümers Nome del proprietario / Nombre del propietario / お名前

MM-2D-E / MM-2D-X

Serial No. / No de Série / Seriennummer Numero di serie / Número de serie / 機番

Address / Adresse / Adresse Indirizzo / Dirección / ご住所

Sample Date of purchas / Da de ach / Da um d K's Data dell'acquisto / Fecha de compra / お買い上げ日

Dealer's name / Nom du détaillant / Name des Händlers Nome del commerciante / Nombre del establecimiento / 販売店

TASCAM

http://teac-global.com/

Dealer's address / Adresse du détaillant / Adresse des Händlers Indirizzo del commerciante / Dirección del establecimiento / 住所

Memo / 修理メモ
